What is the capacity of the Bale clamp – E series- side shifting?

The Bale clamp – E series- side shifting handles 1900-2700 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the Bale clamp – E series- side shifting use?

The Bale clamp – E series- side shifting is available for ISO 2A / ISO 3A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the Bale clamp – E series- side shifting are available?

Wontonne offers 14 models of the Bale clamp – E series- side shifting — including BCS20E-106A, BCS20E-106B, BCS20E-107A, BCS20E-107B, BCS30E-108A and more — with different capacities and load centers for various applications.

What is the capacity range of Wontonne bale clamps?

The E-series bale clamps cover 1900-5000 kg capacity depending on model and opening configuration. Pulp bale clamps and revolving variants are available for different load densities.

Products / Bale Clamps / Bale clamp – E series- side shifting

Bale Clamps

Bale clamp – E series- side shifting

Q: Which materials can a bale clamp handle?

Bale clamps handle pulp bales, waste paper, recycled plastics, textile rags and natural or synthetic textile fibers — anything in soft, compressible bale form.

Engineered for durability and precision, bale clamp – e series- side shifting delivers reliable performance in demanding material handling environments.

All Bale Clamps

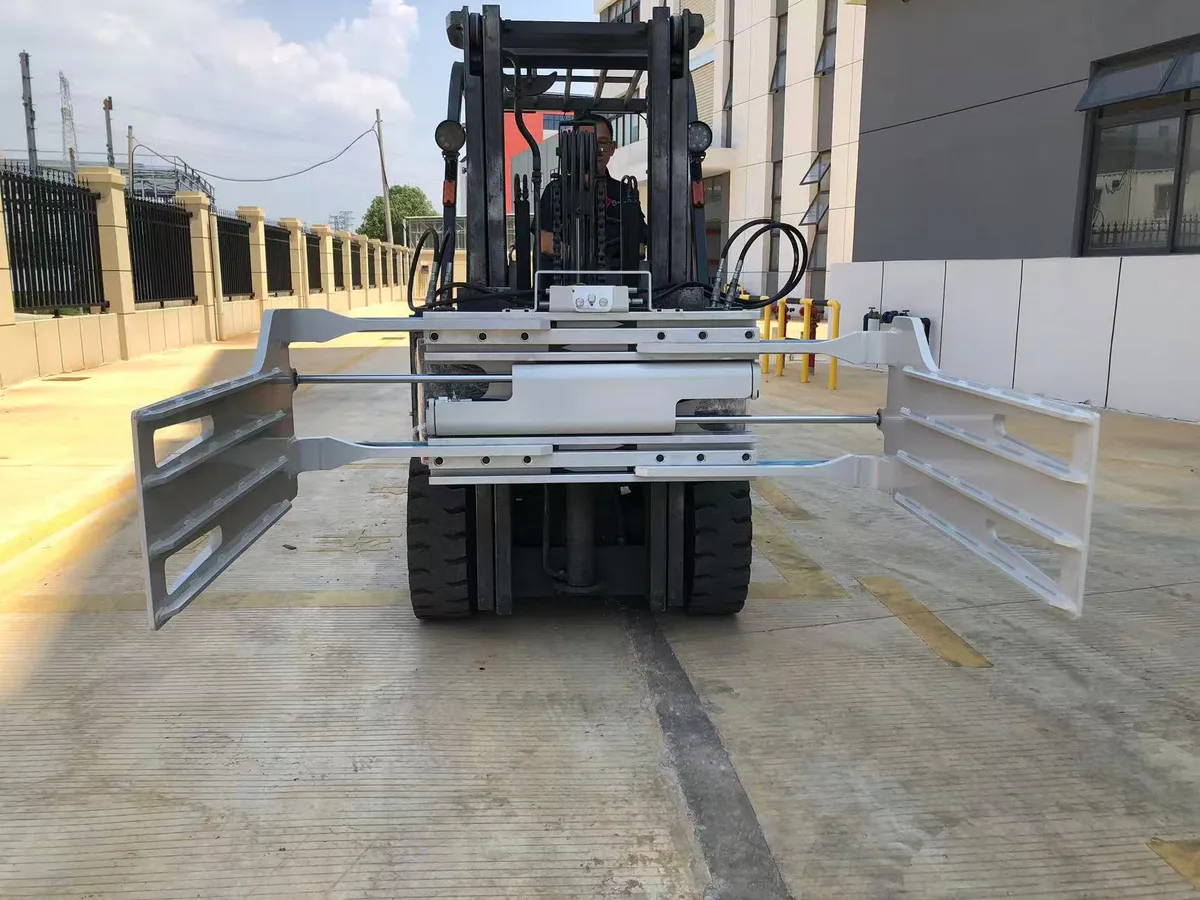

Bale clamp – E series- side shifting - 1

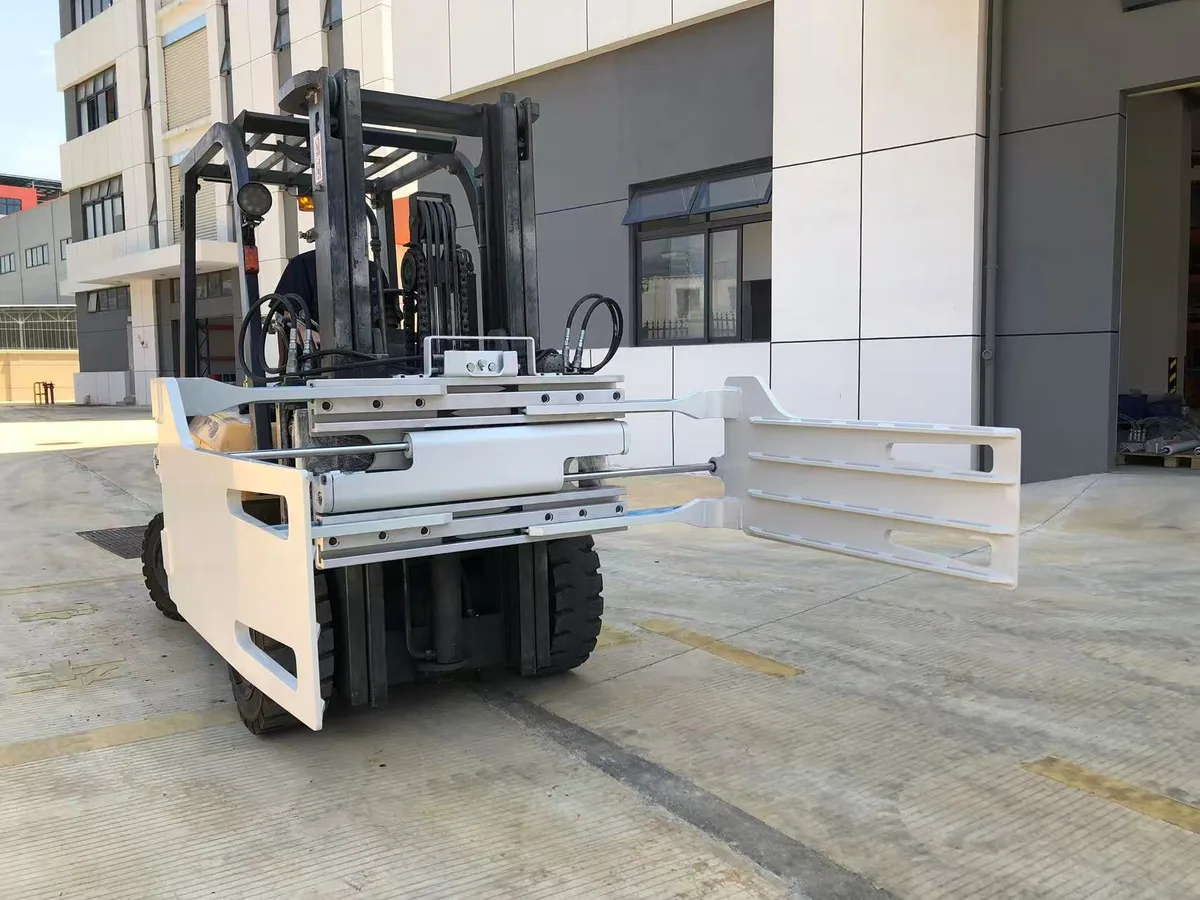

Bale clamp – E series- side shifting - 2

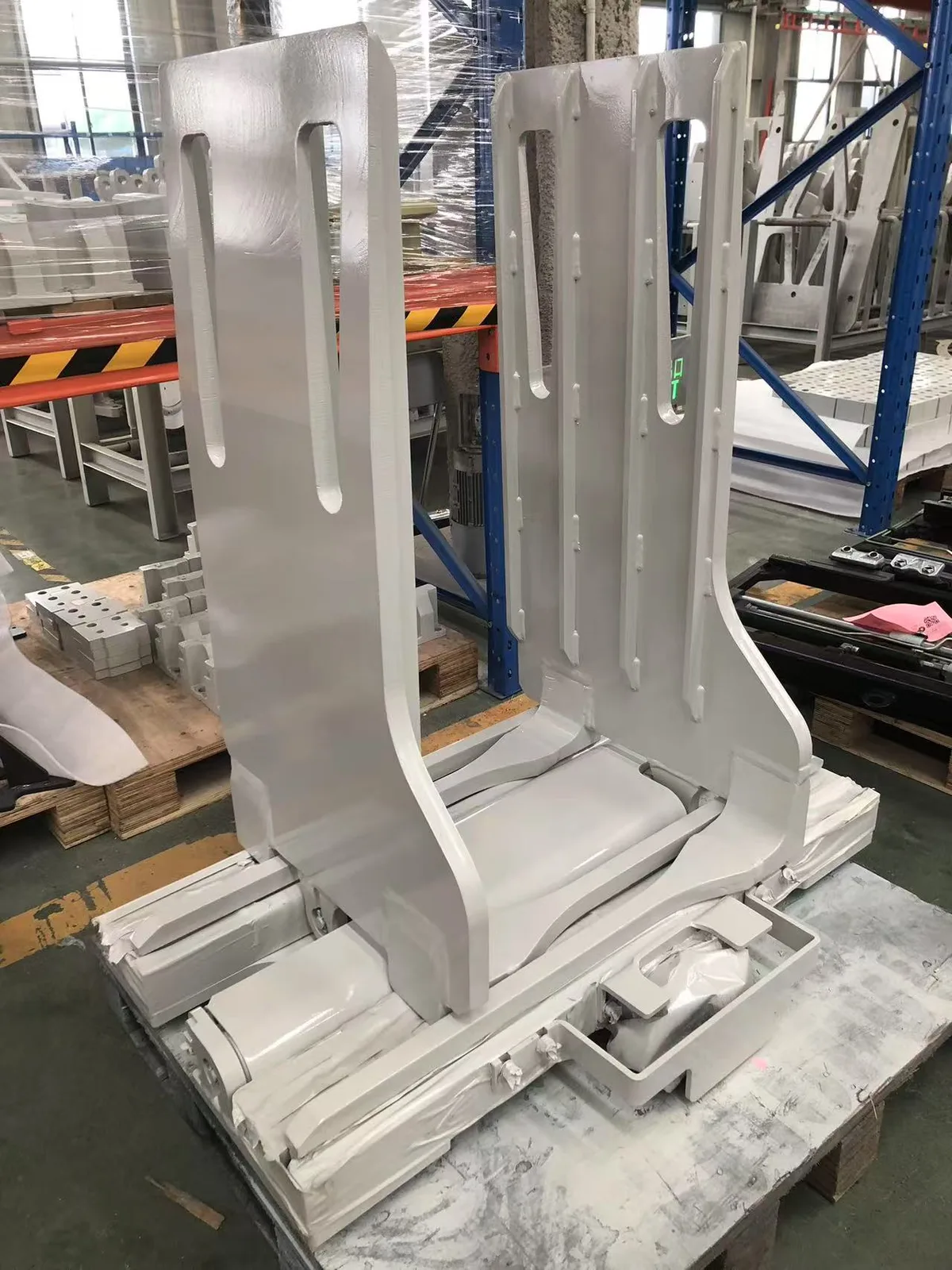

Bale clamp – E series- side shifting - 3

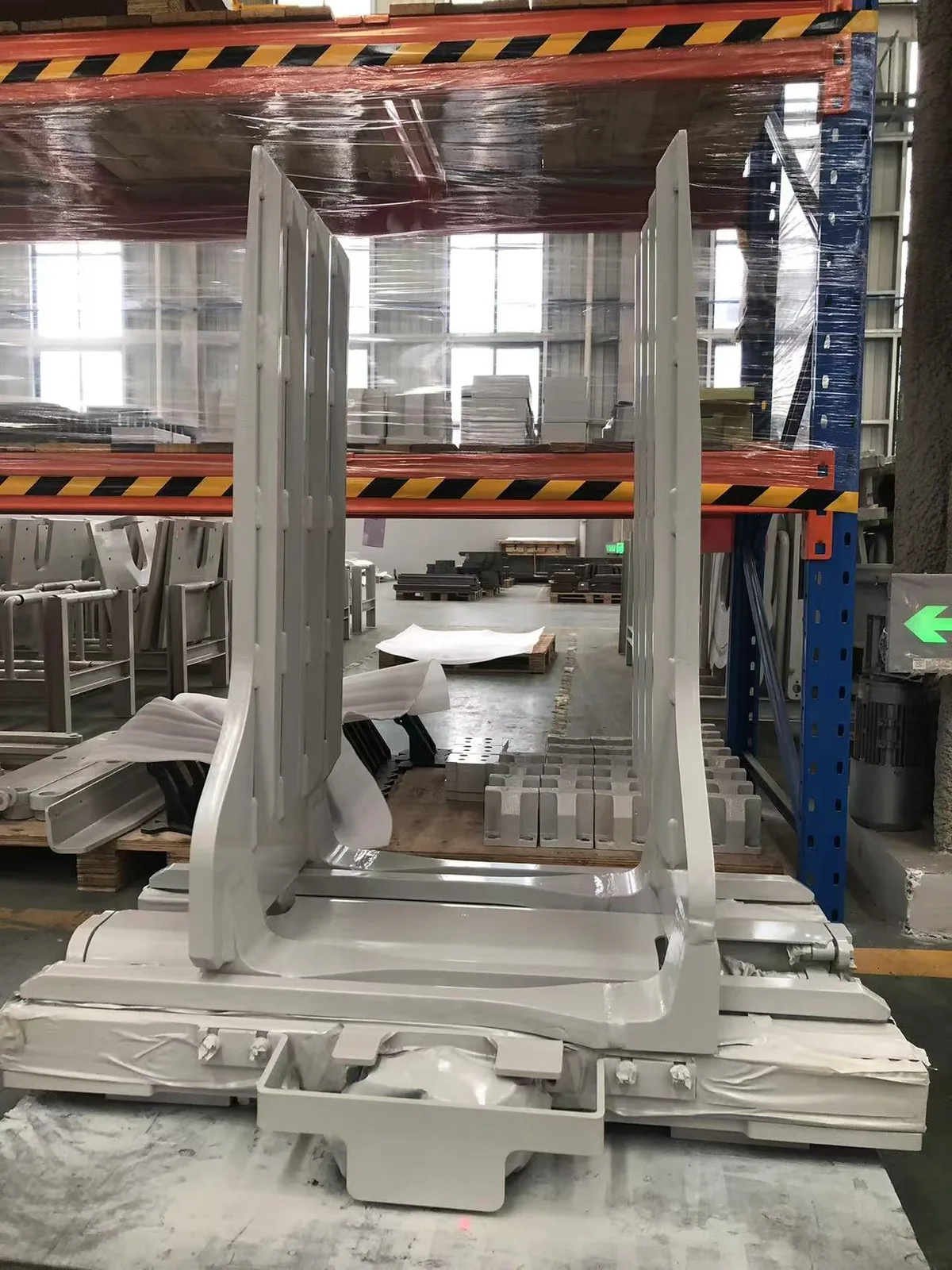

Bale clamp – E series- side shifting - 4

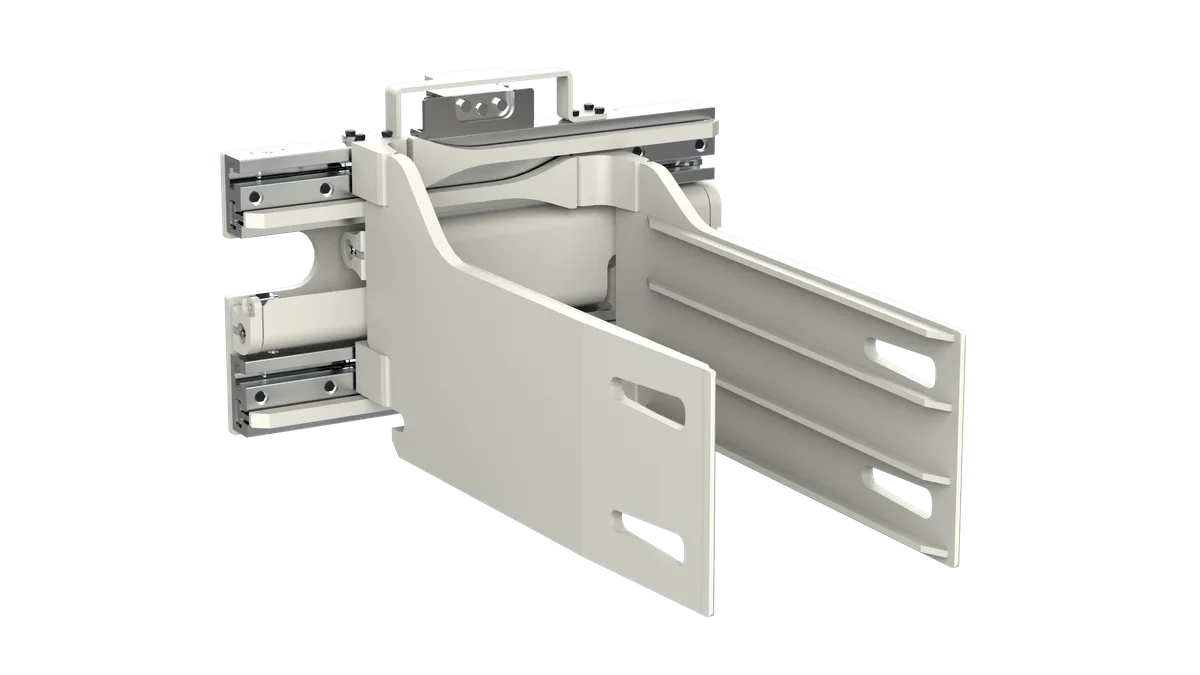

Bale clamp – E series- side shifting - 5

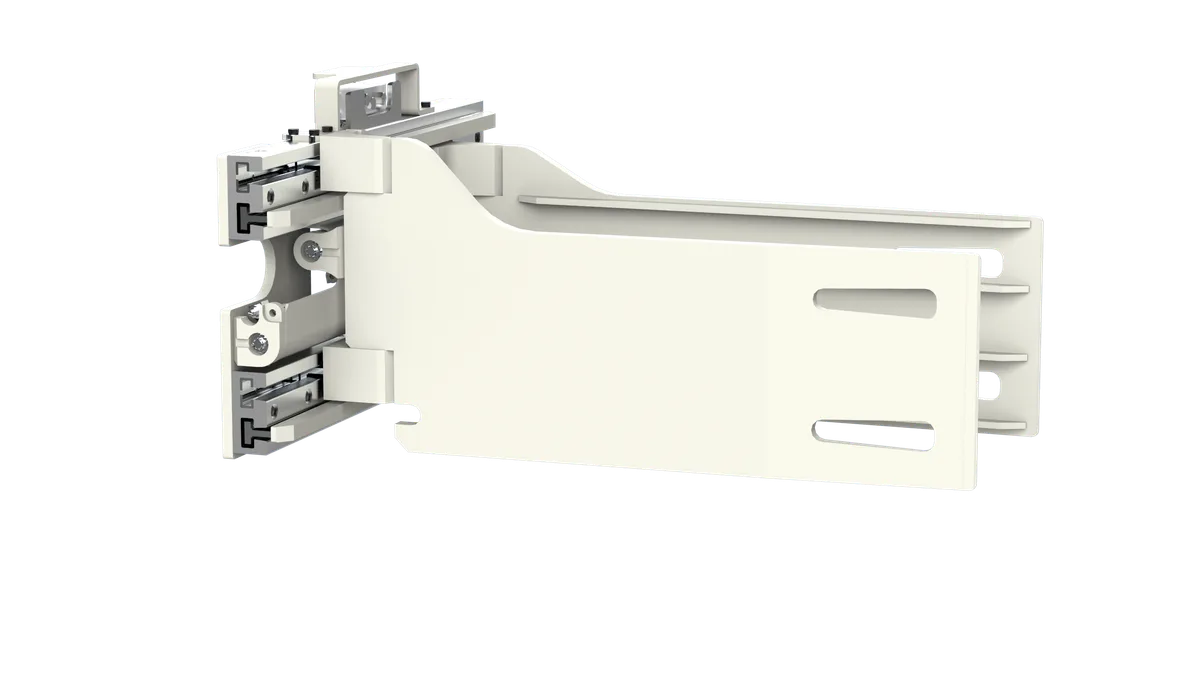

Bale clamp – E series- side shifting - 6

Bale clamp – E series- side shifting - 7

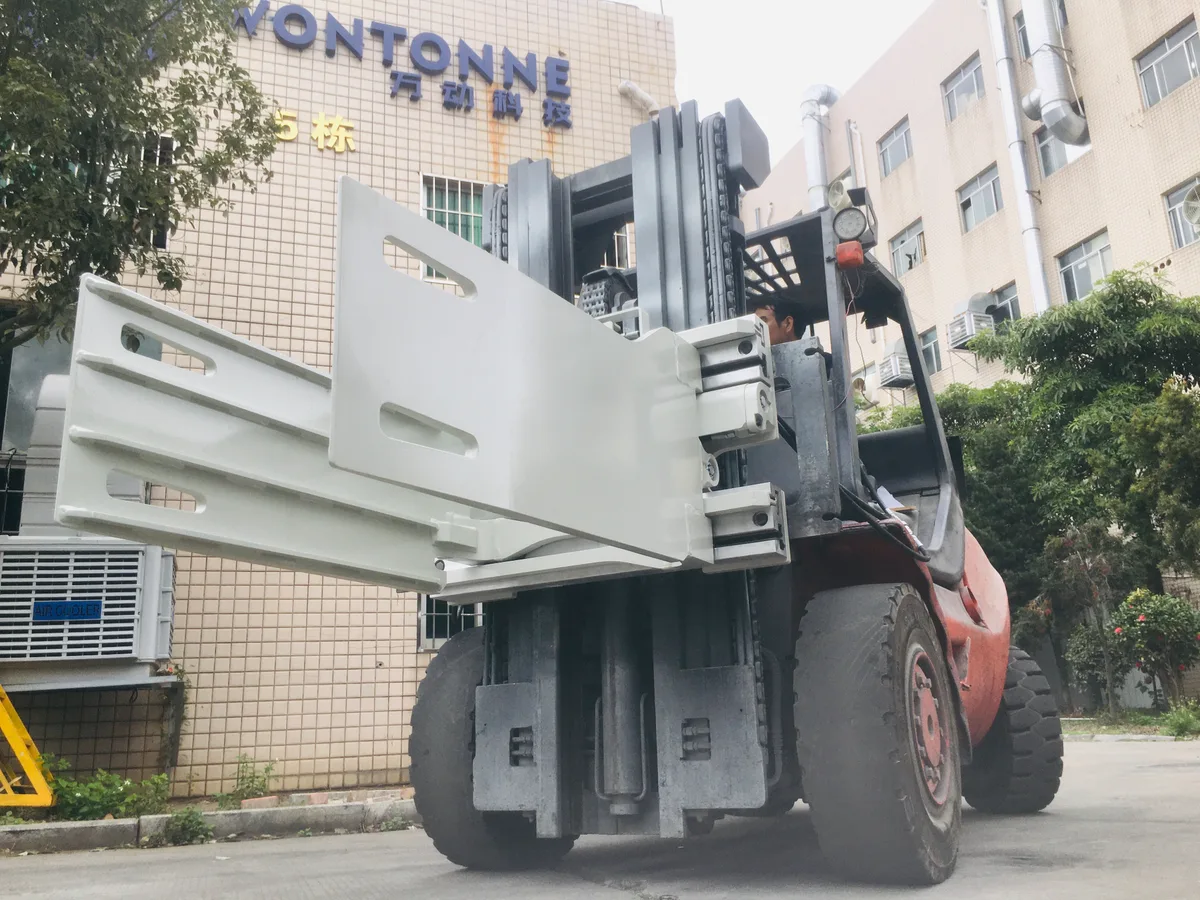

Bale clamp – E series- side shifting - 8

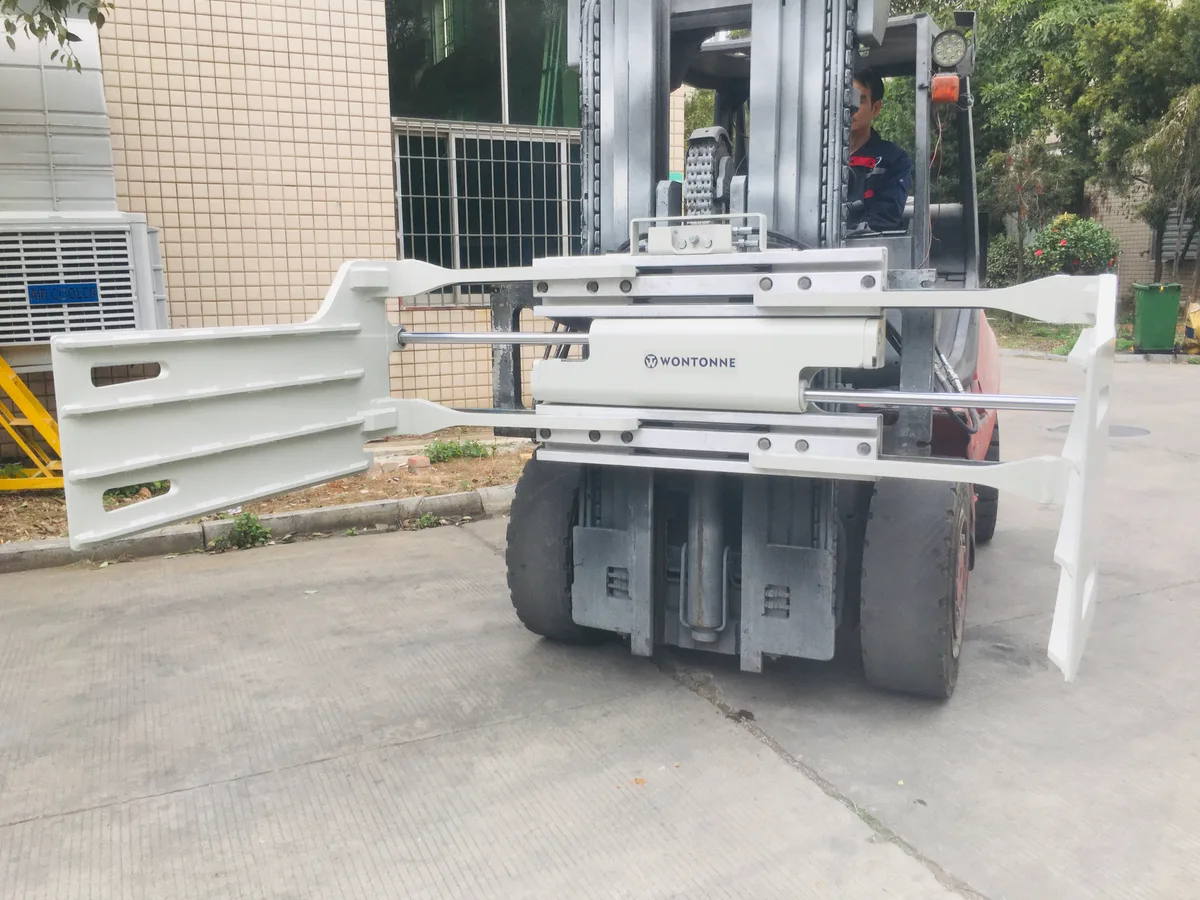

Bale clamp – E series- side shifting - 9

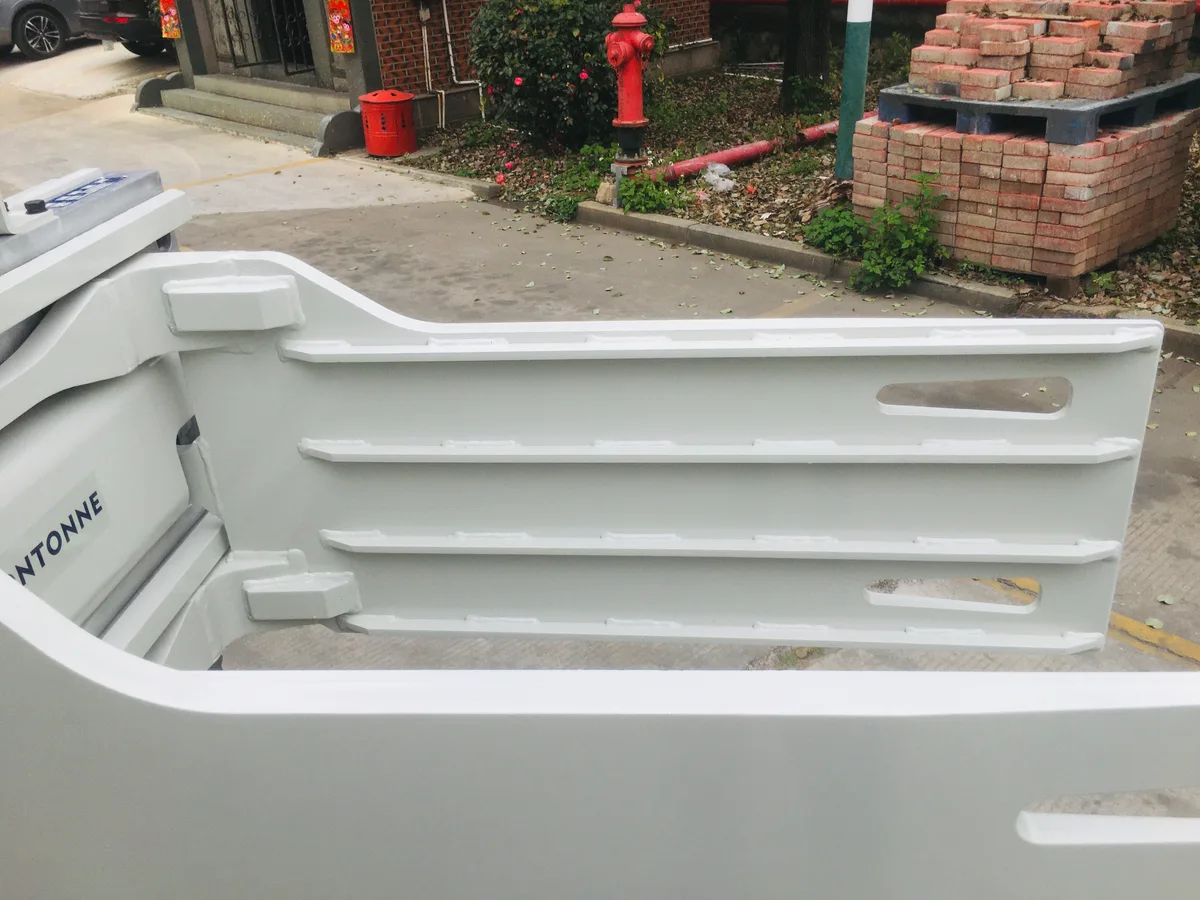

Bale clamp – E series- side shifting - 10

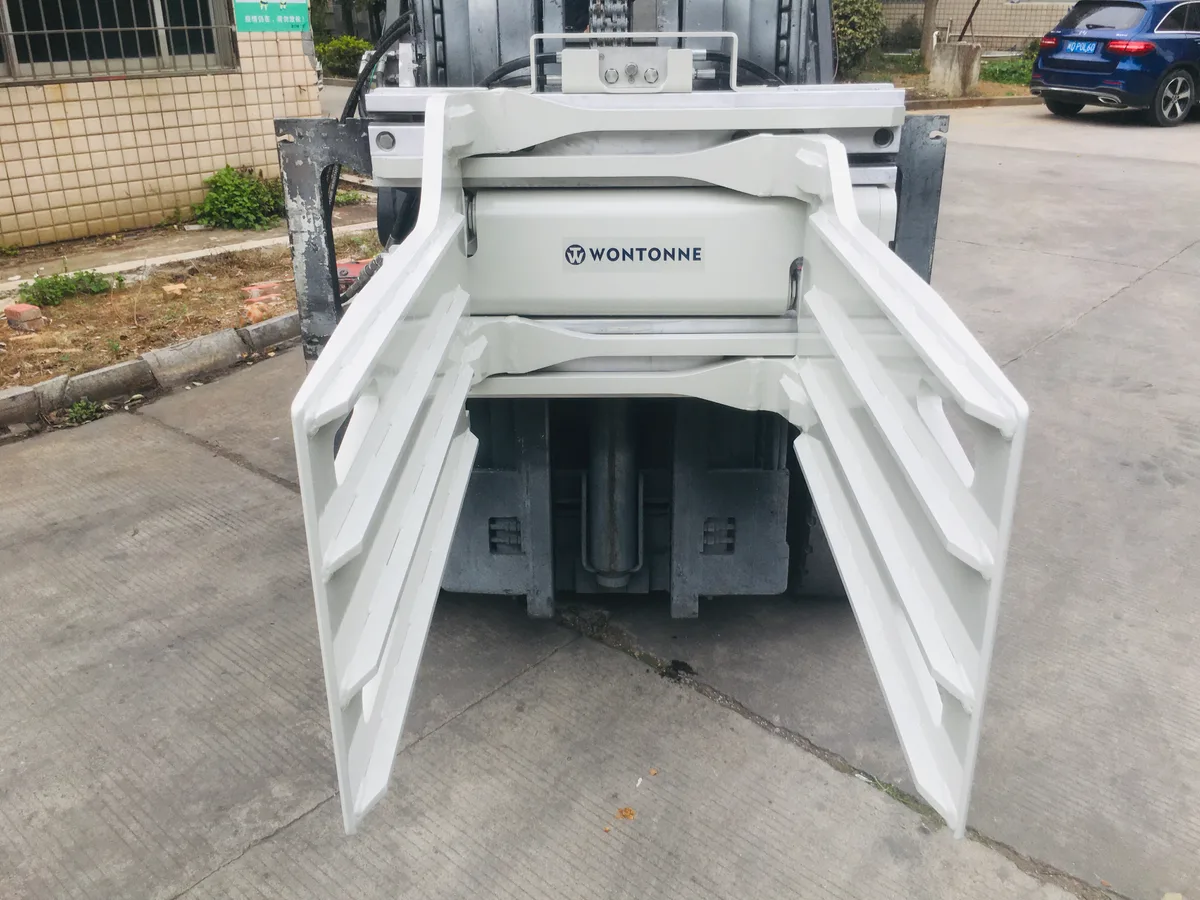

Bale clamp – E series- side shifting - 11

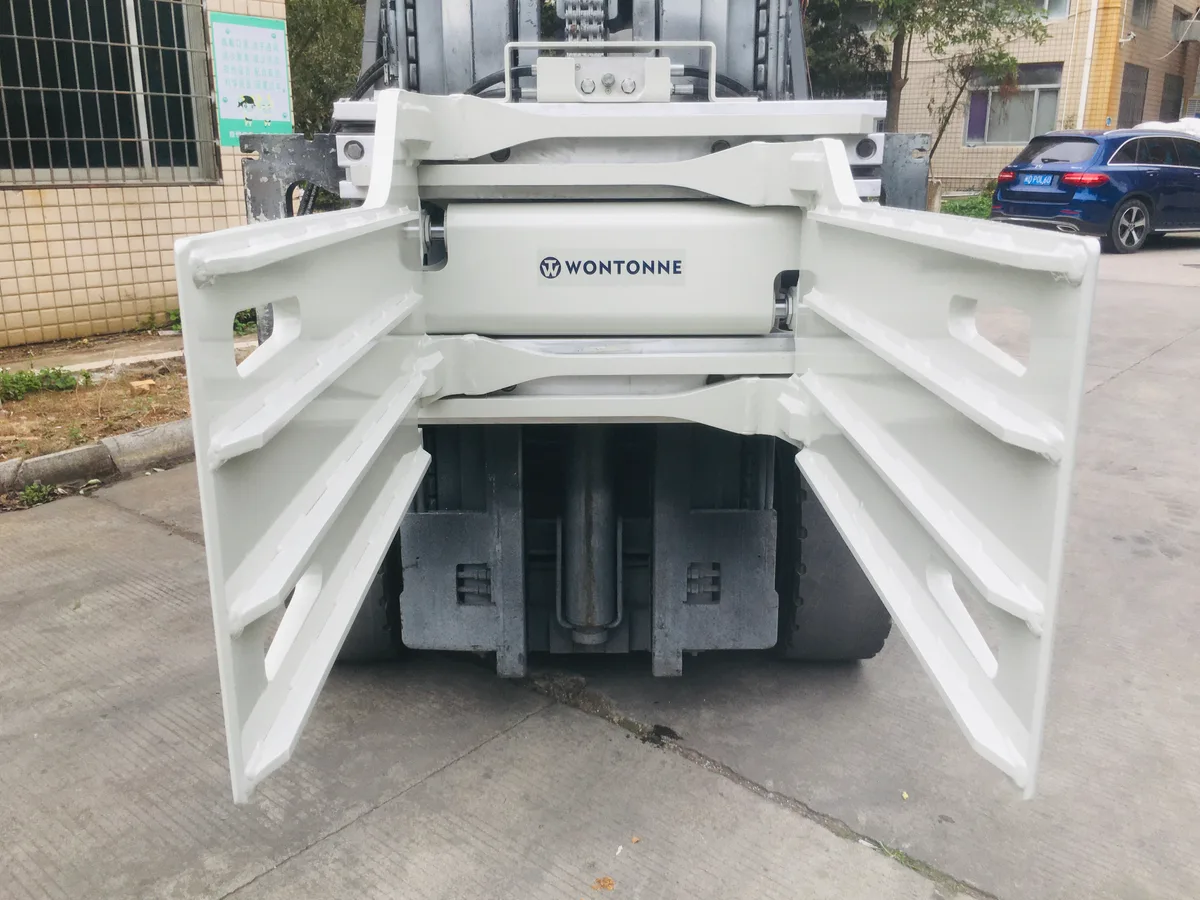

Bale clamp – E series- side shifting - 12

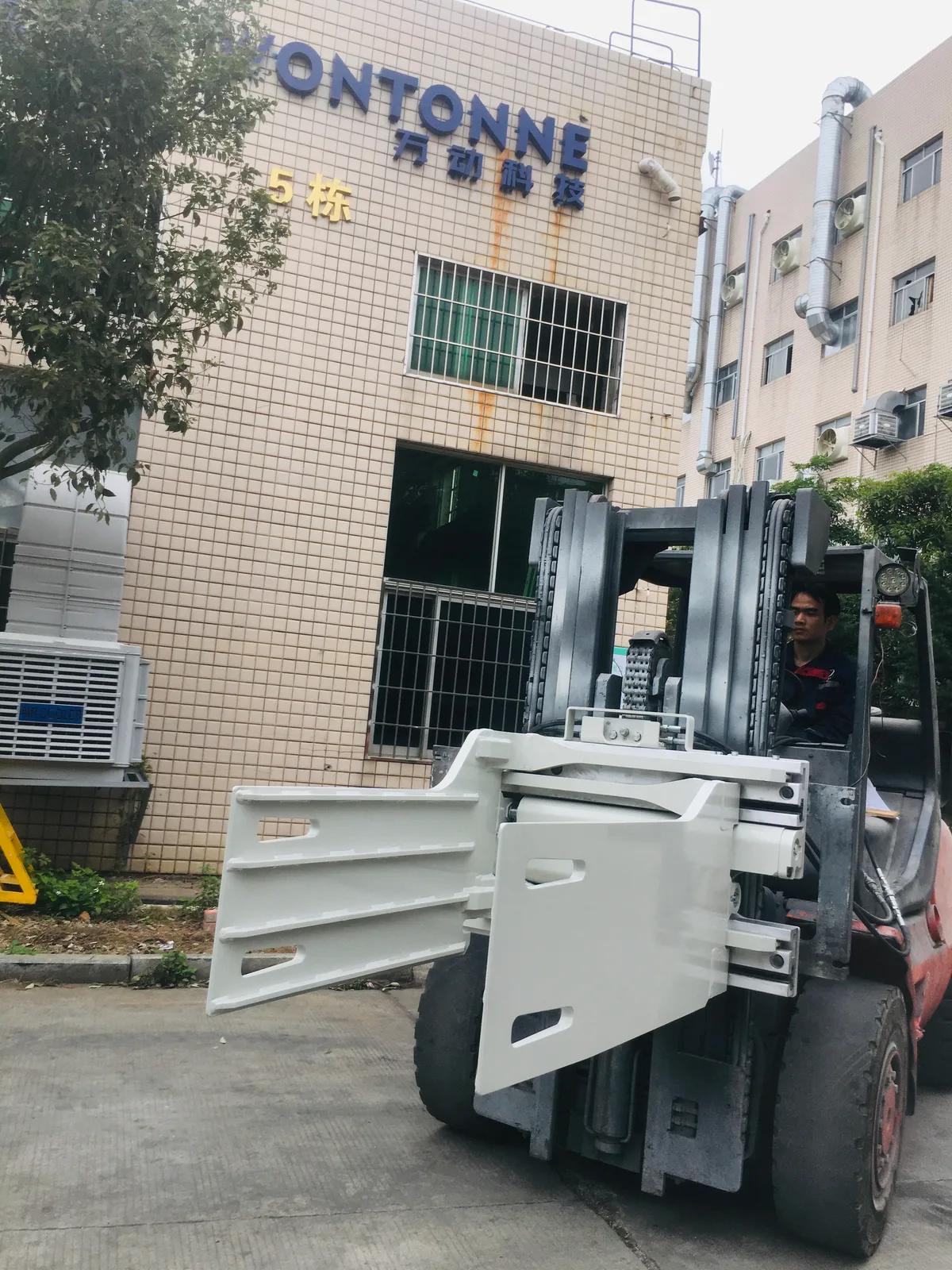

Bale clamp – E series- side shifting - 13

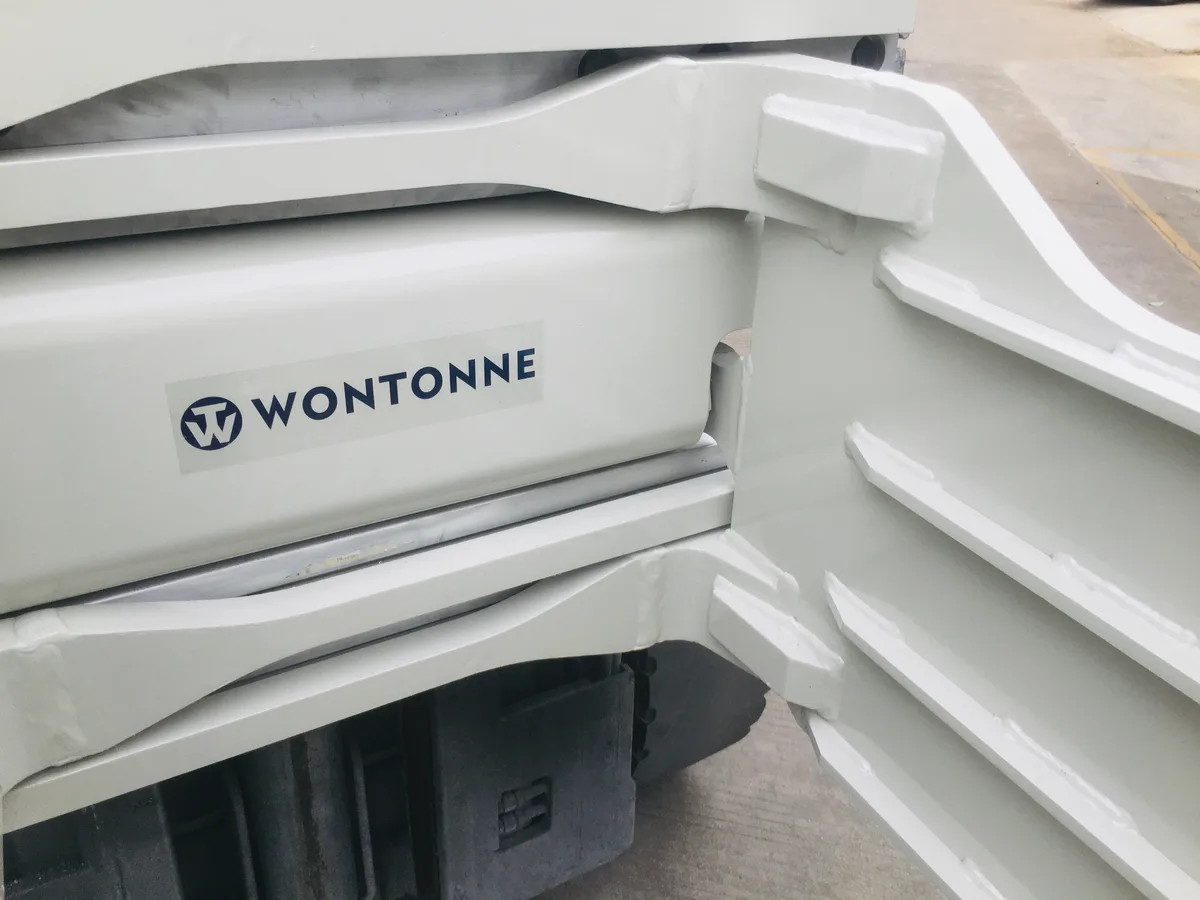

Bale clamp – E series- side shifting - 14

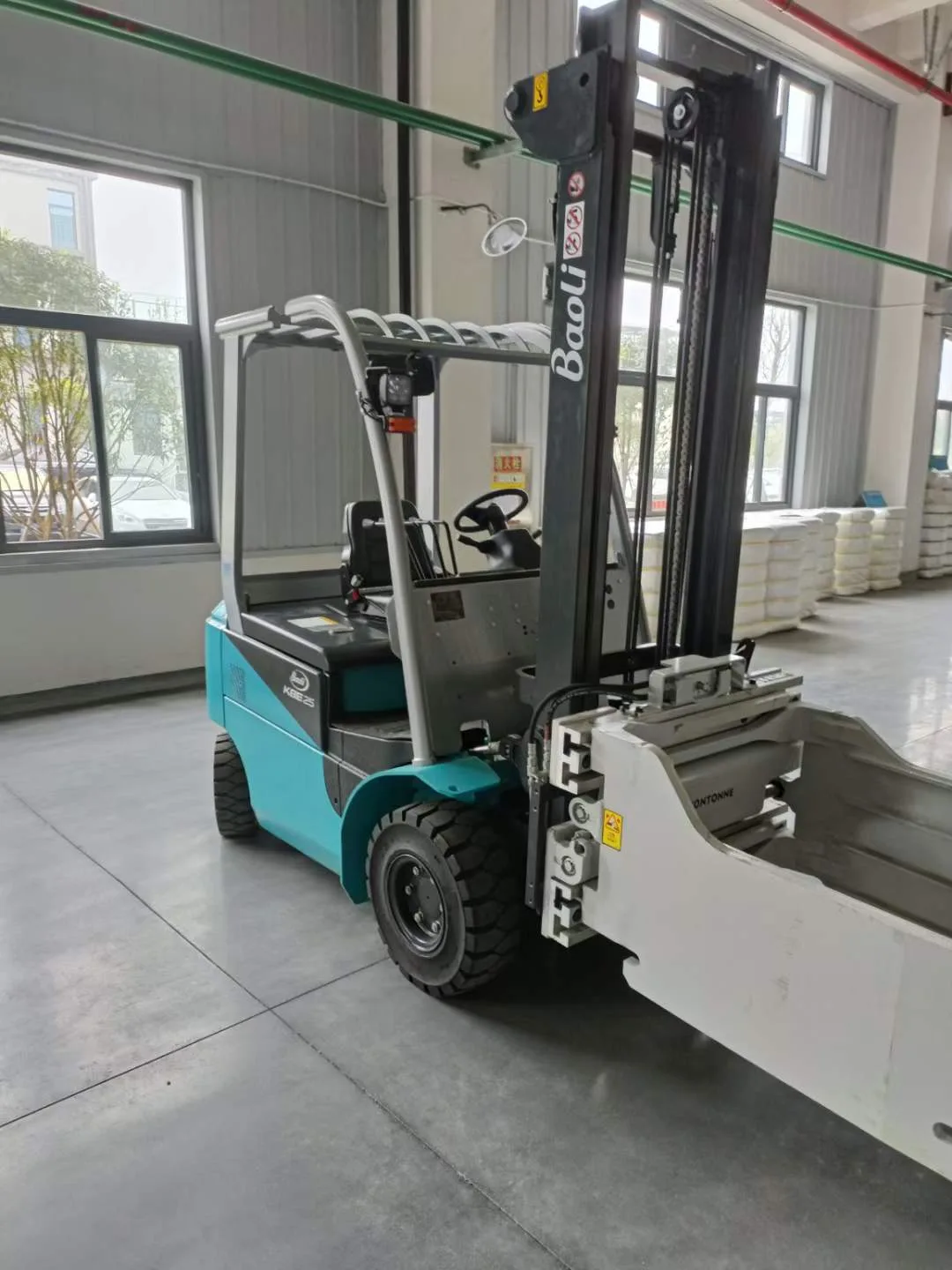

Bale clamp – E series- side shifting - 15

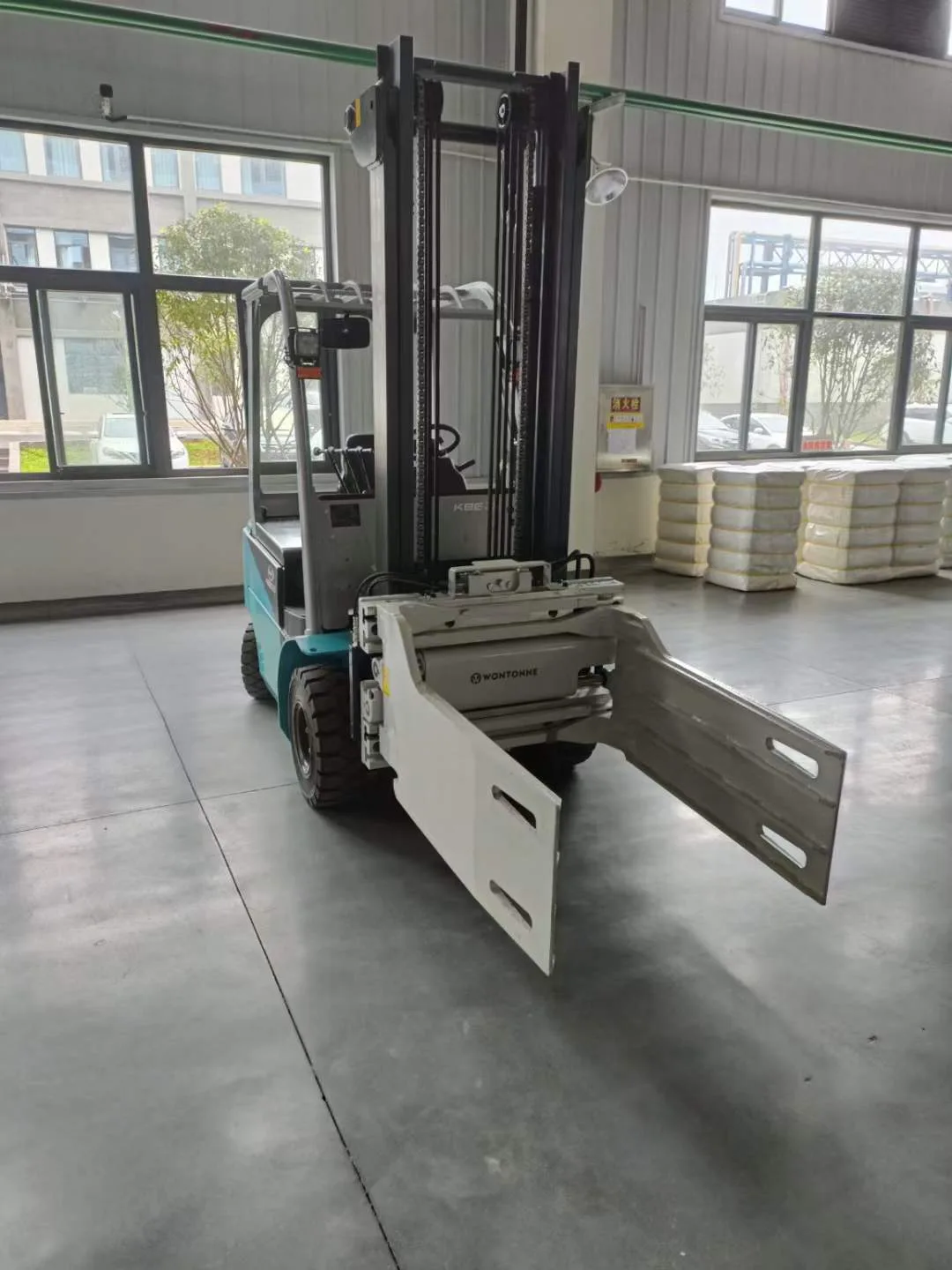

Bale clamp – E series- side shifting - 16

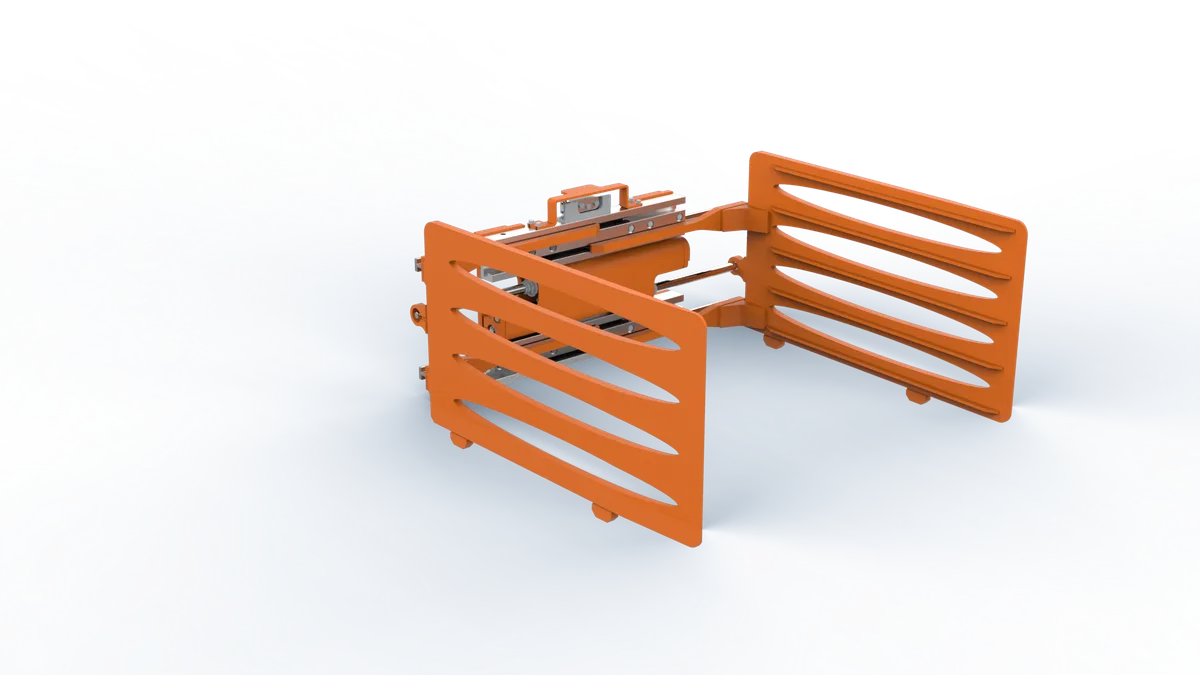

Bale clamp – E series- side shifting - 17

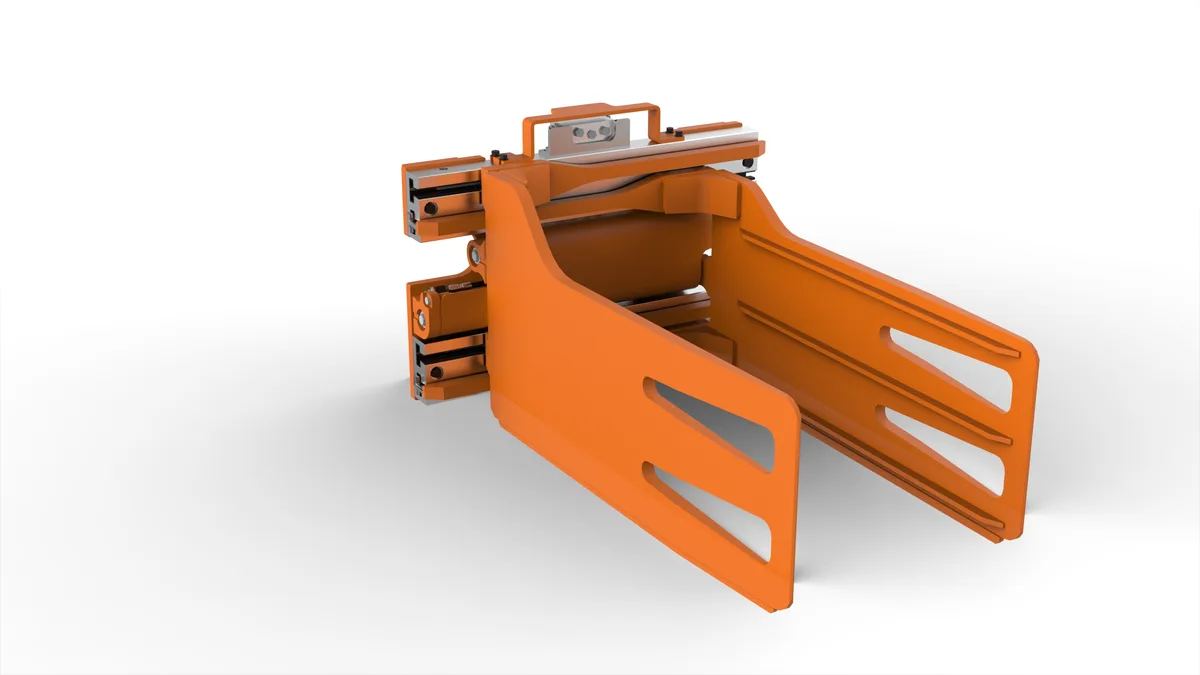

Bale clamp – E series- side shifting - 18

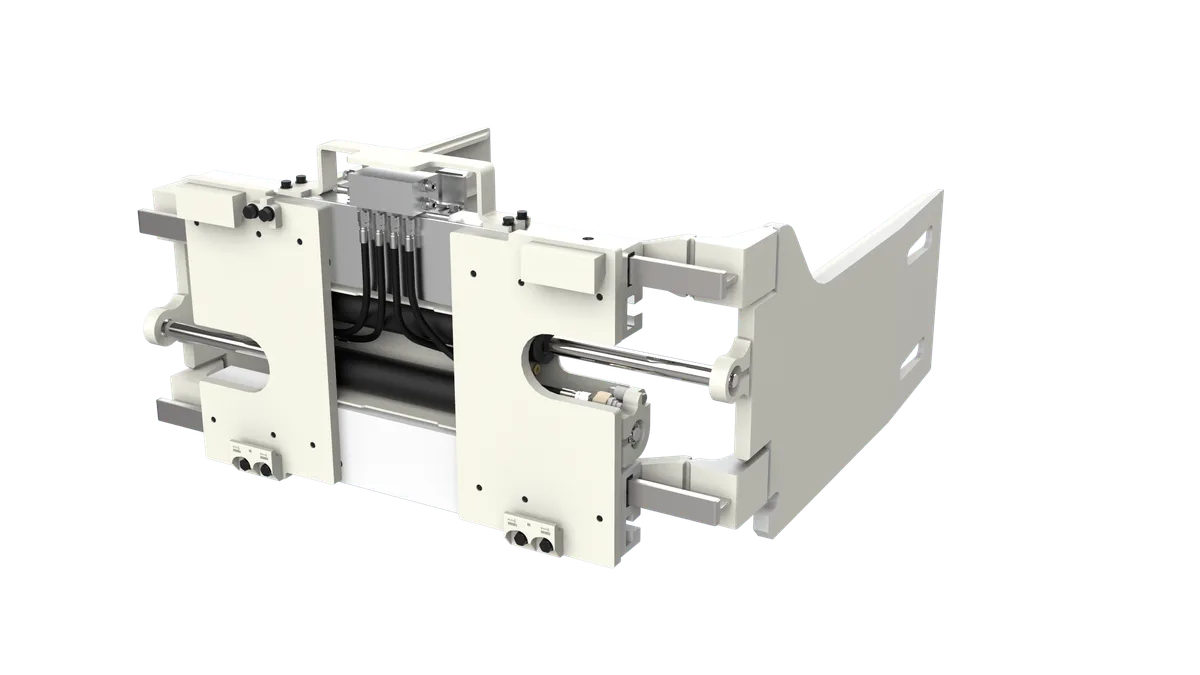

Bale clamp – E series- side shifting - 19

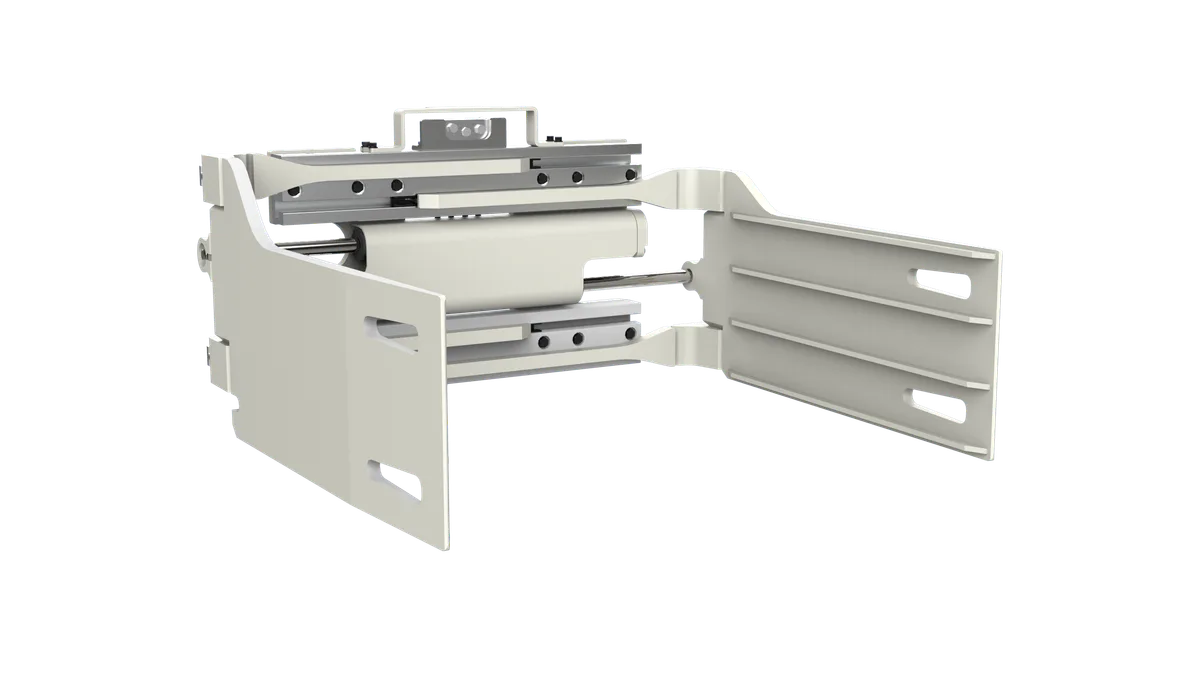

Bale clamp – E series- side shifting - 20

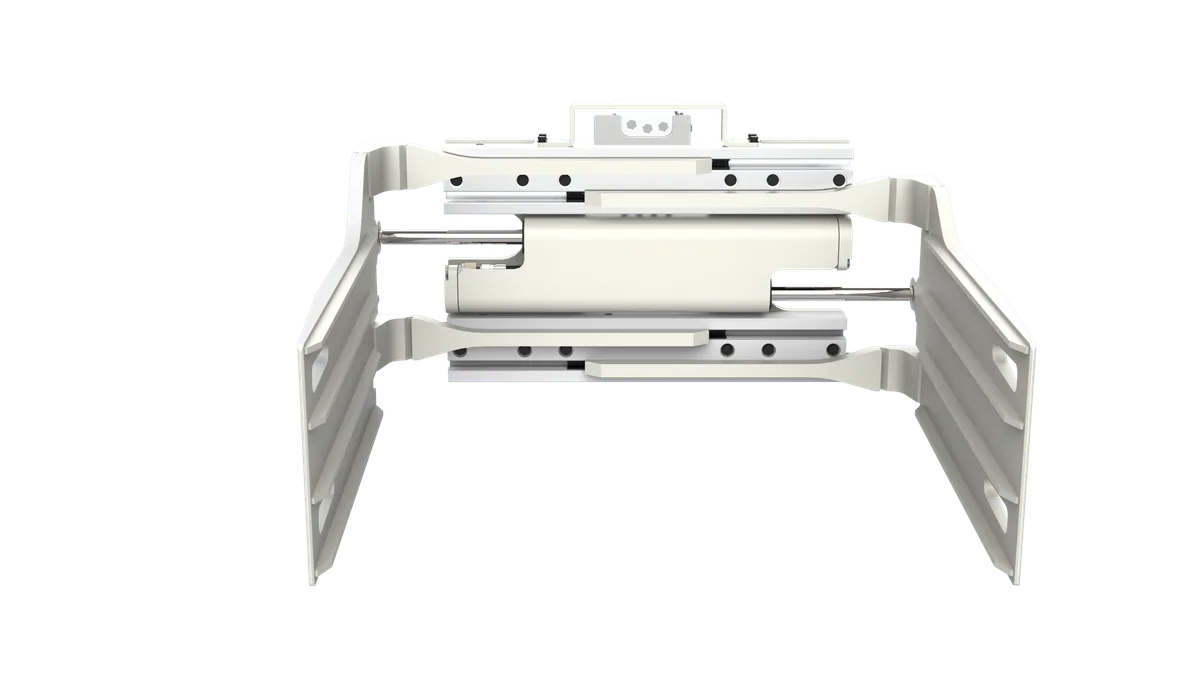

Bale clamp – E series- side shifting - 21

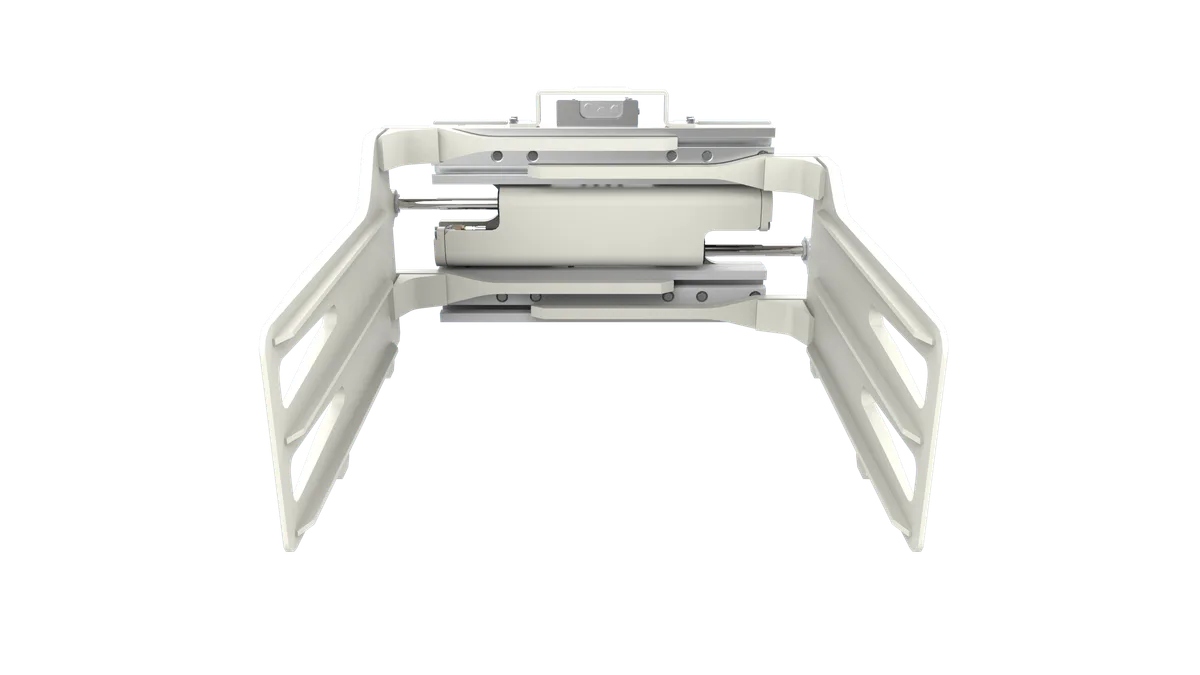

Bale clamp – E series- side shifting - 22

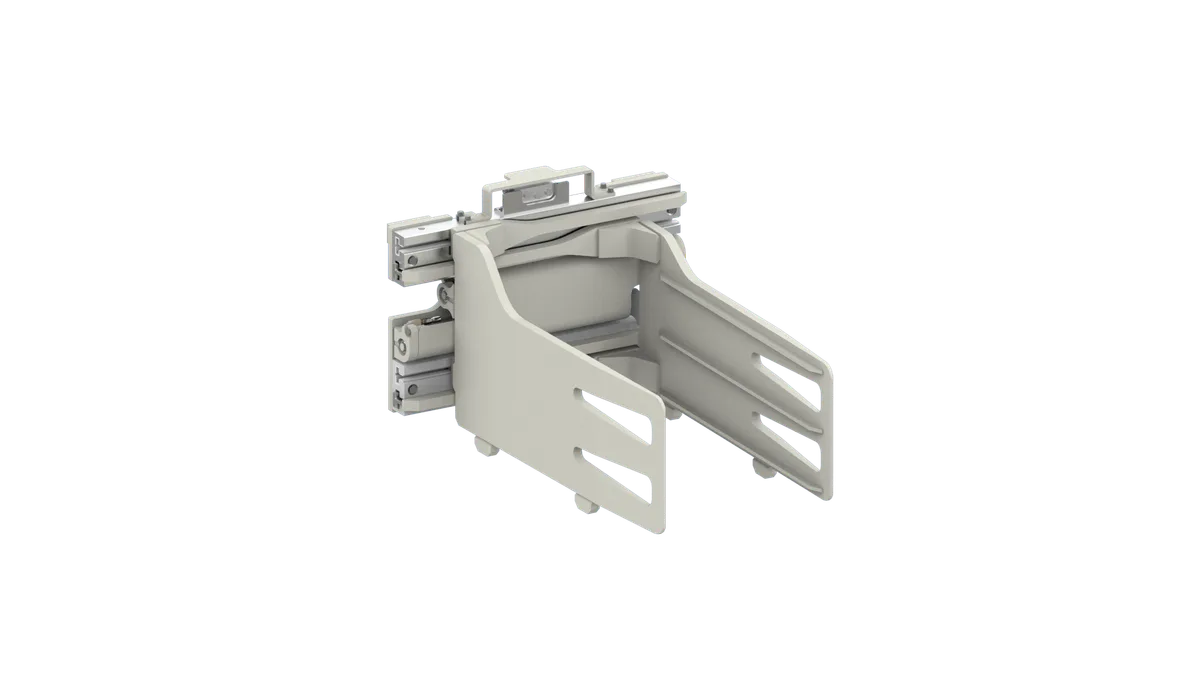

Bale clamp – E series- side shifting - 23

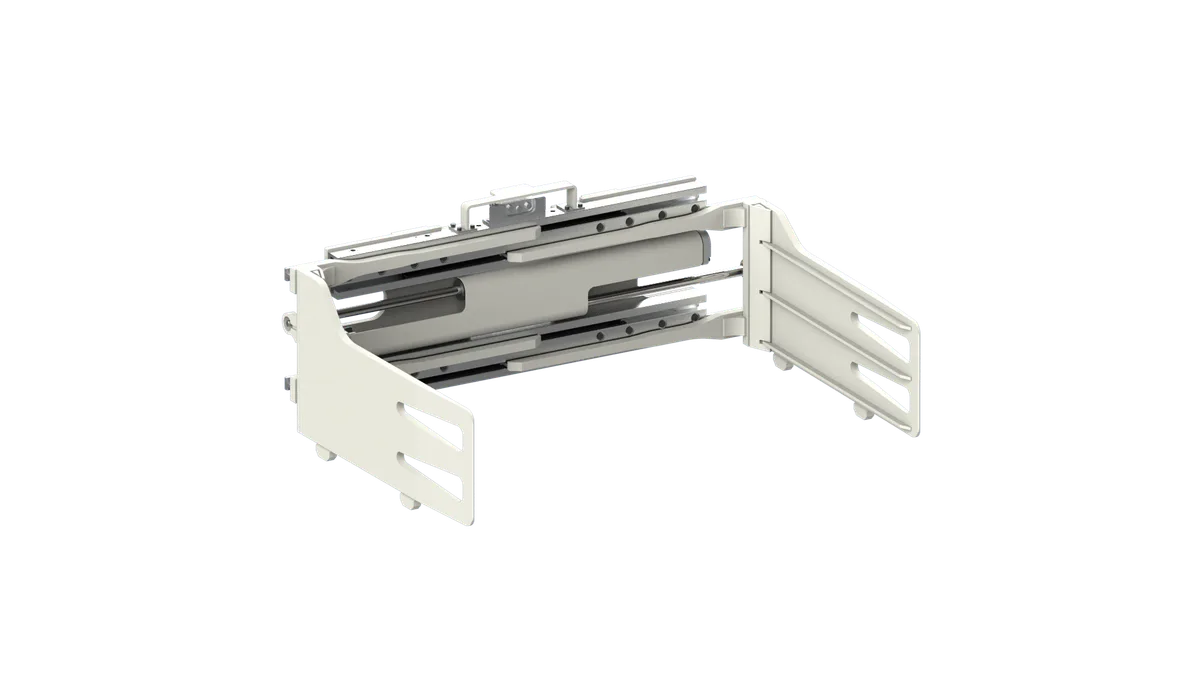

Bale clamp – E series- side shifting - 24

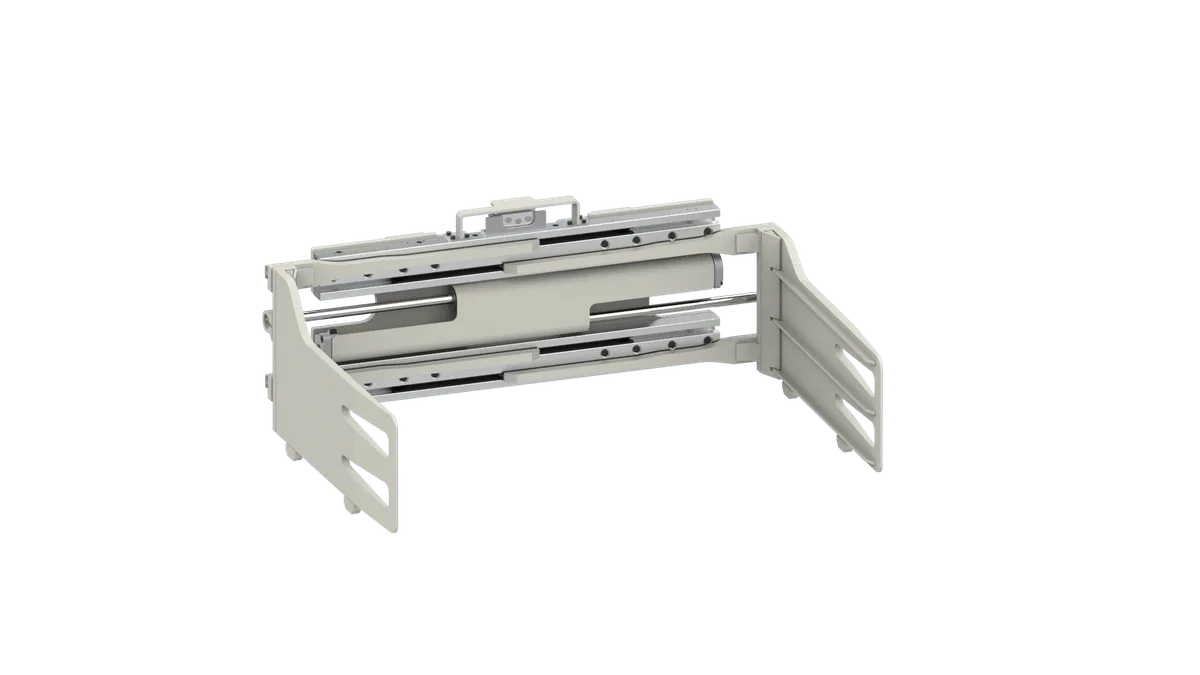

Bale clamp – E series- side shifting - 25

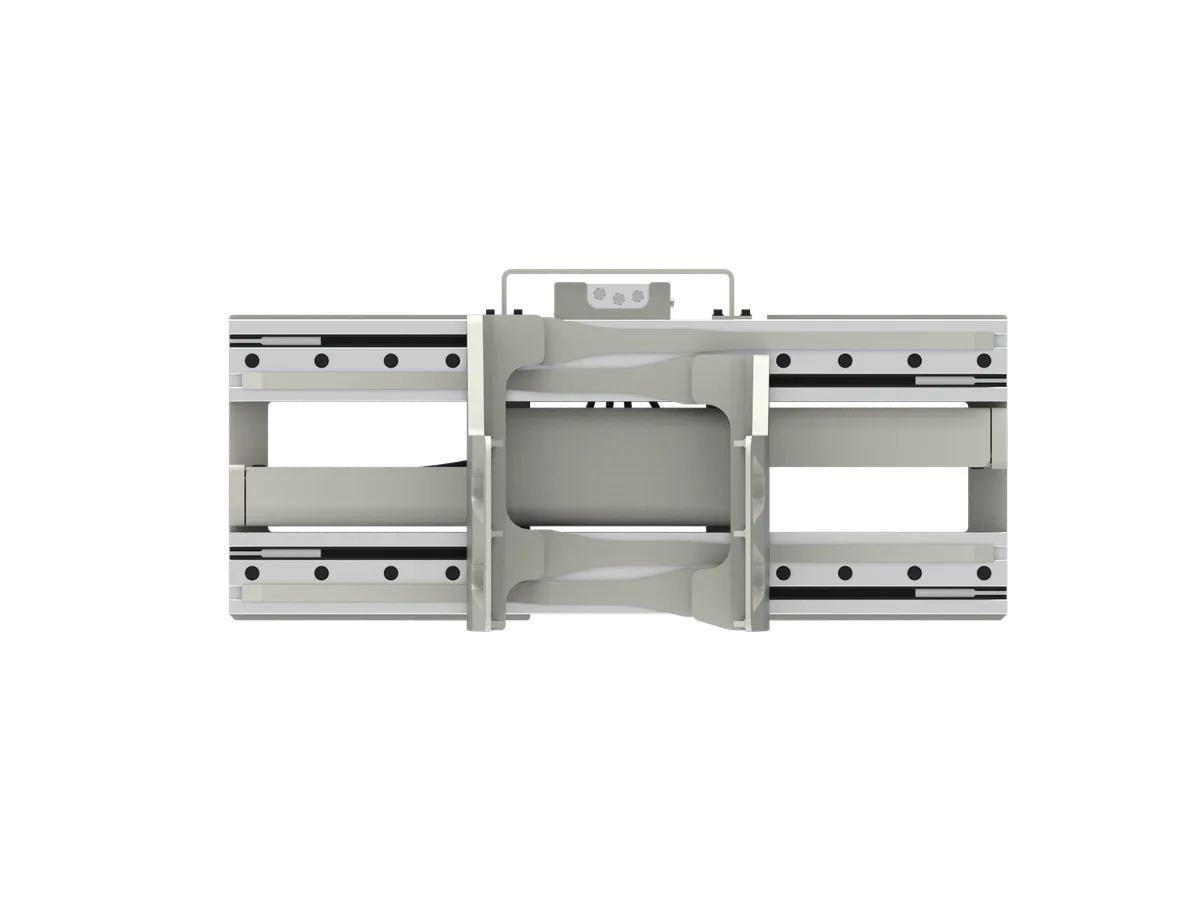

Bale clamp – E series- side shifting - 26

Bale clamp – E series- side shifting - 27

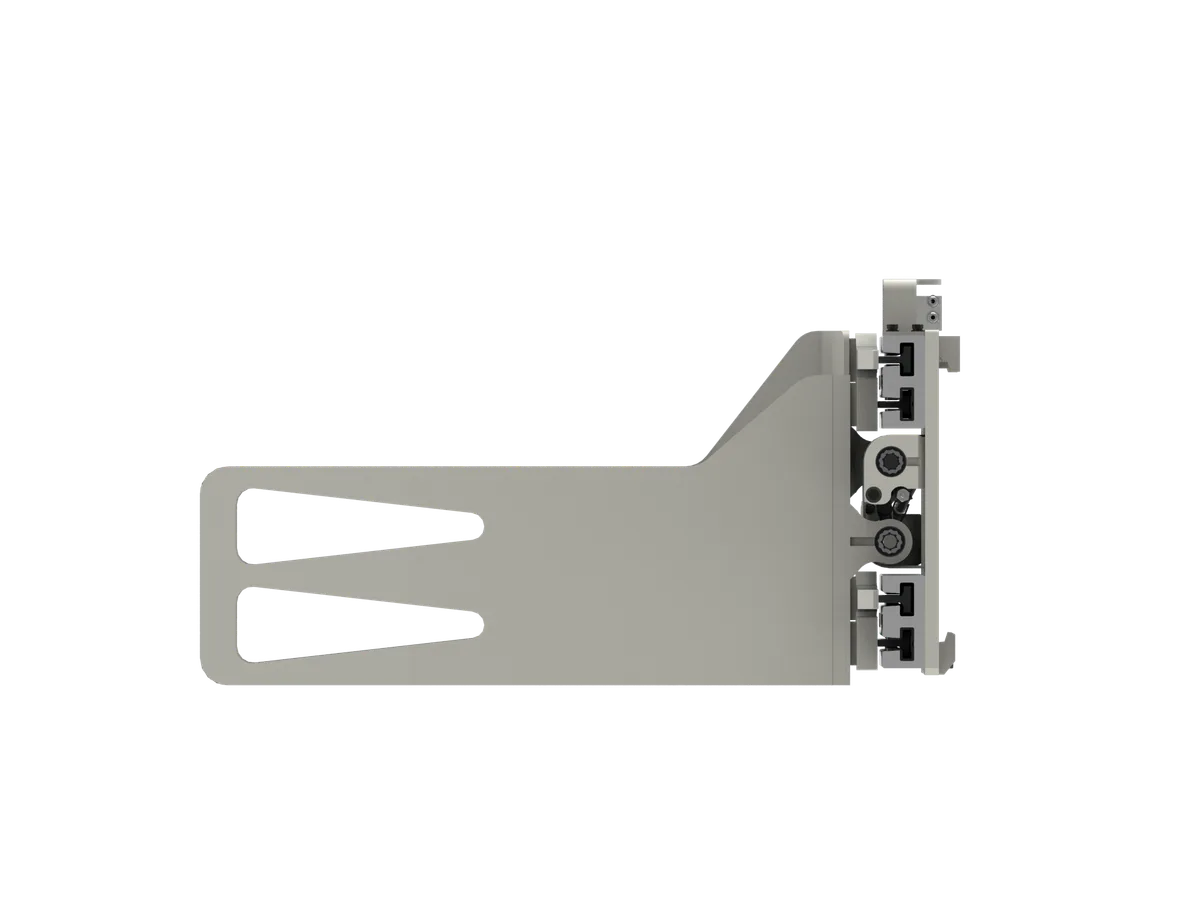

Bale clamp – E series- side shifting - 28

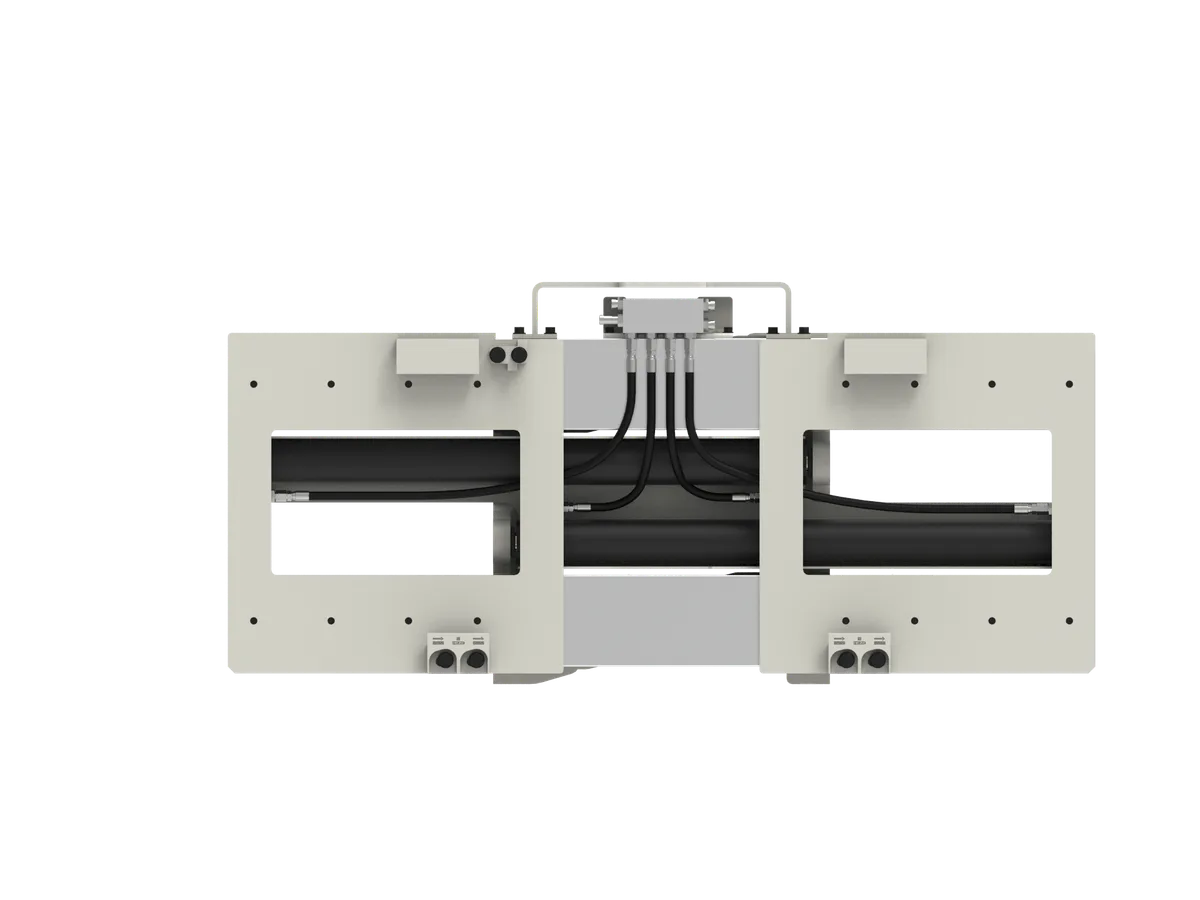

Bale clamp – E series- side shifting - 29

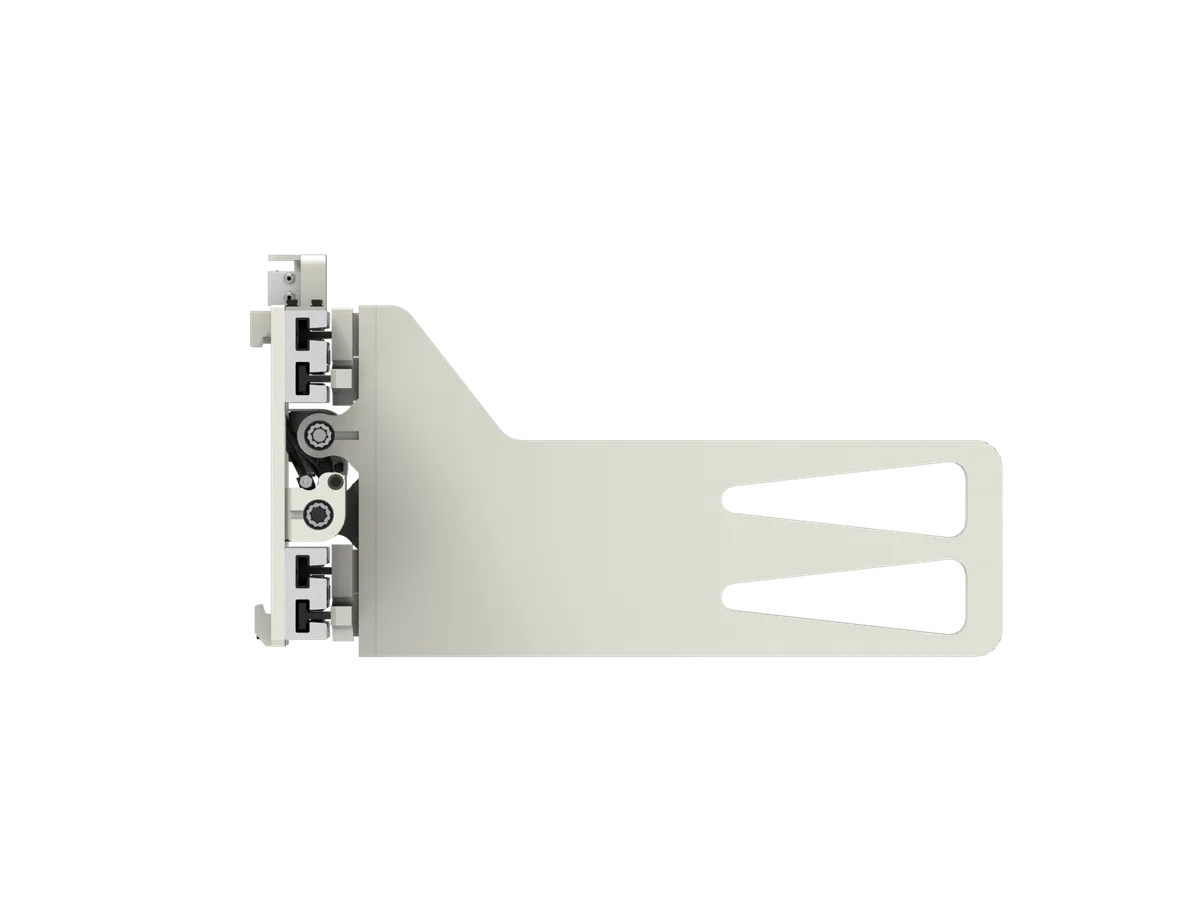

Bale clamp – E series- side shifting - 30

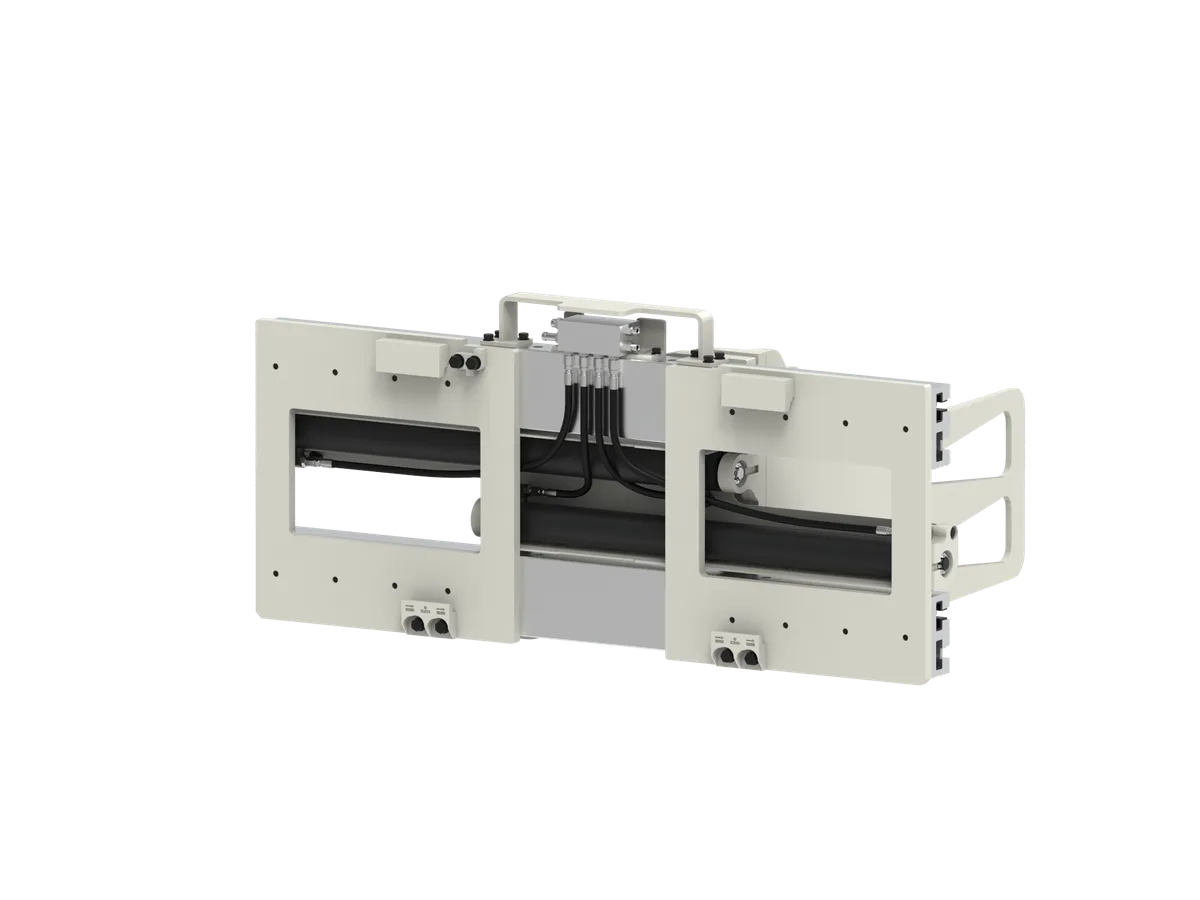

Bale clamp – E series- side shifting - 31

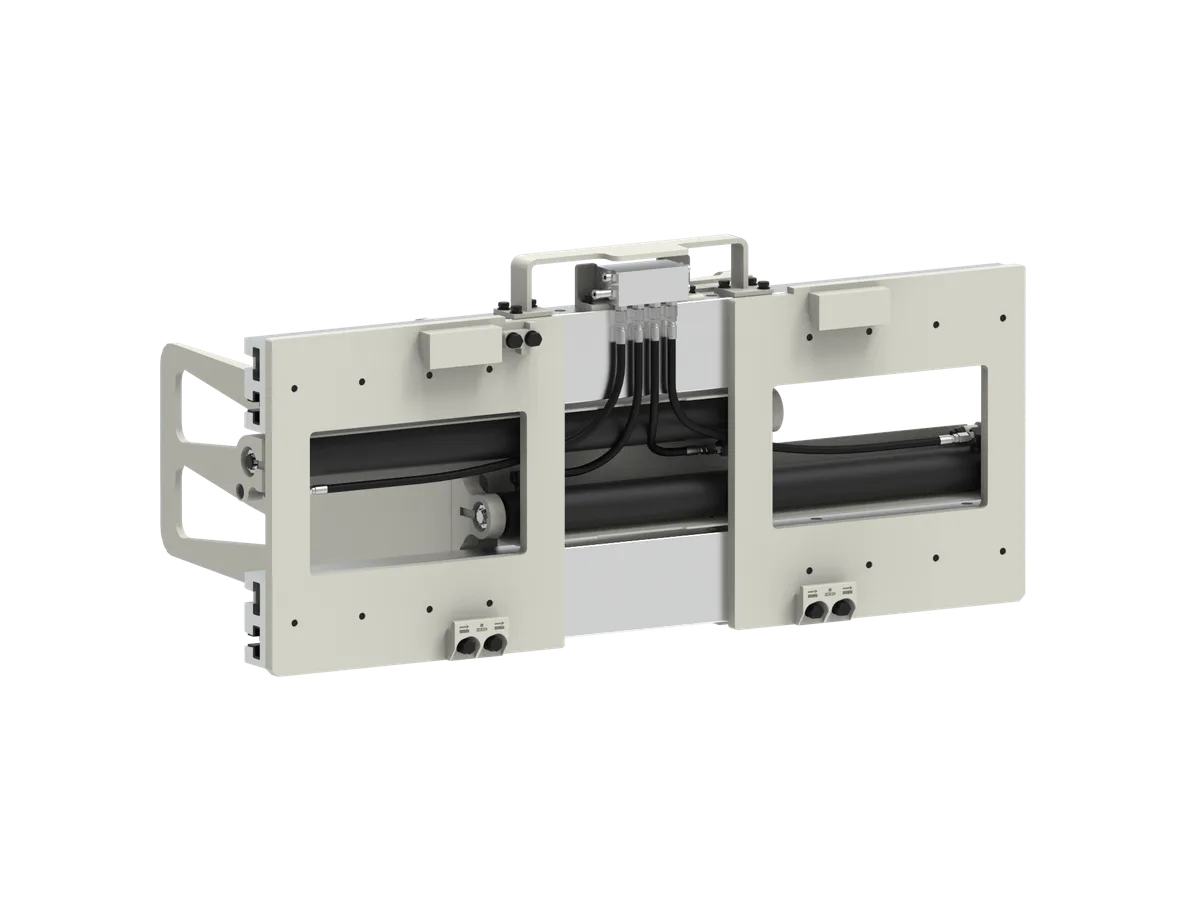

Bale clamp – E series- side shifting - 32

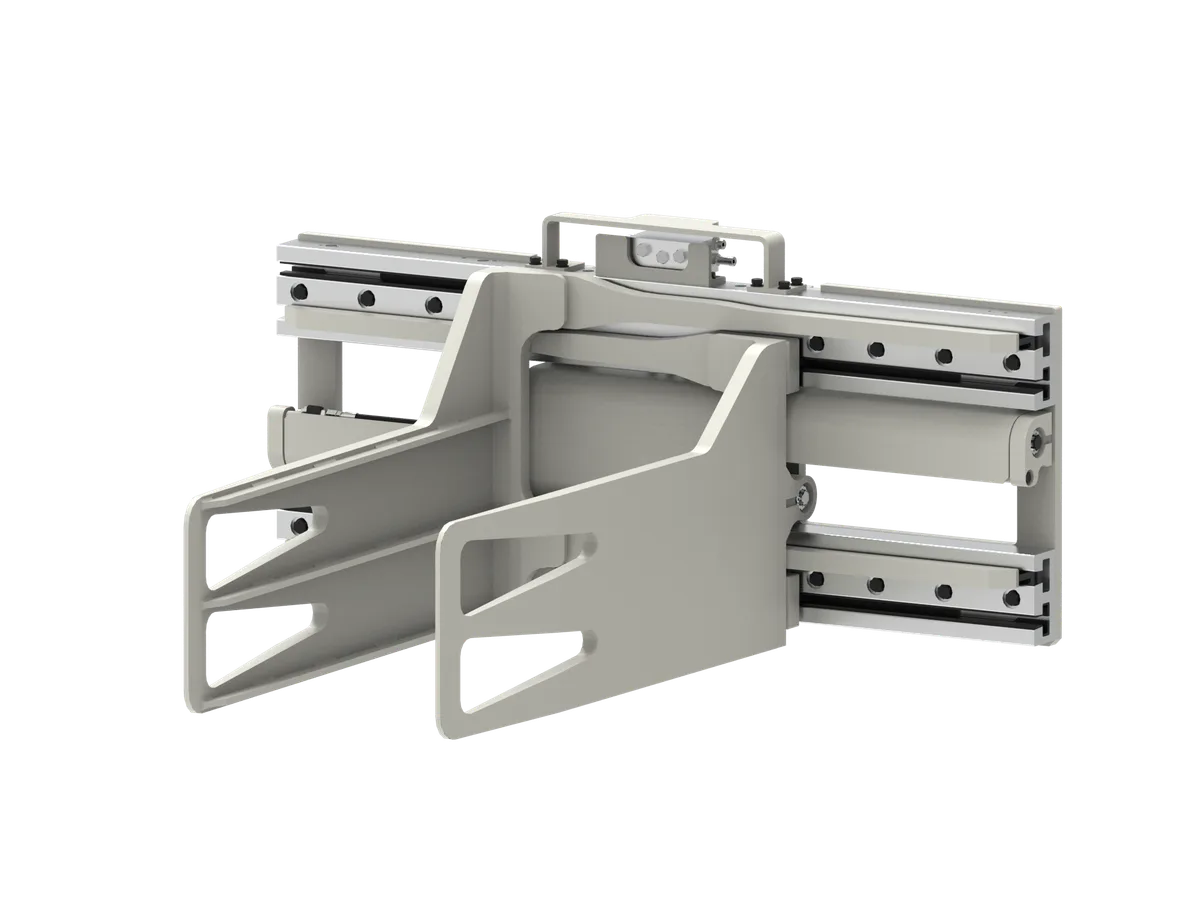

Bale clamp – E series- side shifting - 33

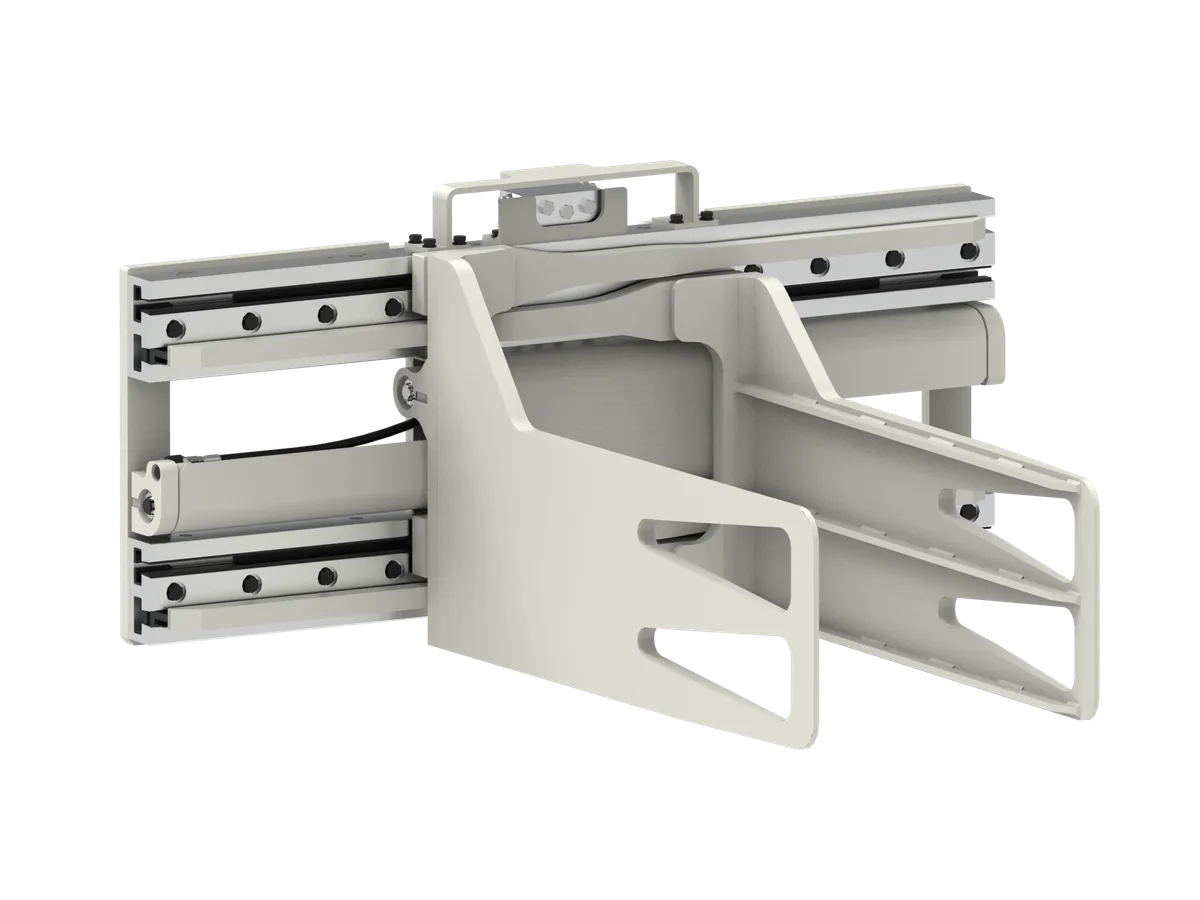

Bale clamp – E series- side shifting - 34

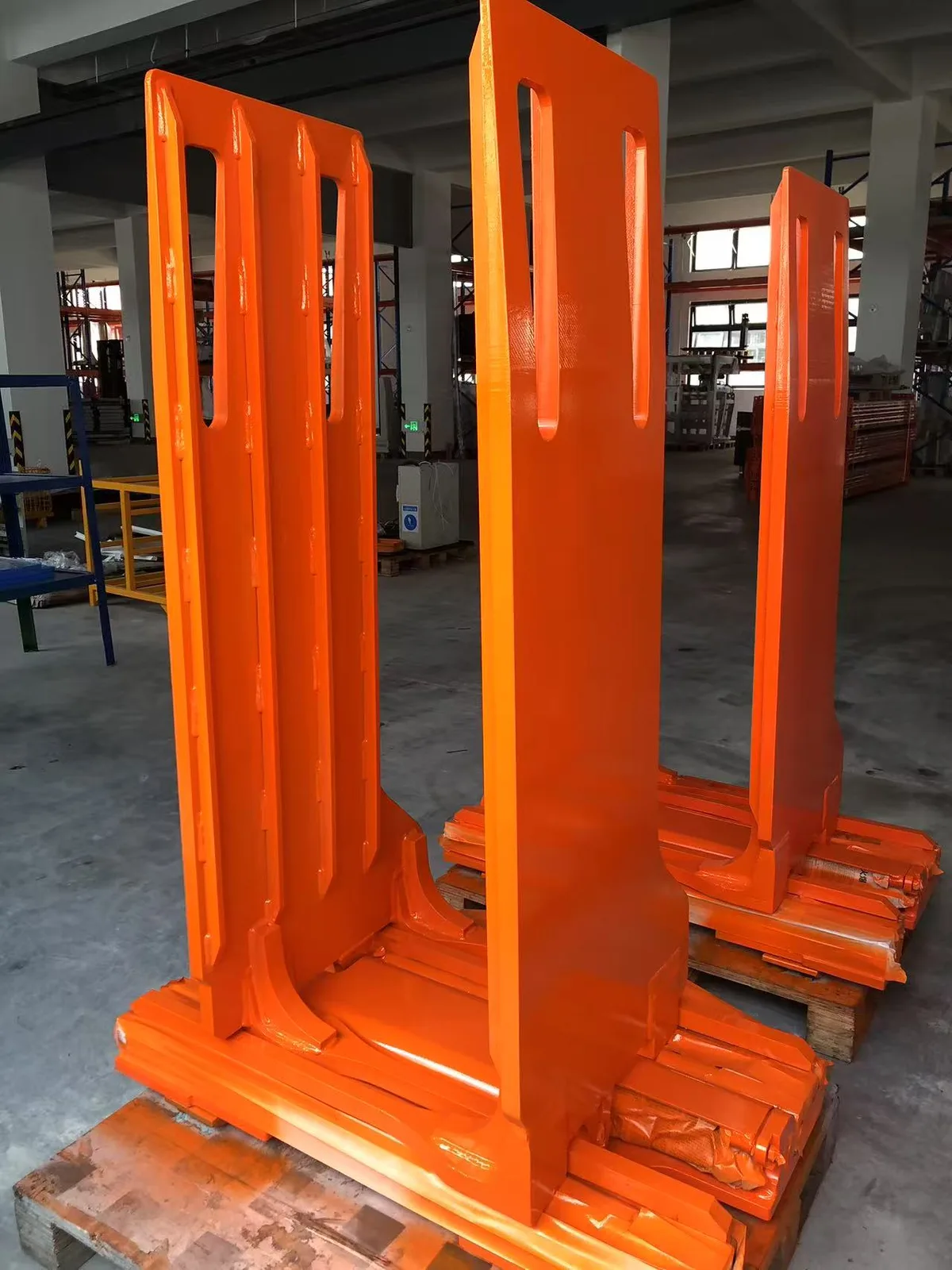

Bale clamp – E series- side shifting - 35

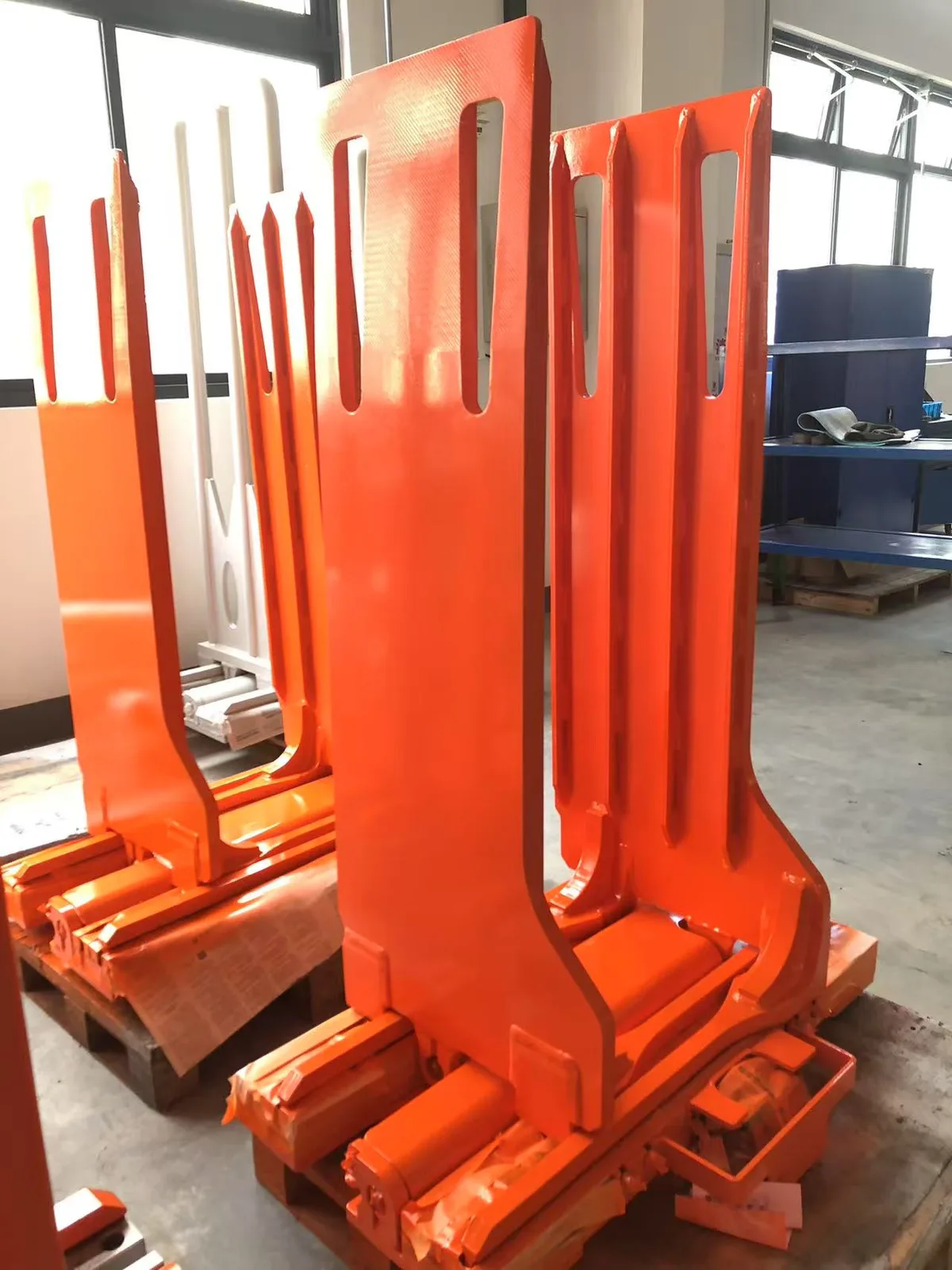

Bale clamp – E series- side shifting - 36

Bale clamp – E series- side shifting - 37

Bale clamp – E series- side shifting - 38

Product Overview

The Wontonne Bale Clamp E Series (Side Shifting) safely and efficiently transports and stacks soft bag goods such as cotton, wool, fiber bags and waste bags.

The bale clamp facilitates safe, pallet-free handling and stacking of soft bag goods through clamping and lateral movement. It is commonly used for damage-free handling of materials like pulp bales, waste paper, recycled plastics, textile rags, and natural or synthetic textile fibers.

Key features & specifications:

Quick-release side-shift valve

Pressure-holding function prevents falling

Simple structure, low weight

Self-lubricating sliding bearings

Integral welded cast arm base

Spherical articulated cylinder connection

For cotton, wool, fiber and waste bags

Capacity up to 2700kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

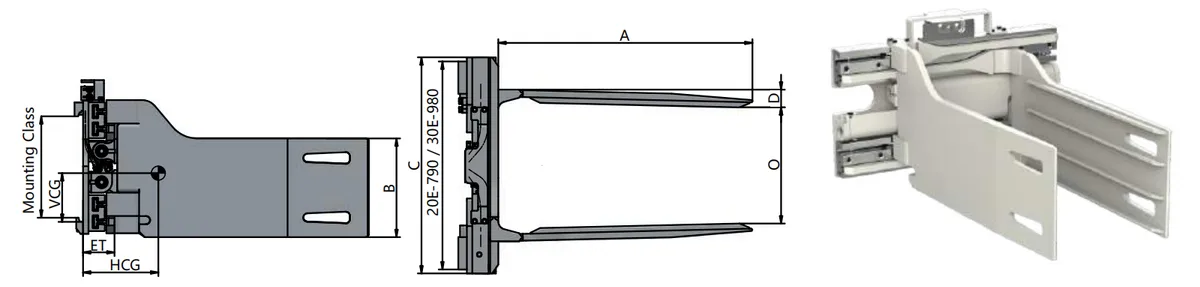

Model No	Capacity (kg)	Load Center (mm)	Opening Range (mm)	Mounting	Weight (kg)	Effective Thickness ET (mm)	Arm Length (mm)	Arm Height (mm)	Frame Width (mm)	Vertical CG VCG (mm)	Horizontal CG HCG (mm)	Arm Thickness (mm)
BCS20E-106A	1900	500	450-1730	ISO 2A	387	128	991	418	1040	202	269	71
BCS20E-106B	1900	500	450-1730	ISO 3A	413	133	991	418	1040	217	258	71
BCS20E-107A	1900	500	450-1730	ISO 2A	429	128	1195	418	1040	196	343	74
BCS20E-107B	1900	500	450-1730	ISO 3A	454	133	1195	418	1040	210	329	74
BCS30E-108A	2700	500	565-1910	ISO 2A	498	148	991	464	1016	236	265	78
BCS30E-108B	2700	500	565-1910	ISO 3A	503	148	991	464	1016	240	263	78
BCS30E-109A	2700	500	565-1910	ISO 2A	550	148	1195	464	1016	227	335	80
BCS30E-109B	2700	500	565-1910	ISO 3A	555	148	1195	464	1016	232	332	80
BCS20E-112A	1900	500	700-2360	ISO 2A	457	128	1100	418	1250	201	282	72
BCS22E-112B	2200	500	490-2300	ISO 3A	585	140	1200	400	1600	230	282	72
BCS30E-033B	2500	500	480-2290	ISO 3A	722	148	1395	464	1600	229	347	80
BCS30E-112A	2500	500	490-2300	ISO 2A	669	148	1195	464	1600	233	283	80
BCS30E-112B	2500	500	490-2300	ISO 3A	671	148	1195	464	1600	235	282	80
BCS30E-203B	2300	500	740-2550	ISO 3A	677	148	1195	464	1600	229	276	80
