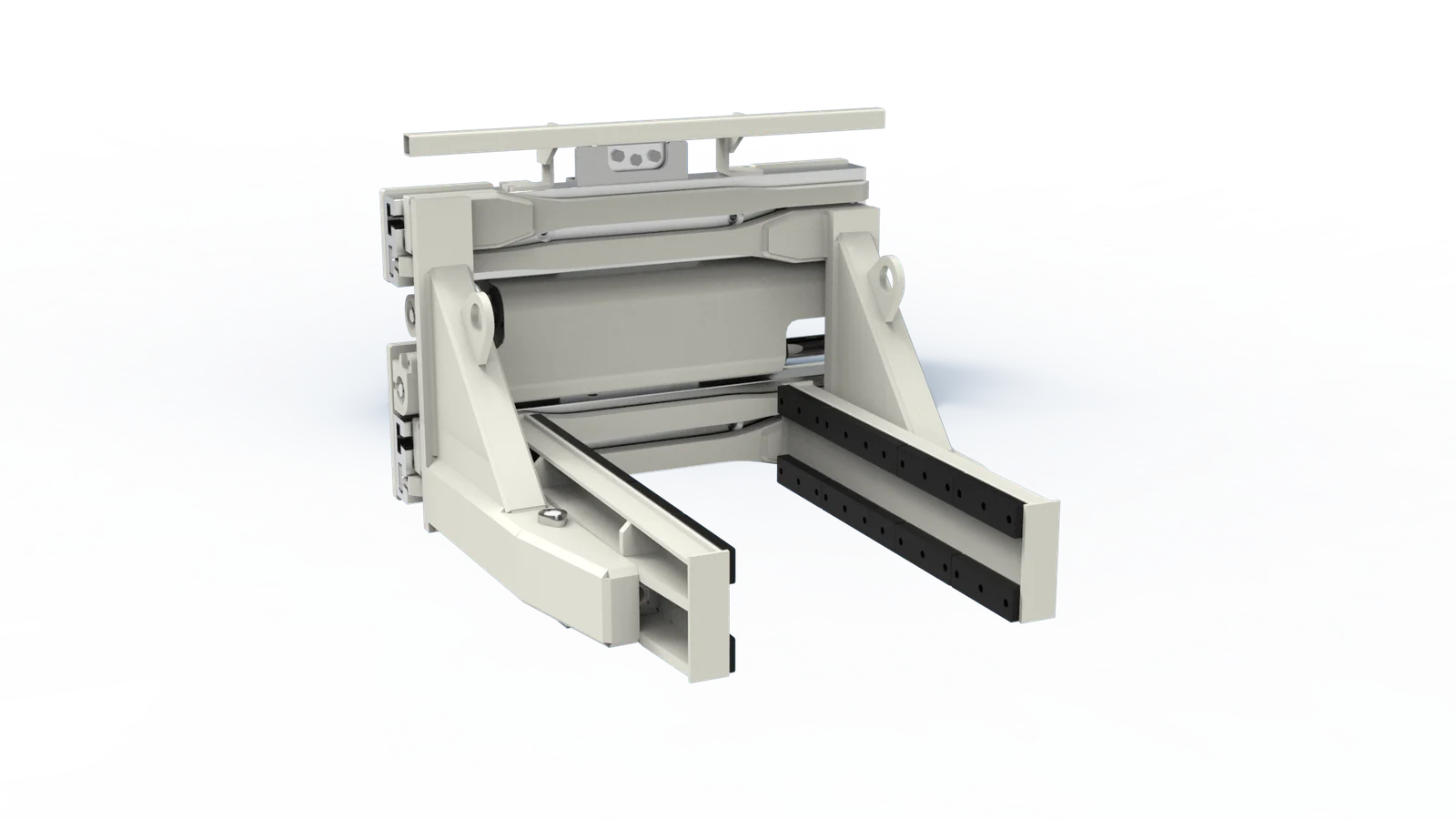

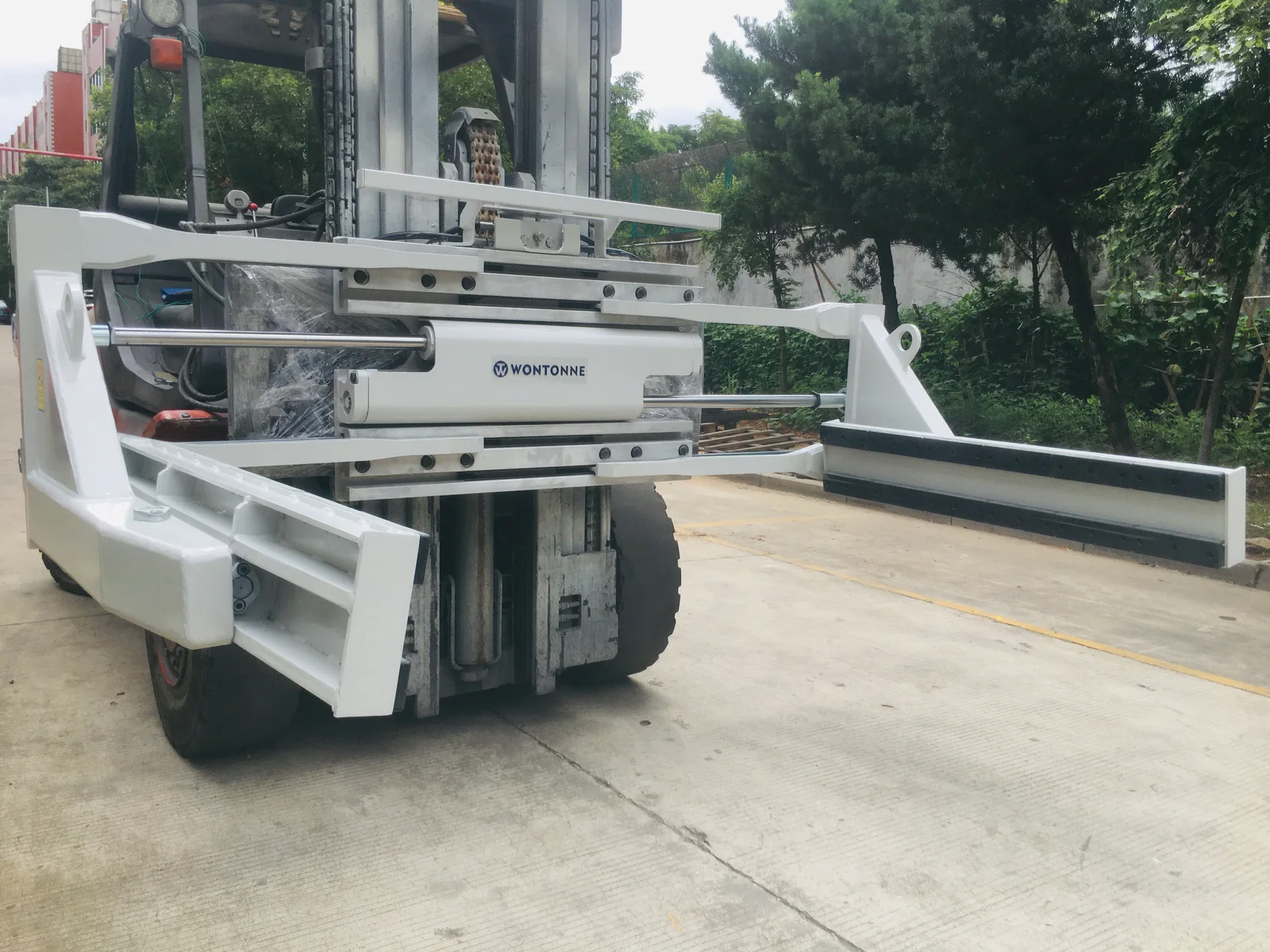

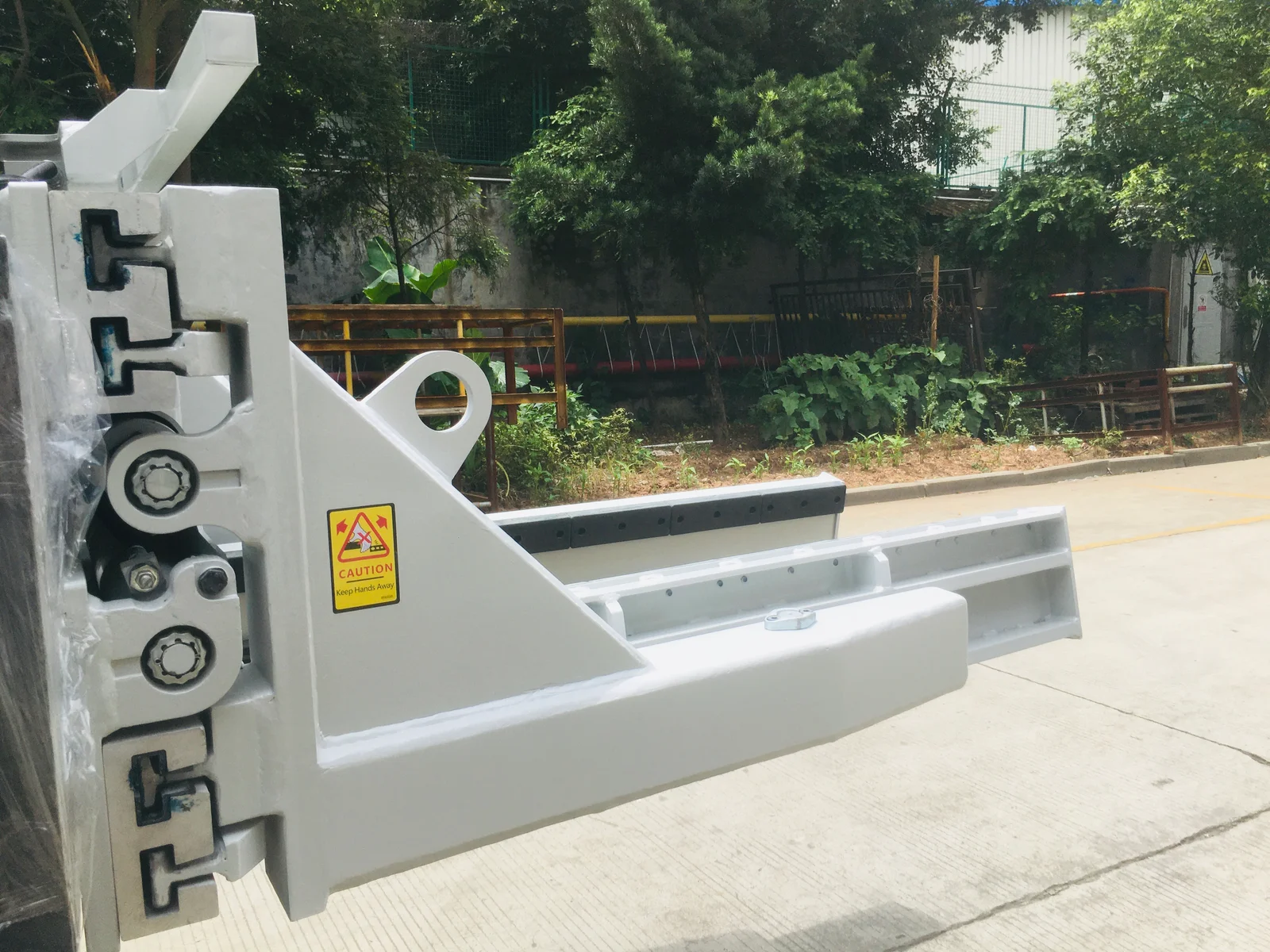

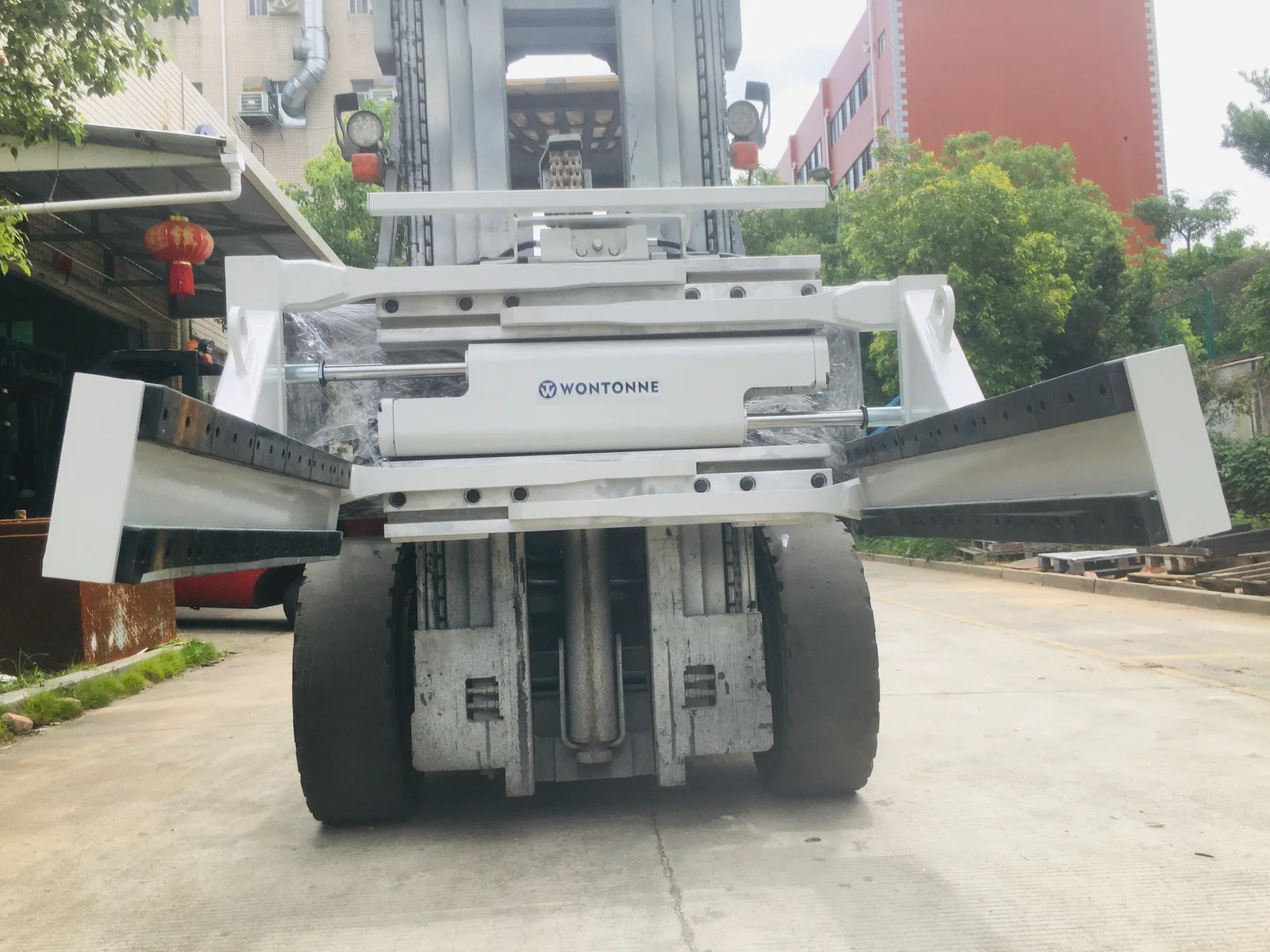

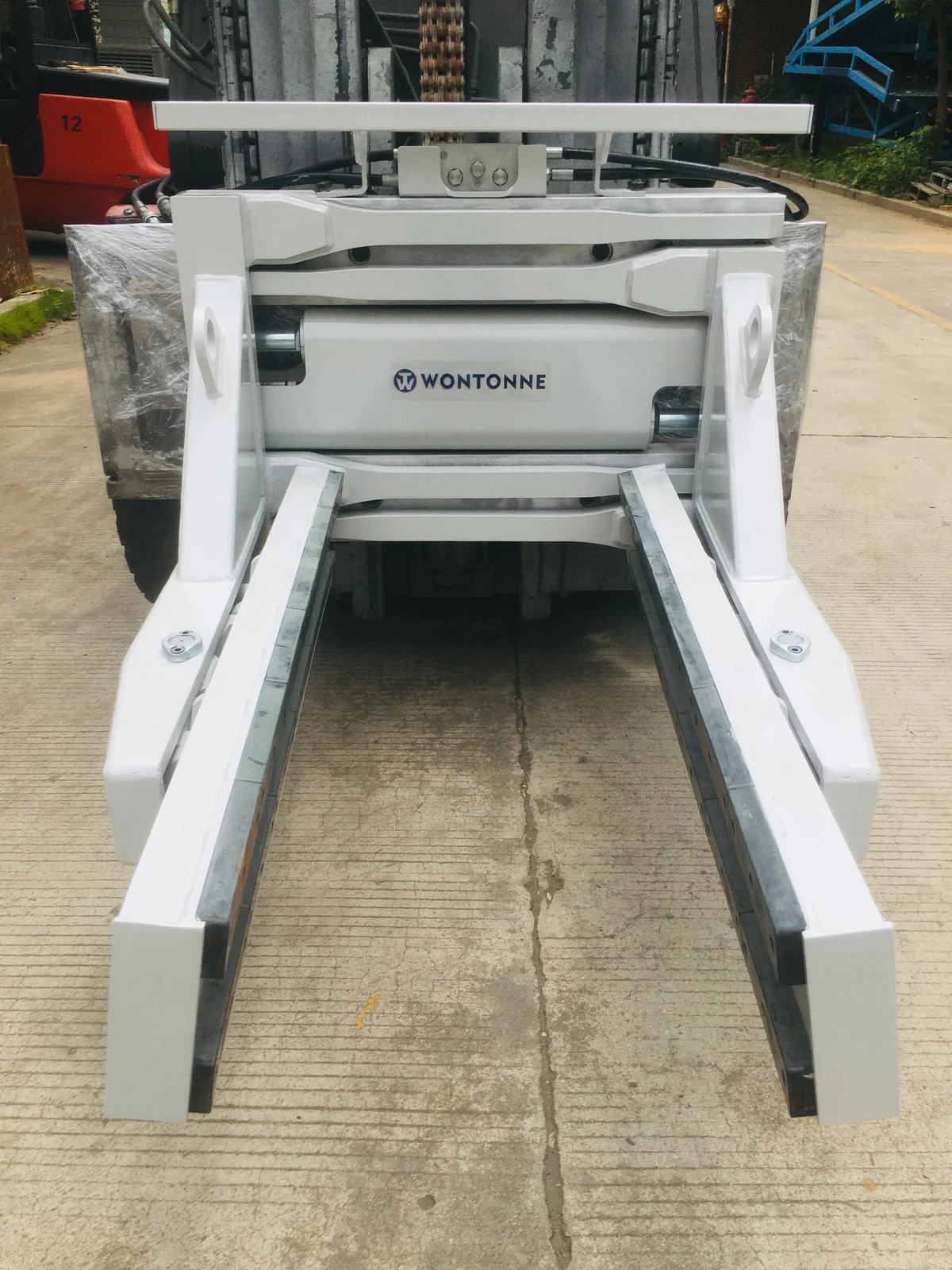

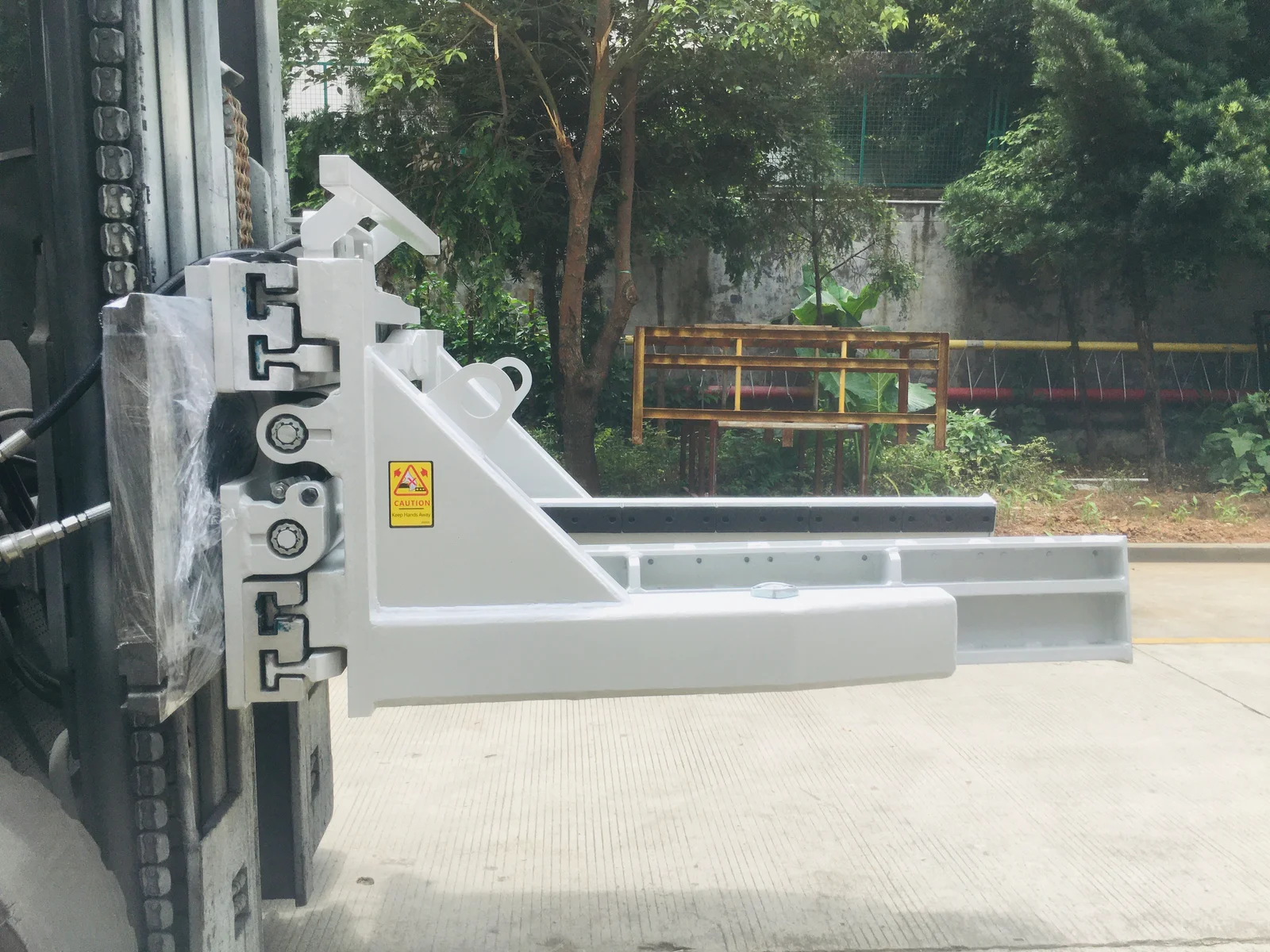

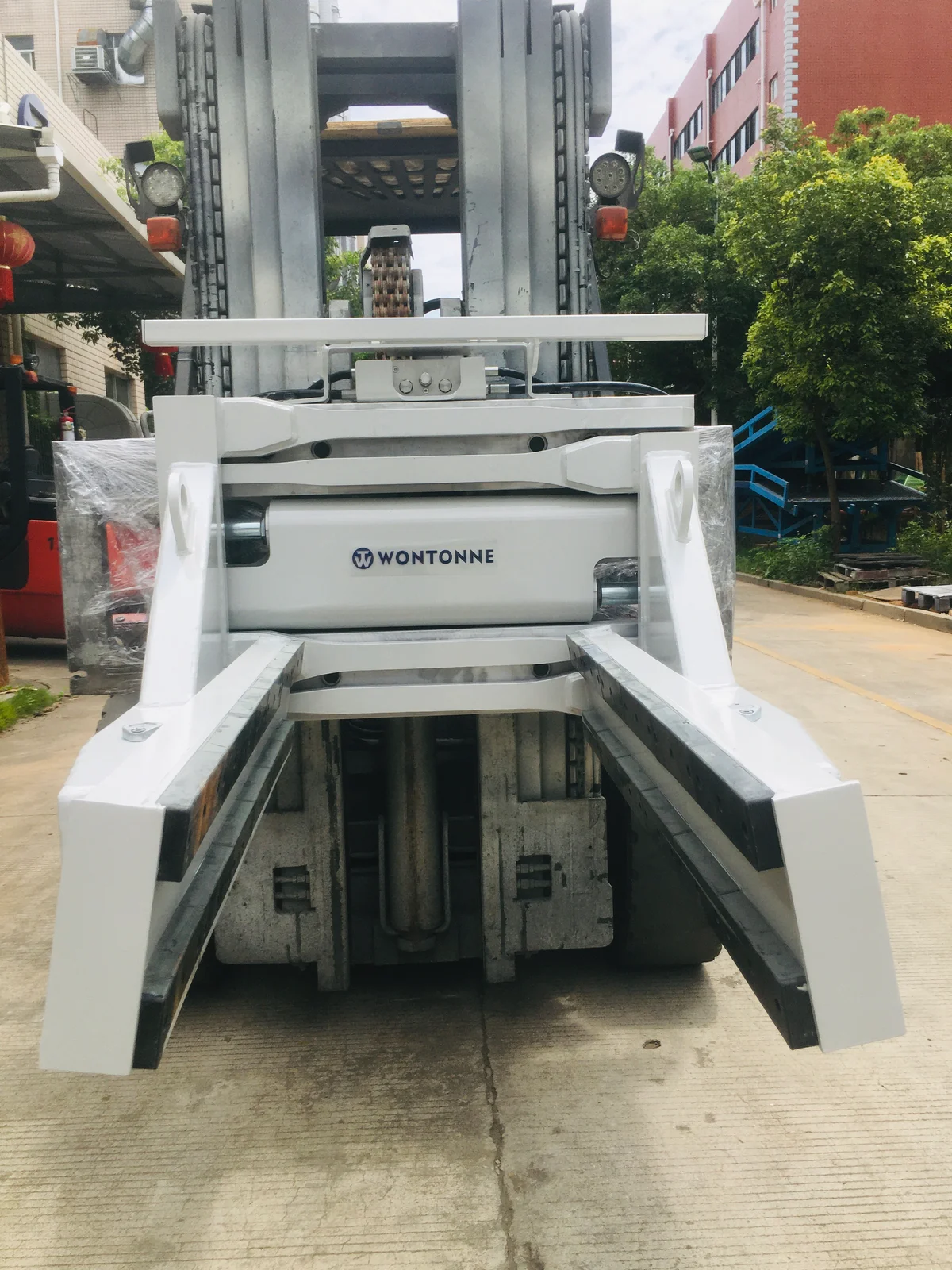

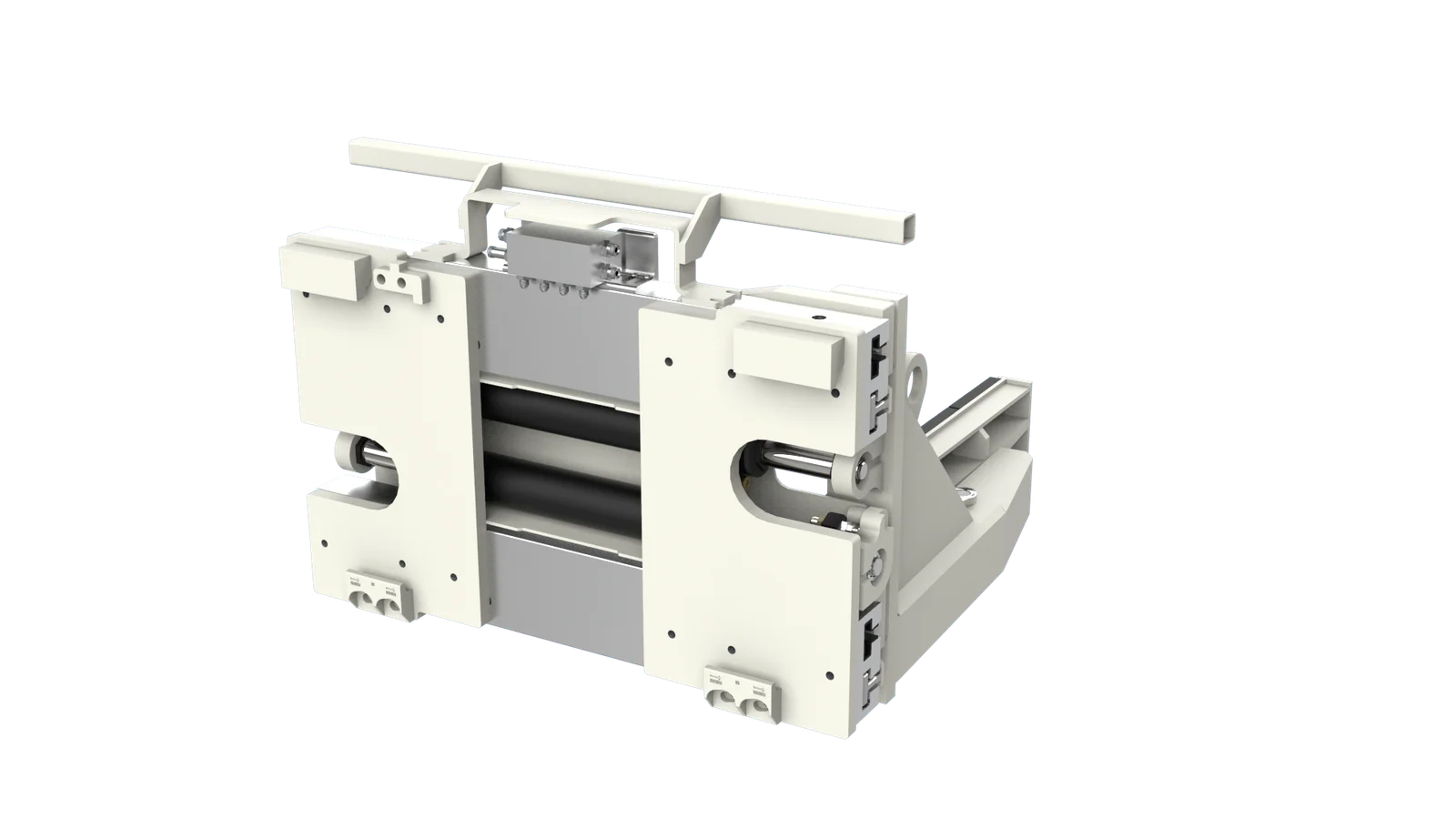

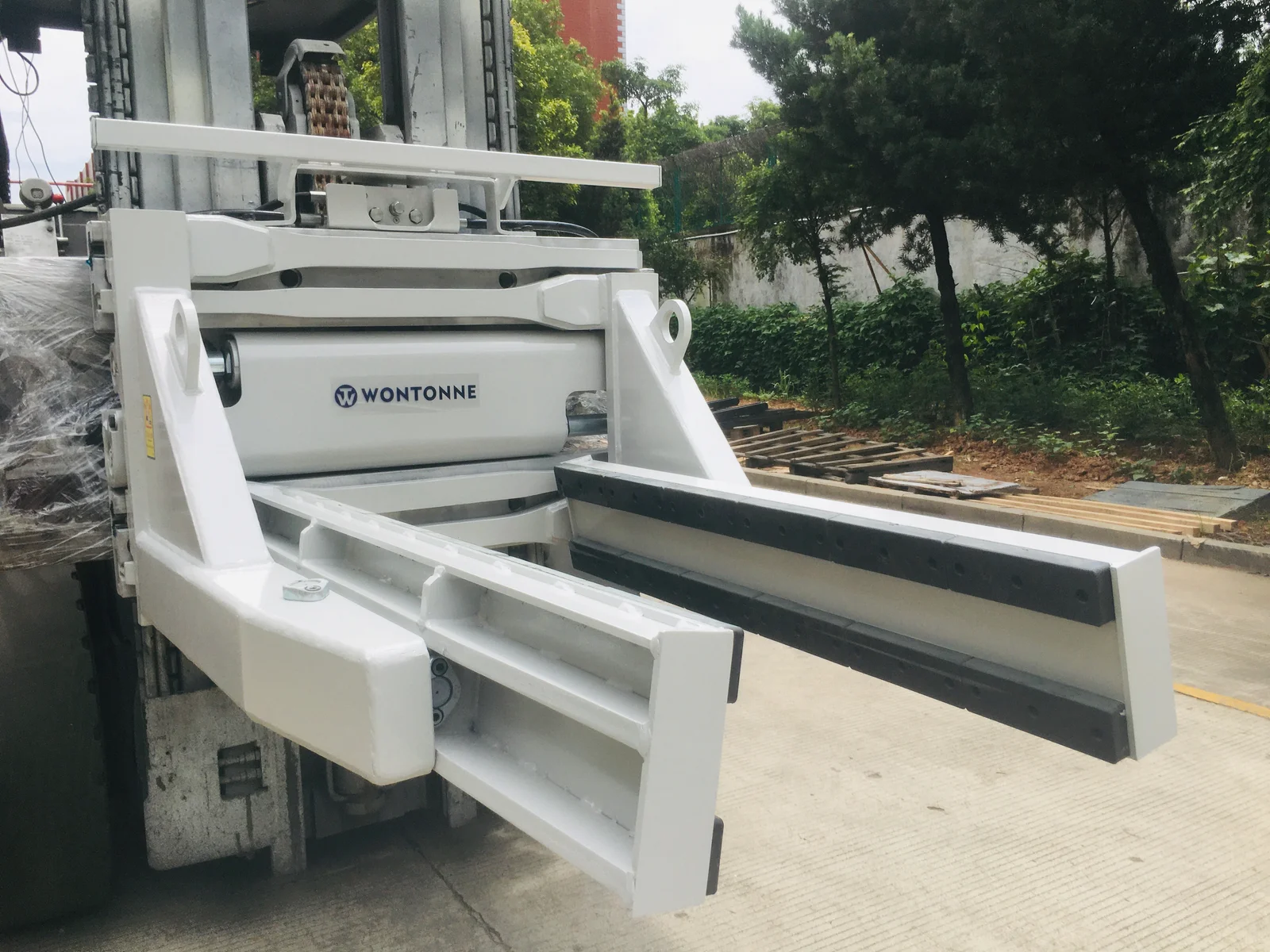

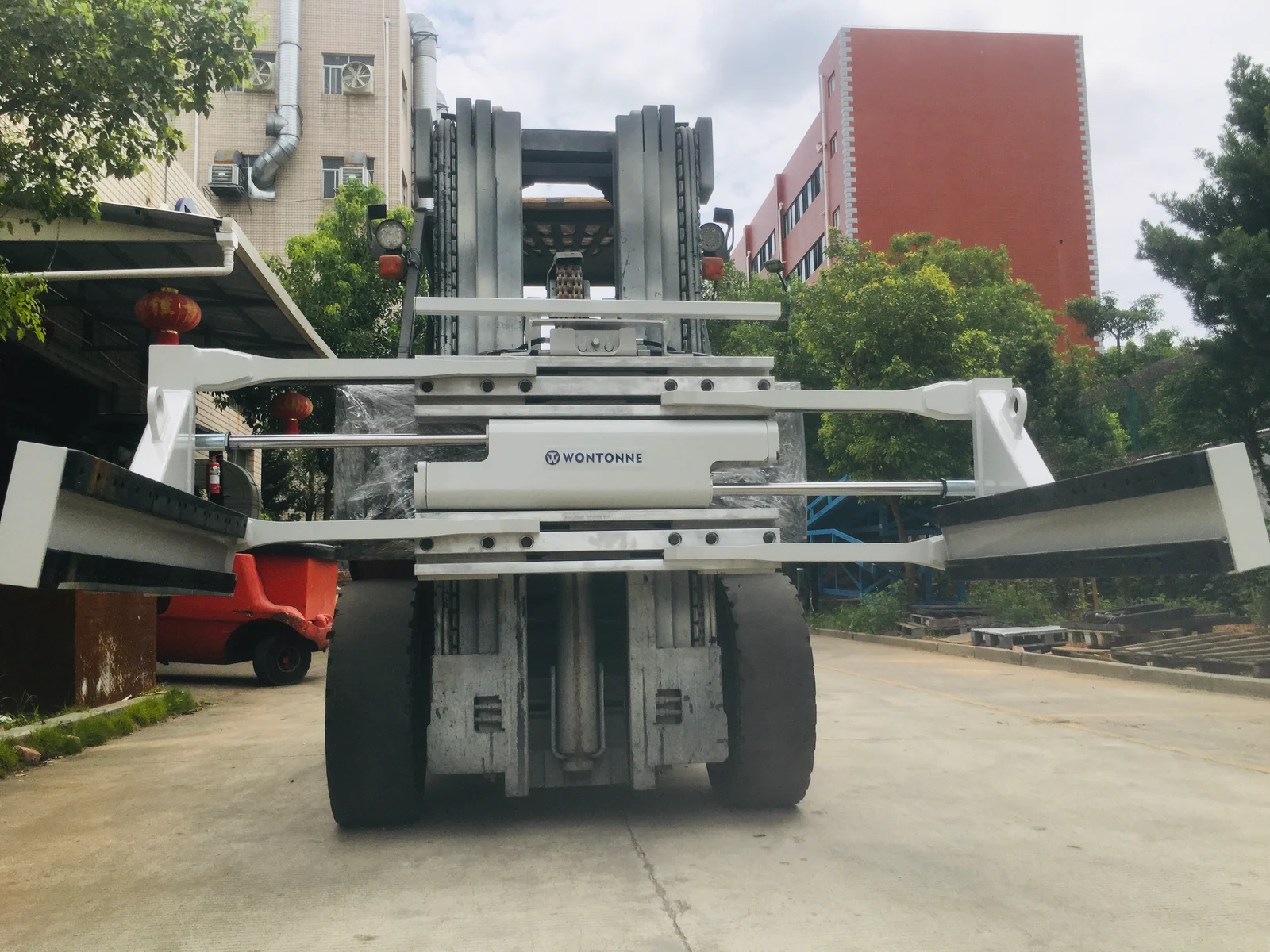

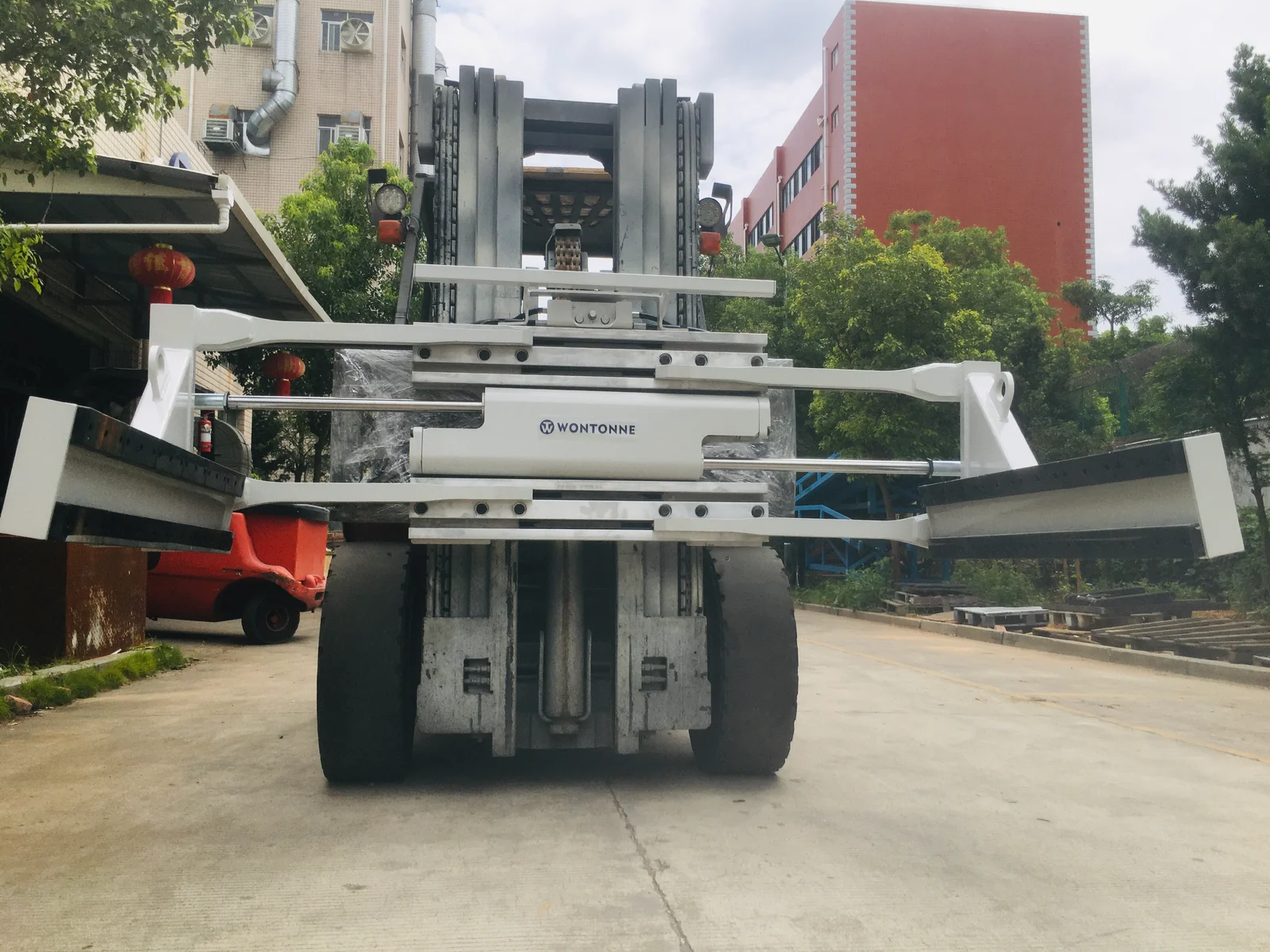

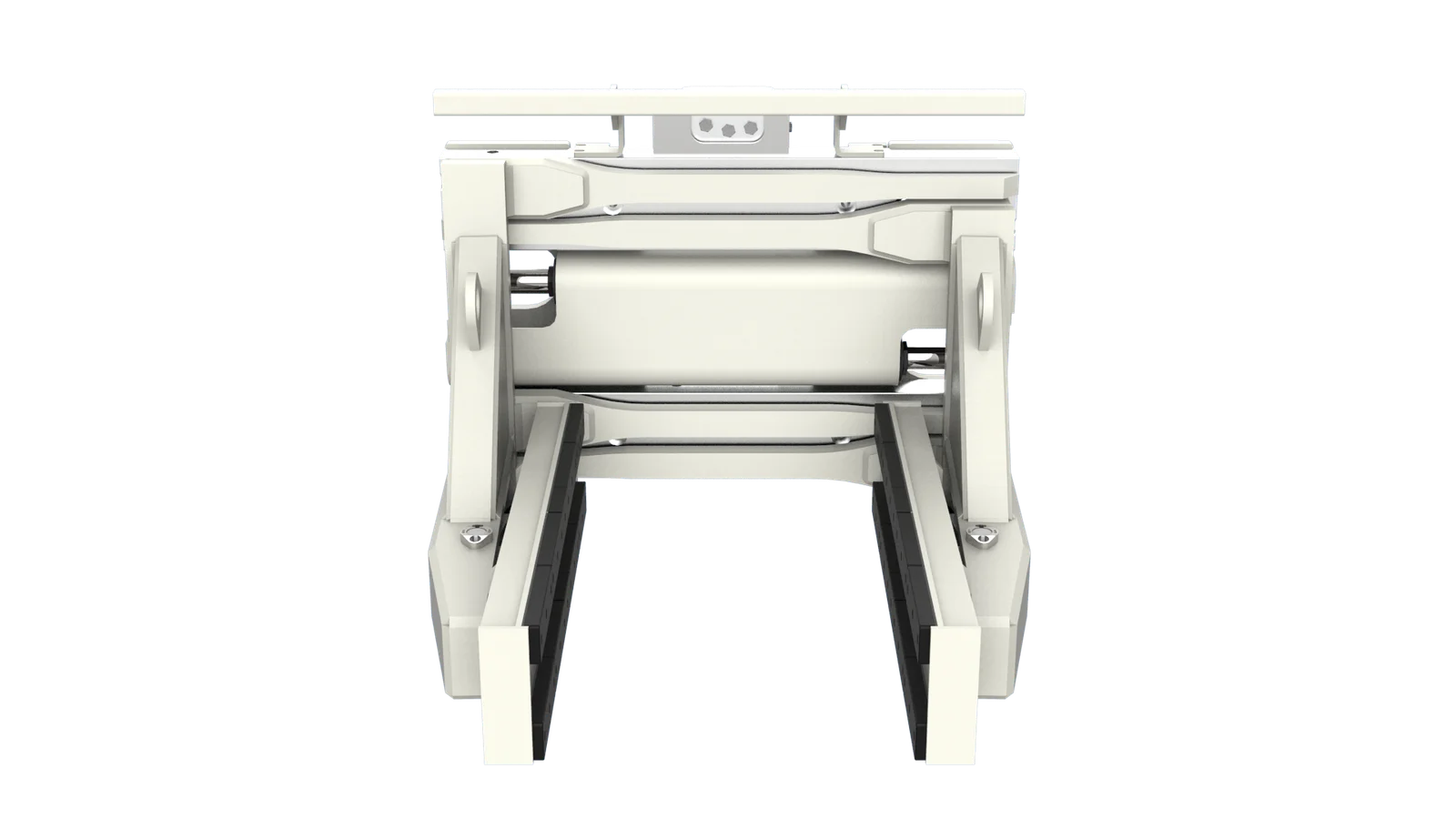

2D-Articulation Block Clamp
Engineered for durability and precision, 2d-articulation block clamp delivers reliable performance in demanding material handling environments.
Product Overview
The Wontonne 2D-Articulation Block Clamp is specially designed for manufacturing processes and the handling of various stones and bricks without pallets.
The brick clamp is designed for the manipulation and stacking of standard-temperature rigid block commodities, including mud bricks, concrete blocks, carbon blocks, and similar items.
Key features & specifications:
2D-articulation arm movement
For stone and brick handling
Palletless manufacturing operations
Precise block positioning
Reduces pallet costs
Capacity up to 2700kg
Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.
Need More Info?
Get detailed specifications, pricing, and delivery estimates from our team.
| Model No | Capacity (kg) | Load Center (mm) | Opening Range (mm) | Mounting | Weight (kg) | Effective Thickness ET (mm) | Arm Length (mm) | Arm Height (mm) | Frame Width (mm) | Vertical CG VCG (mm) | Horizontal CG HCG (mm) | Arm Thickness (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CKS30D-090B | 2700 | 450 | 530-1860 | ISO 3A | 545 | 194 | 900 | 210 | 1016 | 183 | 267 | 234 |
| CKS30D-100B | 2700 | 500 | 530-1860 | ISO 3A | 556 | 194 | 1000 | 210 | 1016 | 184 | 266 | 236 |
| CKS30D-110B | 2500 | 550 | 520-1850 | ISO 3A | 570 | 194 | 1100 | 210 | 1016 | 176 | 312 | 238 |
| CKS30D-120B | 2300 | 600 | 520-1850 | ISO 3A | 580 | 194 | 1200 | 210 | 1016 | 172 | 335 | 240 |
| CKS30D-130B | 2100 | 650 | 510-1840 | ISO 3A | 606 | 194 | 1300 | 210 | 1016 | 170 | 363 | 242 |
| CKS30D-140B | 1900 | 700 | 510-1840 | ISO 3A | 620 | 194 | 1400 | 210 | 1016 | 167 | 387 | 244 |
| CKS30D-150B | 1700 | 750 | 500-1830 | ISO 3A | 632 | 194 | 1500 | 210 | 1016 | 164 | 412 | 245 |
| CKS30D-160B | 1500 | 800 | 500-1830 | ISO 3A | 642 | 194 | 1600 | 210 | 1016 | 161 | 438 | 247 |
