4 Drum Clamp Heightening Type
Engineered for durability and precision, 4 drum clamp heightening type delivers reliable performance in demanding material handling environments.
Product Overview

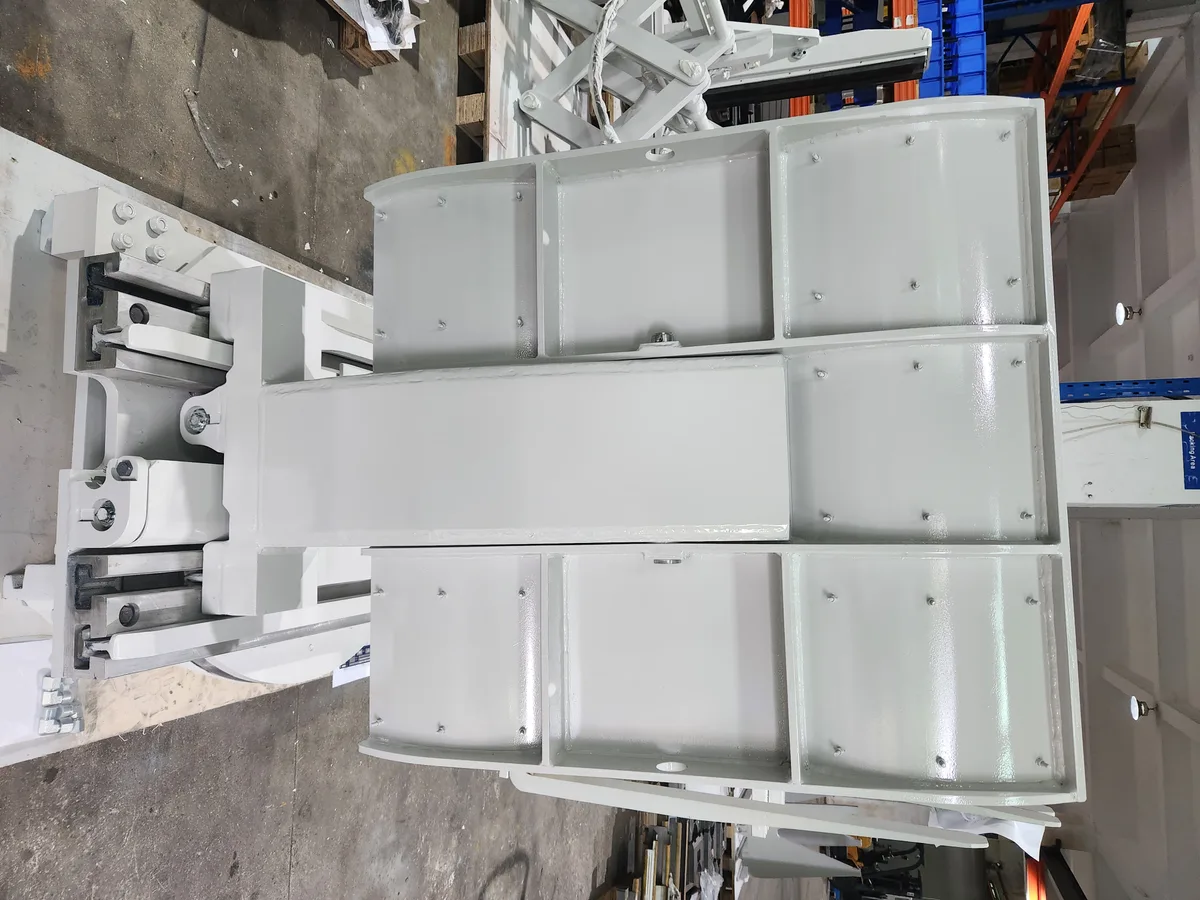

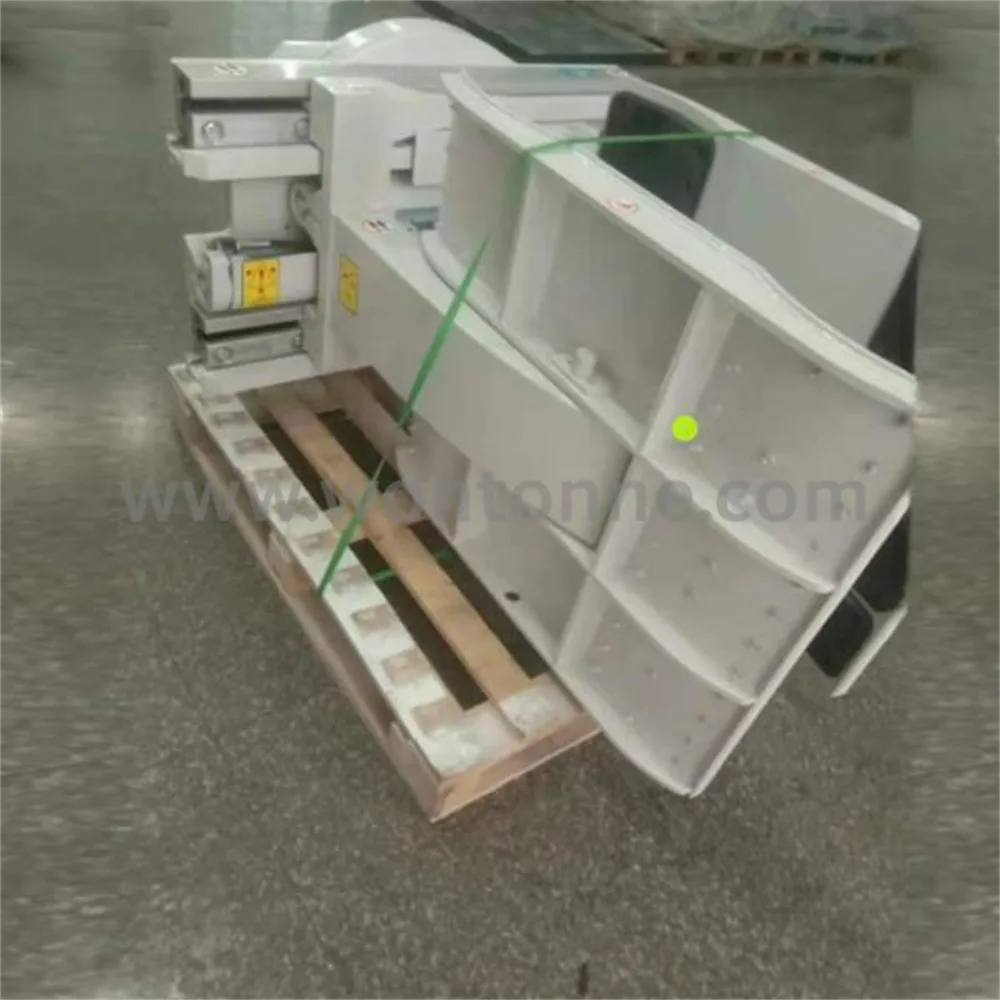

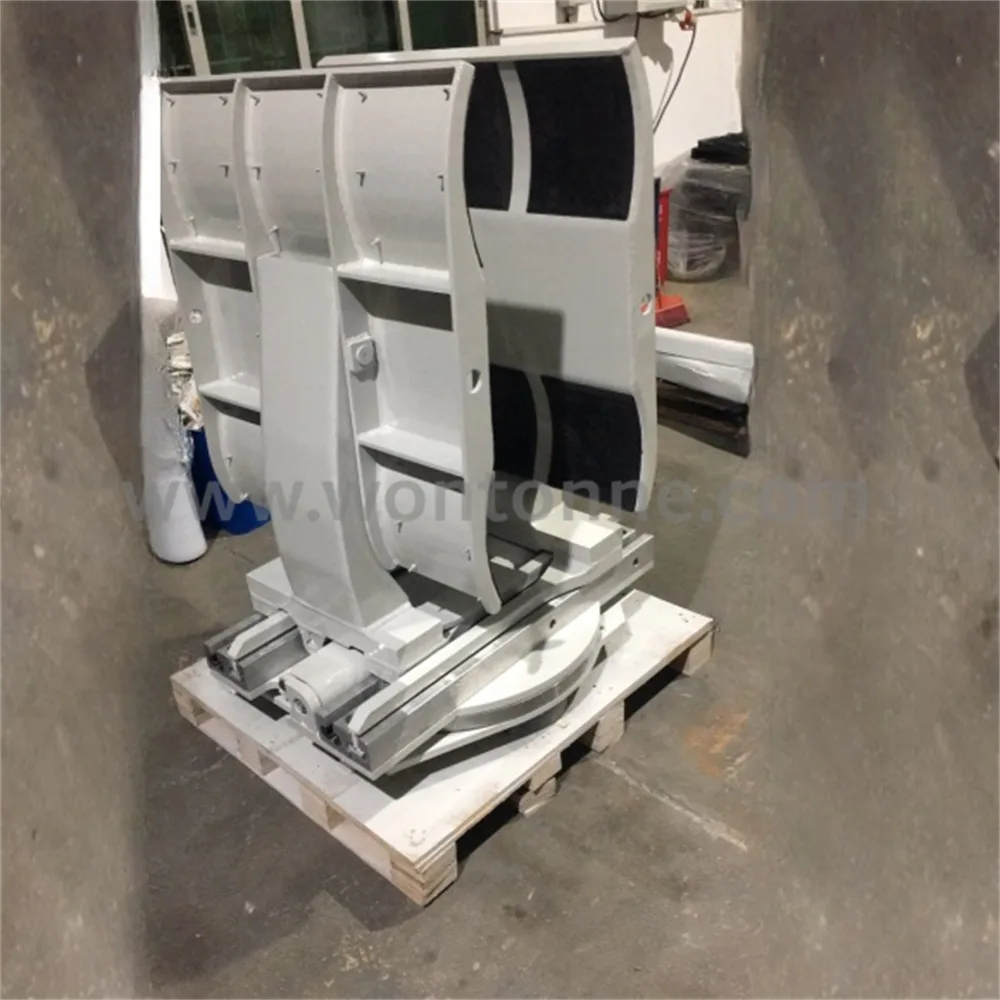

The Wontonne 4 Drum Clamp Heightening Type features higher arm height with side shifting and revolving for carrying, stacking and rotating 4 drums without pallets.
Key features & specifications:
Higher arm height for tall drums
Carries 4 drums at one time
Side shifting and revolving
Rubber-vulcanized clamp arms
No pallets required
Widely used in oil and chemical industries
Capacity up to 1600kg
Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.
Need More Info?
Get detailed specifications, pricing, and delivery estimates from our team.

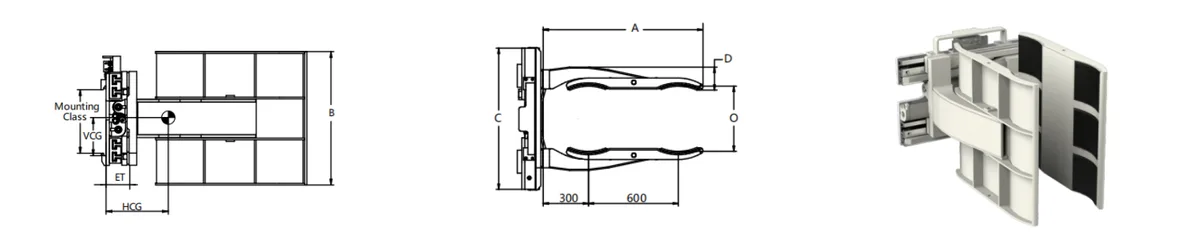

| Model No | Capacity (kg) | Load Center (mm) | Opening Range (mm) | Mounting | Weight (kg) | Effective Thickness ET (mm) | Arm Length (mm) | Arm Height (mm) | Frame Width (mm) | Vertical CG VCG (mm) | Horizontal CG HCG (mm) | Arm Thickness (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFS20D-017A | 1600 | 600 | 460-1690 | ISO 2A | 524 | 144 | 1060 | 800 | 940 | 228 | 374 | 150 |
| DFR20D-018A | 1600 | 600 | 460-1690 | ISO 2A | 735 | 245 | 1060 | 800 | 940 | 338 | 361 | 150 |
