What is the capacity of the H Series Fork Positioner?

The H Series Fork Positioner handles 4500-7000 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the H Series Fork Positioner use?

The H Series Fork Positioner is available for ISO 3A / ISO 4A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the H Series Fork Positioner are available?

Wontonne offers 9 models of the H Series Fork Positioner — including FPS45H-1380B, FPS45H-1450B, FPS45H-1500B, FPS70H-1900C, FPB45H-1380B and more — with different capacities and load centers for various applications.

What does a fork positioner do?

It hydraulically moves the forks together or apart from the cab, so the operator can match fork spacing to pallet width without leaving the truck.

What is the difference between the H and K series?

The H series covers standard applications up to 7000 kg with wider opening ranges; the K series offers a more compact, cost-effective build for lighter duties.

Products / Fork Positioners / H Series Fork Positioner

Fork Positioners

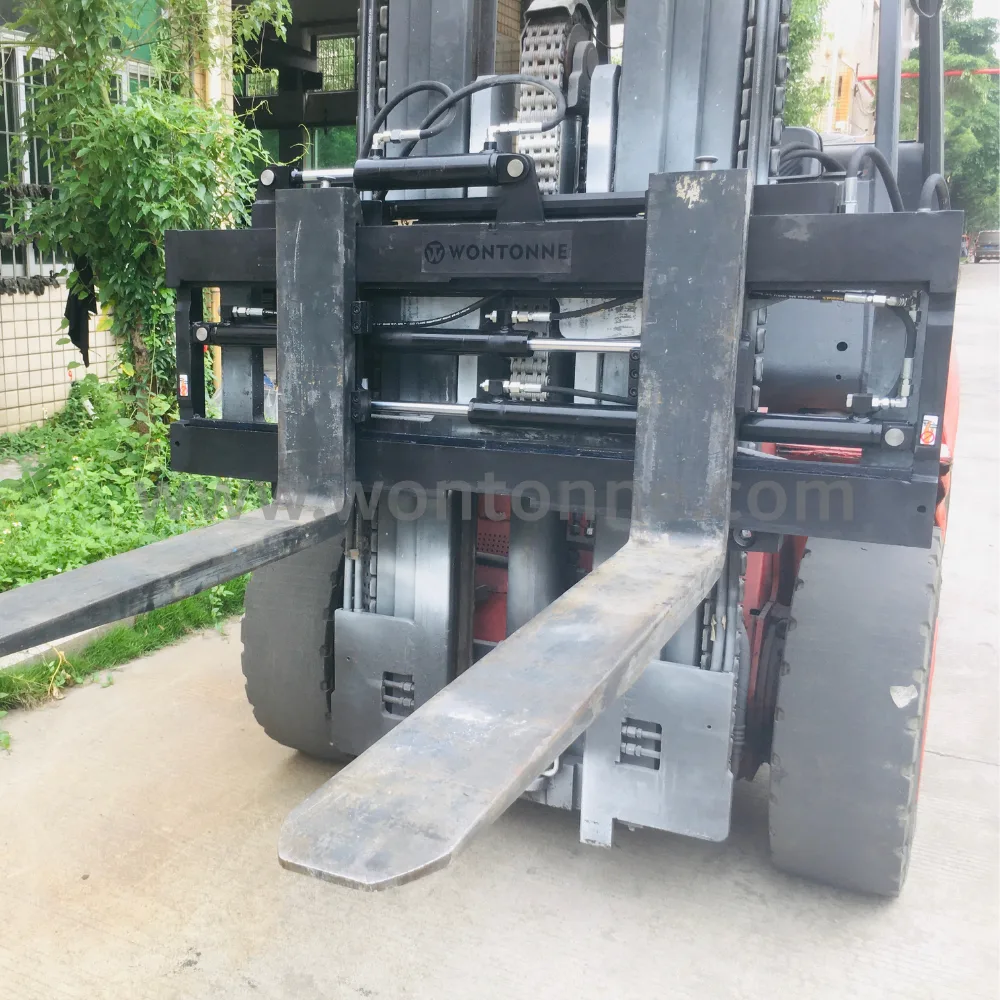

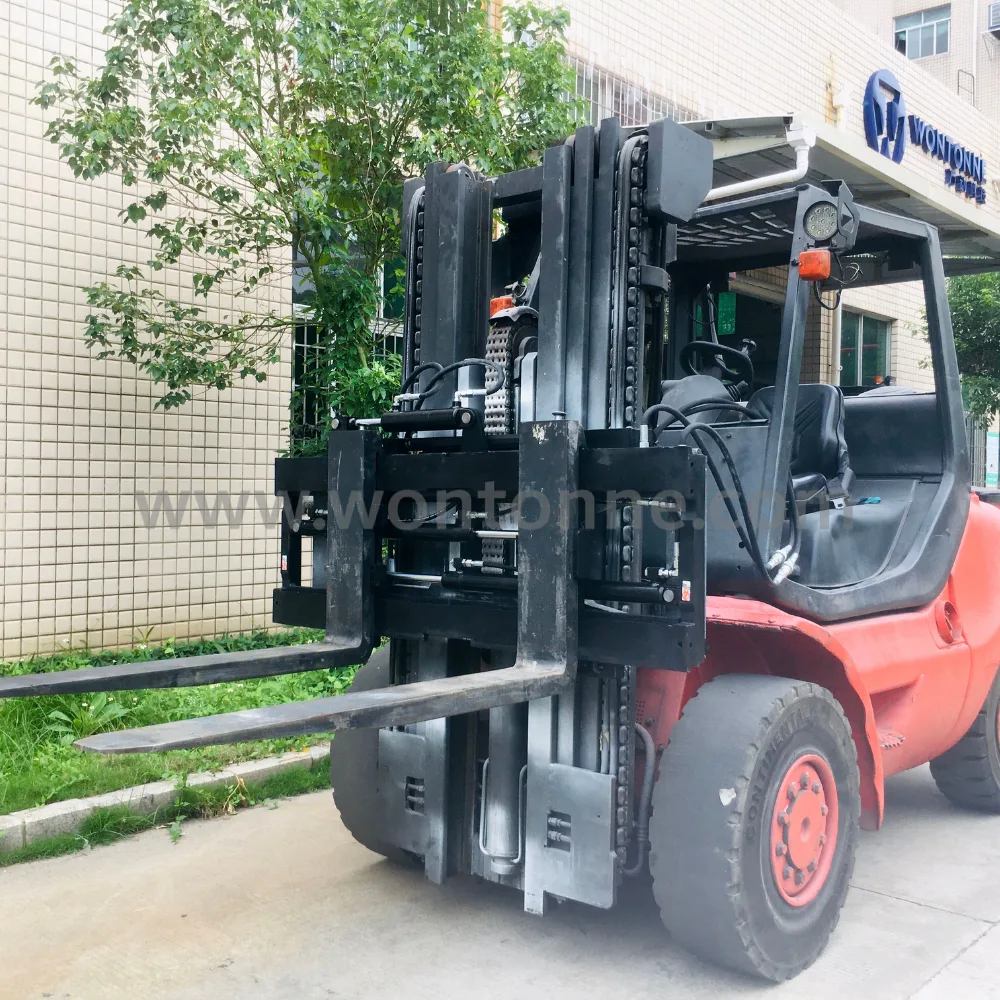

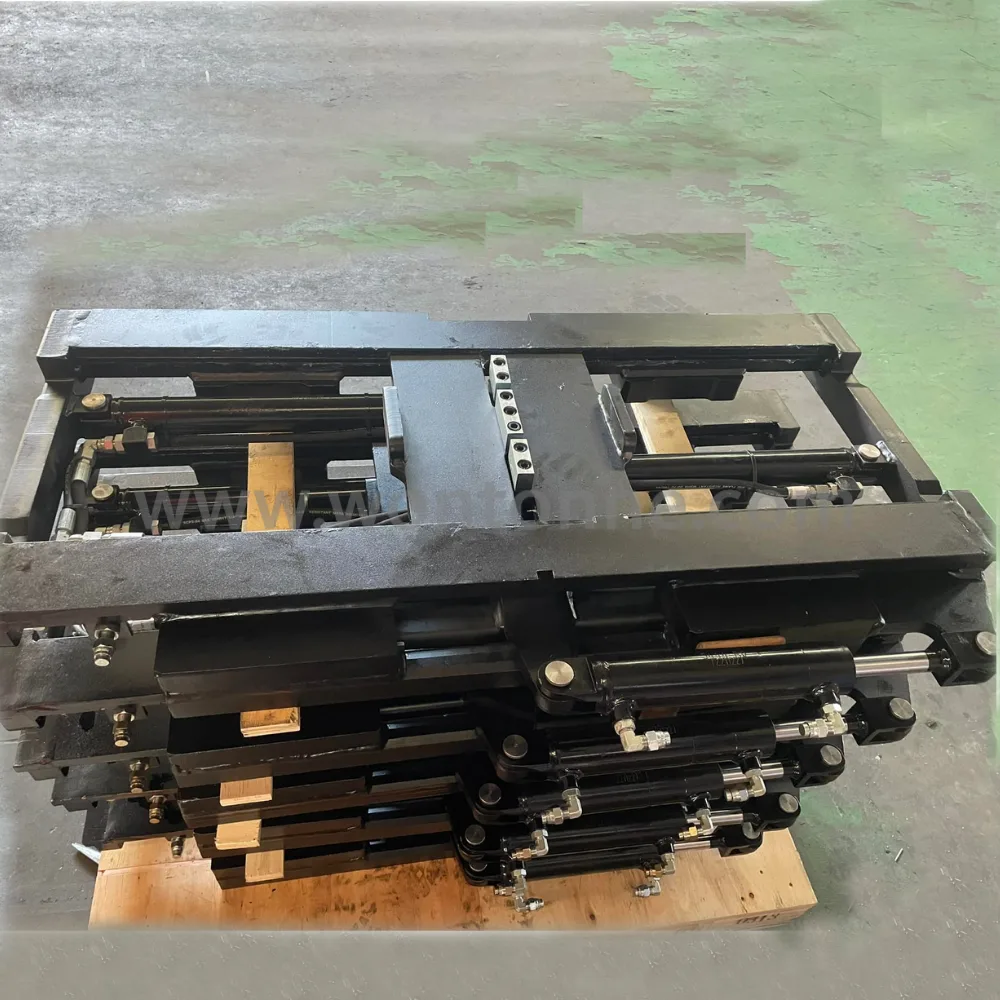

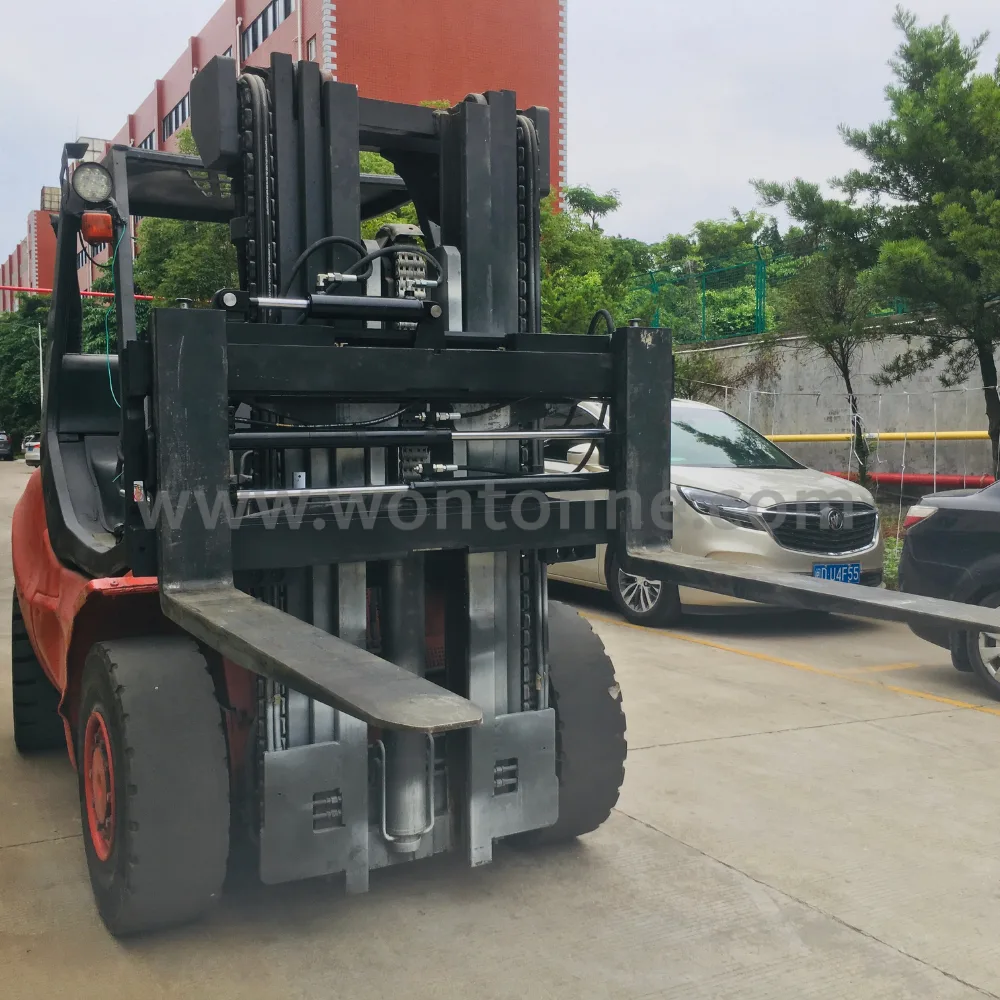

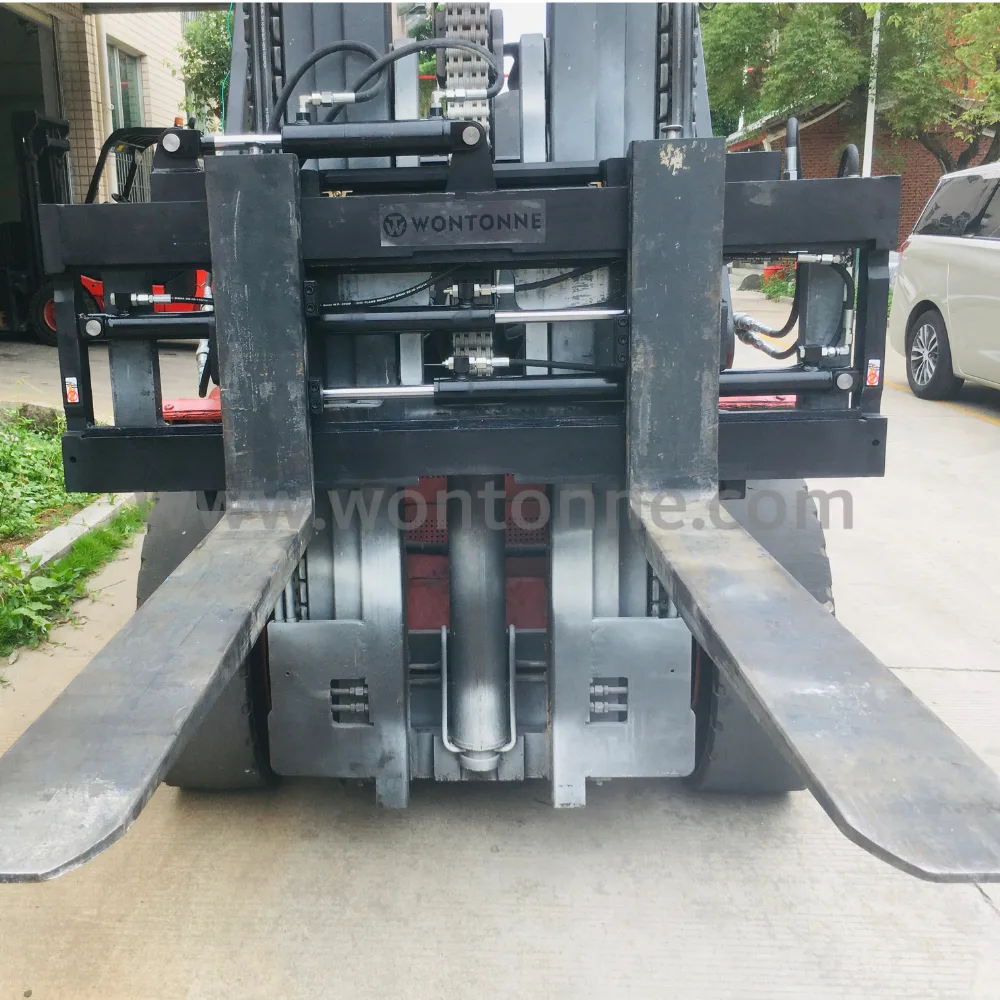

H Series Fork Positioner

Engineered for durability and precision, h series fork positioner delivers reliable performance in demanding material handling environments.

All Fork Positioners

Product Overview

The Wontonne H Series Fork Positioner efficiently adjusts the distance between forks to pick up pallet goods of different specifications and widths.

The fork positioner efficiently adjusts fork spacing, individually or collectively, for stacking, handling, and loading pallet goods of various sizes and widths.

Key features & specifications:

Adjusts fork distance hydraulically

Side shift for fine positioning

For various pallet sizes

Operator stays seated while adjusting

Fast, accurate fork movement

For stacking, handling and loading

Capacity up to 7000kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

Model No	Capacity (kg)	Load Center (mm)	Opening Range (mm)	Mounting	Weight (kg)	Effective Thickness ET (mm)	Min Carriage Width (mm)	Carriage Width (mm)	Sideshifting Range (mm)	Fork Pocket Width (mm)	Vertical CG VCG (mm)	Horizontal CG HCG (mm)
FPS45H-1380B	4500	600	330-1300	ISO 3A	223	97	1040	1380	±100	150	292	52
FPS45H-1450B	4500	600	330-1360	ISO 3A	235	97	1220	1450	±100	150	288	52
FPS45H-1500B	4500	600	330-1410	ISO 3A	239	97	1220	1500	±100	150	287	52
FPS70H-1900C	7000	600	330-1810	ISO 4A	357	102	1345	1900	±150	150	379	57
FPB45H-1380B	4500	600	330-1300	ISO 3A	198	95	1040	1380	—	150	254	56
FPB45H-1700B	4500	600	330-1610	ISO 3A	241	95	1300	1700	—	150	266	55
FPB45H-1900B	4500	600	330-1810	ISO 3A	261	95	1450	1900	—	150	264	56
FPB70H-1400C	7000	600	330-1310	ISO 4A	264	100	1100	1400	—	150	328	57
FPB70H-1700C	7000	600	330-1610	ISO 4A	302	100	1450	1700	—	150	325	59
