What is the capacity of the Hinged Broke Handler (With Forks)?

The Hinged Broke Handler (With Forks) handles 2500-2500 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the Hinged Broke Handler (With Forks) use?

The Hinged Broke Handler (With Forks) is available for ISO 3A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the Hinged Broke Handler (With Forks) are available?

Wontonne offers 2 models of the Hinged Broke Handler (With Forks) — including HKB30D-022B, HKB30D-024B — with different capacities and load centers for various applications.

What are hinged forks?

Hinged forks tilt up to 45° forward and 25° rearward, dumping bulk materials or angling loads; an optional bucket converts them for coal, gravel and sand.

What is a hinged steel pipe handler?

A hinged pipe handler clamps and tips steel pipes and tubes for stacking and loading — with up-and-over pivoting for pipe rack handling.

Products / Hinged Attachments / Hinged Broke Handler (With Forks)

Hinged Attachments

Hinged Broke Handler (With Forks)

Engineered for durability and precision, hinged broke handler (with forks) delivers reliable performance in demanding material handling environments.

All Hinged Attachments

Product Overview

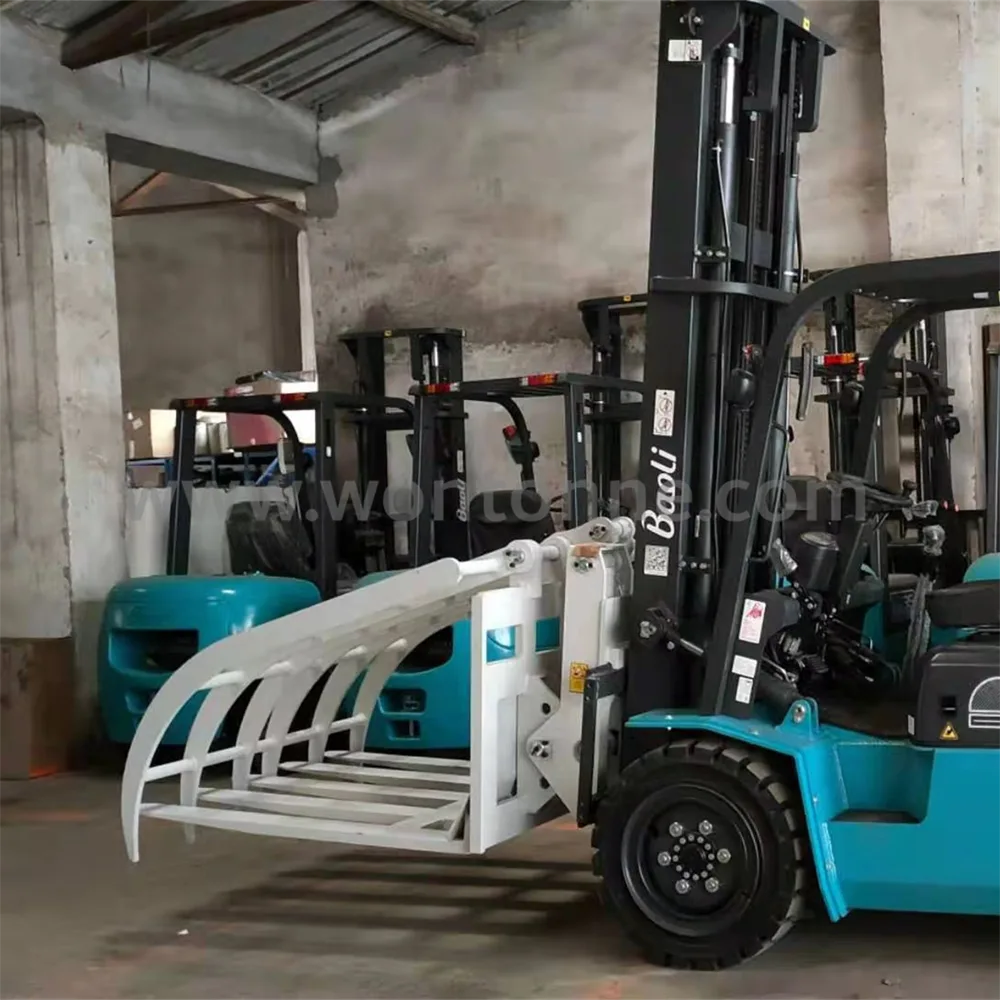

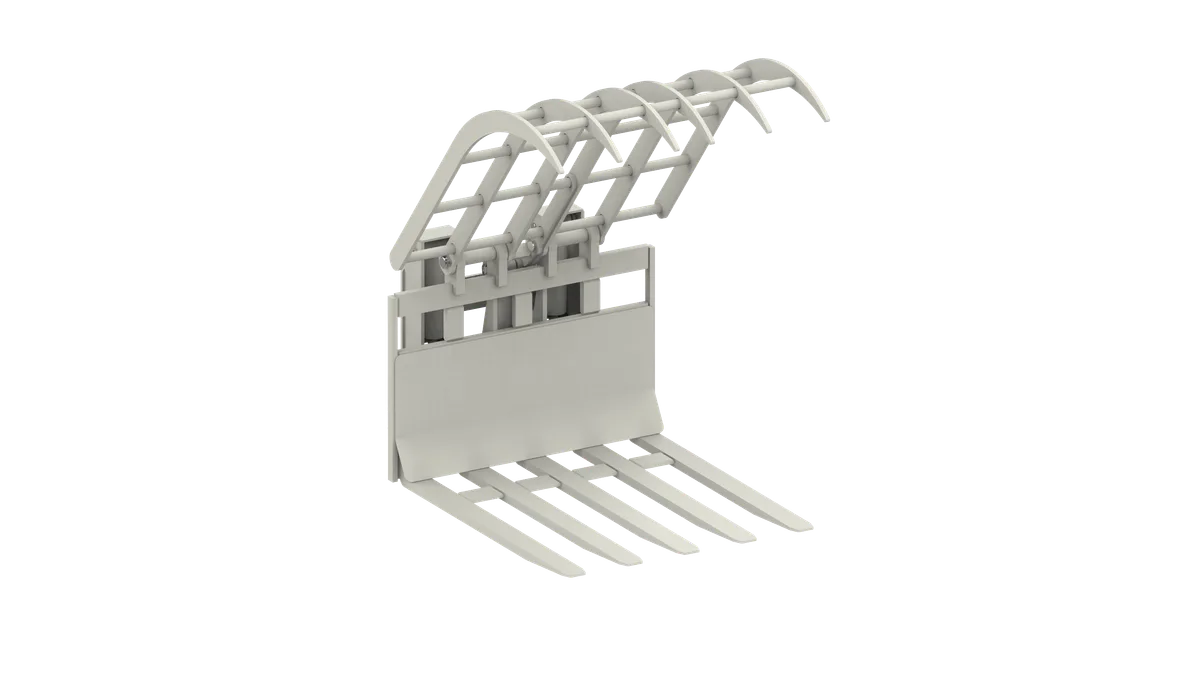

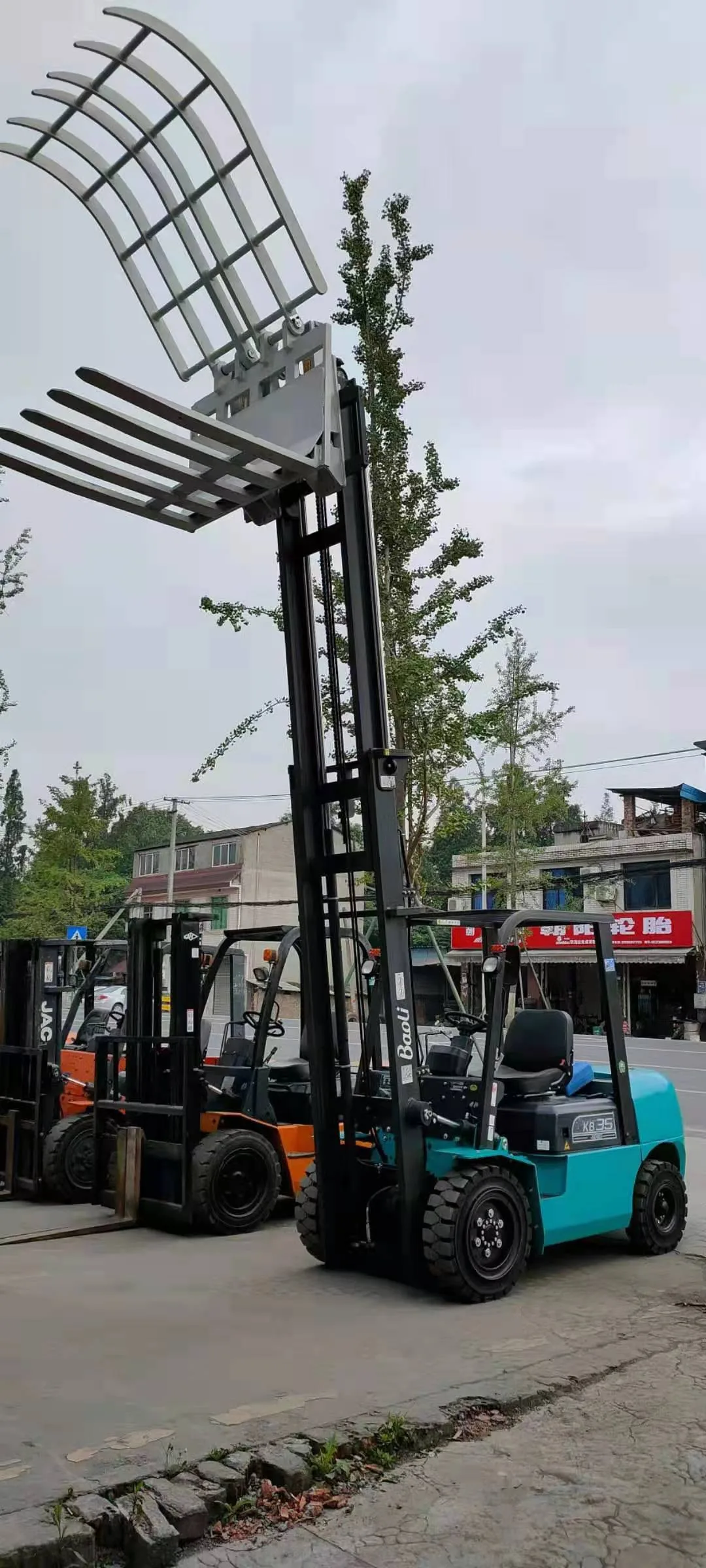

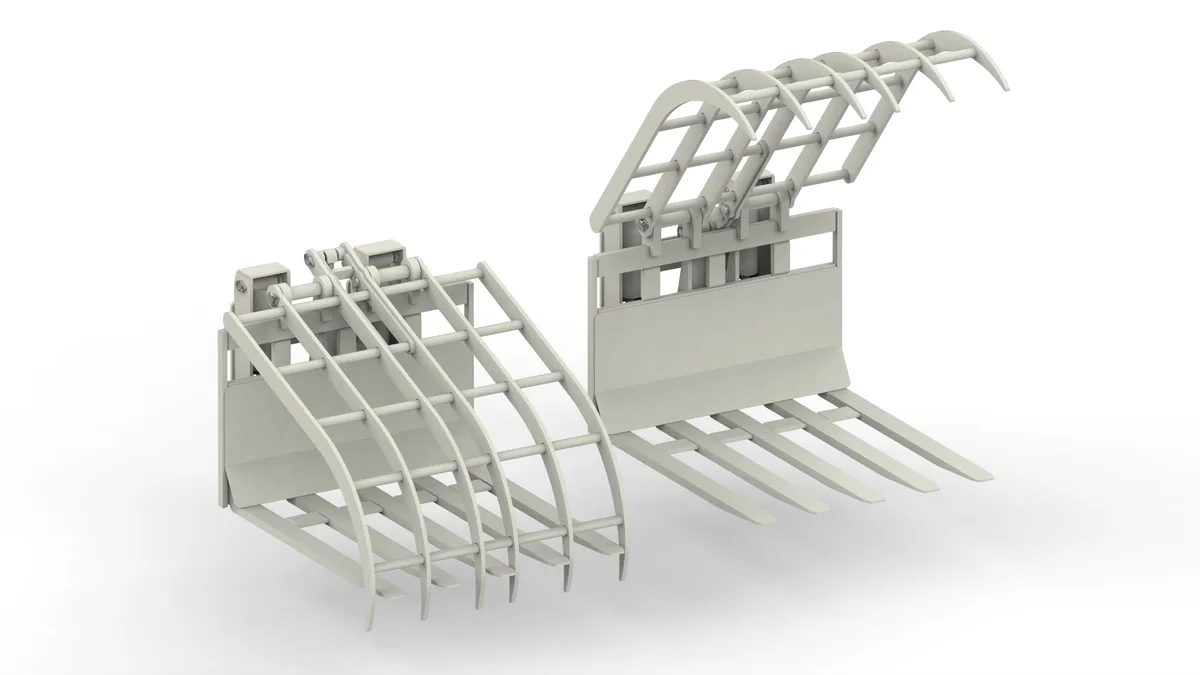

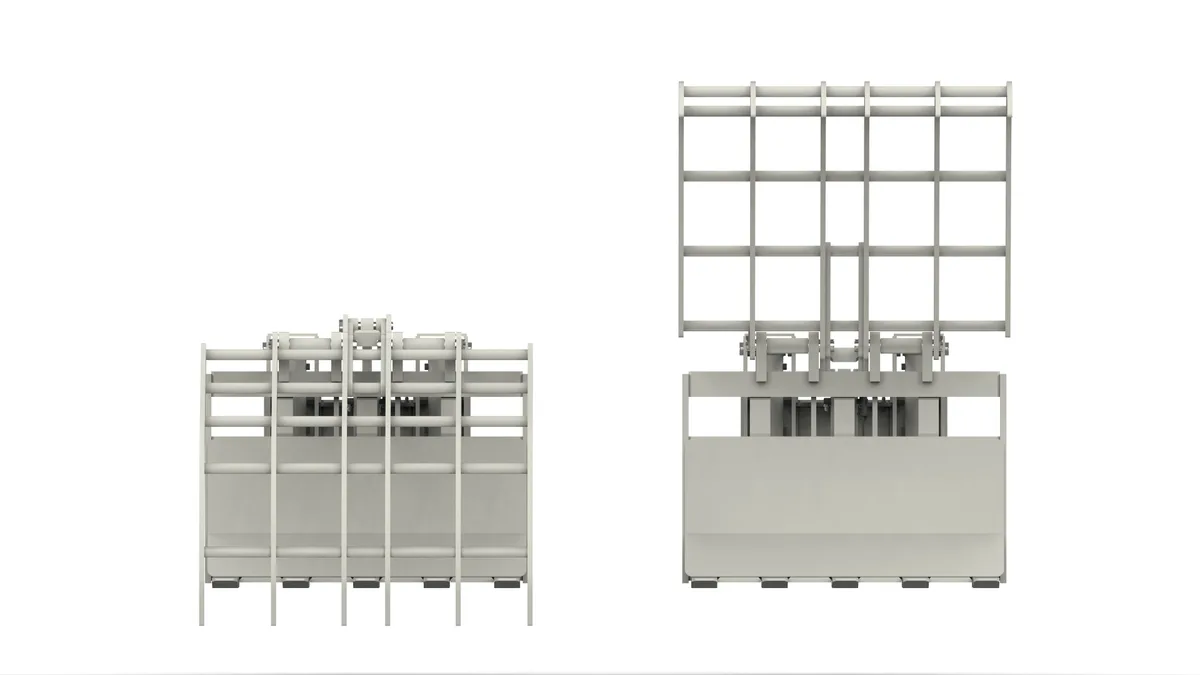

The Wontonne Hinged Broke Handler (With Forks) increases fork frame tilt angles to 45° forward and 12° backward for efficient waste handling.

Key features & specifications:

45° forward and 12° backward tilt

Forks clamp waste goods efficiently

Jaw holds goods during transport

For non-standard packaging goods

Handles waste paper, straw and fiber

For recycling and scrap clamping

Improves forklift loading flexibility

Capacity up to 2500kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

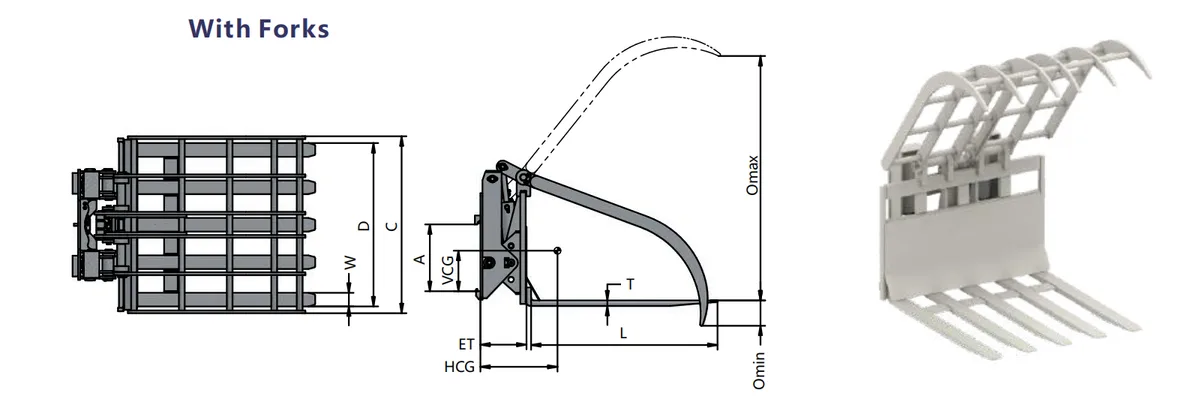

Model No	Capacity (kg)	Load Center (mm)	Opening Range (mm)	Mounting	Weight (kg)	Effective Thickness ET (mm)	Mounting Class A	Opening Range (mm)	Carriage Width (mm)	Claw Width (mm)	Fork Size (mm)	Fork Qty	Tilt Angle (°)	Horizontal CG HCG (mm)
HKB30D-022B	2500	500	-100-1900	ISO 3A	822	345	ISO 3A	-100-1900	1200	1300	100×40×1220	5	45°/12°	509
HKB30D-024B	2500	500	-180-1800	ISO 3A	888	345	ISO 3A	-180-1800	1200	1300	100×40×1370	5	45°/12°	556
