Sanitation Forks
Engineered for durability and precision, sanitation forks delivers reliable performance in demanding material handling environments.
Product Overview

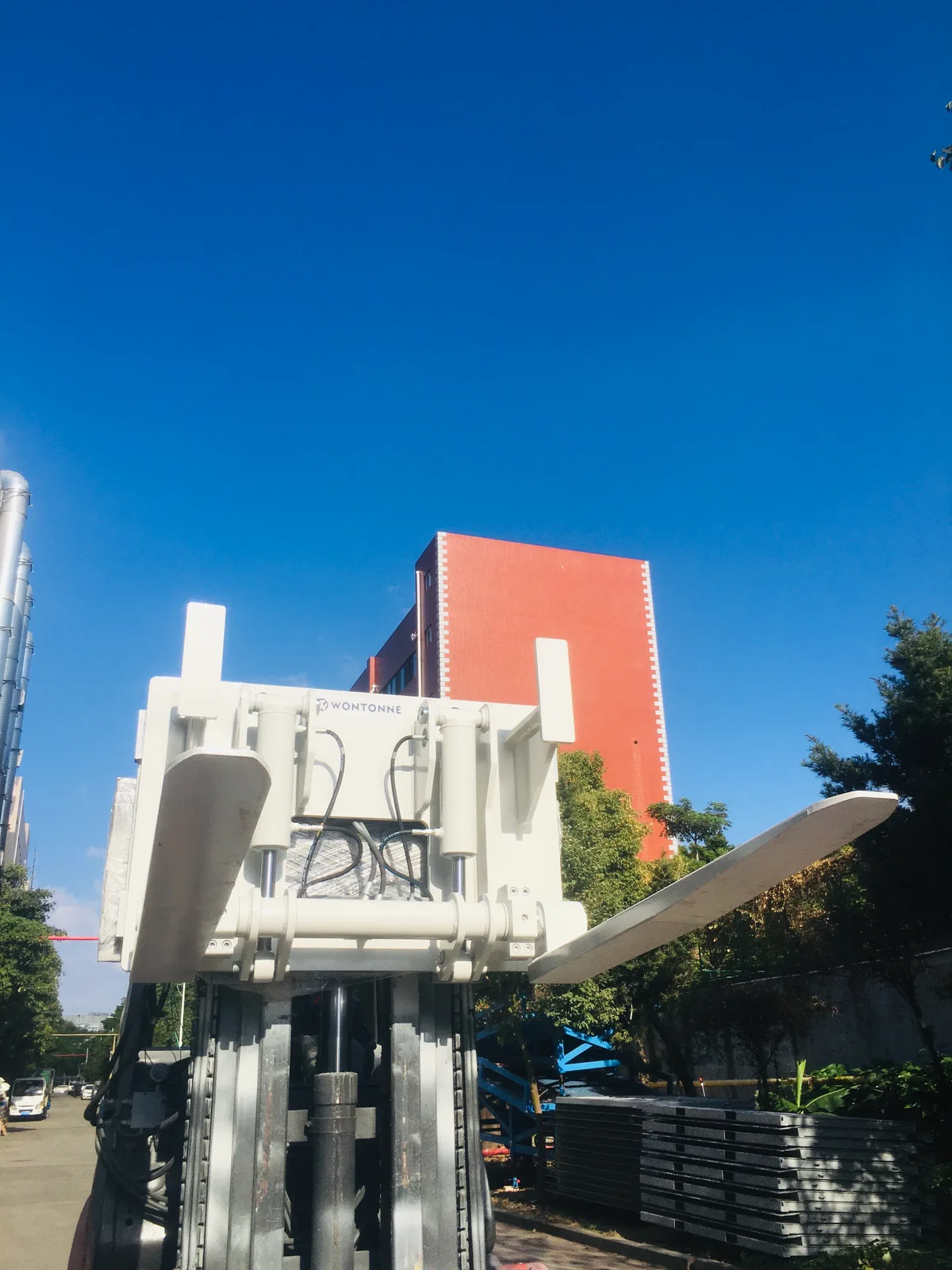

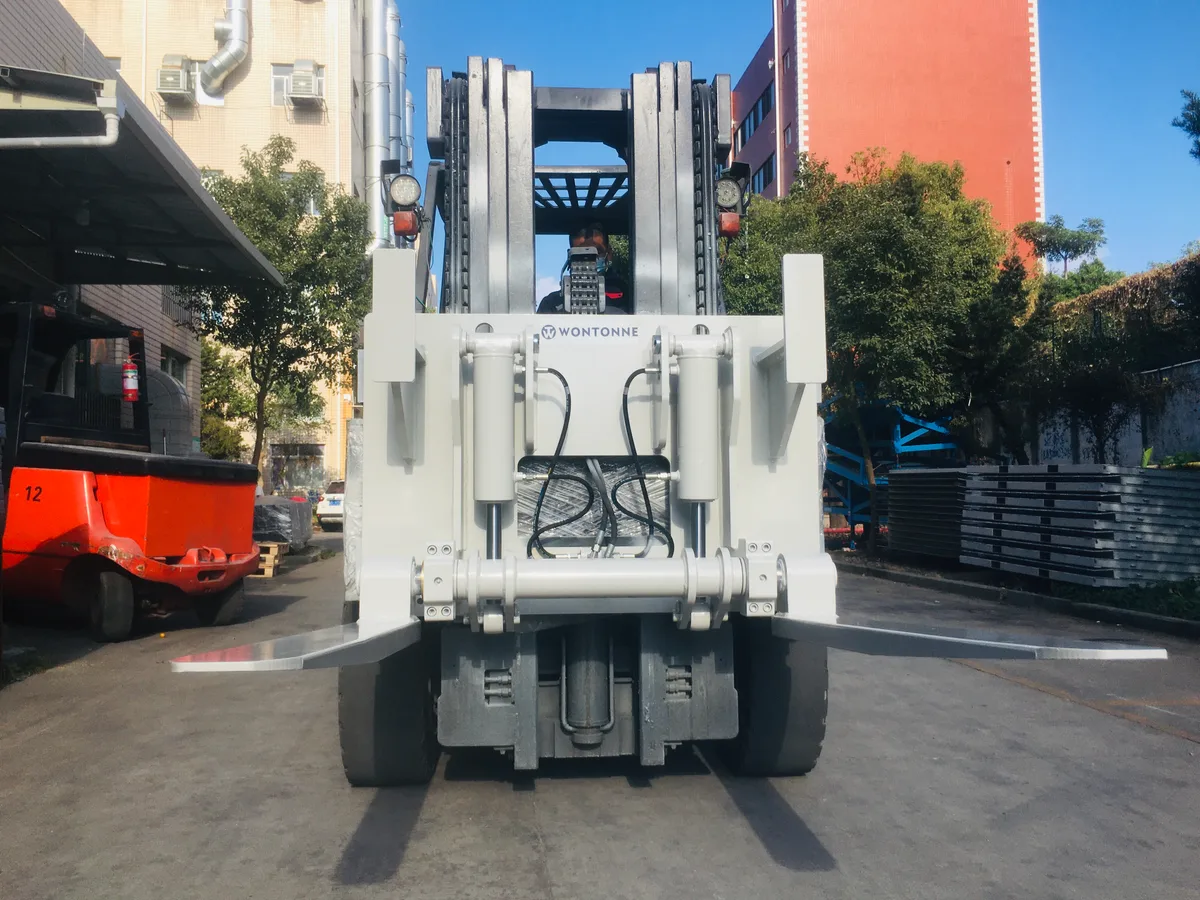

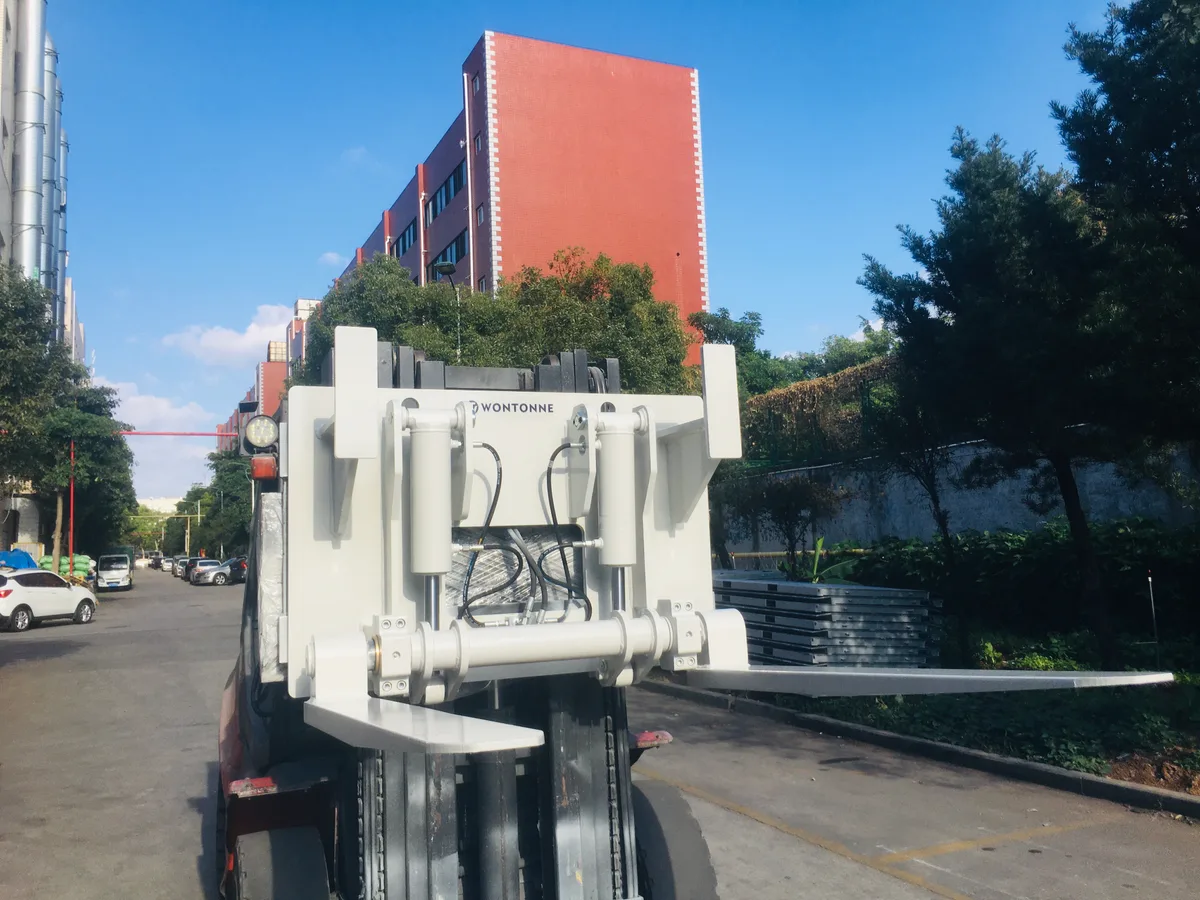

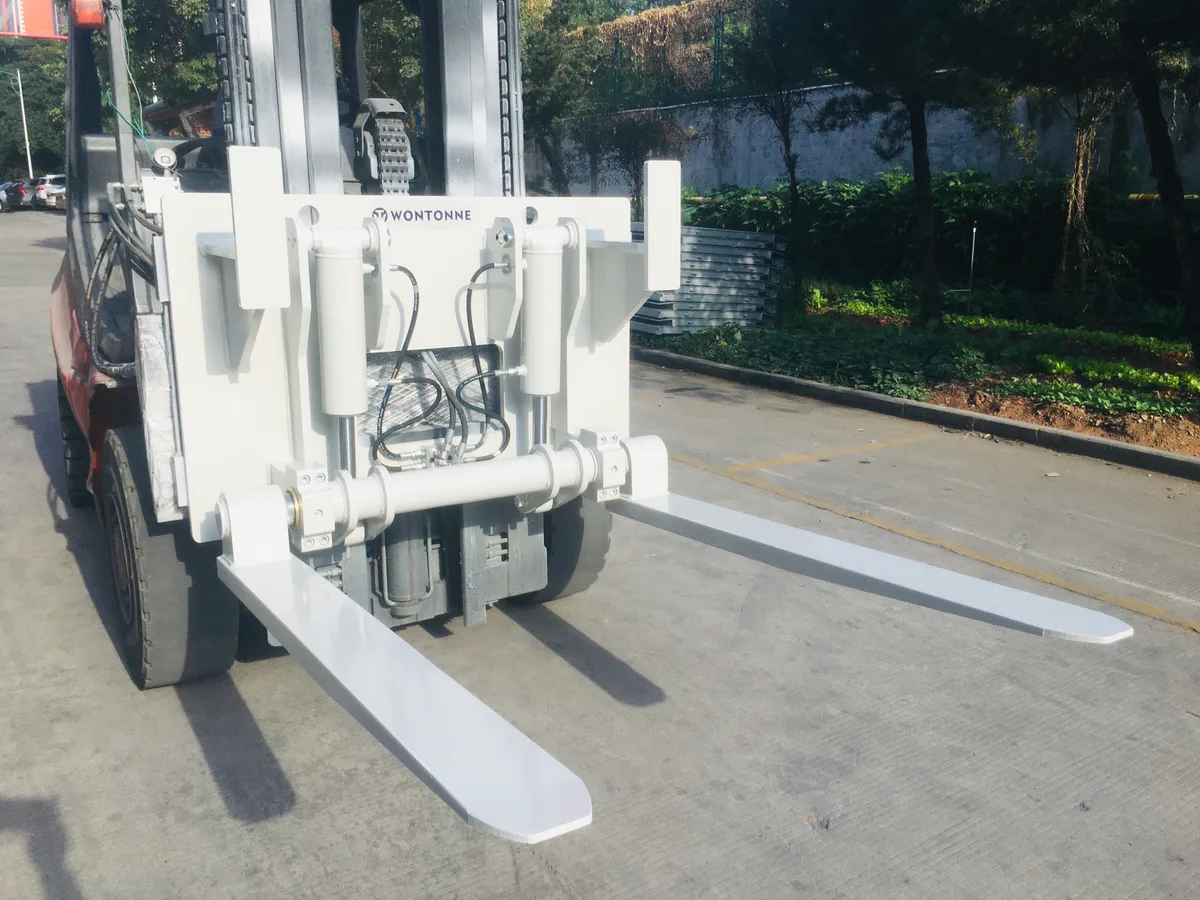

The Wontonne Sanitation Forks are applicable for dumping goods in the sanitation sector, saving manual handling and dumping time.
Key features & specifications:
For sanitation sector applications
Efficient forward dumping
Alloy steel forged forks
Imported hydraulic seals and hoses
Forward check valve holds pressure
Saves manual handling time
Capacity up to 5000kg
Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.
Need More Info?
Get detailed specifications, pricing, and delivery estimates from our team.

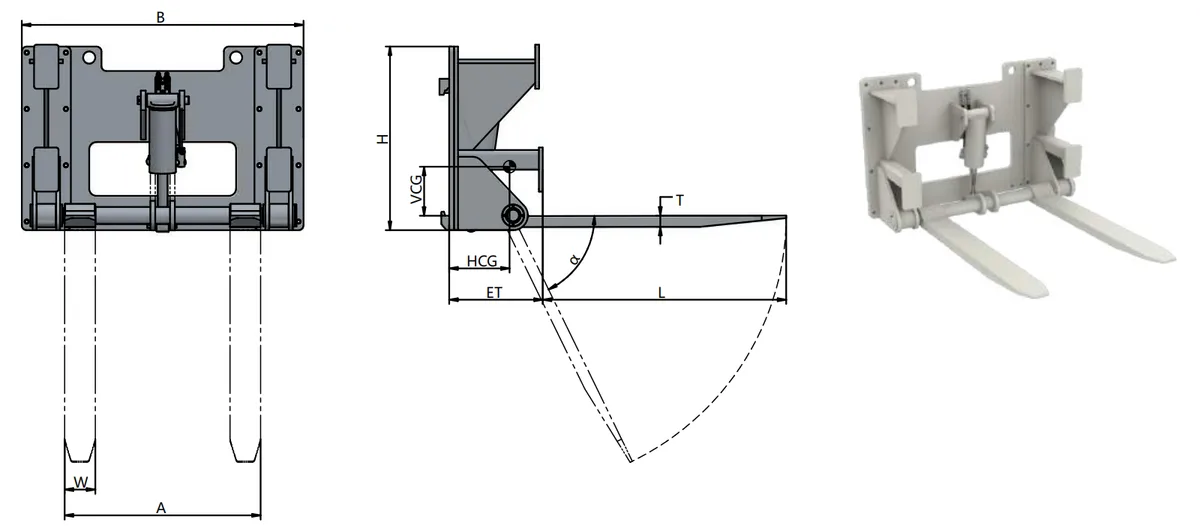

| Model No | Capacity (kg) | Load Center (mm) | Mounting | Weight (kg) | Effective Thickness ET (mm) | Tilt Angle (°) | Fork Size (mm) | Fork Outer Spacing (mm) | Height (mm) | Horizontal CG HCG (mm) | Overall Width (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HW30D-0063A | 2000 | 500 | ISO 2A | 277 | 295 | 77° | 1000×100×40 | 580 | 700 | 245 | 660 |
| HW30D-9063B | 2500 | 500 | ISO 3A | 331 | 280 | 76° | 975×125×45 | 760 | 700 | 253 | 1100 |
| HW30D-6657B | 2800 | 500 | ISO 3A | 430 | 308 | 66° | 1085×125×45 | 1080 | 700 | 233 | 1080 |
| HW50D-9070B | 5000 | 600 | ISO 4A | 606 | 300 | 87° | 1350×150×50 | 1200 | 820 | 285 | 1250 |
Manufacturing Excellence
30,000 m² intelligent facility — ISO 9001 & ISO 3834 certified production lines.
