What is the capacity of the No-Arm Clamps (Side Shifting Type)?

The No-Arm Clamps (Side Shifting Type) handles 1500-2300 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the No-Arm Clamps (Side Shifting Type) use?

The No-Arm Clamps (Side Shifting Type) is available for ISO 3A / ISO 2A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the No-Arm Clamps (Side Shifting Type) are available?

Wontonne offers 3 models of the No-Arm Clamps (Side Shifting Type) — including CNS30D-003B, CNS20D-006A, CNS30D-003A — with different capacities and load centers for various applications.

What is a no-arm clamp used for?

No-arm clamps handle wide, soft loads — stacked textiles, paper reams, bagged goods — using a full-width face plate instead of arms, distributing pressure evenly without damage.

What can a multi-purpose clamp handle?

Multi-purpose clamps adapt to bales, cartons, drums and general goods — one attachment for mixed load fleets in warehousing and distribution.

Products / Other Clamps / No-Arm Clamps (Side Shifting Type)

Other Clamps

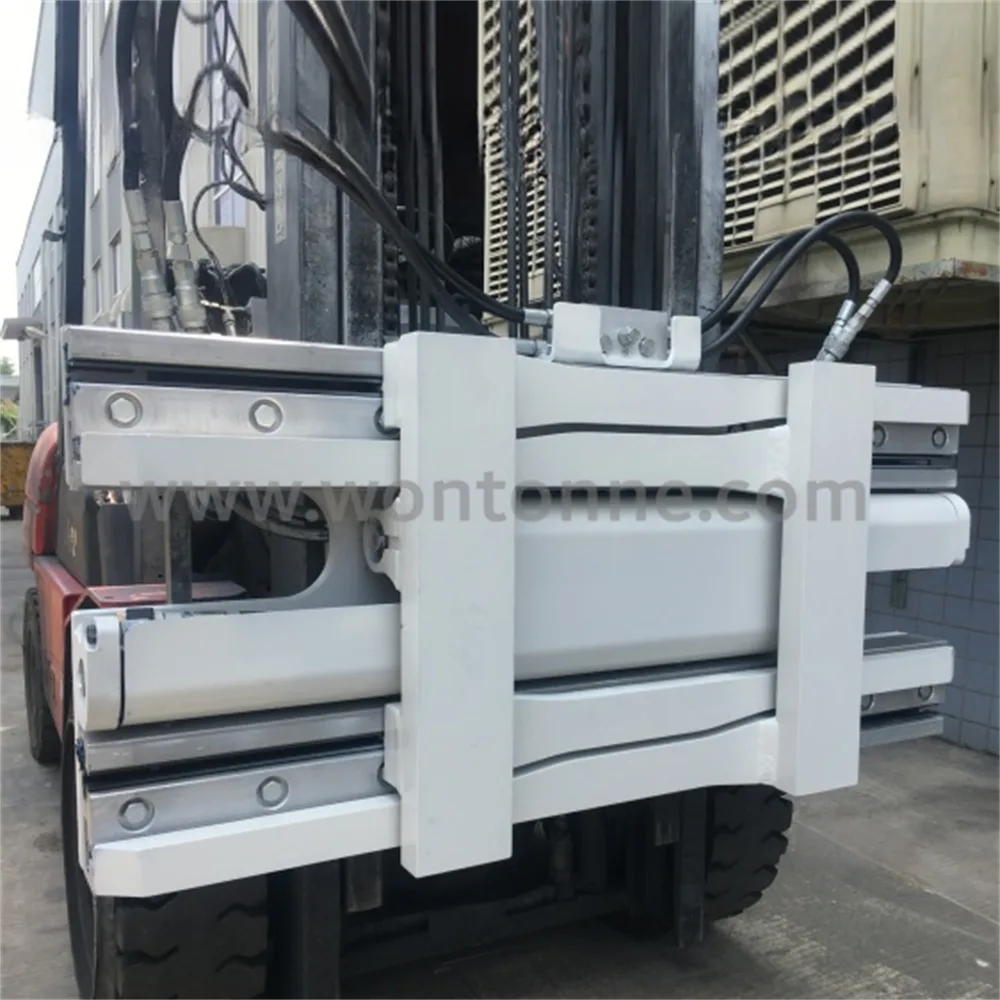

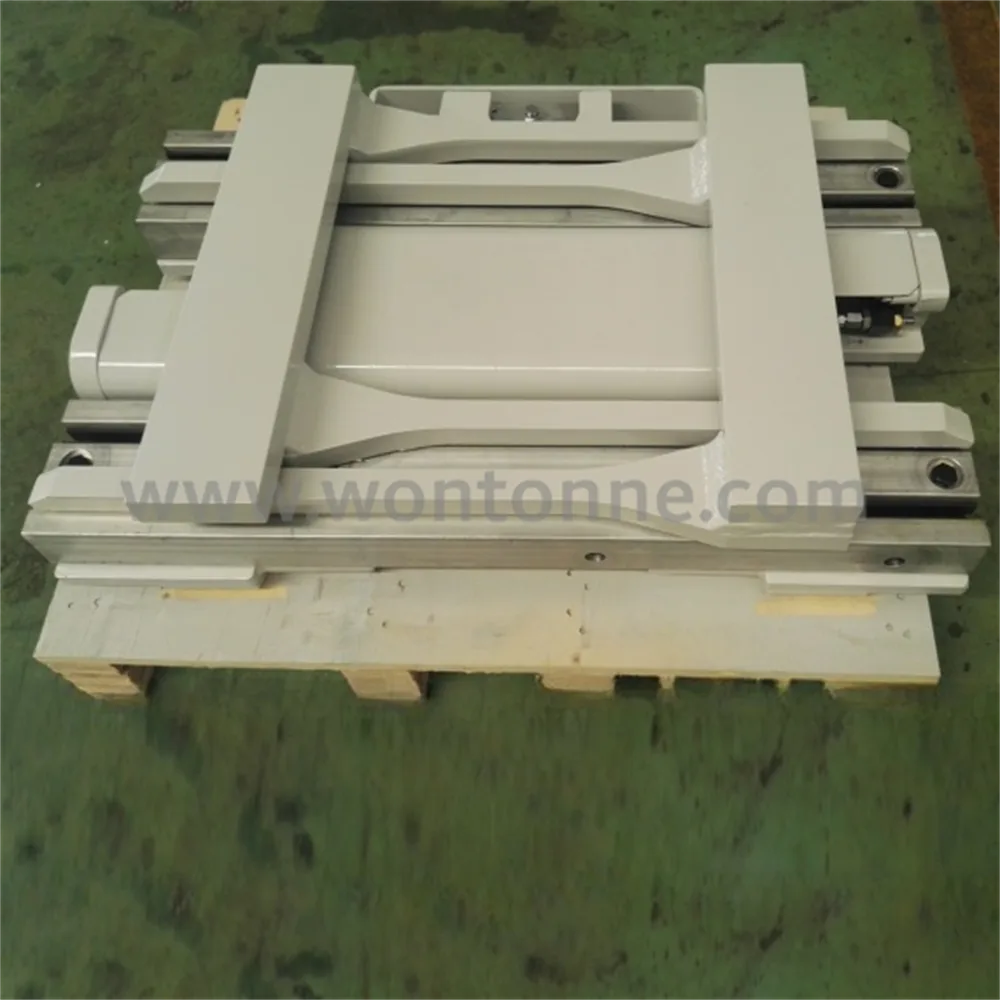

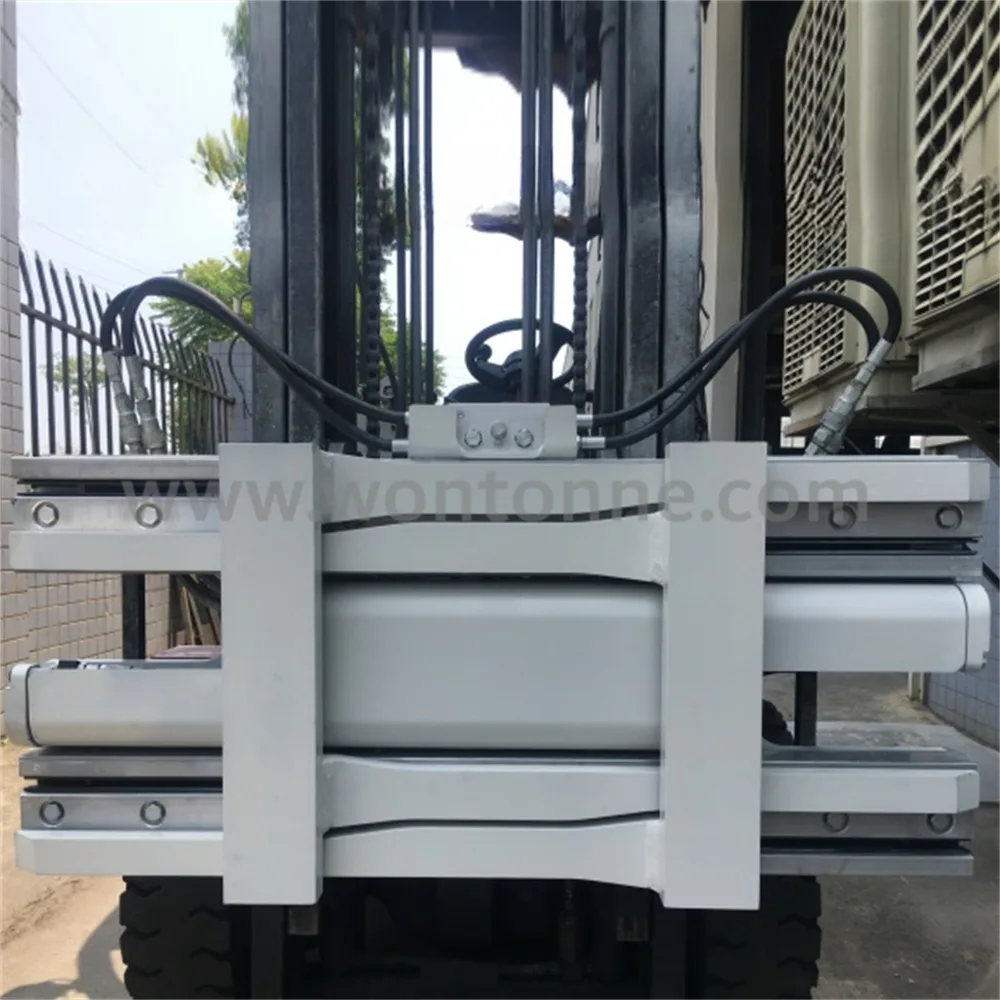

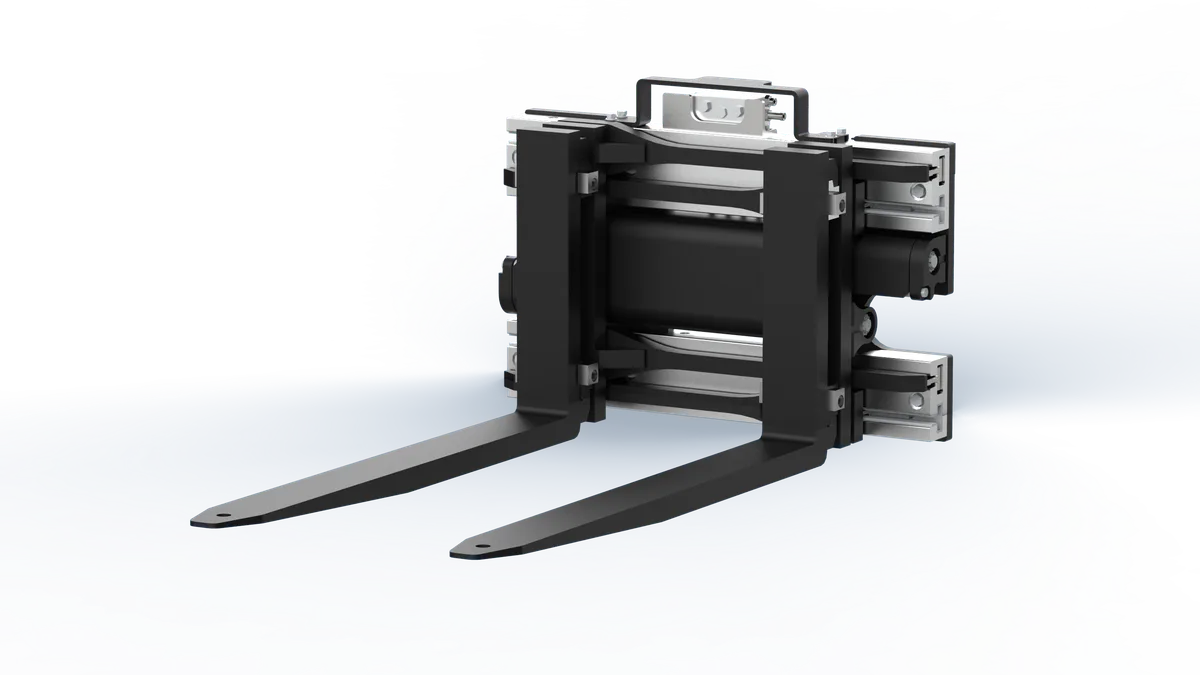

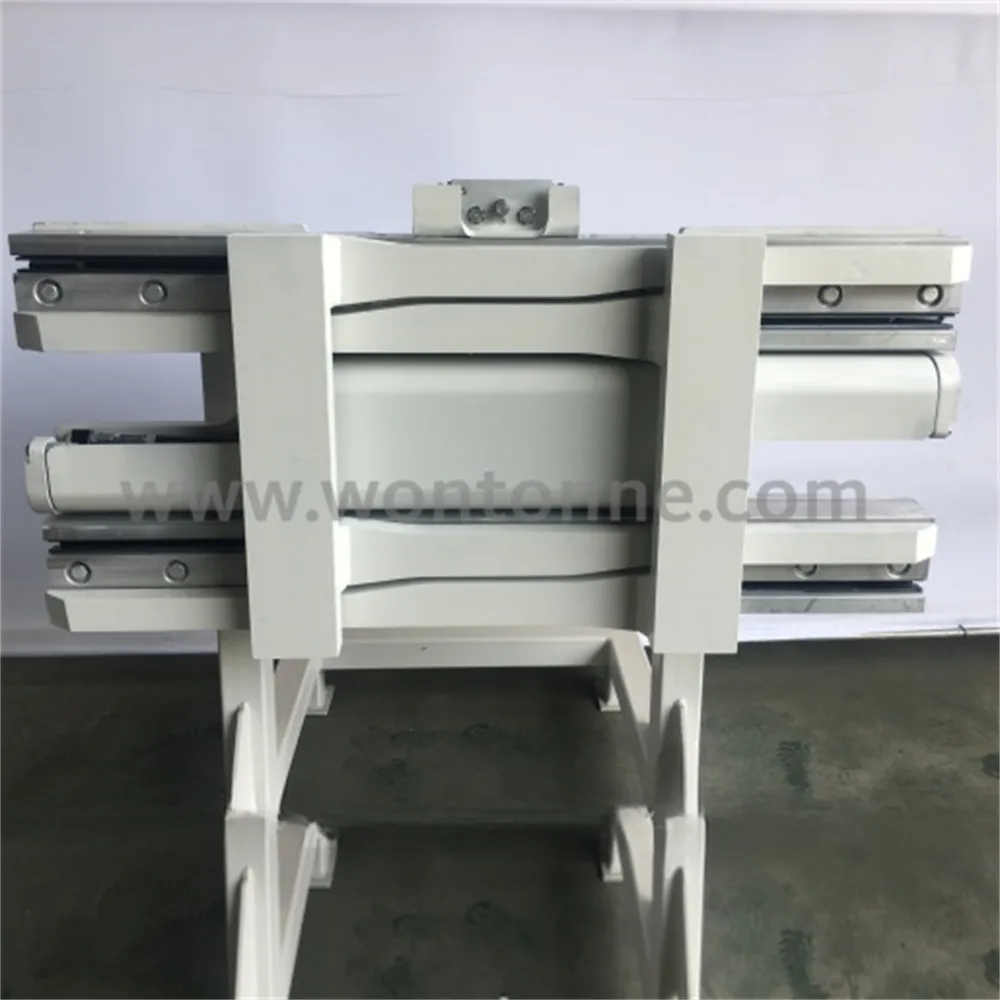

No-Arm Clamps (Side Shifting Type)

Engineered for durability and precision, no-arm clamps (side shifting type) delivers reliable performance in demanding material handling environments.

All Other Clamps

Product Overview

The Wontonne No-Arm Clamps (Sideshifting Type) include two fixing plates for securing customer-specific clamp arms for special handling requirements.

Key features & specifications:

Two fixing plates for custom arms

Existing arms or forks can be welded

Side shifting models available

High strength steel frame

Long service life sliding bearings

Positive feedback oil circuit

Good vision, safe and reliable

Capacity up to 2300kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

Model No	Capacity (kg)	Load Center (mm)	Opening Range (mm)	Mounting	Weight (kg)	Effective Thickness ET (mm)	Arm Height (mm)	Arm Width (mm)	Frame Width (mm)	Vertical CG VCG (mm)	Horizontal CG HCG (mm)	Arm Thickness (mm)
CNS30D-003B	2300	600	470-1800	ISO 3A	338	150	627	127	1016	255	86	46
CNS20D-006A	1500	600	380-1650	ISO 2A	260	127	565	127	1040	234	74	38
CNS30D-003A	2300	600	470-1800	ISO 2A	337	150	627	127	1016	255	86	46
