What is the capacity of the 20G Paper Roll Clamp(Fixed Short Arm)?

The 20G Paper Roll Clamp(Fixed Short Arm) handles 1700-2000 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the 20G Paper Roll Clamp(Fixed Short Arm) use?

The 20G Paper Roll Clamp(Fixed Short Arm) is available for ISO 2A / ISO 3A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the 20G Paper Roll Clamp(Fixed Short Arm) are available?

Wontonne offers 10 models of the 20G Paper Roll Clamp(Fixed Short Arm) — including RCF20G-002A, RCF20G-002B, RCF20G-004A, RCF20G-004B, RCF20G-005A and more — with different capacities and load centers for various applications.

What capacity of paper roll clamp do I need?

Wontonne offers paper roll clamps from 1000 kg to 4100 kg capacity. The 12G series suits tissue and small rolls (1000-1200 kg), while the 33G and 35F series handle large board rolls up to 4100 kg. Choose by your heaviest roll weight plus a safety margin.

What is the difference between positioned and fixed short-arm paper roll clamps?

Positioned short-arm clamps (20G-P, 24G-P, 30G-P, 33G-P, 35F-P) let the short arm reposition hydraulically to match roll diameter, ideal for multi-diameter roll handling. Fixed short-arm clamps (12G, 15F, 20G, 24G, 30G, 33G, 35F) offer a simpler, more economical design for consistent roll sizes.

Products / Paper Roll Clamps / 20G Paper Roll Clamp(Fixed Short Arm)

Paper Roll Clamps

20G Paper Roll Clamp(Fixed Short Arm)

Engineered for durability and precision, 20g paper roll clamp(fixed short arm) delivers reliable performance in demanding material handling environments.

All Paper Roll Clamps

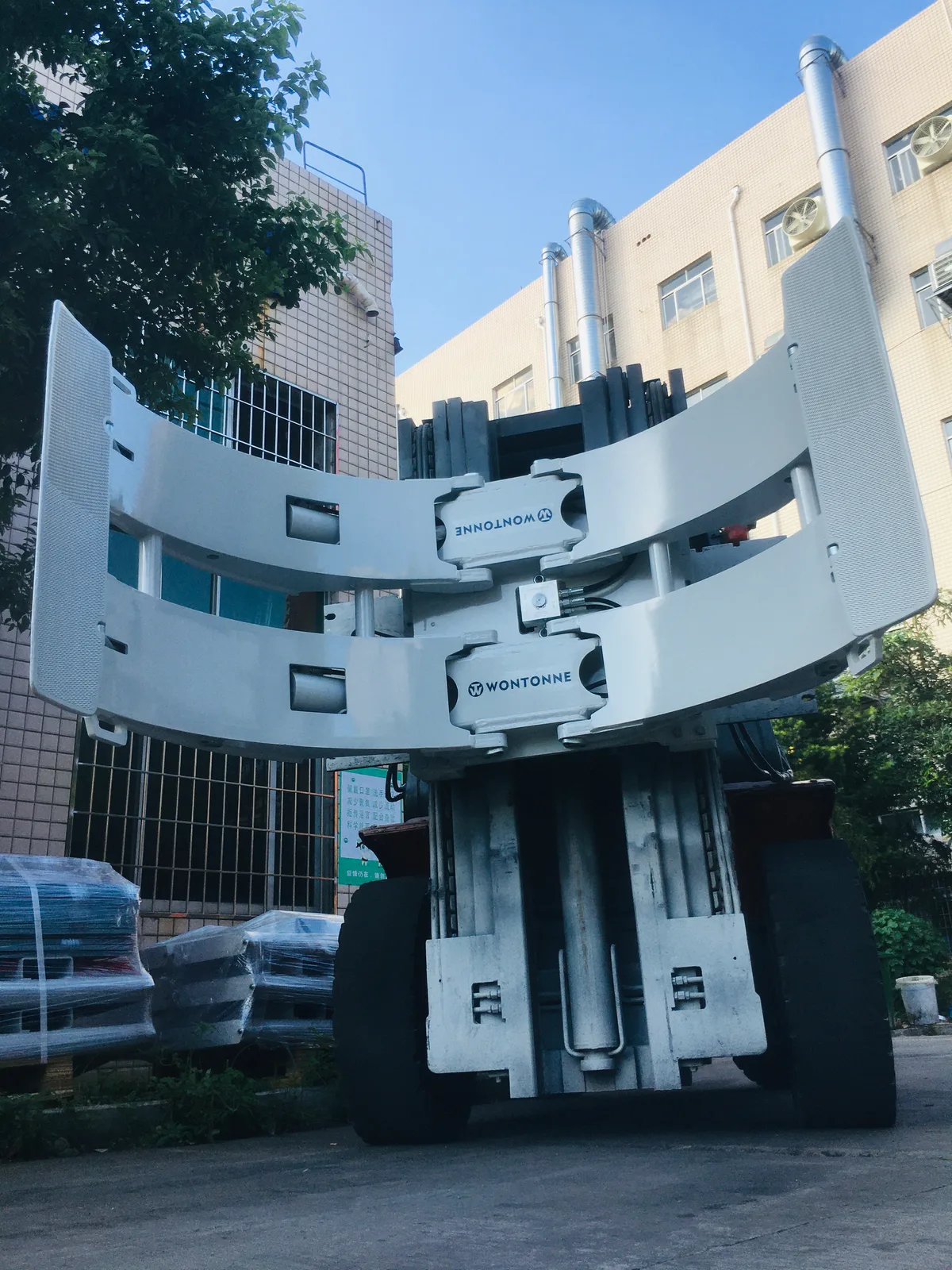

20G Paper Roll Clamp(Fixed Short Arm) - 1

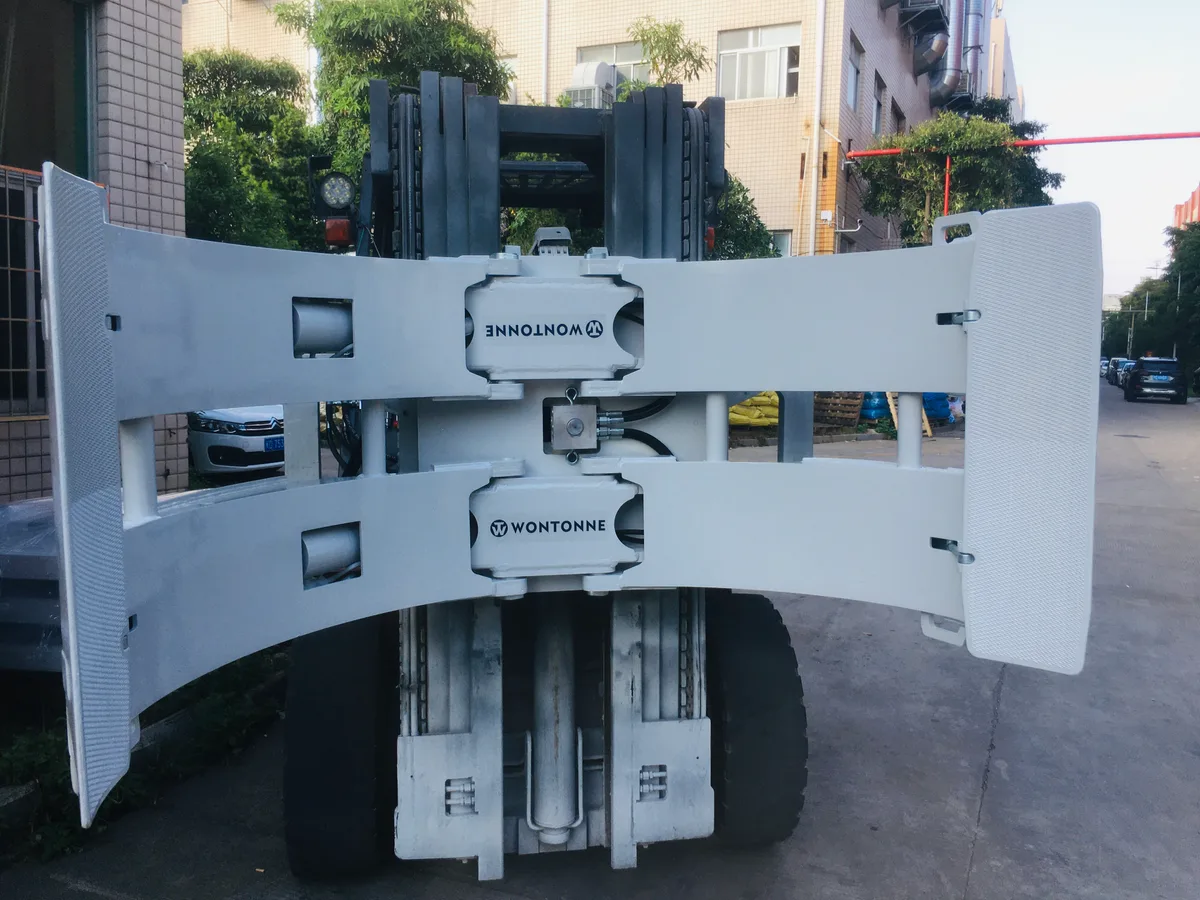

20G Paper Roll Clamp(Fixed Short Arm) - 2

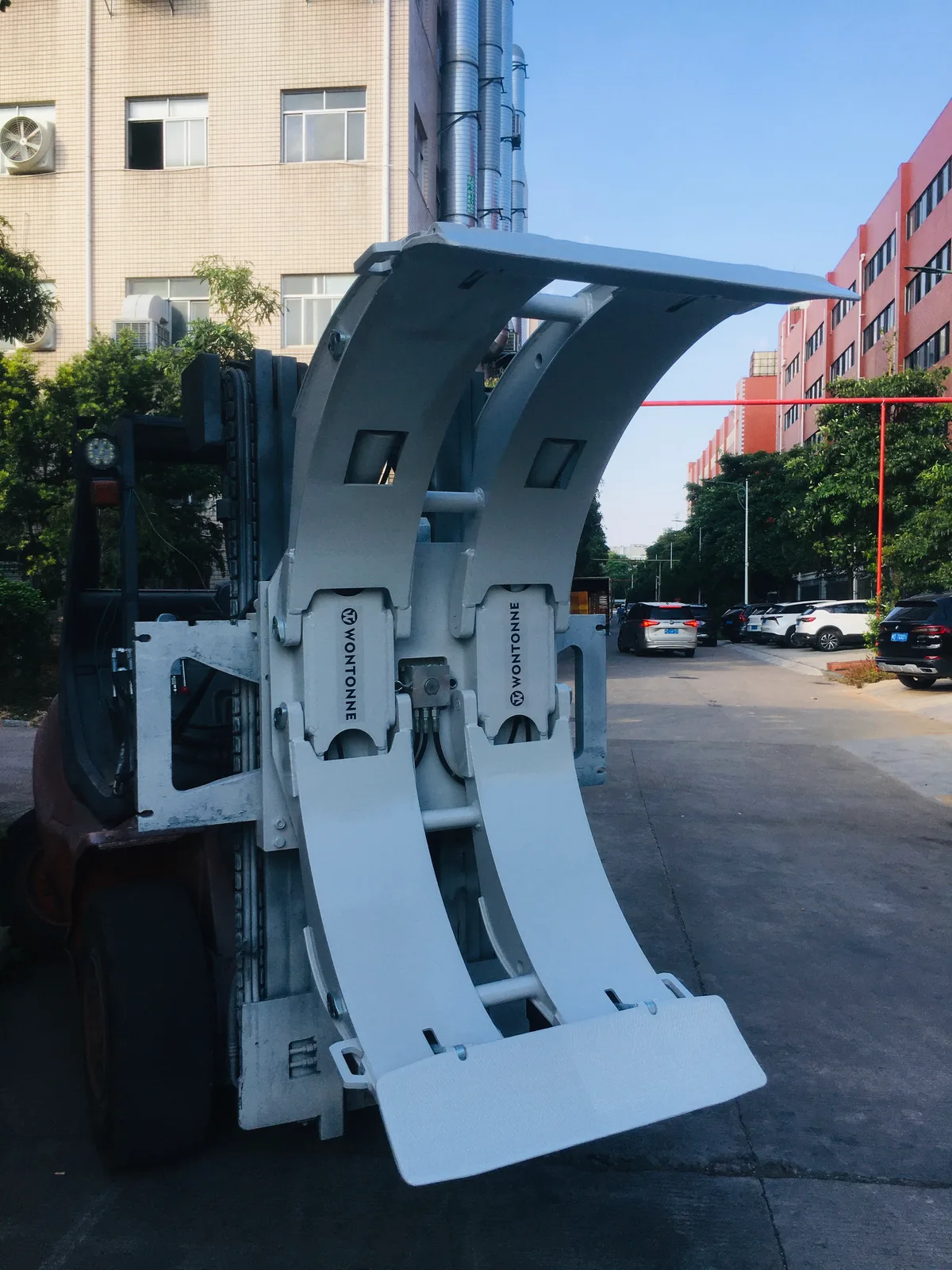

20G Paper Roll Clamp(Fixed Short Arm) - 3

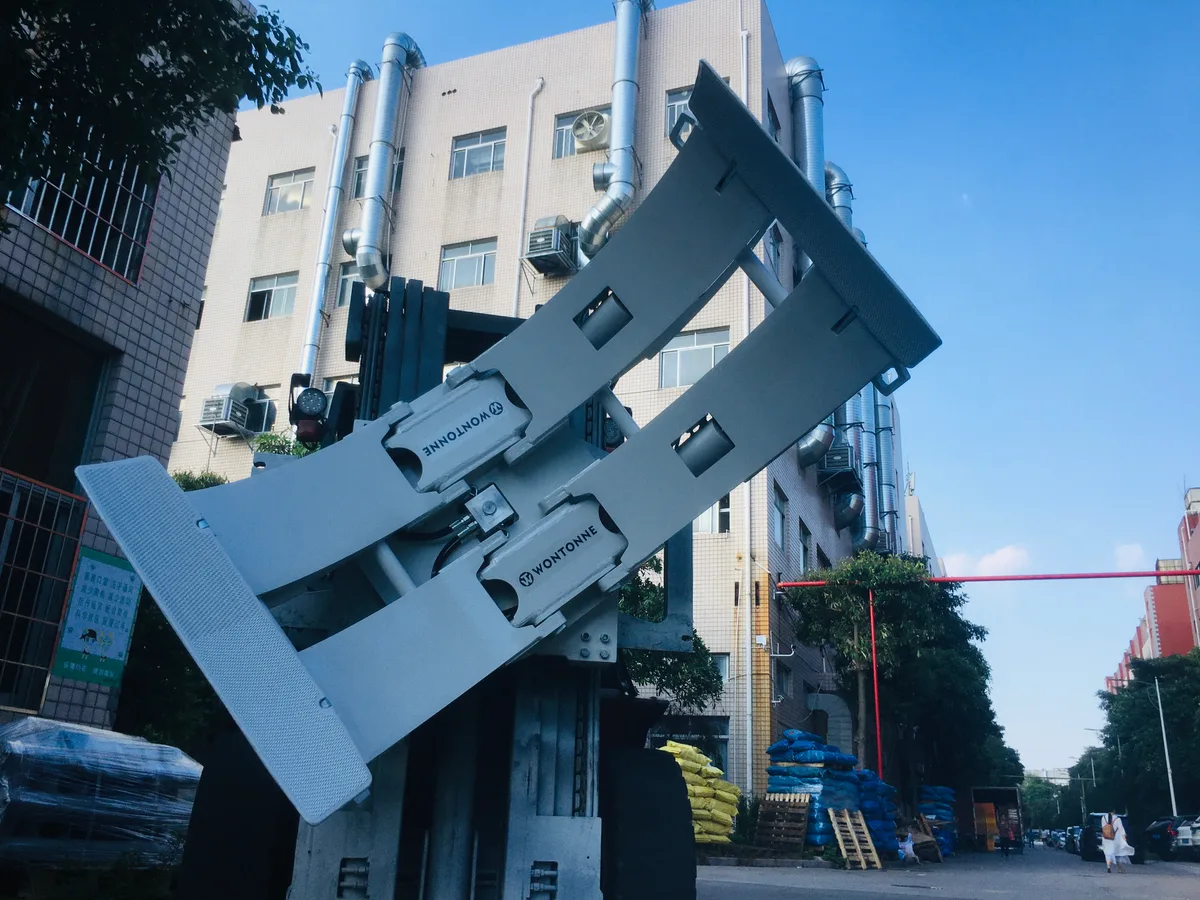

20G Paper Roll Clamp(Fixed Short Arm) - 4

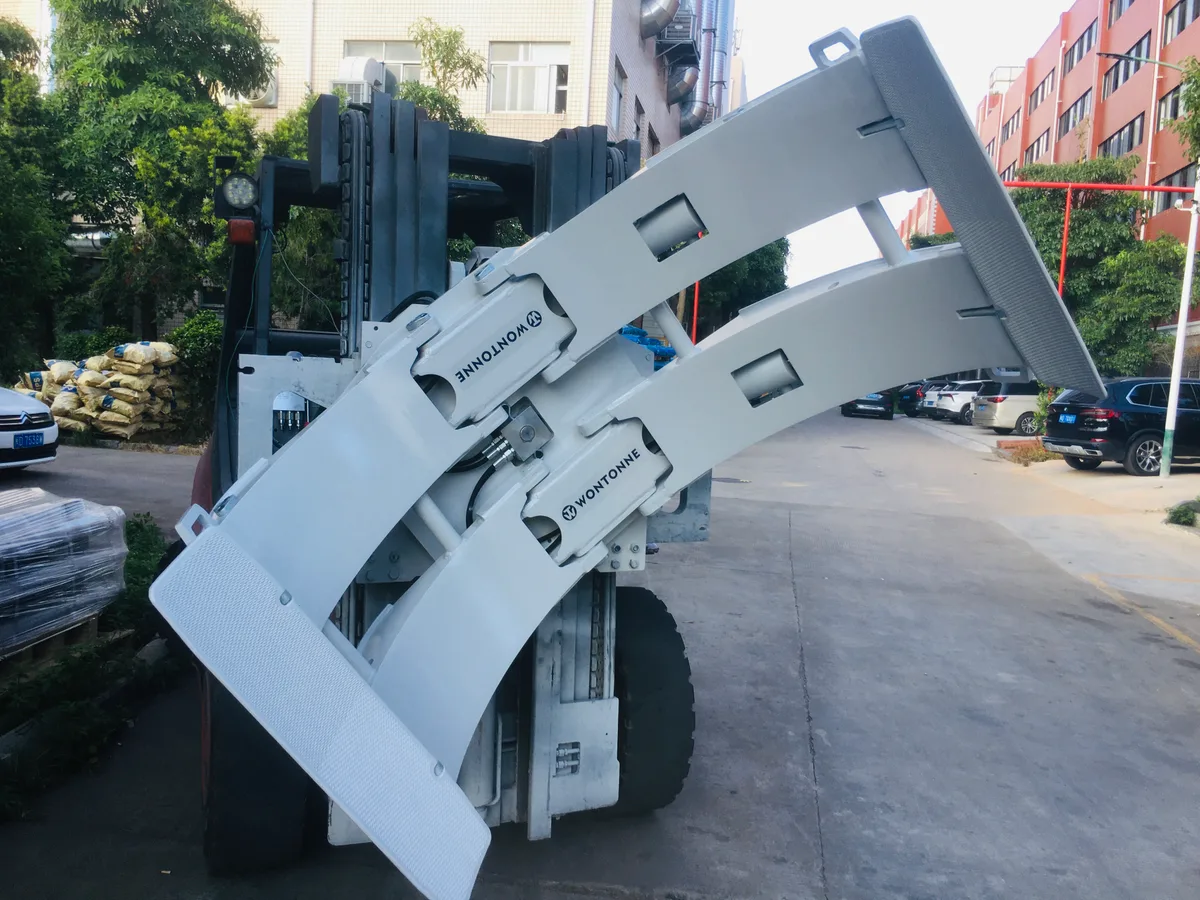

20G Paper Roll Clamp(Fixed Short Arm) - 5

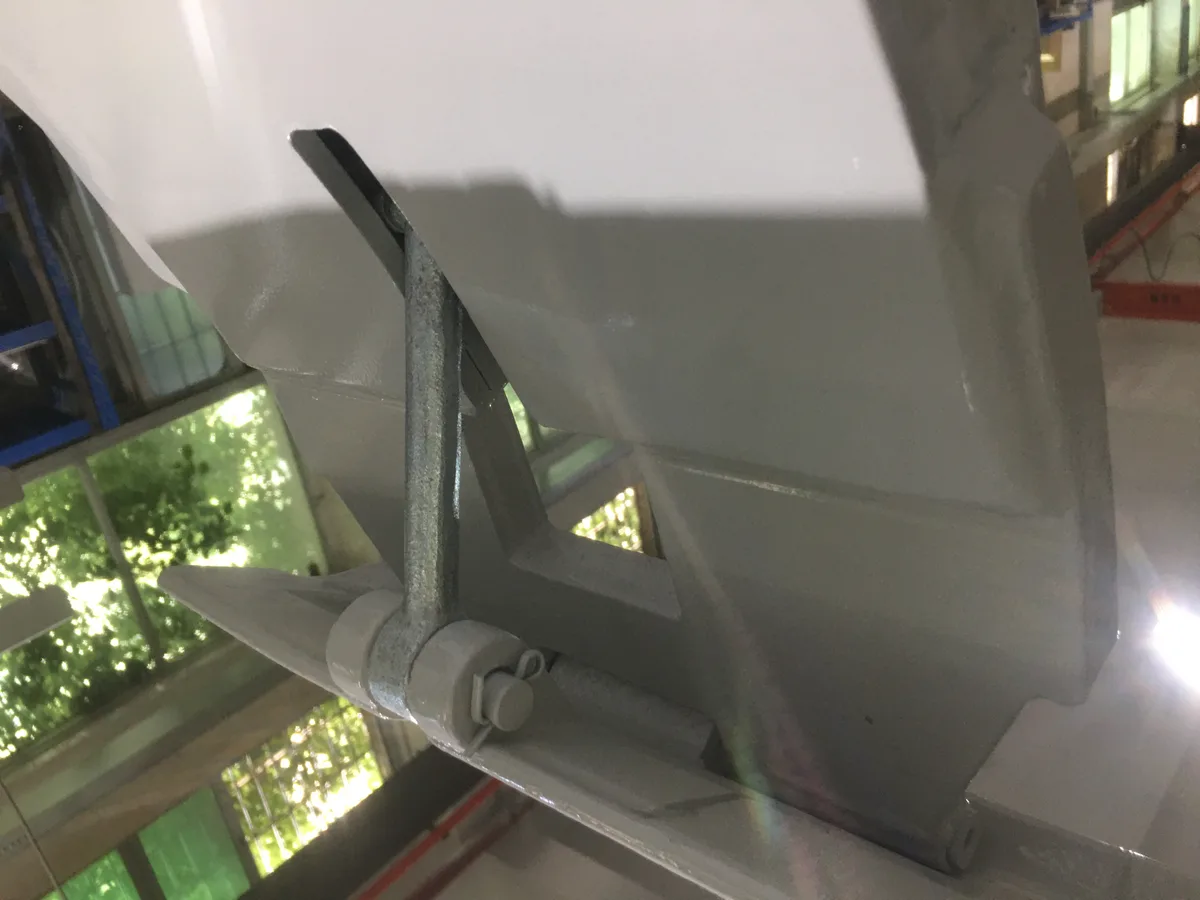

20G Paper Roll Clamp(Fixed Short Arm) - 6

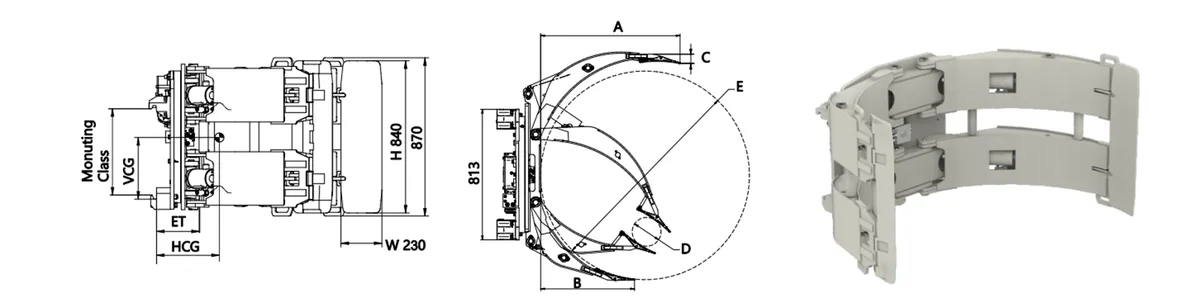

20G Paper Roll Clamp(Fixed Short Arm) - 7

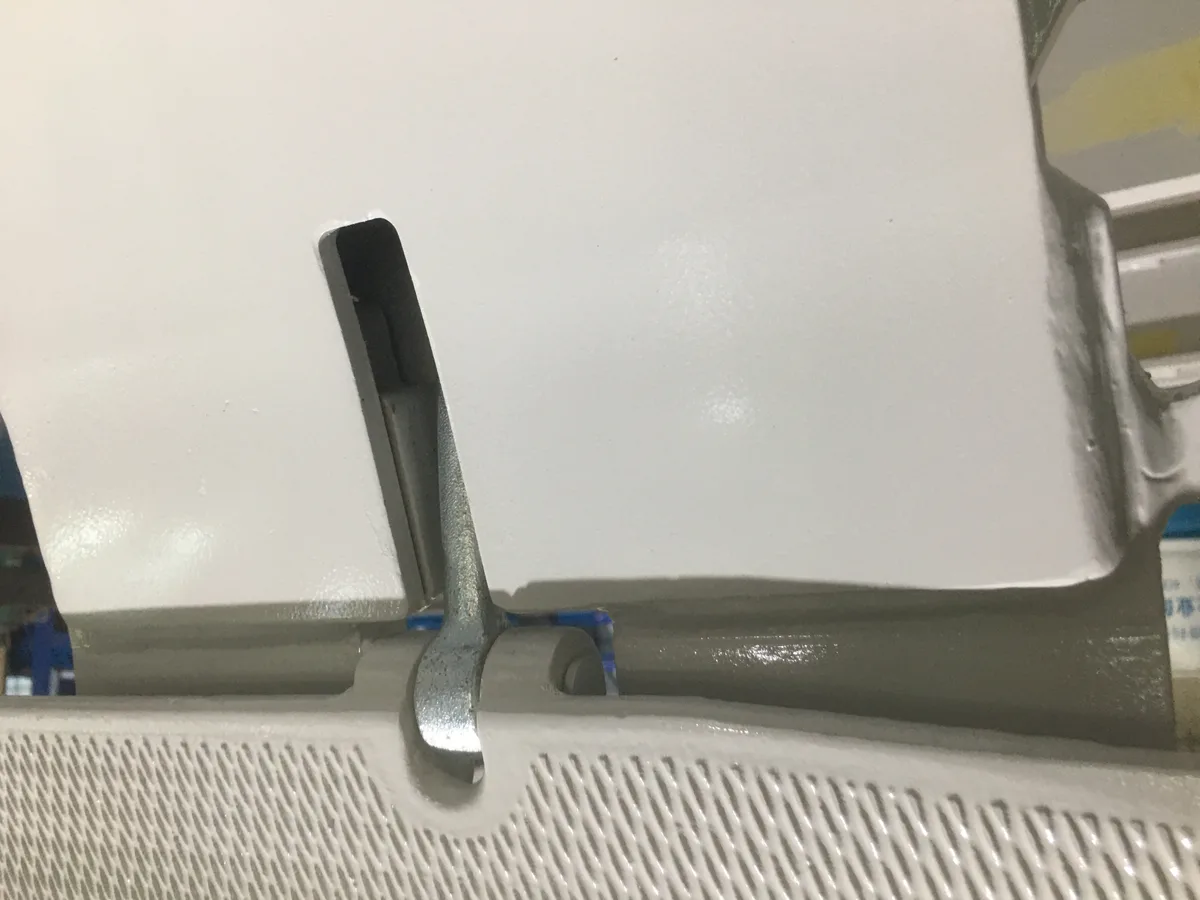

20G Paper Roll Clamp(Fixed Short Arm) - 8

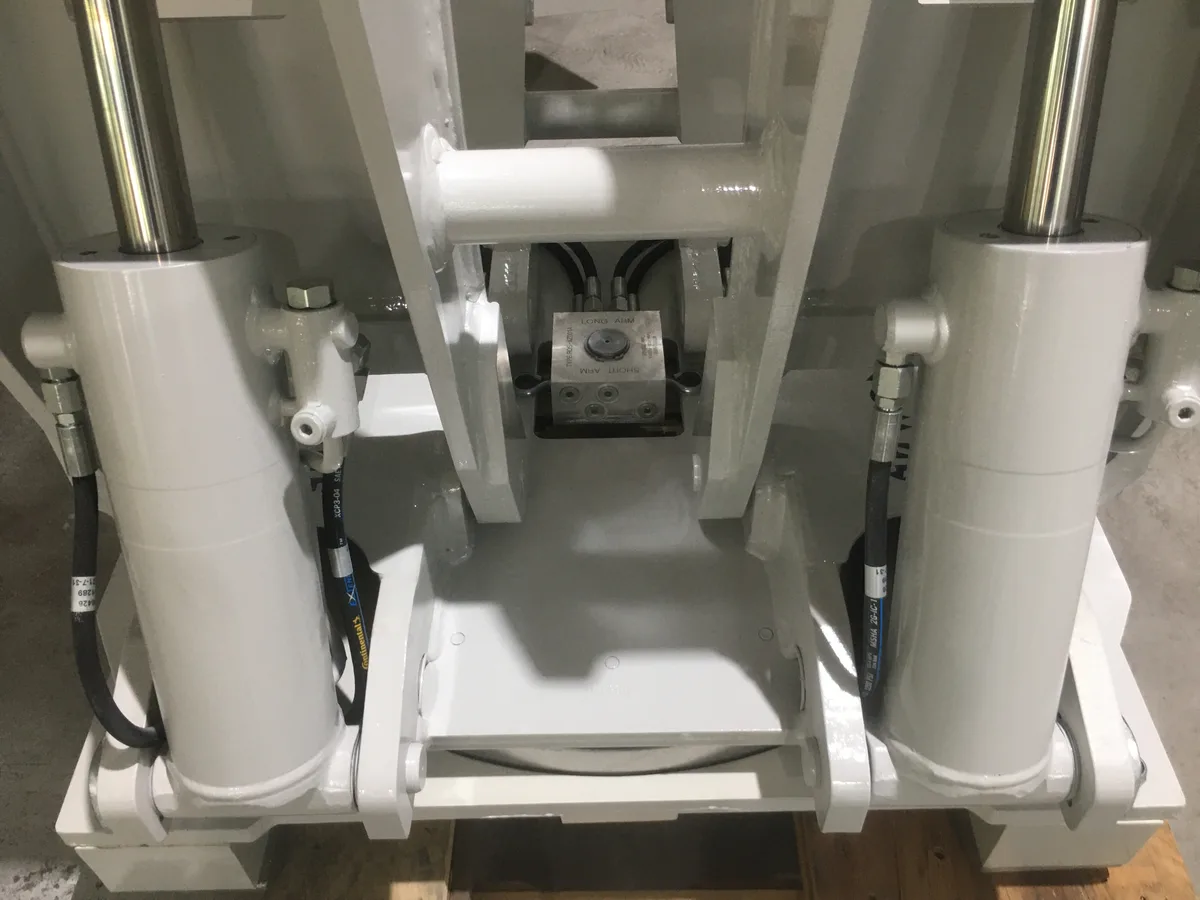

20G Paper Roll Clamp(Fixed Short Arm) - 9

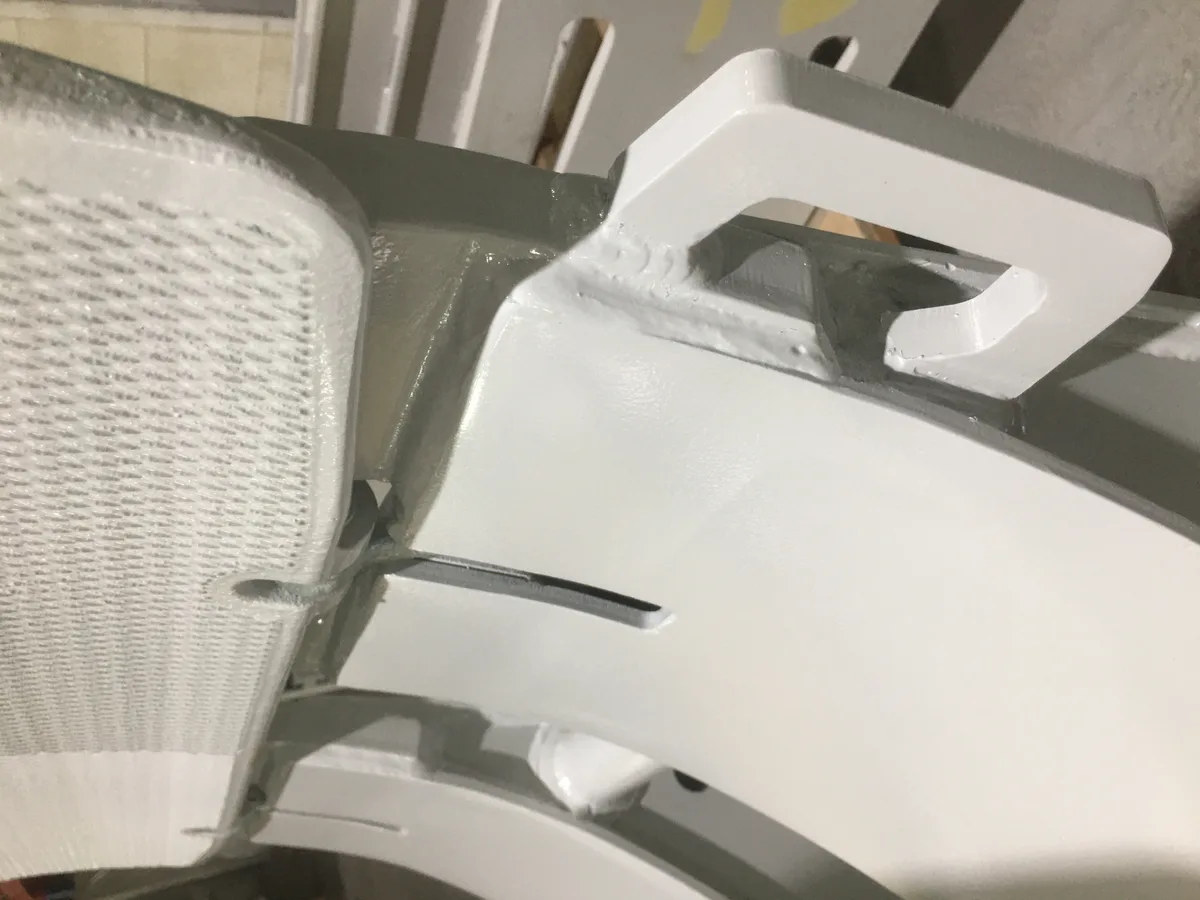

20G Paper Roll Clamp(Fixed Short Arm) - 10

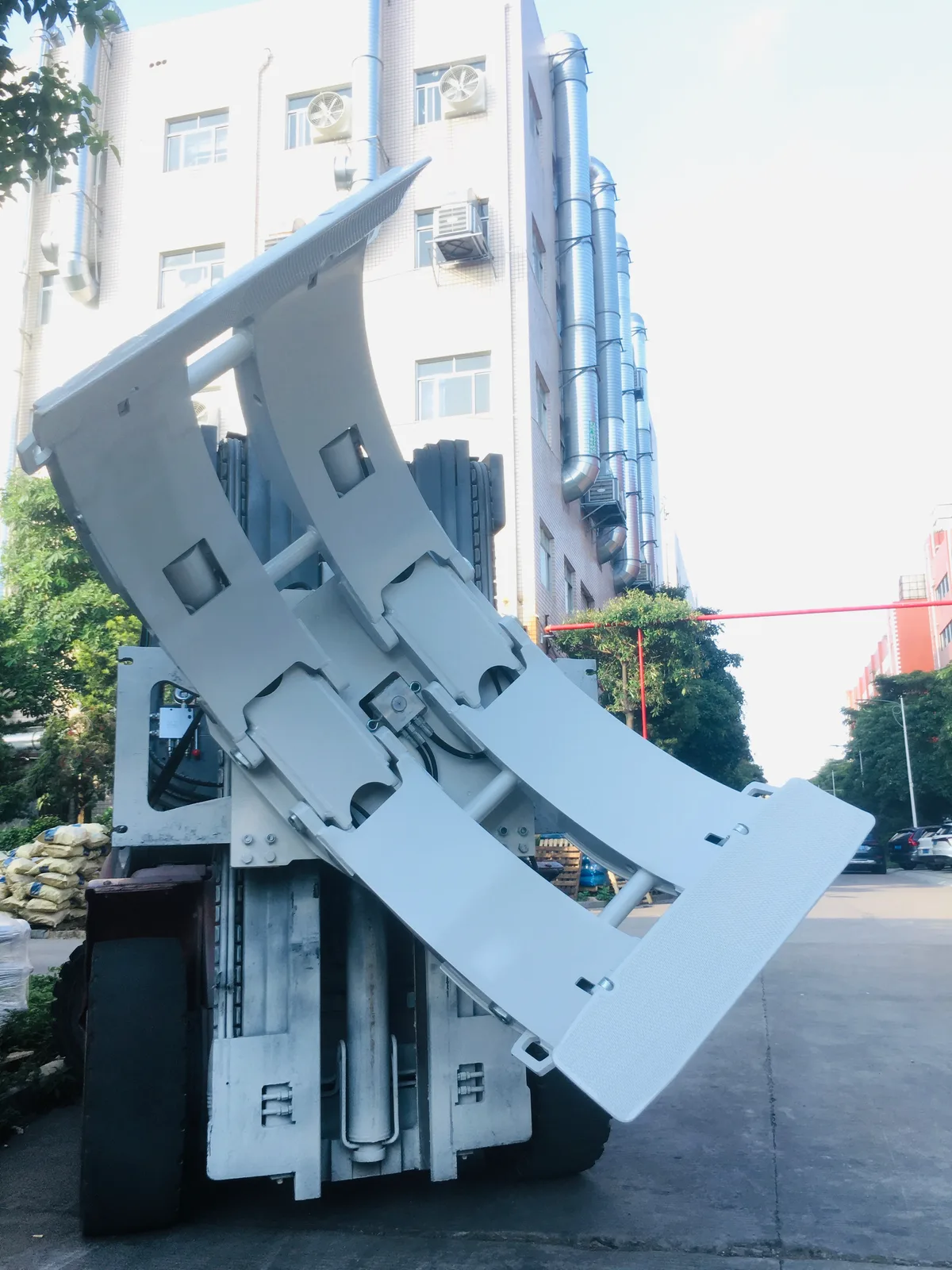

20G Paper Roll Clamp(Fixed Short Arm) - 11

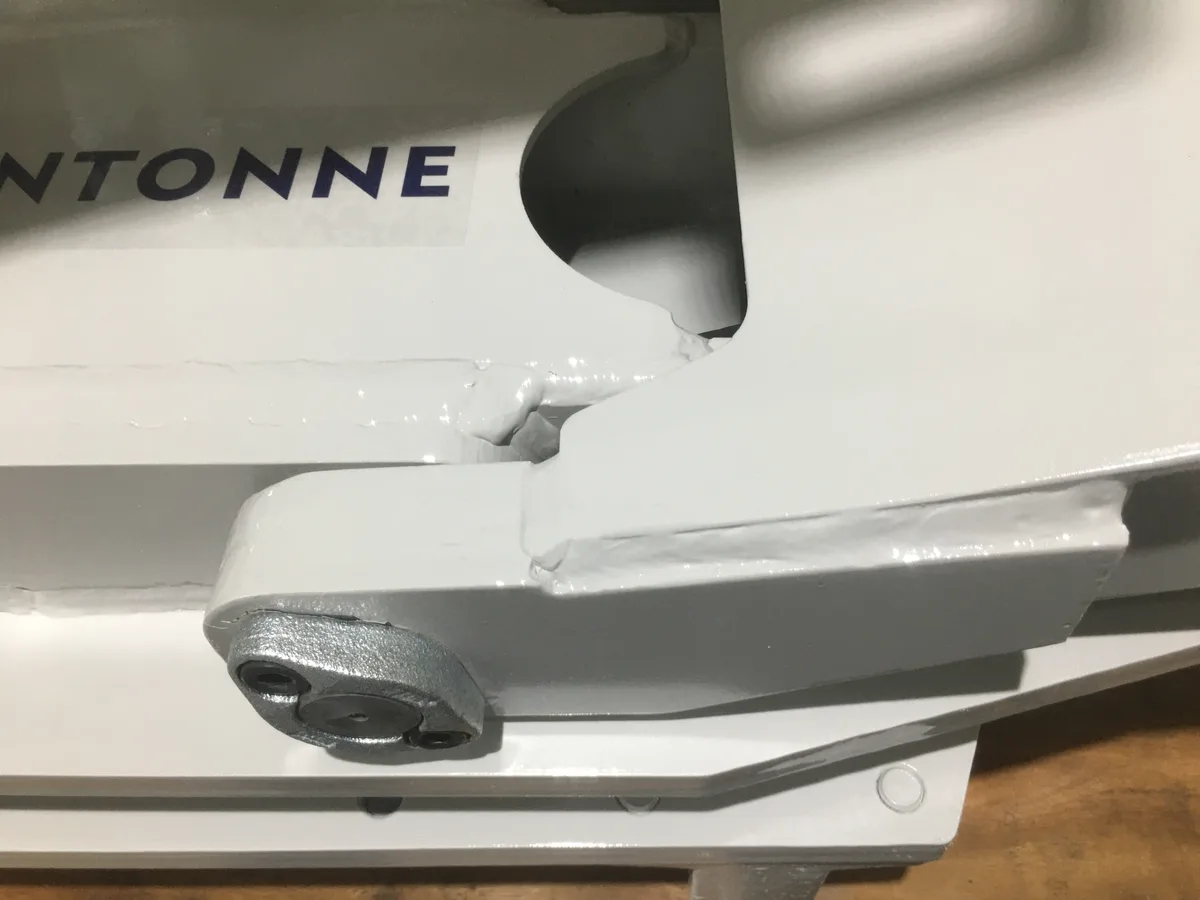

20G Paper Roll Clamp(Fixed Short Arm) - 12

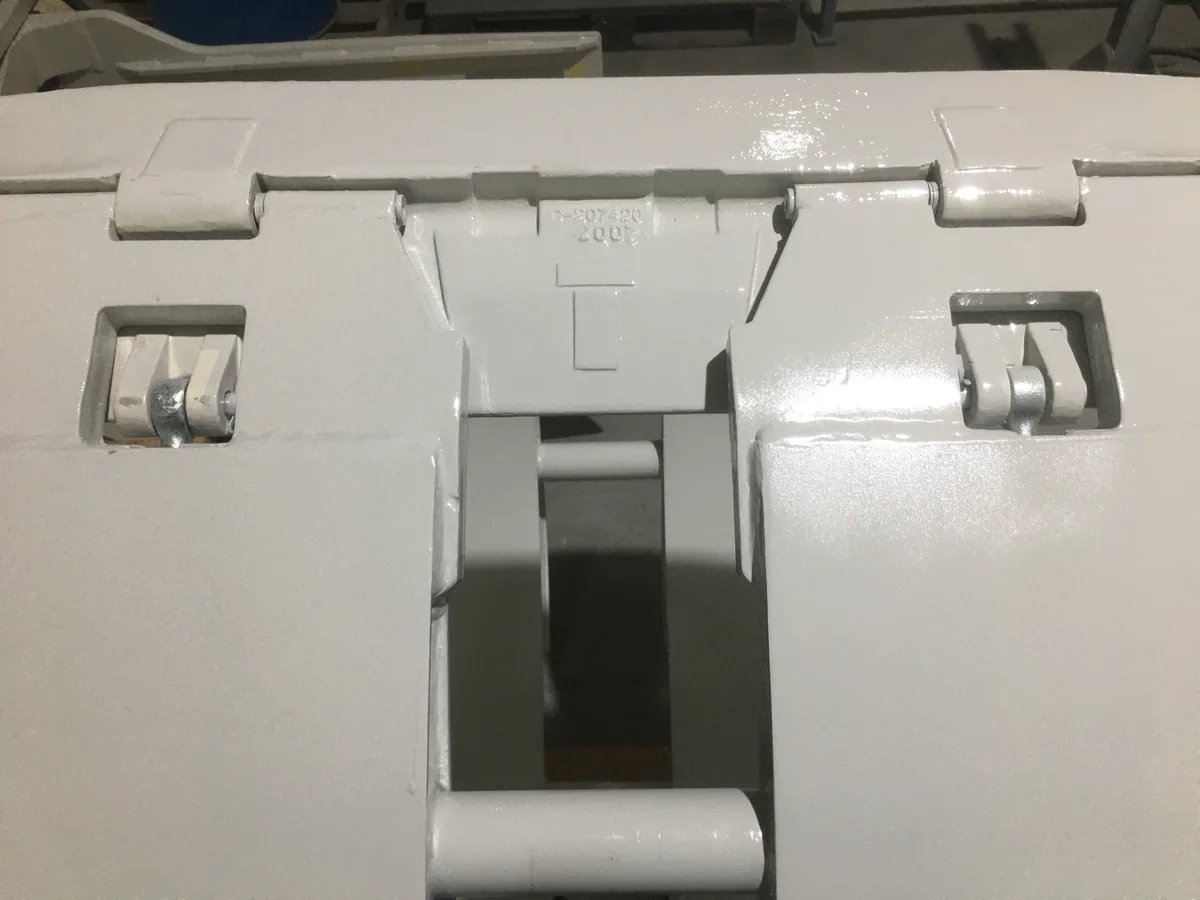

20G Paper Roll Clamp(Fixed Short Arm) - 13

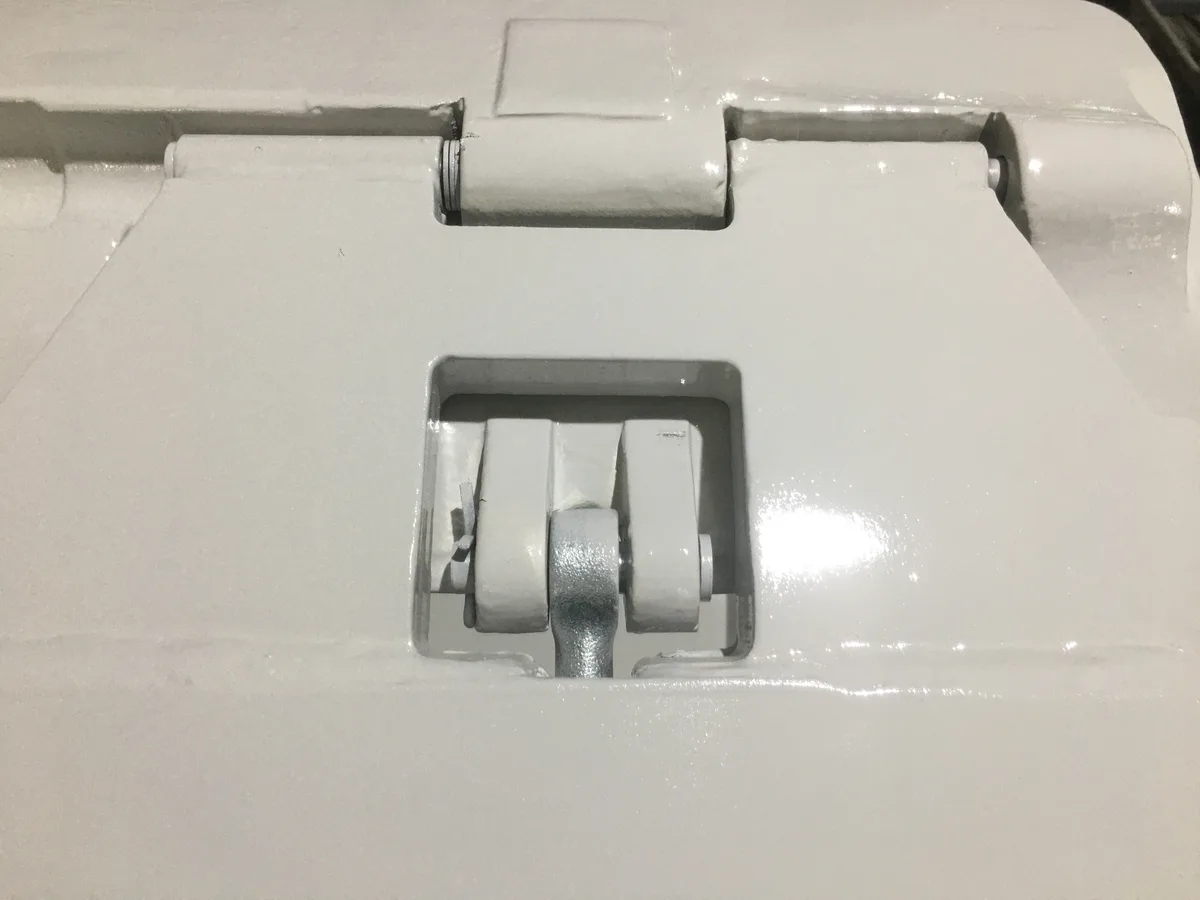

20G Paper Roll Clamp(Fixed Short Arm) - 14

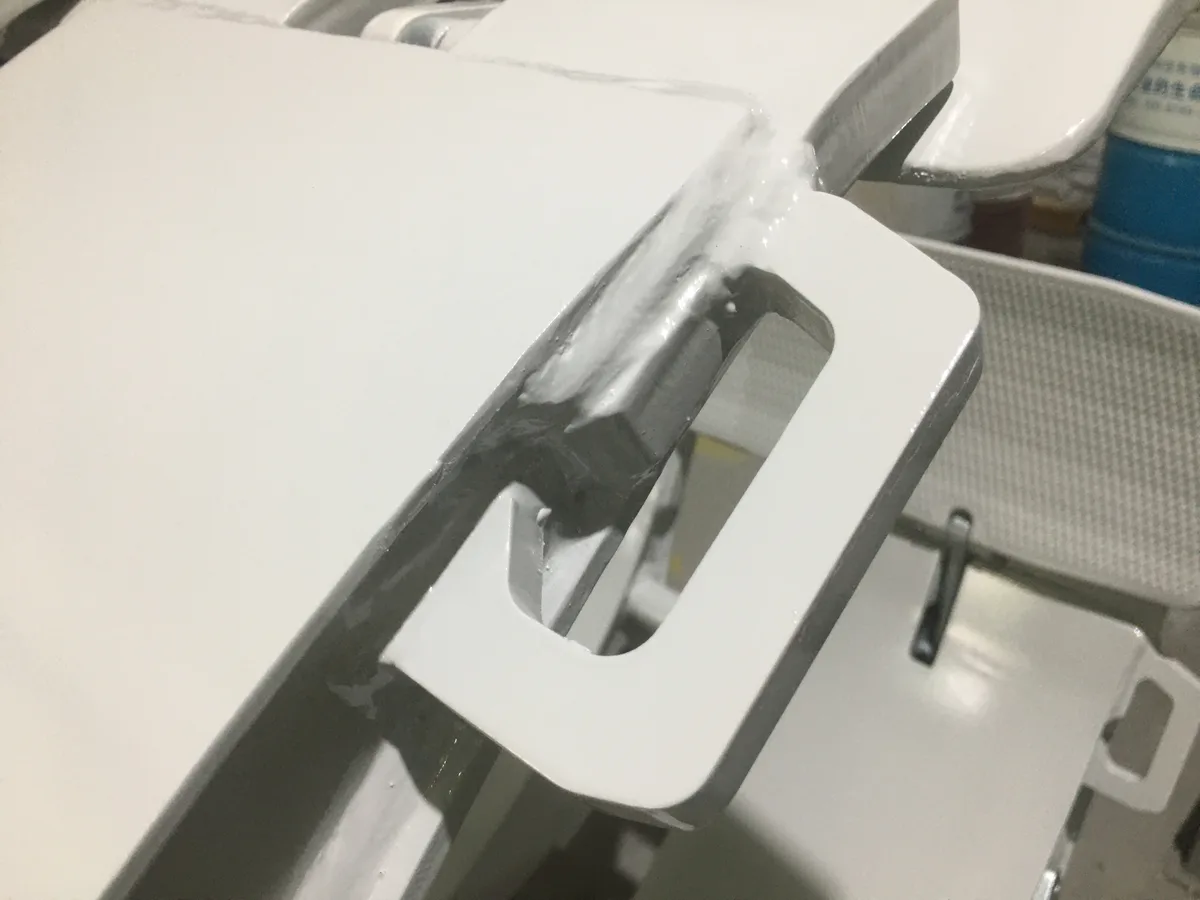

20G Paper Roll Clamp(Fixed Short Arm) - 15

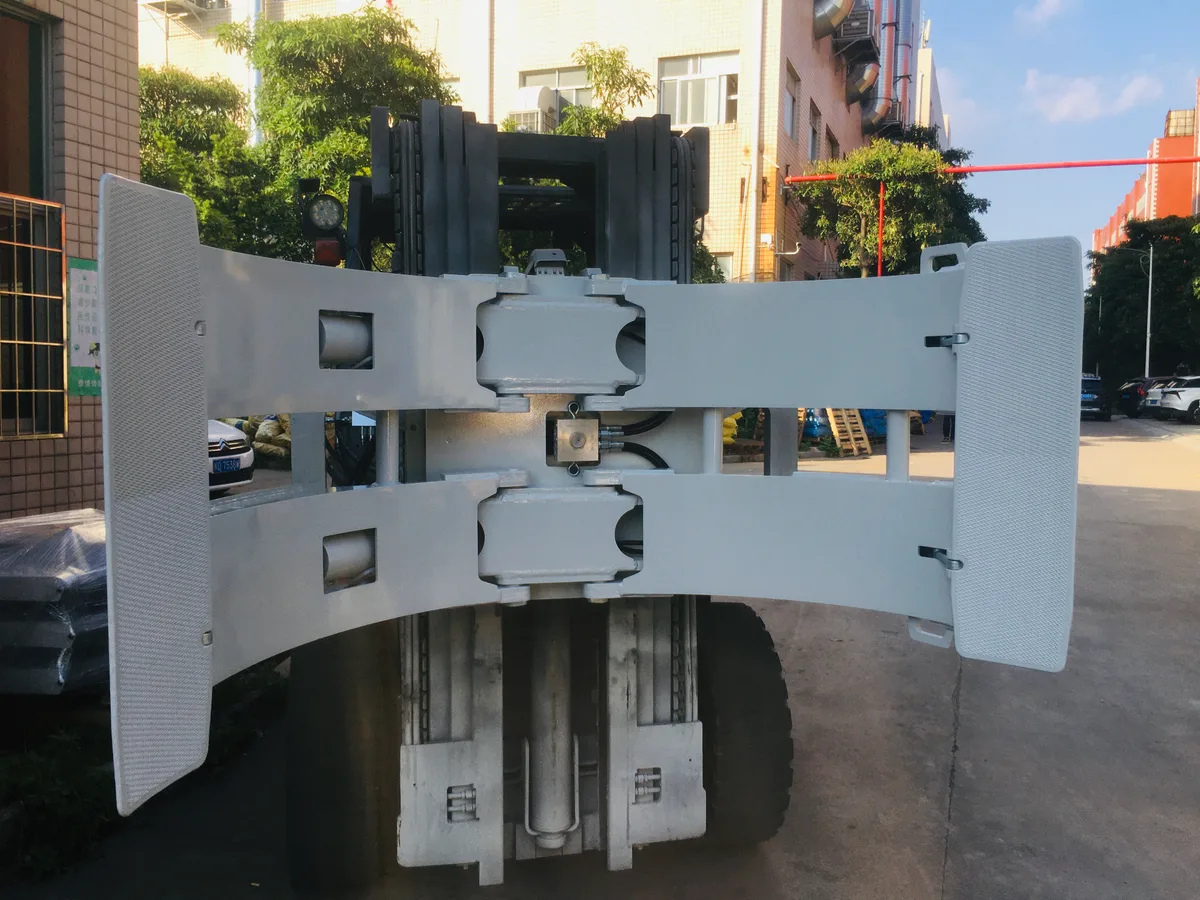

20G Paper Roll Clamp(Fixed Short Arm) - 16

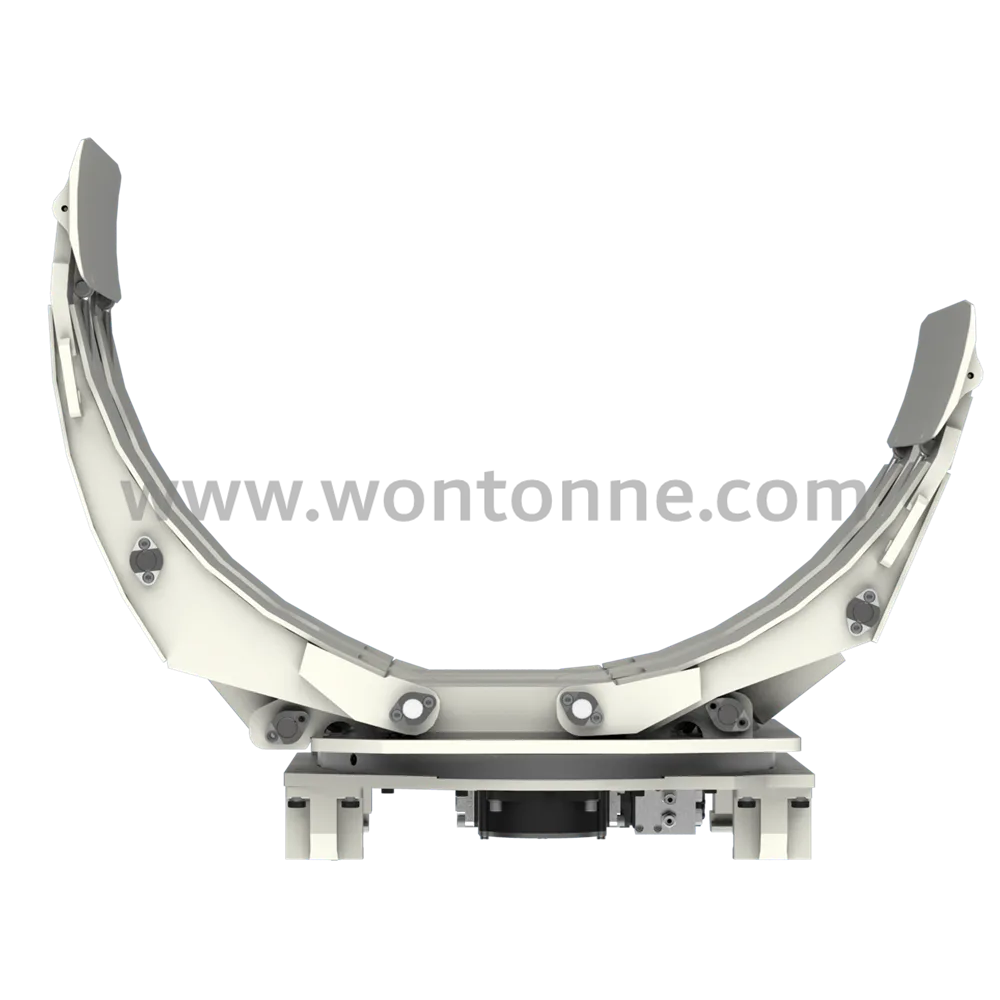

20G Paper Roll Clamp(Fixed Short Arm) - 17

20G Paper Roll Clamp(Fixed Short Arm) - 18

Product Overview

The Wontonne 20G Paper Roll Clamp (Fixed Short Arm) offers excellent vision for holding and transporting roll-shaped goods with 360° rotation.

Paper roll clamps are designed to handle rolls of any size, weight, or paper type. With options ranging from compact to rugged, they effectively reduce roll damage during handling.

Key features & specifications:

Fixed short arm for stable clamping

Excellent field of vision

Holds and transports roll-shaped goods

360° left or right rotation

Opens and clamps hydraulically

Capacity up to 2000kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

Model No	Capacity (kg)	Load Center (mm)	Opening Range (mm)	Mounting	Weight (kg)	Effective Thickness ET (mm)
RCF20G-002A	2000	650	630-1300	ISO 2A	692	207
RCF20G-002B	2000	650	630-1300	ISO 3A	706	237
RCF20G-004A	2000	750	530-1500	ISO 2A	756	207
RCF20G-004B	2000	750	530-1500	ISO 3A	770	237
RCF20G-005A	2000	800	630-1600	ISO 2A	766	207
RCF20G-005B	2000	800	630-1600	ISO 3A	780	237
RCF20G-007A	1700	915	680-1830	ISO 2A	848	207
RCF20G-007B	1700	915	680-1830	ISO 3A	862	237
RCF20G-010A	2000	675	690-1350	ISO 2A	696	207
RCF20G-010B	2000	675	690-1350	ISO 3A	710	237
