What is the capacity of the 24G Paper Roll Clamp (Positioned Short Arm)?

The 24G Paper Roll Clamp (Positioned Short Arm) handles 1950-2200 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the 24G Paper Roll Clamp (Positioned Short Arm) use?

The 24G Paper Roll Clamp (Positioned Short Arm) is available for ISO 2A / ISO 3A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the 24G Paper Roll Clamp (Positioned Short Arm) are available?

Wontonne offers 10 models of the 24G Paper Roll Clamp (Positioned Short Arm) — including RCP24G-001A, RCP24G-001B, RCP24G-003A, RCP24G-003B, RCP24G-005A and more — with different capacities and load centers for various applications.

What capacity of paper roll clamp do I need?

Wontonne offers paper roll clamps from 1000 kg to 4100 kg capacity. The 12G series suits tissue and small rolls (1000-1200 kg), while the 33G and 35F series handle large board rolls up to 4100 kg. Choose by your heaviest roll weight plus a safety margin.

What is the difference between positioned and fixed short-arm paper roll clamps?

Positioned short-arm clamps (20G-P, 24G-P, 30G-P, 33G-P, 35F-P) let the short arm reposition hydraulically to match roll diameter, ideal for multi-diameter roll handling. Fixed short-arm clamps (12G, 15F, 20G, 24G, 30G, 33G, 35F) offer a simpler, more economical design for consistent roll sizes.

Products / Paper Roll Clamps / 24G Paper Roll Clamp (Positioned Short Arm)

Paper Roll Clamps

24G Paper Roll Clamp (Positioned Short Arm)

Engineered for durability and precision, 24g paper roll clamp (positioned short arm) delivers reliable performance in demanding material handling environments.

All Paper Roll Clamps

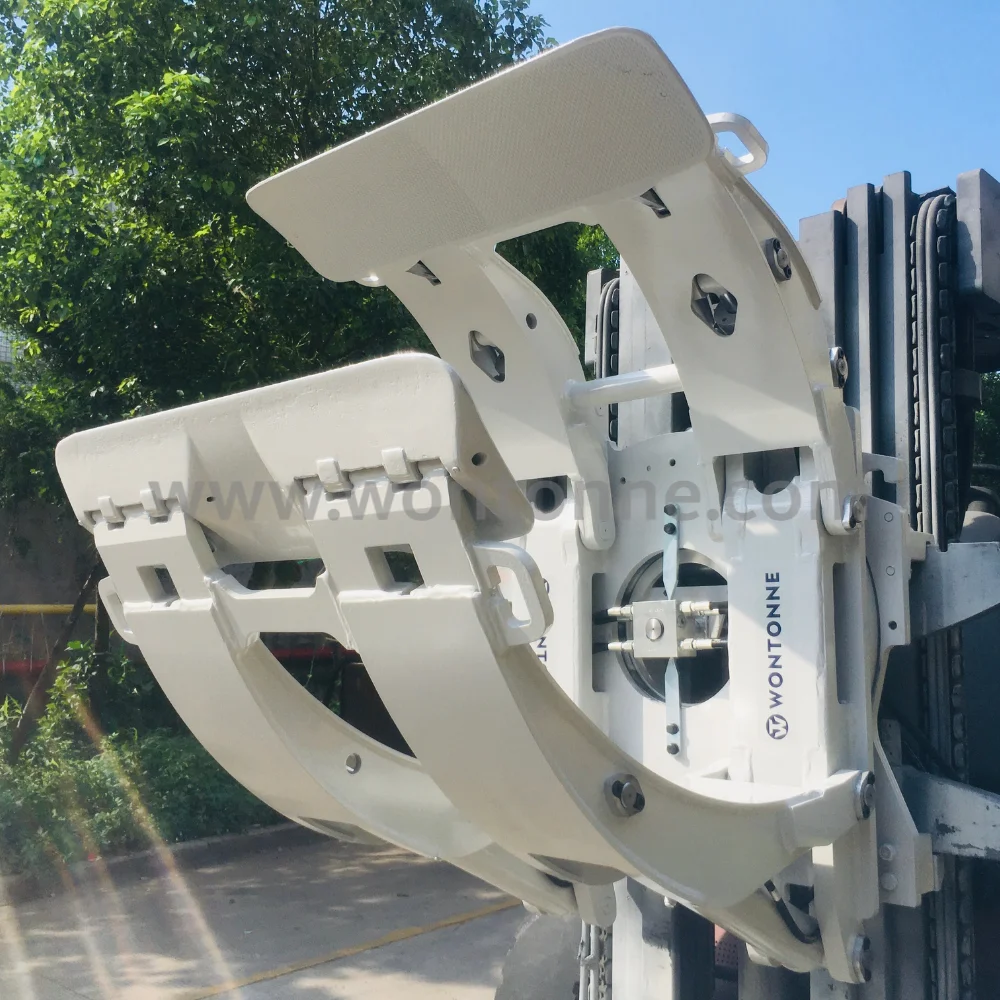

24G Paper Roll Clamp (Positioned Short Arm) - 1

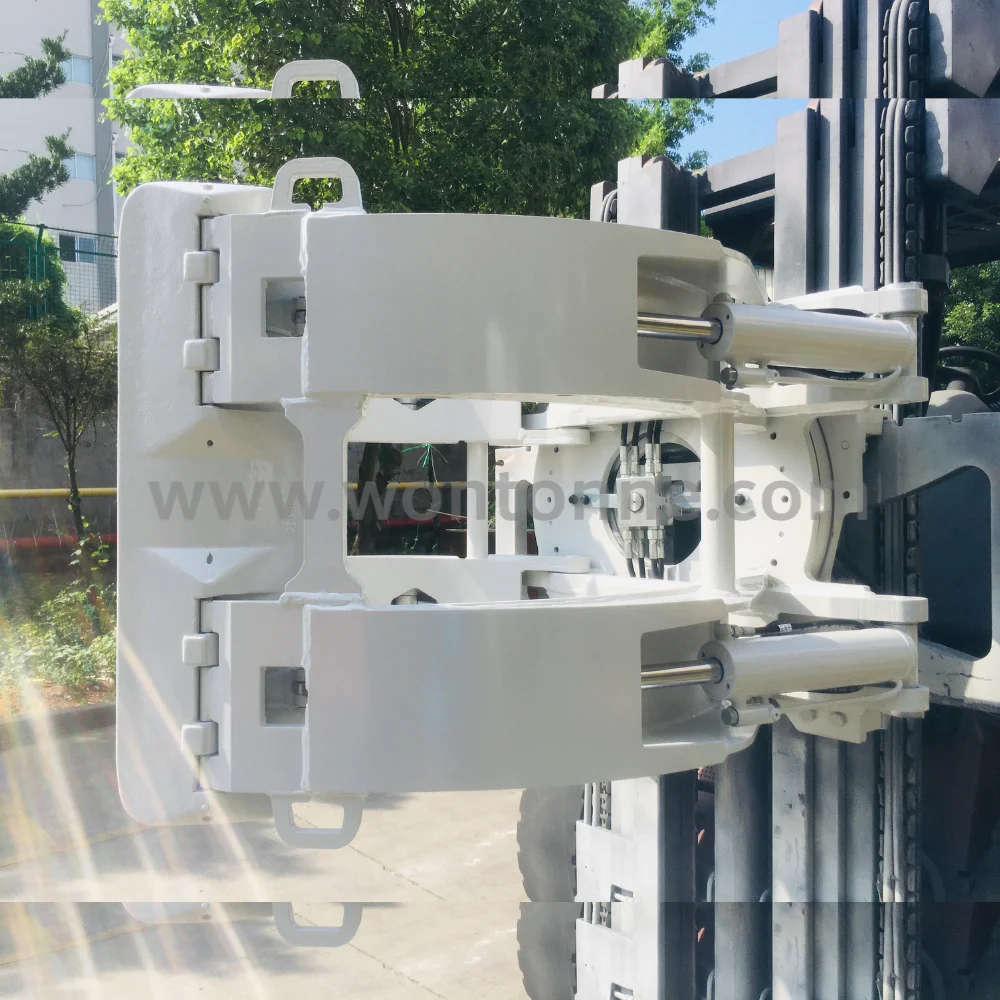

24G Paper Roll Clamp (Positioned Short Arm) - 2

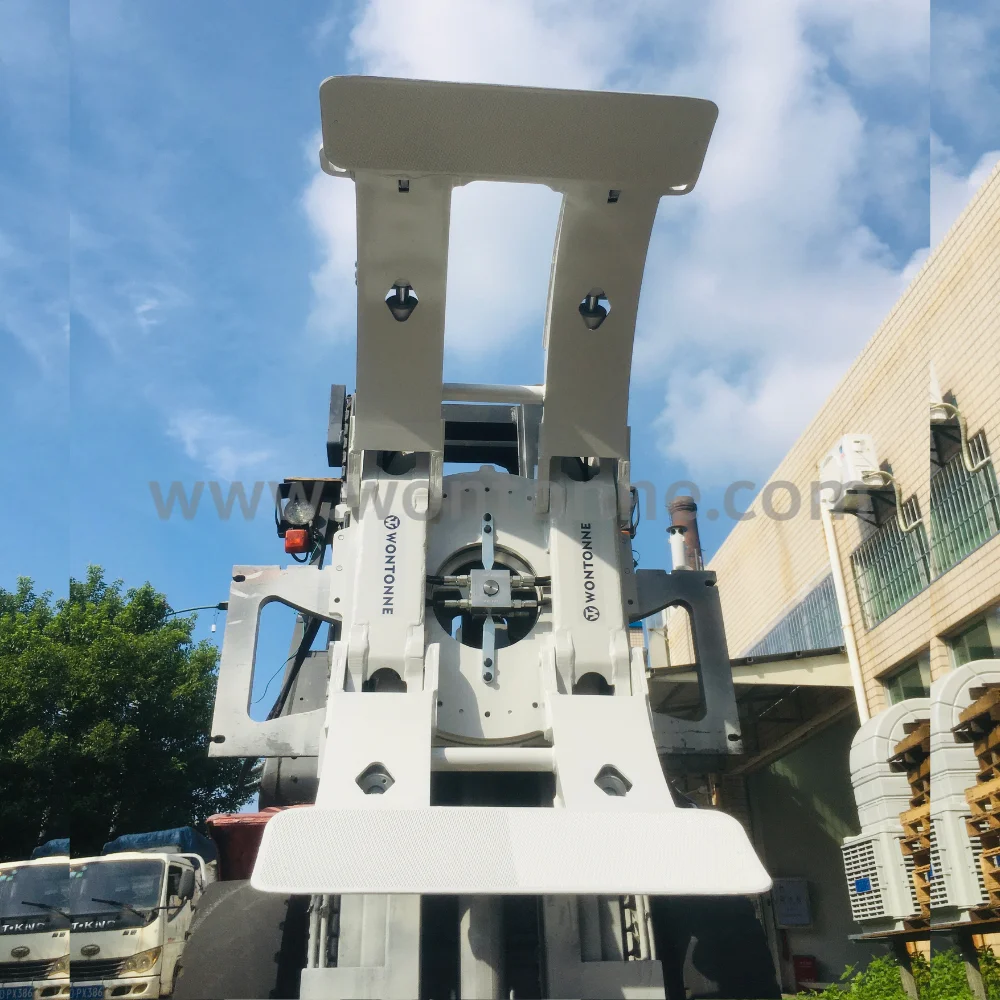

24G Paper Roll Clamp (Positioned Short Arm) - 3

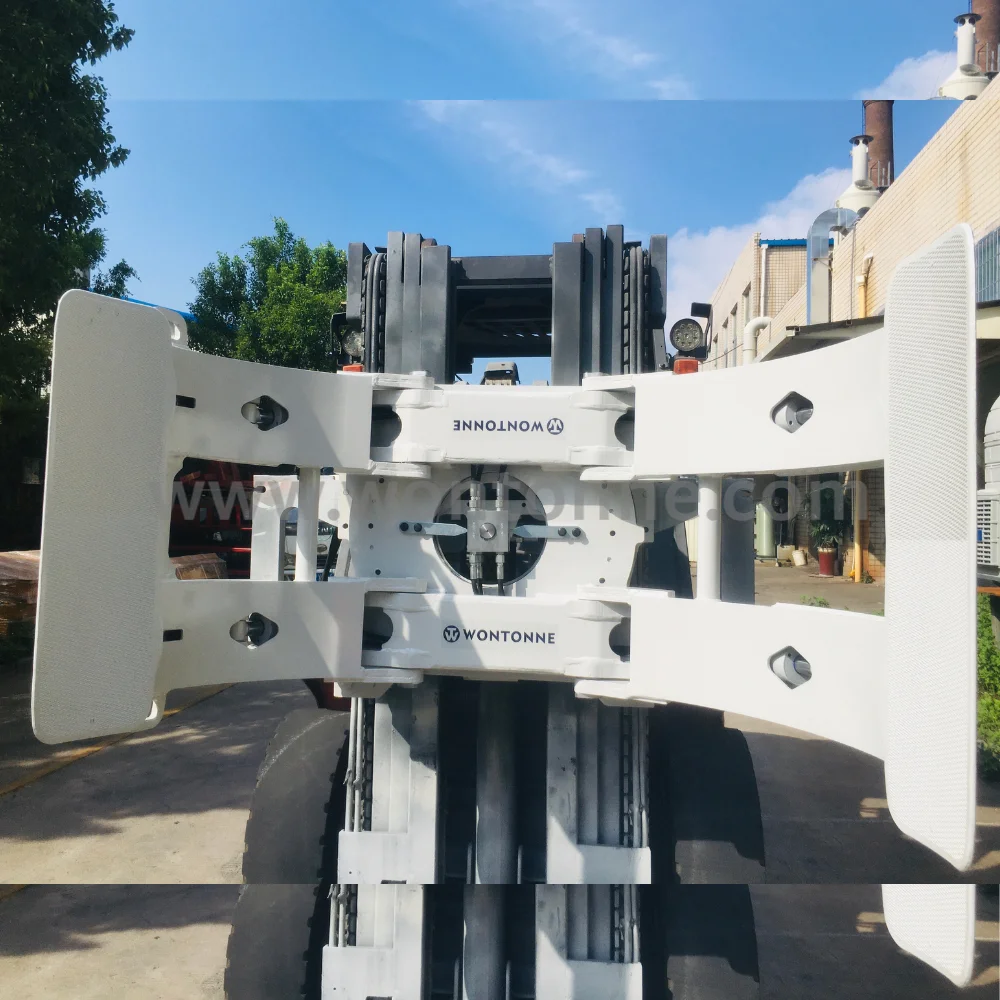

24G Paper Roll Clamp (Positioned Short Arm) - 4

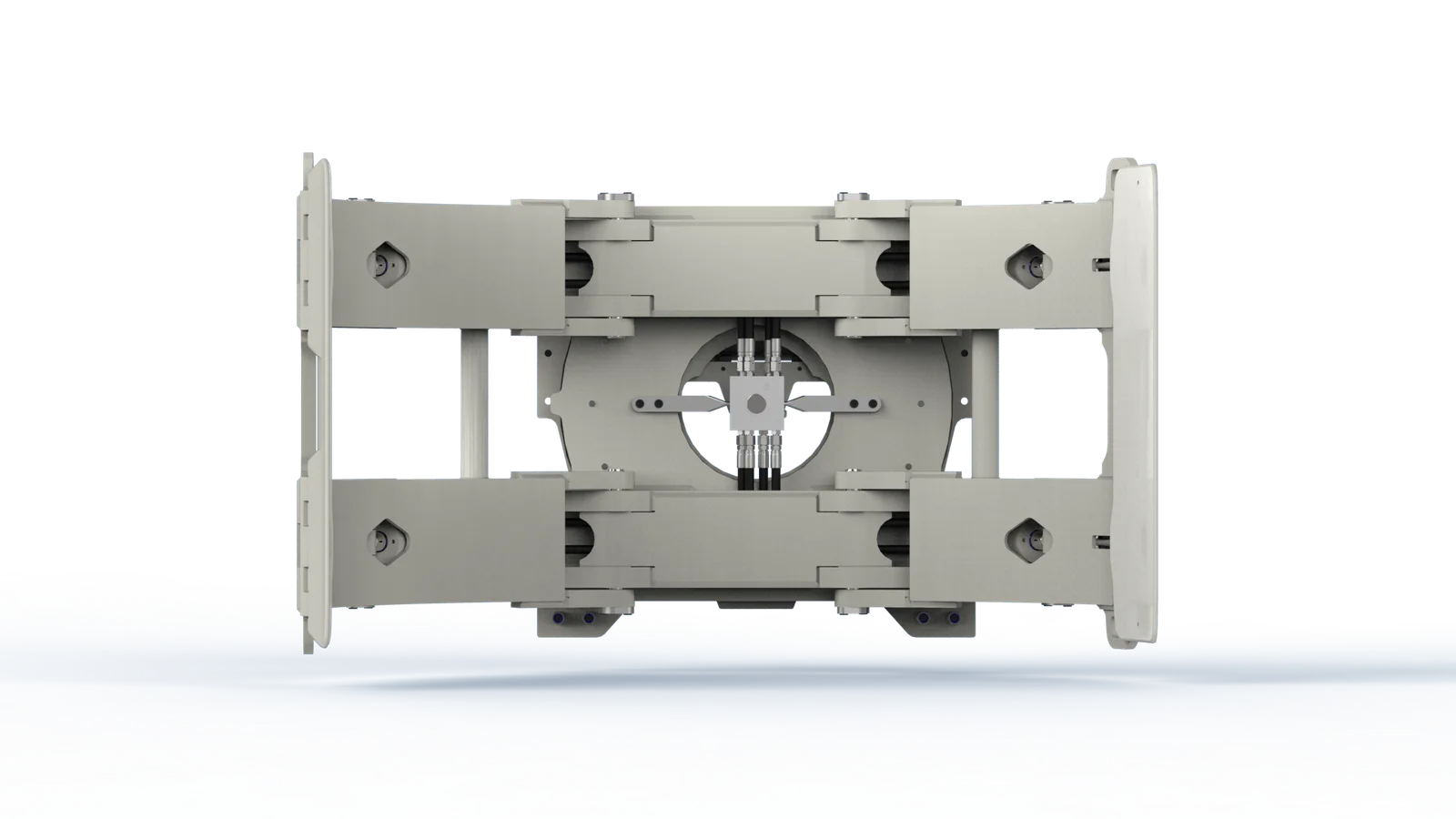

24G Paper Roll Clamp (Positioned Short Arm) - 5

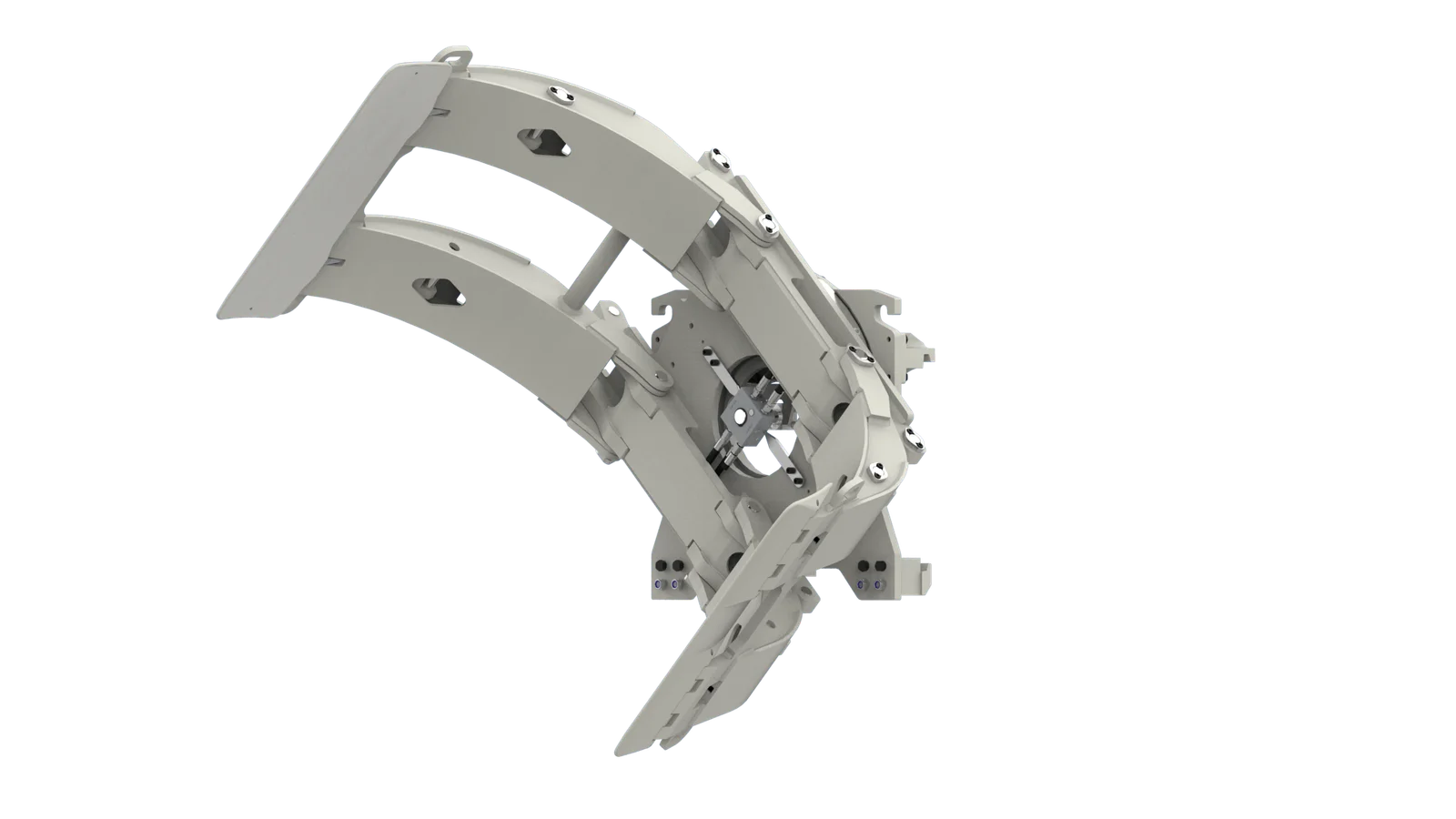

24G Paper Roll Clamp (Positioned Short Arm) - 6

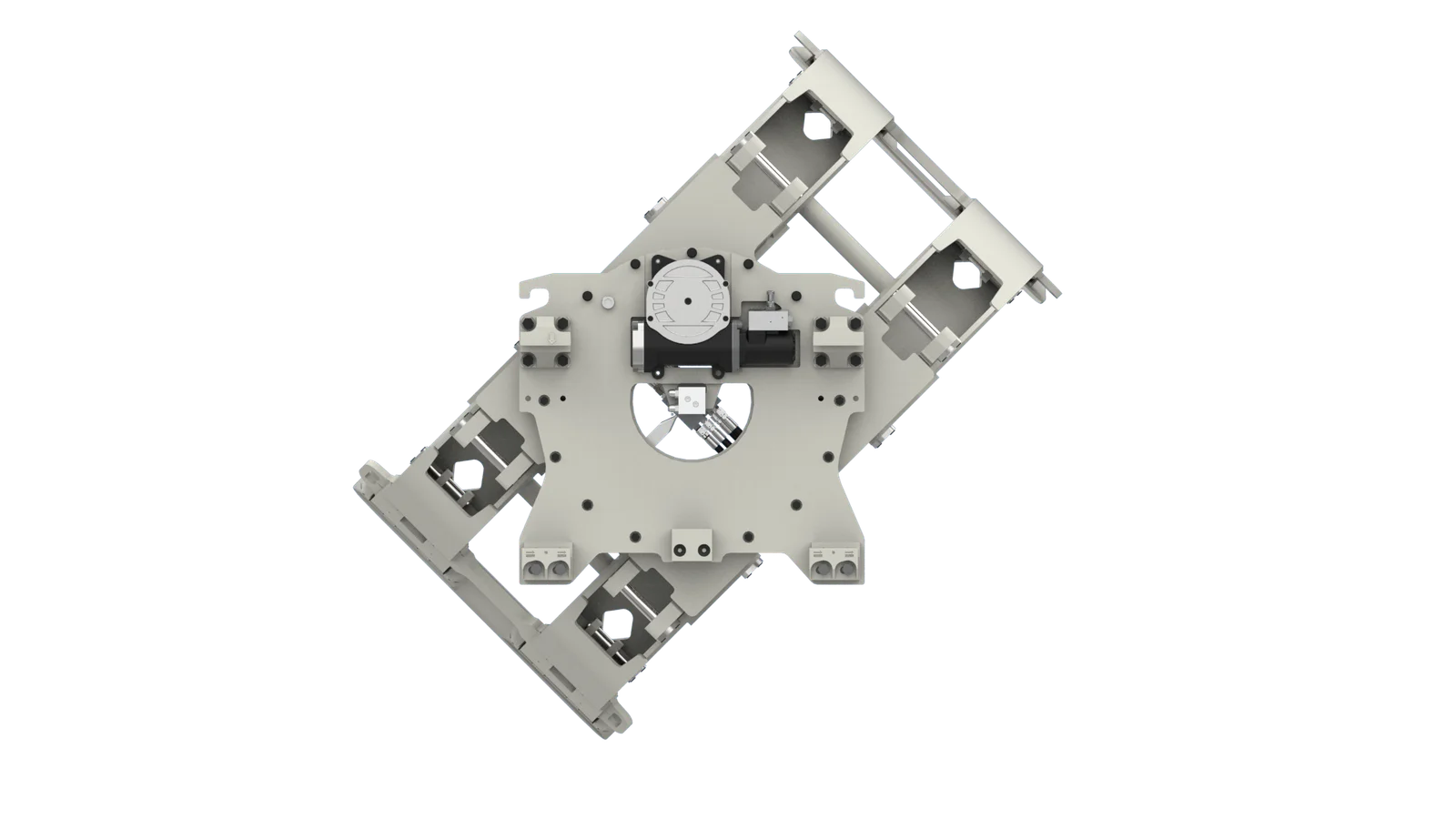

24G Paper Roll Clamp (Positioned Short Arm) - 7

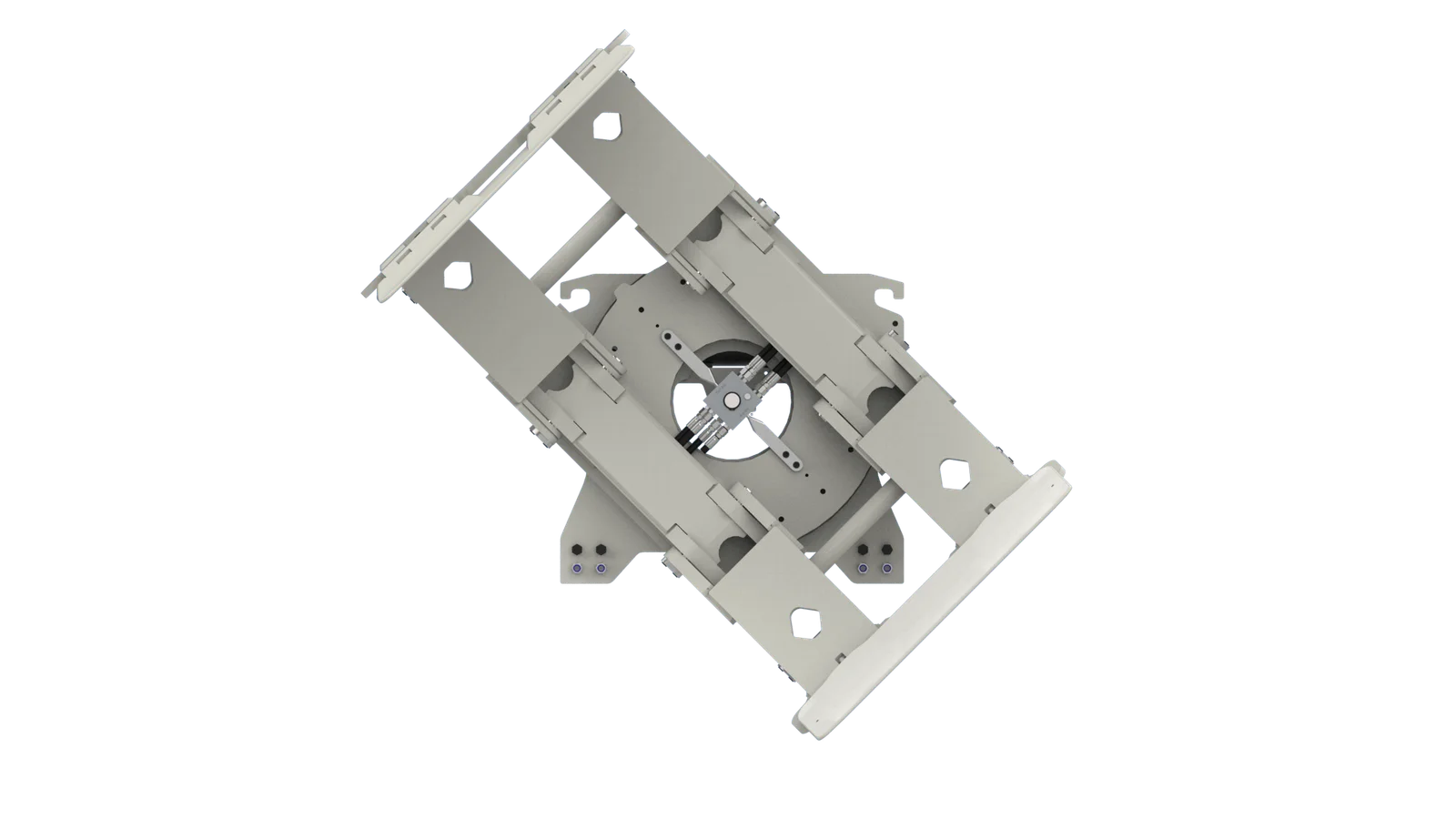

24G Paper Roll Clamp (Positioned Short Arm) - 8

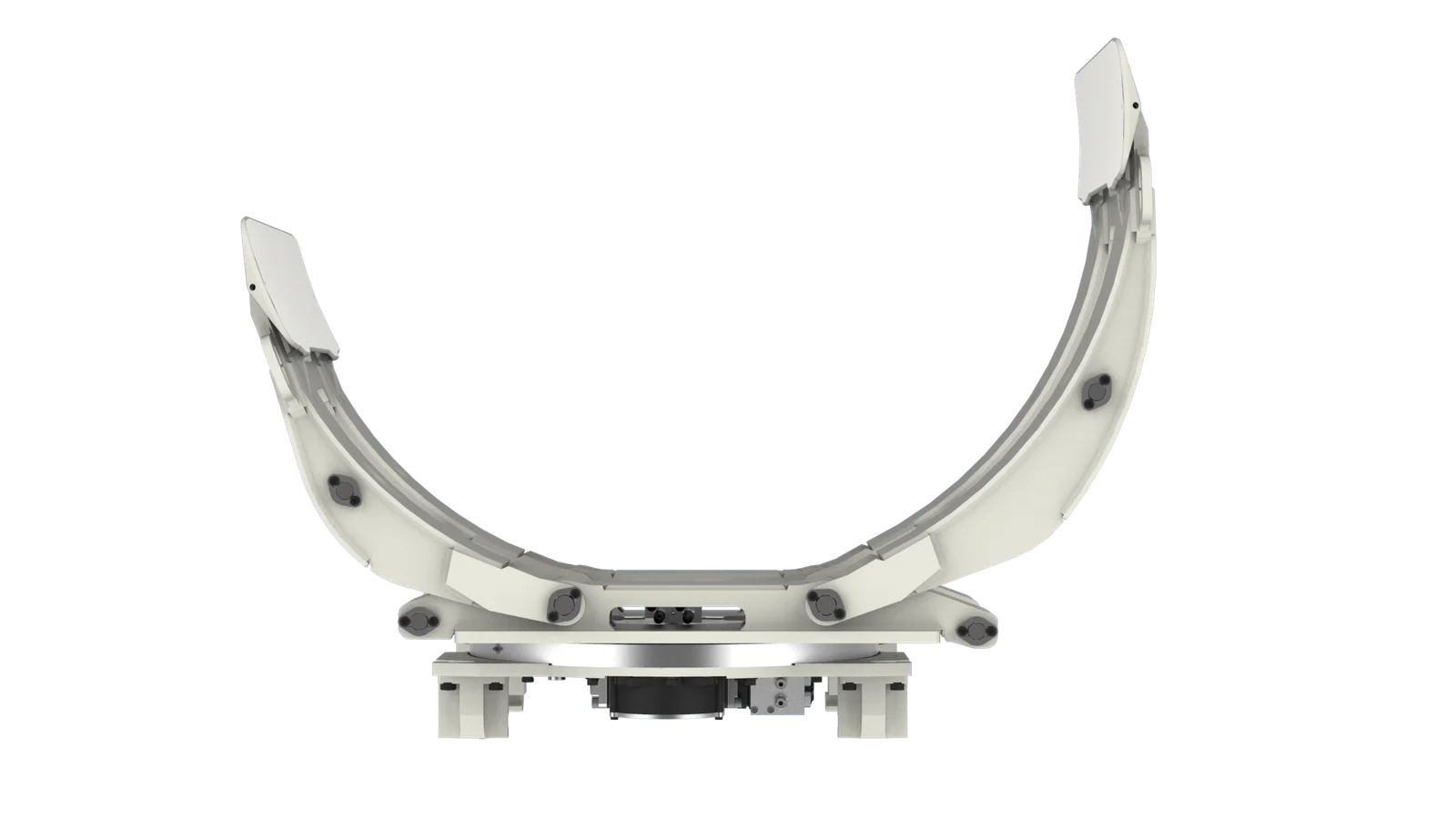

24G Paper Roll Clamp (Positioned Short Arm) - 9

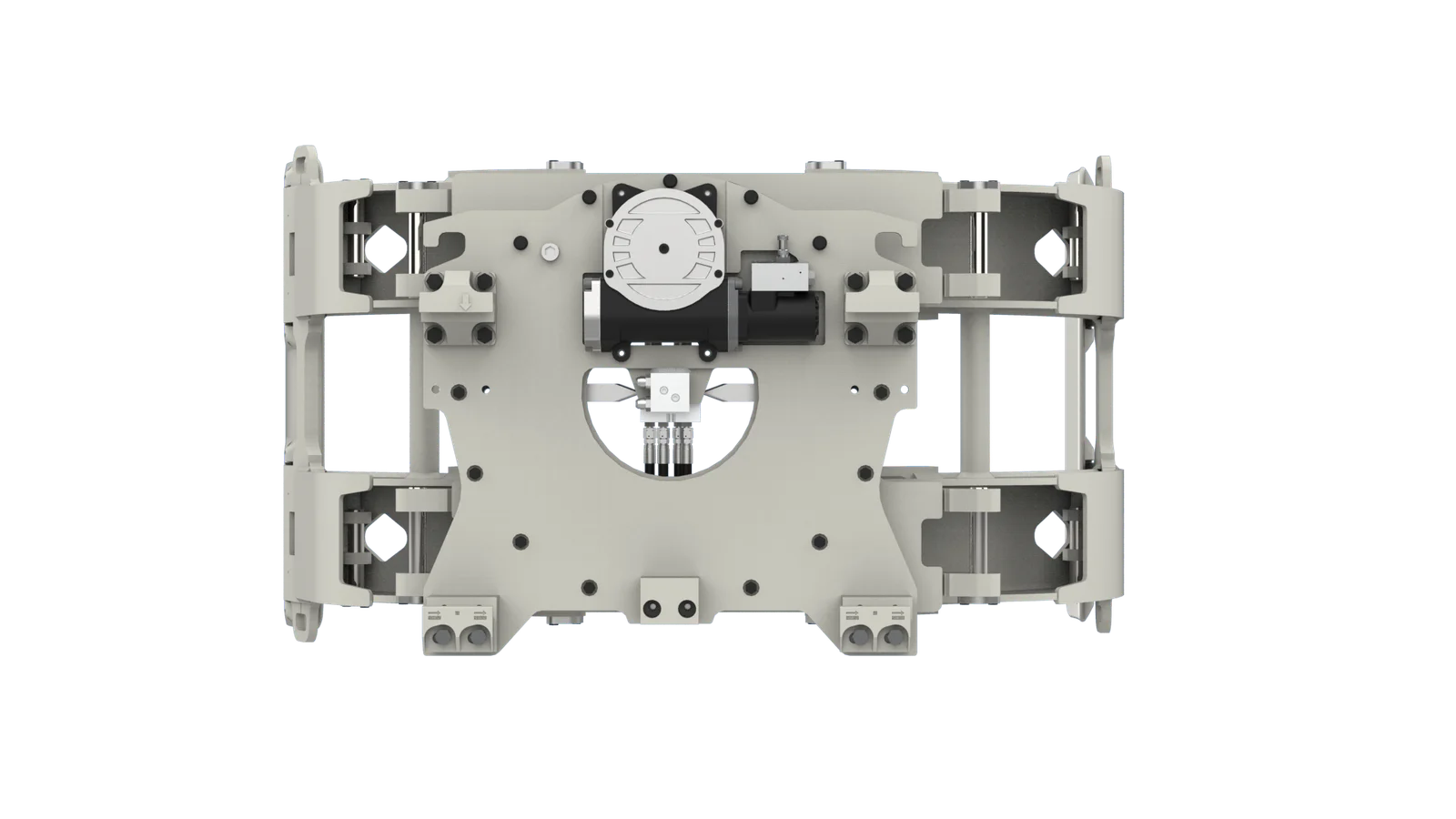

24G Paper Roll Clamp (Positioned Short Arm) - 10

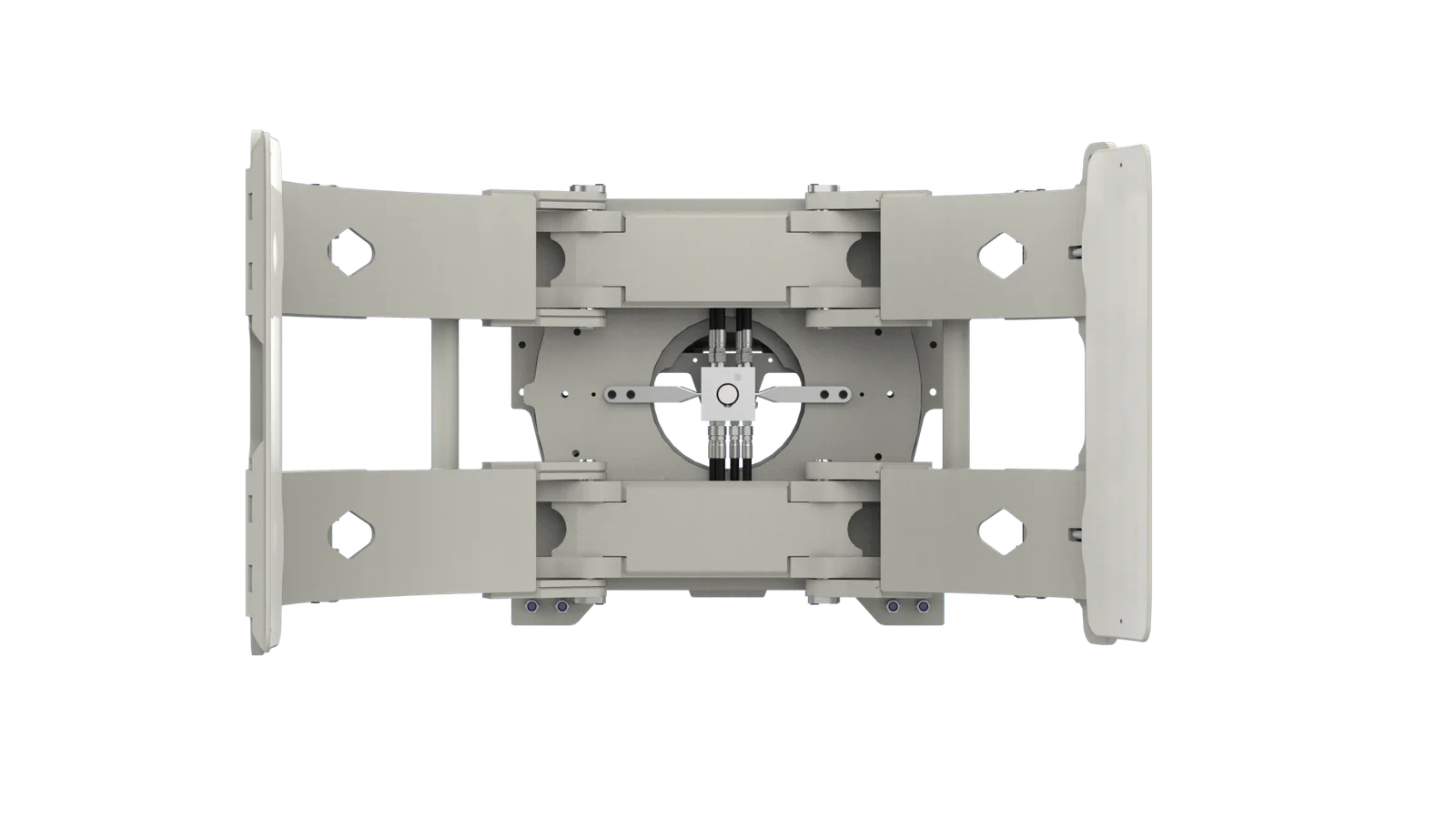

24G Paper Roll Clamp (Positioned Short Arm) - 11

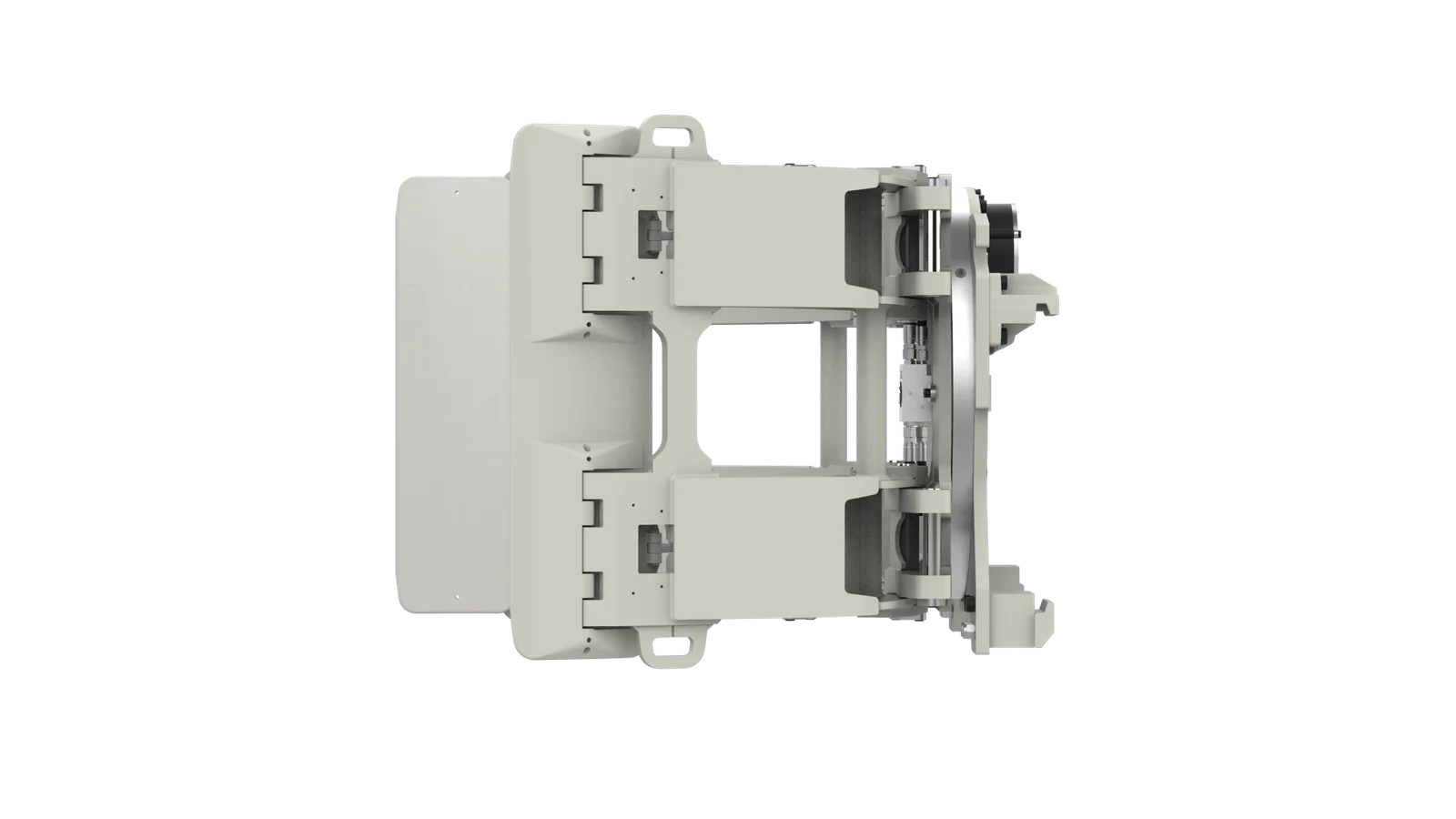

24G Paper Roll Clamp (Positioned Short Arm) - 12

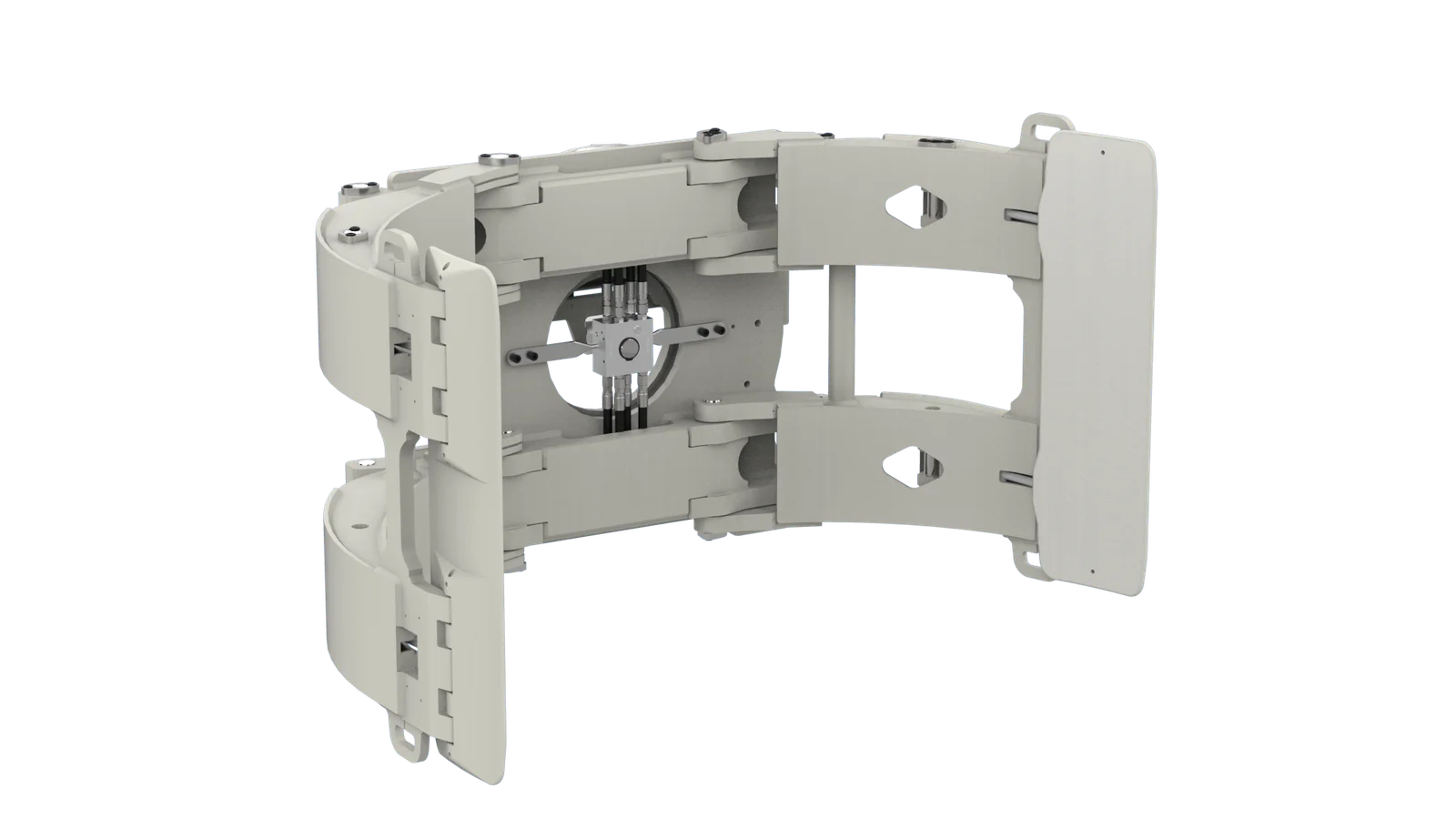

24G Paper Roll Clamp (Positioned Short Arm) - 13

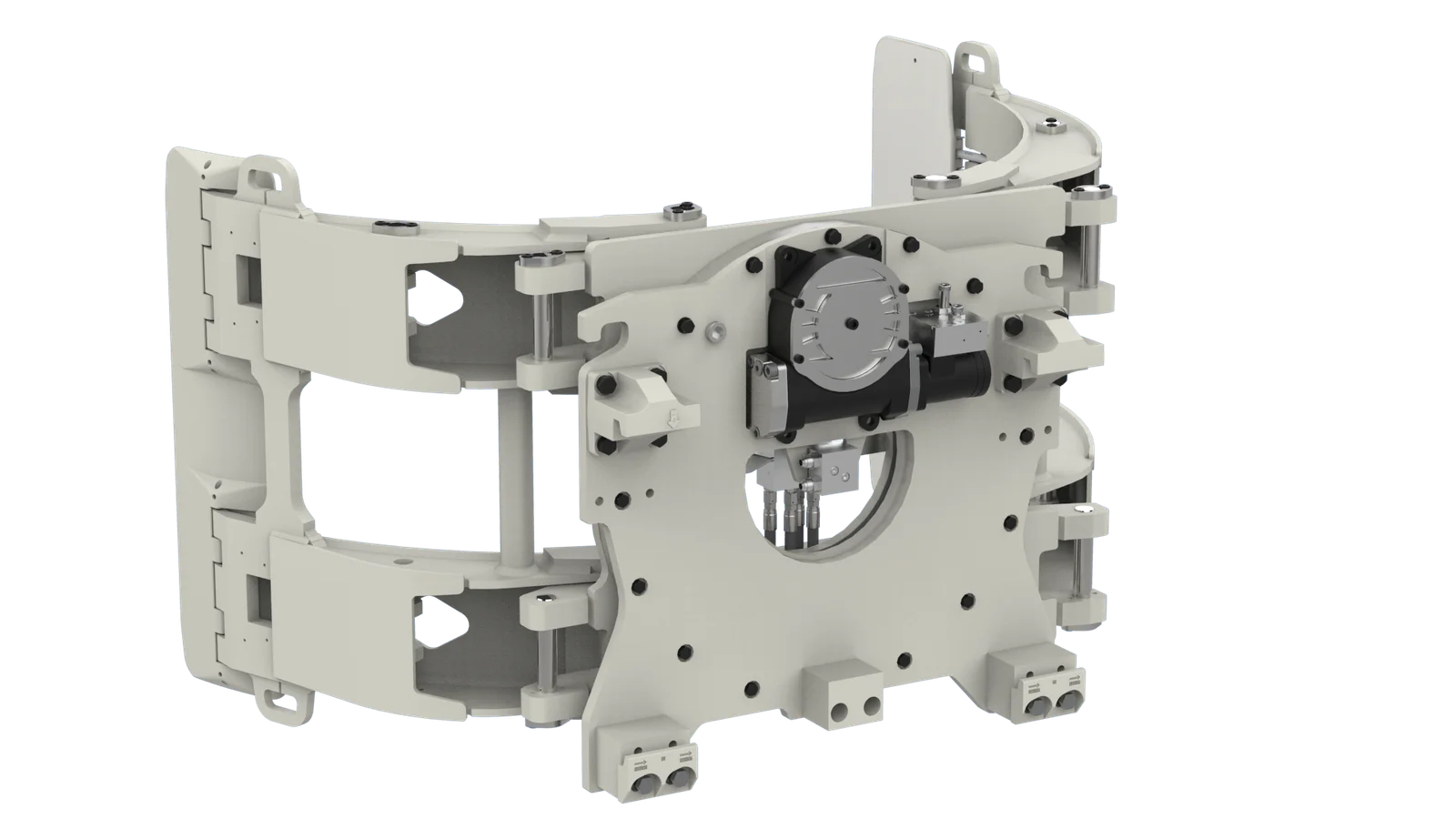

24G Paper Roll Clamp (Positioned Short Arm) - 14

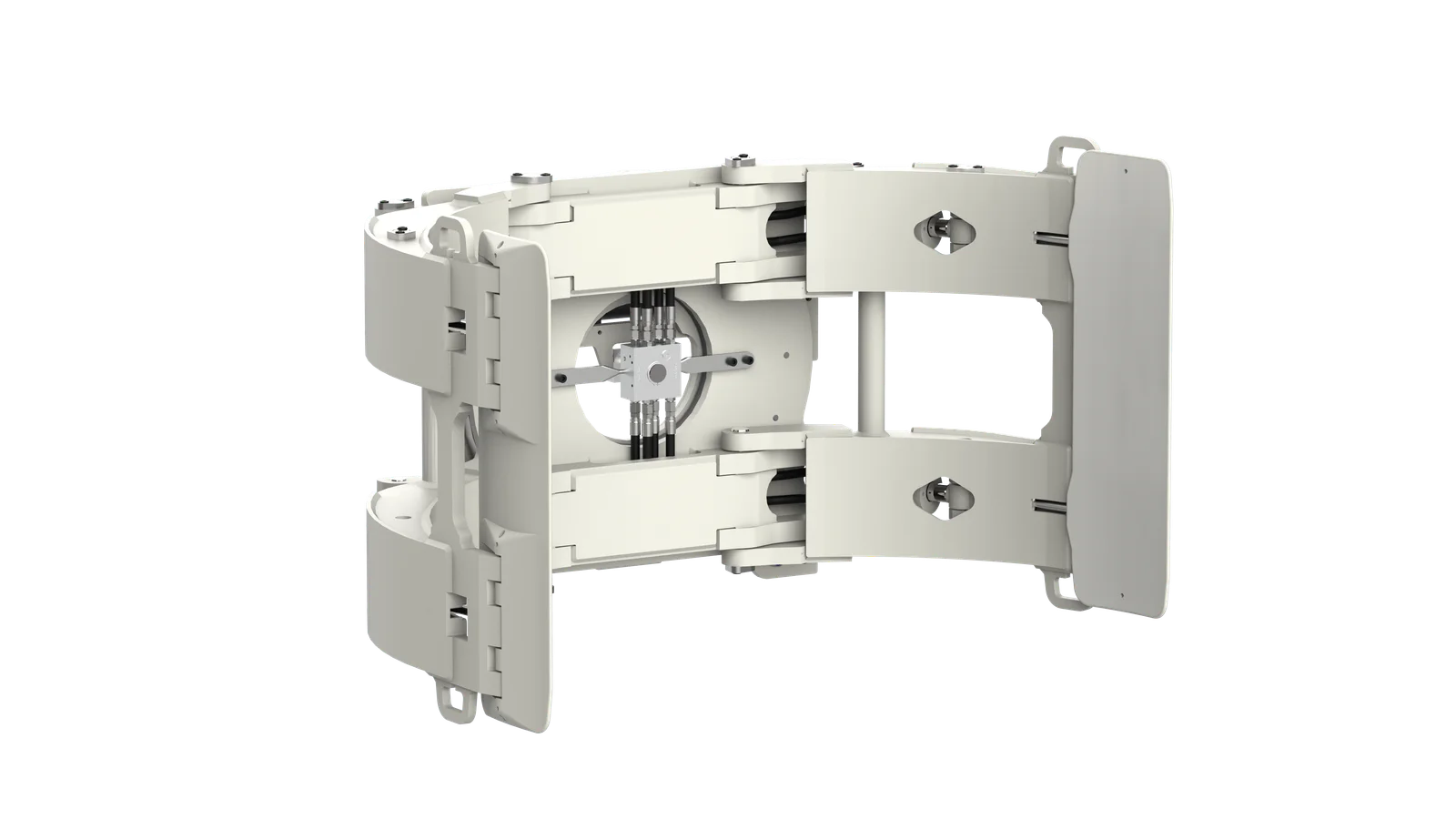

24G Paper Roll Clamp (Positioned Short Arm) - 15

24G Paper Roll Clamp (Positioned Short Arm) - 16

Product Overview

The Wontonne 24G Paper Roll Clamp (Positioned Short Arm) is engineered for precise paper roll handling with a positionable short arm for varying roll widths.

Paper roll clamps are designed to handle rolls of any size, weight, or paper type. With options ranging from compact to rugged, they effectively reduce roll damage during handling.

Key features & specifications:

Positioned short arm for roll widths

360° continuous rotation

Precise roll positioning

Damage-free roll handling

For paper mills and printing

ISO 2A and 3A mounting

Capacity up to 2200kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

Model No	Capacity (kg)	Load Center (mm)	Opening Range (mm)	Mounting	Weight (kg)	Effective Thickness ET (mm)	Mounting Angle (°)	Long Arm Length (mm)	Short Arm Length (mm)	Arm Thickness (mm)	Contact Pad Size (mm)	Vertical CG VCG (mm)	Horizontal CG HCG (mm)
RCP24G-001A	2200	575	200-1150	ISO 2A	610	201	0°	790	520	40	850×240	274	248
RCP24G-001B	2200	575	200-1150	ISO 3A	620	232	0°	790	520	40	850×240	274	275
RCP24G-003A	2200	650	200-1300	ISO 2A	615	201	0°	868	584	40	850×240	274	257
RCP24G-003B	2200	650	200-1300	ISO 3A	625	232	0°	868	584	40	850×240	274	288
RCP24G-005A	2200	700	200-1400	ISO 2A	650	201	0°	924	624	40	850×240	273	270
RCP24G-005B	2200	700	200-1400	ISO 3A	660	232	0°	924	624	40	850×240	273	302
RCP24G-007A	2050	760	200-1525	ISO 2A	650	201	0°	982	686	40	850×240	273	283
RCP24G-007B	2050	760	200-1525	ISO 3A	660	232	0°	982	686	40	850×240	273	315
RCP24G-008A	1950	800	200-1600	ISO 2A	662	201	0°	1015	721	40	850×240	272	292
RCP24G-008B	1950	800	200-1600	ISO 3A	672	232	0°	1015	721	40	850×240	272	323
