What is the capacity of the 24G Paper Roll Clamp?

The 24G Paper Roll Clamp handles 1950-2200 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the 24G Paper Roll Clamp use?

The 24G Paper Roll Clamp is available for ISO 2A / ISO 3A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the 24G Paper Roll Clamp are available?

Wontonne offers 10 models of the 24G Paper Roll Clamp — including RCF24G-001A, RCF24G-001B, RCF24G-003A, RCF24G-003B, RCF24G-005A and more — with different capacities and load centers for various applications.

What capacity of paper roll clamp do I need?

Wontonne offers paper roll clamps from 1000 kg to 4100 kg capacity. The 12G series suits tissue and small rolls (1000-1200 kg), while the 33G and 35F series handle large board rolls up to 4100 kg. Choose by your heaviest roll weight plus a safety margin.

What is the difference between positioned and fixed short-arm paper roll clamps?

Positioned short-arm clamps (20G-P, 24G-P, 30G-P, 33G-P, 35F-P) let the short arm reposition hydraulically to match roll diameter, ideal for multi-diameter roll handling. Fixed short-arm clamps (12G, 15F, 20G, 24G, 30G, 33G, 35F) offer a simpler, more economical design for consistent roll sizes.

Products / Paper Roll Clamps / 24G Paper Roll Clamp

Paper Roll Clamps

24G Paper Roll Clamp

Engineered for durability and precision, 24g paper roll clamp delivers reliable performance in demanding material handling environments.

All Paper Roll Clamps

Product Overview

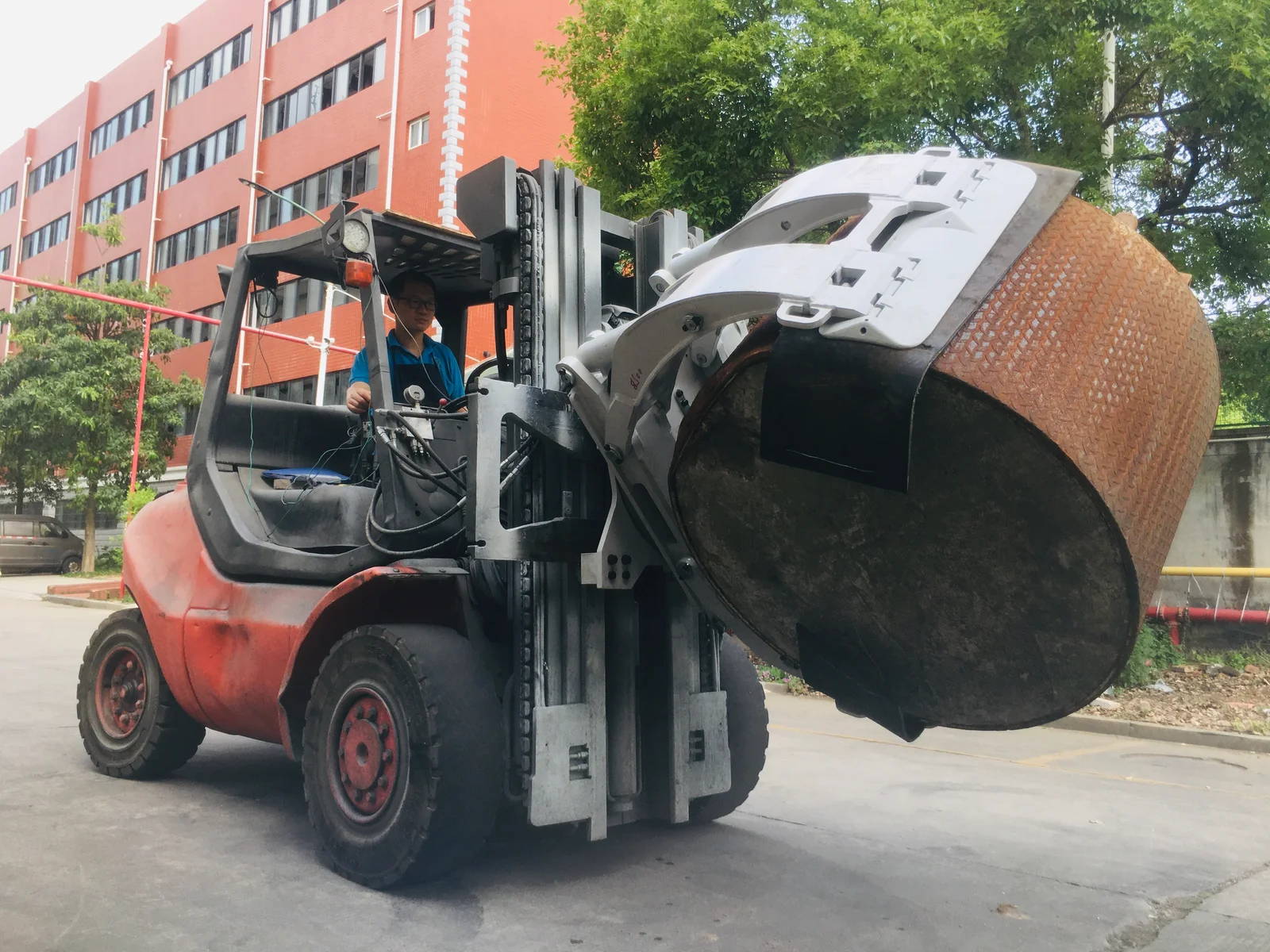

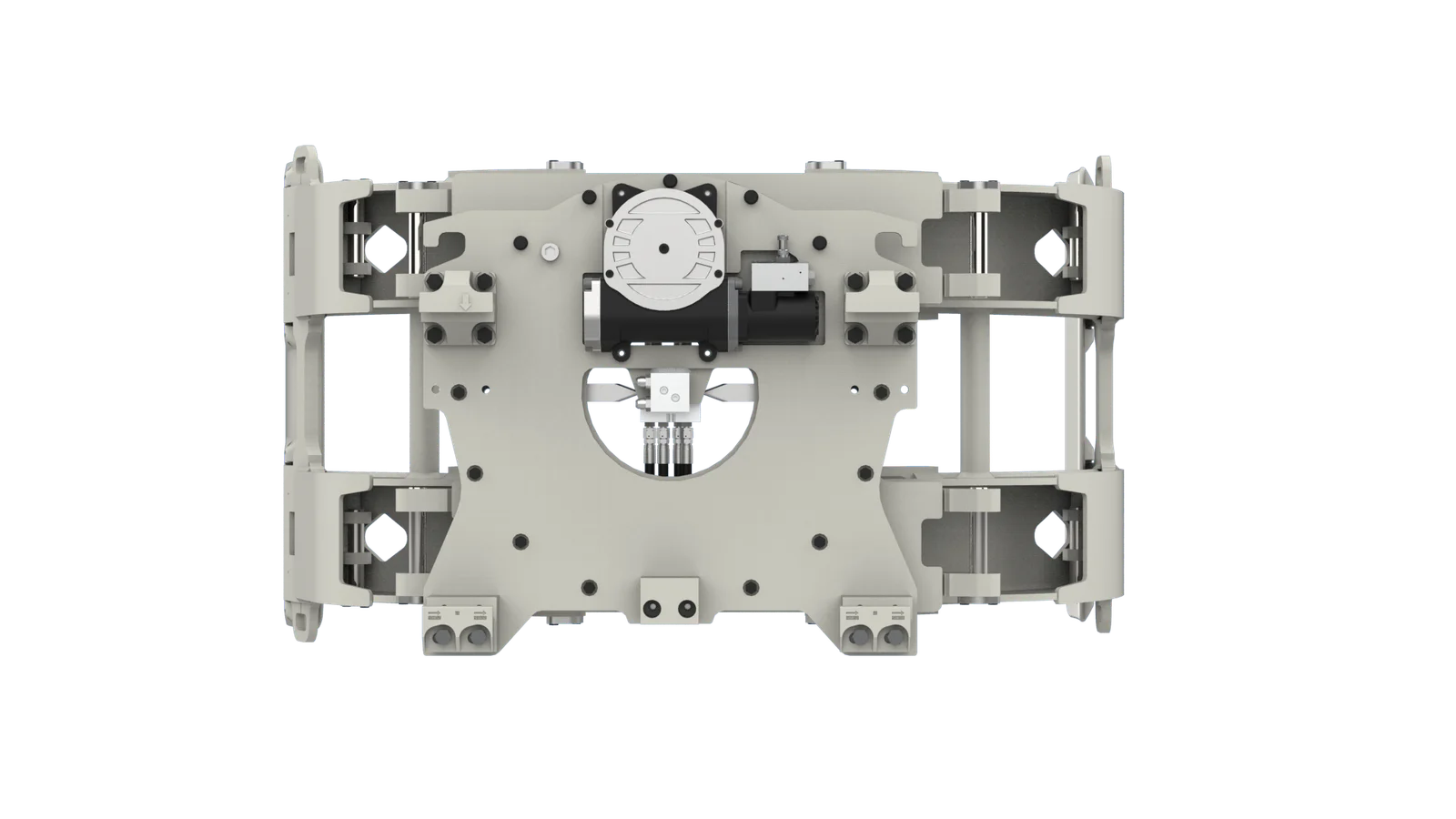

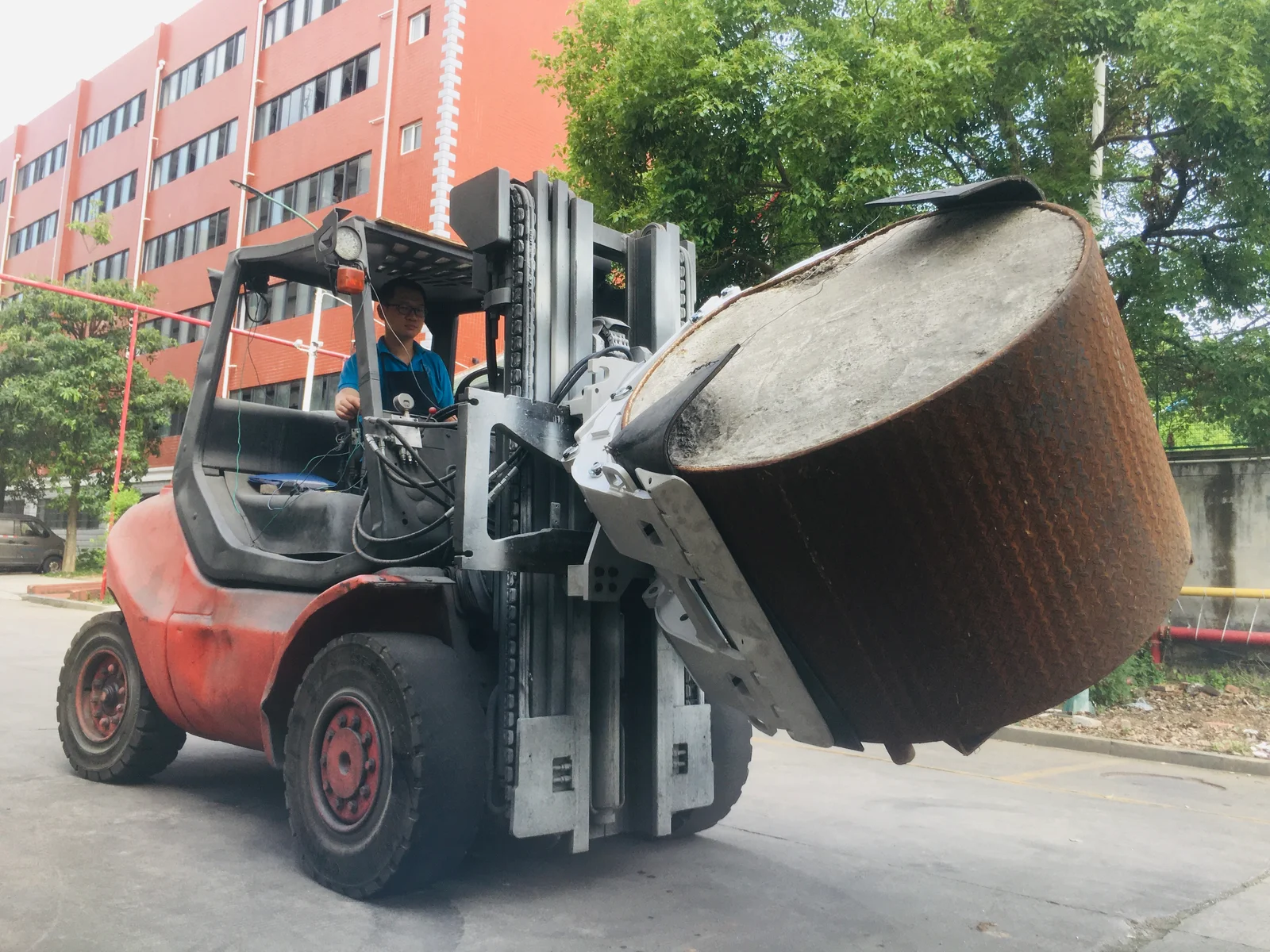

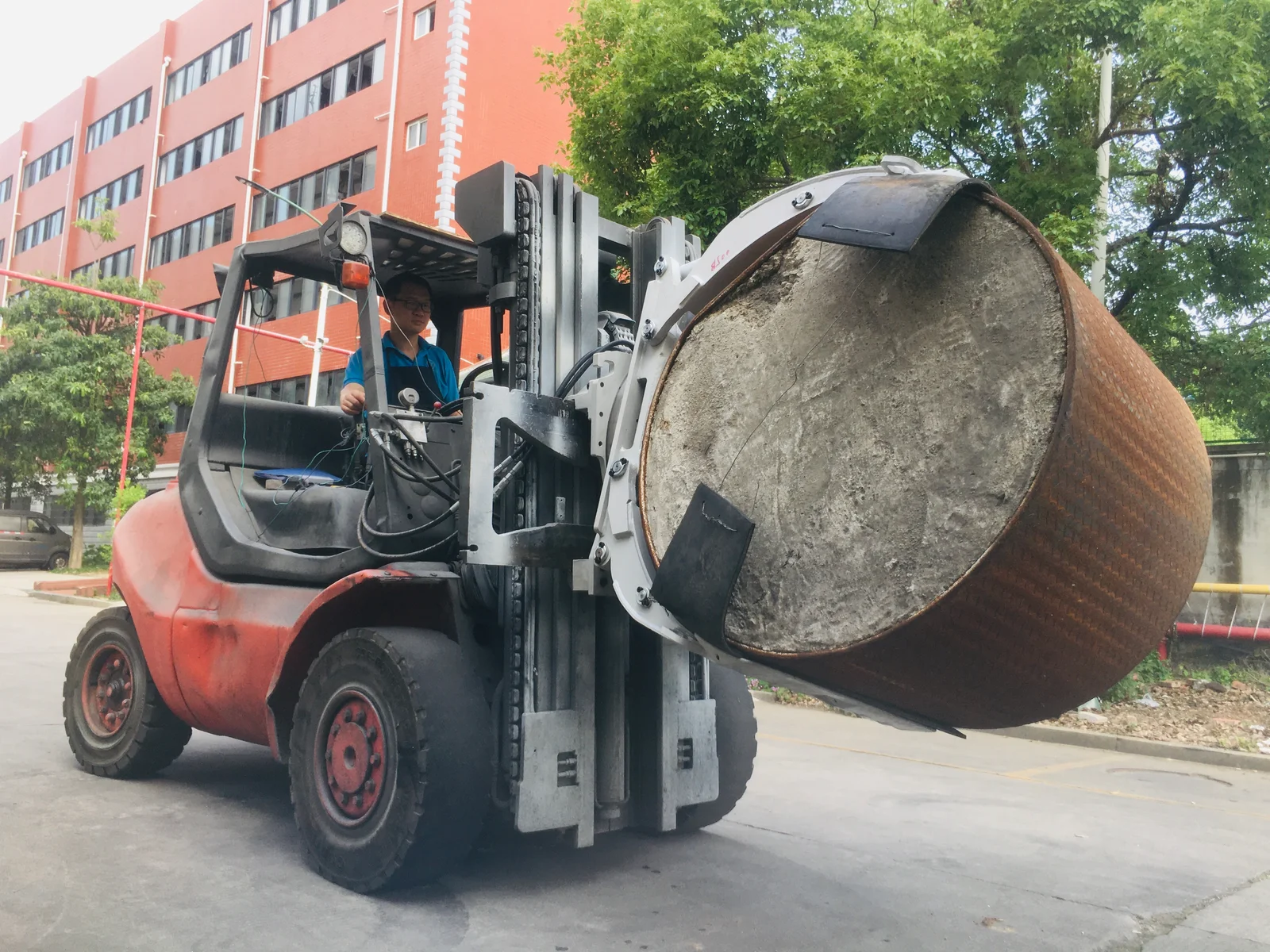

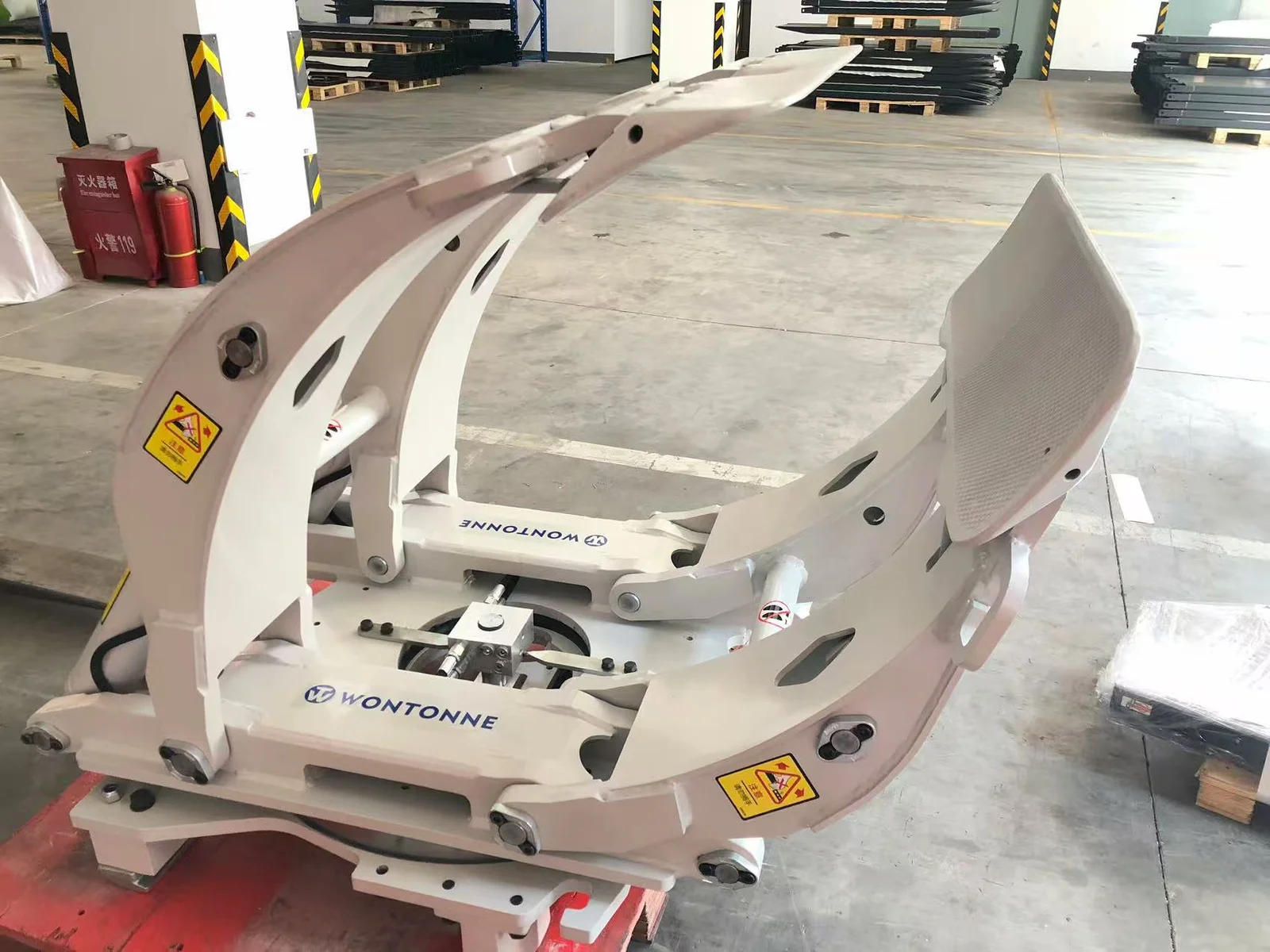

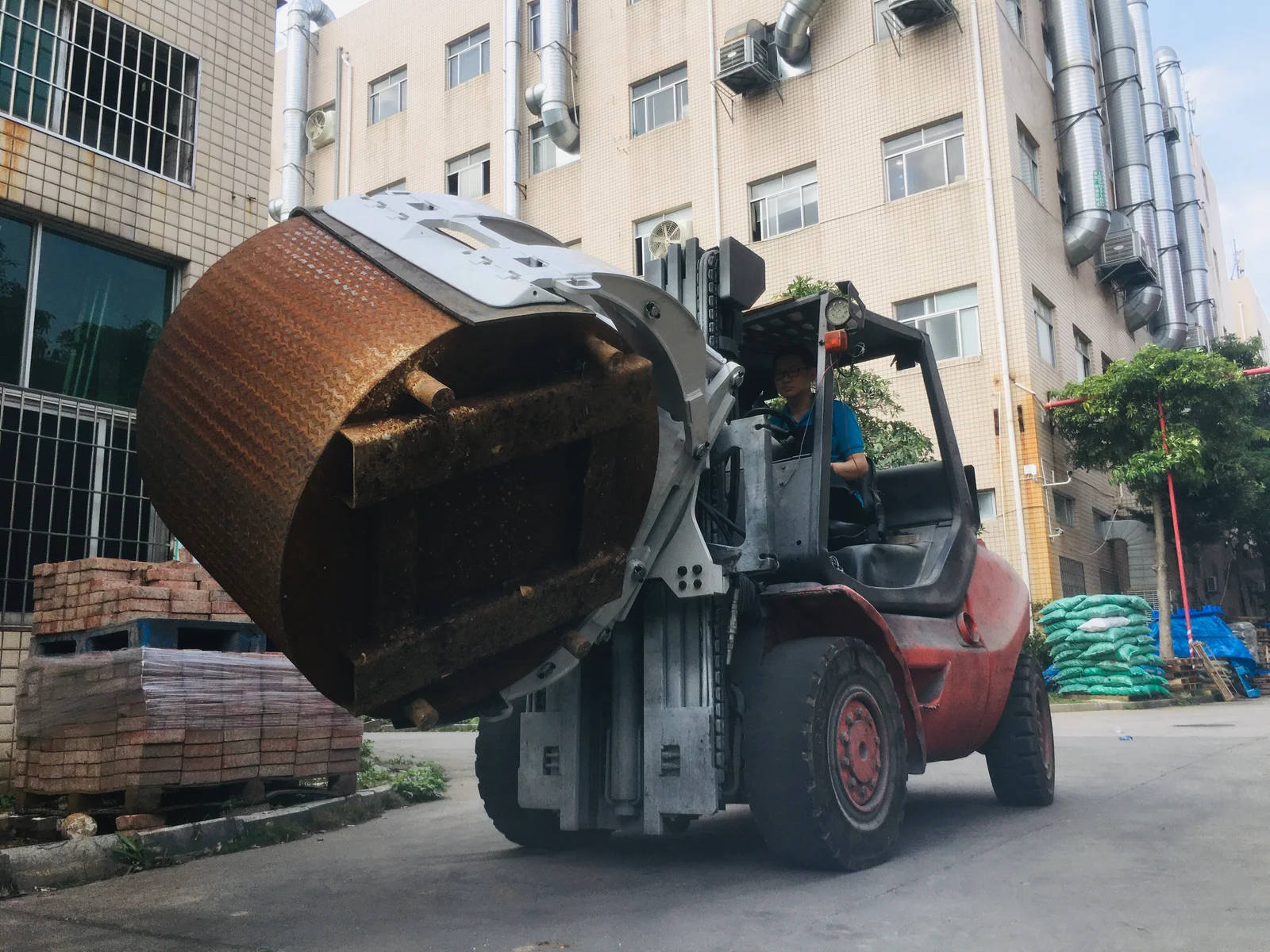

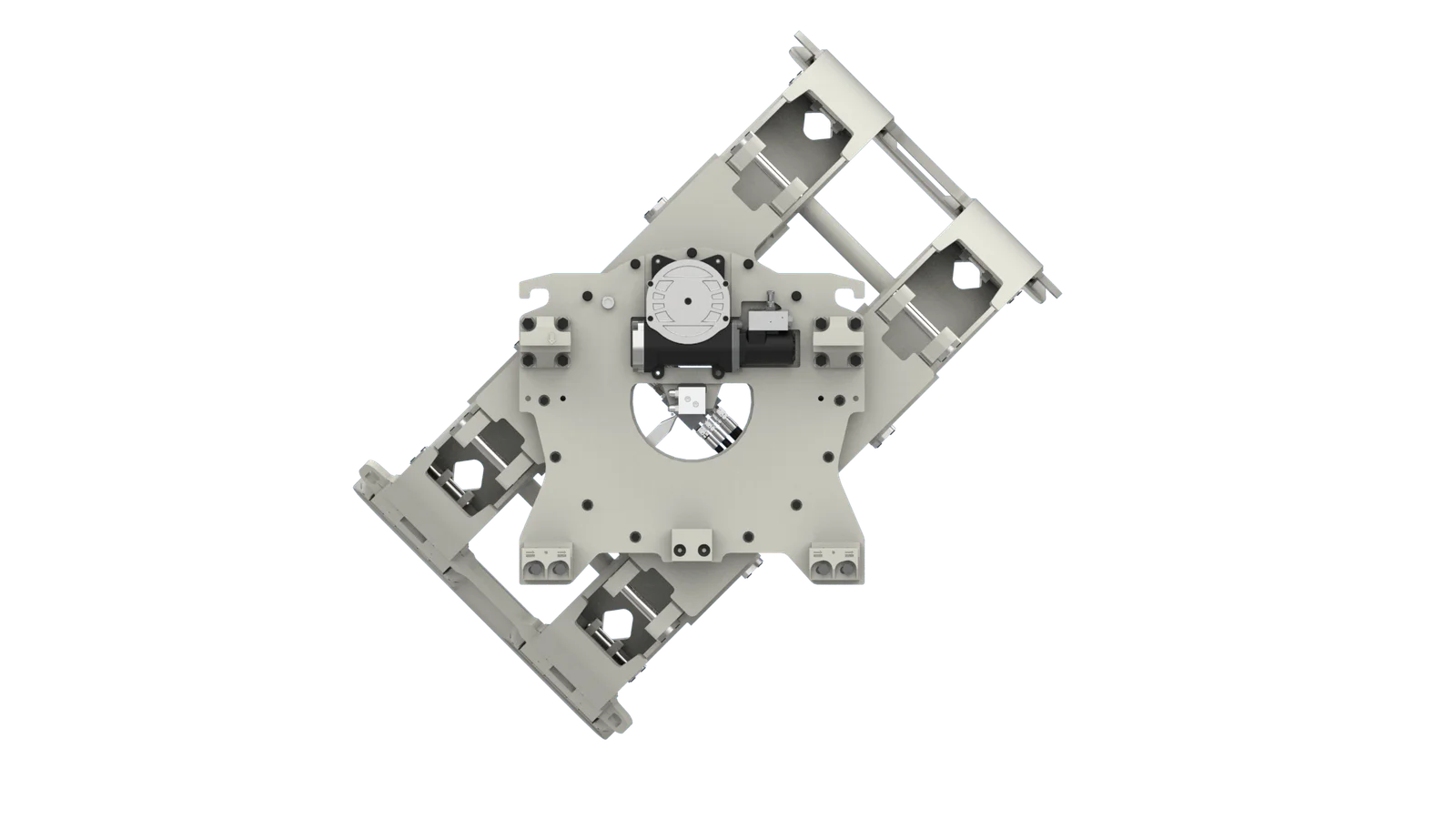

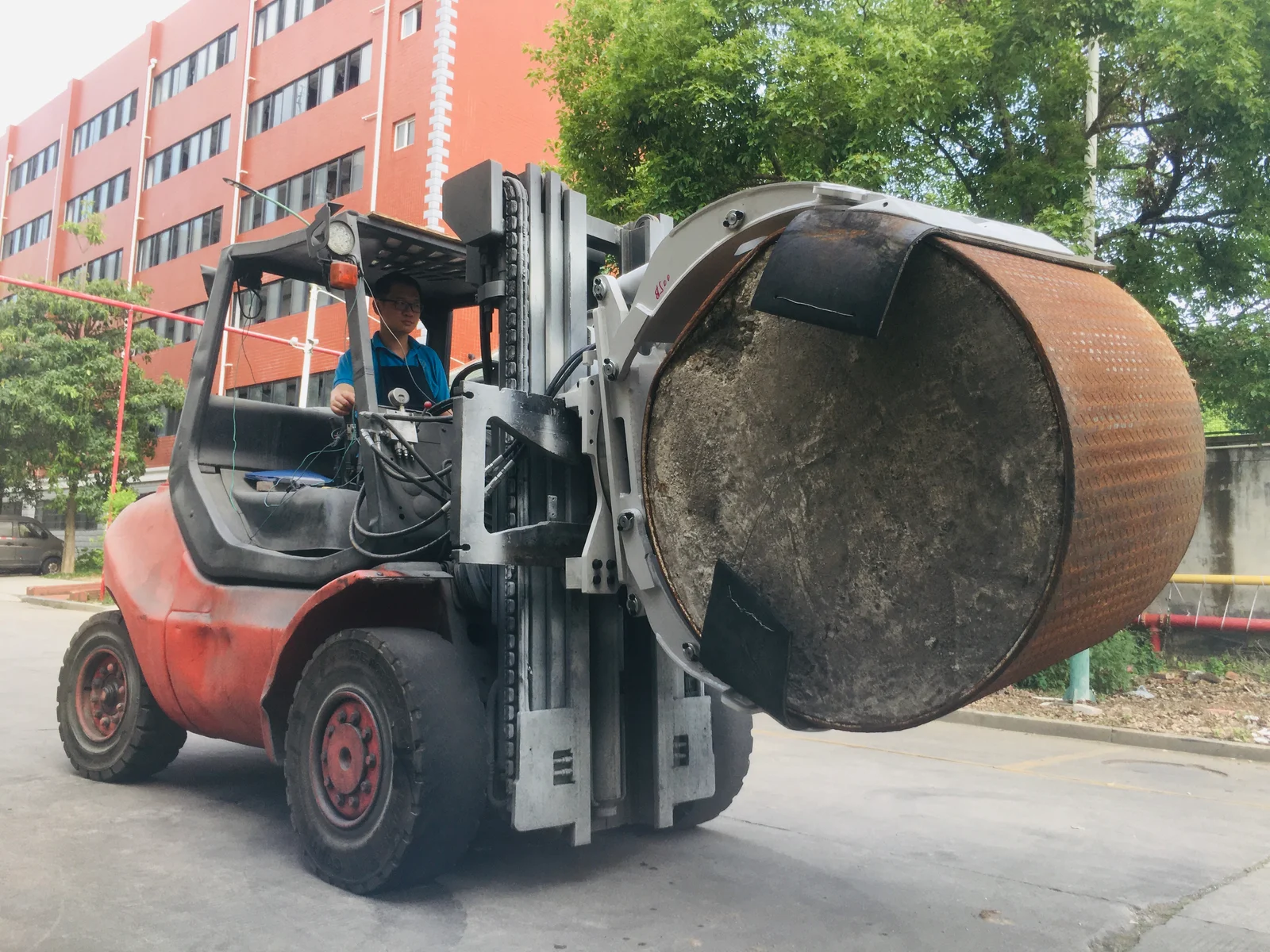

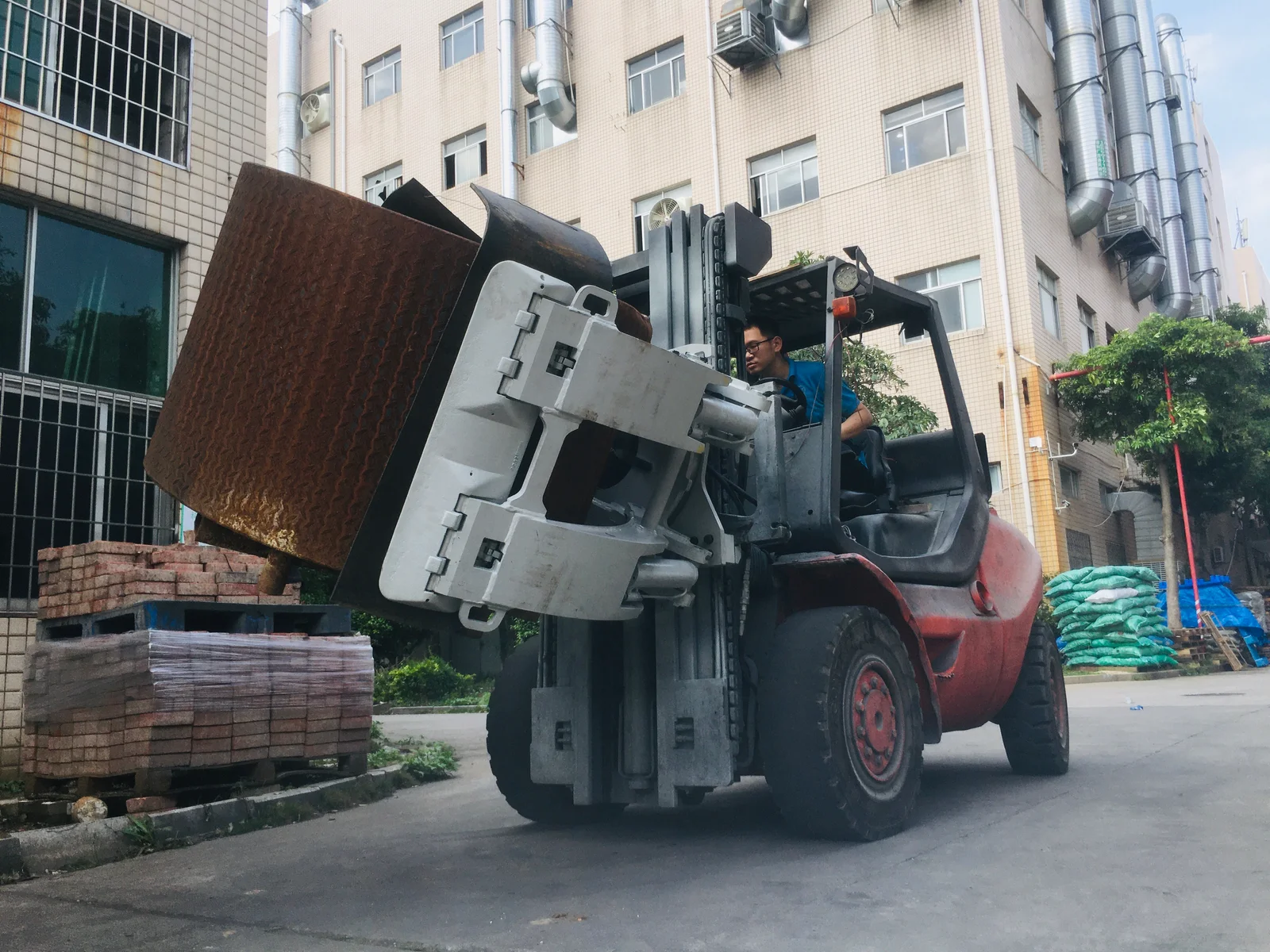

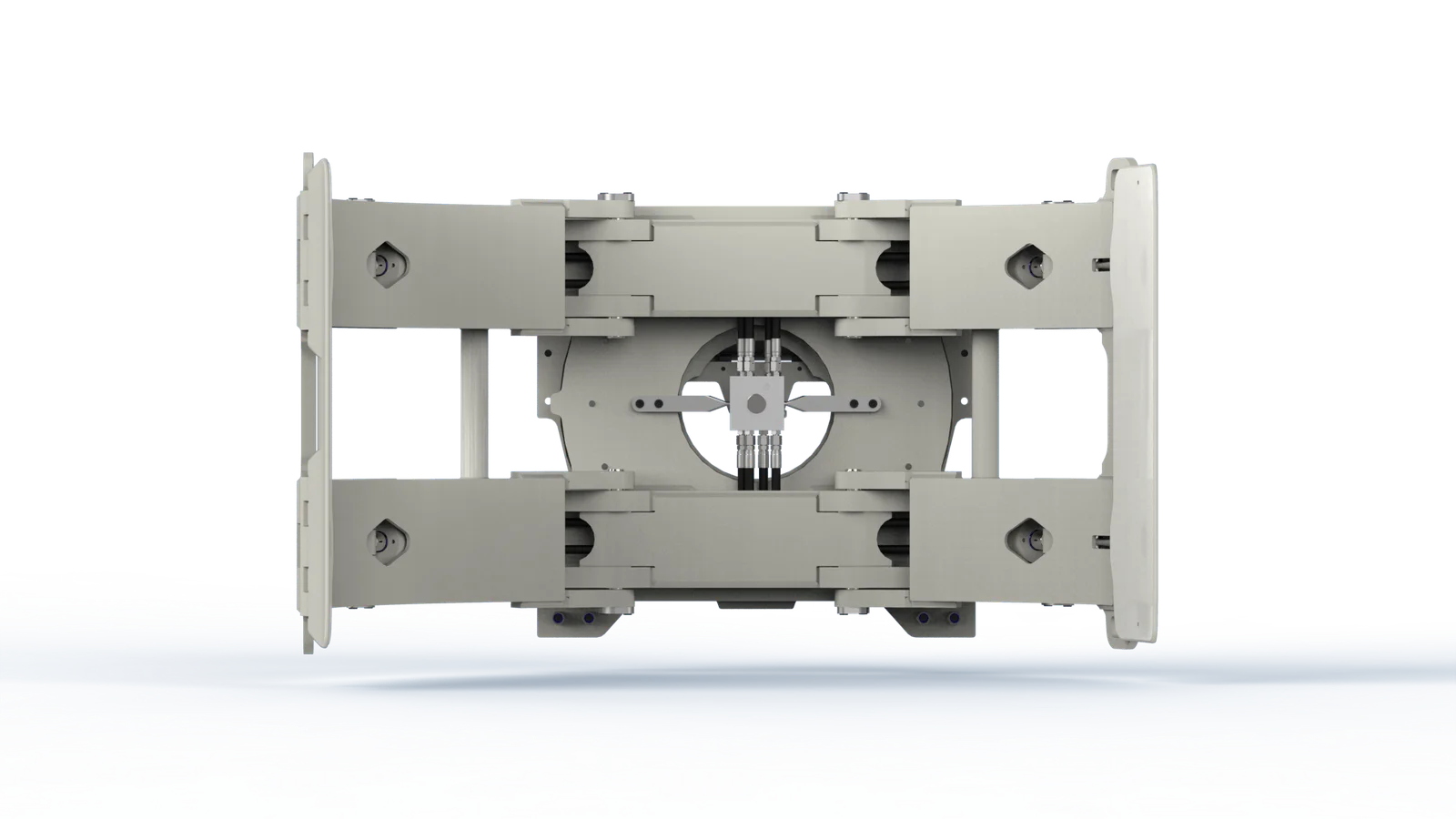

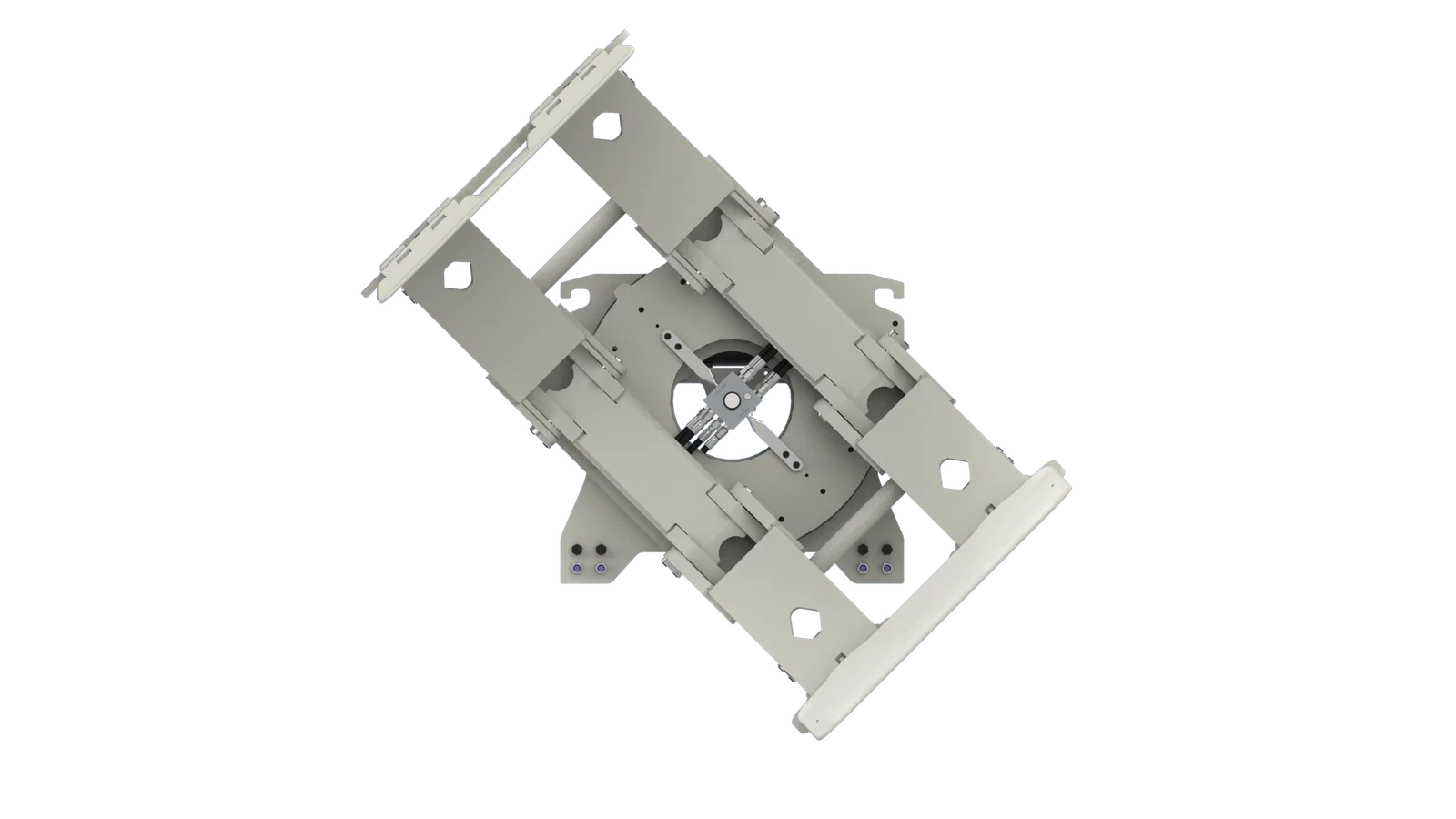

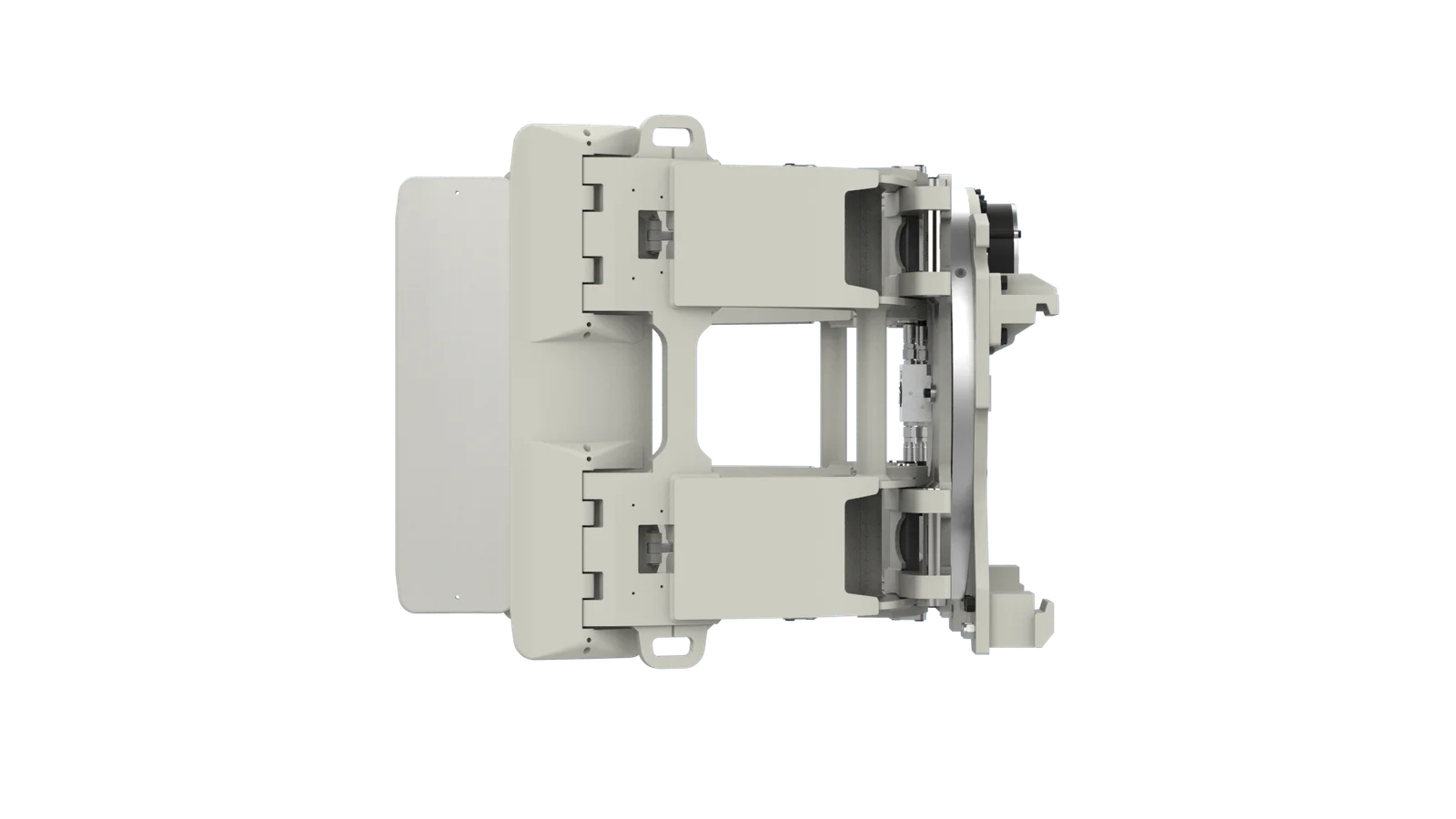

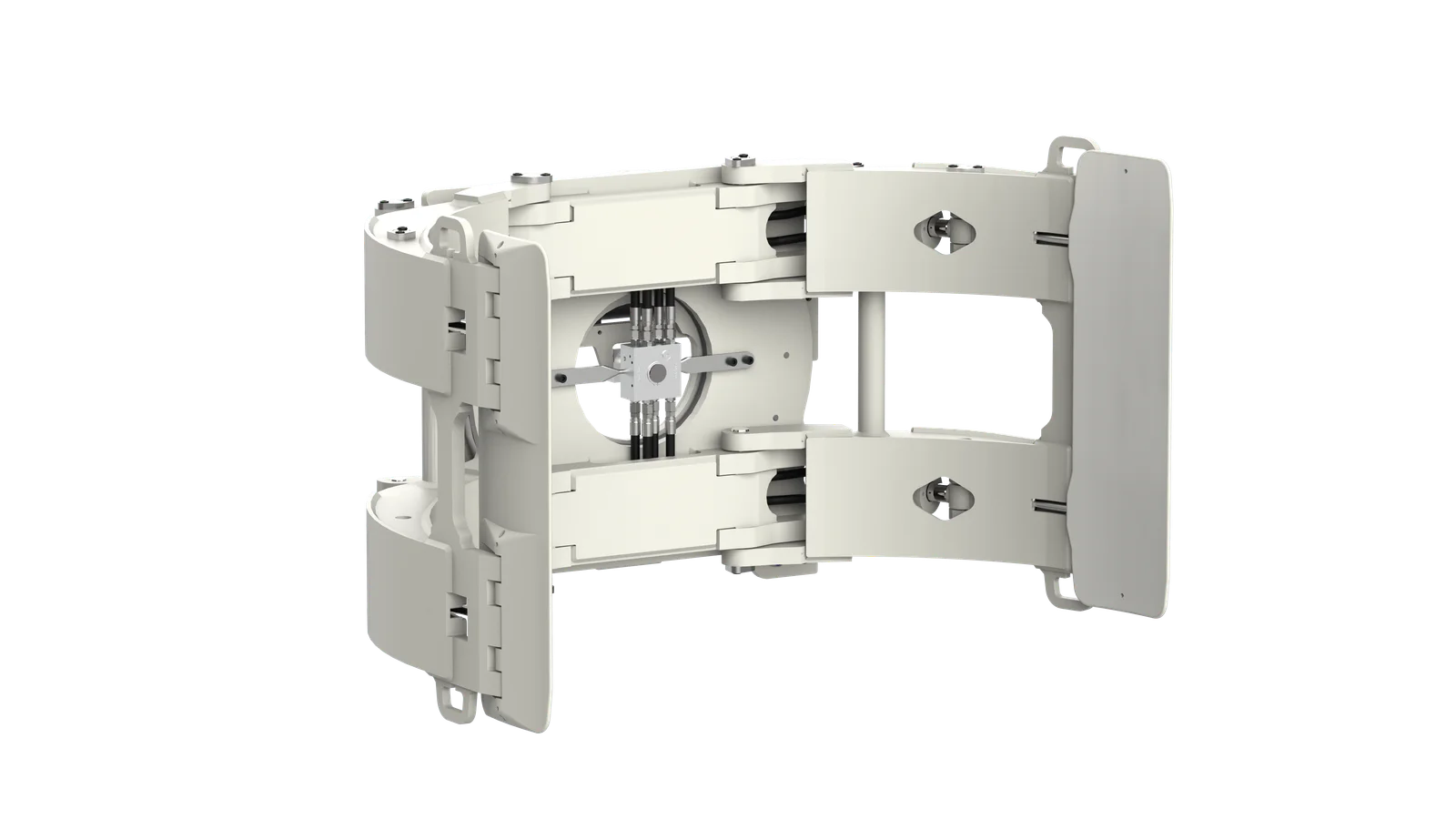

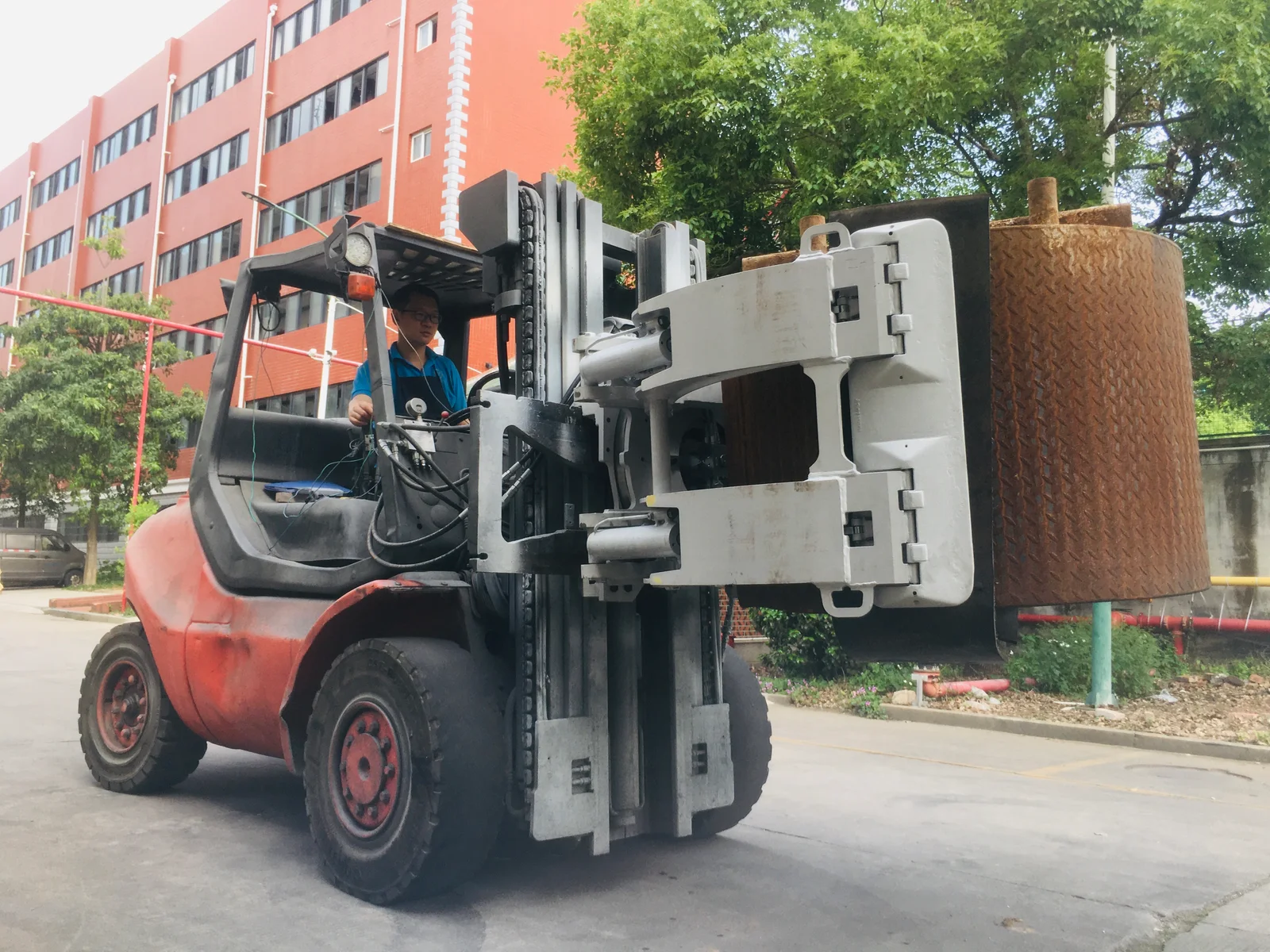

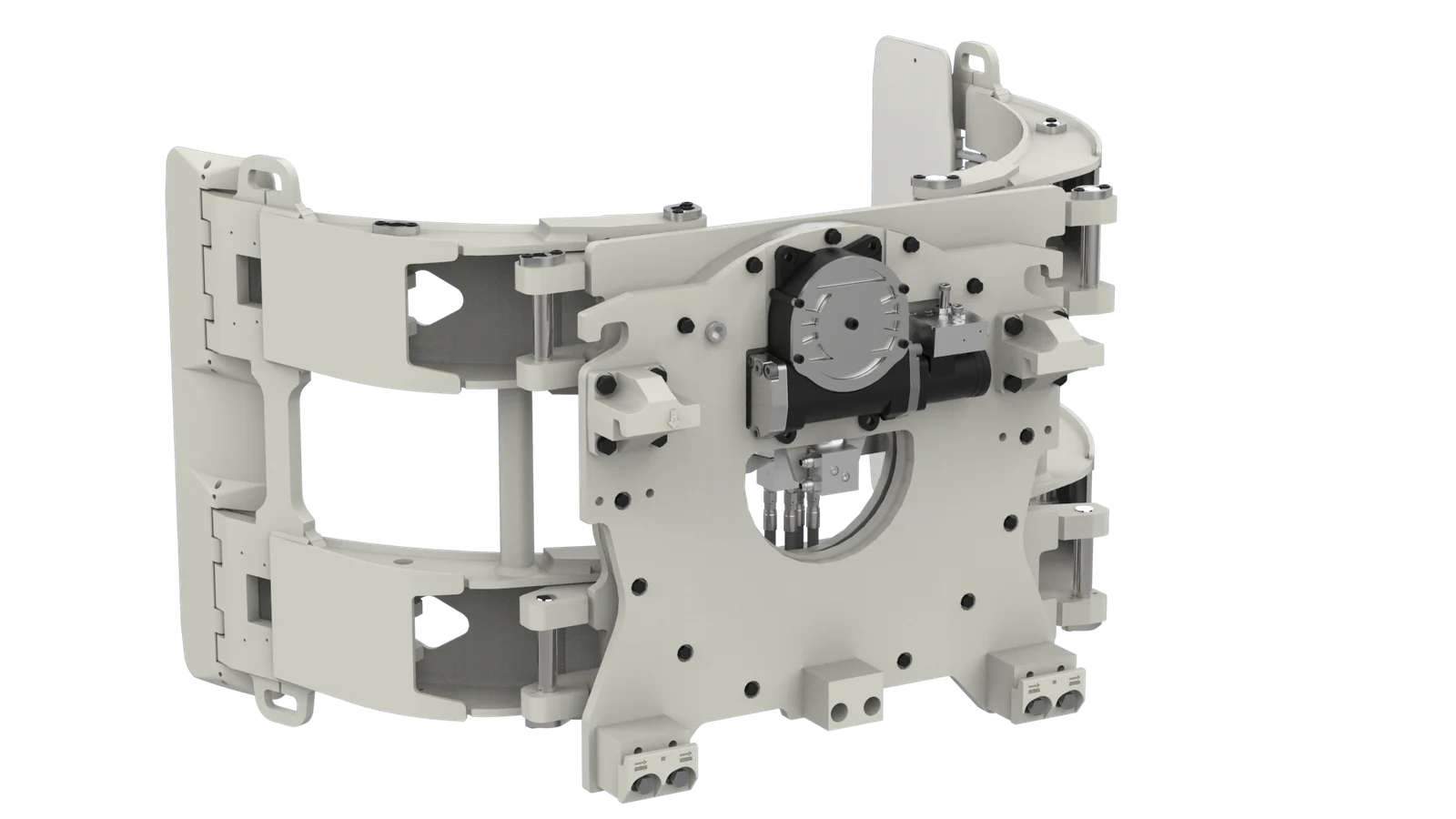

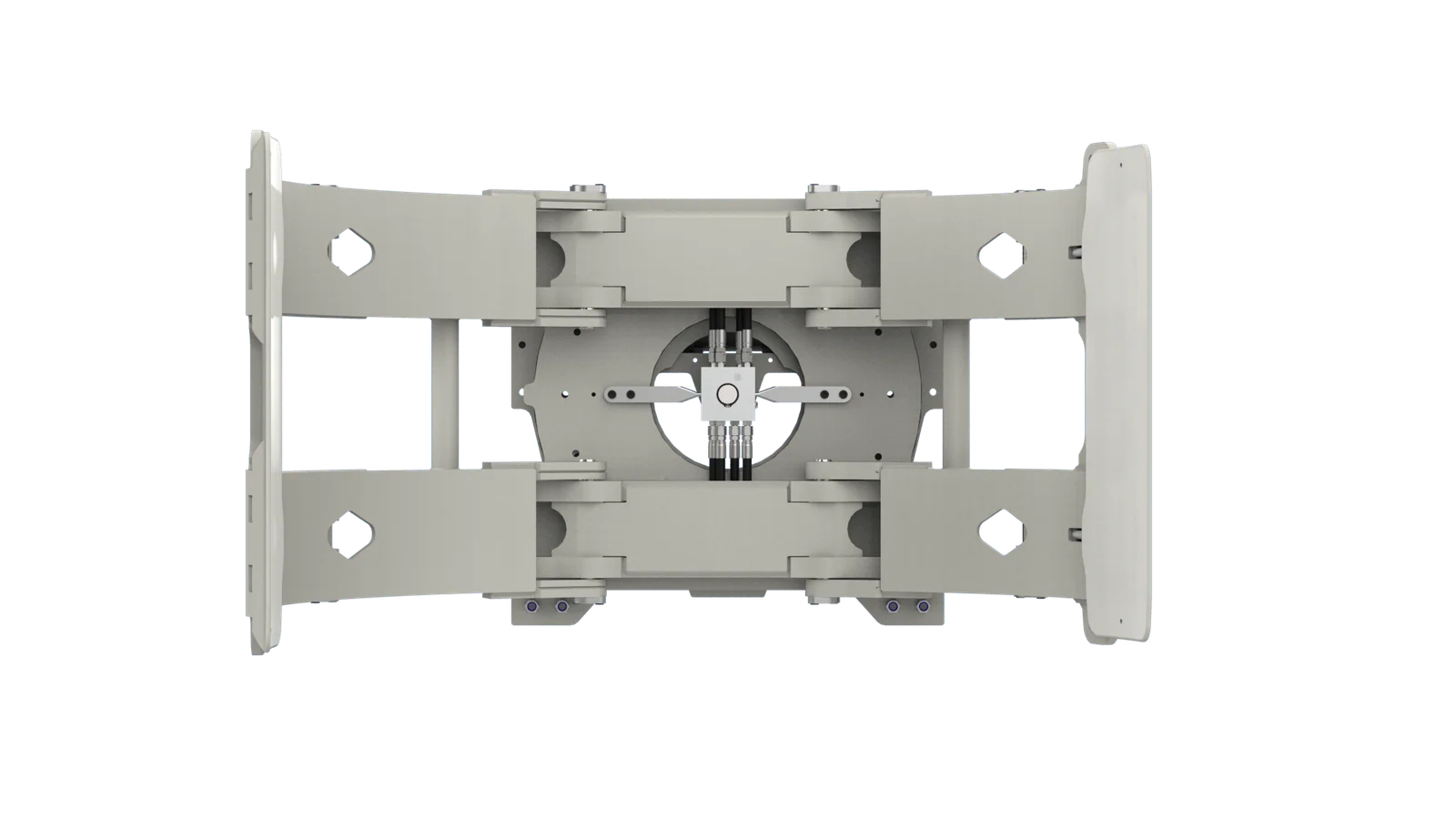

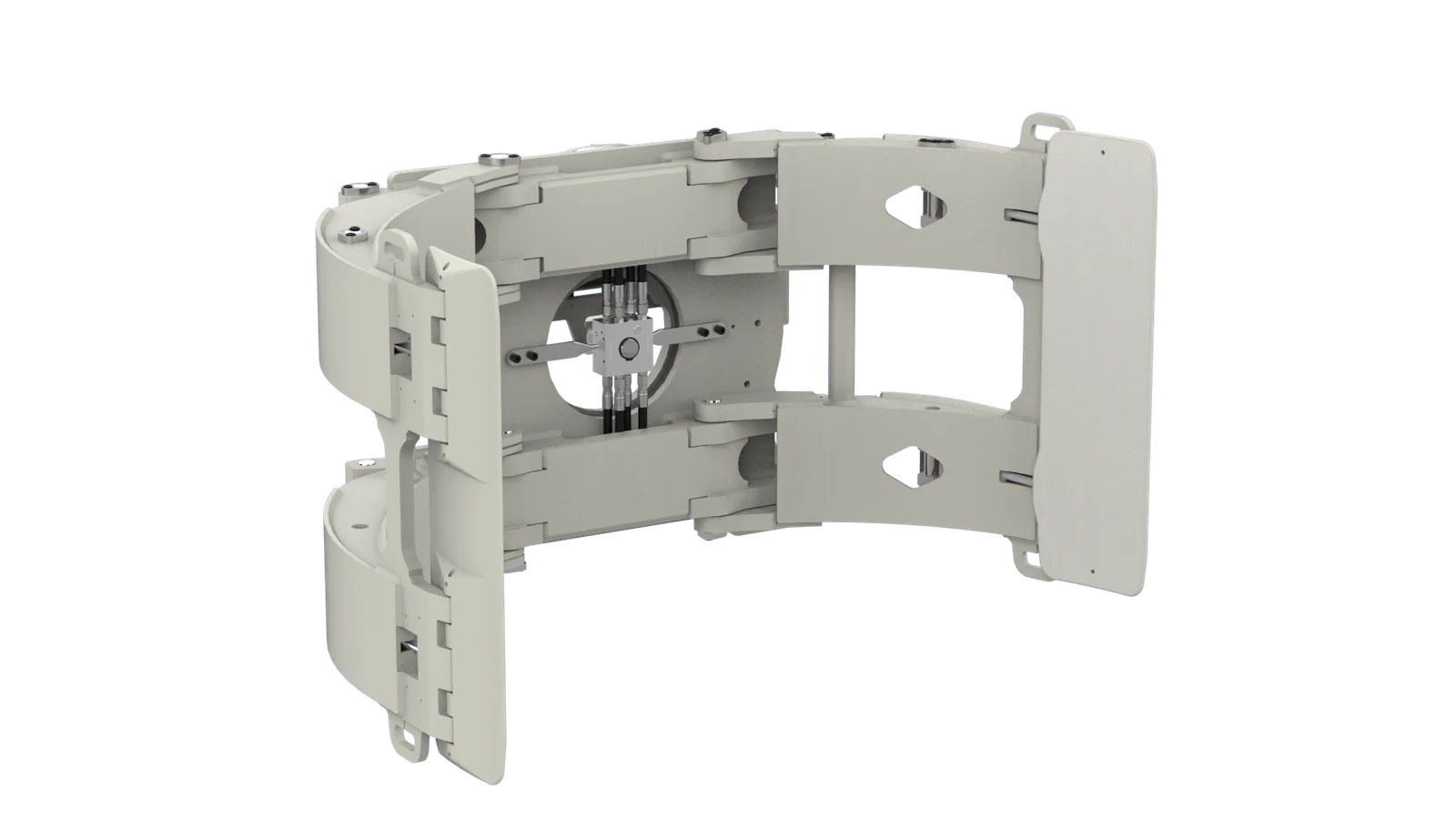

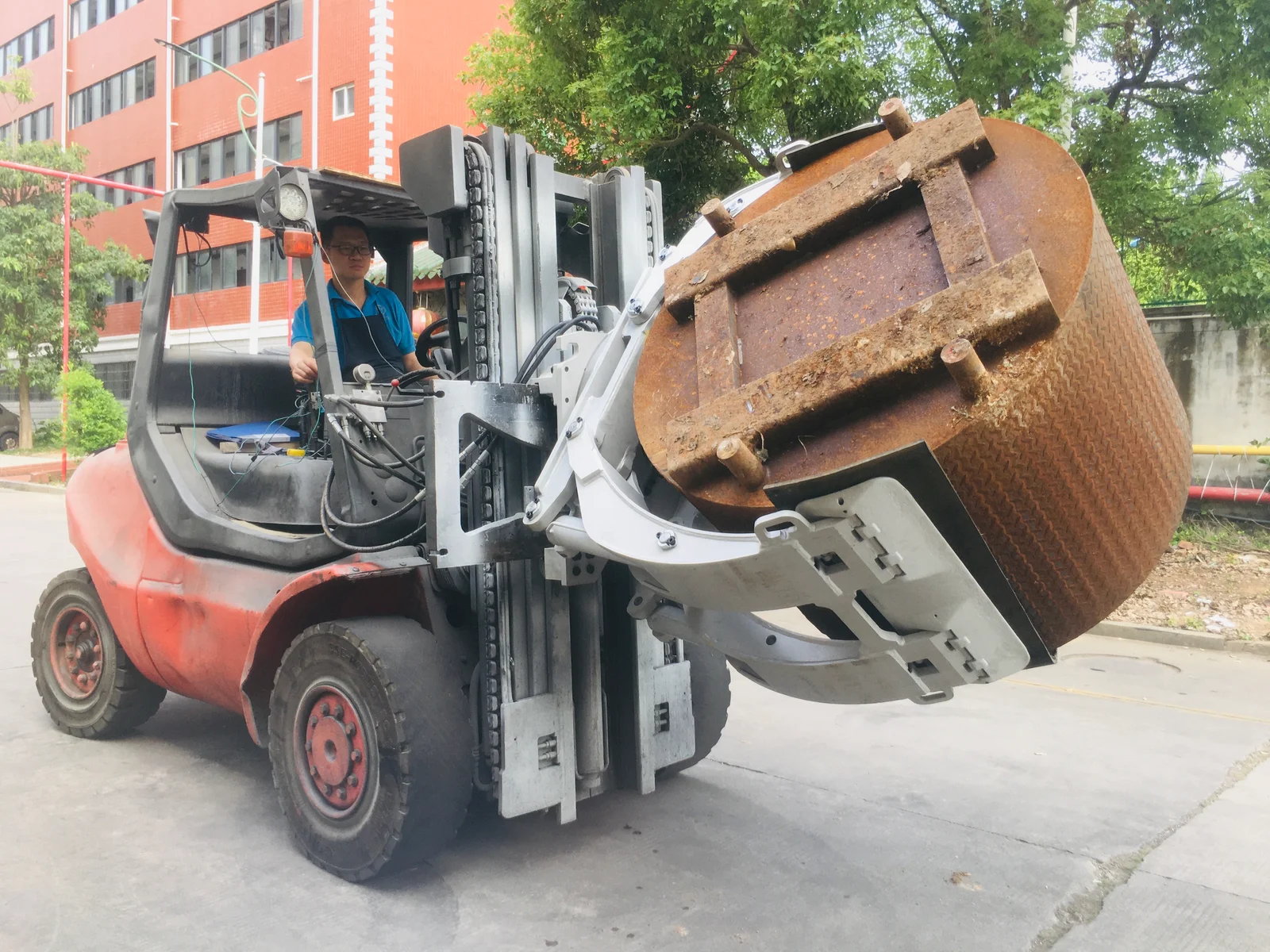

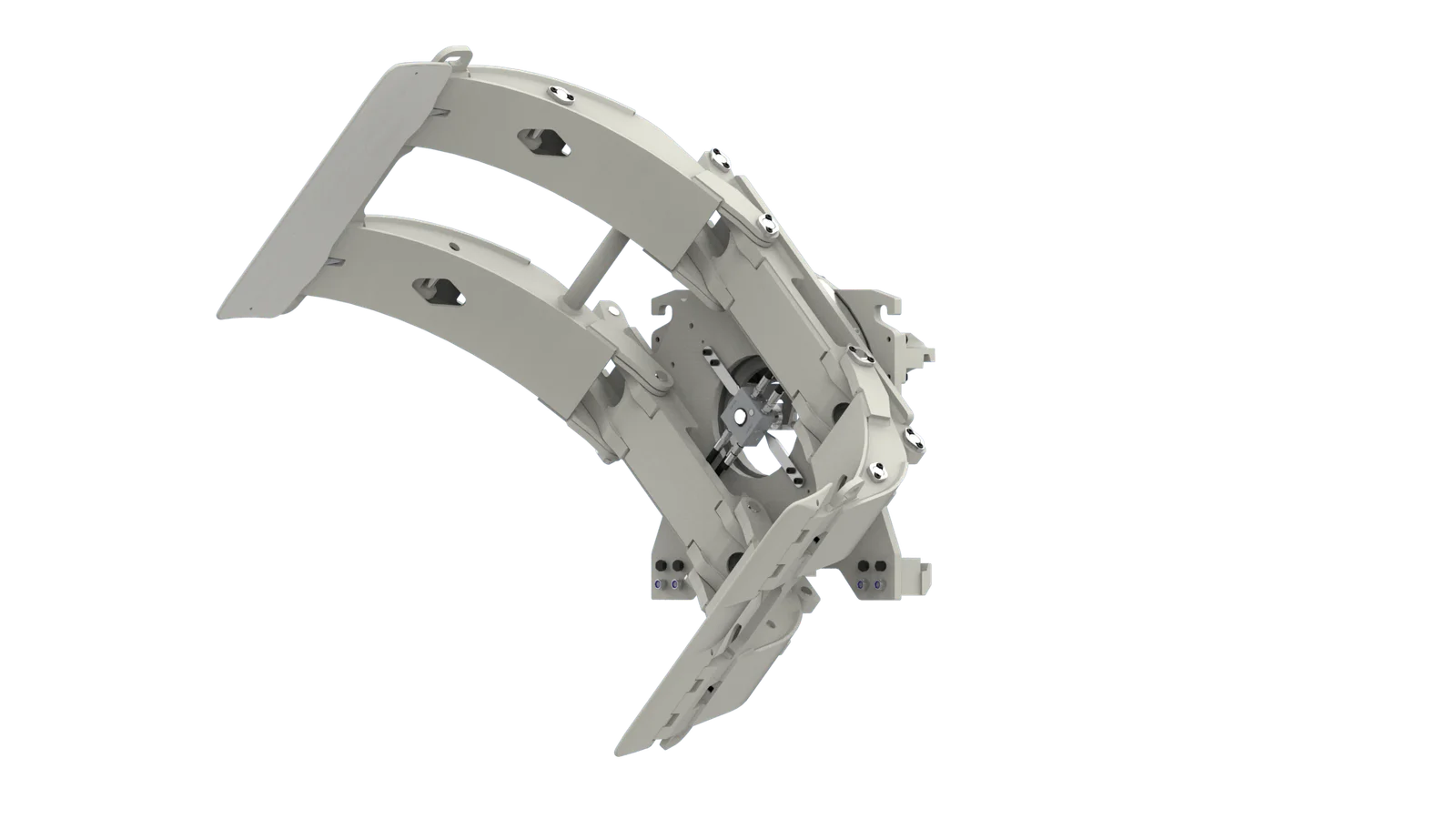

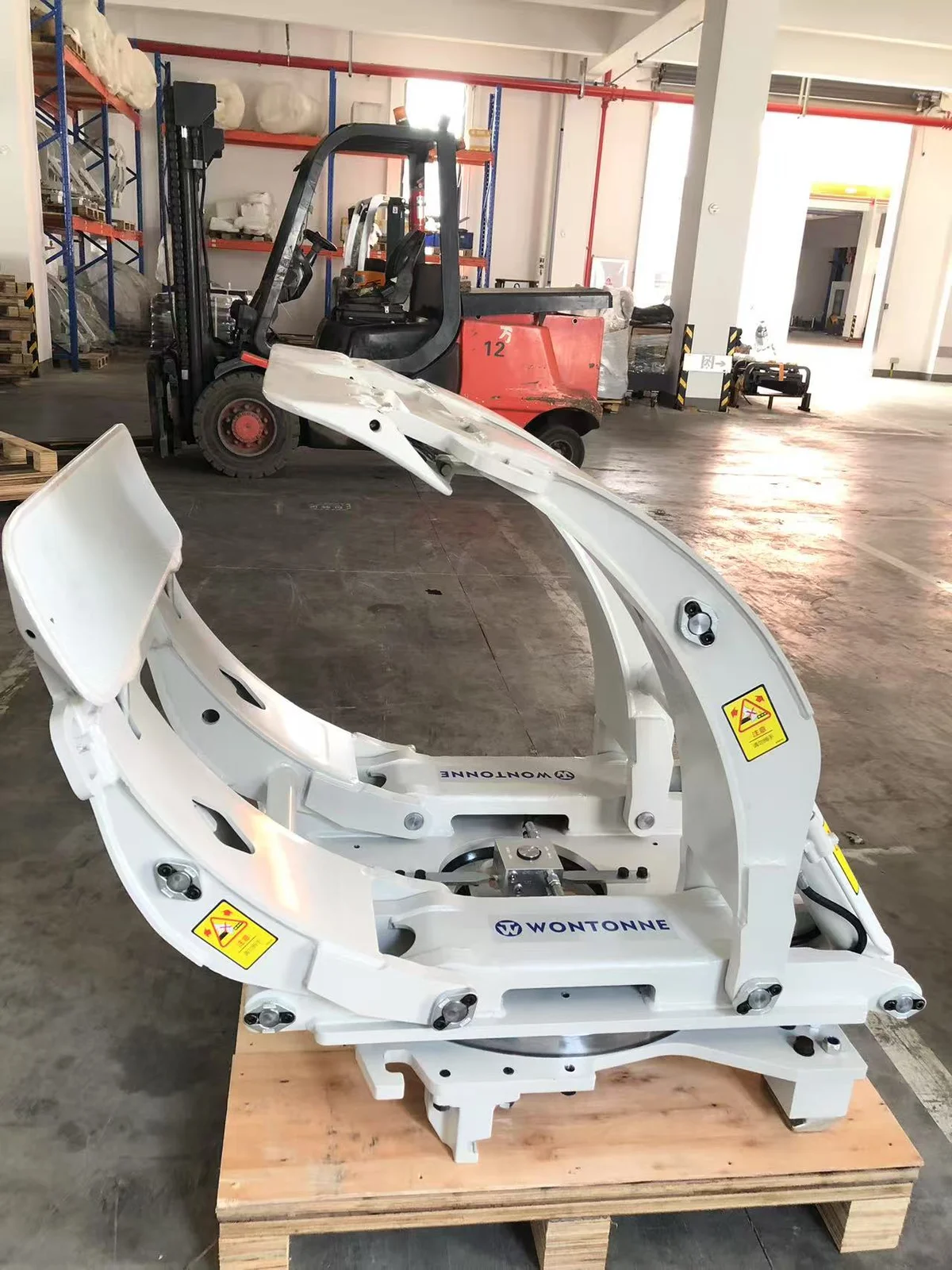

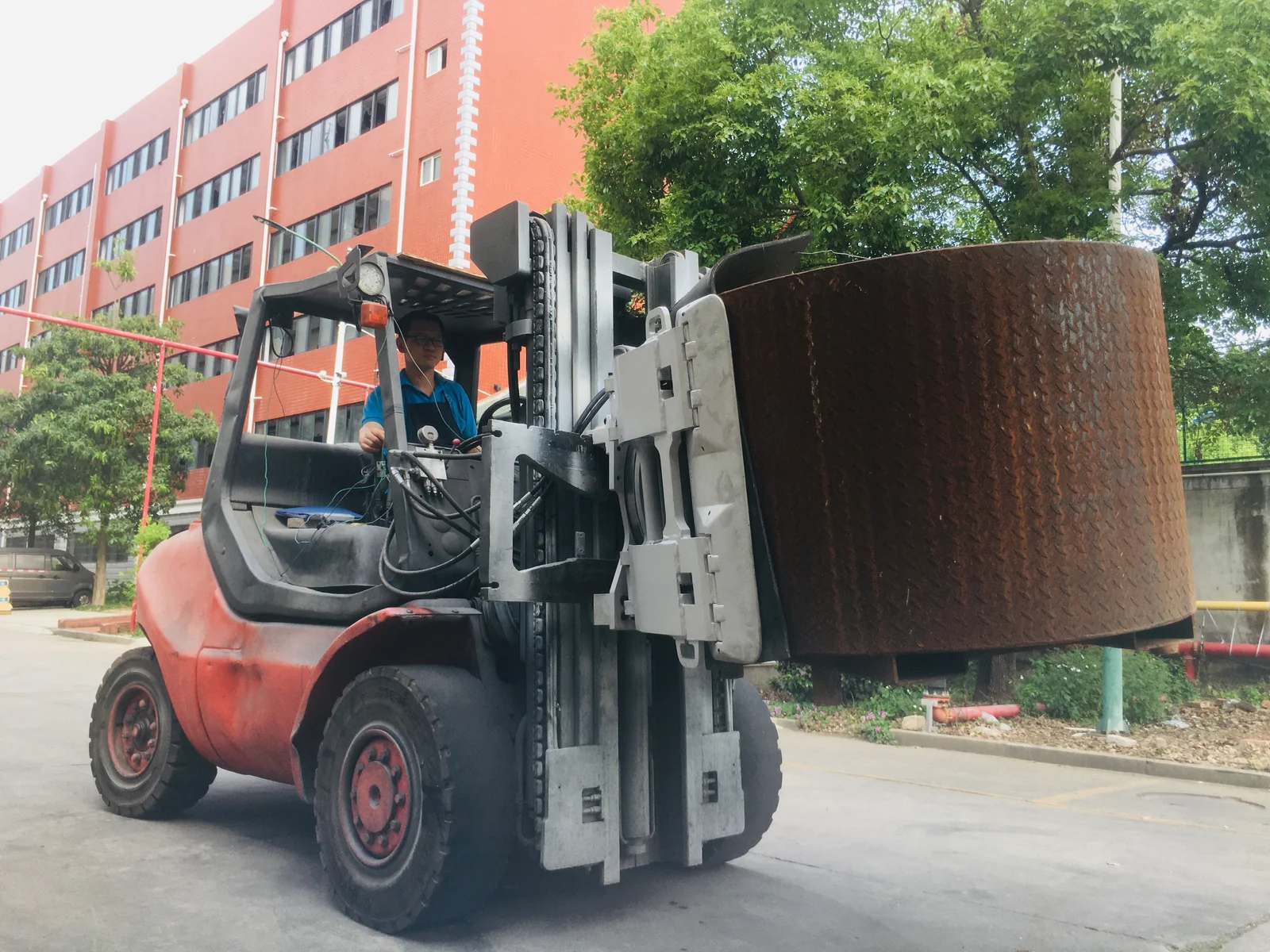

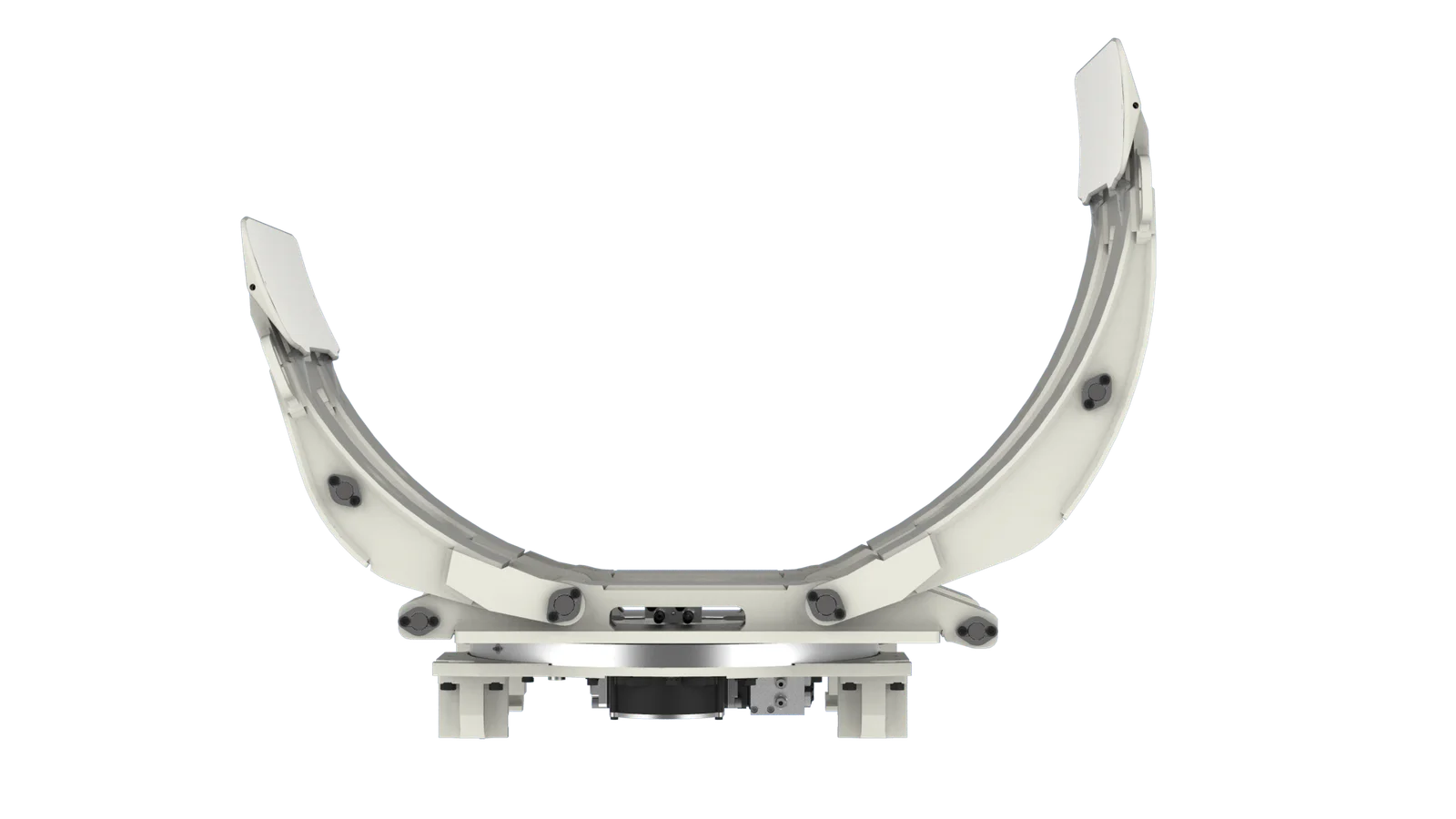

The Wontonne 24G Paper Roll Clamp is a standard forklift attachment that adapts to different working conditions for various paper rolls.

Paper roll clamps are designed to handle rolls of any size, weight, or paper type. With options ranging from compact to rugged, they effectively reduce roll damage during handling.

Key features & specifications:

Very common standard attachment

Convenient replacement on forklifts

Adapts to various paper roll working conditions

Suitable for different paper types

Easy installation and operation

Capacity up to 2200kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

Model No	Capacity (kg)	Load Center (mm)	Opening Range (mm)	Mounting	Weight (kg)	Effective Thickness ET (mm)	Mounting Angle (°)	Long Arm Length (mm)	Short Arm Length (mm)	Arm Thickness (mm)	Contact Pad Size (mm)	Vertical CG VCG (mm)	Horizontal CG HCG (mm)
RCF24G-001A	2200	575	350-1150	ISO 2A	605	201	0°	790	520	40	850×240	360	248
RCF24G-001B	2200	575	350-1150	ISO 3A	615	232	0°	790	520	40	850×240	360	275
RCF24G-003A	2200	650	440-1300	ISO 2A	610	201	0°	868	584	40	850×240	362	262
RCF24G-003B	2200	650	440-1300	ISO 3A	620	232	0°	868	584	40	850×240	363	288
RCF24G-005A	2200	700	440-1400	ISO 2A	643	201	0°	924	624	40	850×240	361	271
RCF24G-005B	2200	700	440-1400	ISO 3A	653	232	0°	924	624	40	850×240	363	302
RCF24G-007A	2050	760	490-1525	ISO 2A	646	201	0°	982	686	40	850×240	362	288
RCF24G-007B	2050	760	490-1525	ISO 3A	656	232	0°	982	686	40	850×240	363	315
RCF24G-008A	1950	800	500-1600	ISO 2A	658	201	0°	1015	721	40	850×240	361	292
RCF24G-008B	1950	800	500-1600	ISO 3A	668	232	0°	1015	721	40	850×240	363	324
