What is the capacity of the 30G Paper Roll Clamp?

The 30G Paper Roll Clamp handles 2150-3000 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the 30G Paper Roll Clamp use?

The 30G Paper Roll Clamp is available for ISO 3A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the 30G Paper Roll Clamp are available?

Wontonne offers 5 models of the 30G Paper Roll Clamp — including RCF30G-001B, RCF30G-003B, RCF30G-005B, RCF30G-007B, RCF30G-008B — with different capacities and load centers for various applications.

What capacity of paper roll clamp do I need?

Wontonne offers paper roll clamps from 1000 kg to 4100 kg capacity. The 12G series suits tissue and small rolls (1000-1200 kg), while the 33G and 35F series handle large board rolls up to 4100 kg. Choose by your heaviest roll weight plus a safety margin.

What is the difference between positioned and fixed short-arm paper roll clamps?

Positioned short-arm clamps (20G-P, 24G-P, 30G-P, 33G-P, 35F-P) let the short arm reposition hydraulically to match roll diameter, ideal for multi-diameter roll handling. Fixed short-arm clamps (12G, 15F, 20G, 24G, 30G, 33G, 35F) offer a simpler, more economical design for consistent roll sizes.

Products / Paper Roll Clamps / 30G Paper Roll Clamp

Paper Roll Clamps

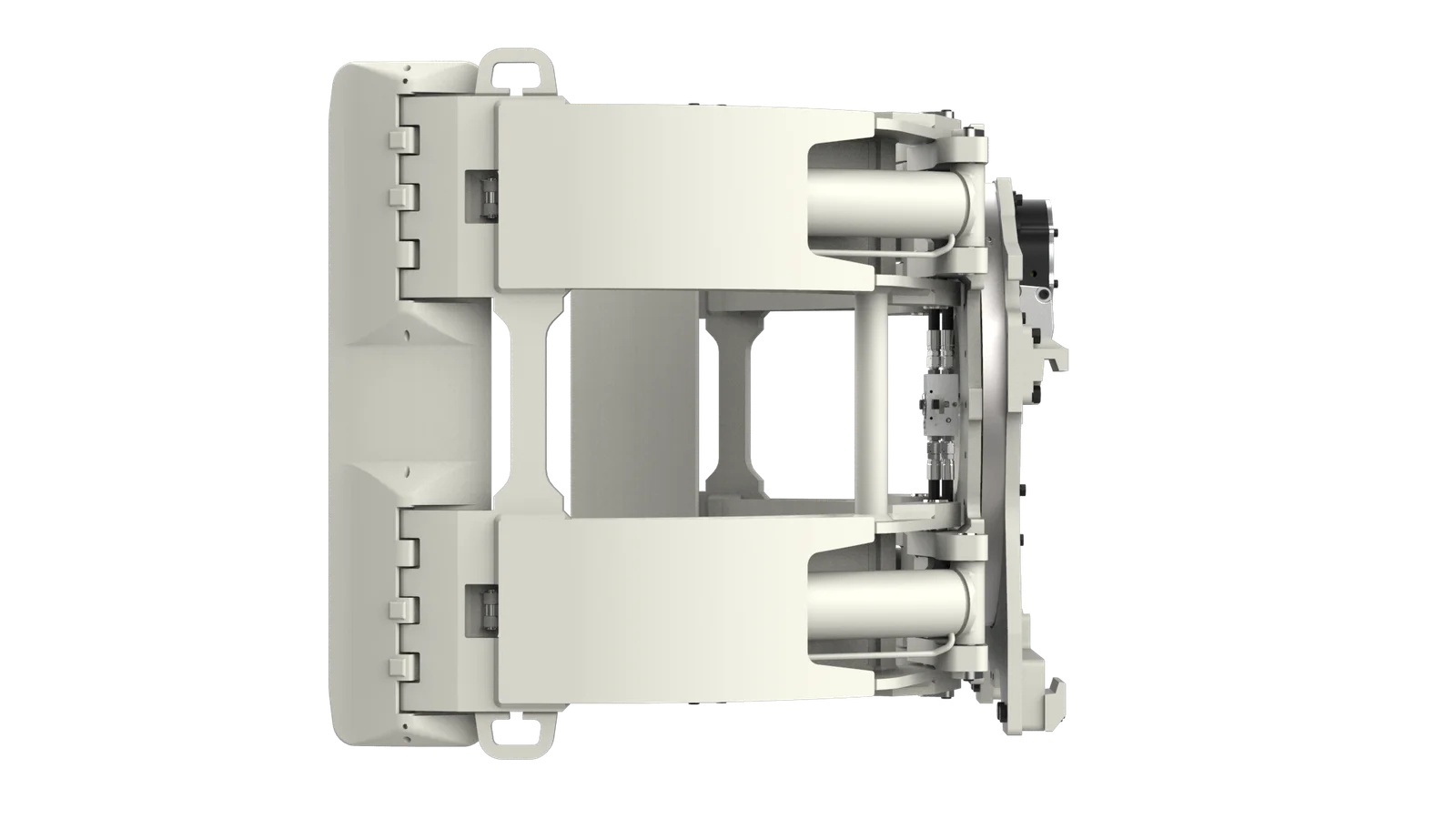

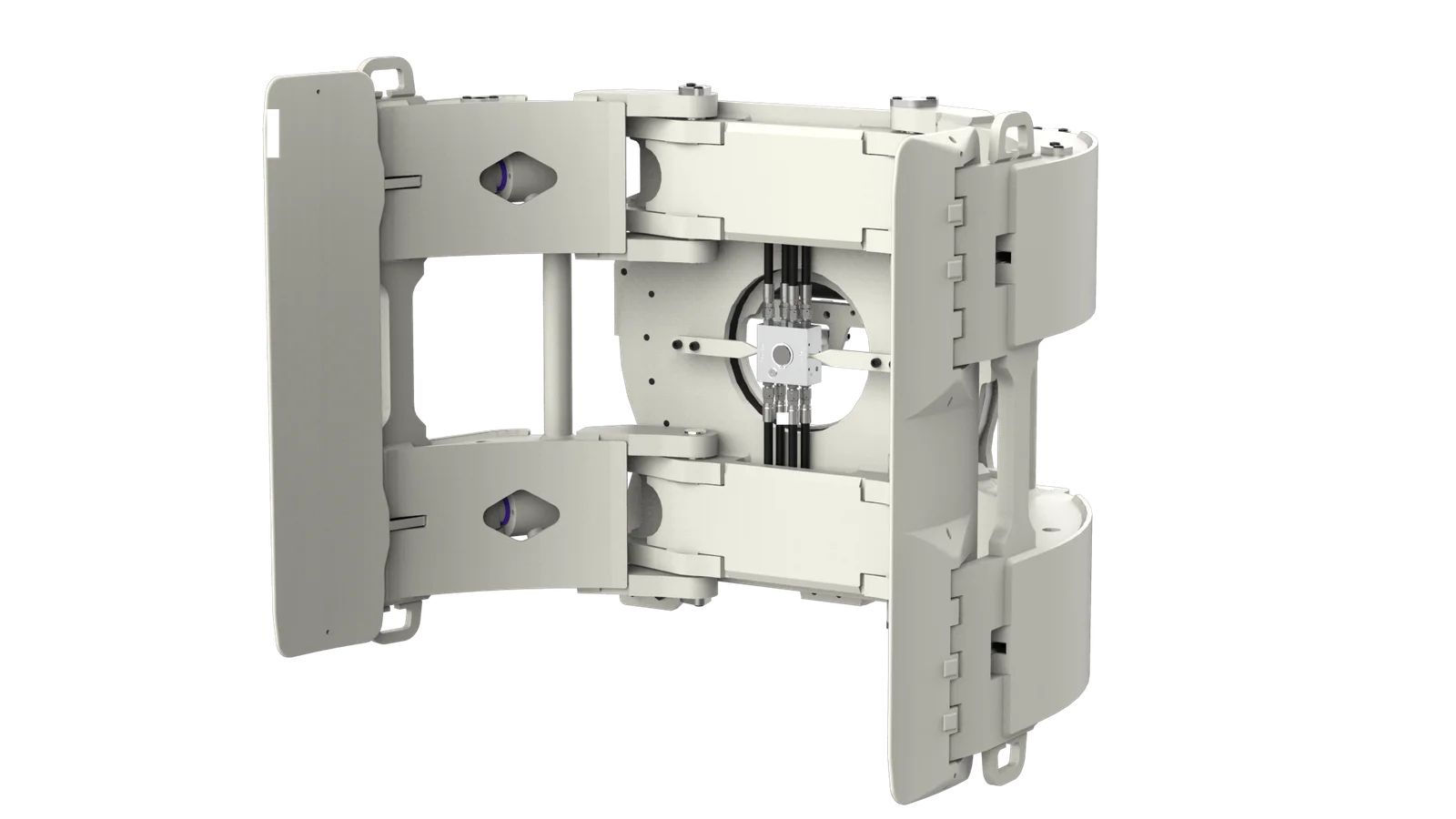

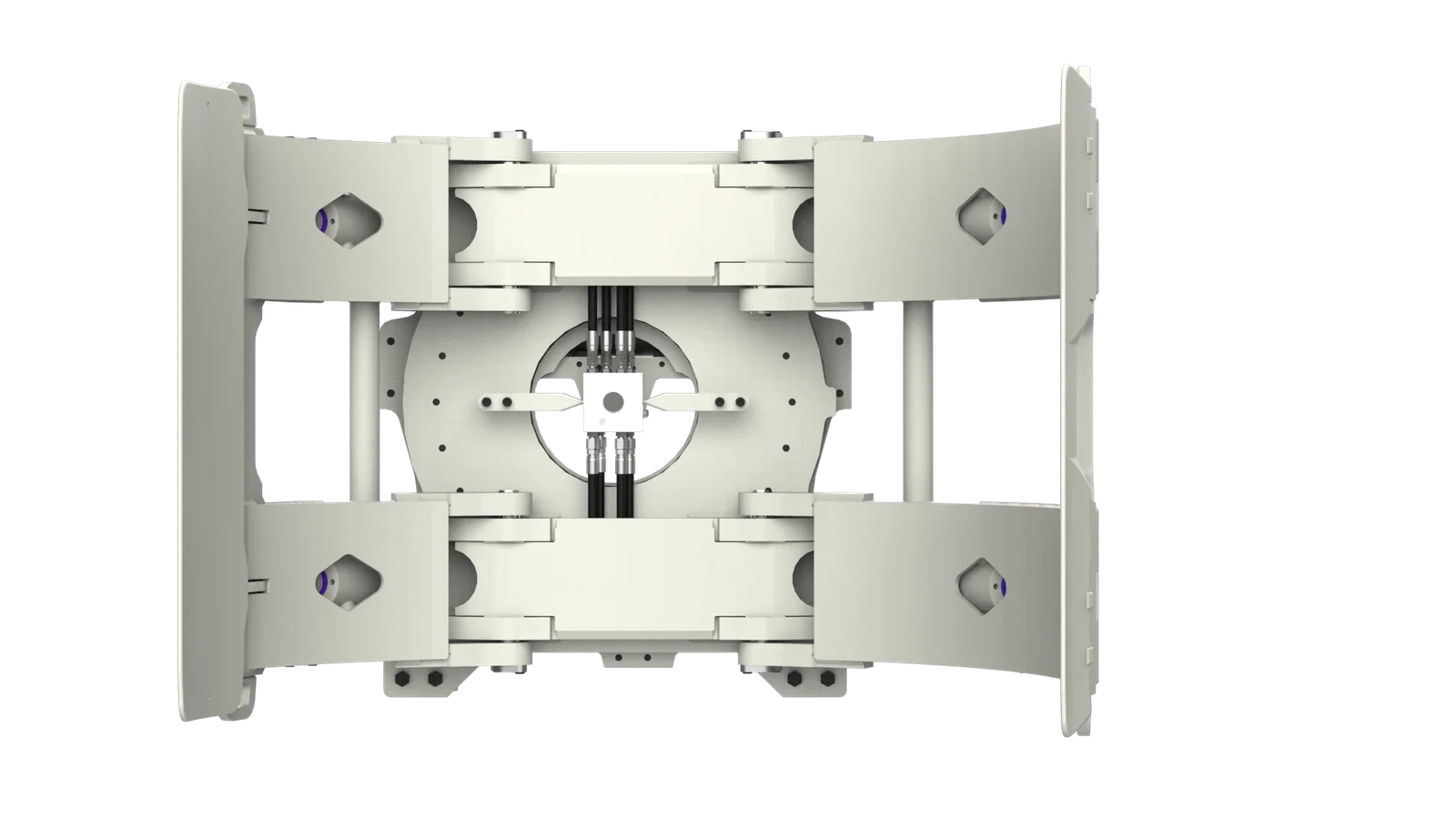

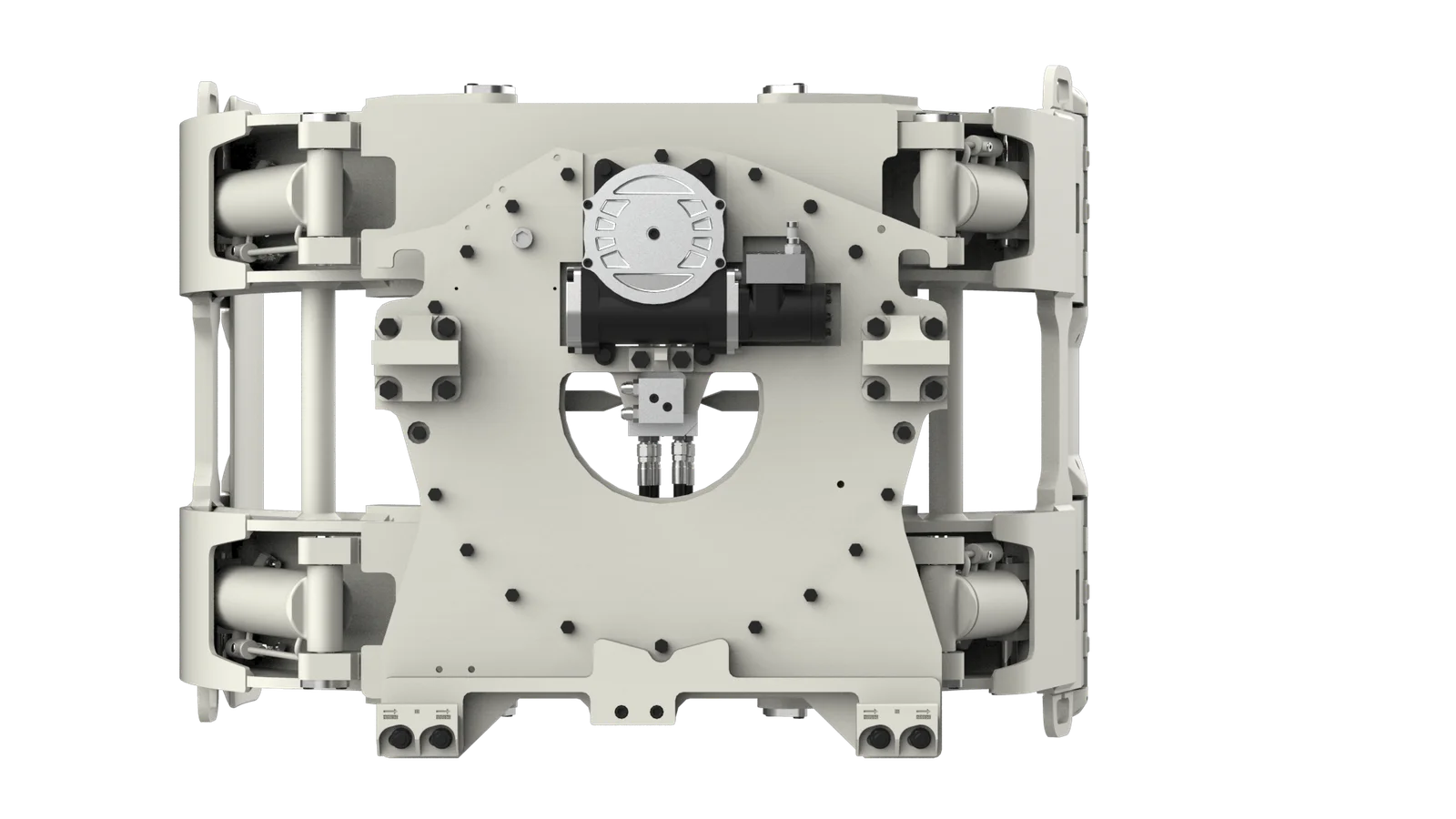

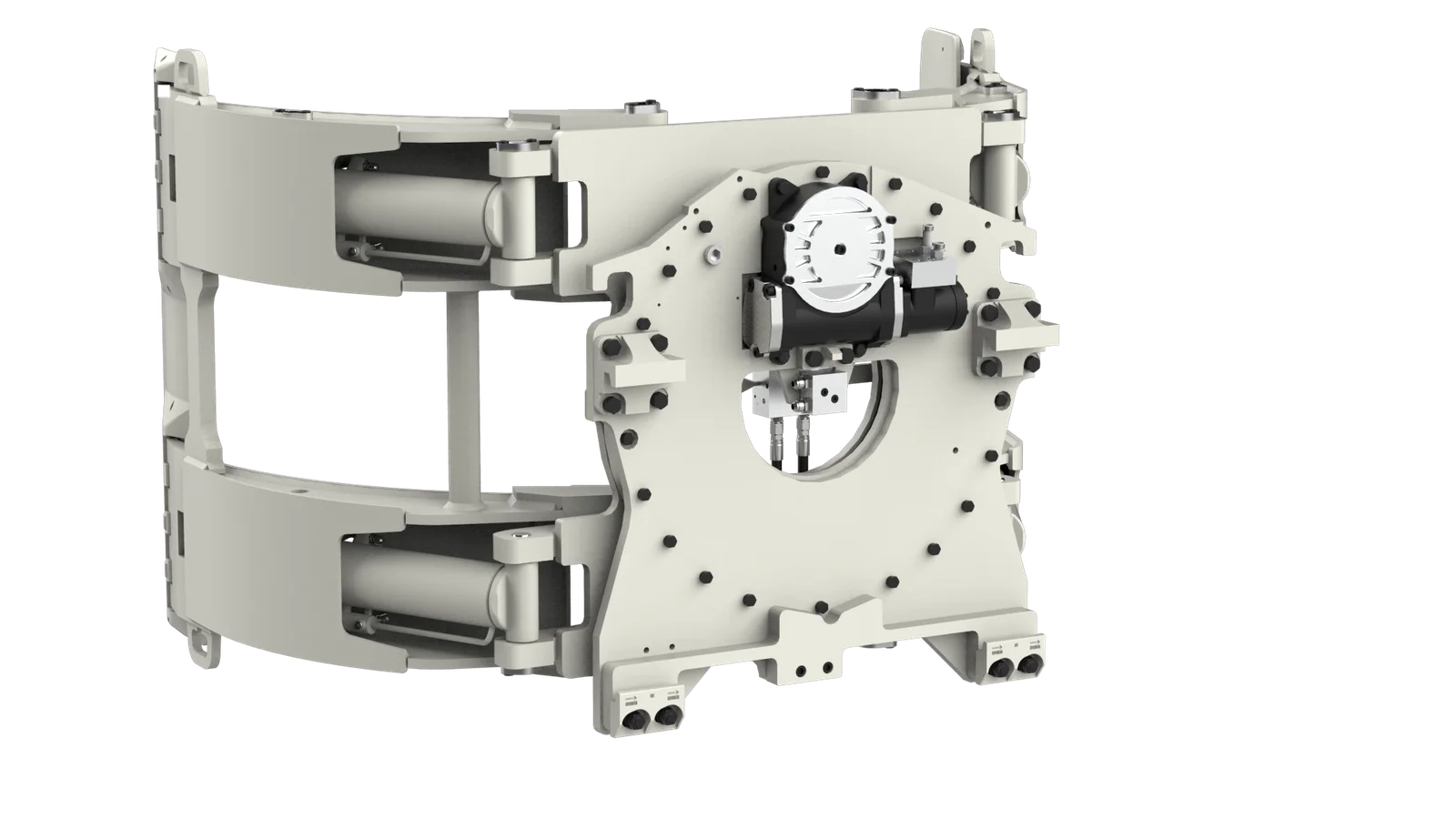

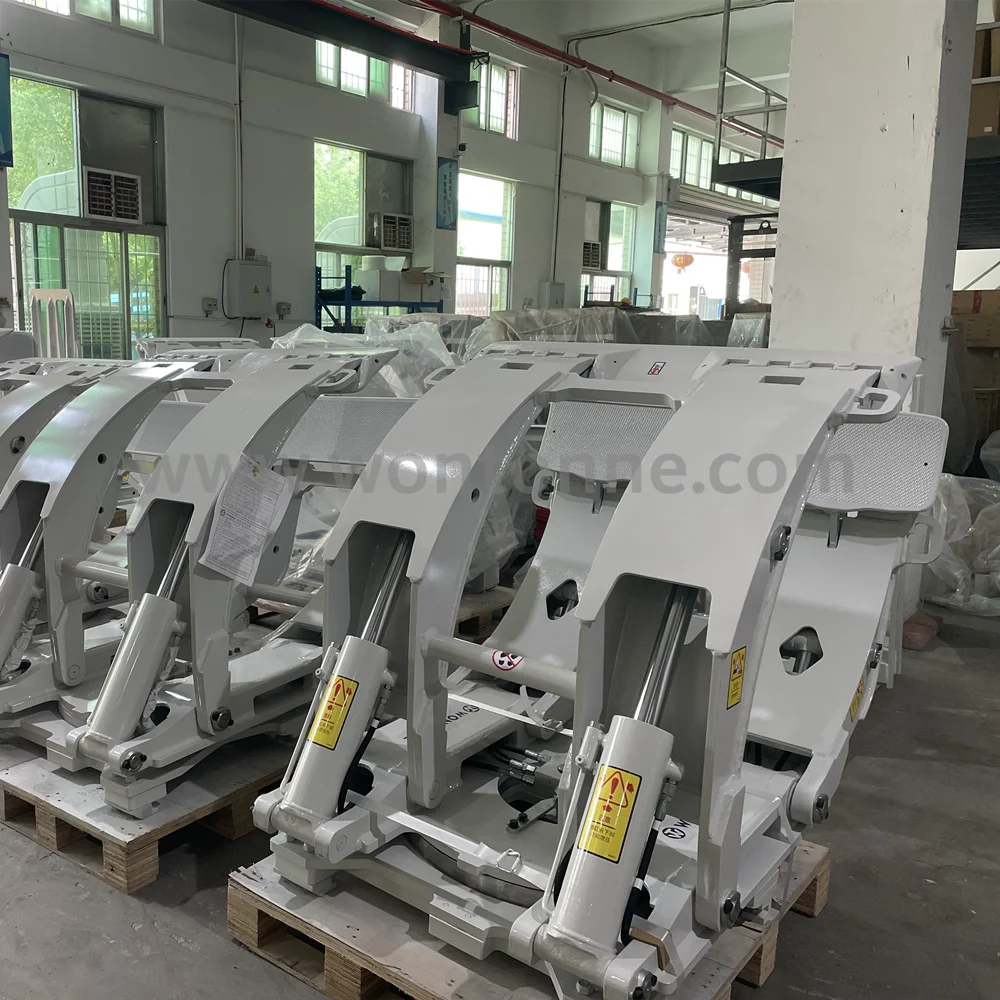

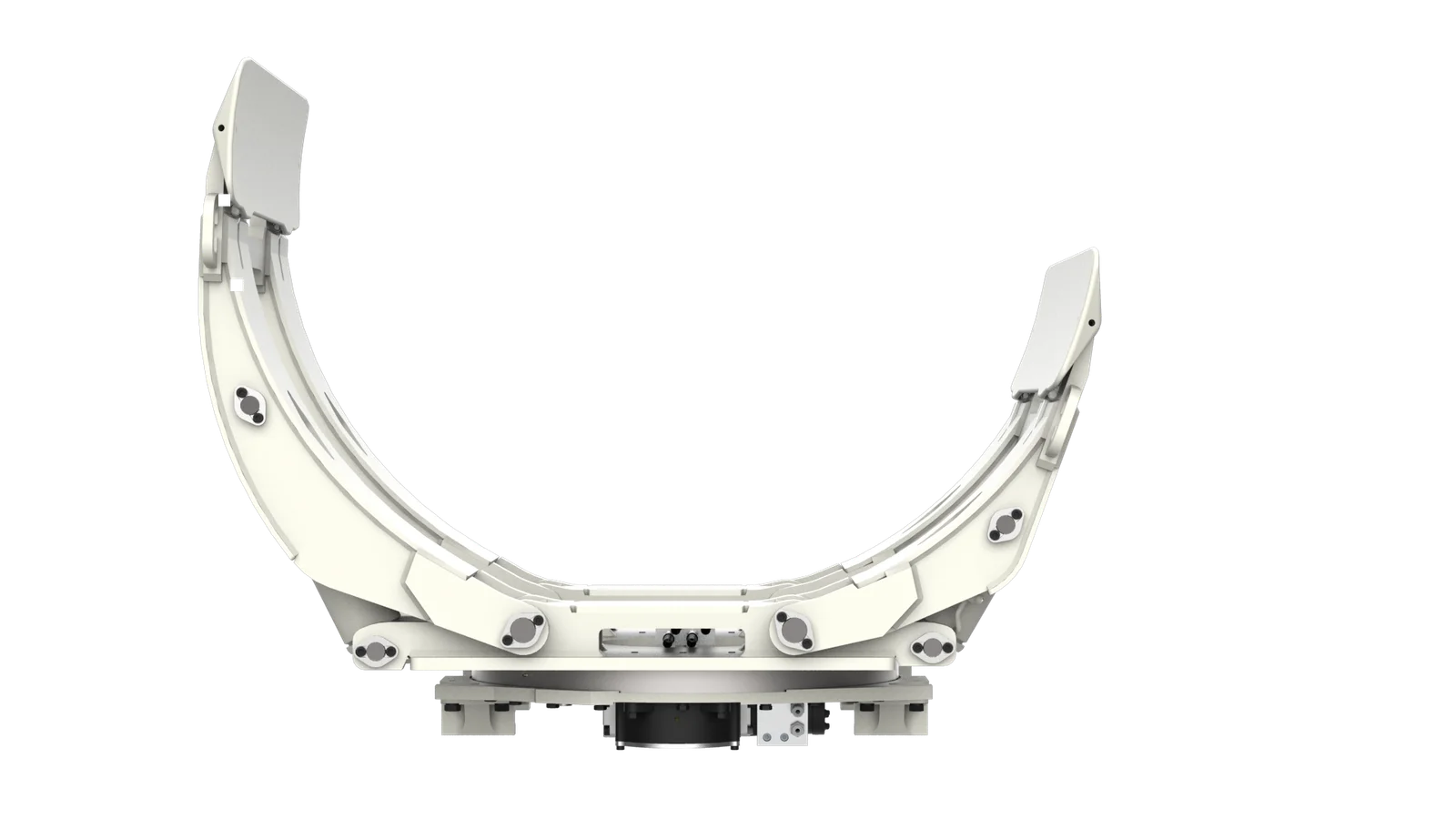

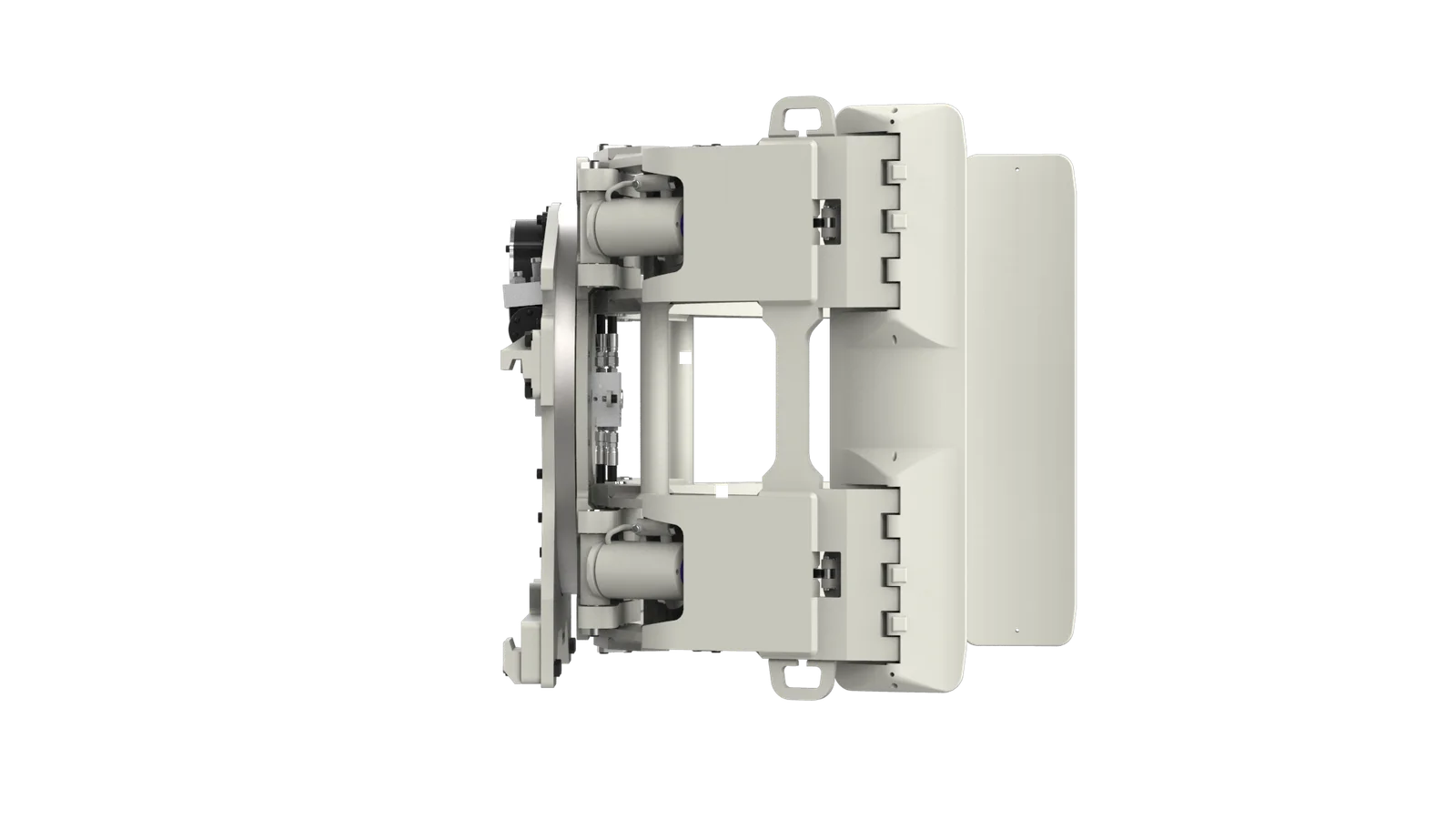

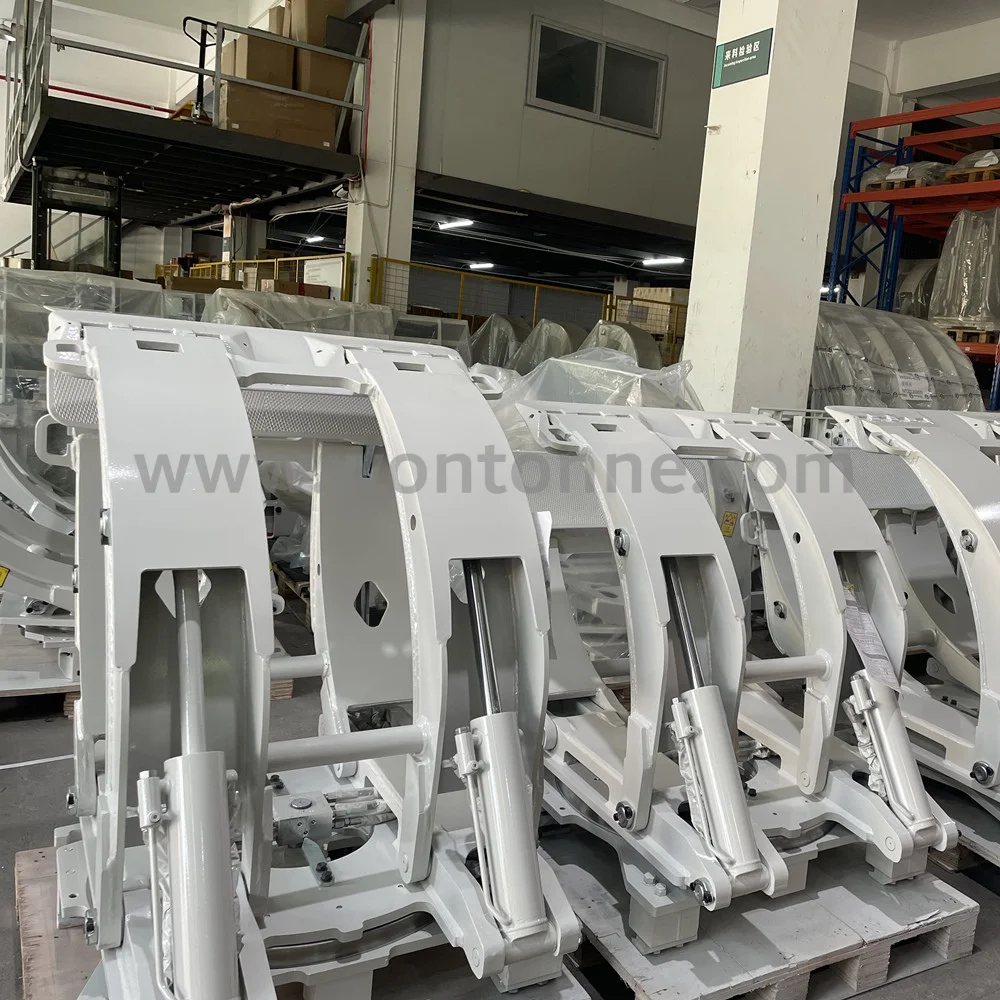

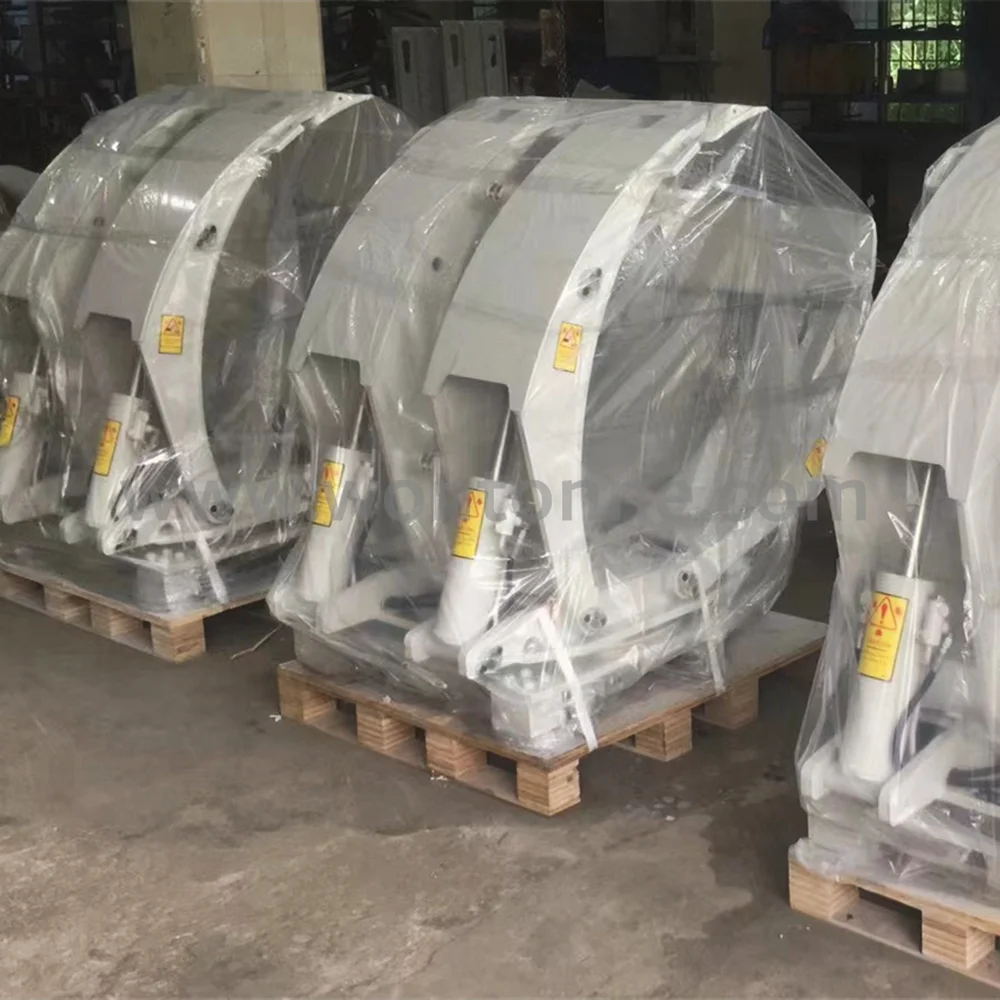

30G Paper Roll Clamp

Engineered for durability and precision, 30g paper roll clamp delivers reliable performance in demanding material handling environments.

All Paper Roll Clamps

Product Overview

The Wontonne 30G Paper Roll Clamp meets the paper industry's demand for damage-free and efficient handling of rolls.

Paper roll clamps are designed to handle rolls of any size, weight, or paper type. With options ranging from compact to rugged, they effectively reduce roll damage during handling.

Key features & specifications:

Damage-free roll handling

Efficient paper mill operations

Handles rolls regardless of diameter

Handles rolls of any weight

Suitable for all paper types

Capacity up to 3000kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

Model No	Capacity (kg)	Load Center (mm)	Opening Range (mm)	Mounting	Weight (kg)	Effective Thickness ET (mm)	Mounting Angle (°)	Long Arm Length (mm)	Short Arm Length (mm)	Arm Thickness (mm)	Contact Pad Size (mm)	Vertical CG VCG (mm)	Horizontal CG HCG (mm)
RCF30G-001B	3000	650	450-1300	ISO 3A	719	195	0°	876	574	45	1000×240	434	273
RCF30G-003B	2800	700	575-1400	ISO 3A	734	195	0°	922	624	45	1000×240	435	285
RCF30G-005B	2550	760	575-1525	ISO 3A	763	195	0°	972	695	45	1000×240	435	300
RCF30G-007B	2450	800	625-1600	ISO 3A	768	195	0°	999	738	45	1000×240	438	309
RCF30G-008B	2150	915	625-1830	ISO 3A	836	195	0°	1132	845	45	1000×240	436	344
