What is the capacity of the 33G Paper Roll Clamp?

The 33G Paper Roll Clamp handles 2550-3500 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the 33G Paper Roll Clamp use?

The 33G Paper Roll Clamp is available for ISO 4A / ISO 3A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the 33G Paper Roll Clamp are available?

Wontonne offers 10 models of the 33G Paper Roll Clamp — including RCF33G-001C, RCF33G-003B, RCF33G-003C, RCF33G-005B, RCF33G-005C and more — with different capacities and load centers for various applications.

What capacity of paper roll clamp do I need?

Wontonne offers paper roll clamps from 1000 kg to 4100 kg capacity. The 12G series suits tissue and small rolls (1000-1200 kg), while the 33G and 35F series handle large board rolls up to 4100 kg. Choose by your heaviest roll weight plus a safety margin.

What is the difference between positioned and fixed short-arm paper roll clamps?

Positioned short-arm clamps (20G-P, 24G-P, 30G-P, 33G-P, 35F-P) let the short arm reposition hydraulically to match roll diameter, ideal for multi-diameter roll handling. Fixed short-arm clamps (12G, 15F, 20G, 24G, 30G, 33G, 35F) offer a simpler, more economical design for consistent roll sizes.

Products / Paper Roll Clamps / 33G Paper Roll Clamp

Paper Roll Clamps

33G Paper Roll Clamp

Engineered for durability and precision, 33g paper roll clamp delivers reliable performance in demanding material handling environments.

All Paper Roll Clamps

Product Overview

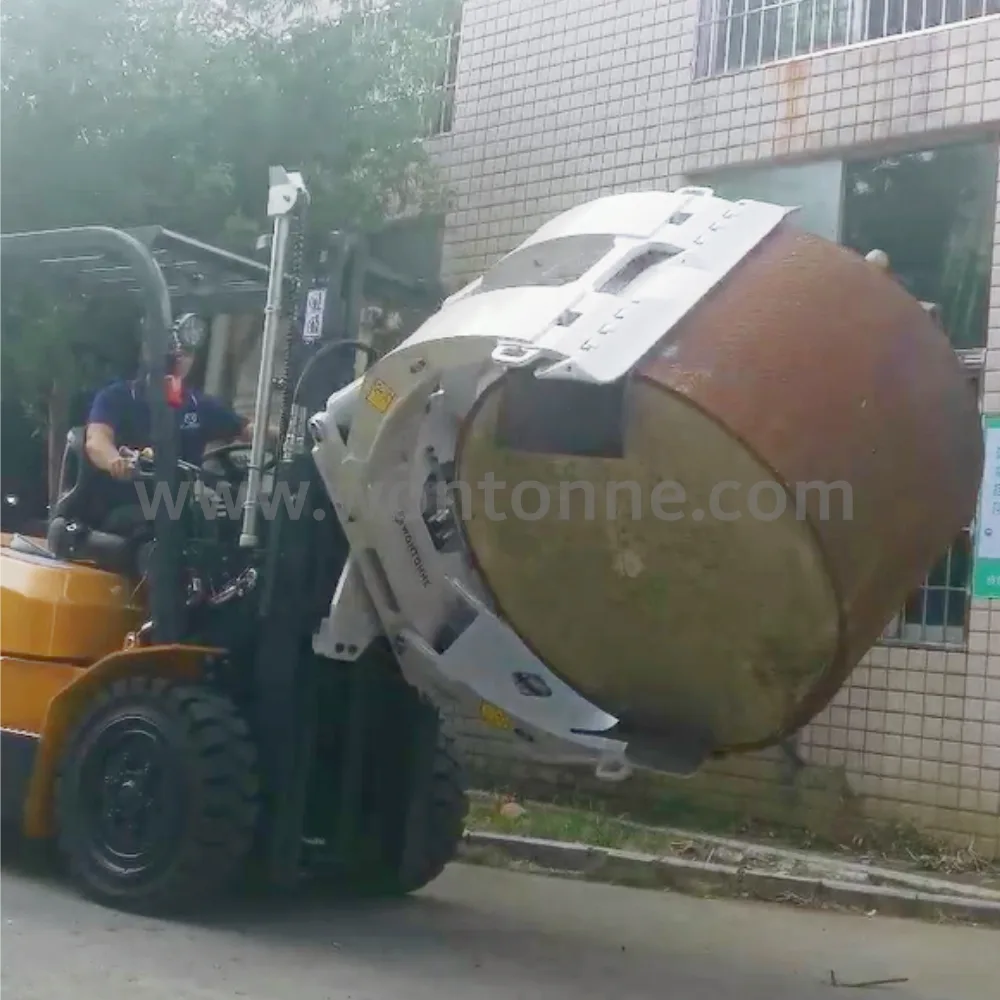

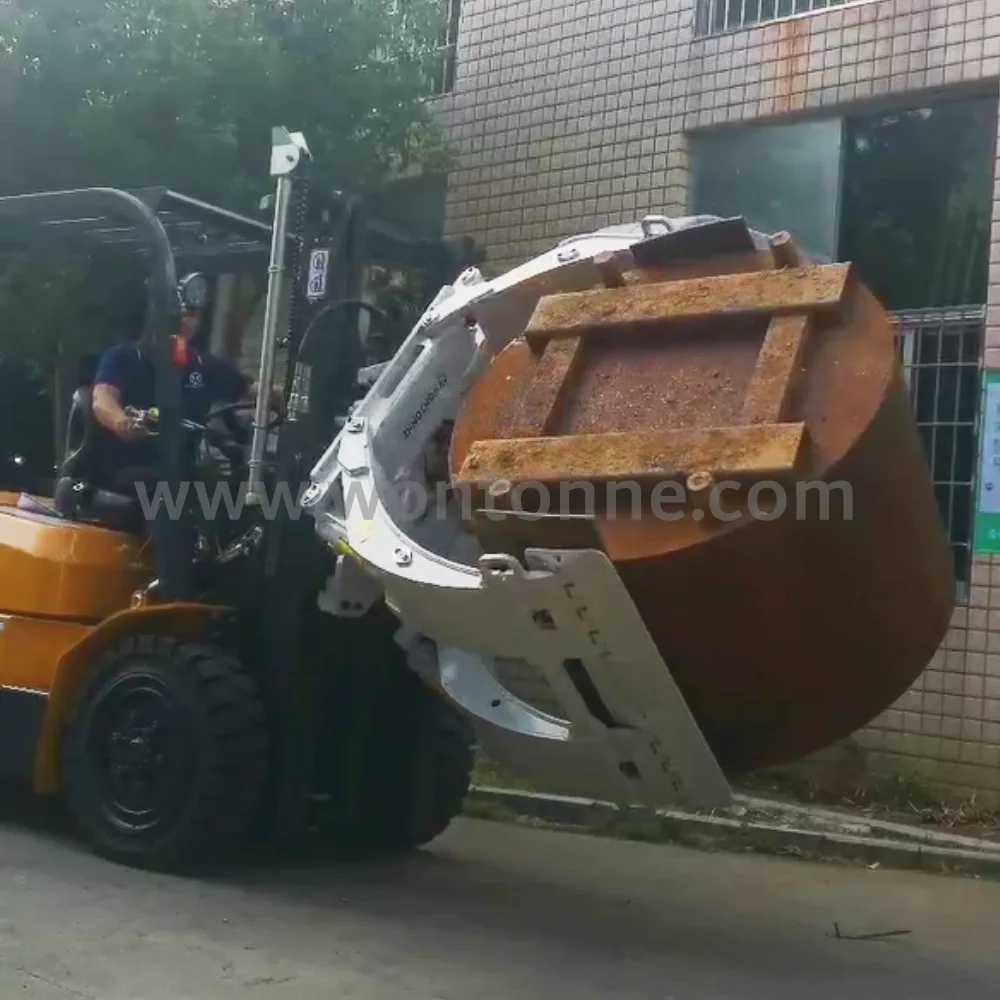

The Wontonne 33G Paper Roll Clamp carries out efficient, safe and non-damaged handling and stacking of paper rolls.

Paper roll clamps are designed to handle rolls of any size, weight, or paper type. With options ranging from compact to rugged, they effectively reduce roll damage during handling.

Key features & specifications:

Efficient, safe, non-damaged handling

Reducer assembly protected by framework

Prevents accidental impact

Optimized clamp arm with thinner pad

Knife between rolls in containers and trailers

Excellent visibility through arms and frame

Capacity up to 3500kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

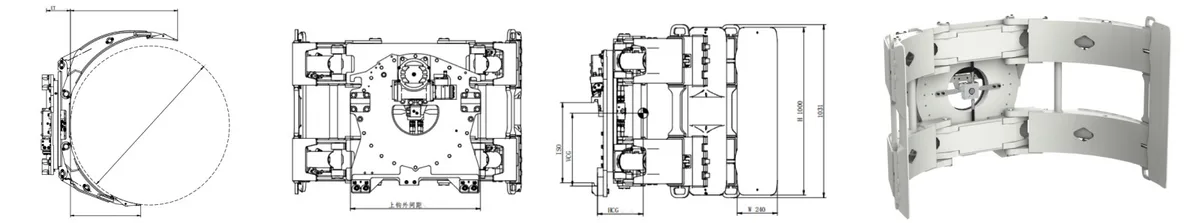

Model No	Capacity (kg)	Load Center (mm)	Opening Range (mm)	Mounting	Weight (kg)	Effective Thickness ET (mm)	Mounting Angle (°)	Long Arm Length (mm)	Short Arm Length (mm)	Arm Thickness (mm)	Contact Pad Size (mm)	Vertical CG VCG (mm)	Horizontal CG HCG (mm)
RCF33G-001C	3500	650	425-1300	ISO 4A	841	256	0°	876	574	45	1000×240	363	291
RCF33G-003B	3300	700	500-1400	ISO 3A	780	210	0°	922	624	45	1000×240	436	283
RCF33G-003C	3300	700	500-1400	ISO 4A	857	256	0°	922	624	45	1000×240	363	303
RCF33G-005B	3000	760	575-1525	ISO 3A	805	210	0°	964	690	45	1000×240	436	299
RCF33G-005C	3000	760	575-1525	ISO 4A	881	256	0°	964	690	45	1000×240	363	317
RCF33G-007B	2850	800	575-1600	ISO 3A	813	210	0°	997	725	45	1000×240	437	305
RCF33G-007C	2850	800	575-1600	ISO 4A	890	256	0°	997	725	45	1000×240	364	323
RCF33G-008B	2550	915	600-1830	ISO 3A	879	210	0°	1130	845	45	1000×240	437	340
RCF33G-008C	2550	915	600-1830	ISO 4A	941	256	0°	1130	845	45	1000×240	366	354
RCF33G-001B	3500	650	425-1300	ISO 3A	764	210	0°	876	574	45	1000×240	435	271
