What is the capacity of the 35F/45F Paper Roll Clamp (Positioned Short Arm)?

The 35F/45F Paper Roll Clamp (Positioned Short Arm) handles 2700-4100 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the 35F/45F Paper Roll Clamp (Positioned Short Arm) use?

The 35F/45F Paper Roll Clamp (Positioned Short Arm) is available for ISO 3A / ISO 4A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the 35F/45F Paper Roll Clamp (Positioned Short Arm) are available?

Wontonne offers 7 models of the 35F/45F Paper Roll Clamp (Positioned Short Arm) — including RCP35F-001B, RCP35F-001C, RCP35F-003B, RCP35F-003C, RCP45F-001C and more — with different capacities and load centers for various applications.

What capacity of paper roll clamp do I need?

Wontonne offers paper roll clamps from 1000 kg to 4100 kg capacity. The 12G series suits tissue and small rolls (1000-1200 kg), while the 33G and 35F series handle large board rolls up to 4100 kg. Choose by your heaviest roll weight plus a safety margin.

What is the difference between positioned and fixed short-arm paper roll clamps?

Positioned short-arm clamps (20G-P, 24G-P, 30G-P, 33G-P, 35F-P) let the short arm reposition hydraulically to match roll diameter, ideal for multi-diameter roll handling. Fixed short-arm clamps (12G, 15F, 20G, 24G, 30G, 33G, 35F) offer a simpler, more economical design for consistent roll sizes.

Products / Paper Roll Clamps / 35F/45F Paper Roll Clamp (Positioned Short Arm)

Paper Roll Clamps

35F/45F Paper Roll Clamp (Positioned Short Arm)

Engineered for durability and precision, 35f/45f paper roll clamp (positioned short arm) delivers reliable performance in demanding material handling environments.

All Paper Roll Clamps

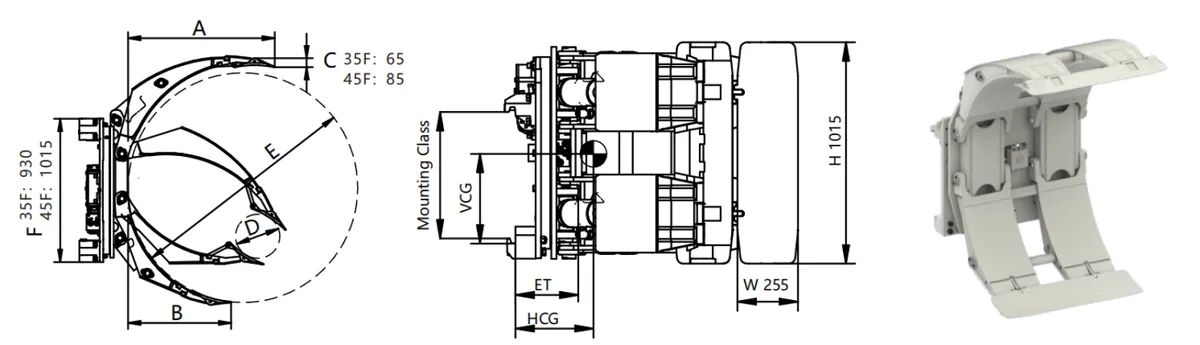

35F/45F Paper Roll Clamp (Positioned Short Arm) - 1

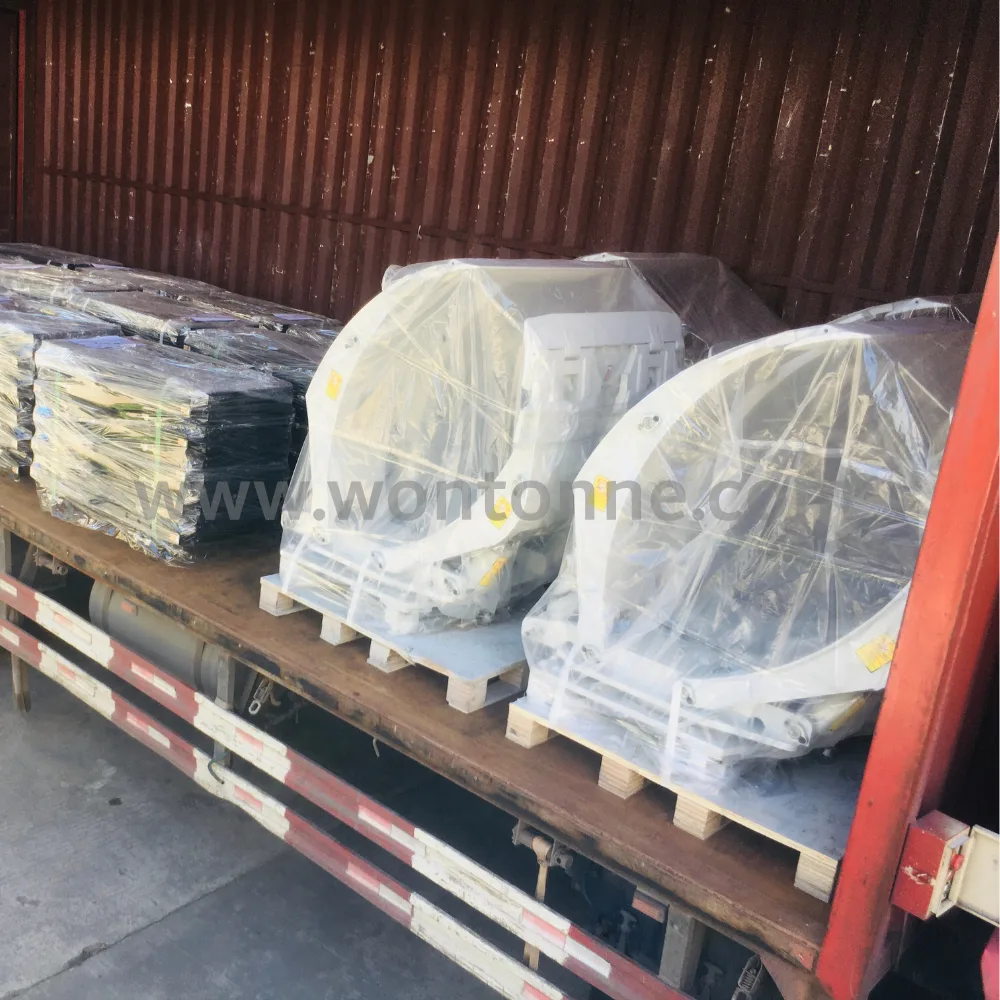

35F/45F Paper Roll Clamp (Positioned Short Arm) - 2

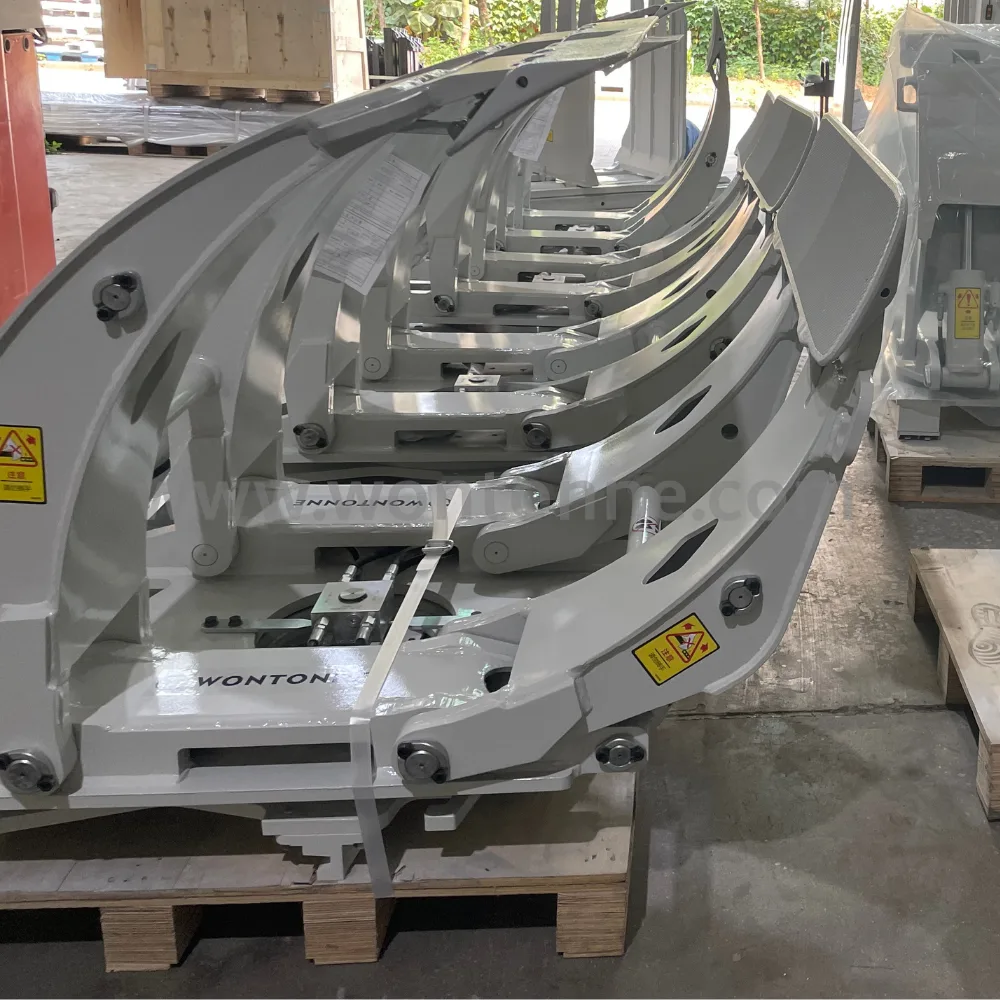

35F/45F Paper Roll Clamp (Positioned Short Arm) - 3

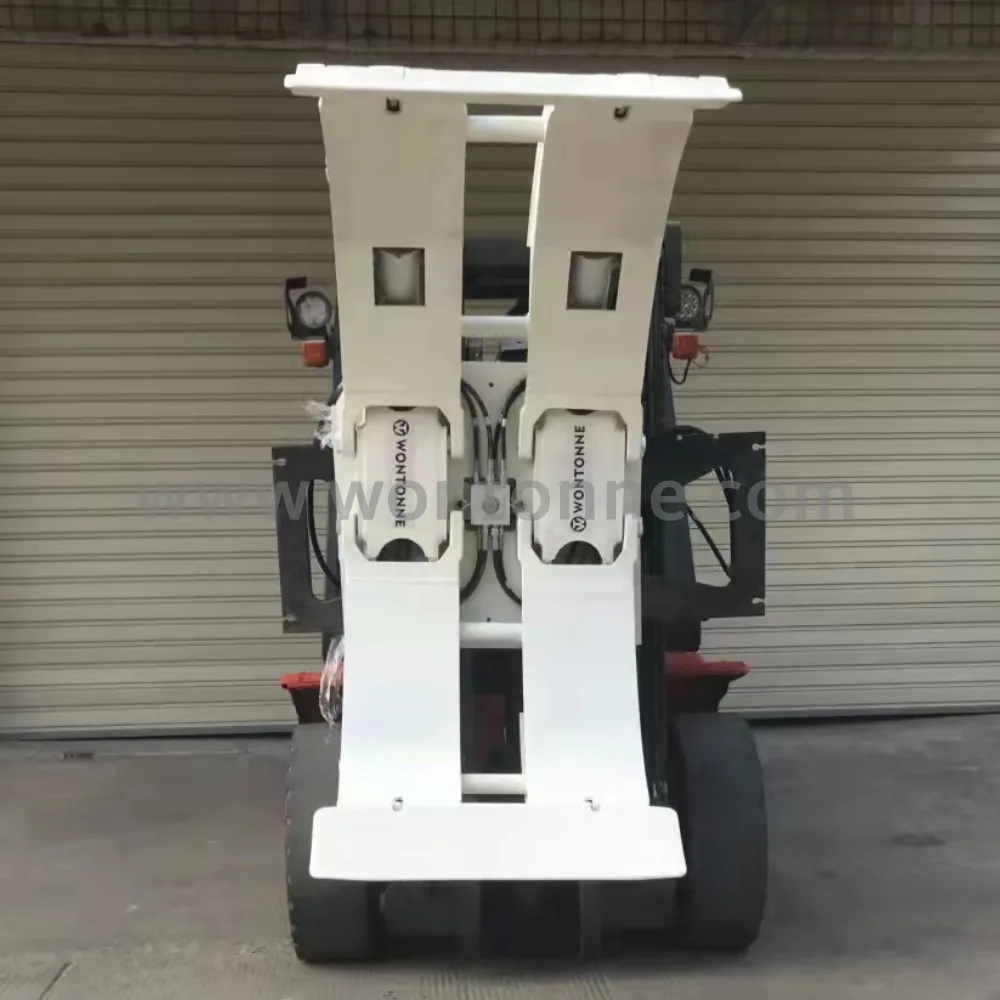

35F/45F Paper Roll Clamp (Positioned Short Arm) - 4

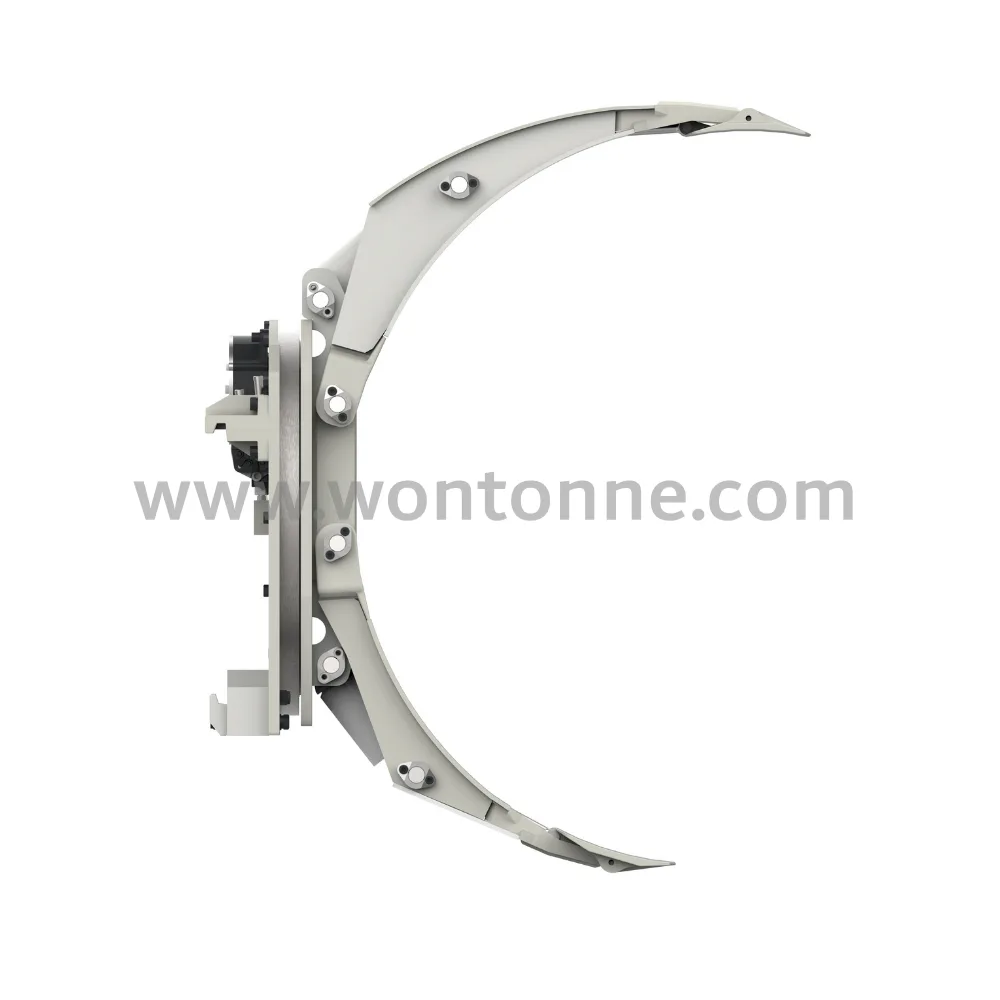

35F/45F Paper Roll Clamp (Positioned Short Arm) - 5

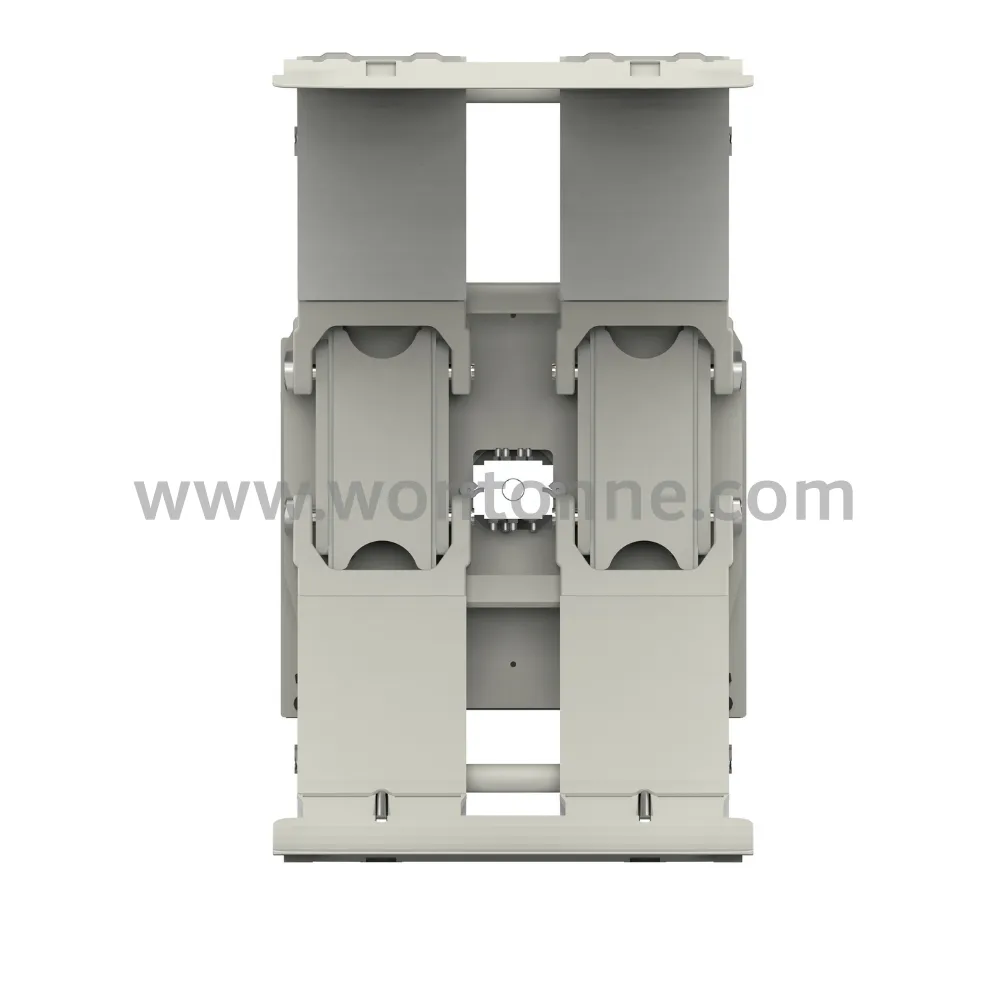

35F/45F Paper Roll Clamp (Positioned Short Arm) - 6

35F/45F Paper Roll Clamp (Positioned Short Arm) - 7

Product Overview

The Wontonne 35F/45F Paper Roll Clamp (Positioned Short Arm) meets the paper industry's demand for damage-free handling of flexibly placed rolls.

Paper roll clamps are designed to handle rolls of any size, weight, or paper type. With options ranging from compact to rugged, they effectively reduce roll damage during handling.

Key features & specifications:

Damage-free roll handling

Handles horizontally or vertically placed rolls

Positioned short arm for roll widths

Flexible roll placement

For demanding paper operations

Capacity up to 4100kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

Model No	Capacity (kg)	Load Center (mm)	Opening Range (mm)	Mounting	Weight (kg)	Effective Thickness ET (mm)	Mounting Angle (°)	Long Arm Length (mm)	Short Arm Length (mm)	Arm Thickness (mm)	Contact Pad Size (mm)	Vertical CG VCG (mm)	Horizontal CG HCG (mm)
RCP35F-001B	3500	760	250-1520	ISO 3A	1190	218	0°	1000	670	65	1015×255	430	320
RCP35F-001C	3500	760	250-1520	ISO 4A	1199	218	0°	1000	670	65	1015×255	500	320
RCP35F-003B	2700	915	360-1830	ISO 3A	1289	218	0°	1165	810	65	1015×255	430	353
RCP35F-003C	2700	915	360-1830	ISO 4A	1298	218	0°	1165	810	65	1015×255	500	353
RCP45F-001C	4100	760	250-1520	ISO 4A	1294	198	0°	965	680	85	1015×255	560	310
RCP45F-003C	3400	915	360-1830	ISO 4A	1385	198	0°	1105	815	85	1015×255	560	338
RCP45F-005C	2700	1100	450-2200	ISO 4A	1490	198	0°	1305	915	85	1015×255	—	380
