What is the capacity of the 35F/45F Paper Roll Clamp?

The 35F/45F Paper Roll Clamp handles 2700-4100 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the 35F/45F Paper Roll Clamp use?

The 35F/45F Paper Roll Clamp is available for ISO 3A / ISO 4A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the 35F/45F Paper Roll Clamp are available?

Wontonne offers 7 models of the 35F/45F Paper Roll Clamp — including RCF35F-002B, RCF35F-002C, RCF35F-004B, RCF35F-004C, RCF45F-002C and more — with different capacities and load centers for various applications.

What capacity of paper roll clamp do I need?

Wontonne offers paper roll clamps from 1000 kg to 4100 kg capacity. The 12G series suits tissue and small rolls (1000-1200 kg), while the 33G and 35F series handle large board rolls up to 4100 kg. Choose by your heaviest roll weight plus a safety margin.

What is the difference between positioned and fixed short-arm paper roll clamps?

Positioned short-arm clamps (20G-P, 24G-P, 30G-P, 33G-P, 35F-P) let the short arm reposition hydraulically to match roll diameter, ideal for multi-diameter roll handling. Fixed short-arm clamps (12G, 15F, 20G, 24G, 30G, 33G, 35F) offer a simpler, more economical design for consistent roll sizes.

Products / Paper Roll Clamps / 35F/45F Paper Roll Clamp

Paper Roll Clamps

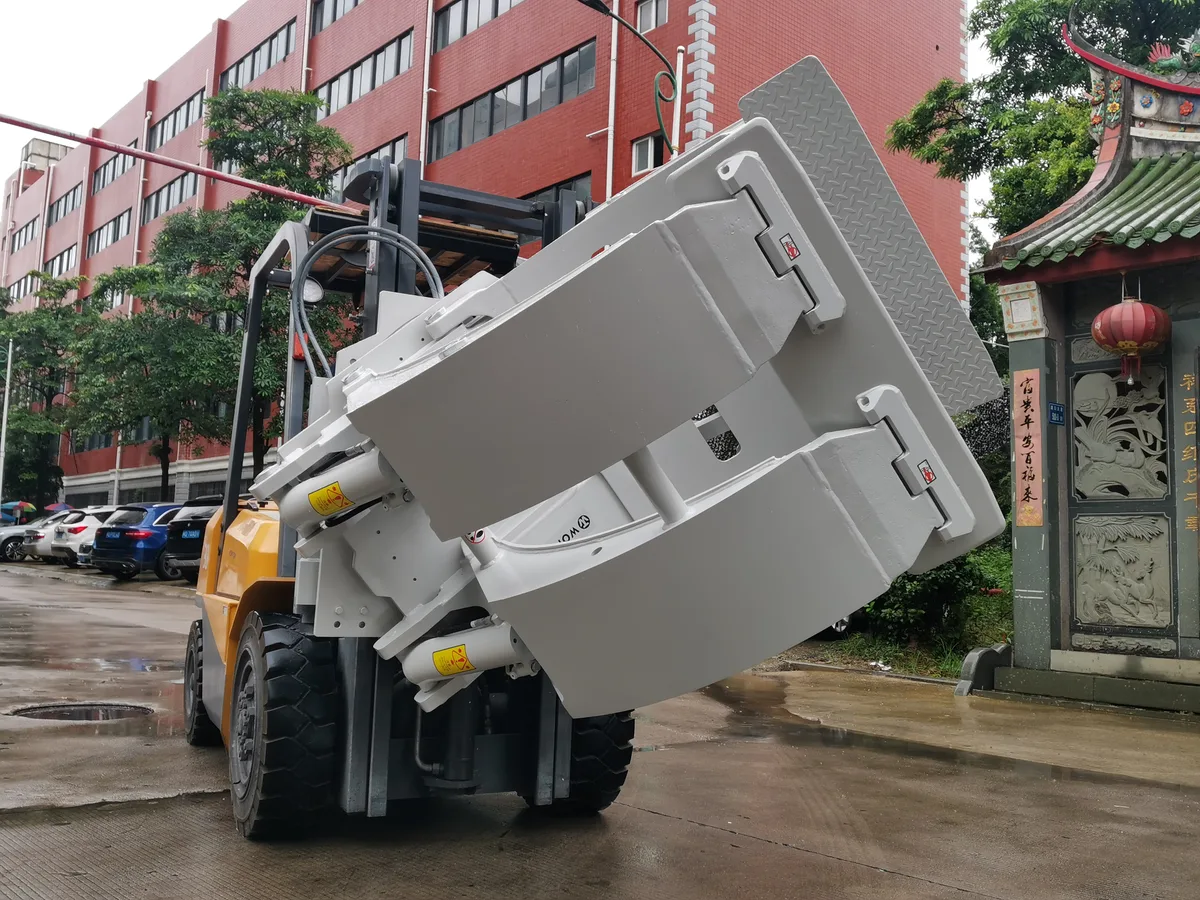

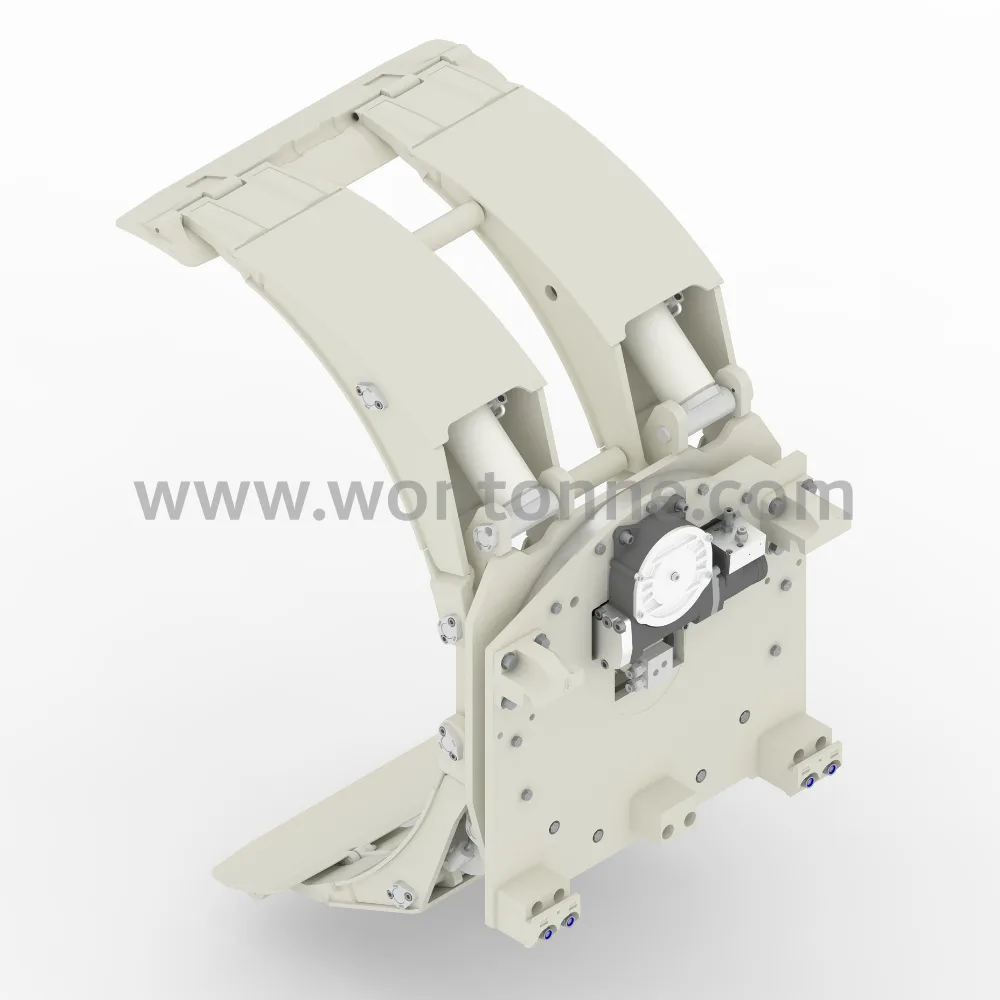

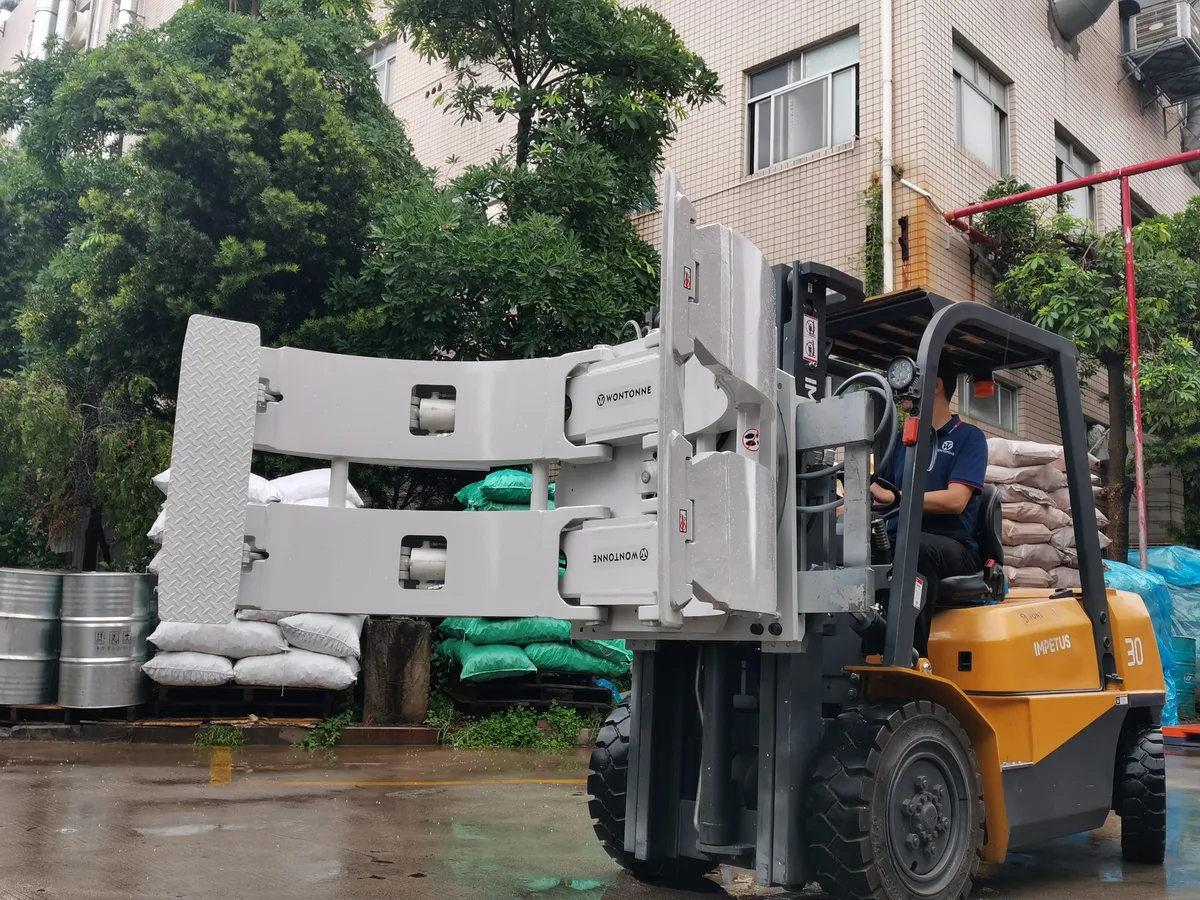

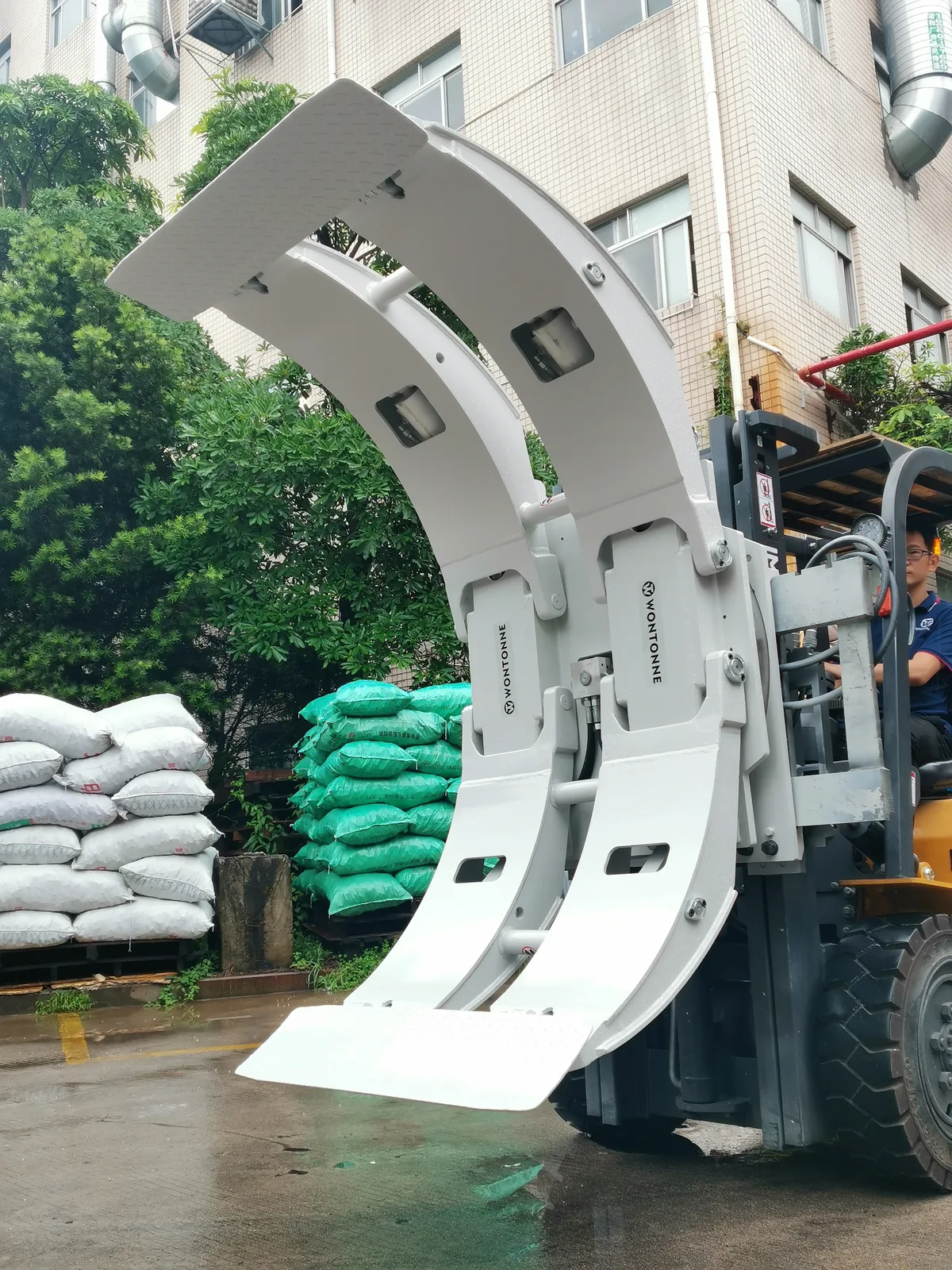

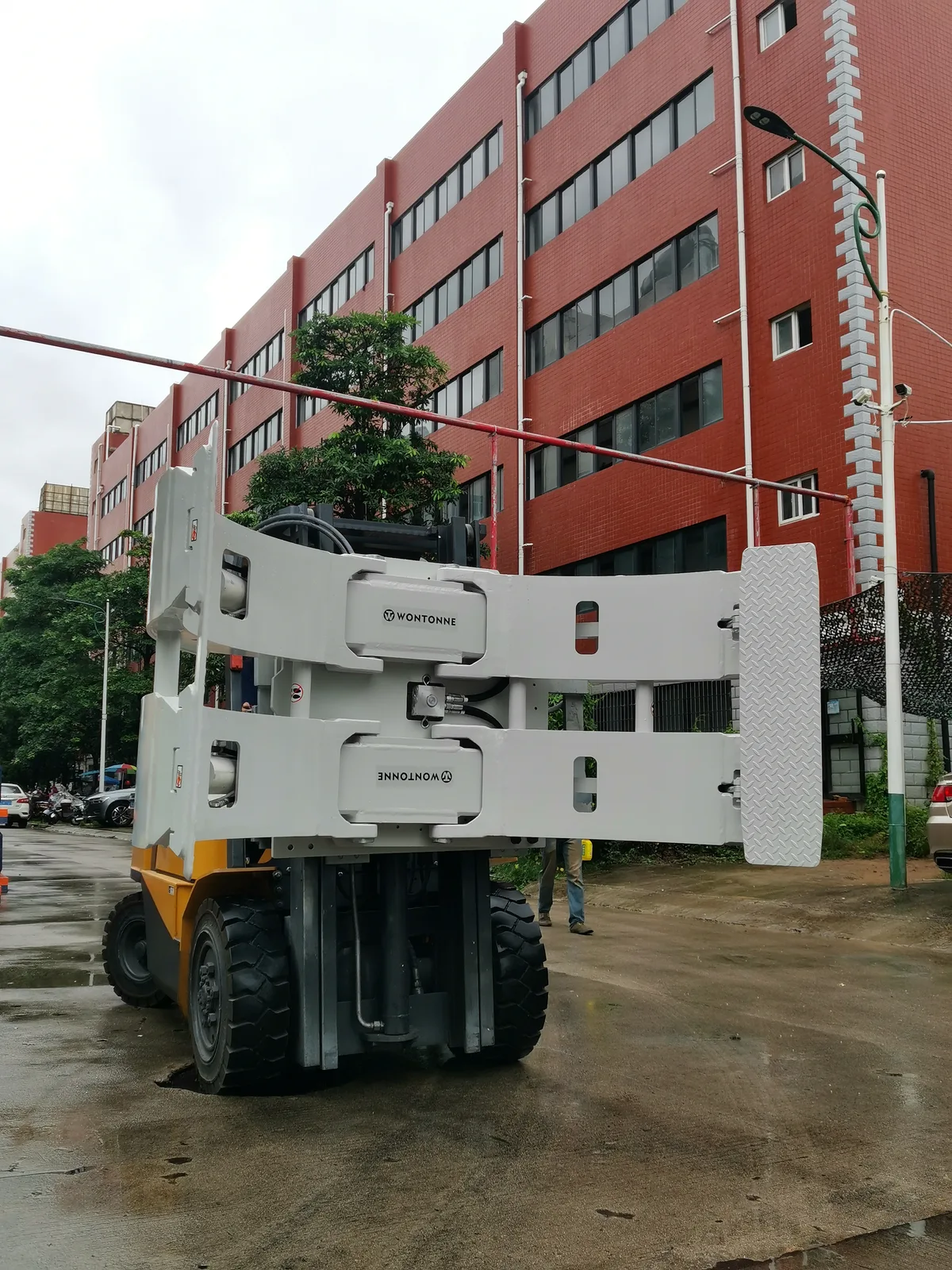

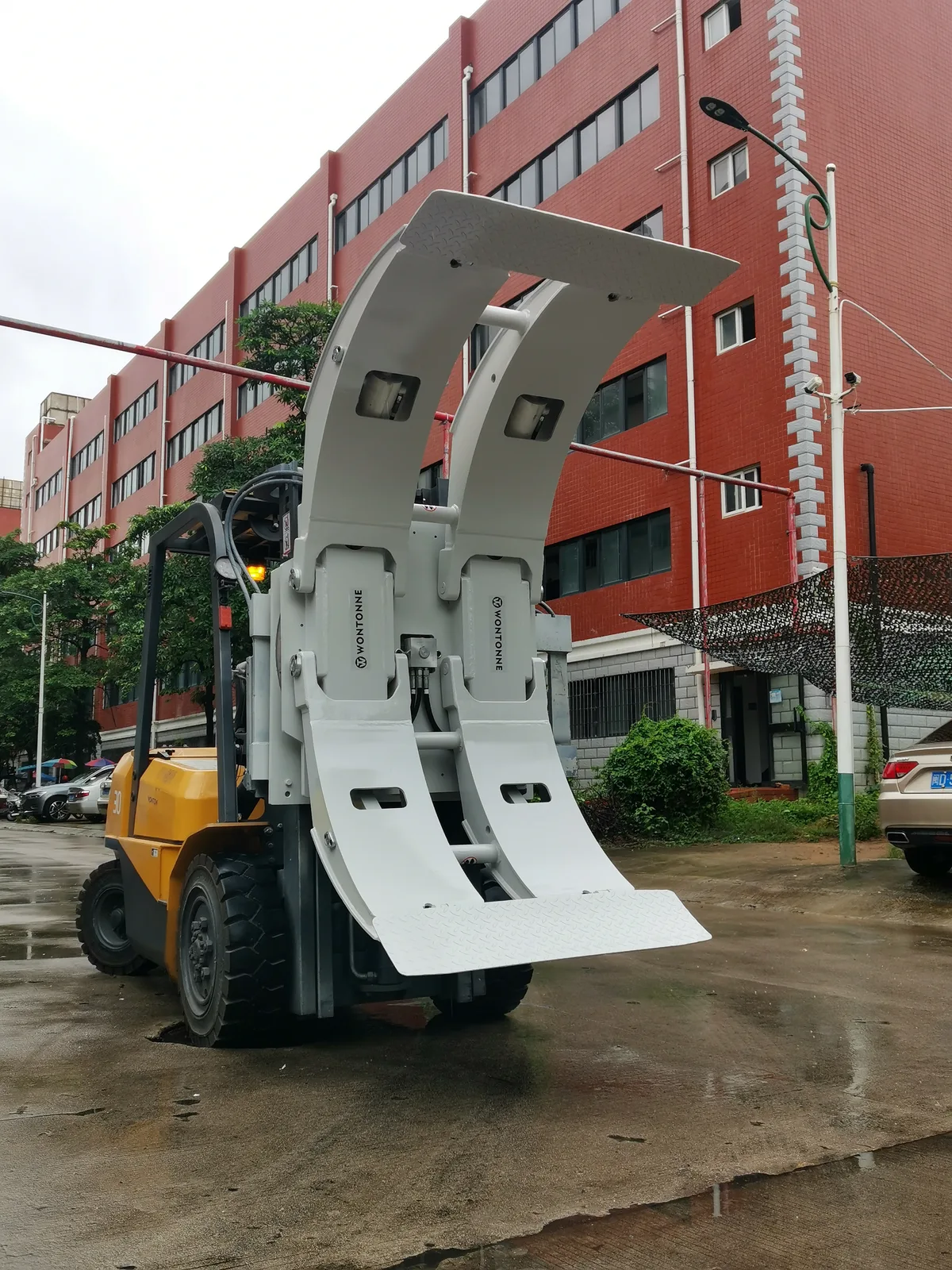

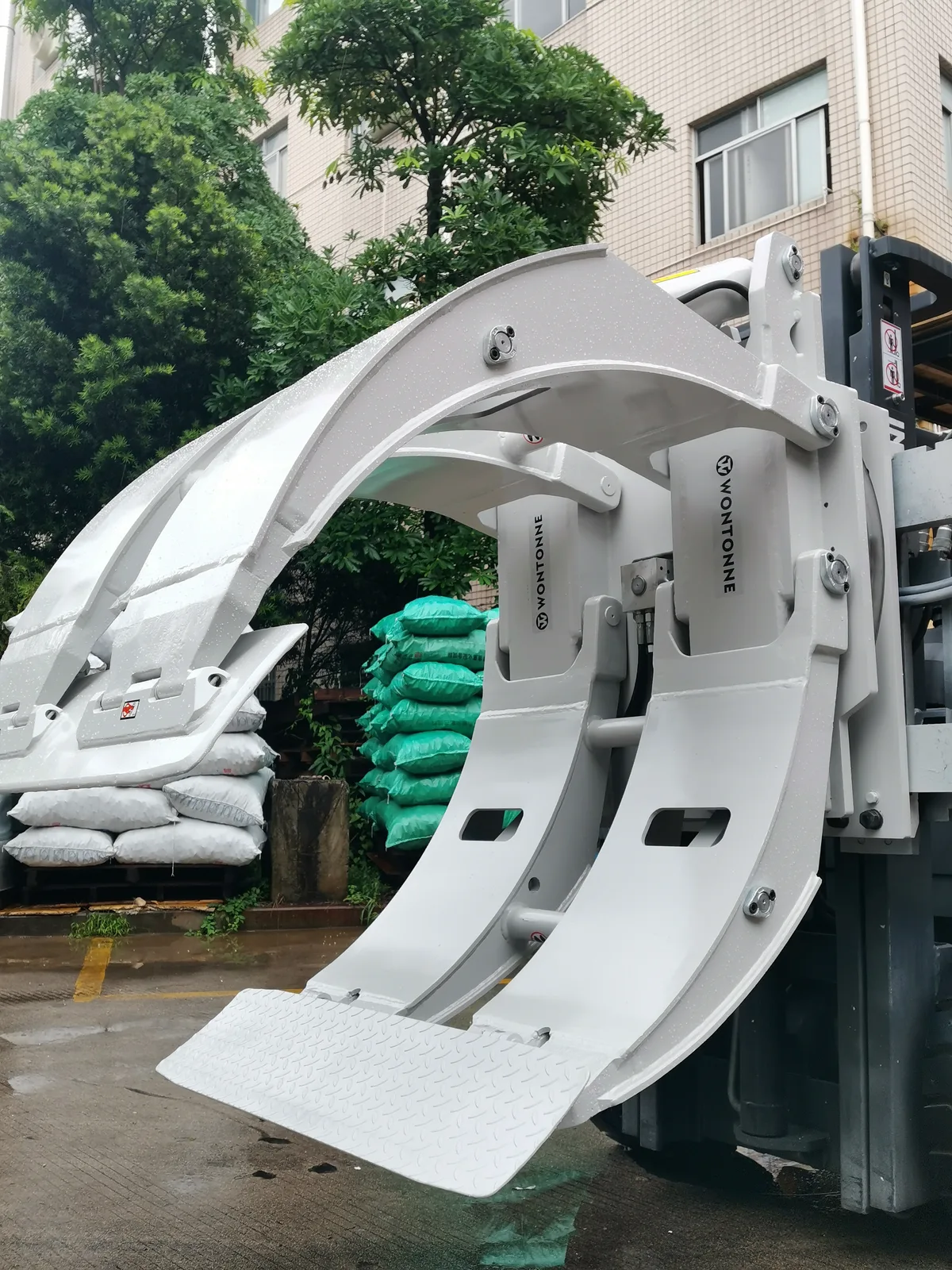

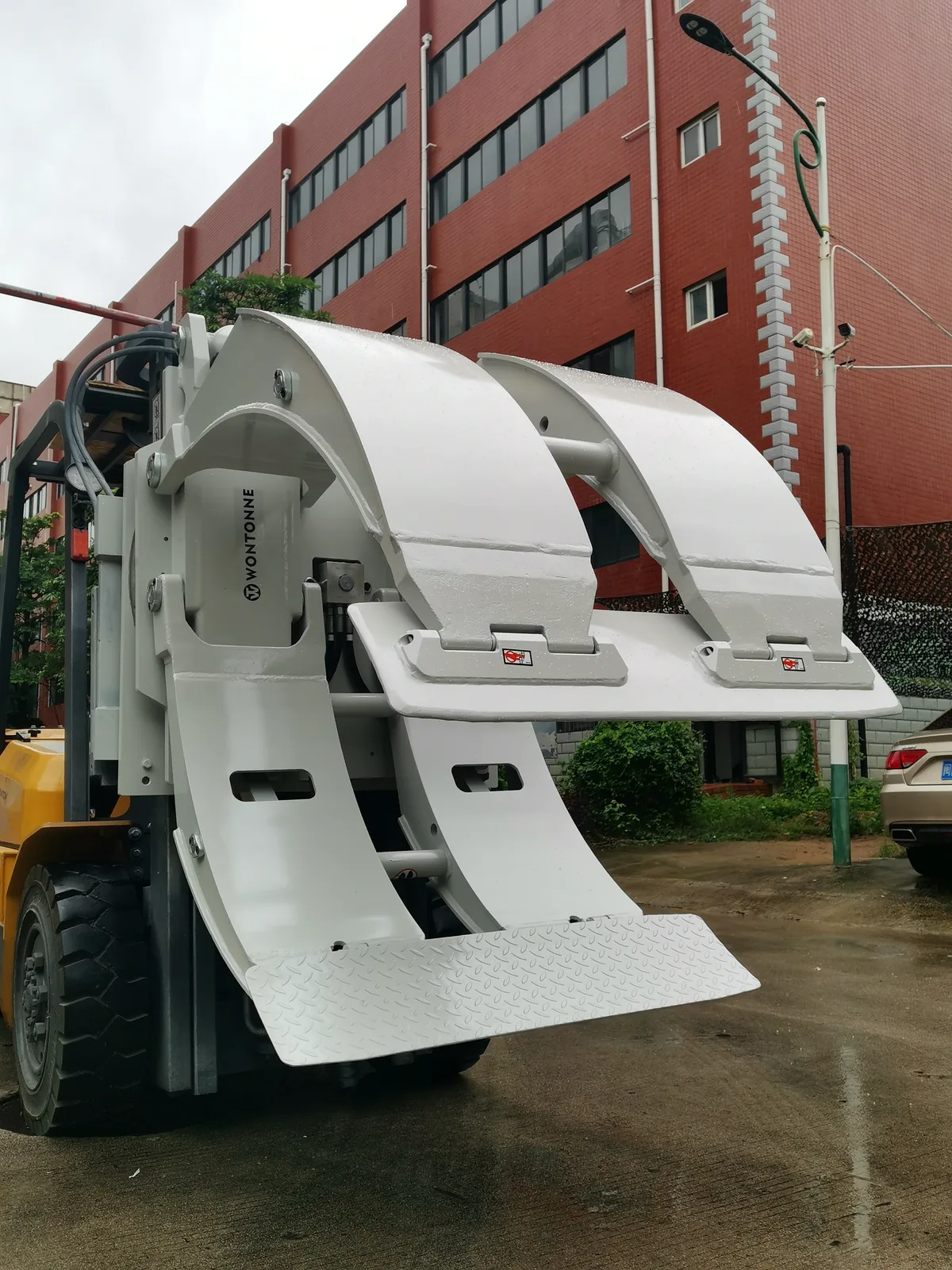

35F/45F Paper Roll Clamp

Engineered for durability and precision, 35f/45f paper roll clamp delivers reliable performance in demanding material handling environments.

All Paper Roll Clamps

Product Overview

The Wontonne 35F/45F Paper Roll Clamp is engineered to handle paper rolls regardless of diameter, weight or type of paper.

Paper roll clamps are designed to handle rolls of any size, weight, or paper type. With options ranging from compact to rugged, they effectively reduce roll damage during handling.

Key features & specifications:

Handles any roll diameter

Handles any roll weight

For all types of paper

Fixed short arm configuration

Heavy-duty clamping performance

Capacity up to 4100kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

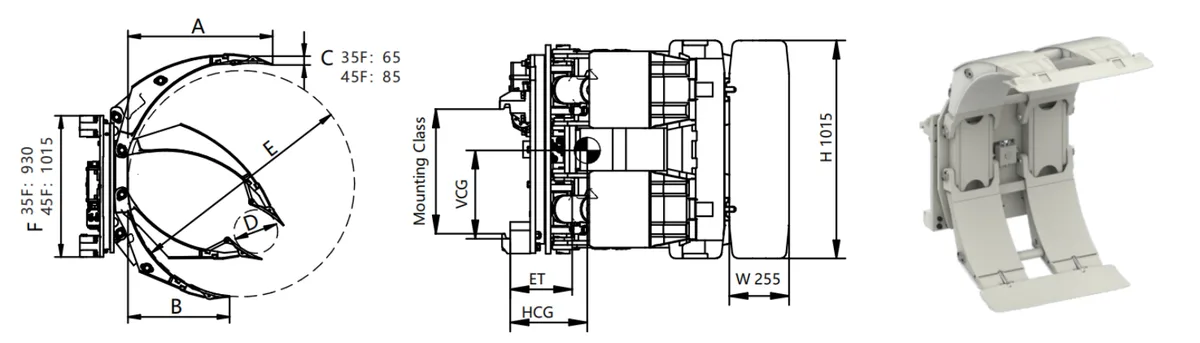

Model No	Capacity (kg)	Load Center (mm)	Opening Range (mm)	Mounting	Weight (kg)	Effective Thickness ET (mm)	Mounting Angle (°)	Long Arm Length (mm)	Short Arm Length (mm)	Arm Thickness (mm)	Contact Pad Size (mm)	Vertical CG VCG (mm)	Horizontal CG HCG (mm)
RCF35F-002B	3500	760	610-1520	ISO 3A	1180	218	0°	1000	670	65	1015×255	430	353
RCF35F-002C	3500	760	610-1520	ISO 4A	1190	218	0°	1000	670	65	1015×255	500	353
RCF35F-004B	2700	915	635-1830	ISO 3A	1280	218	0°	1165	810	65	1015×255	430	353
RCF35F-004C	2700	915	635-1830	ISO 4A	1289	218	0°	1165	810	65	1015×255	500	353
RCF45F-002C	4100	760	530-1520	ISO 4A	1285	198	0°	965	680	85	1015×255	560	310
RCF45F-004C	3400	915	660-1830	ISO 4A	1376	198	0°	1105	815	85	1015×255	560	338
RCF45F-006C	2700	1100	850-2200	ISO 4A	1480	198	0°	1305	915	85	1015×255	—	380
