What is the capacity of the Tissue Paper Roll Clamps?

The Tissue Paper Roll Clamps handles 1200-2200 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the Tissue Paper Roll Clamps use?

The Tissue Paper Roll Clamps is available for ISO 2A / ISO 3A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the Tissue Paper Roll Clamps are available?

Wontonne offers 12 models of the Tissue Paper Roll Clamps — including RTF15F-013A, RTF15F-013B, RTF24G-001B, RTF24G-003B, RTF24G-005B and more — with different capacities and load centers for various applications.

What capacity of paper roll clamp do I need?

Wontonne offers paper roll clamps from 1000 kg to 4100 kg capacity. The 12G series suits tissue and small rolls (1000-1200 kg), while the 33G and 35F series handle large board rolls up to 4100 kg. Choose by your heaviest roll weight plus a safety margin.

What is the difference between positioned and fixed short-arm paper roll clamps?

Positioned short-arm clamps (20G-P, 24G-P, 30G-P, 33G-P, 35F-P) let the short arm reposition hydraulically to match roll diameter, ideal for multi-diameter roll handling. Fixed short-arm clamps (12G, 15F, 20G, 24G, 30G, 33G, 35F) offer a simpler, more economical design for consistent roll sizes.

Products / Paper Roll Clamps / Tissue Paper Roll Clamps

Paper Roll Clamps

Tissue Paper Roll Clamps

Engineered for durability and precision, tissue paper roll clamps delivers reliable performance in demanding material handling environments.

All Paper Roll Clamps

Product Overview

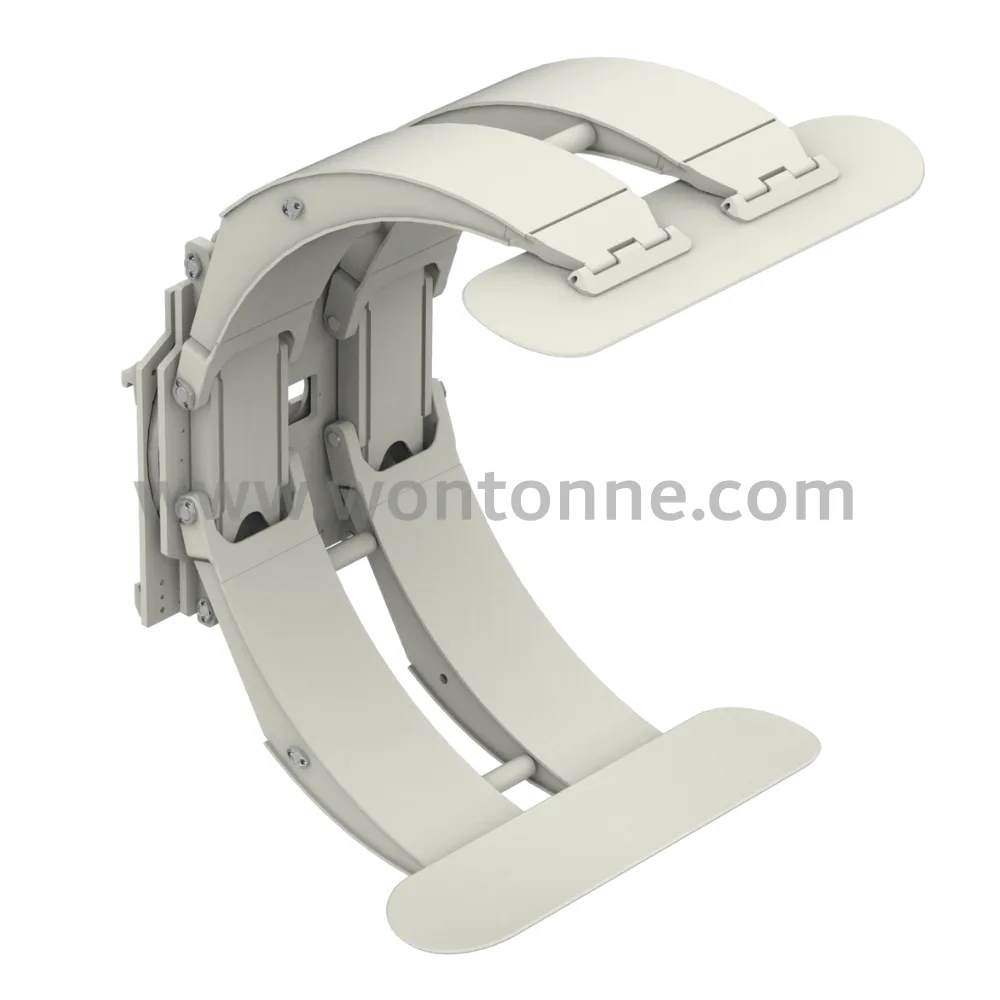

The Wontonne Tissue Paper Roll Clamps are suitable for holding medium-density soft paper such as tissue paper without damage.

Paper roll clamps are designed to handle rolls of any size, weight, or paper type. With options ranging from compact to rugged, they effectively reduce roll damage during handling.

Key features & specifications:

For medium-density soft paper

Holds tissue paper without damage

High-strength structural parts

Large-modulus slewing support

Strong bearing capacity

360° left or right rotation

Capacity up to 2200kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

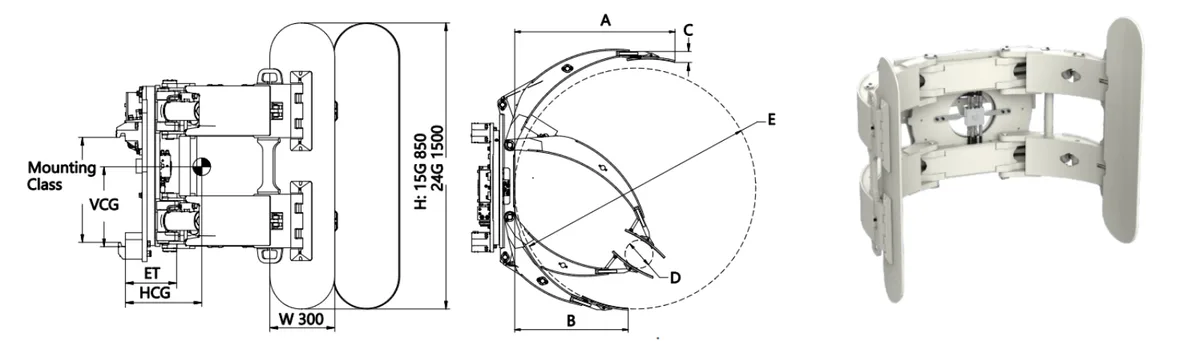

Model No	Capacity (kg)	Load Center (mm)	Opening Range (mm)	Mounting	Weight (kg)	Effective Thickness ET (mm)	Mounting Angle (°)	Long Arm Length (mm)	Short Arm Length (mm)	Contact Pad Size (mm)	Vertical CG VCG (mm)	Horizontal CG HCG (mm)	Arm Thickness (mm)
RTF15F-013A	1200	650	410-1300	ISO 2A	395	144	0°	864	658	850×300	348	276	—
RTF15F-013B	1200	650	410-1300	ISO 3A	407	184	0°	864	658	850×300	349	306	—
RTF24G-001B	2200	575	350-1150	ISO 3A	645	232	0°	820	550	1300×300	360	302	40
RTF24G-003B	2200	650	440-1300	ISO 3A	650	232	0°	900	617	1300×300	363	319	40
RTF24G-005B	2200	700	440-1400	ISO 3A	690	232	0°	956	656	1300×300	363	333	40
RTF24G-007B	2050	760	490-1525	ISO 3A	690	232	0°	1014	719	1300×300	363	347	40
RTF24G-008B	1950	800	500-1600	ISO 3A	700	232	0°	1047	754	1300×300	363	357	40
RTP24G-001B	2200	575	200-1150	ISO 3A	650	232	0°	820	550	1300×300	360	302	40
RTP24G-003B	2200	650	200-1300	ISO 3A	665	232	0°	900	617	1300×300	363	318	40
RTP24G-005B	2200	700	200-1400	ISO 3A	700	232	0°	956	656	1300×300	363	332	40
RTP24G-007B	2050	760	200-1525	ISO 3A	700	232	0°	1014	719	1300×300	363	347	40
RTP24G-008B	1950	800	200-1600	ISO 3A	705	232	0°	1047	753	1300×300	363	356	40
