What is the capacity of the Standard push pull – Without sheet save types?

The Standard push pull – Without sheet save types handles 1600-2000 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the Standard push pull – Without sheet save types use?

The Standard push pull – Without sheet save types is available for ISO 2A / ISO 3A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the Standard push pull – Without sheet save types are available?

Wontonne offers 4 models of the Standard push pull – Without sheet save types — including PPS16E-001A, PPS16E-001B, PPS20E-001A, PPS20E-001B — with different capacities and load centers for various applications.

What is a push-pull attachment?

A push-pull attachment slides a platen under slip-sheeted loads and pulls them onto the fork platform, then pushes them off at the destination — replacing pallets with thin slip sheets.

What is the sheet-save function?

Sheet-save systems gently handle the slip-sheet lip during push-off, preventing sheet tearing and allowing sheet reuse — saving cost in high-volume operations.

Products / Push and Pull / Standard push pull – Without sheet save types

Push and Pull

Standard push pull – Without sheet save types

Engineered for durability and precision, standard push pull – without sheet save types delivers reliable performance in demanding material handling environments.

All Push and Pull

Standard push pull – Without sheet save types - 1

Standard push pull – Without sheet save types - 2

Standard push pull – Without sheet save types - 3

Standard push pull – Without sheet save types - 4

Standard push pull – Without sheet save types - 5

Standard push pull – Without sheet save types - 6

Standard push pull – Without sheet save types - 7

Standard push pull – Without sheet save types - 8

Standard push pull – Without sheet save types - 9

Product Overview

The Wontonne Standard Push Pull (Without Sheet Save) loads and unloads goods without pallets, using low-cost slip sheets instead of expensive pallets.

Push-pulls efficiently handle light cargo using slip sheets instead of pallets while ensuring safety. This approach enhances production efficiency and cost savings, finding applications in electronics, food, and light industries.

Key features & specifications:

Palletless loading and unloading

Low-cost slip sheet operation

Durable smooth alloy fork plate

Wide field of vision

Reduces pallet storage space

Pushes and pulls goods on slip sheets

Reduces pallet costs

Capacity up to 2000kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

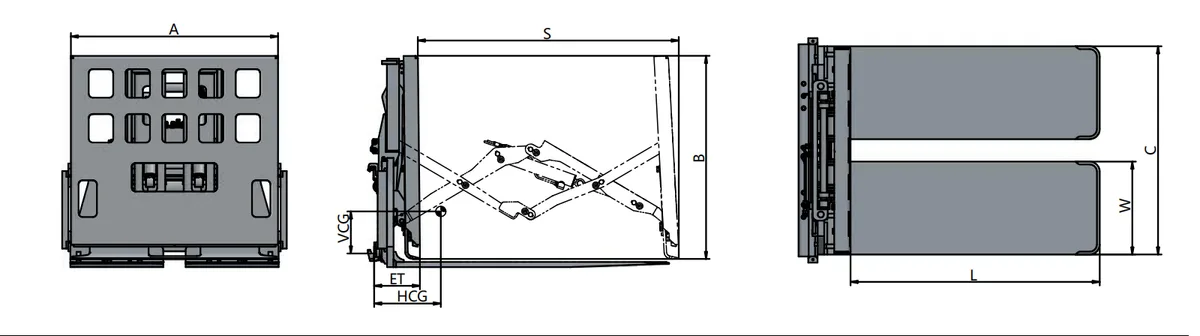

Model No	Capacity (kg)	Load Center (mm)	Mounting	Weight (kg)	Effective Thickness ET (mm)	Faceplate Size (mm)	Platen Size (mm)	Platen Outer Spacing (mm)	Push Stroke (mm)	Min Carriage Width (mm)	Horizontal CG HCG (mm)
PPS16E-001A	1600	600	ISO 2A	566	204	1015×1000	455×1220	1020/1120	1270	920	315
PPS16E-001B	1600	600	ISO 3A	604	204	1015×1000	455×1220	1020/1120	1270	920	322
PPS20E-001A	2000	600	ISO 2A	570	204	1015×1000	455×1220	1020/1120	1270	920	313
PPS20E-001B	2000	600	ISO 3A	608	204	1015×1000	455×1220	1020/1120	1270	920	321
