Load Extender
Engineered for durability and precision, load extender delivers reliable performance in demanding material handling environments.
Product Overview

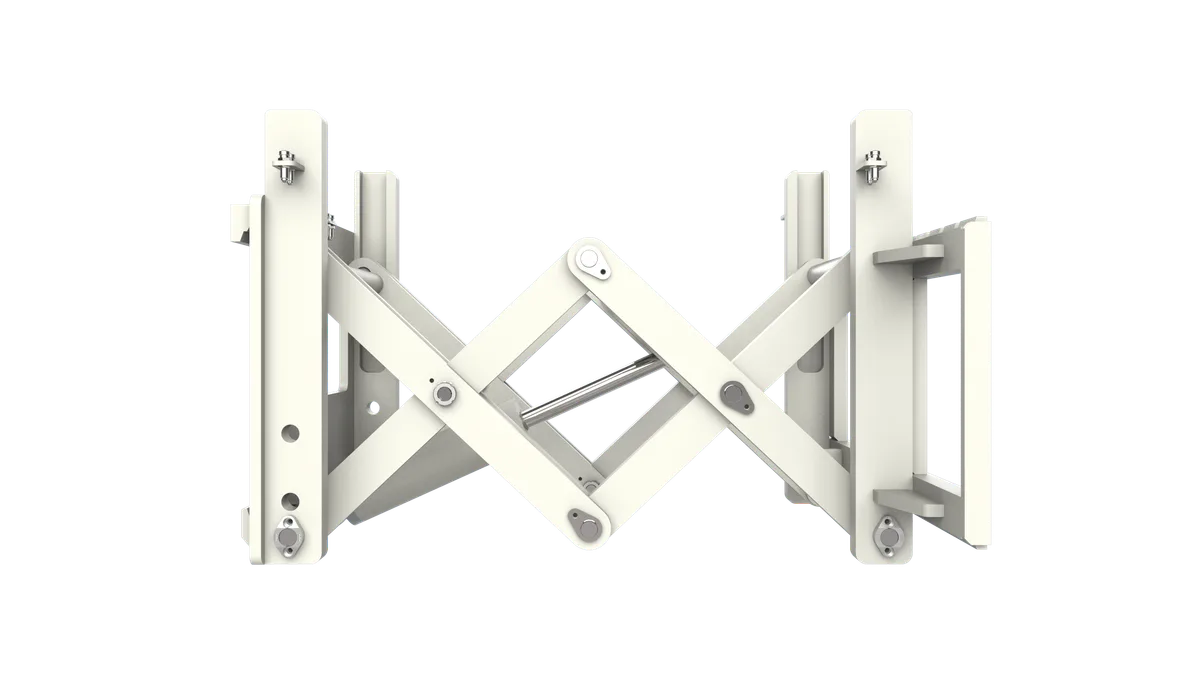

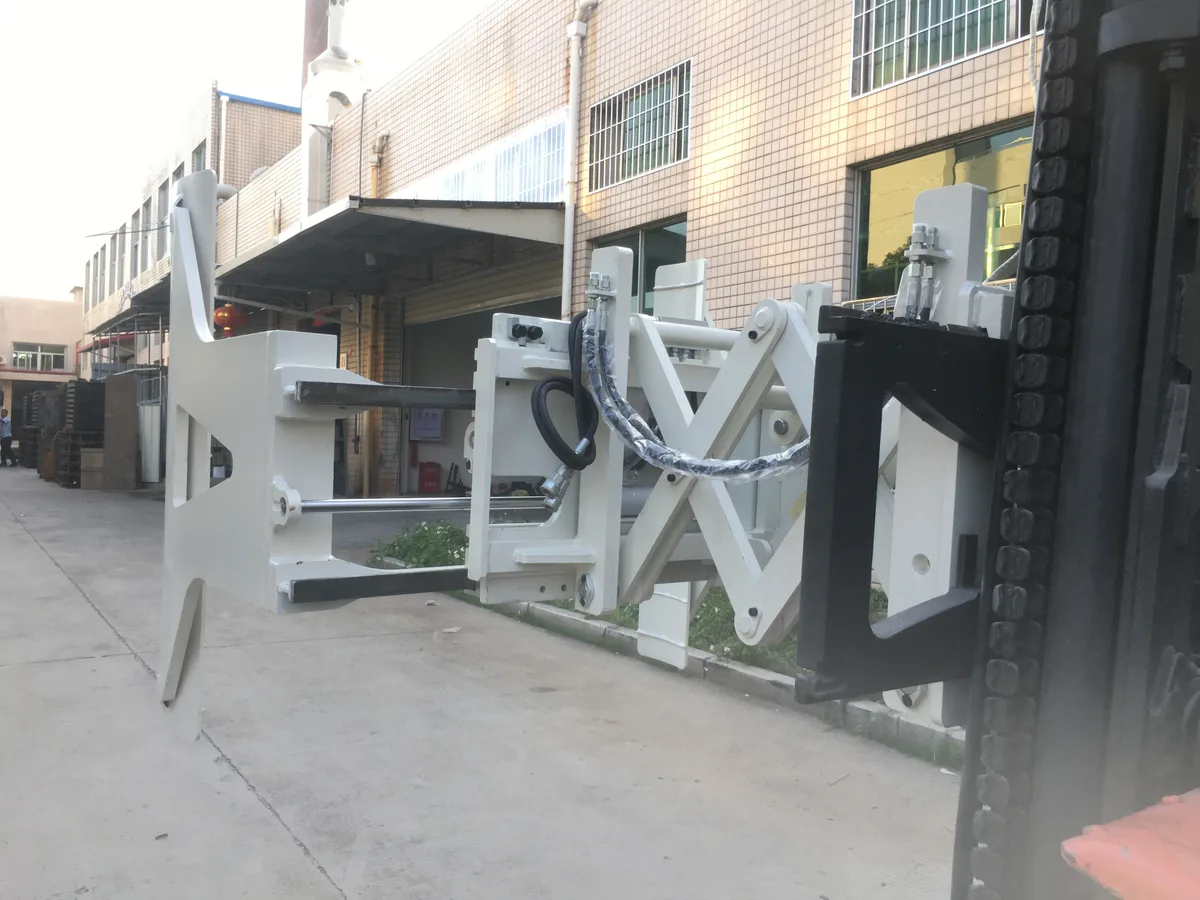

The Wontonne Load Extender extends the load for loading and unloading trucks or railcars from one side only, with high efficiency.

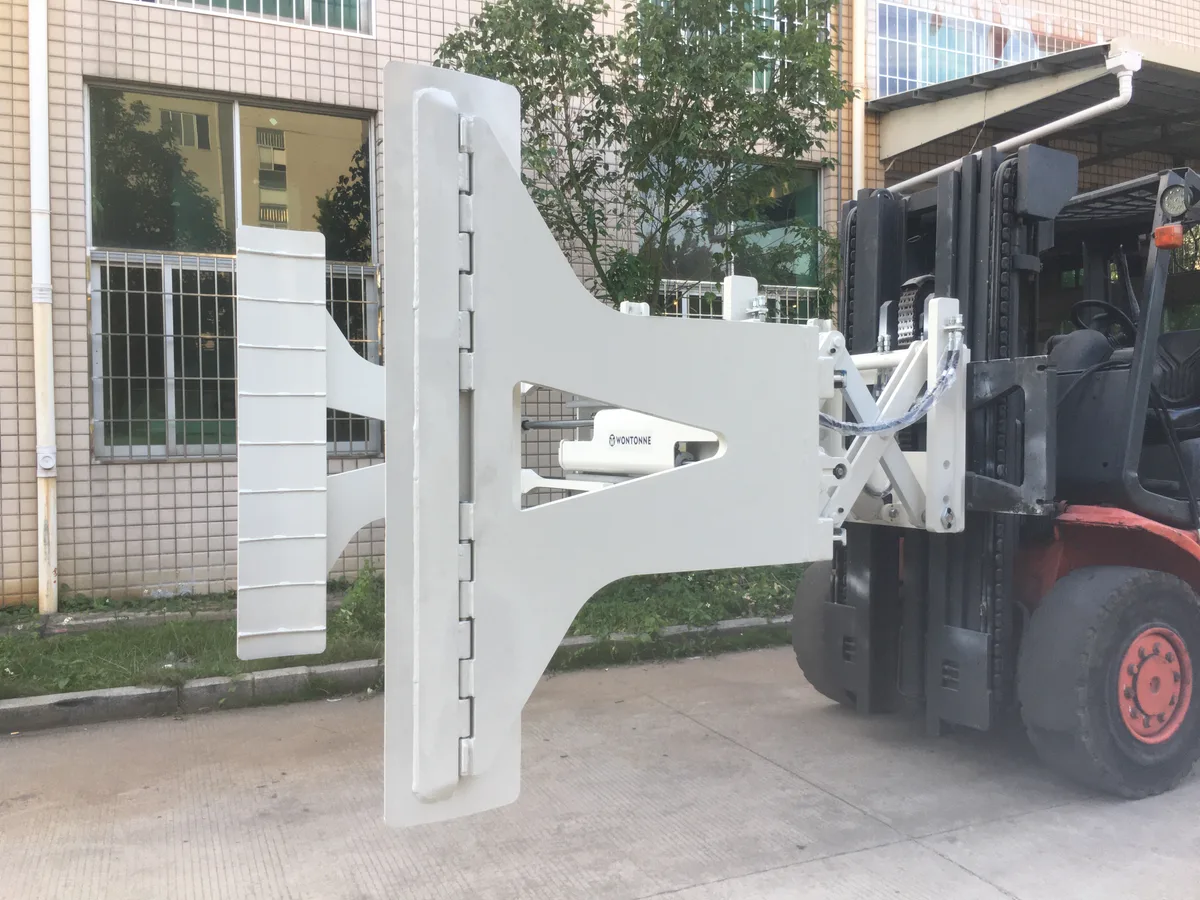

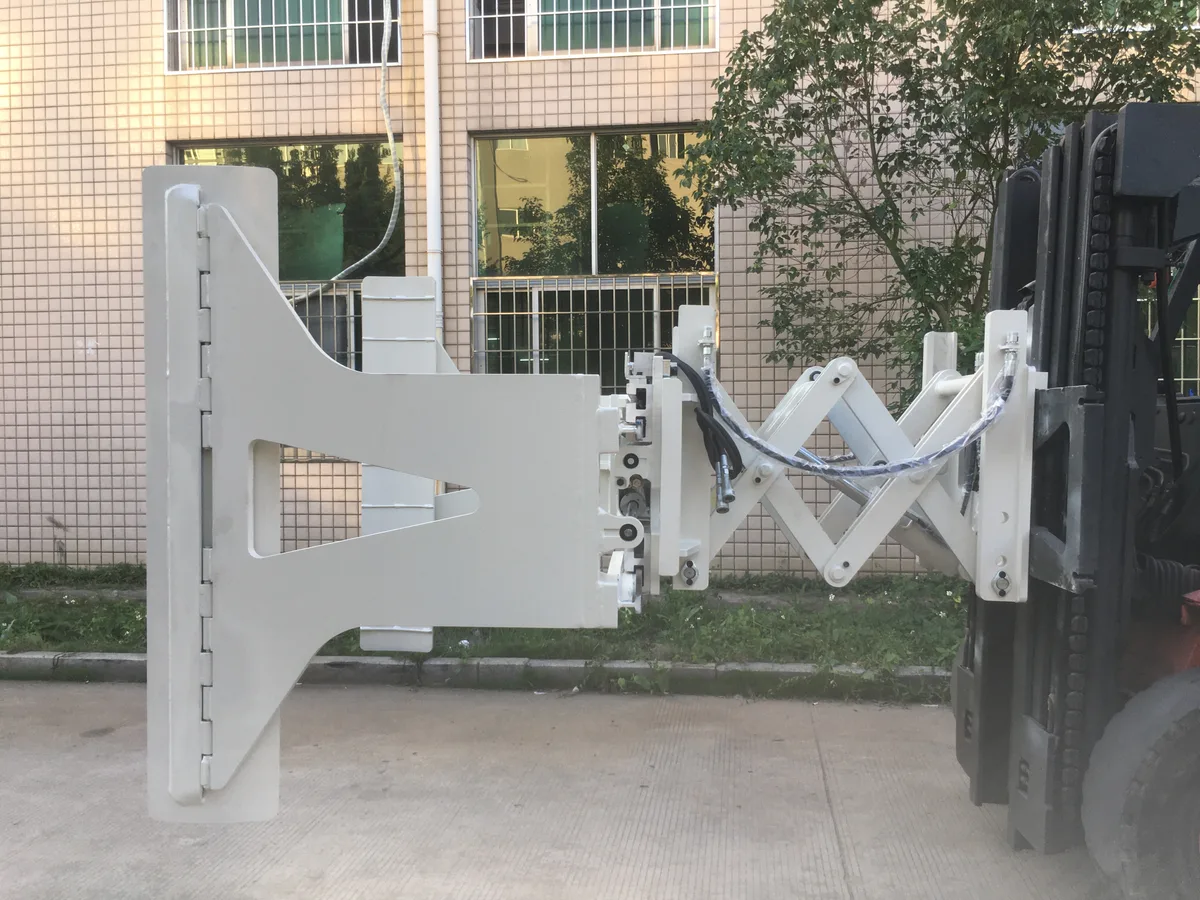

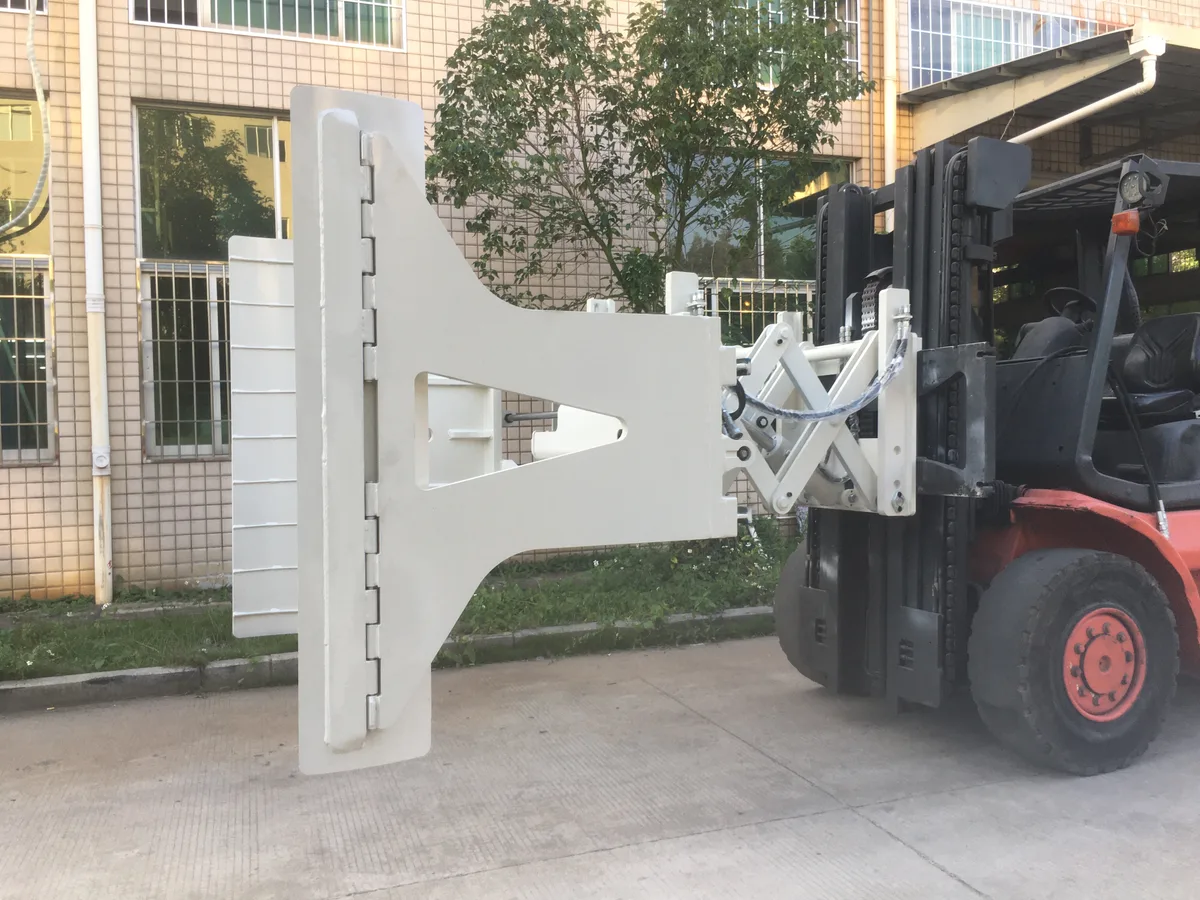

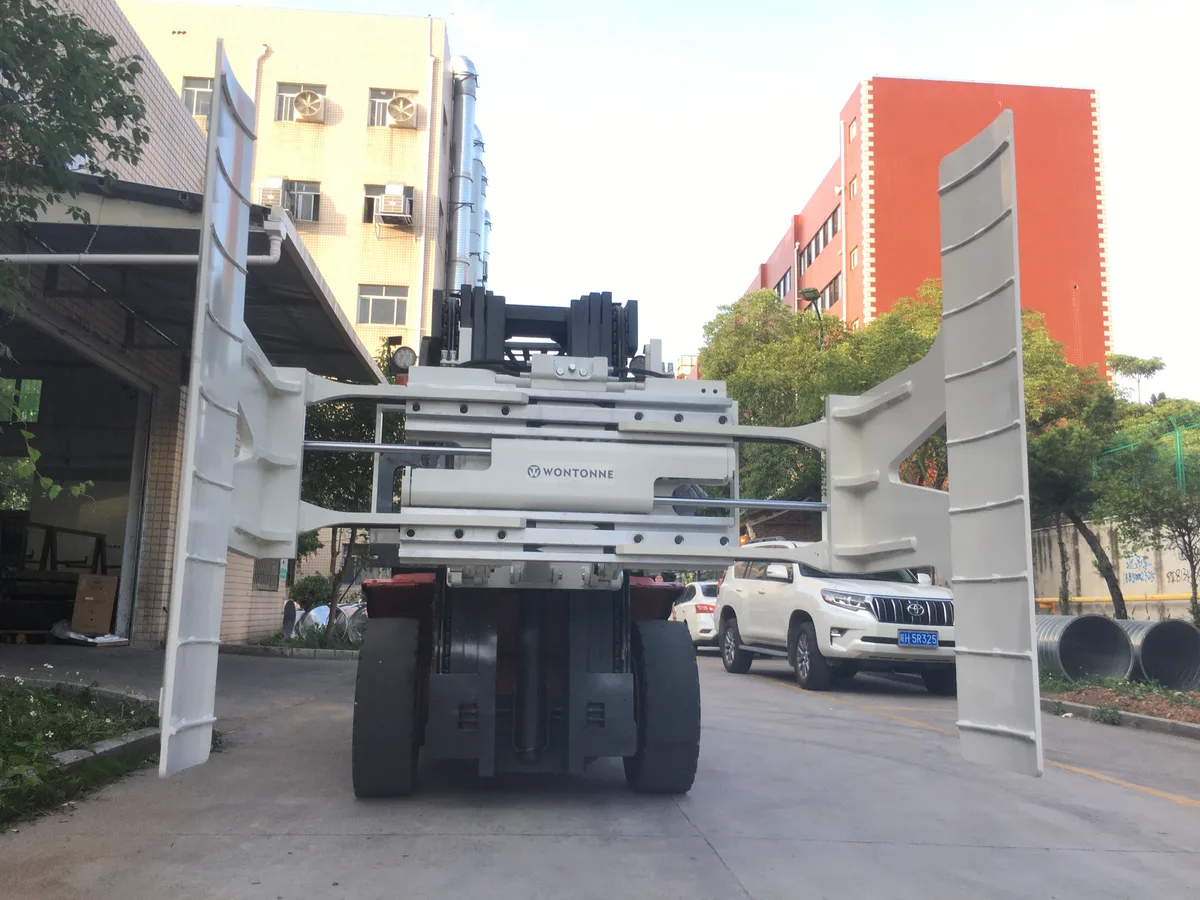

The load extender proves valuable for loading and unloading trucks or railcars from a single side. Its front supports various attachments such as tyre clamps and paper roll clamps, enhancing adaptability and flexibility.
Key features & specifications:
Load from one side of a vehicle
For trucks and railcars
High efficiency operation
Many applications
Fits fork positioners and roll clamps
Flexible attachment mounting
Capacity up to 2000kg
Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.
Need More Info?
Get detailed specifications, pricing, and delivery estimates from our team.

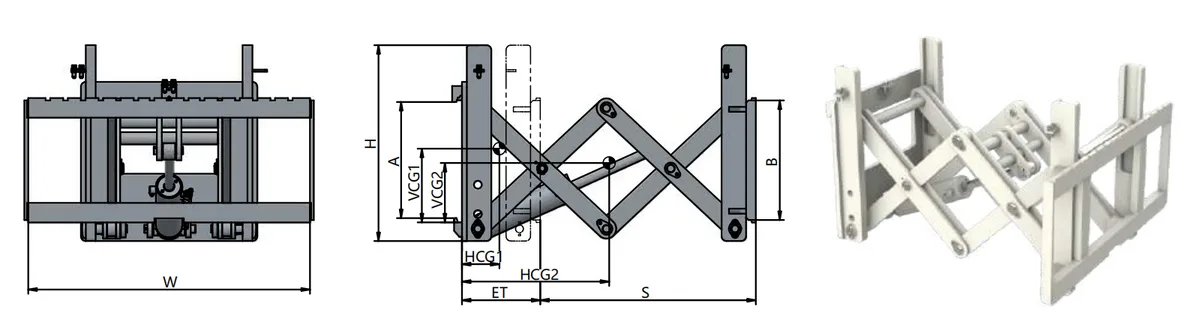

| Model No | Capacity (kg) | Load Center (mm) | Mounting | Weight (kg) | Effective Thickness ET (mm) | Vertical CG VCG1 (mm) | Horizontal CG HCG1 (mm) | Horizontal CG HCG2 (mm) | Stroke (mm) | Carriage Width (mm) | Mounting Class 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TFB20E-008B | 2000 | 600 | ISO 3A | 304 | 280 | 303 | 122 | 382 | 500 | 800 | ISO 3A |
| TFB20E-010B | 2000 | 600 | ISO 3A | 400 | 320 | 301 | 153 | 496 | 680 | 1150 | ISO 3A |
| TFB20E-012B | 2000 | 600 | ISO 3A | 410 | 320 | 301 | 153 | 597 | 880 | 1150 | ISO 3A |
| TFB20E-010A | 2000 | 600 | ISO 2A | 381 | 320 | 269 | 148 | 480 | 680 | 1040 | ISO 2A |
Manufacturing Excellence
30,000 m² intelligent facility — ISO 9001 & ISO 3834 certified production lines.
