Tri-lateral head unit
Engineered for durability and precision, tri-lateral head unit delivers reliable performance in demanding material handling environments.
Product Overview

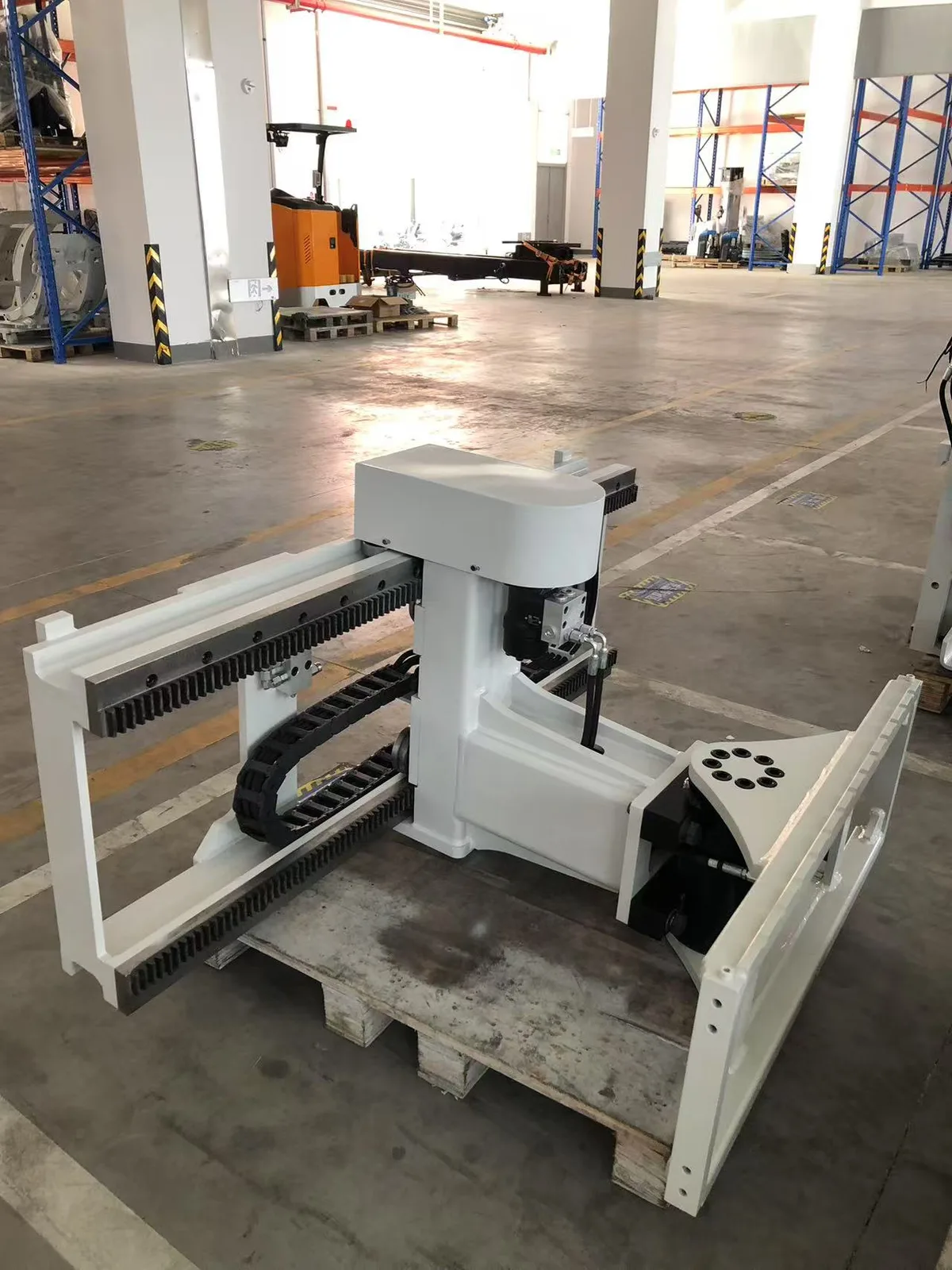

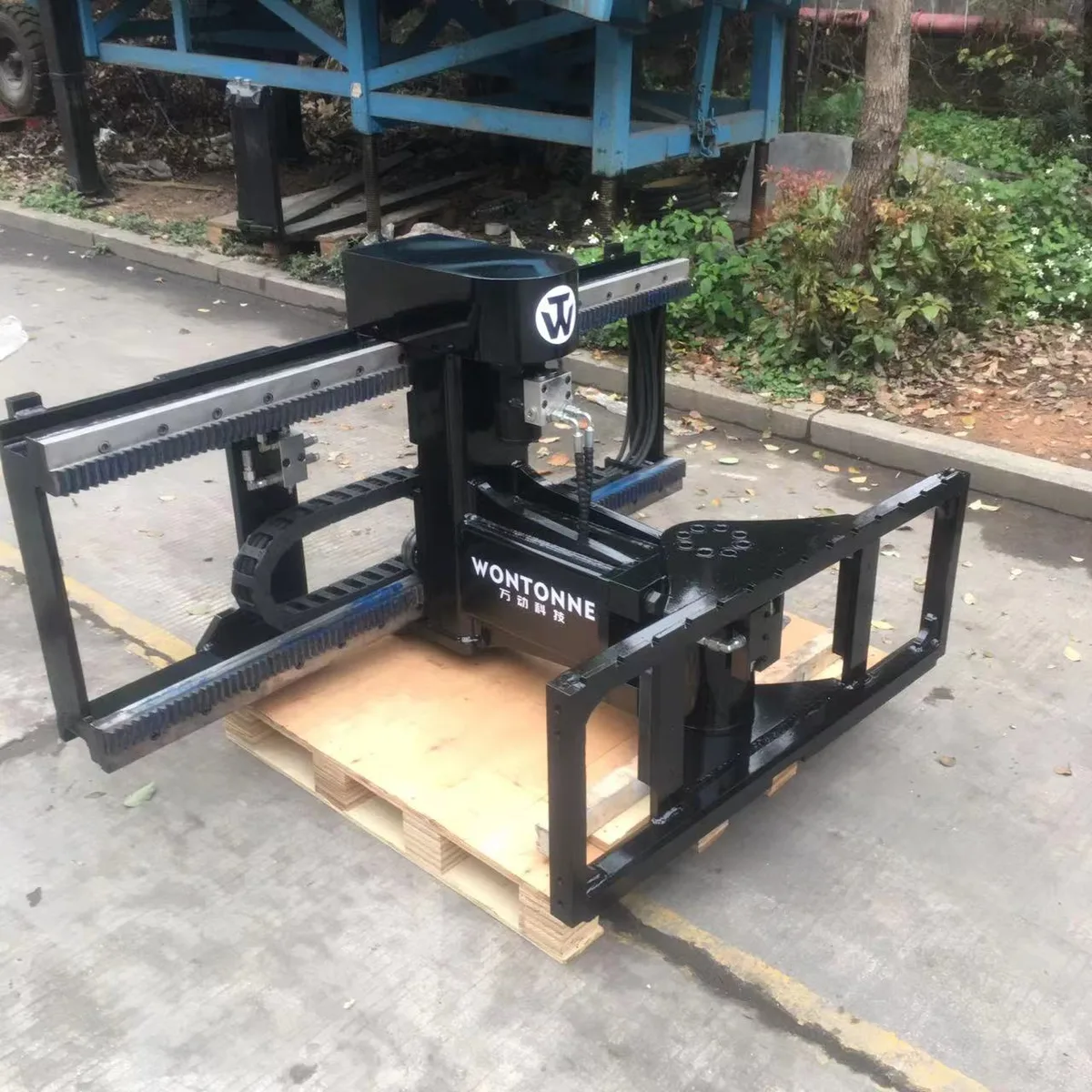

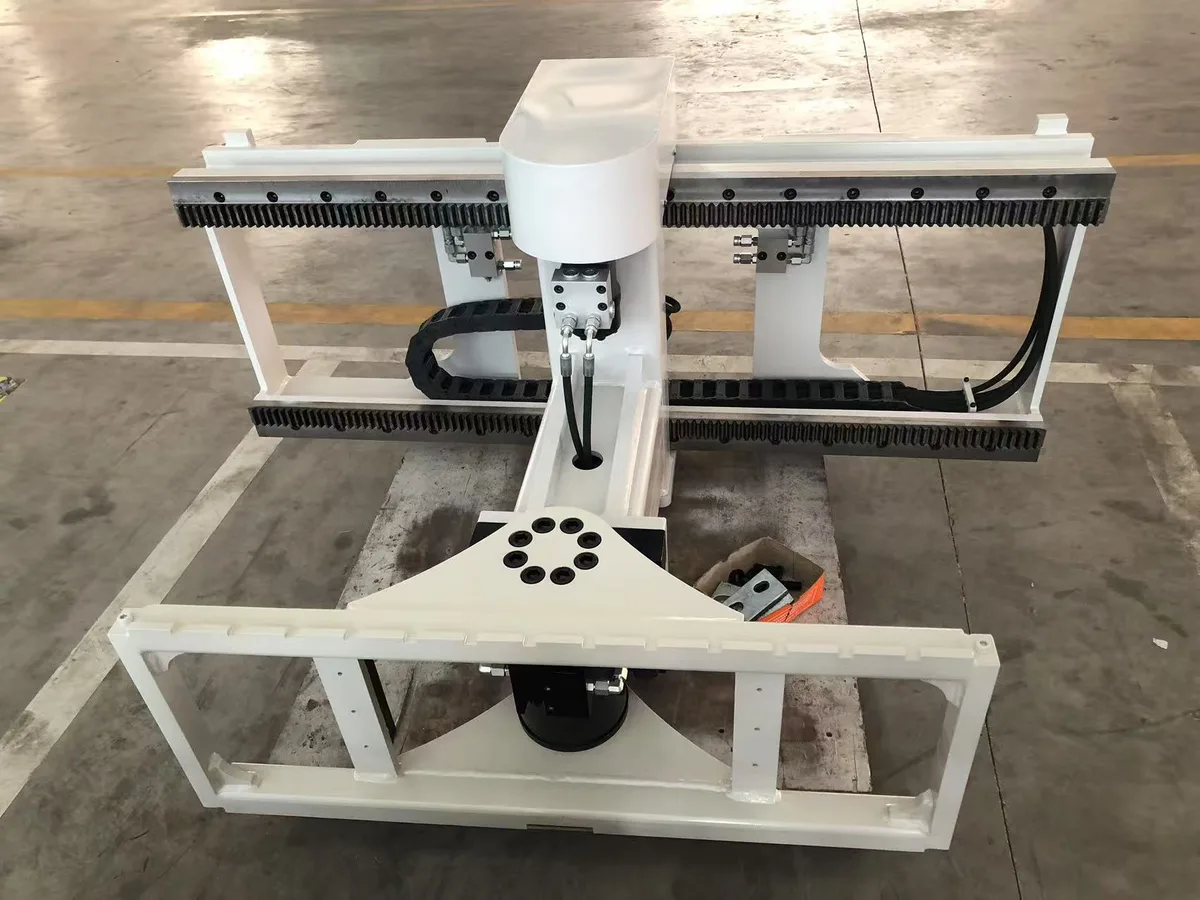

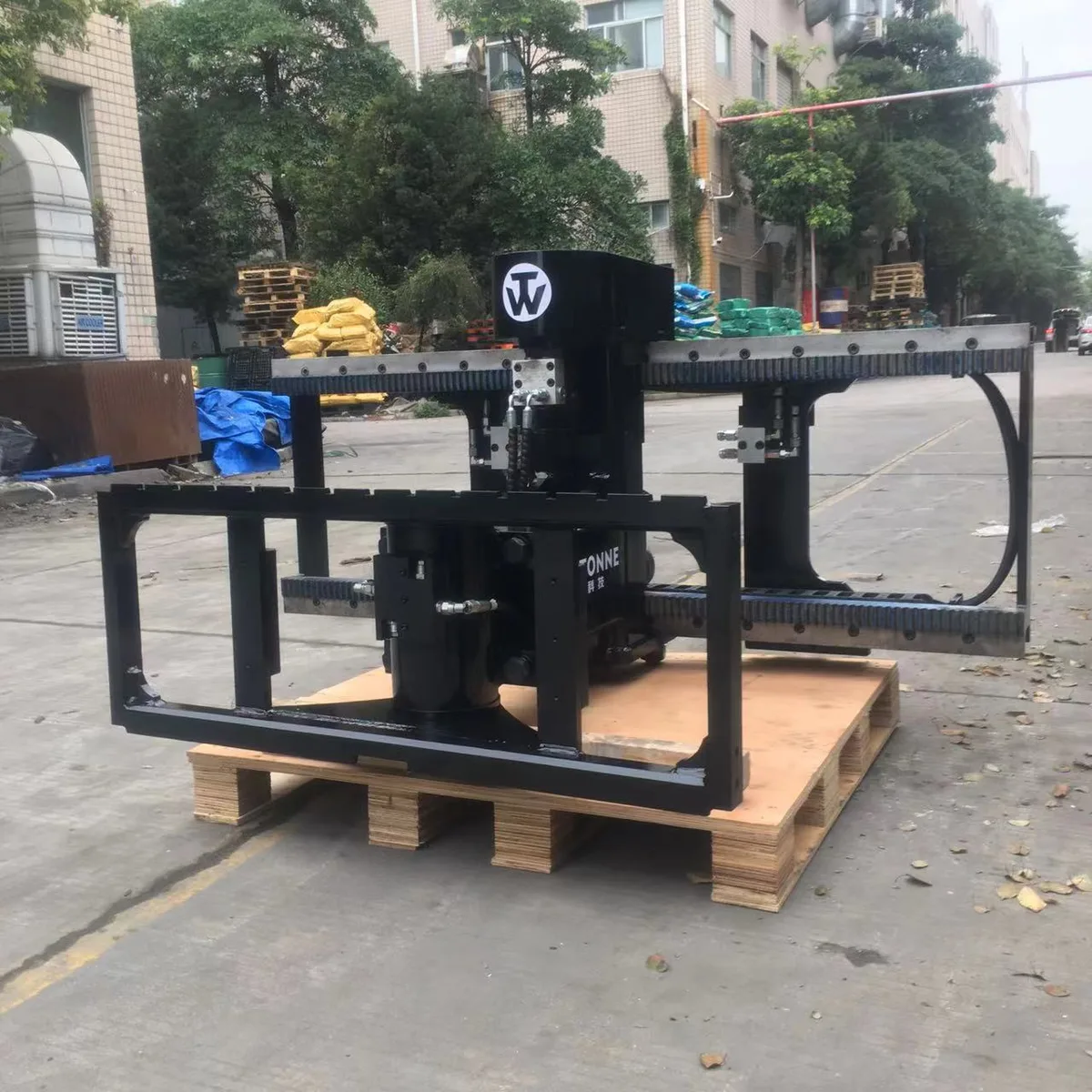

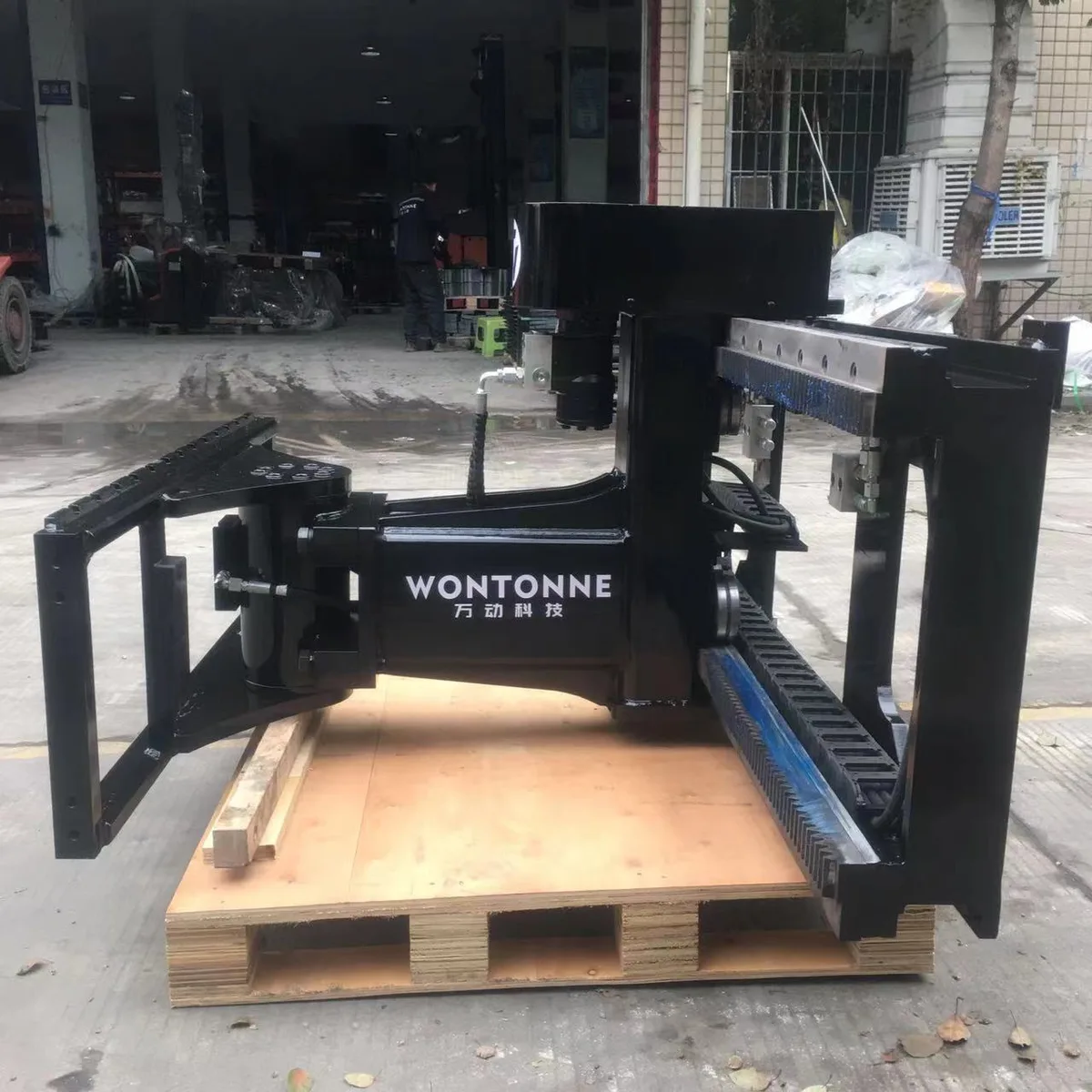

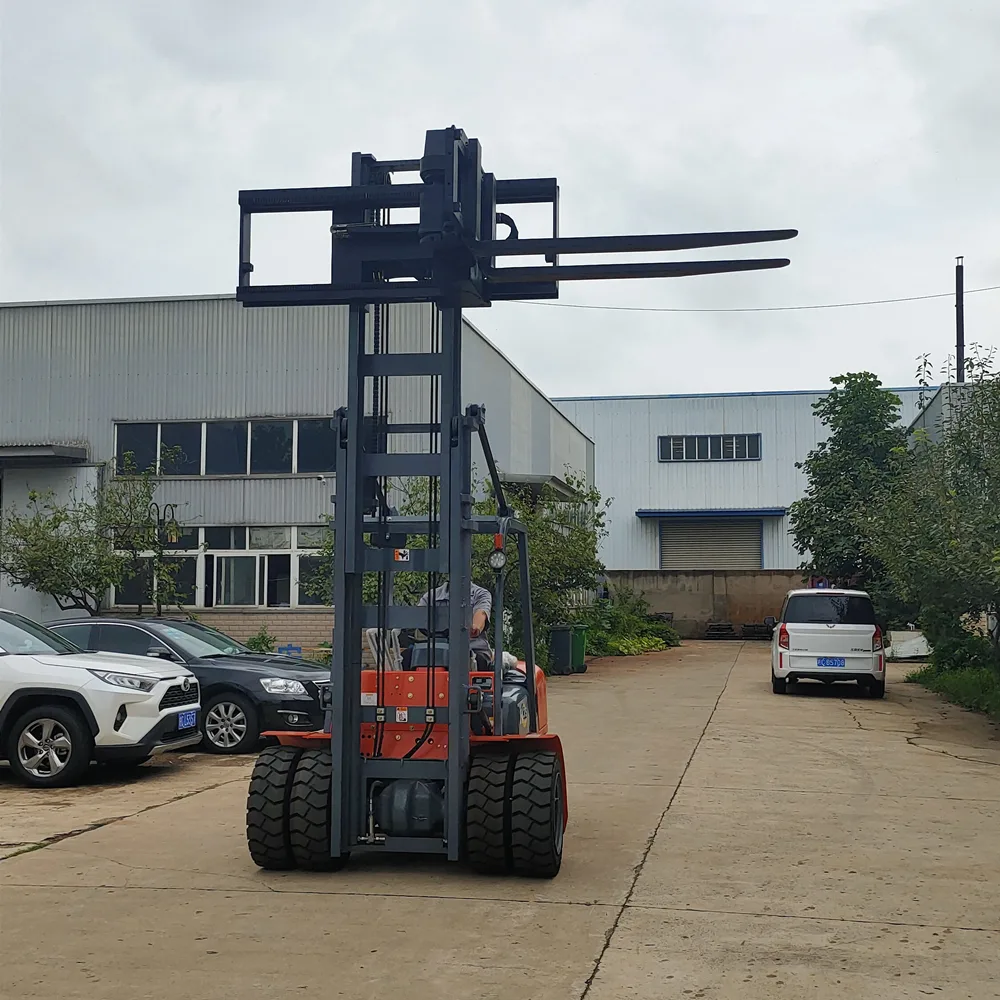

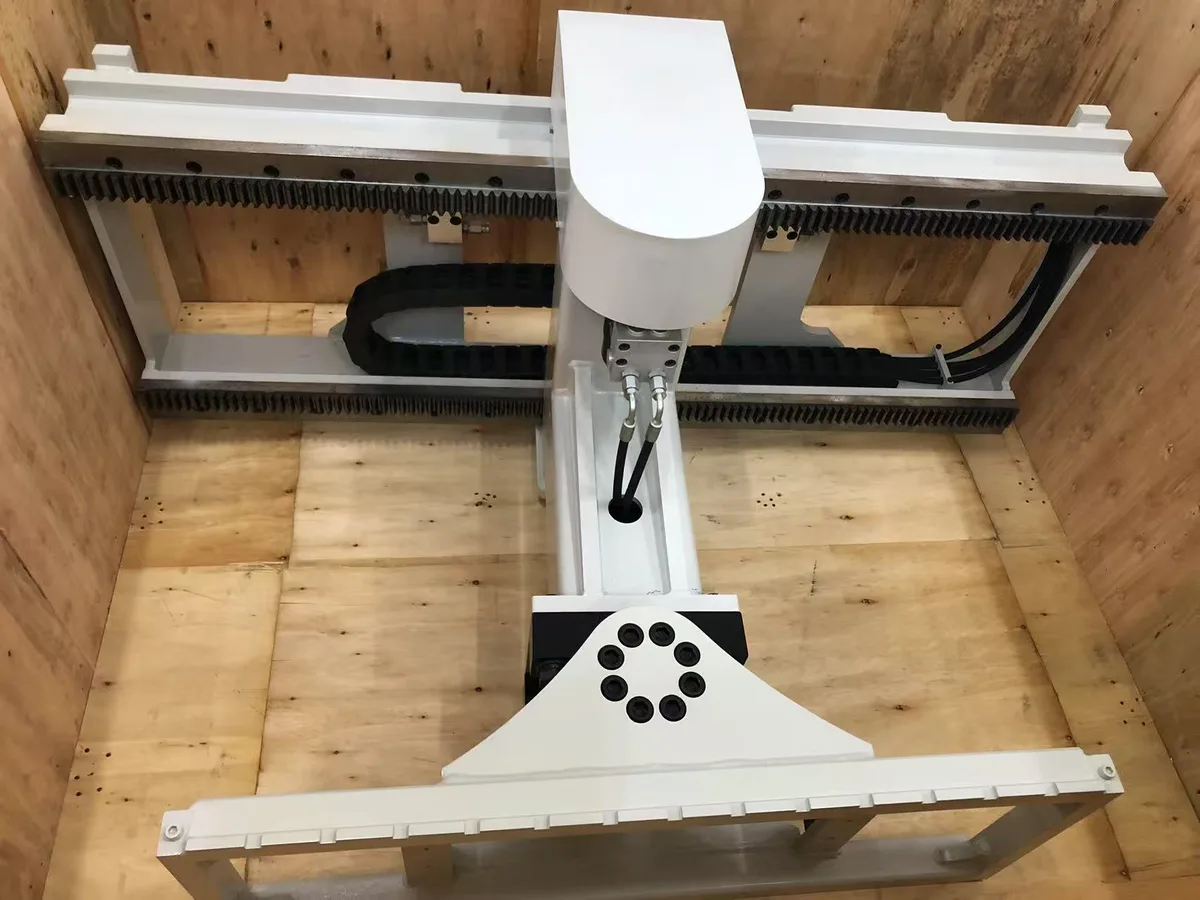

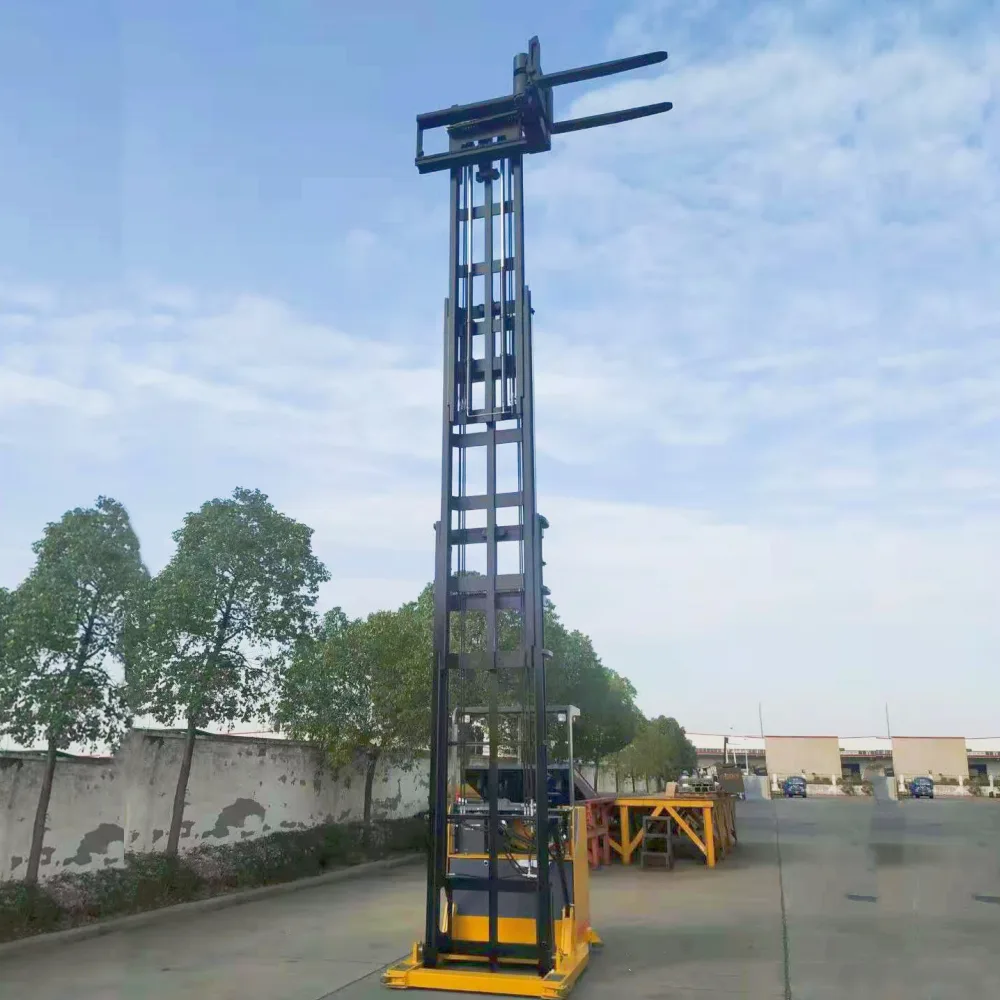

The Wontonne Tri-Lateral Head Unit is a special attachment for forklifts that stacks in the left, front and right directions while rising or falling.

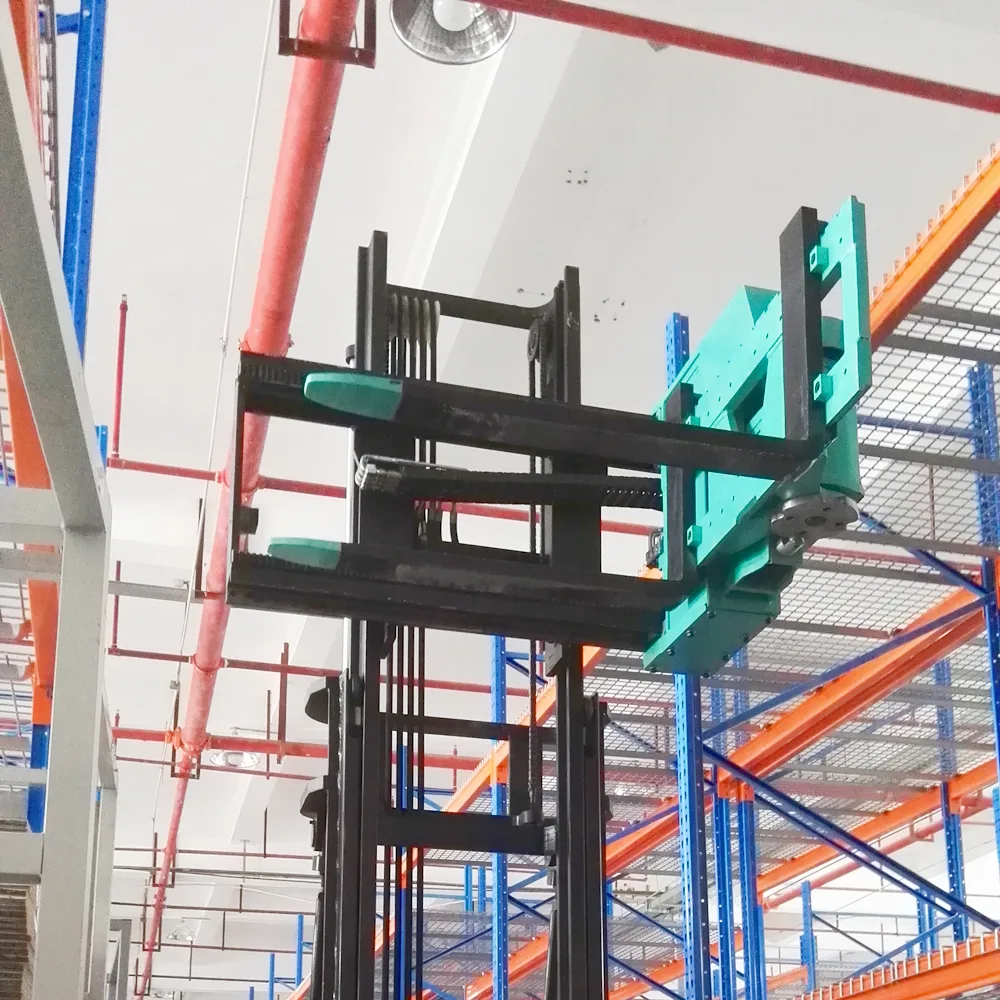

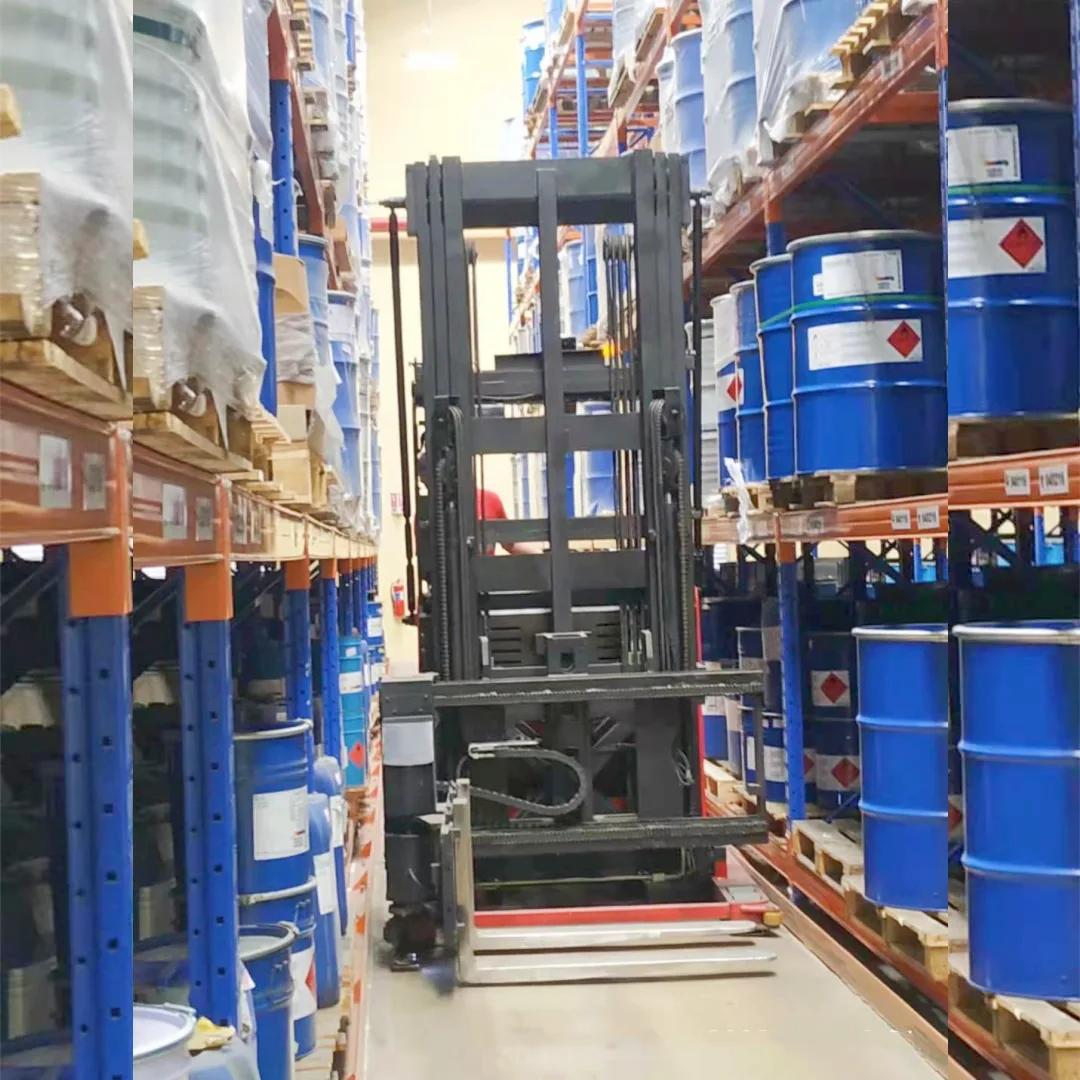

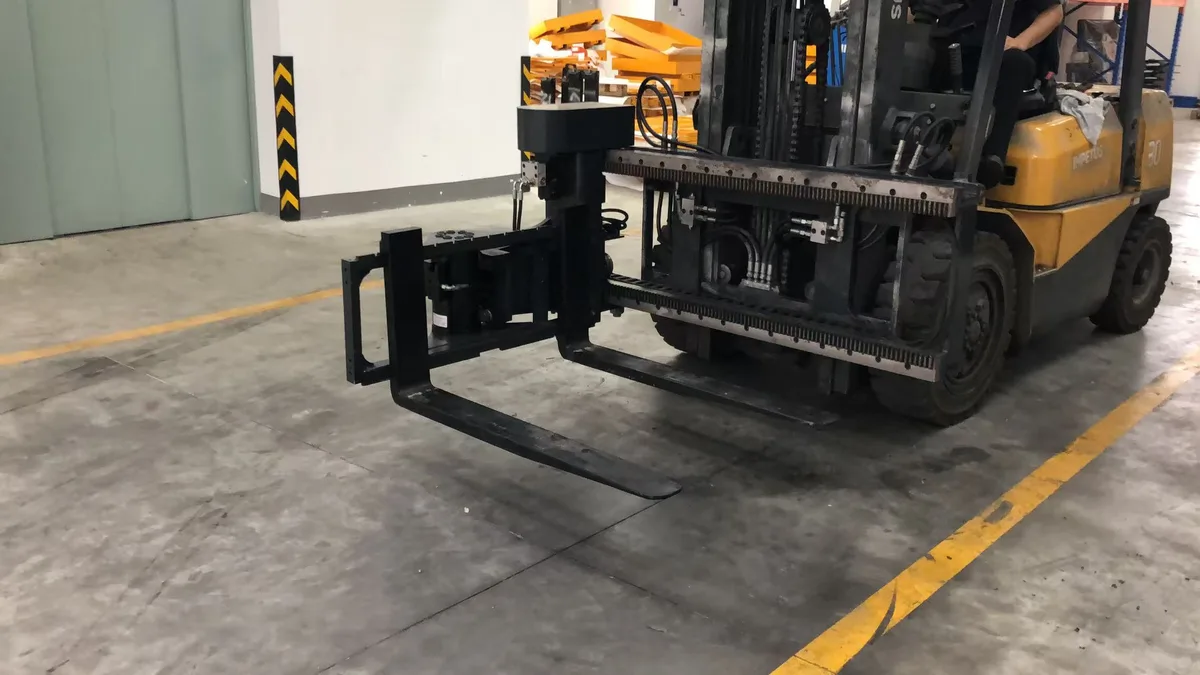

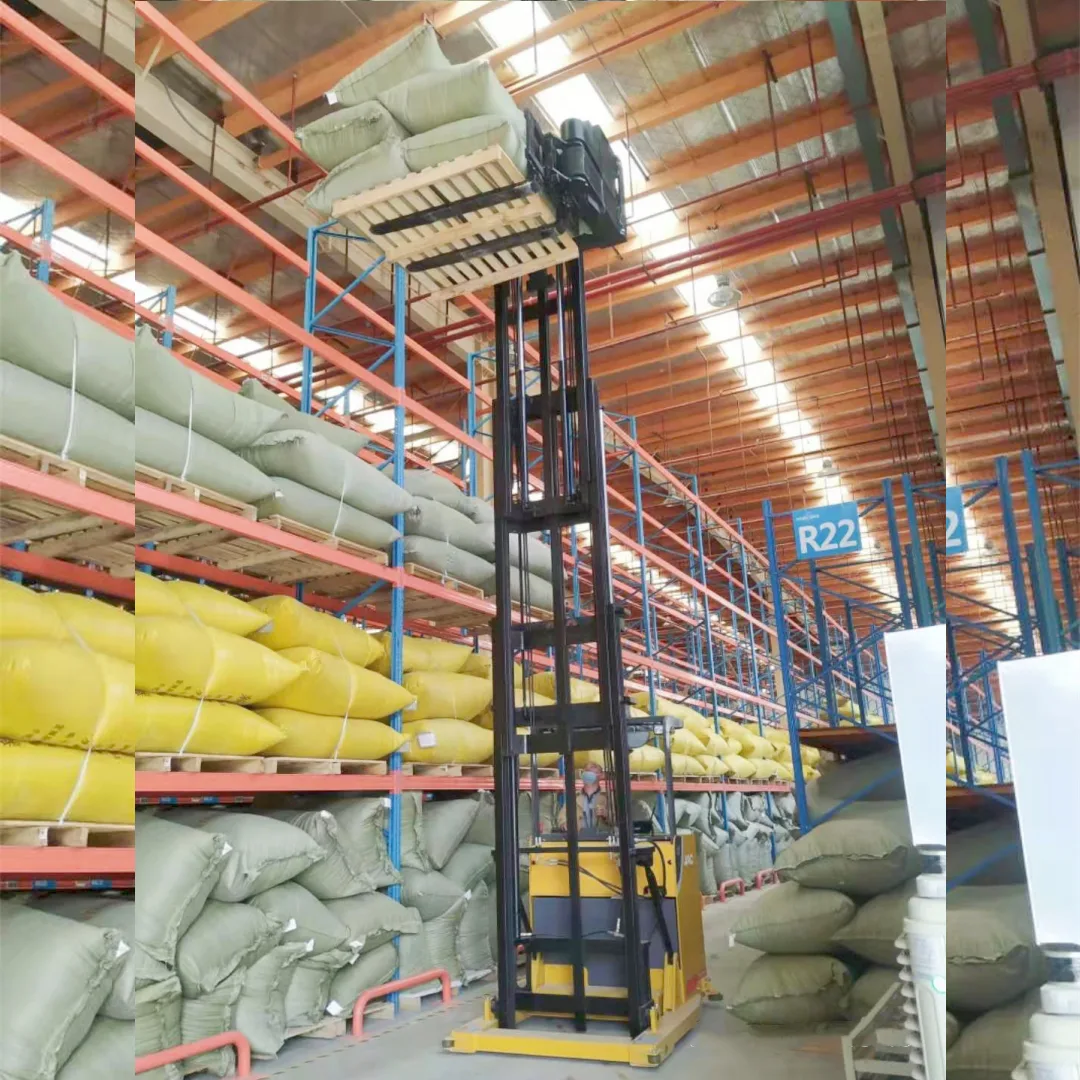

The tri-lateral head unit is a unique forklift attachment capable of stacking in left, front, and right directions while ascending or descending. Integrated with the fork, it enables 180° horizontal rotation and lateral side shift, allowing the forklift to handle goods laterally without turning — adept at narrow-aisle carrying and stacking.
Key features & specifications:
Stacks left, front and right
For high-density warehouse storage
Special forklift attachment
Operates while rising or falling
Increases storage density
For narrow aisle operations
Capacity up to 1000kg
Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.
Need More Info?
Get detailed specifications, pricing, and delivery estimates from our team.

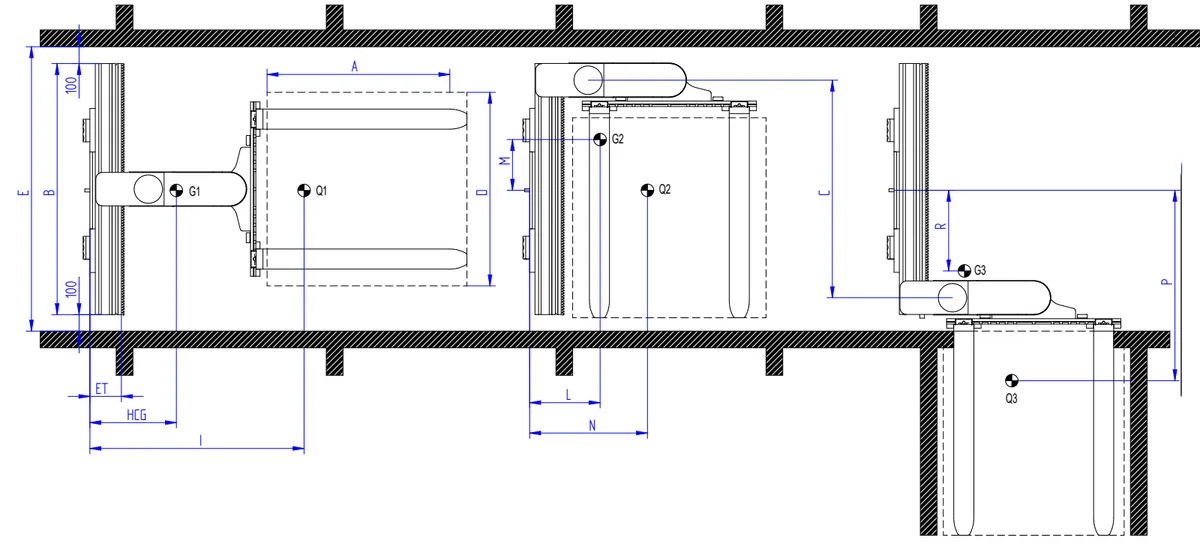

| Model No | Capacity (kg) | Load Center (mm) | Mounting | Weight (kg) | Pallet Size L/W (mm) | Frame Width (mm) | Lateral Stroke (mm) | Gravity Offset M/N (mm) | Gravity Offset P/R (mm) | Horizontal CG HCG1 (mm) | L1 (mm) | Horizontal CG HCG2 (mm) | L2 (mm) | Horizontal CG HCG3 (mm) | L3 (mm) | Effective Thickness ET1 (mm) | Effective Thickness ET2 (mm) | Effective Thickness ET3 (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AST15D-1580B | 1500 | 500 | ISO 3A | 512 | 1200/1000 | 1580/1780 | 1300 | 303/140 | 1450/480 | 517 | 600 | 349 | 550 | 349 | 630 | 1035 | 205 | 205 |
| — | Special attachment is customized according to the working condition, please contact wontonne sales. | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
Manufacturing Excellence
30,000 m² intelligent facility — ISO 9001 & ISO 3834 certified production lines.
