What is the capacity of the Tyre Clamp (Rotating Type)?

The Tyre Clamp (Rotating Type) handles 1200-2000 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the Tyre Clamp (Rotating Type) use?

The Tyre Clamp (Rotating Type) is available for ISO 2A / ISO 3A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the Tyre Clamp (Rotating Type) are available?

Wontonne offers 10 models of the Tyre Clamp (Rotating Type) — including PTR15F-013A, PTR15F-013B, PTR20F-002A, PTR20F-002B, PTR20F-004A and more — with different capacities and load centers for various applications.

What is the difference between tyre clamps and grippers?

Tyre clamps grip tyres horizontally between arms — ideal for stacked tyre handling. Tyre grippers hold tyres vertically with a C-frame — used for OTR, truck and aircraft tyres from the tread side.

What capacity range is covered?

Tyre attachments span 1000-5200 kg — from passenger tyre grippers (1000-2000 kg) to heavy tyre clamps up to 5200 kg.

Products / Tyre Attachments / Tyre Clamp (Rotating Type)

Tyre Attachments

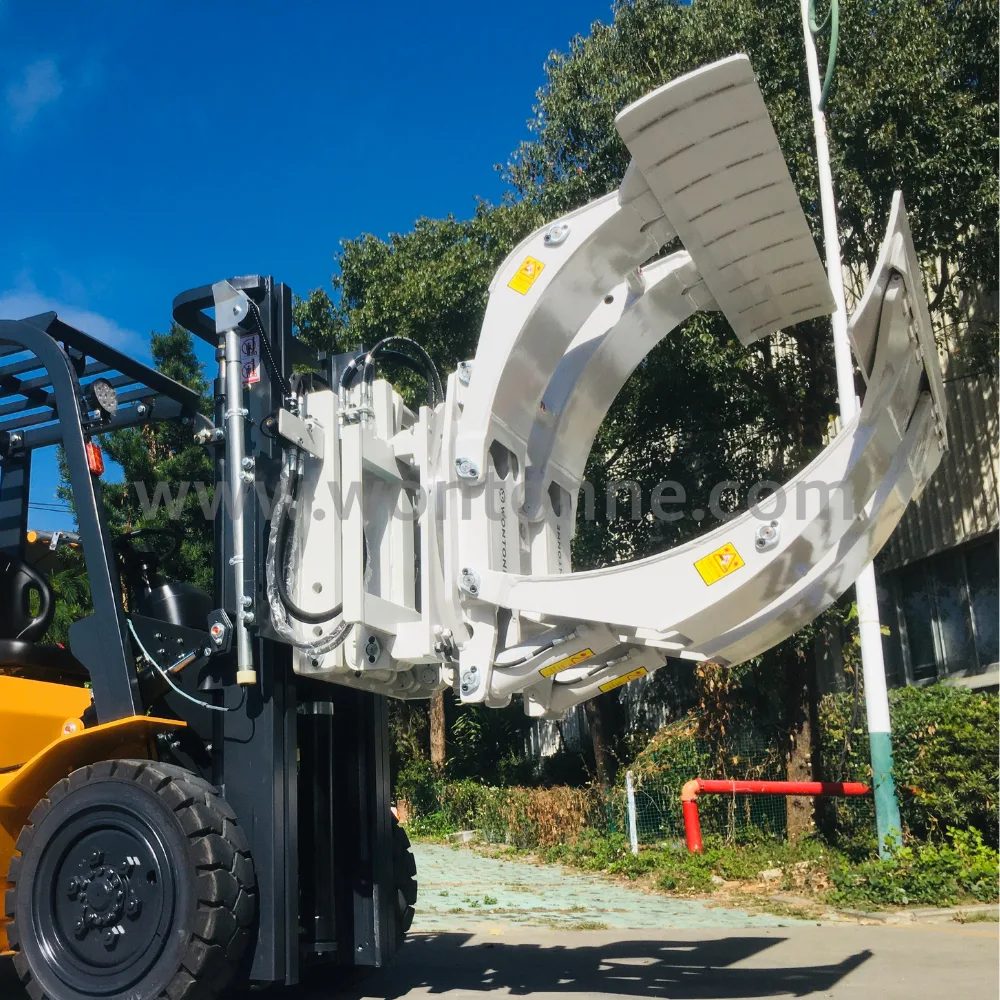

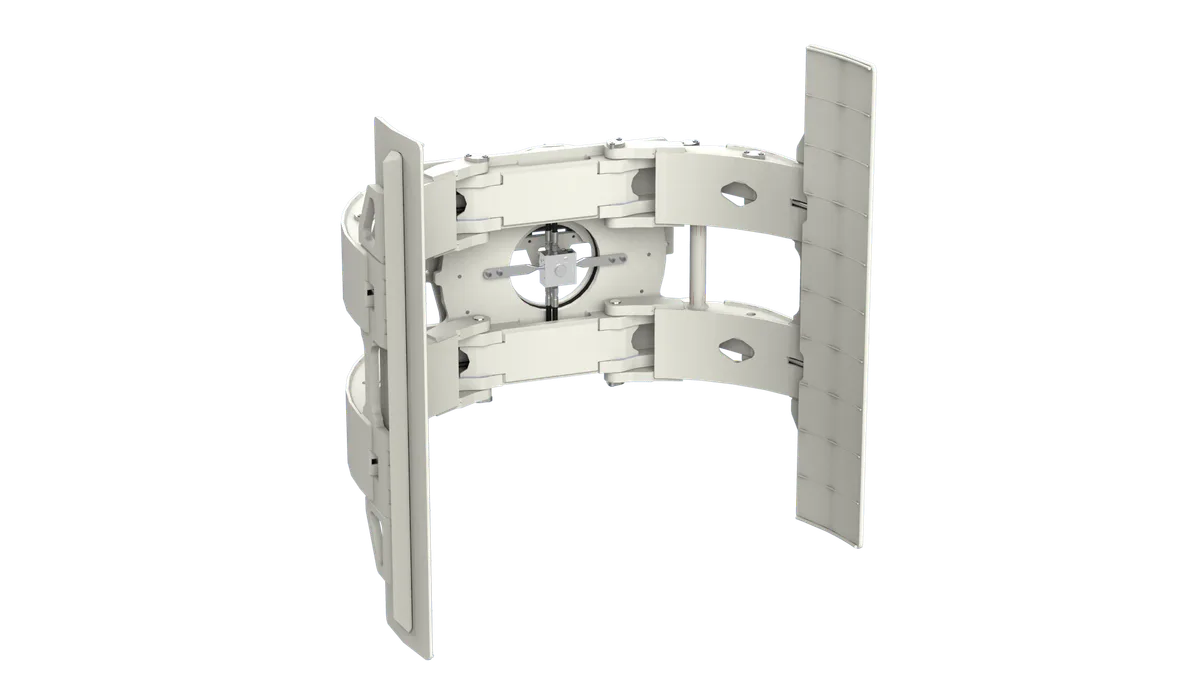

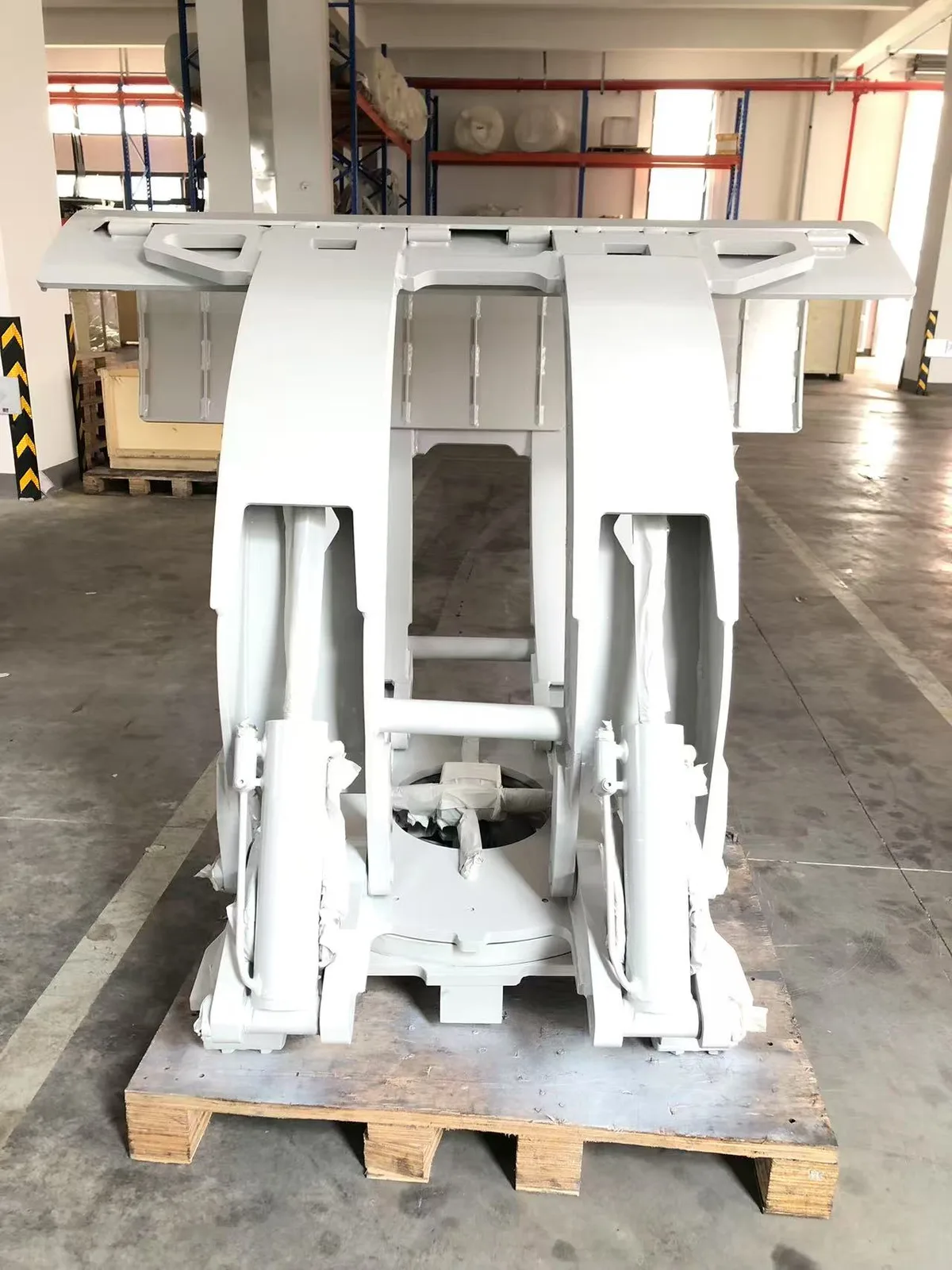

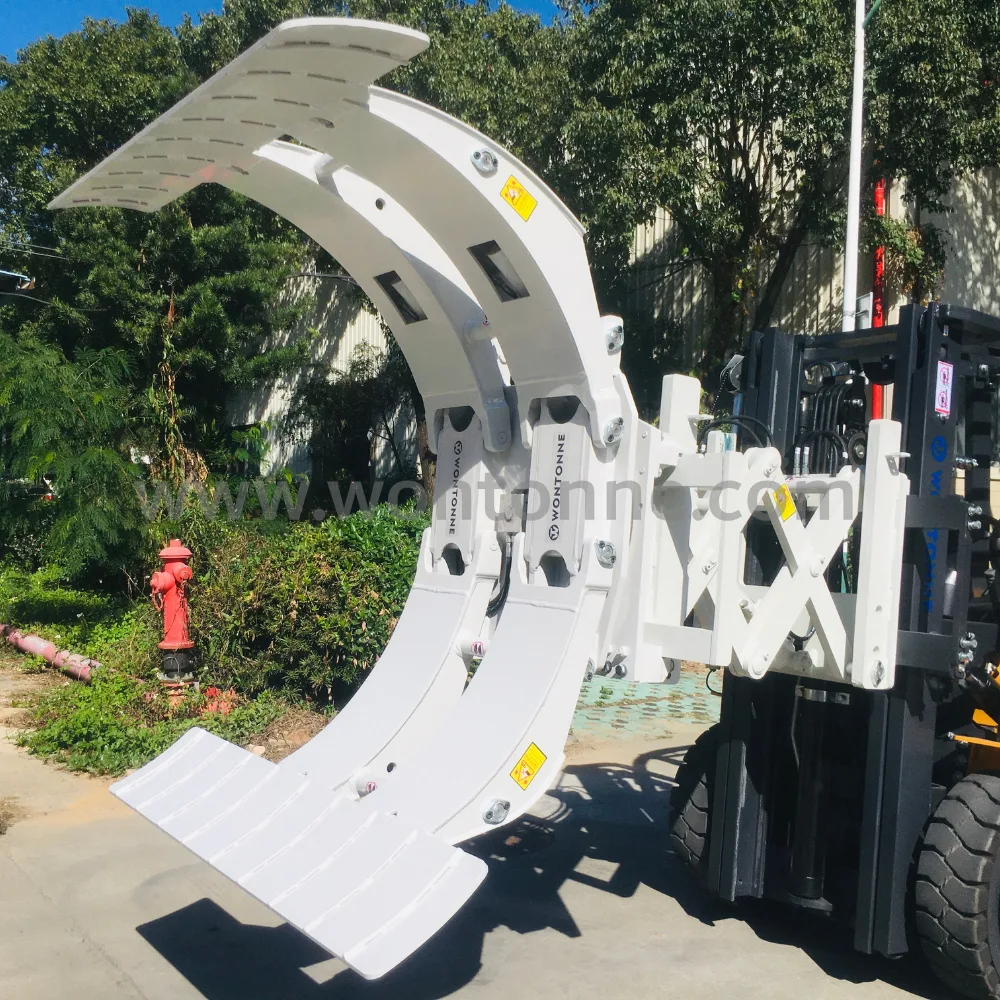

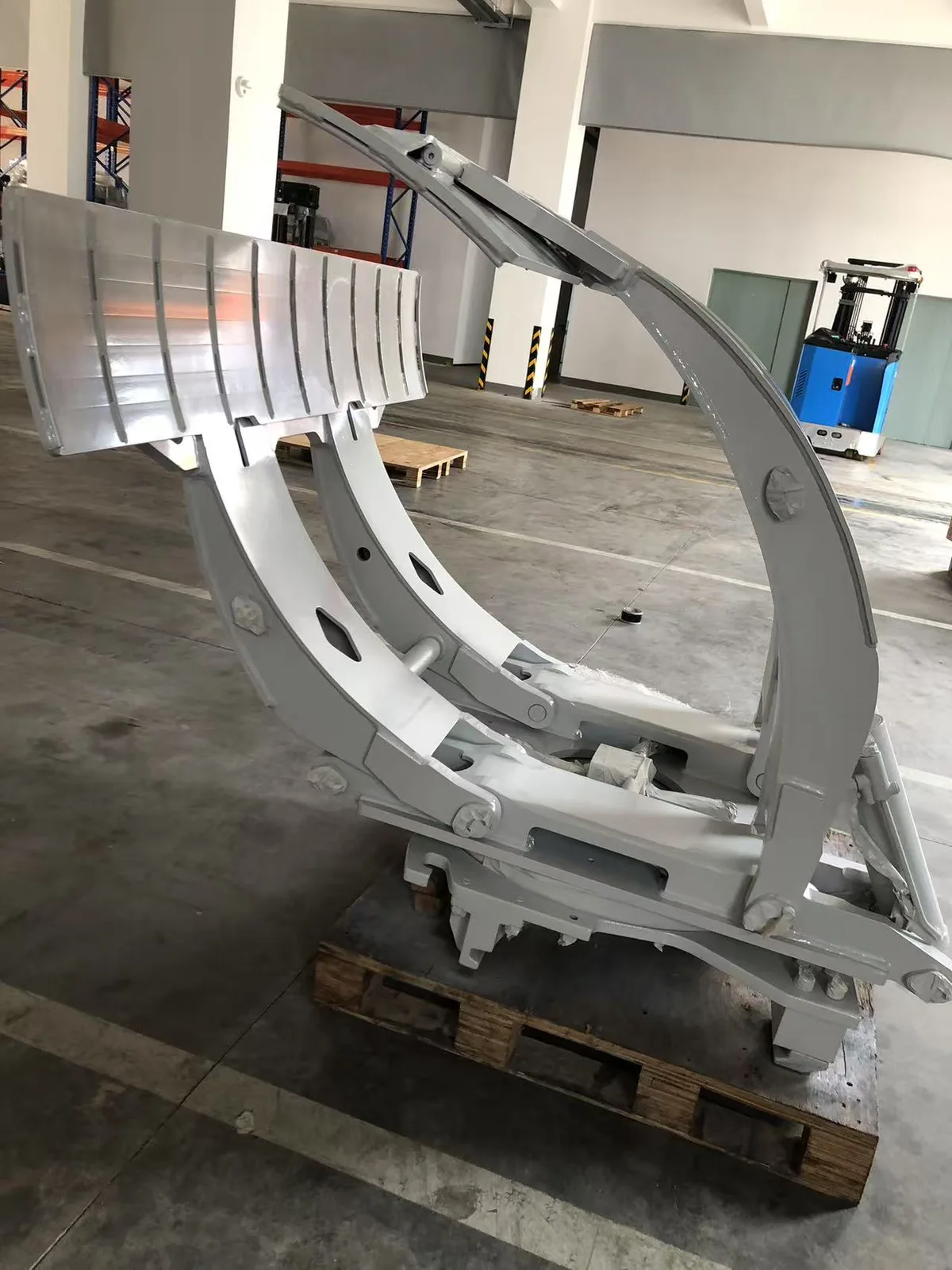

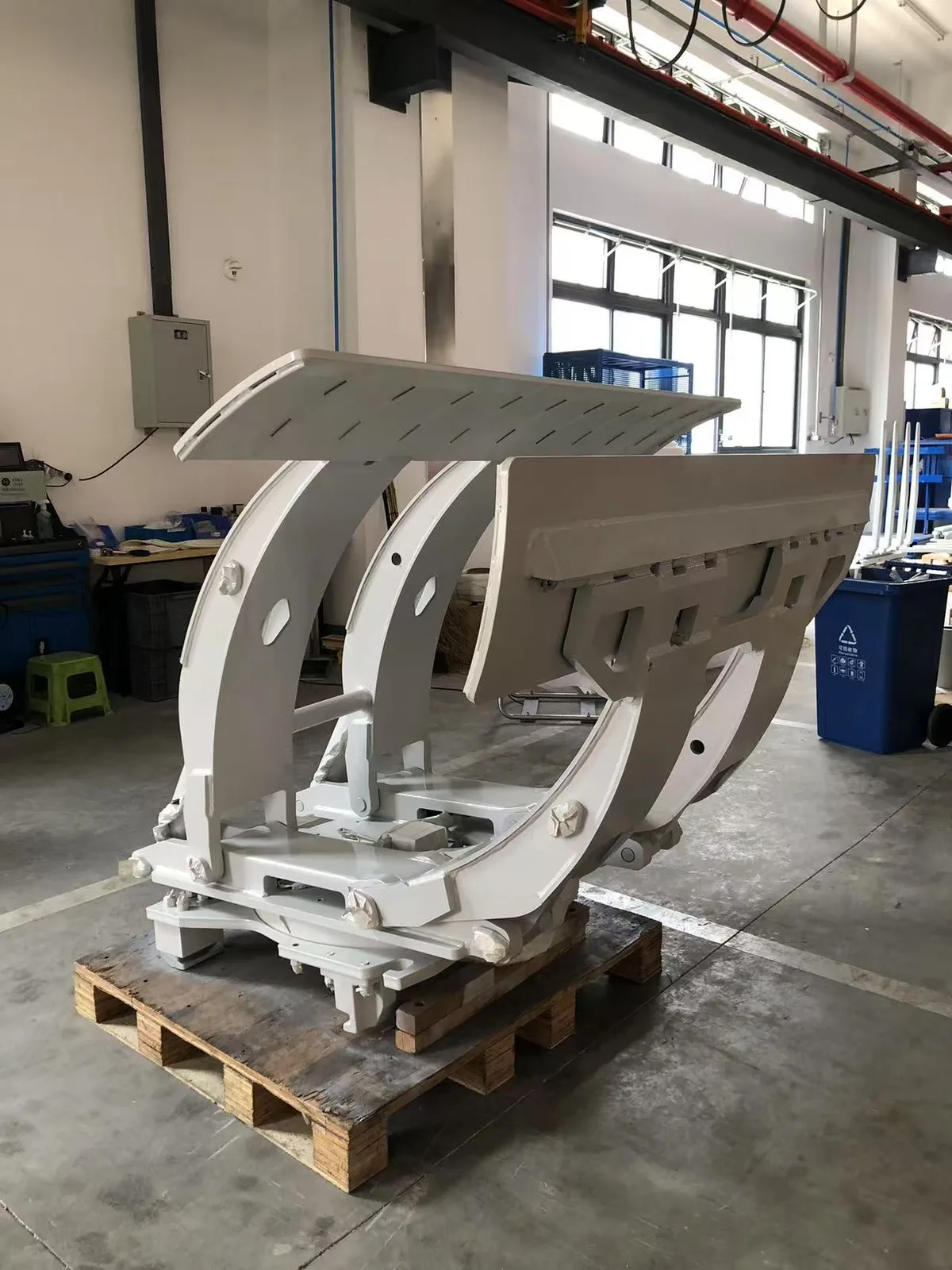

Tyre Clamp (Rotating Type)

Engineered for durability and precision, tyre clamp (rotating type) delivers reliable performance in demanding material handling environments.

All Tyre Attachments

Product Overview

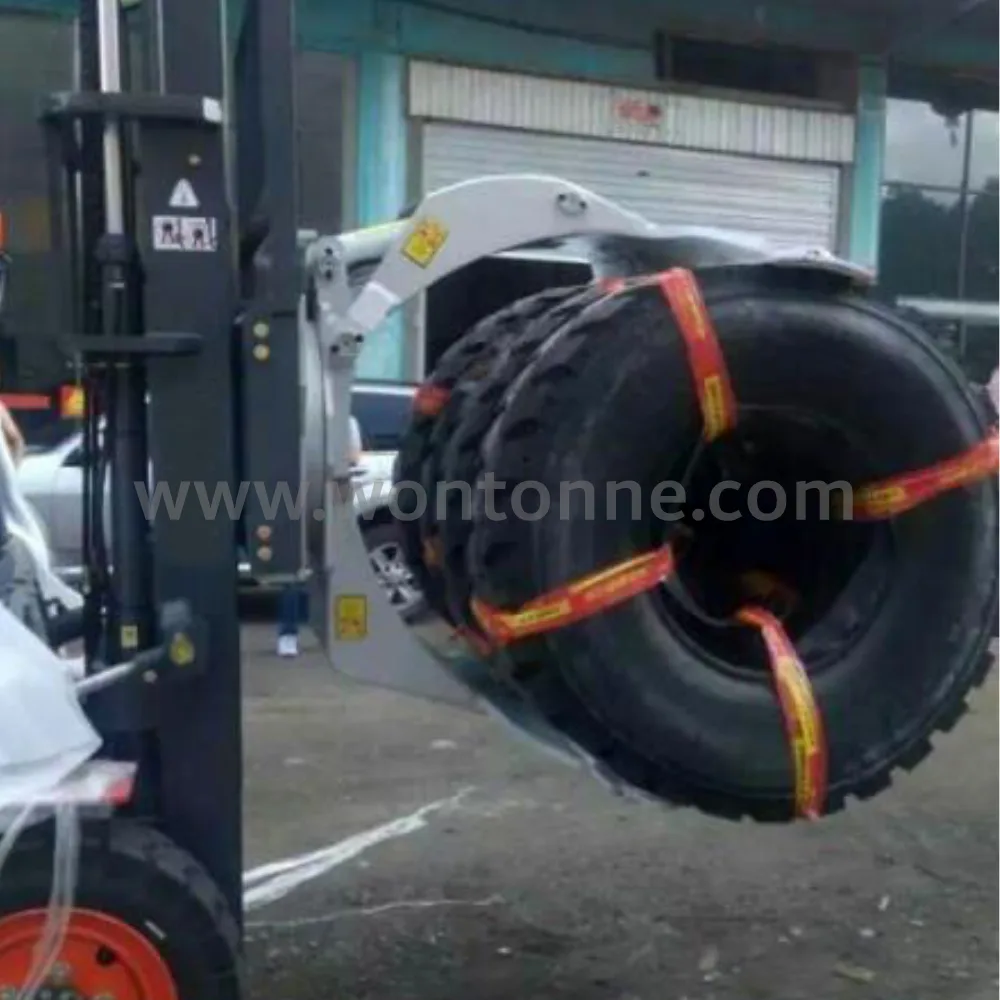

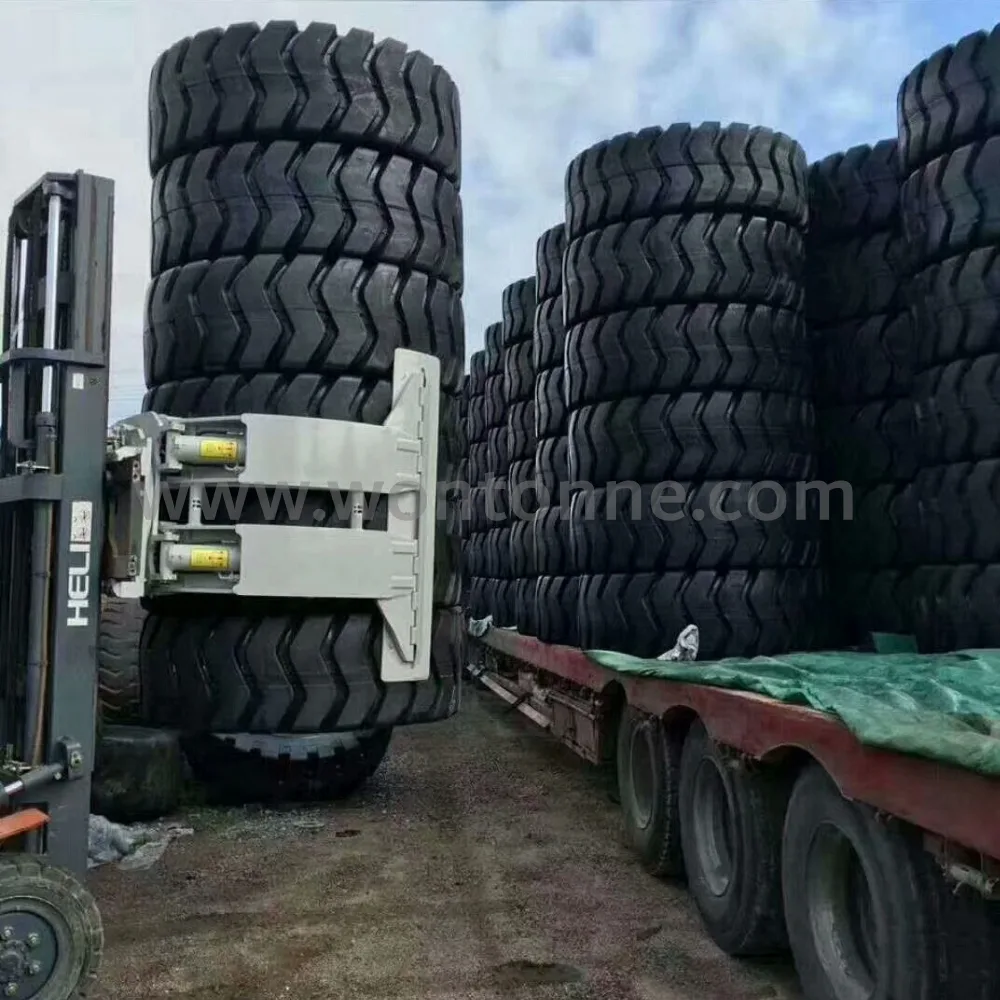

The Wontonne Tyre Clamp (Rotating Type) is widely used in all kinds of tyre handling, loading, unloading and stacking operations.

Tyre clamps are widely used in all kinds of tire handling, loading, unloading and stacking operations.

Key features & specifications:

For all tyre handling operations

Rotating function for positioning

For loading and unloading tyres

For tyre stacking

Extends forklift service life

Secure tyre clamping

Capacity up to 2200kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

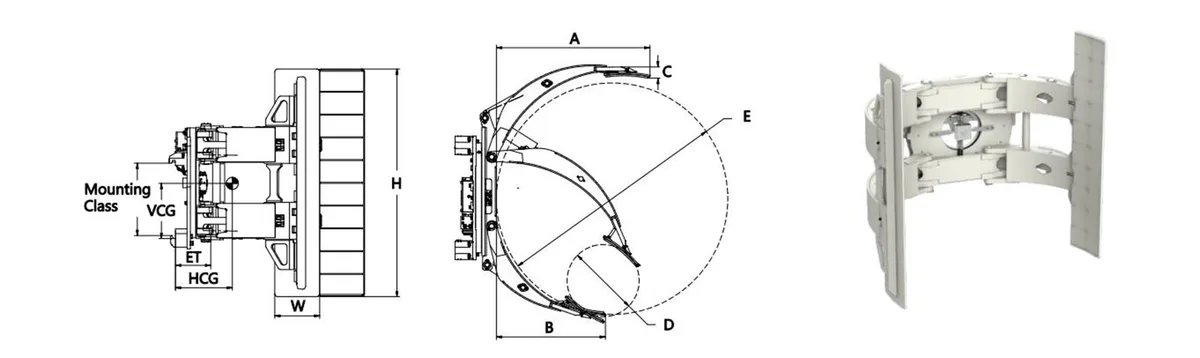

Model No	Capacity (kg)	Load Center (mm)	Opening Range (mm)	Mounting	Weight (kg)	Effective Thickness ET (mm)	Mounting Angle (°)	Long Arm Length (mm)	Short Arm Length (mm)	Arm Thickness (mm)	Contact Pad Size (mm)	Horizontal CG HCG (mm)	Vertical CG VCG (mm)
PTR15F-013A	1200	650	410-1300	ISO 2A	400	144	0°	790	580	60	1500×230	216	—
PTR15F-013B	1200	650	410-1300	ISO 3A	410	184	0°	790	580	60	1500×230	246	—
PTR20F-002A	2000	650	630-1300	ISO 2A	667	197	0°	825	570	95	1500×300	282	343
PTR20F-002B	2000	650	630-1300	ISO 3A	681	237	0°	825	570	95	1500×300	320	343
PTR20F-004A	2000	750	530-1500	ISO 2A	744	197	0°	955	775	95	1500×300	280	343
PTR20F-004B	2000	750	530-1500	ISO 3A	758	237	0°	955	775	95	1500×300	304	343
PTR20F-005A	2000	800	630-1600	ISO 2A	755	197	0°	955	775	95	1500×300	301	343
PTR20F-005B	2000	800	630-1600	ISO 3A	755	237	0°	955	775	95	1500×300	301	343
PTR20F-007A	1700	915	680-1830	ISO 2A	880	197	0°	1130	930	95	1500×300	445	343
PTR20F-007B	1700	915	680-1830	ISO 3A	880	237	0°	1130	930	95	1500×300	445	343
