What is the capacity of the Tyre Clamp (Sliding Arm Type)?

The Tyre Clamp (Sliding Arm Type) handles 1200-1500 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the Tyre Clamp (Sliding Arm Type) use?

The Tyre Clamp (Sliding Arm Type) is available for ISO 3A / ISO 2A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the Tyre Clamp (Sliding Arm Type) are available?

Wontonne offers 4 models of the Tyre Clamp (Sliding Arm Type) — including PTS20D-200B, PTS30D-009B, PTS20D-200A, PTS30D-119B — with different capacities and load centers for various applications.

What is the difference between tyre clamps and grippers?

Tyre clamps grip tyres horizontally between arms — ideal for stacked tyre handling. Tyre grippers hold tyres vertically with a C-frame — used for OTR, truck and aircraft tyres from the tread side.

What capacity range is covered?

Tyre attachments span 1000-5200 kg — from passenger tyre grippers (1000-2000 kg) to heavy tyre clamps up to 5200 kg.

Products / Tyre Attachments / Tyre Clamp (Sliding Arm Type)

Tyre Attachments

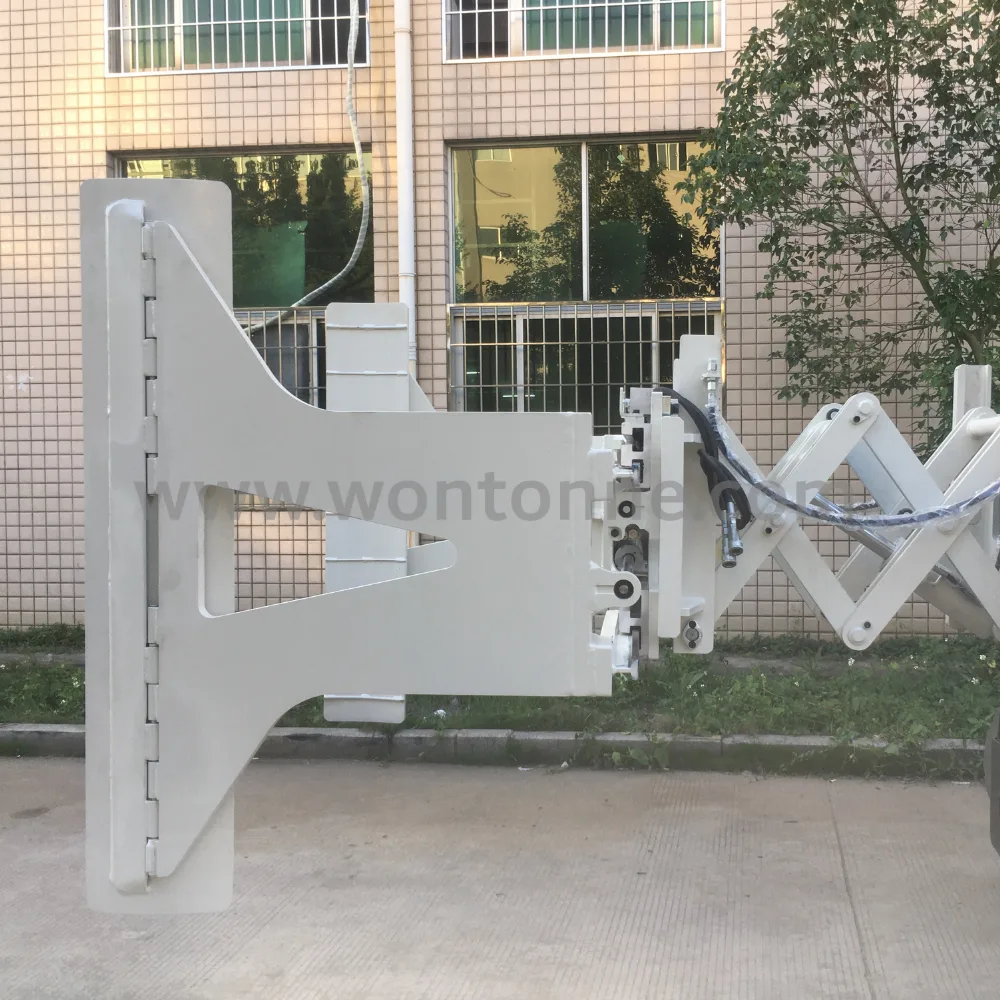

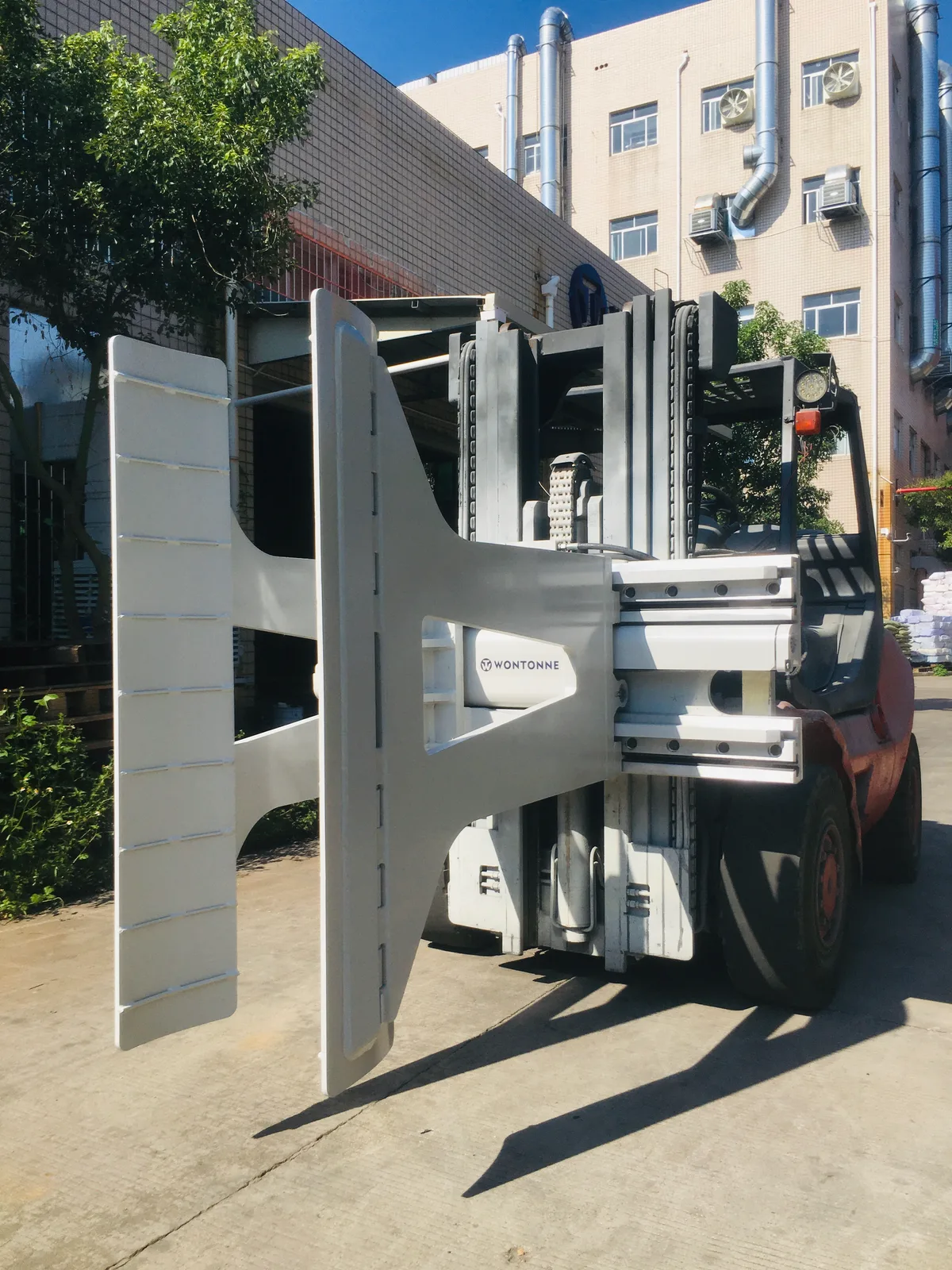

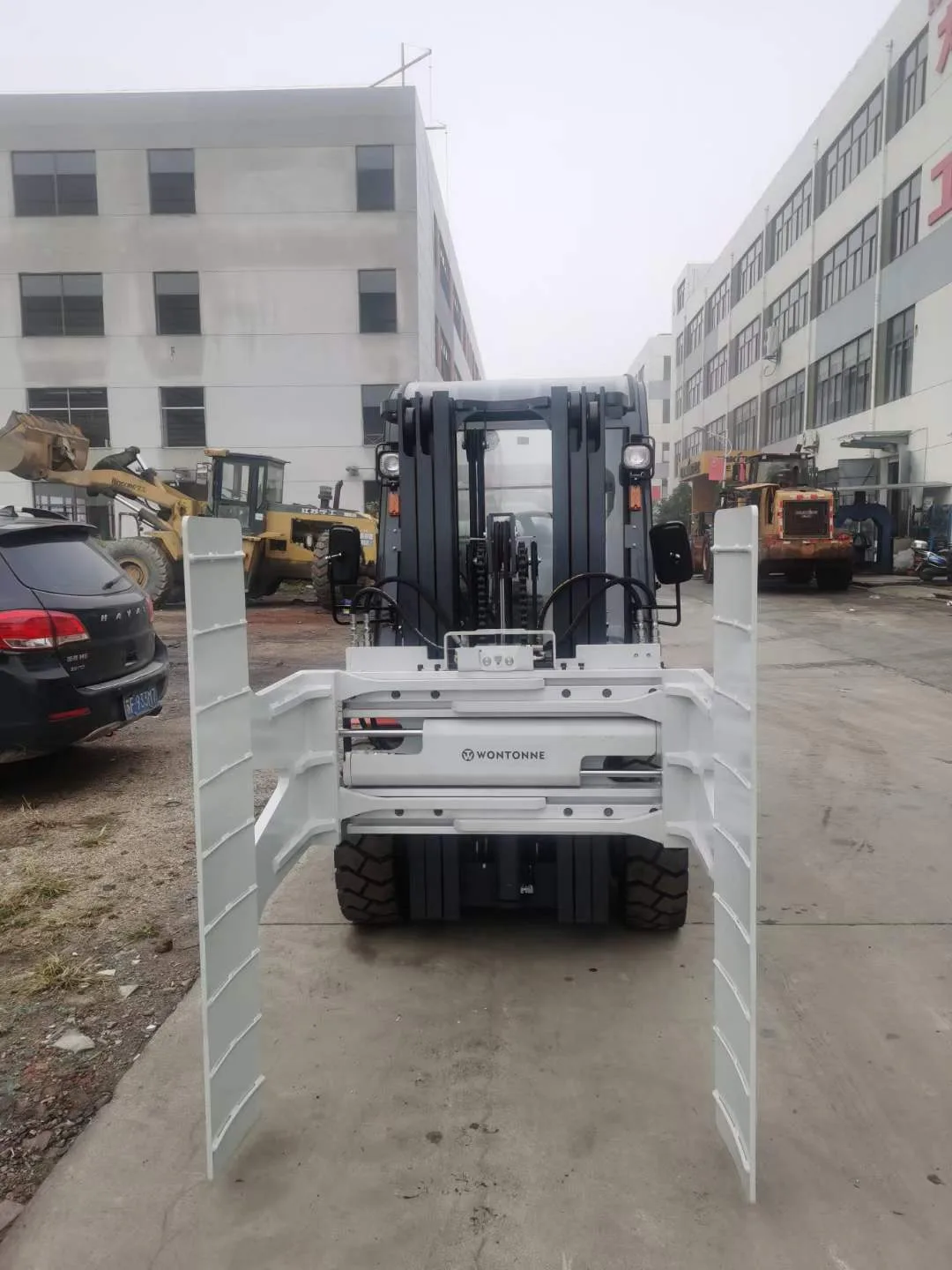

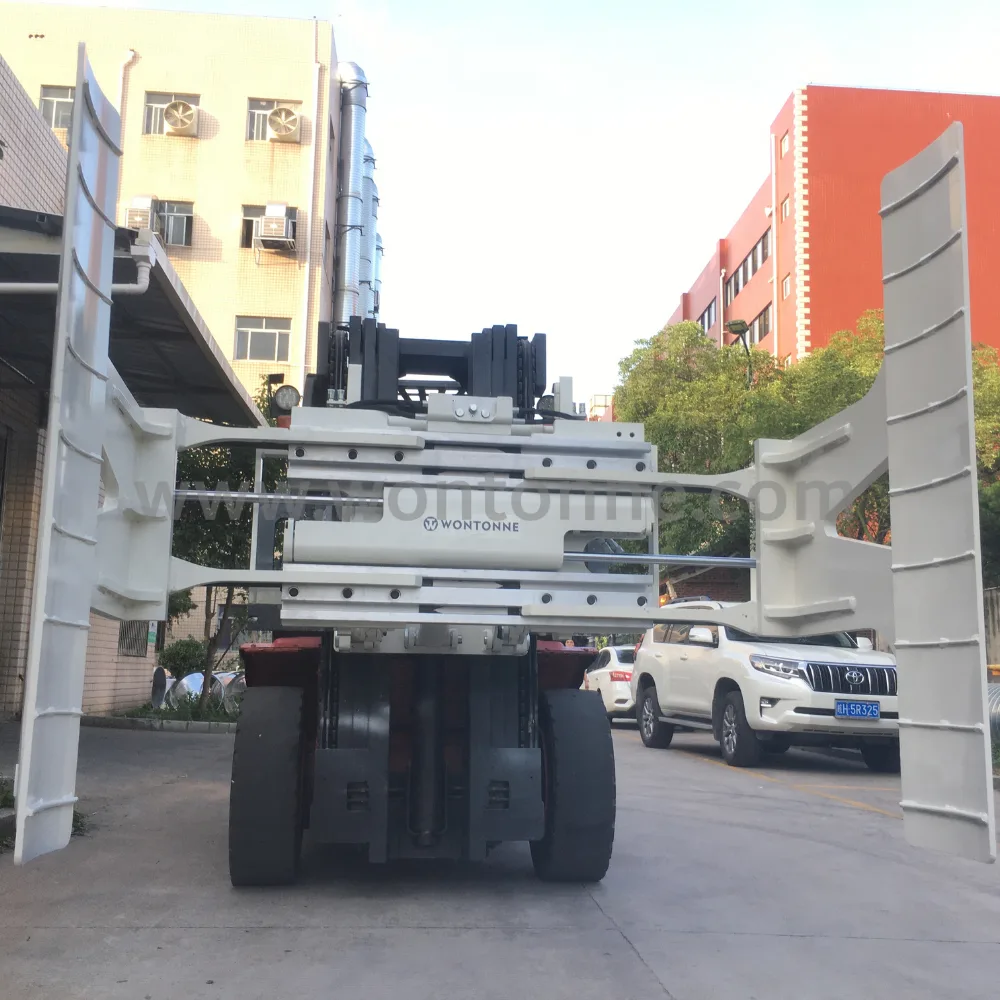

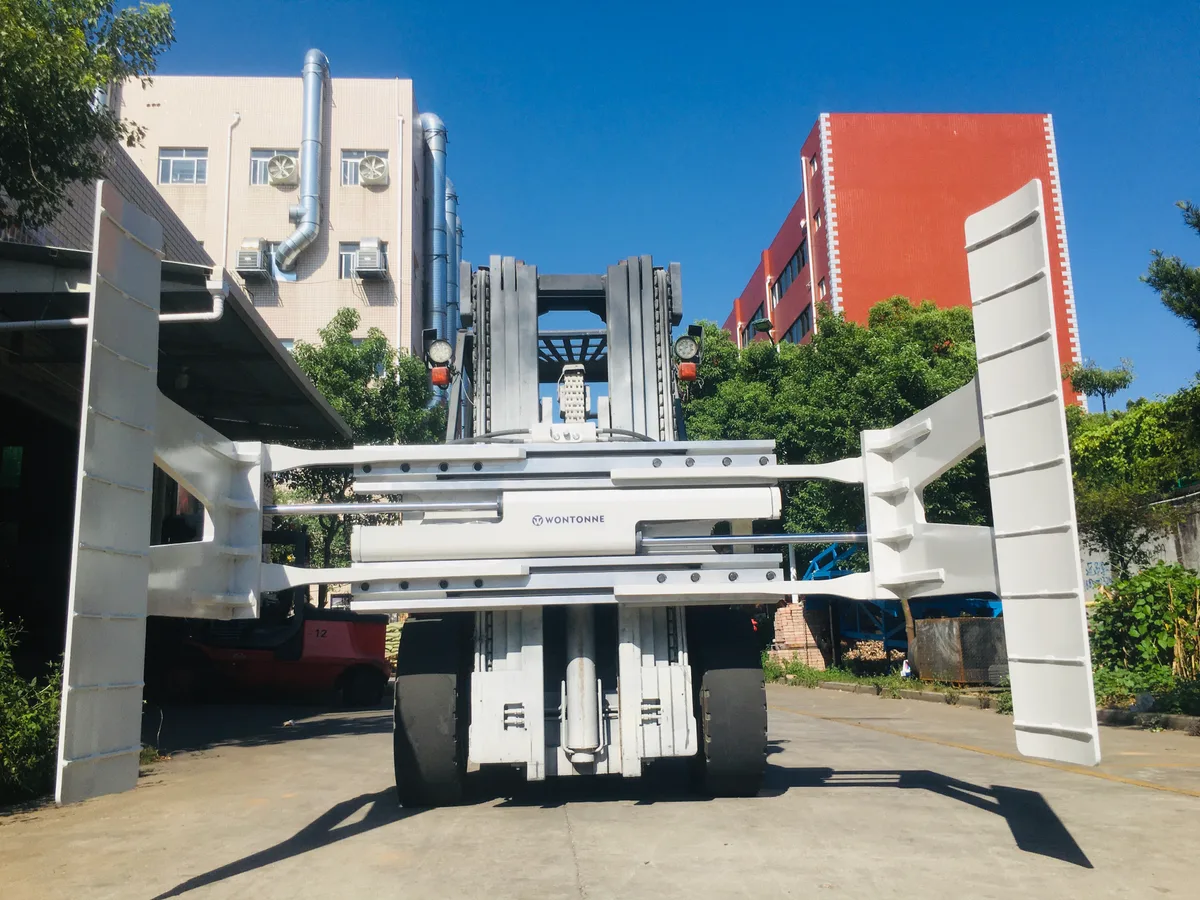

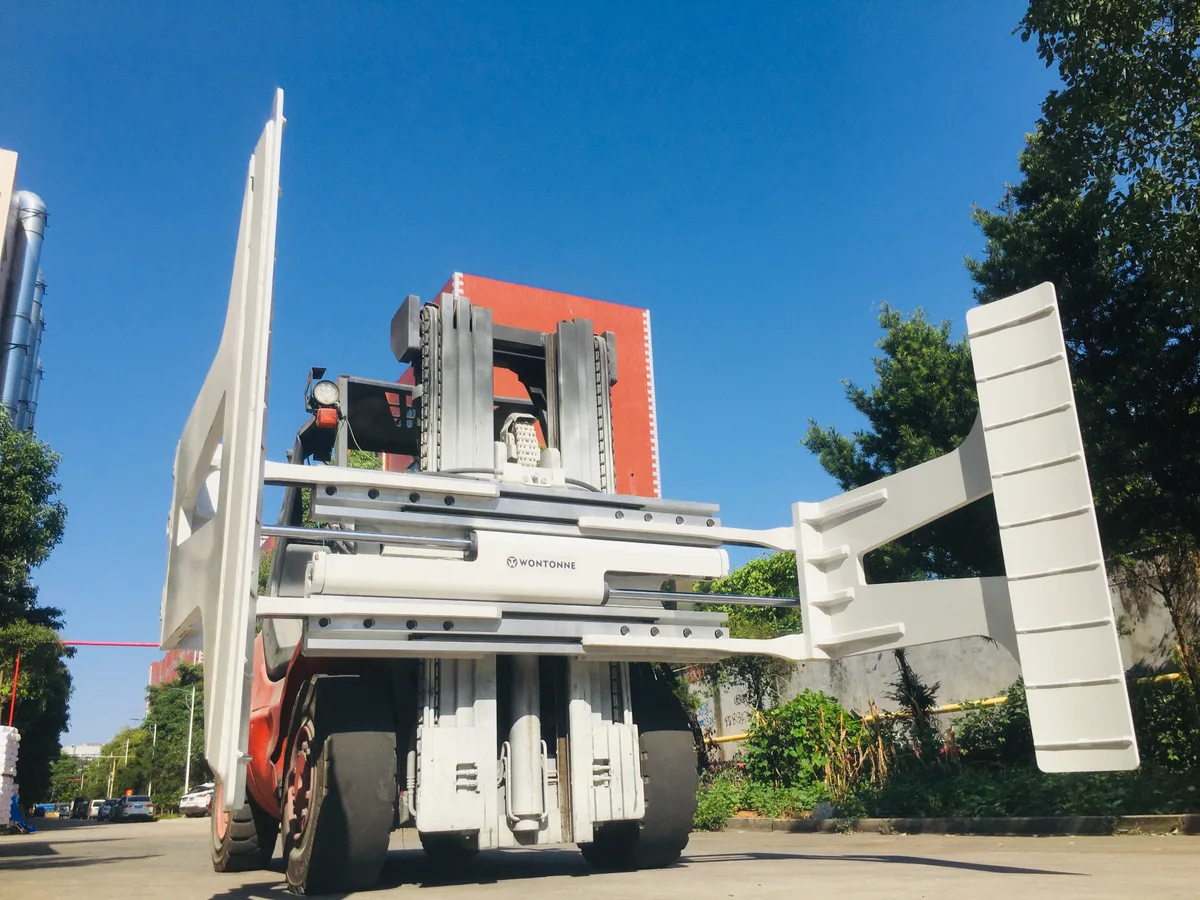

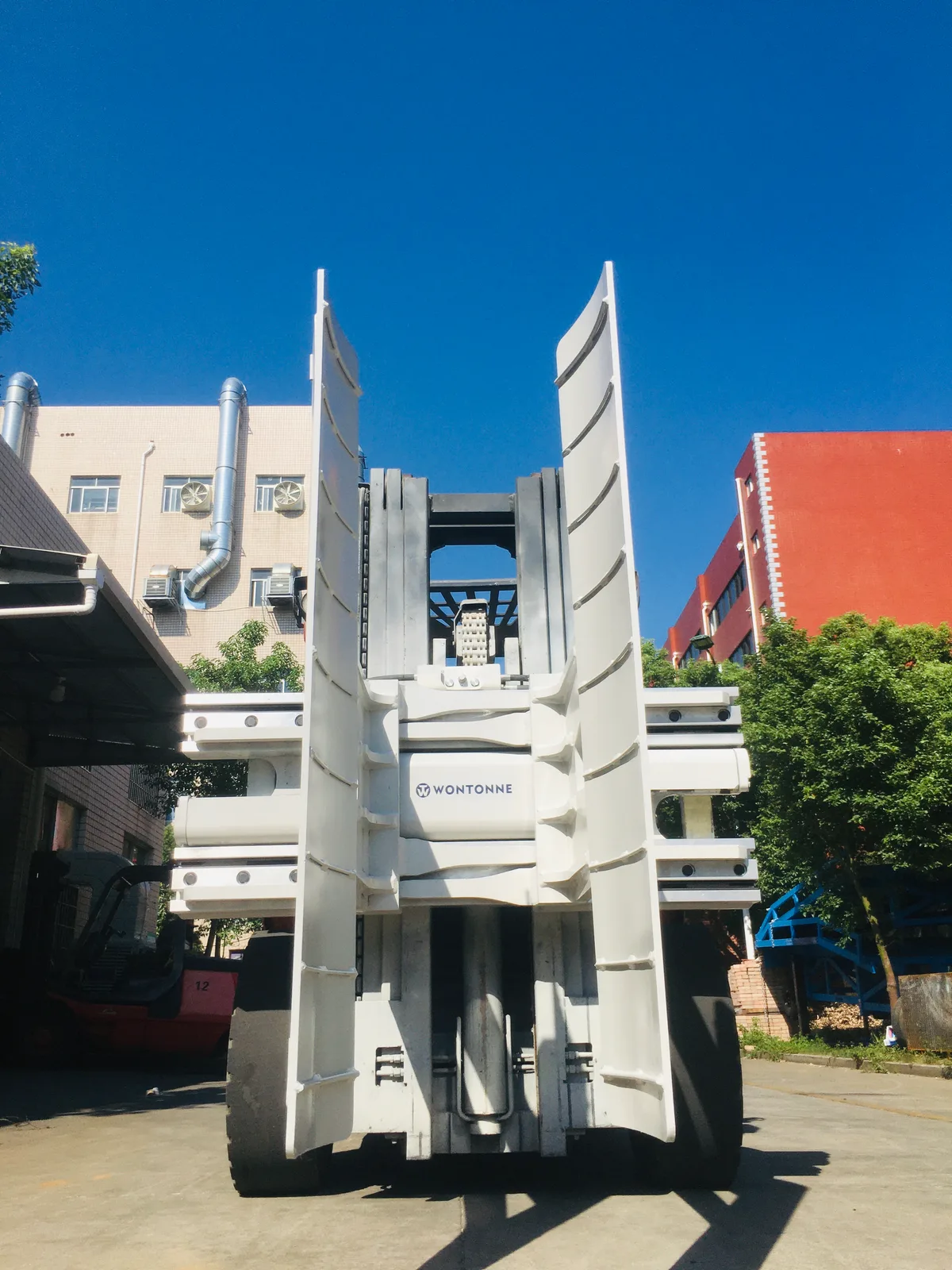

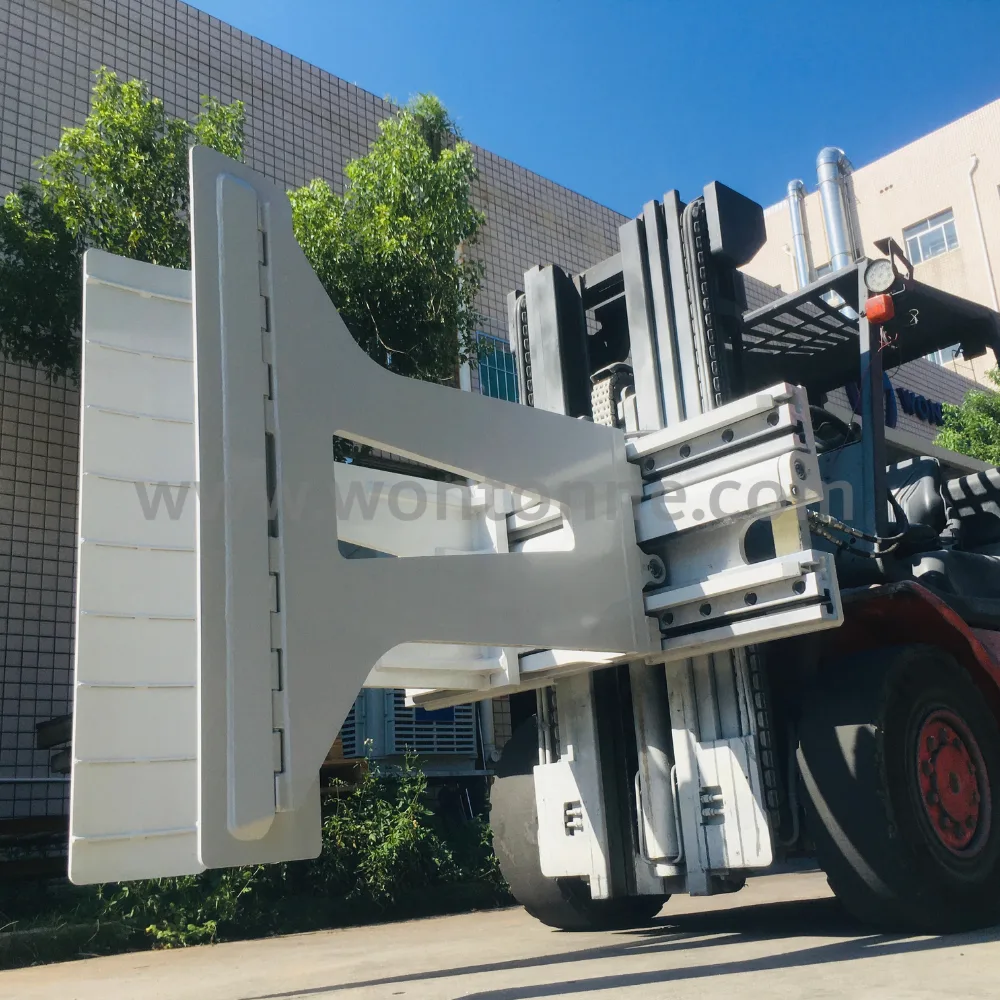

Tyre Clamp (Sliding Arm Type)

Engineered for durability and precision, tyre clamp (sliding arm type) delivers reliable performance in demanding material handling environments.

All Tyre Attachments

Product Overview

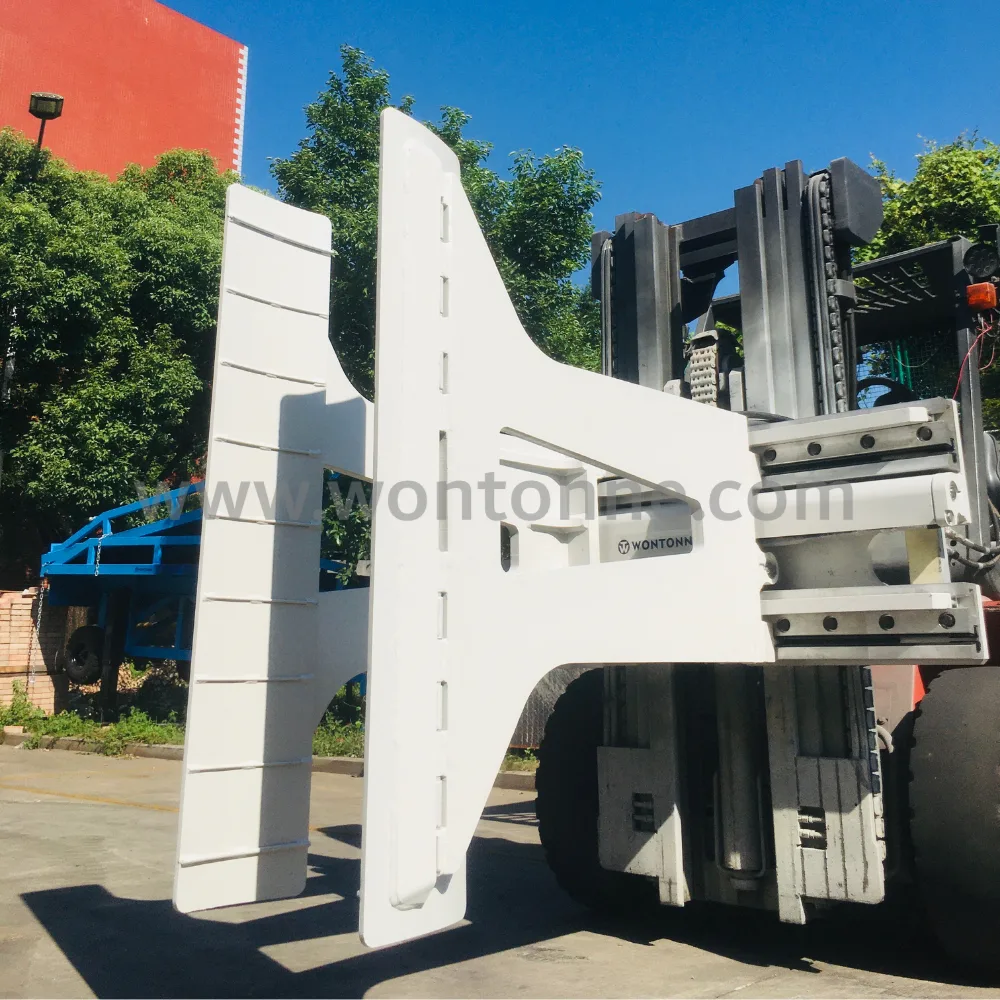

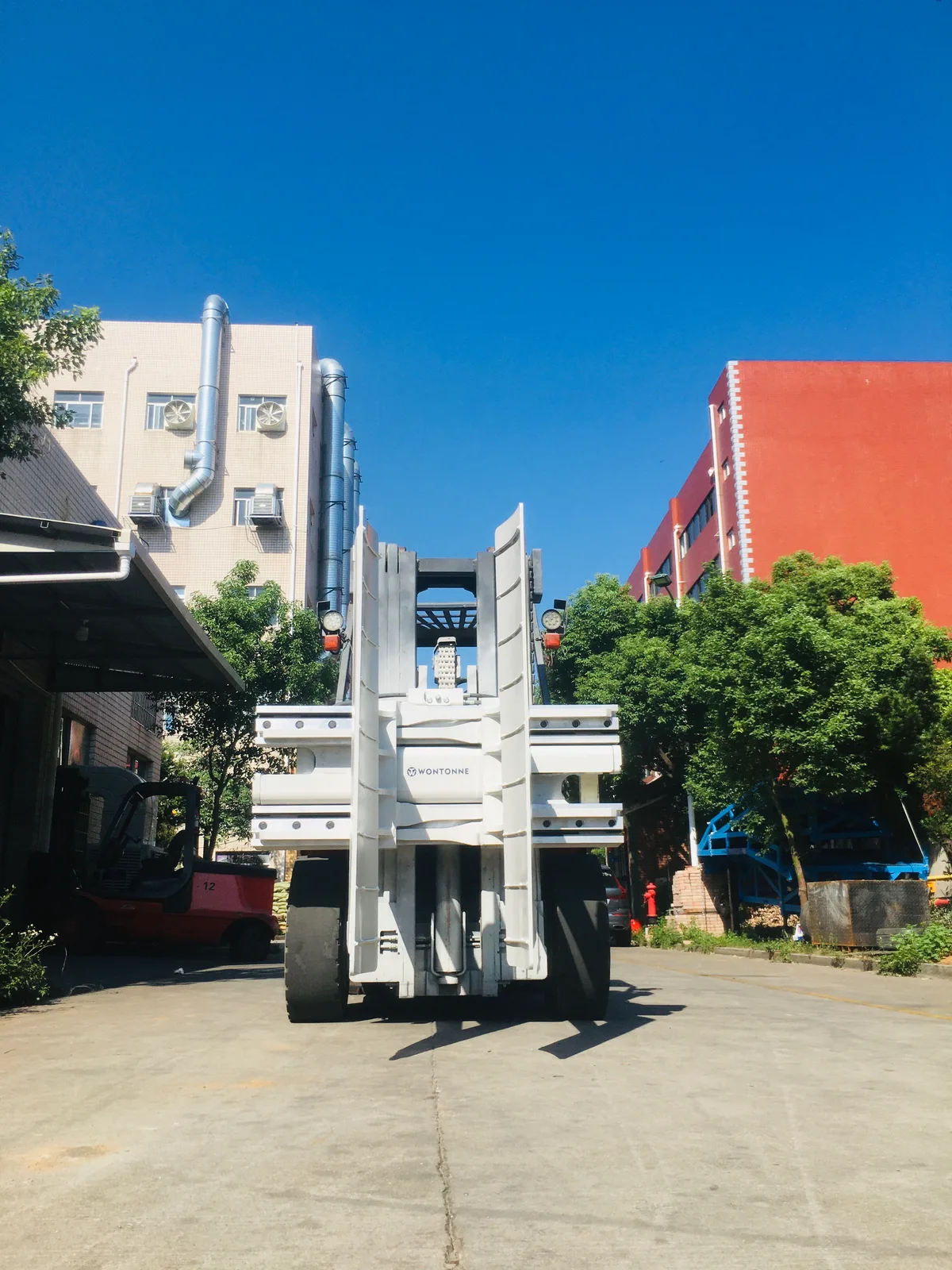

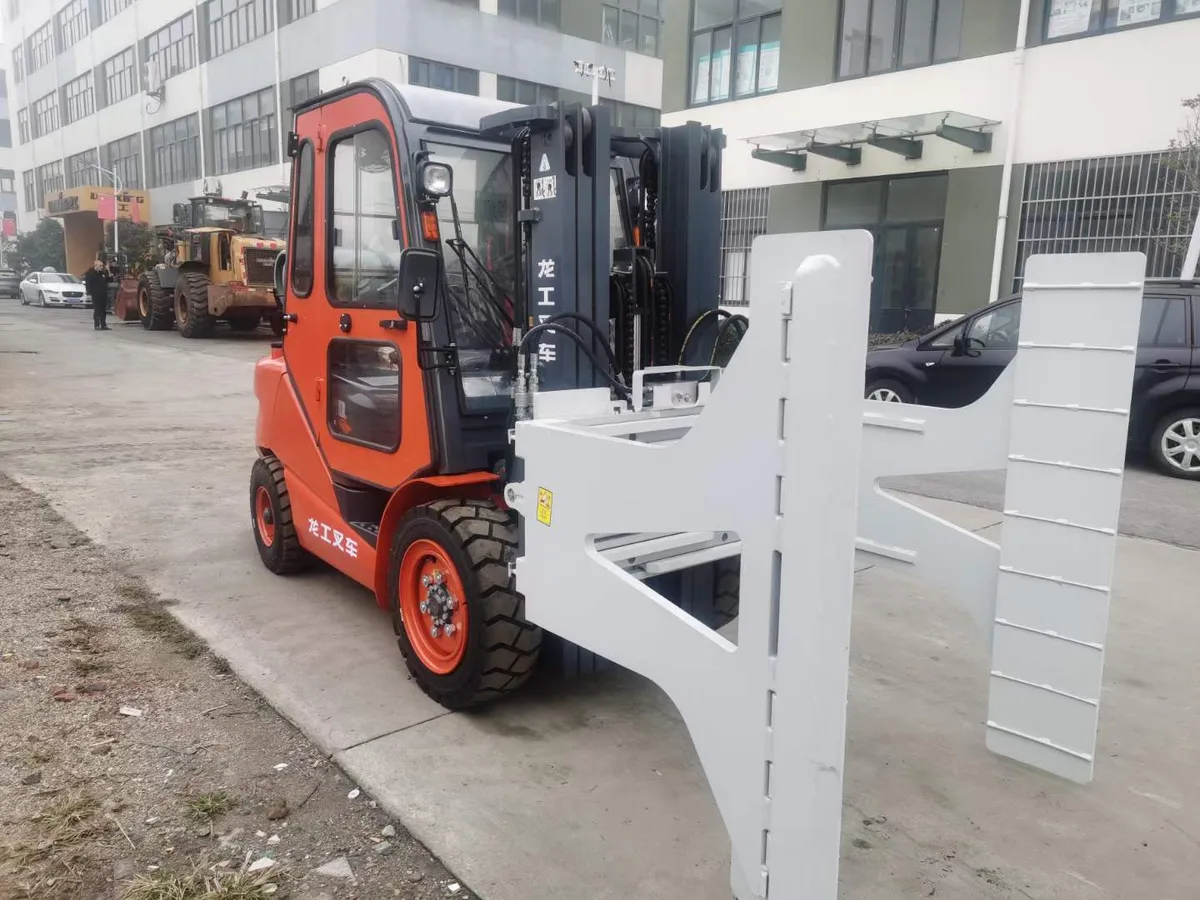

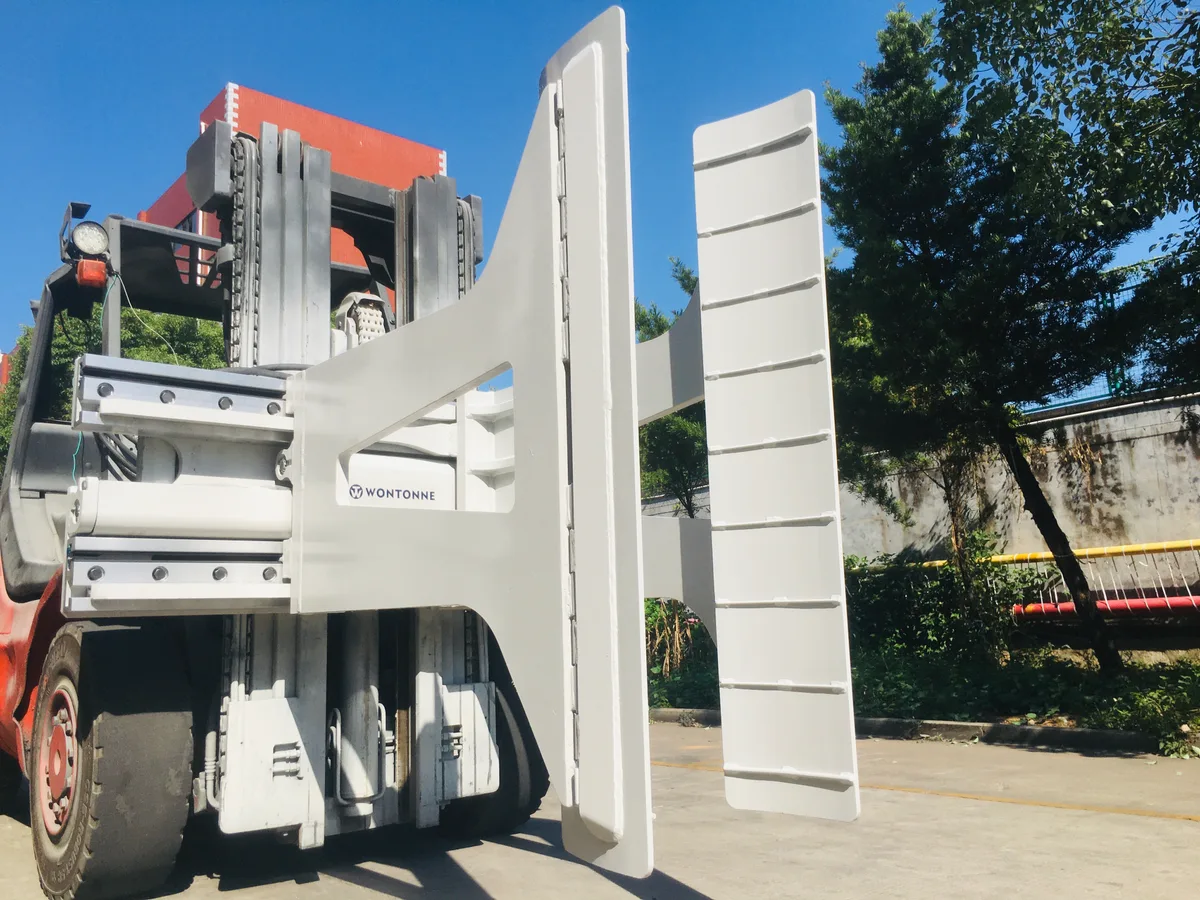

The Wontonne Tyre Clamp (Sliding Arm Type) is widely used in the tyre industry to handle, load, unload and stack all kinds of tyres.

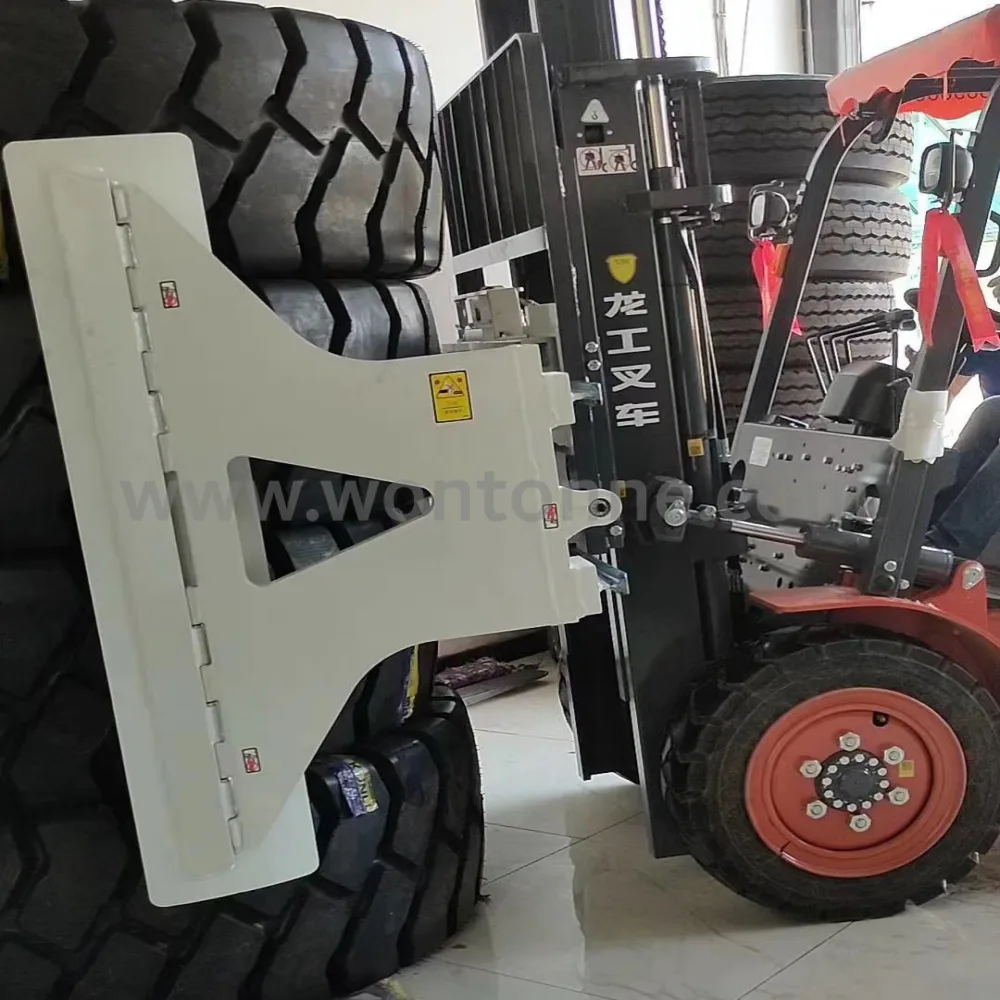

Tyre clamps are widely used in all kinds of tire handling, loading, unloading and stacking operations.

Key features & specifications:

For tyre industry applications

Sliding arm adjustment

Handles various tyre sizes

For loading and unloading tyres

For tyre stacking

Secure tyre clamping

Capacity up to 1200kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

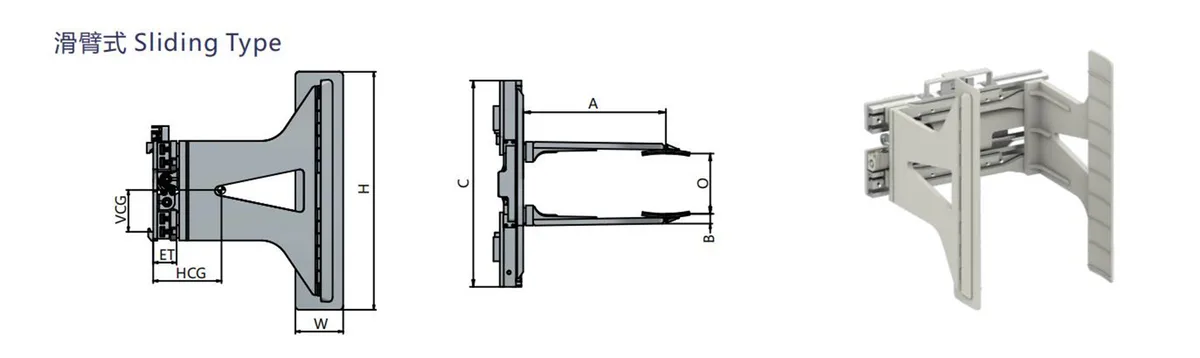

Model No	Capacity (kg)	Load Center (mm)	Opening Range (mm)	Mounting	Weight (kg)	Effective Thickness ET (mm)	Arm Length (mm)	Arm Thickness (mm)	Frame Width (mm)	Contact Pad Size (mm)	Vertical CG VCG (mm)	Horizontal CG HCG (mm)
PTS20D-200B	1200	900	450-1730	ISO 3A	655	133	900	80	1040	1500×300	236	462
PTS30D-009B	1200	1150	480-2300	ISO 3A	900	148	1150	80	1600	1500×300	260	475
PTS20D-200A	1200	900	450-1730	ISO 2A	623	128	900	80	1040	1500×300	228	474
PTS30D-119B	1500	900	400-1800	ISO 3A	628	148	900	80	1300	1500×300	261	431
