Tyre Gripper
Engineered for durability and precision, tyre gripper delivers reliable performance in demanding material handling environments.
Product Overview

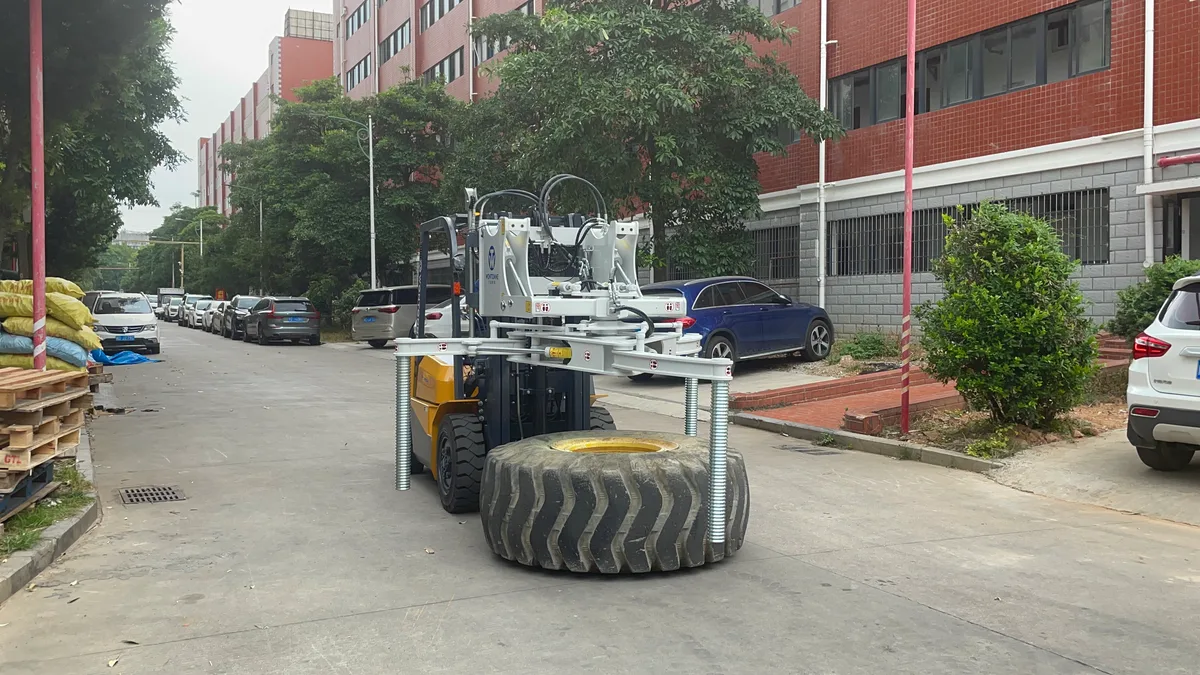

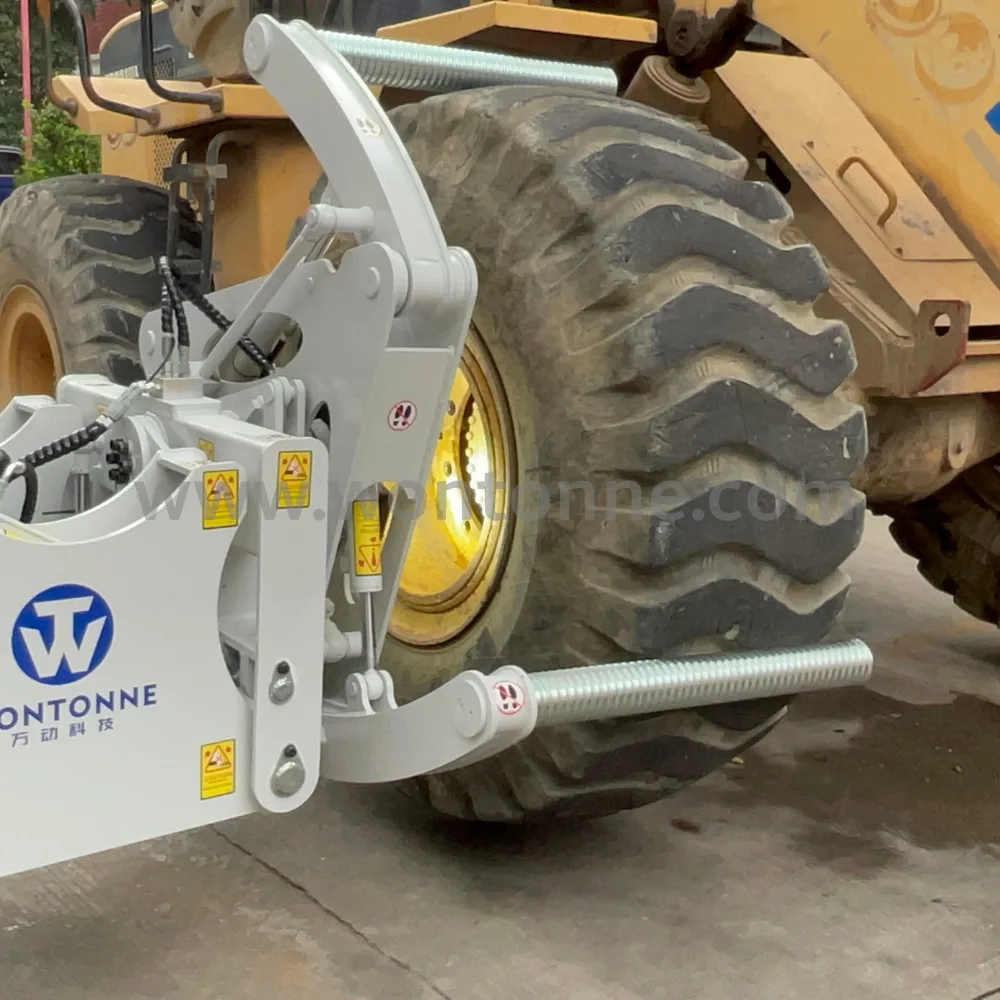

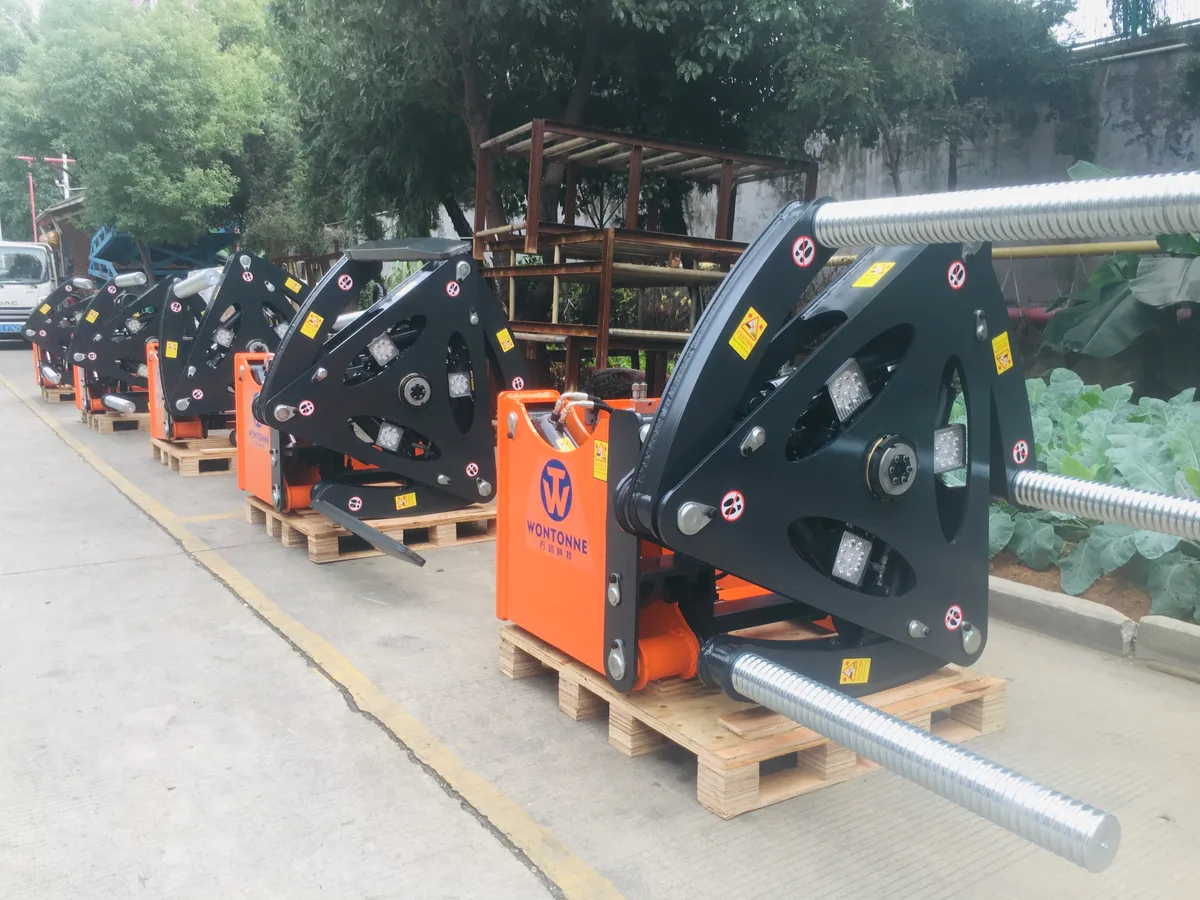

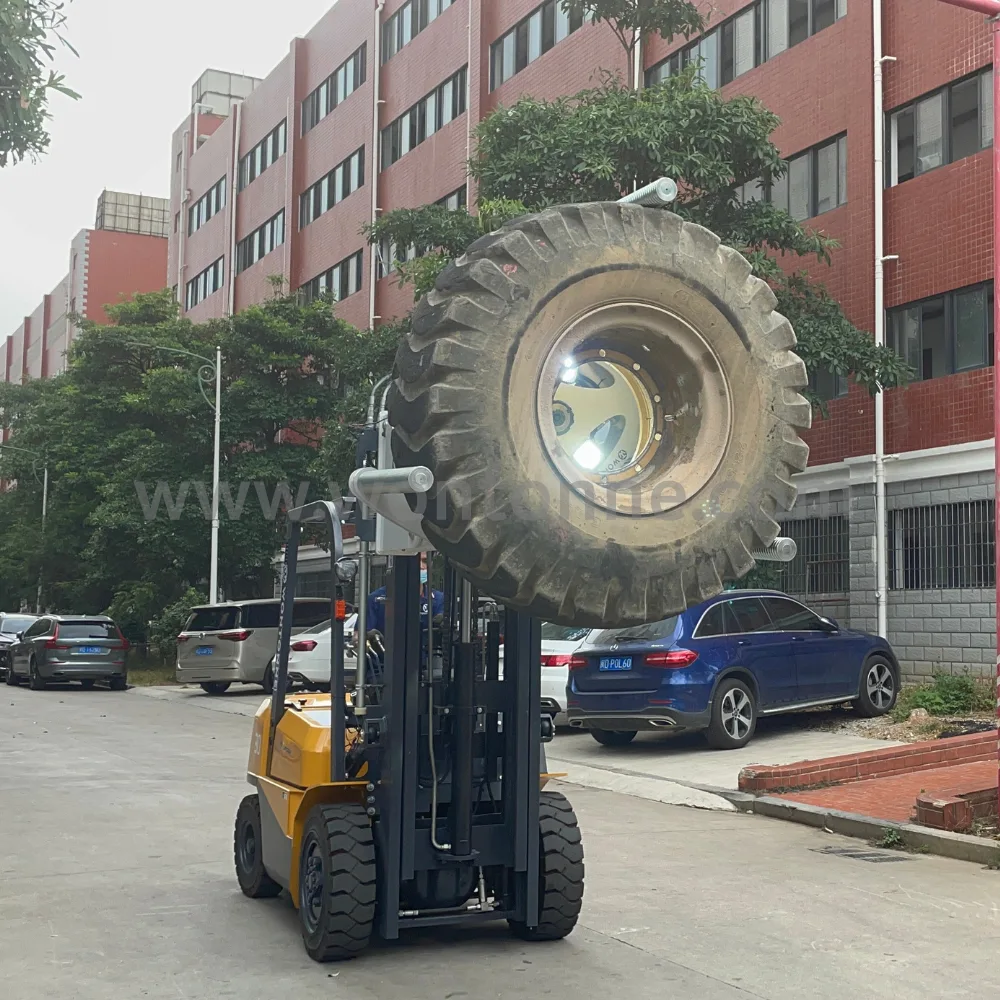

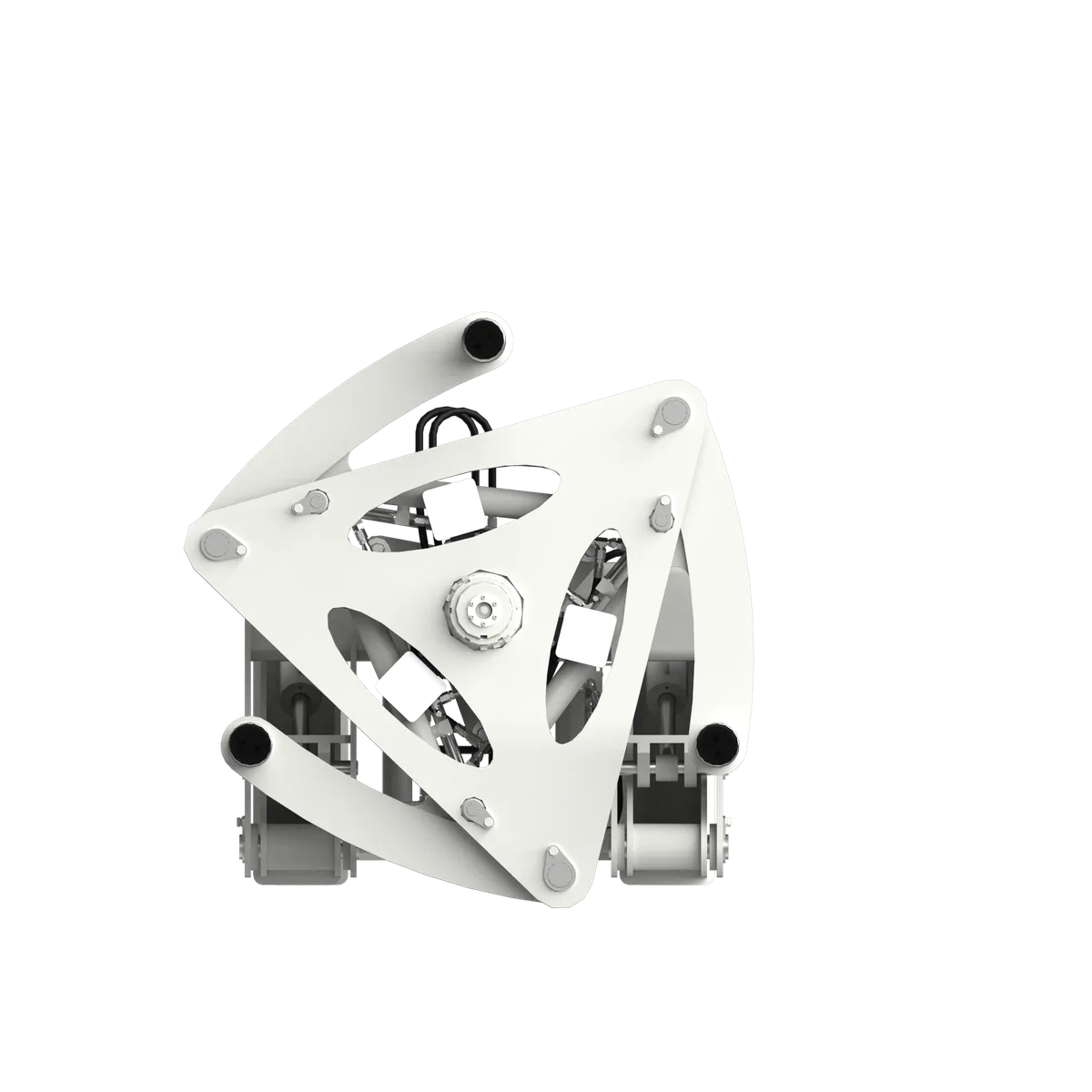

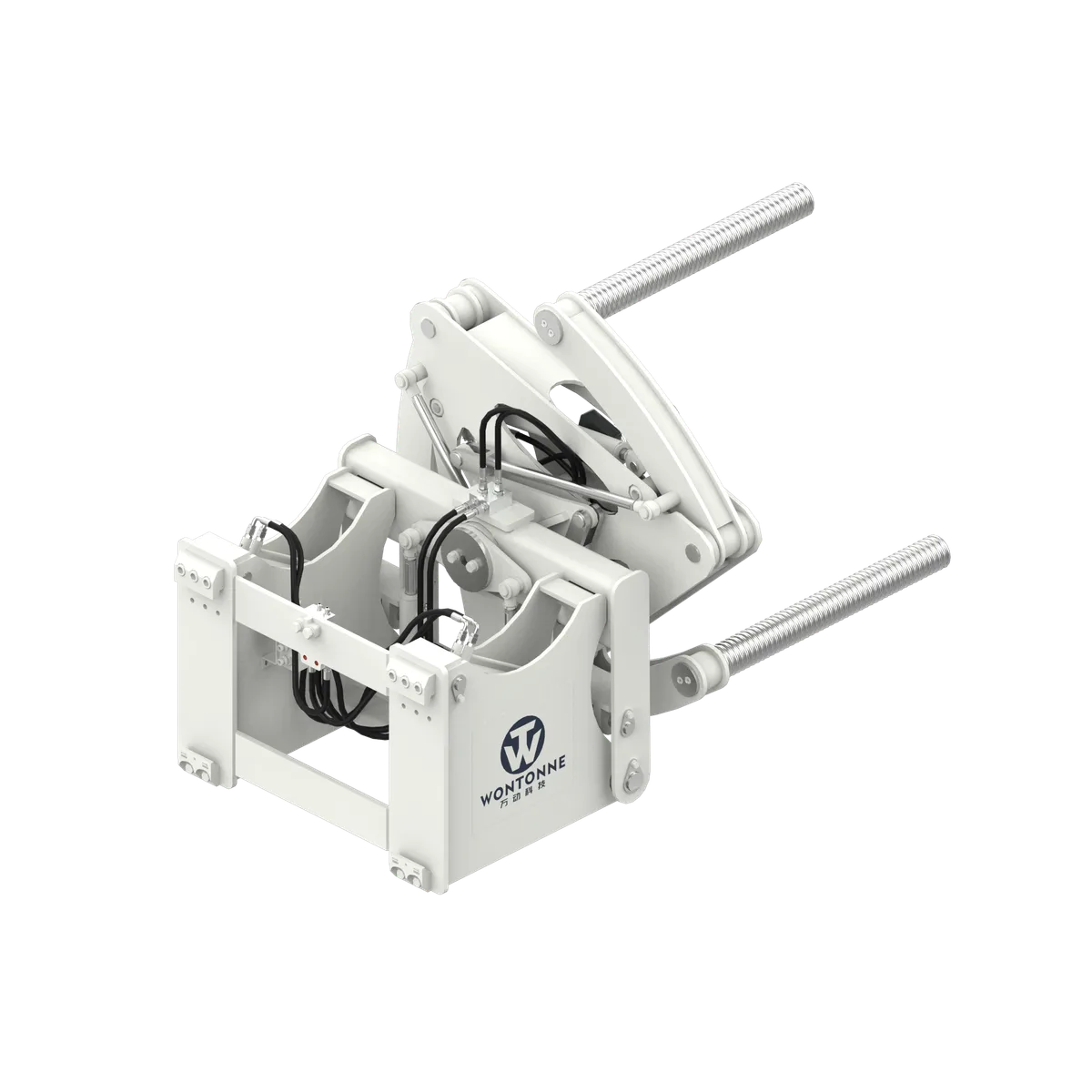

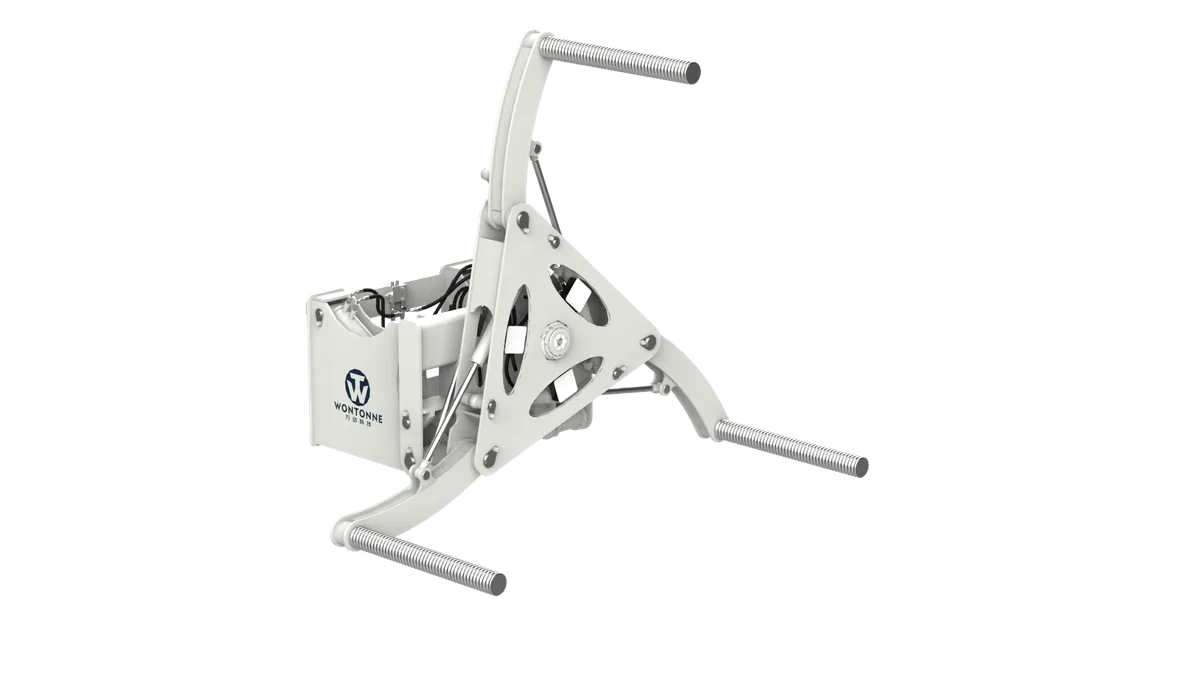

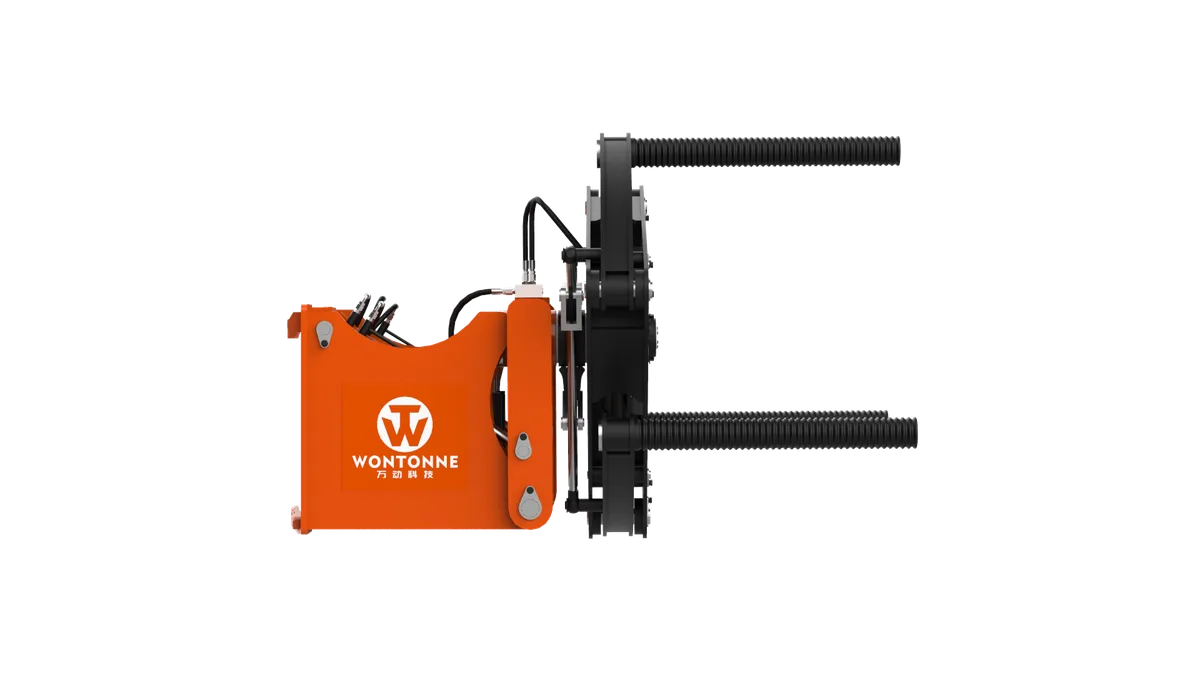

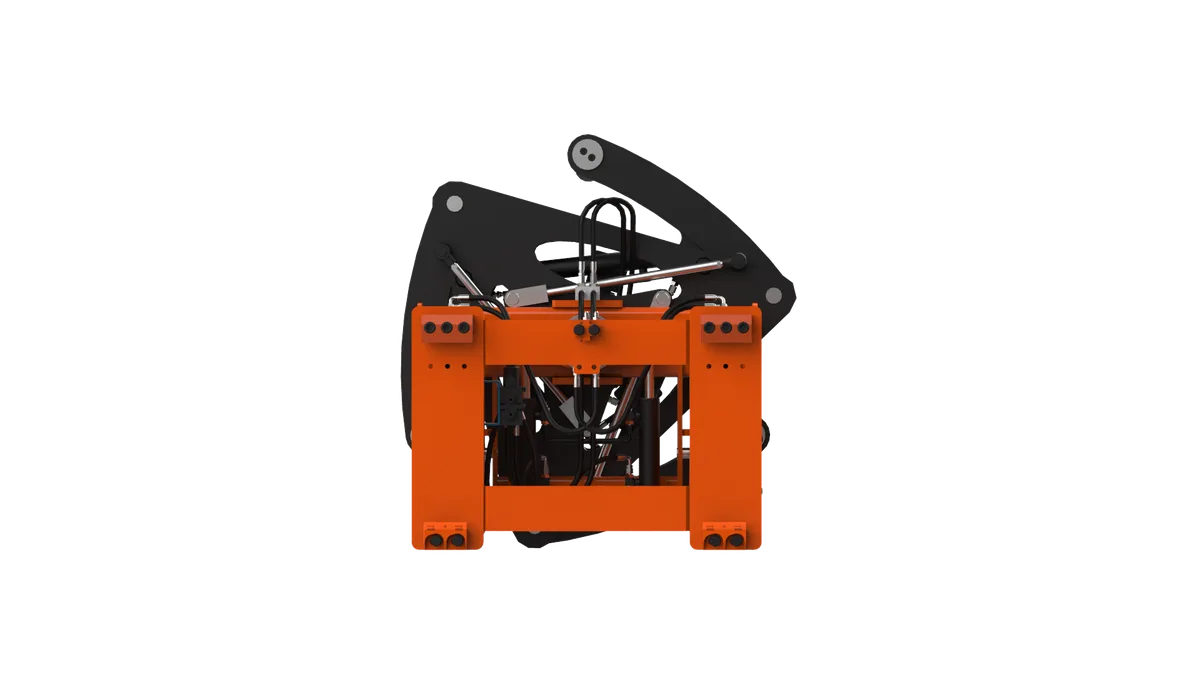

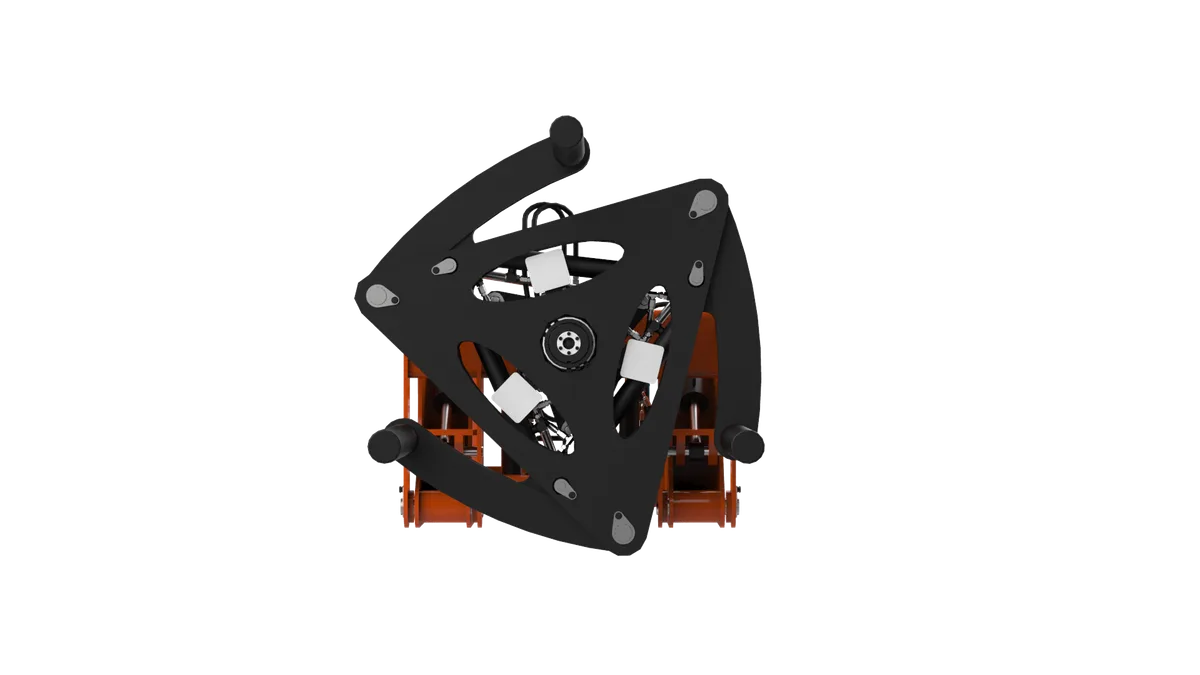

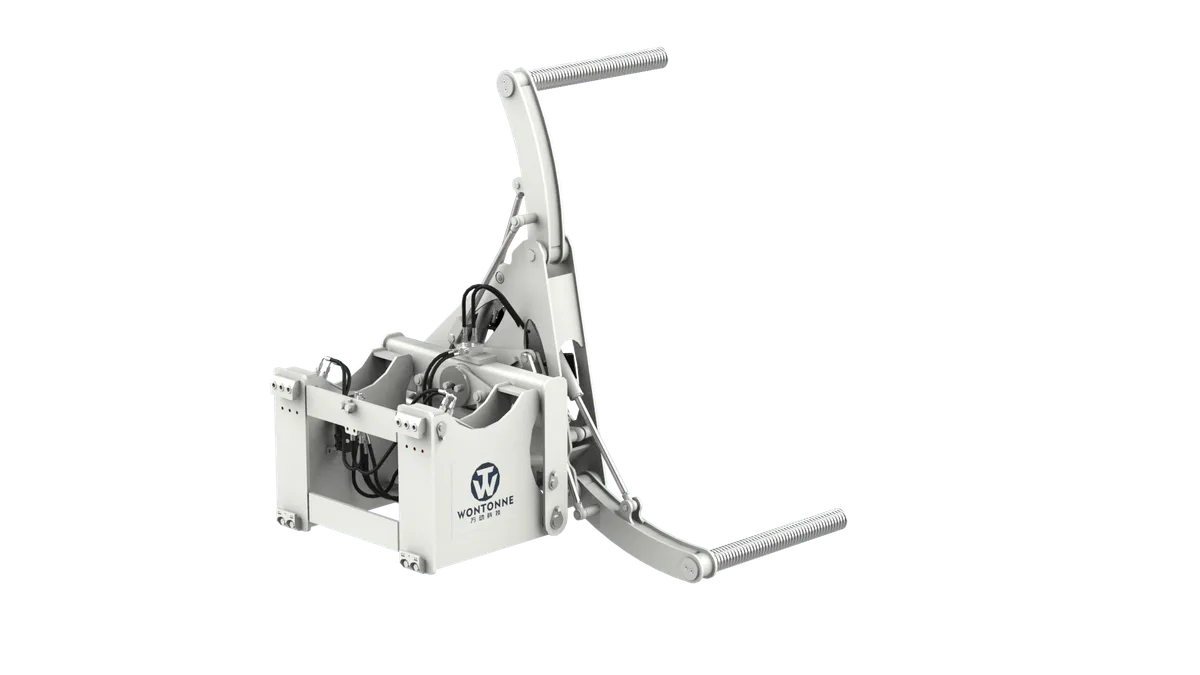

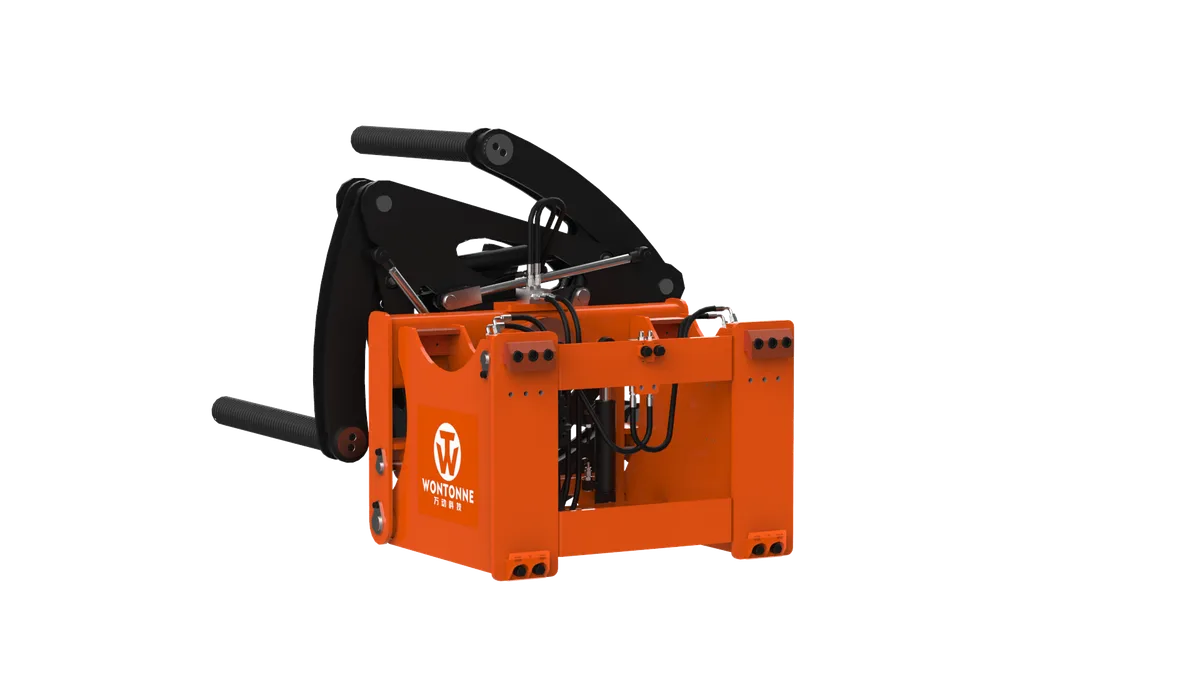

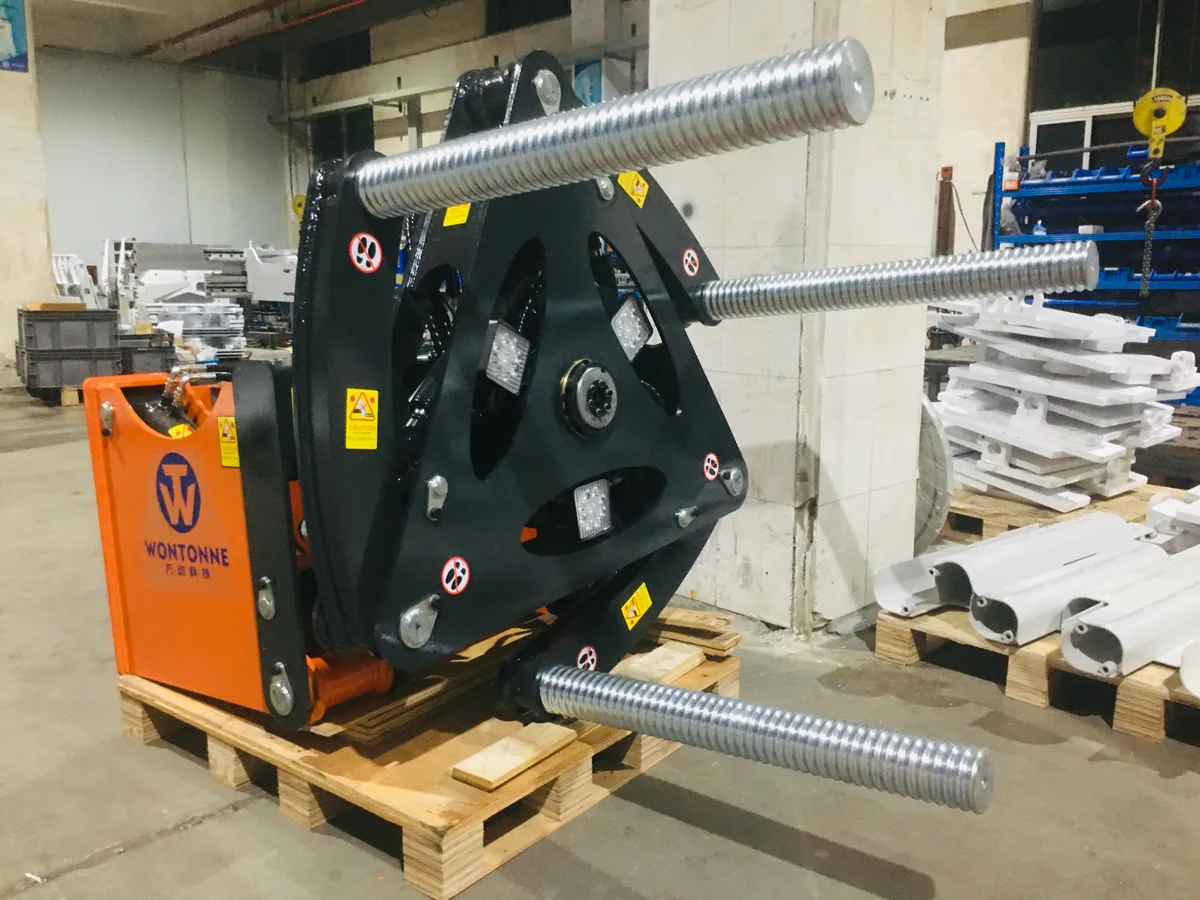

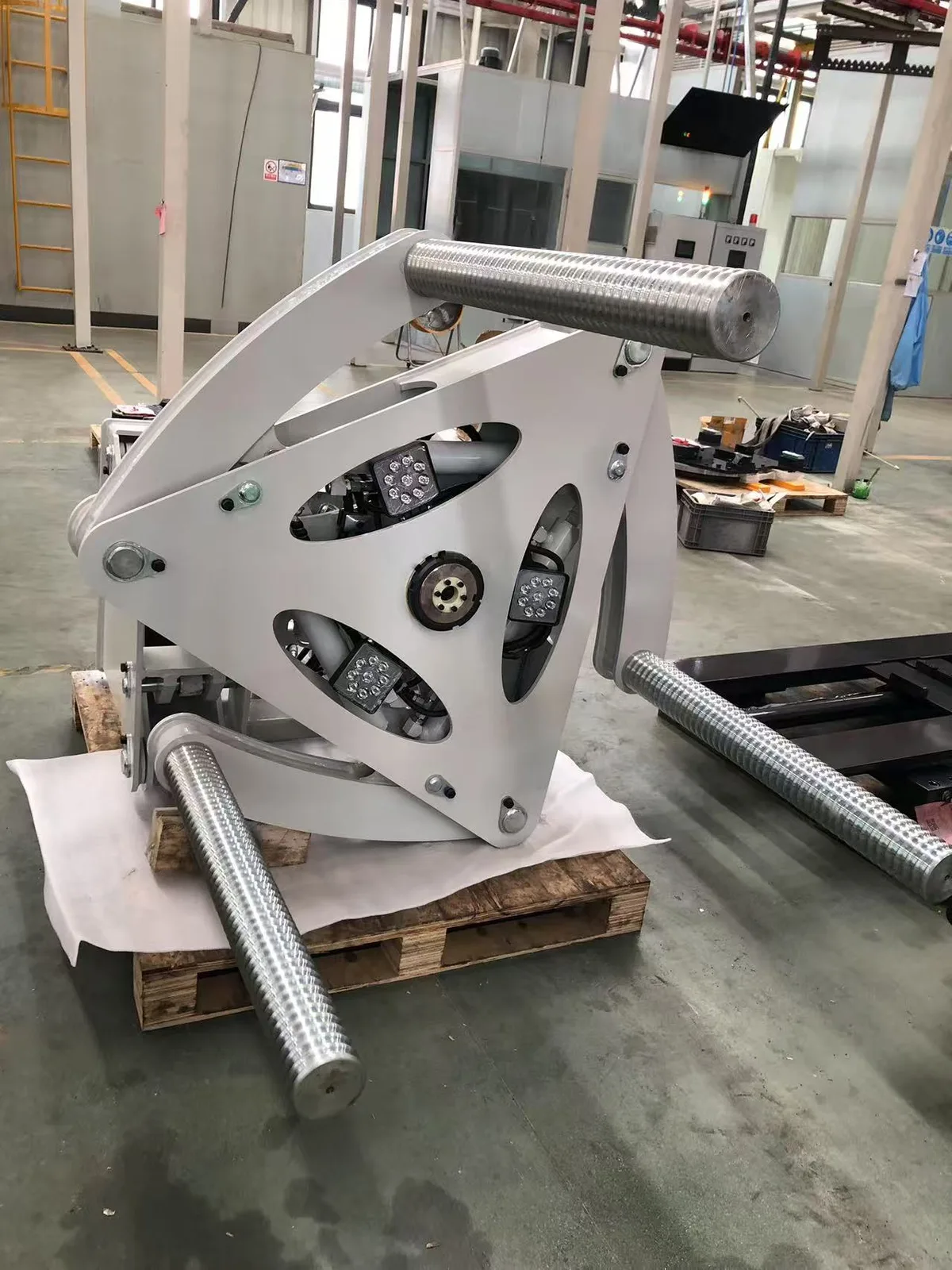

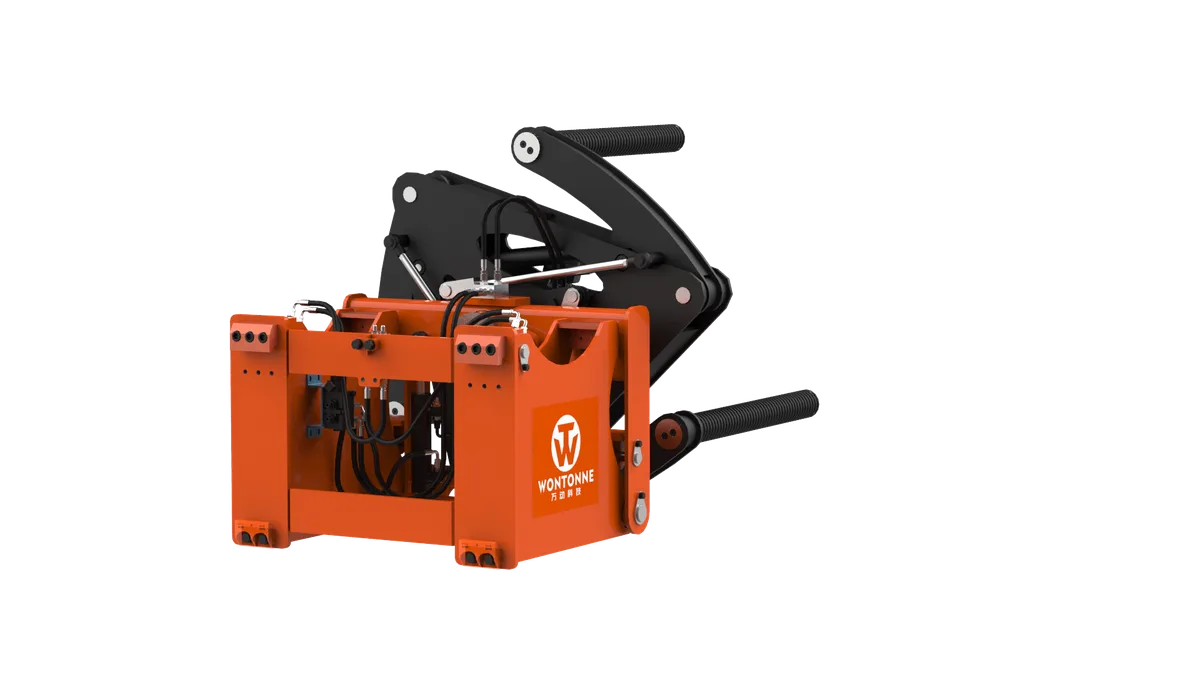

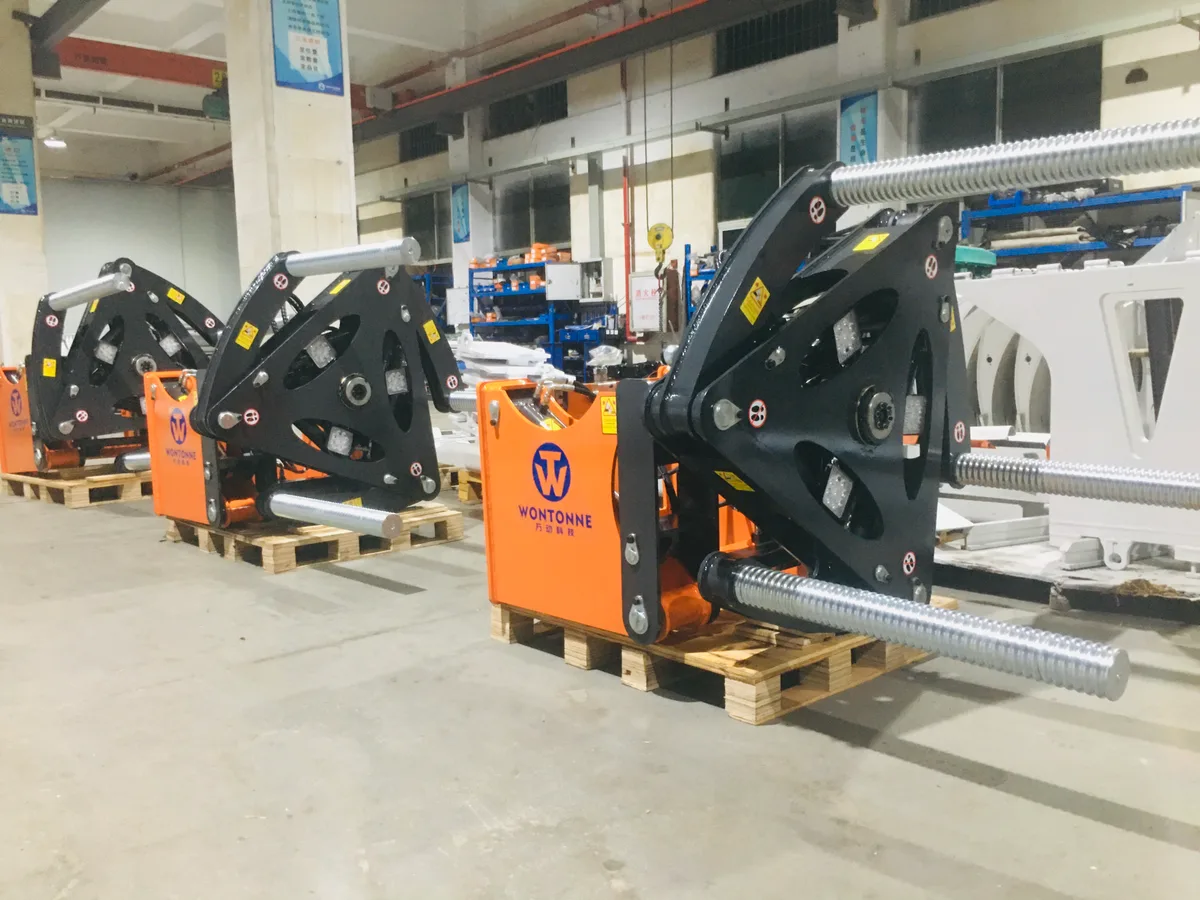

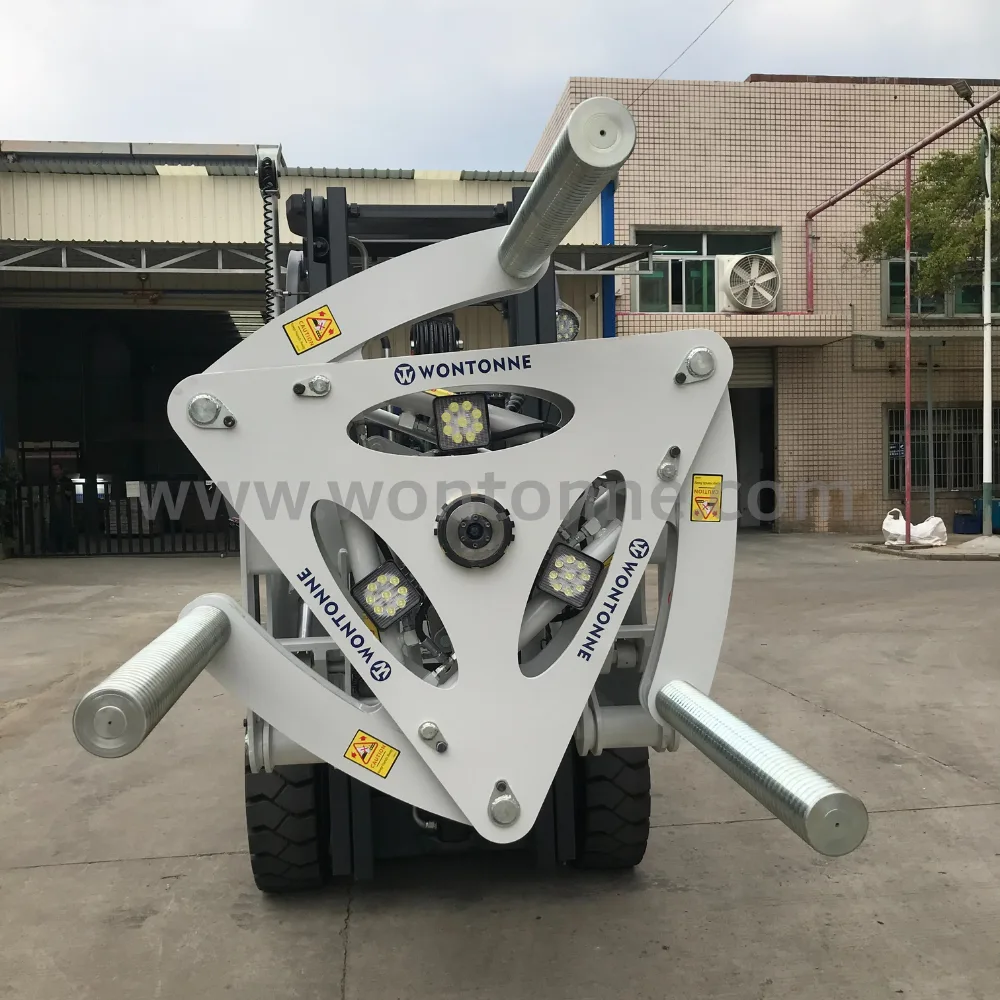

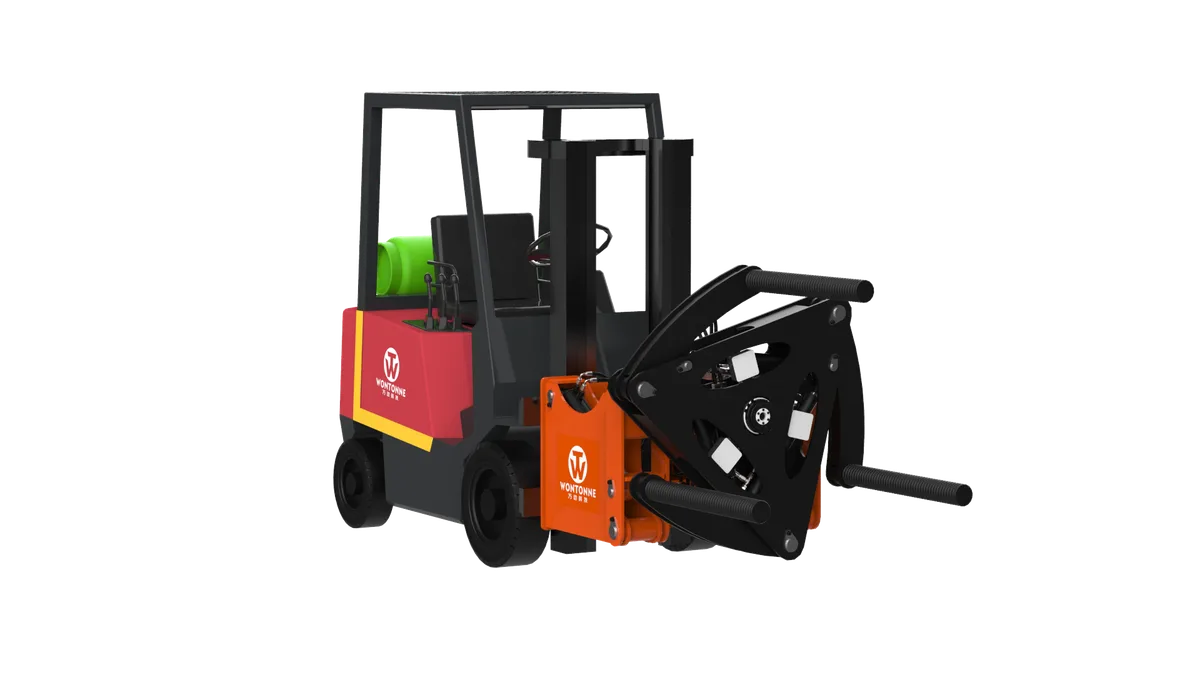

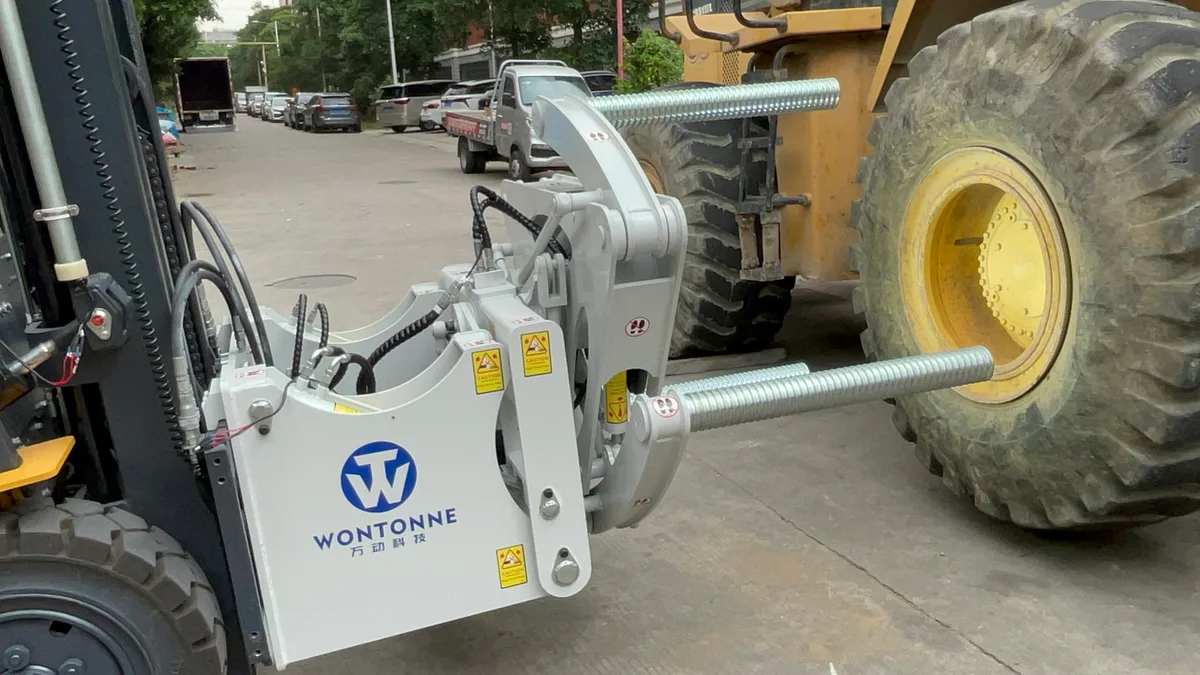

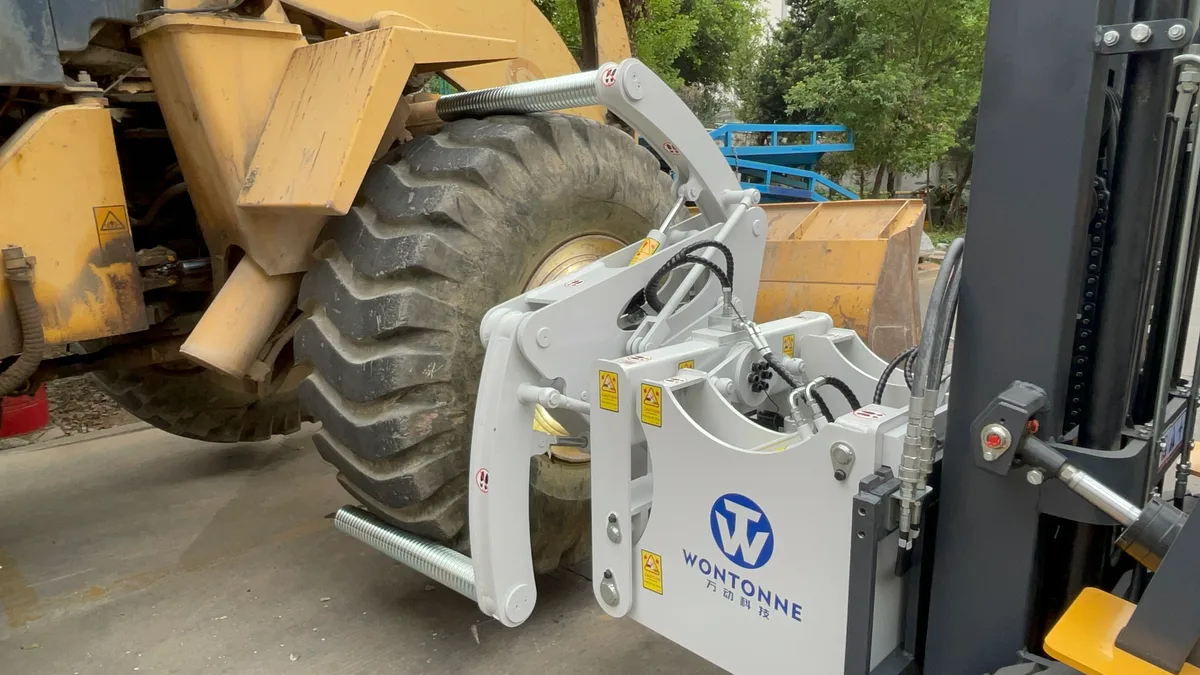

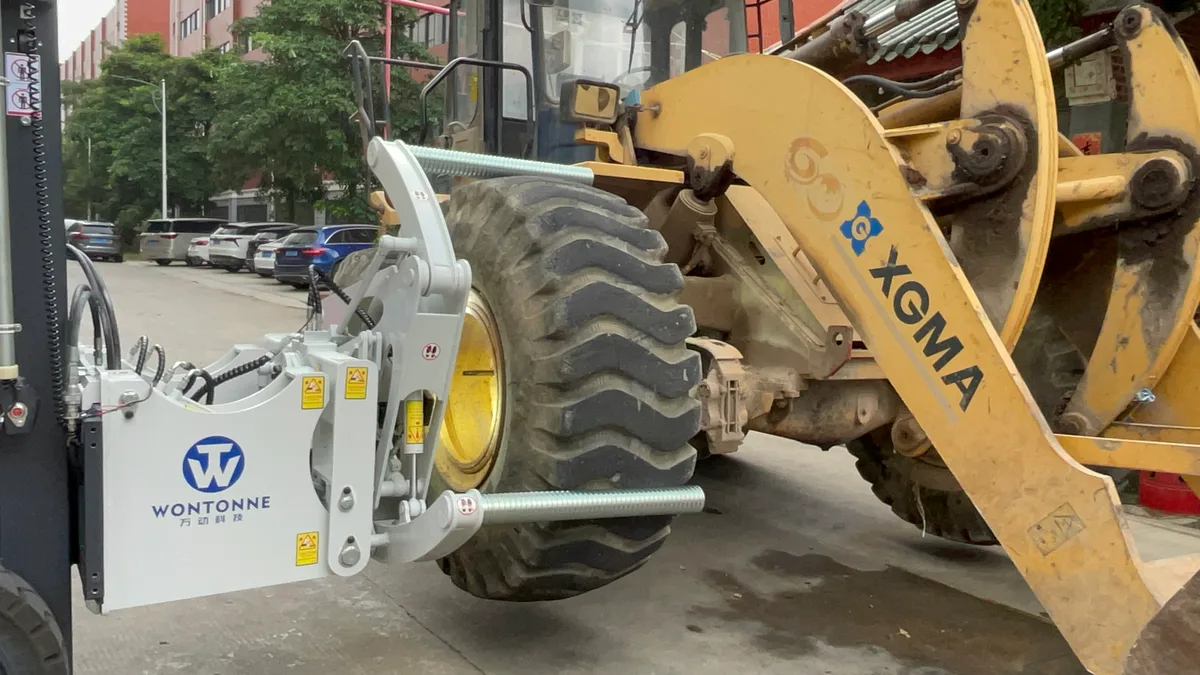

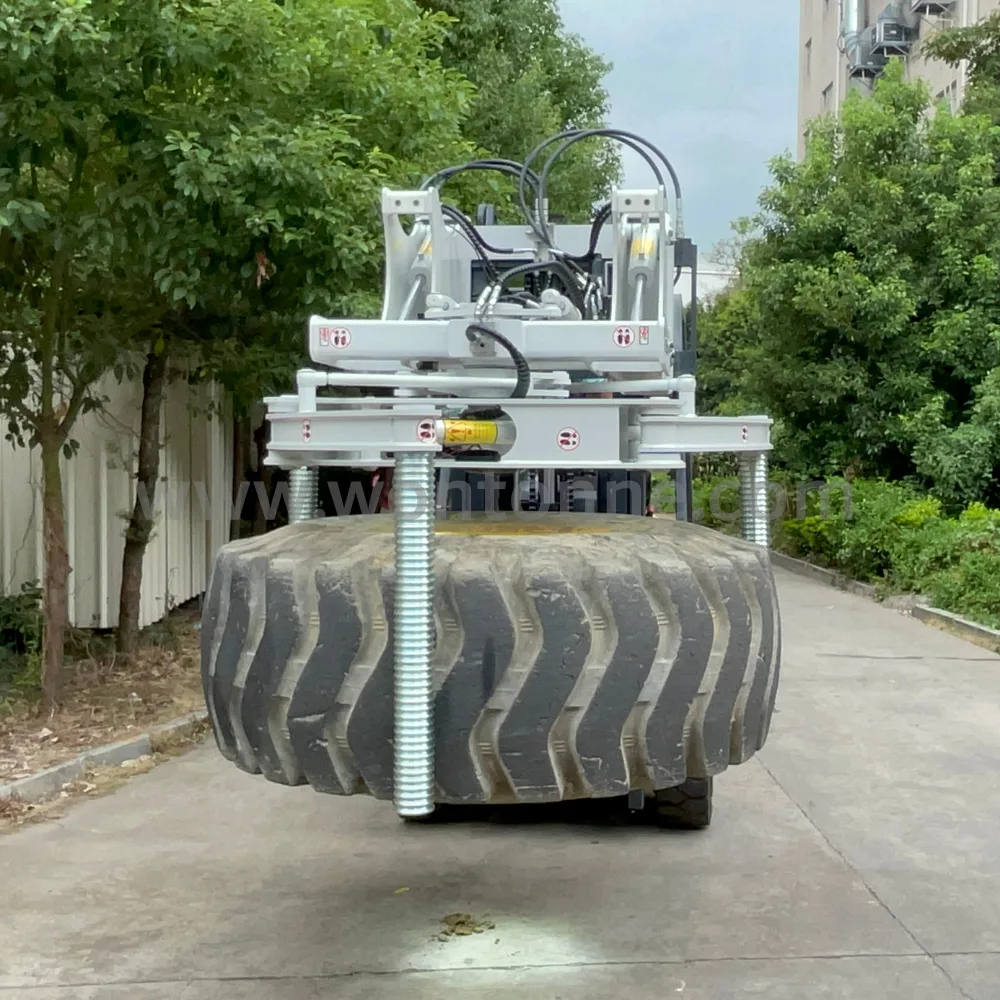

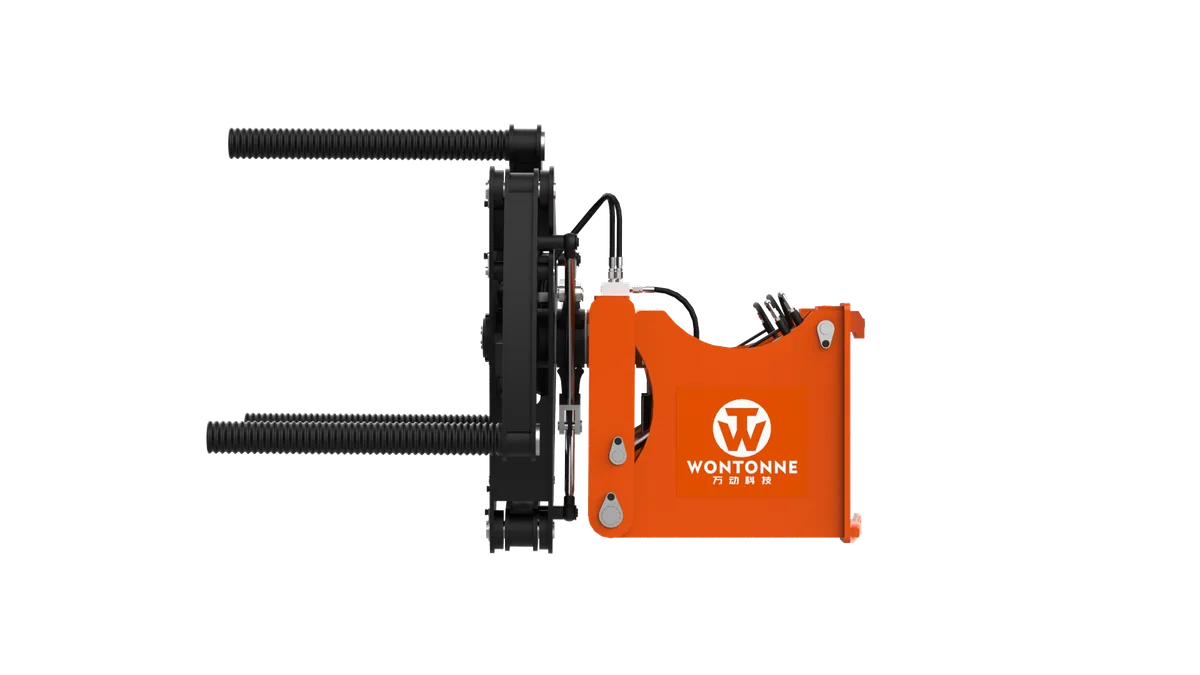

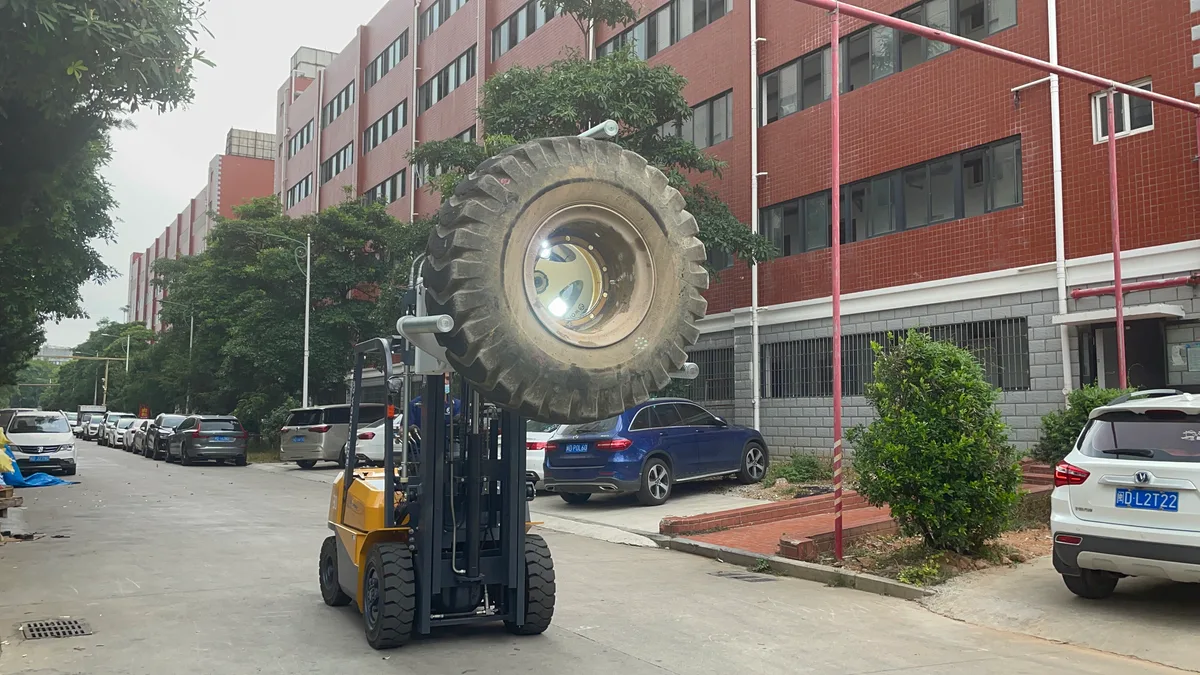

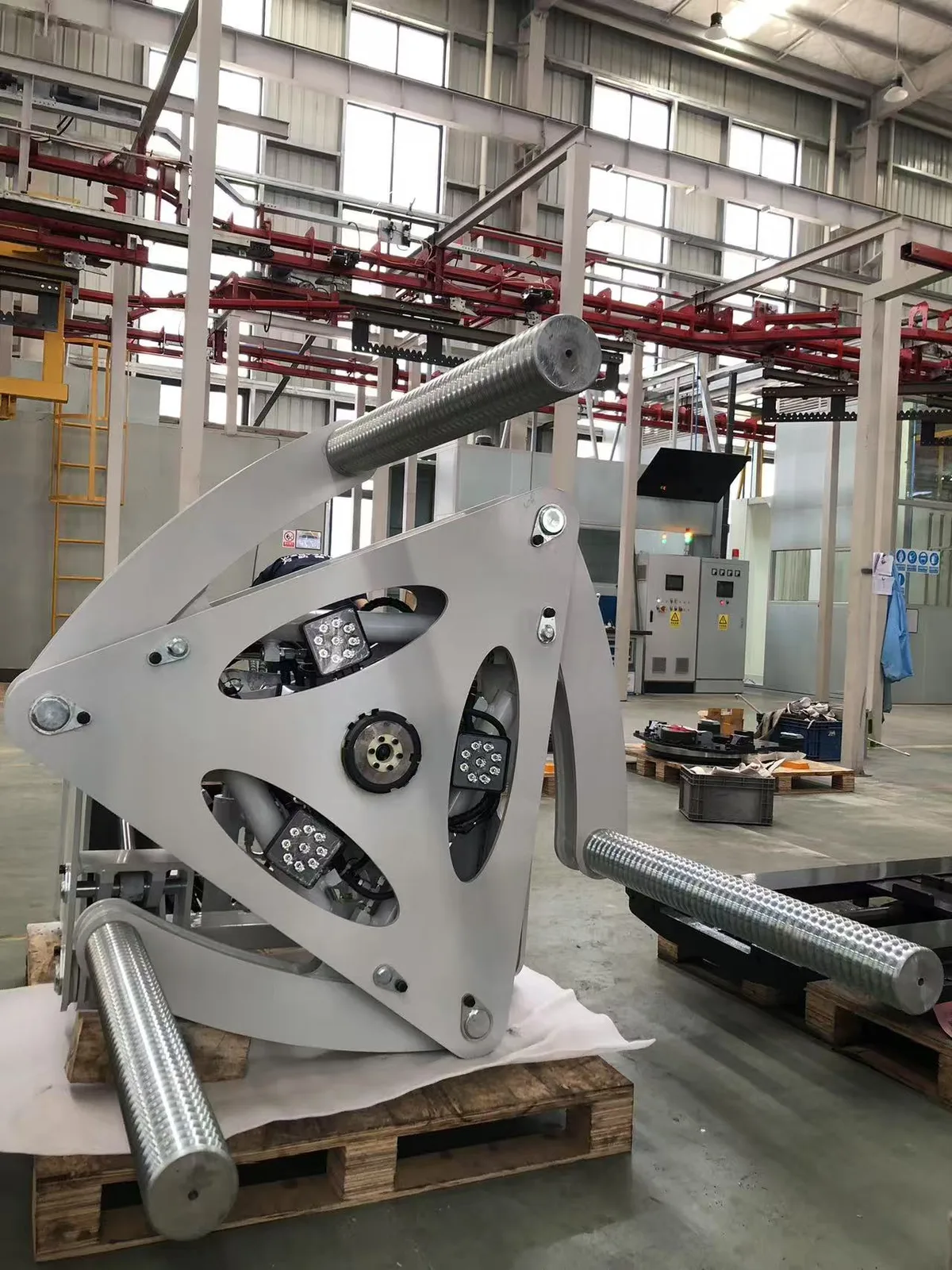

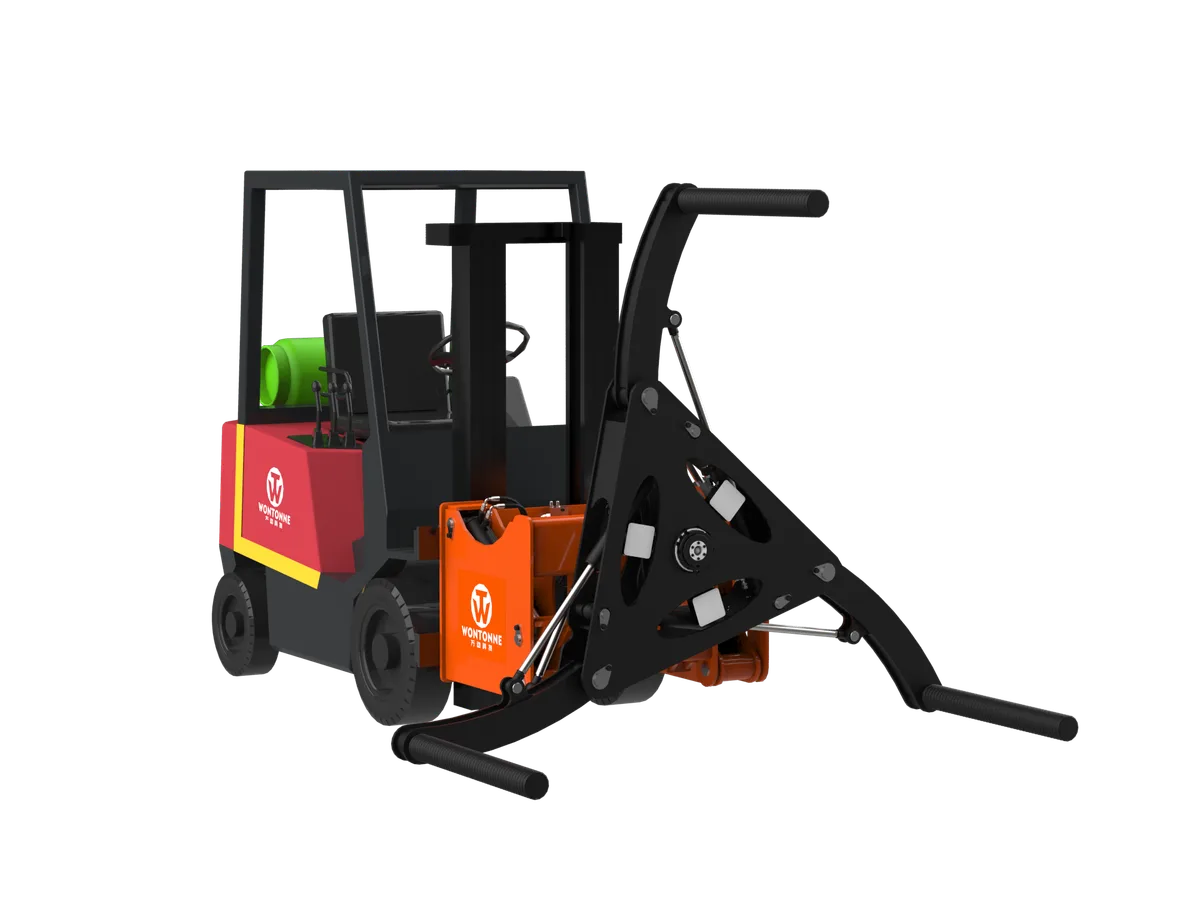

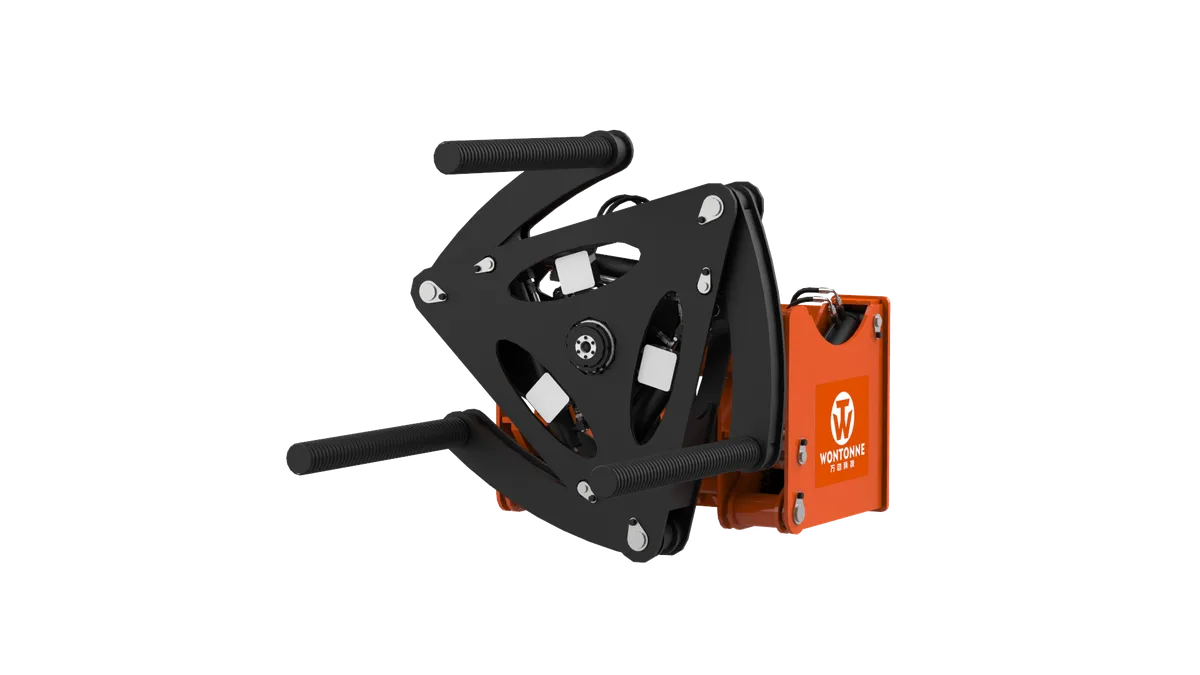

The Wontonne Tyre Gripper is designed to help tyre professionals work faster and hold tyres in a multitude of situations.

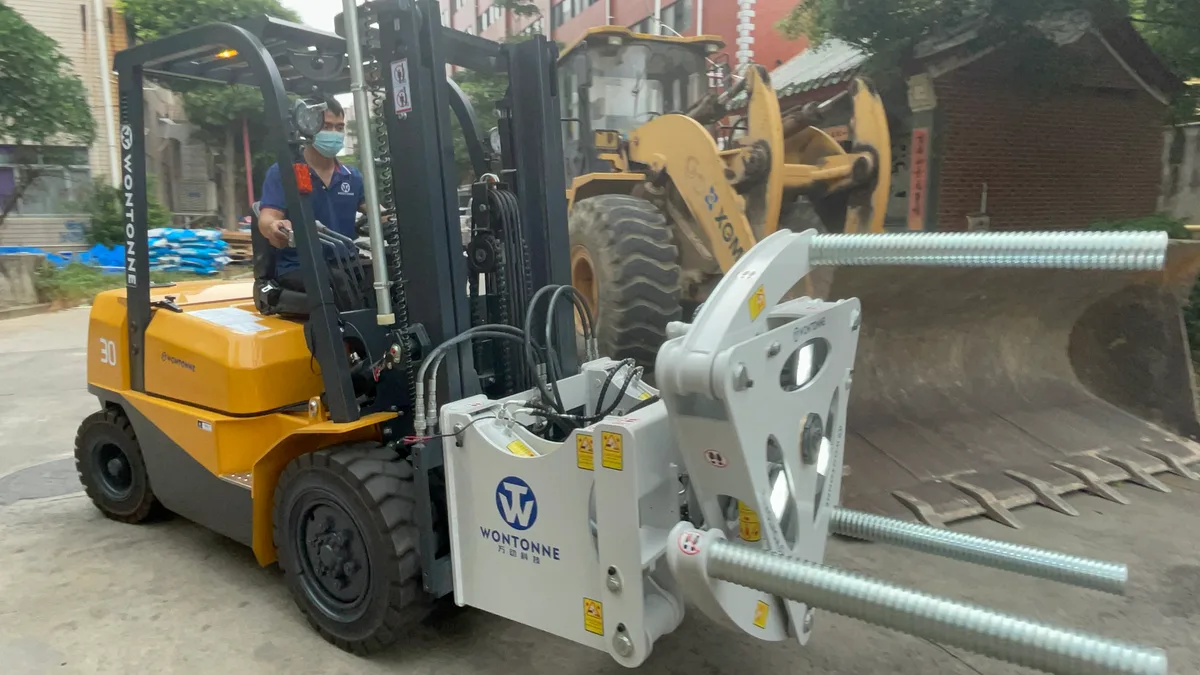

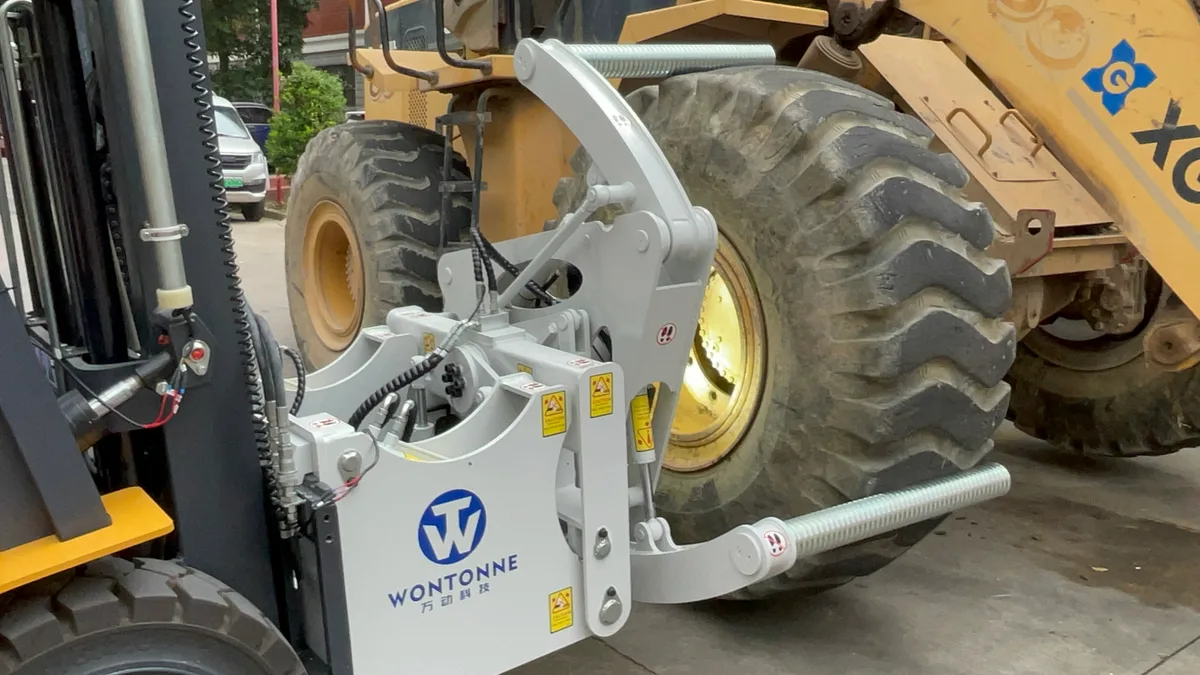

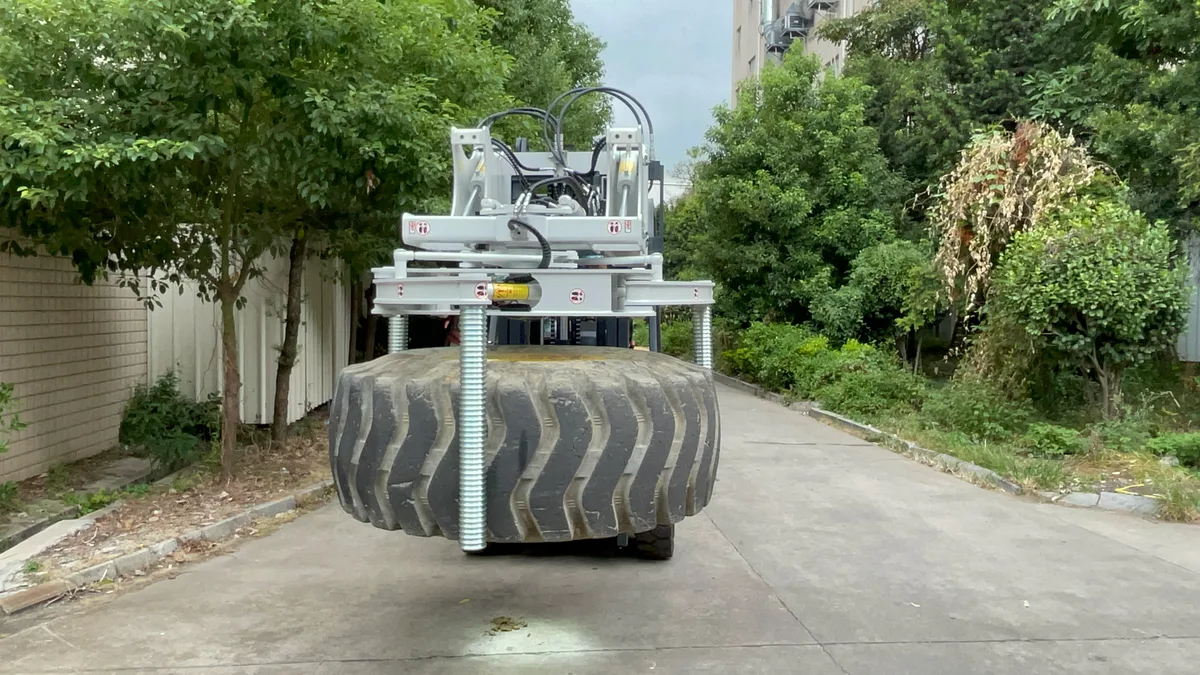

Tyre grippers are meticulously crafted to enhance the efficiency of tire professionals across various scenarios, enabling faster work, safer tire handling, risk prevention, time savings, and minimizing damage to tires, rims, and vehicles. They find widespread application in aviation, military, mining, ports, and industrial trucks.
Key features & specifications:
For tyre professionals

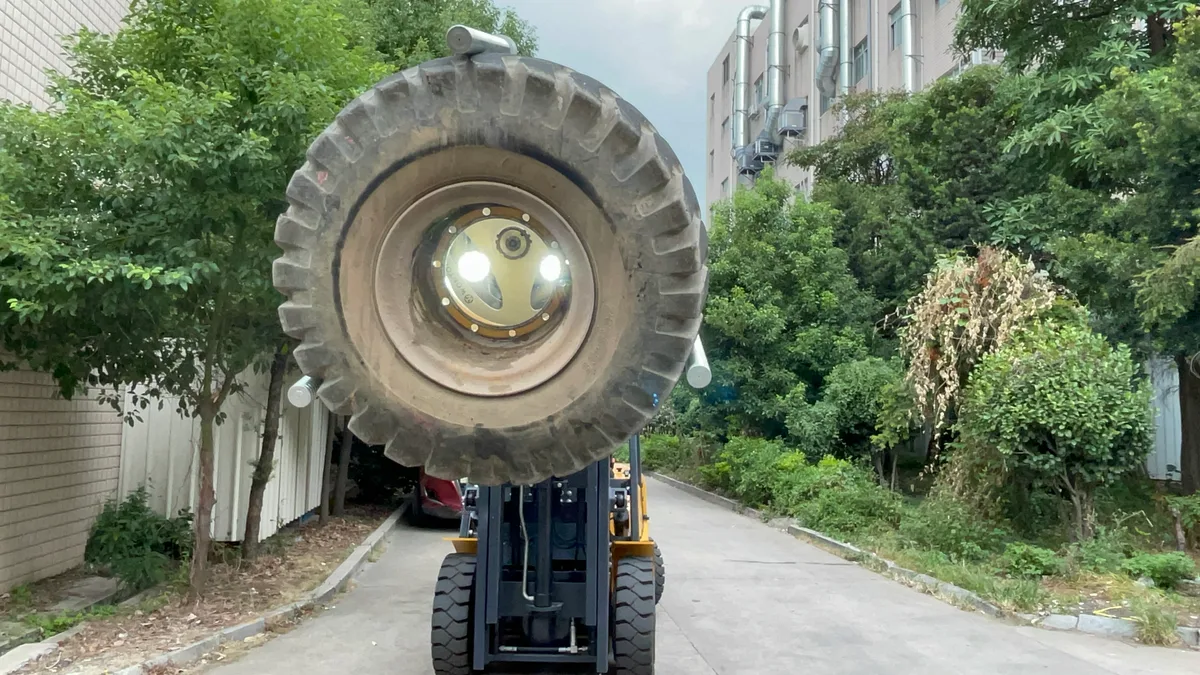

Hold tyres securely
Work faster in multiple situations
Commonly used in aviation
For military and mining
For ports and industrial trucks
Capacity up to 1000kg

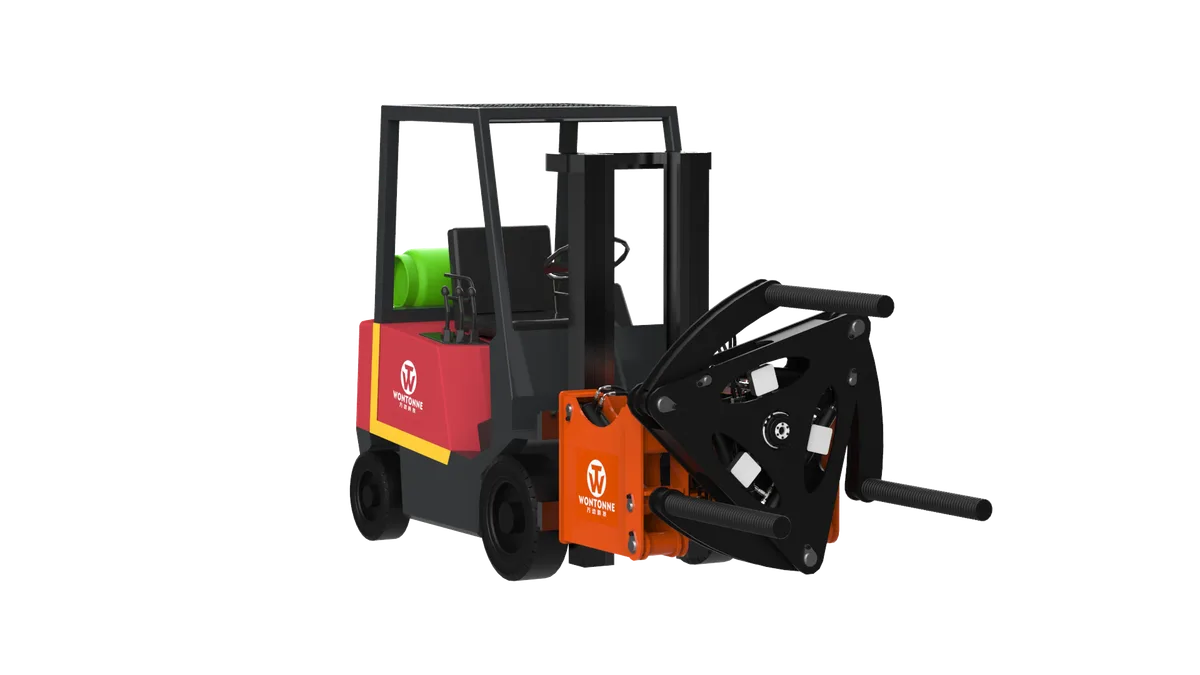

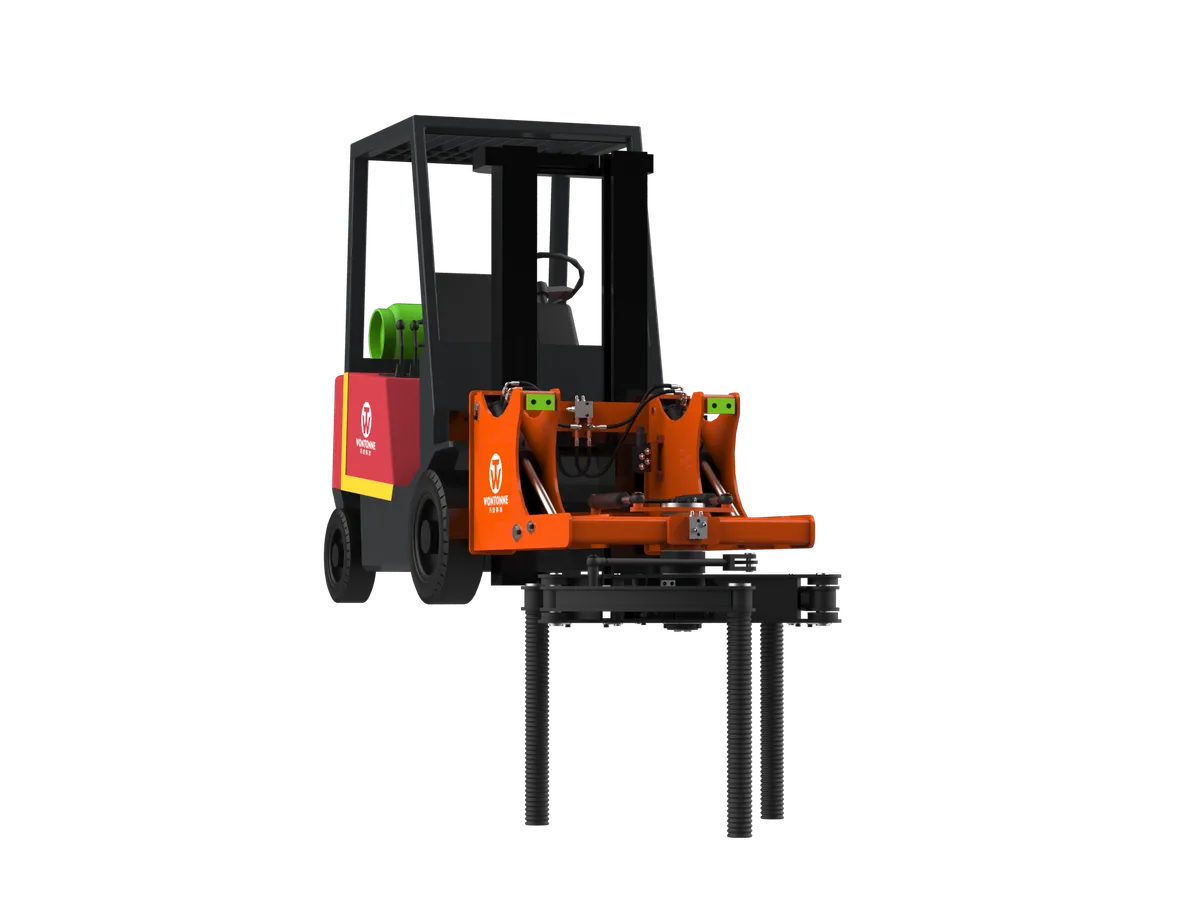

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.
Need More Info?
Get detailed specifications, pricing, and delivery estimates from our team.

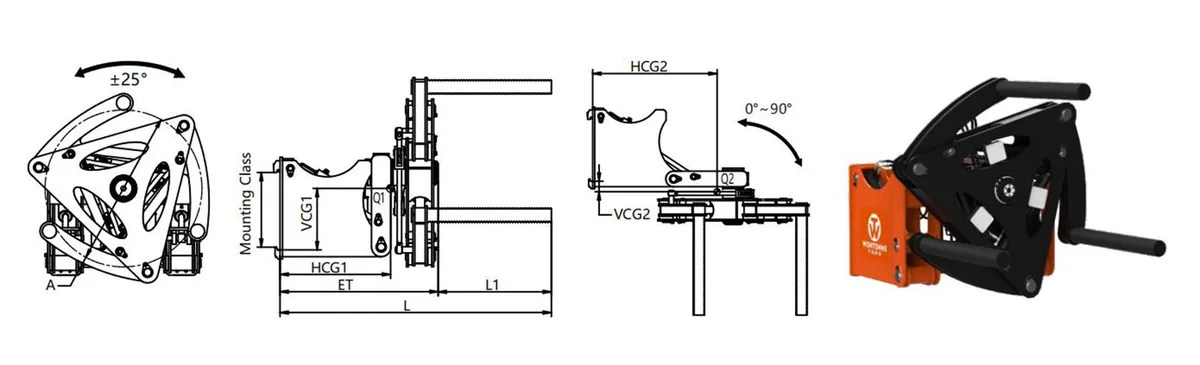

| Model No | Capacity (kg) | Load Center (mm) | Opening Range (mm) | Mounting | Weight (kg) | Effective Thickness ET (mm) | Mounting Angle (°) | Swing Angle (°) | Tilt Angle (°) | Total Length (mm) | Arm Length (mm) | Qty Solenoid Valve | Qty Hydraulic Circuit | Vertical CG VCG1 (mm) | Vertical CG VCG2 (mm) | Horizontal CG HCG1 (mm) | Horizontal CG HCG2 (mm) | Sideshifting Stroke (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PTG10A-2160B | 1000 | 360 | 1300-2160 | ISO 3A | 800 | 1010 | 0° | ±25° | 0-90° | 1730 | 720 | 1 | 2 | 393 | 84 | 706 | 994 | — |
| PTG10A-2160B-1 | 1000 | 360 | 1300-2160 | ISO 3A | 800 | 1010 | 0° | ±25° | 0-90° | 1730 | 720 | 0 | 3 | 393 | 84 | 706 | 994 | — |
| PTGS10A-2160B | 1000 | 360 | 1300-2160 | ISO 3A | 847 | 1077 | 0° | ±25° | 0-90° | 1730 | 720 | 2 | 2 | 395 | 75 | 737 | 863 | ±100 |
| PTG20A-2700C | 2000 | 670 | 1400-2700 | ISO 4A | 1300 | 1214 | 0° | ±25° | 0-90° | 2560 | 1340 | 1 | 2 | 448 | 163 | 882 | 1003 | — |

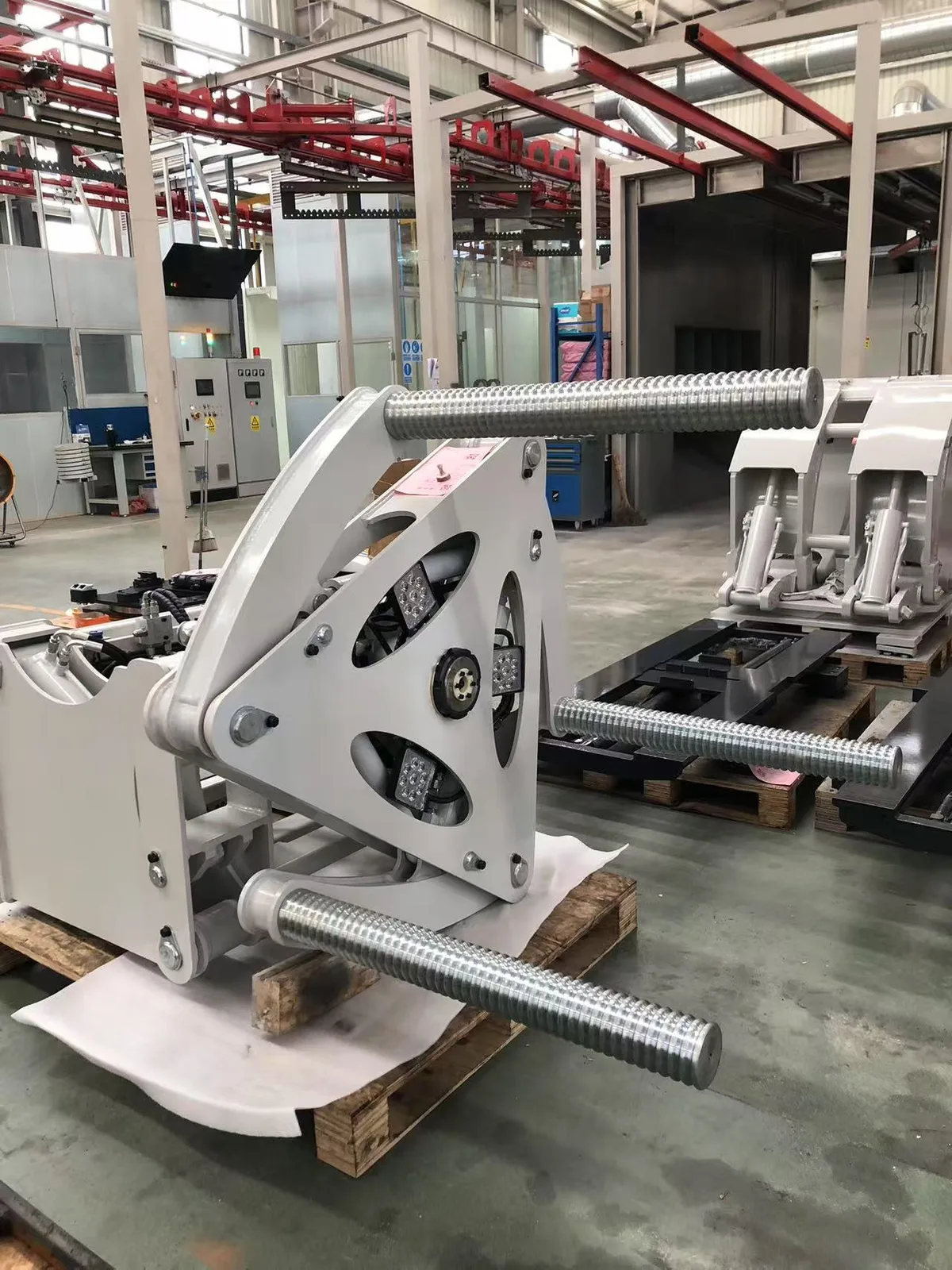

Manufacturing Excellence

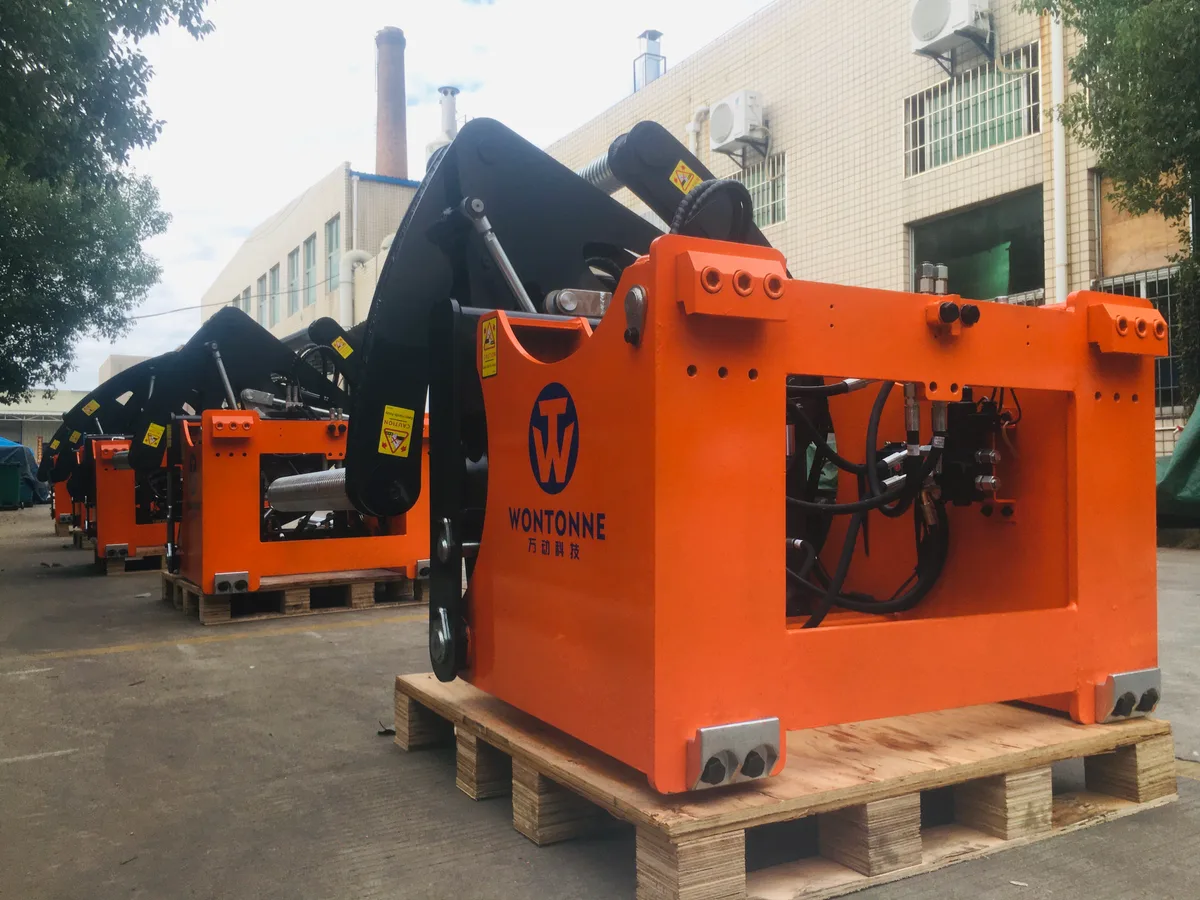

30,000 m² intelligent facility — ISO 9001 & ISO 3834 certified production lines.
