Fork Clamp
Wontonne Forklift Attachment Fork Clamps Sideshift03
Wontonne Forklift Attachment Fork Clamps Sideshift04
Wontonne Forklift Attachment Fork Clamps Sideshift05
Wontonne Forklift Attachment Fork Clamps Sideshift06

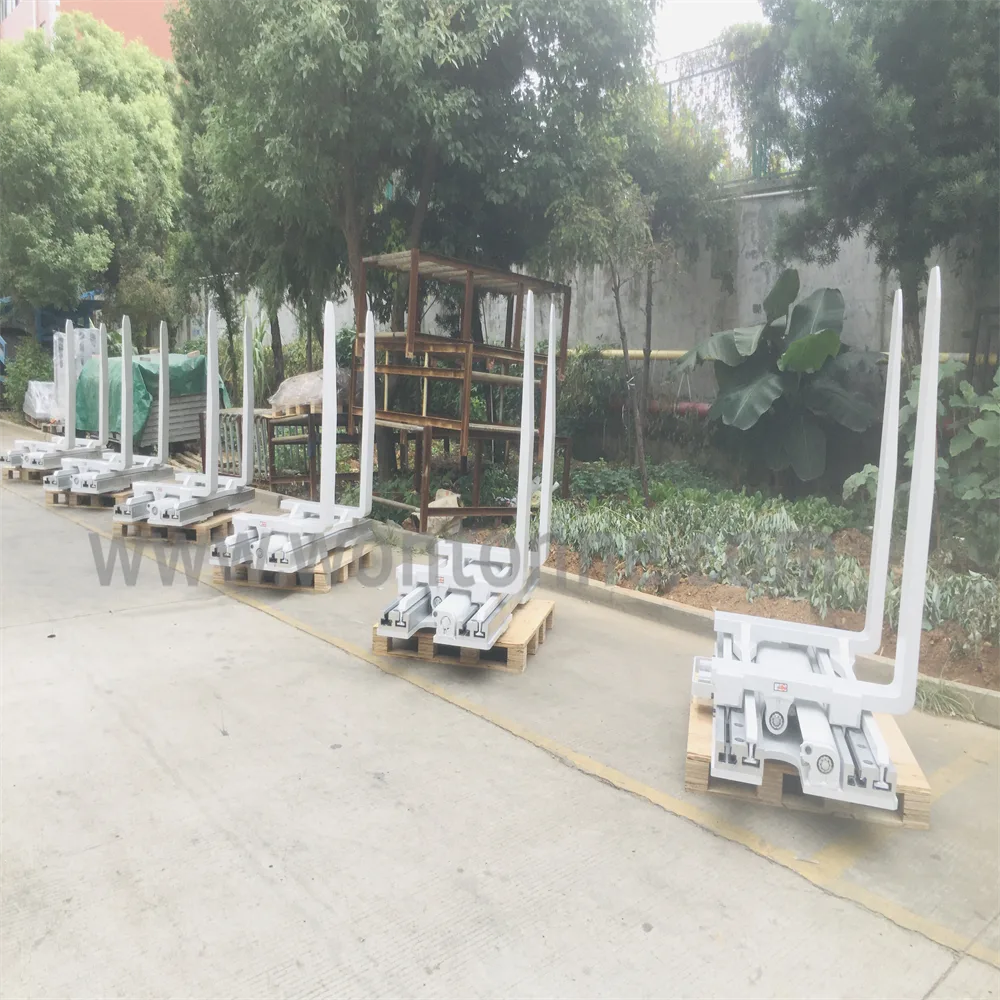

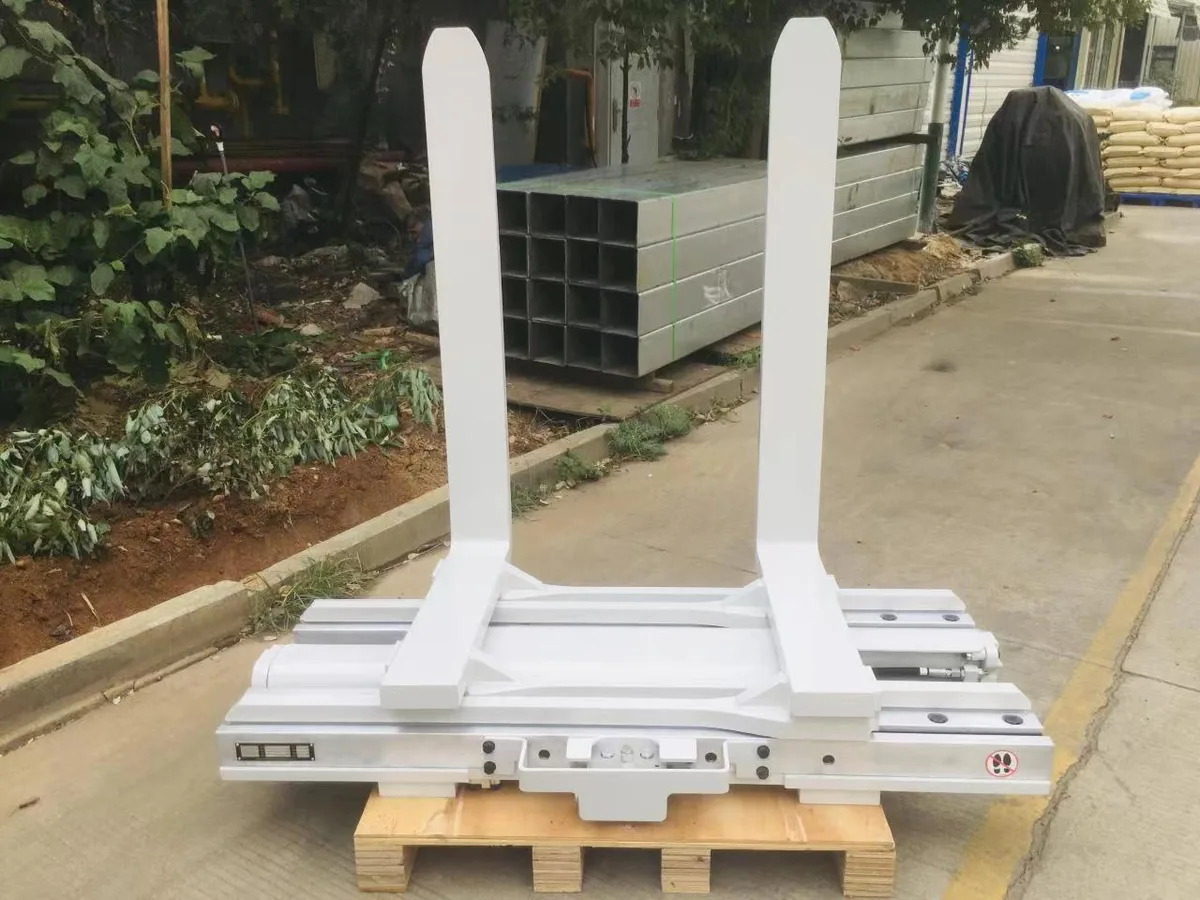

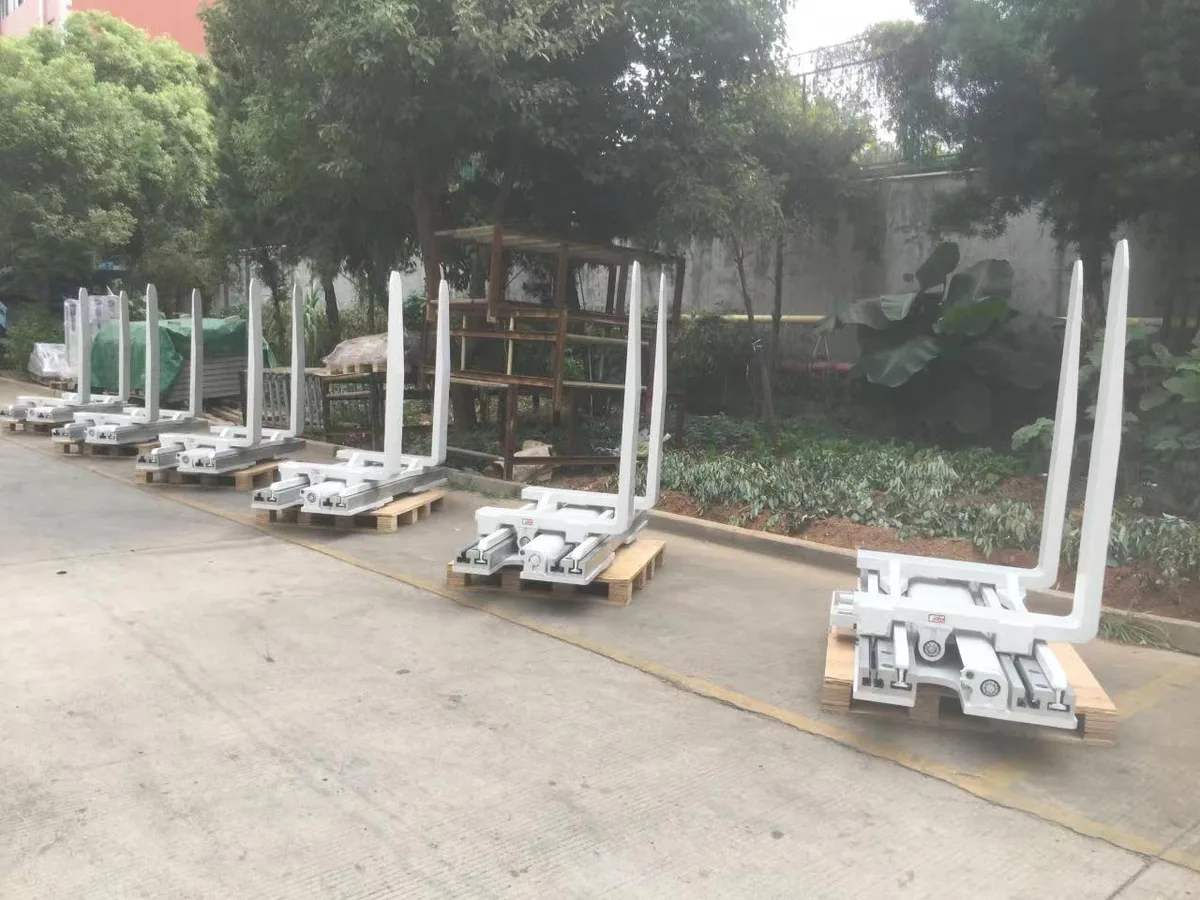

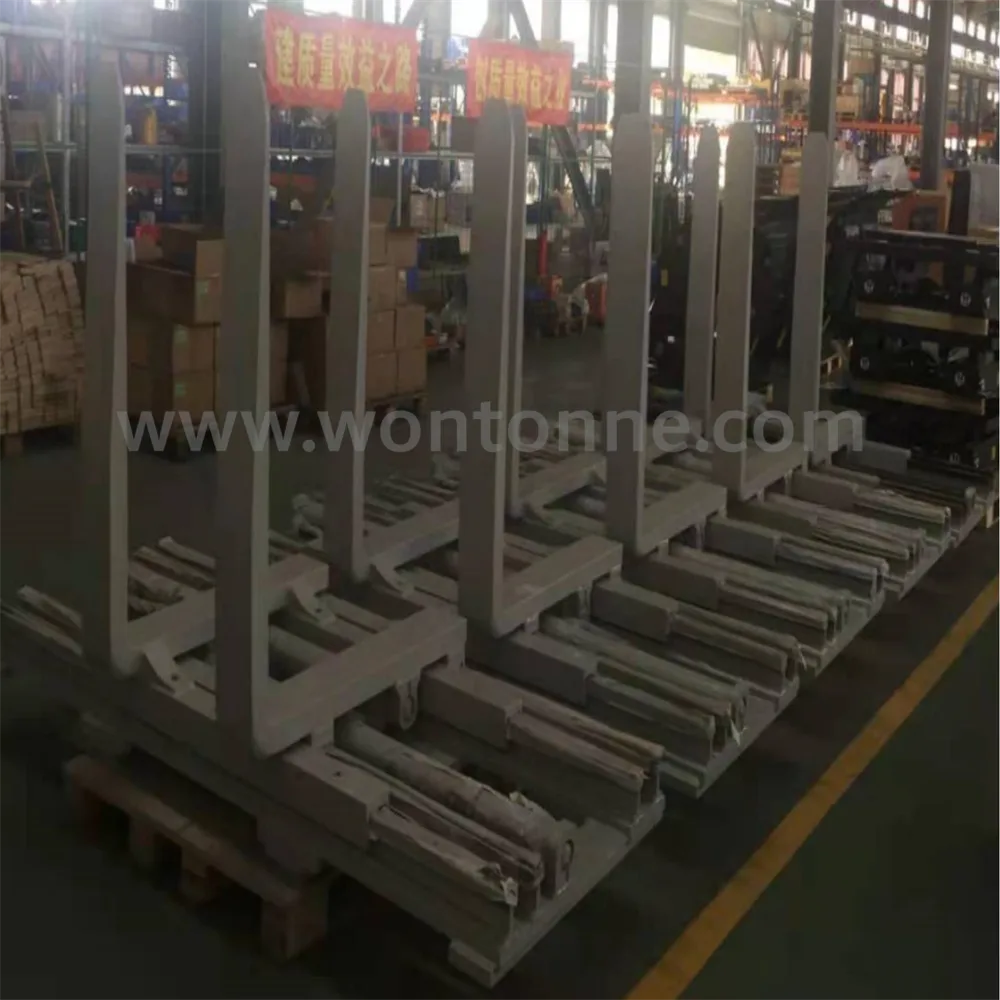

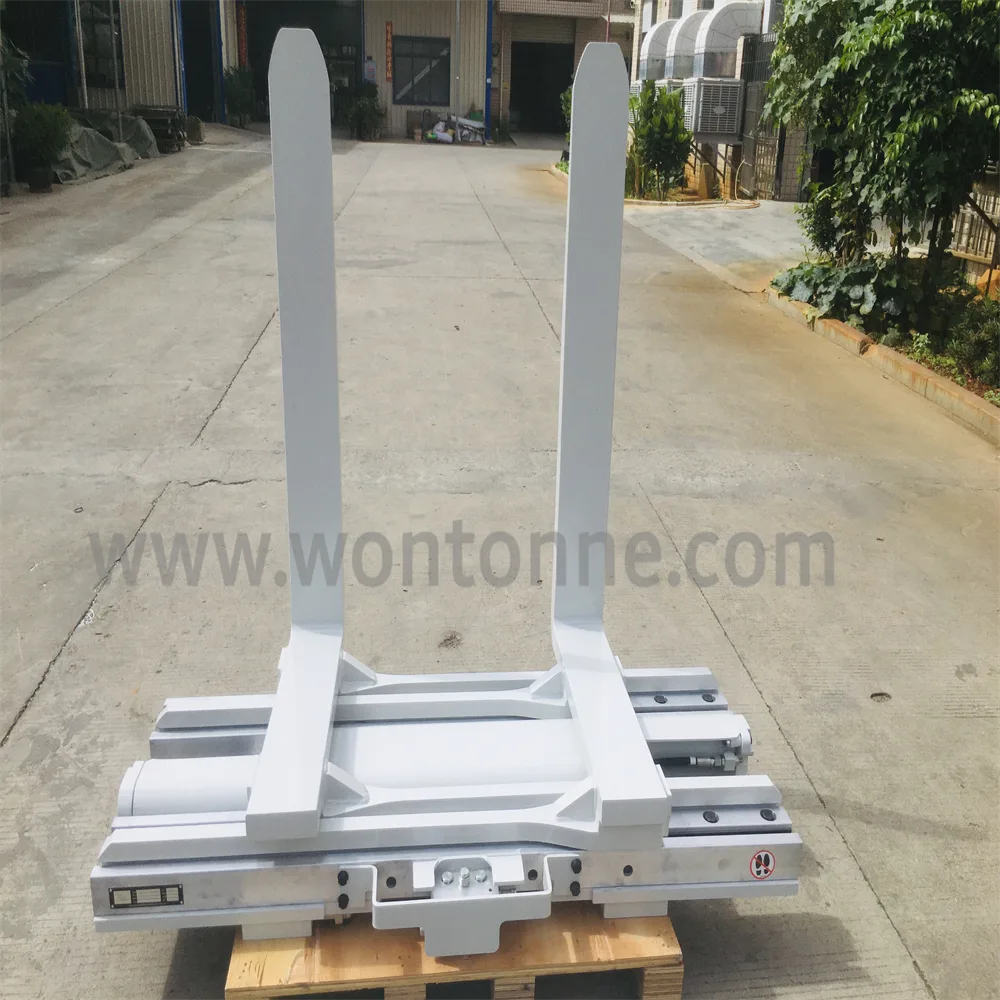

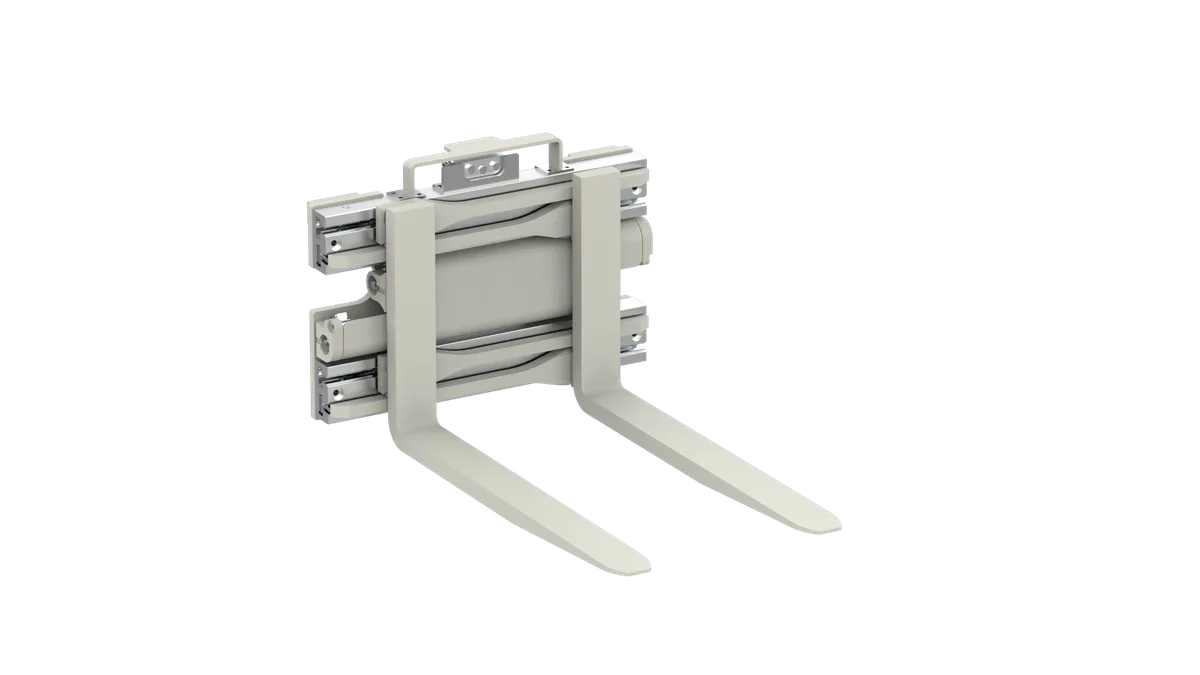

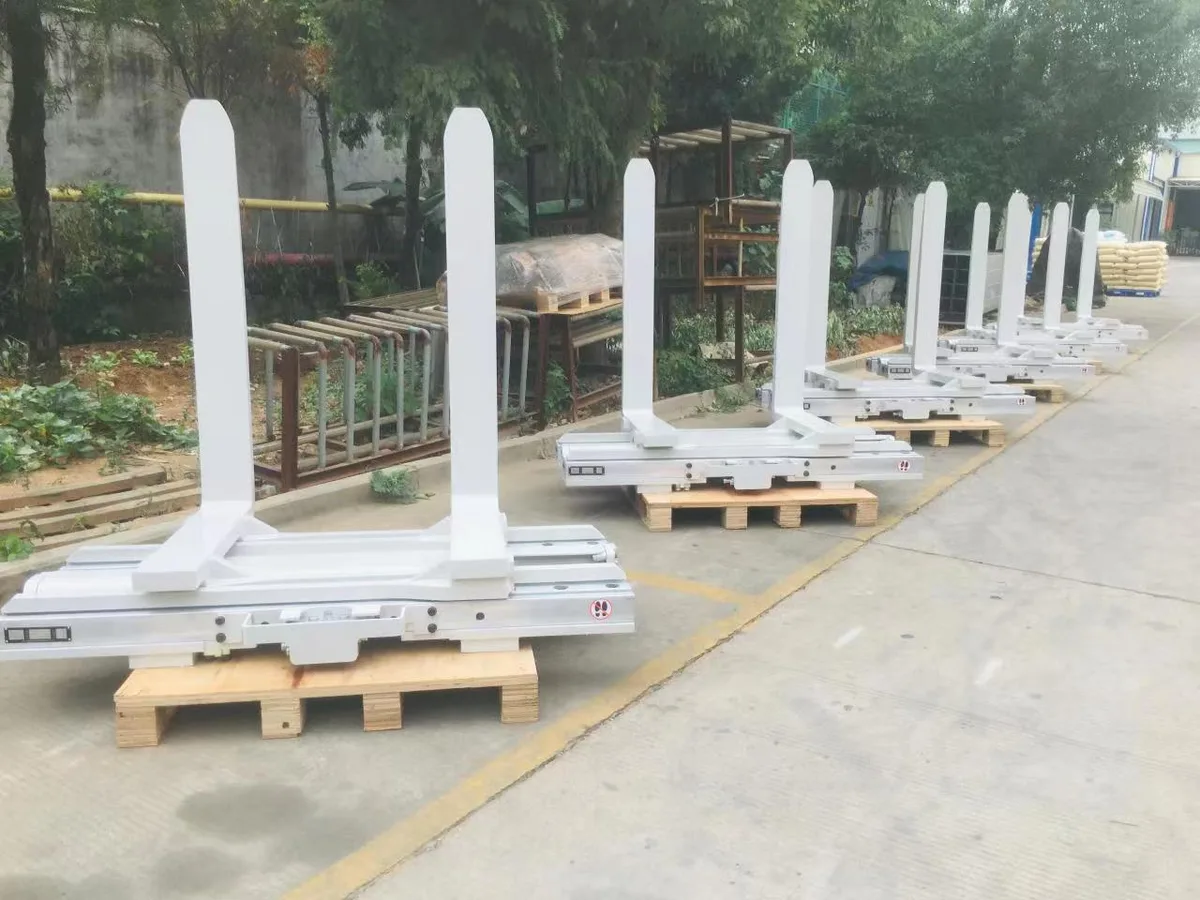

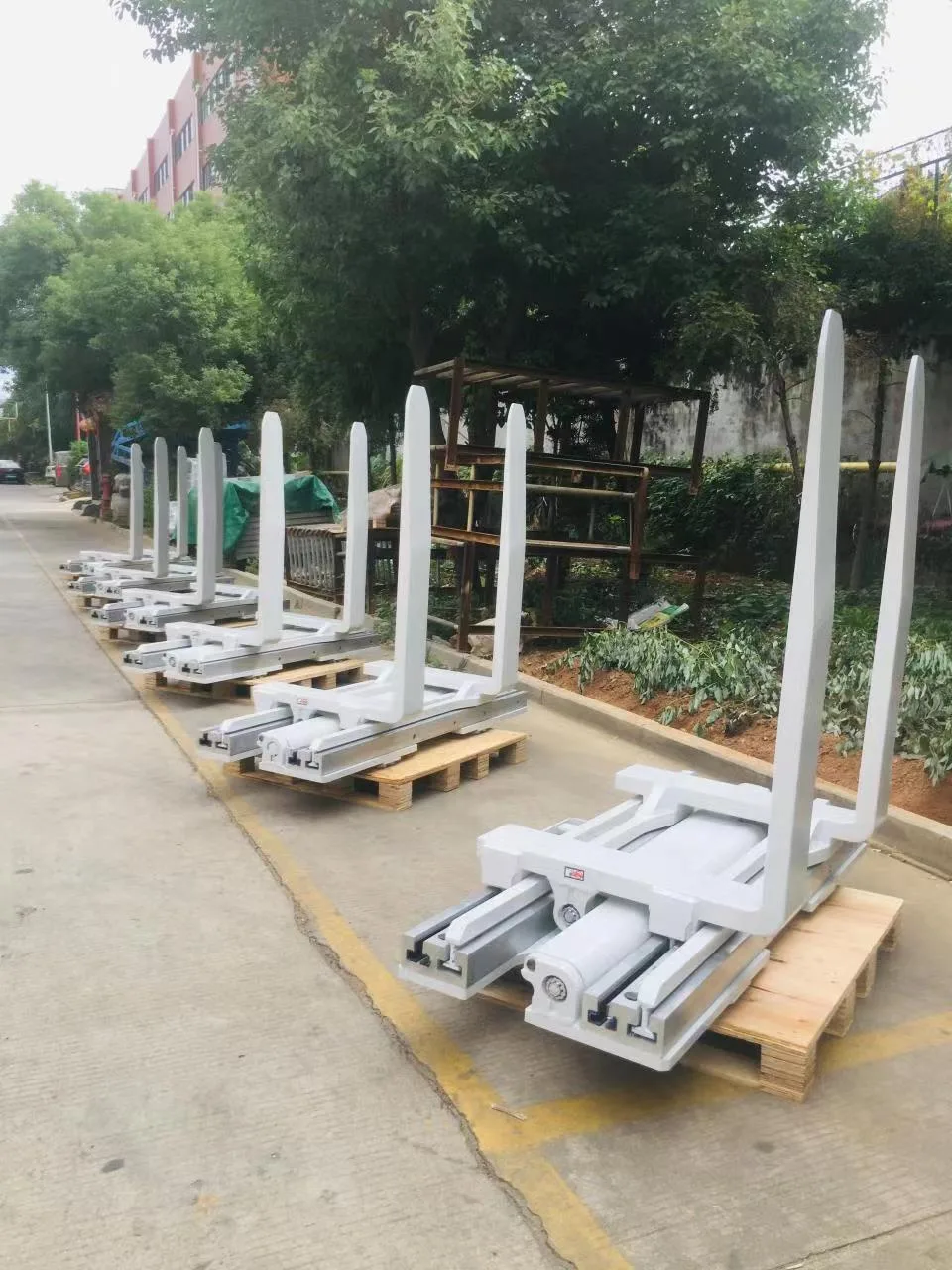

Fork Clamps, Side shifting Type

Operate both as a clamp and a fork positioner. Awkward loads, such as crates, bales & tires can be clamped between the forks. The ability to position the forks speeds pallet handling and reduces wear and tear on the pallets.

Leave a message
Specification Parameters Cases Recommendations

Specification

Wontonne Forklift Attachment Fork Clamps Sideshifting Type01

Features:
Efficient hydraulic system which minimizes energy consumption
and maximizes performance.
Clamp and backhand protection.
Flow divider for equal arm movement.
Top-mounted hydraulic cartridges and test port for ease of access and adjustment.
Side shift circuit relief optimizes side shift speed and performance.
Rugged design for optimal strength, durability and performance.
Center mounted hardened replaceable frame wear segment. (Except for revolving models).
High strength steel frame.
Lubrication-free, full length UHMW bearings.
Maximum clamp force for secure handling.
Designed for convenience and performance.
Integrated true centering key for precise and secure installation.

Parameters

Capacity Load Center Model No. Mounting Class Opening Range Fork Size Height Upper Hook Spread Frame Width Vertical Center of Gravity Horizontal Center of Gravity Weight Effective
kg mm     A * B
mm
L * W * T
mm
H
mm
B
mm
A
mm
VCG
mm
HCG
mm
kg ET
mm
1600 600 CFS20D-005A ISO 2A 410~1660 1065*125*40 660 690 940 175 198 306 180
1600 600 CFS20D-006A ISO 2A 410~1660 1220*125*40 660 690 940 155 218 336 180
2300 600 CFS30D-007A ISO 2A 475~1800 915*125*50 725 825 1016 212 166 458 208
2300 600 CFS30D-008A ISO 2A 480~1800 1065*125*50 725 825 1016 203 192 460 208
2300 600 CFS30D-008B ISO 3A 480~1800 1065*125*50 725 825 1016 205 191 462 216
2300 600 CFS30D-009A ISO 2A 480~1800 1220*125*50 725 825 1016 194 222 475 208
2300 600 CFS30D-009B ISO 3A 480~1800 1220*125*50 725 825 1016 196 221 477 216

*With the innovation of technology, the configuration and parameters of our products are subject to change without notice; if in doubt, the specific sales confirmation of our company is the main focus
