What is the capacity of the Bale clamp – E series- revolving?

The Bale clamp – E series- revolving handles 1900-2700 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the Bale clamp – E series- revolving use?

The Bale clamp – E series- revolving is available for ISO 2A / ISO 3A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the Bale clamp – E series- revolving are available?

Wontonne offers 5 models of the Bale clamp – E series- revolving — including BCR20E-106A, BCR20E-107A, BCR30E-108B, BCR30E-109B, BCR30E-112B — with different capacities and load centers for various applications.

What is the capacity range of Wontonne bale clamps?

The E-series bale clamps cover 1900-5000 kg capacity depending on model and opening configuration. Pulp bale clamps and revolving variants are available for different load densities.

Products / Bale Clamps / Bale clamp – E series- revolving

Bale Clamps

Bale clamp – E series- revolving

Q: Which materials can a bale clamp handle?

Bale clamps handle pulp bales, waste paper, recycled plastics, textile rags and natural or synthetic textile fibers — anything in soft, compressible bale form.

Engineered for durability and precision, bale clamp – e series- revolving delivers reliable performance in demanding material handling environments.

All Bale Clamps

Product Overview

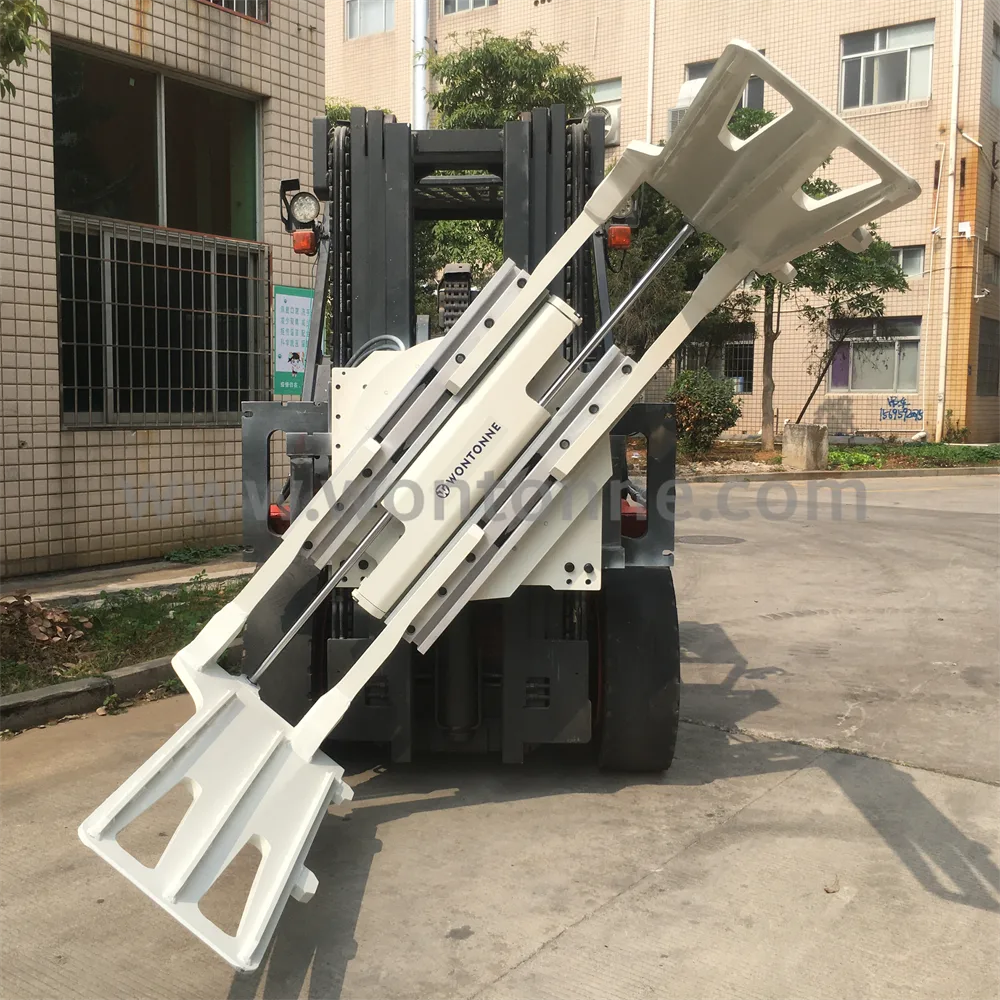

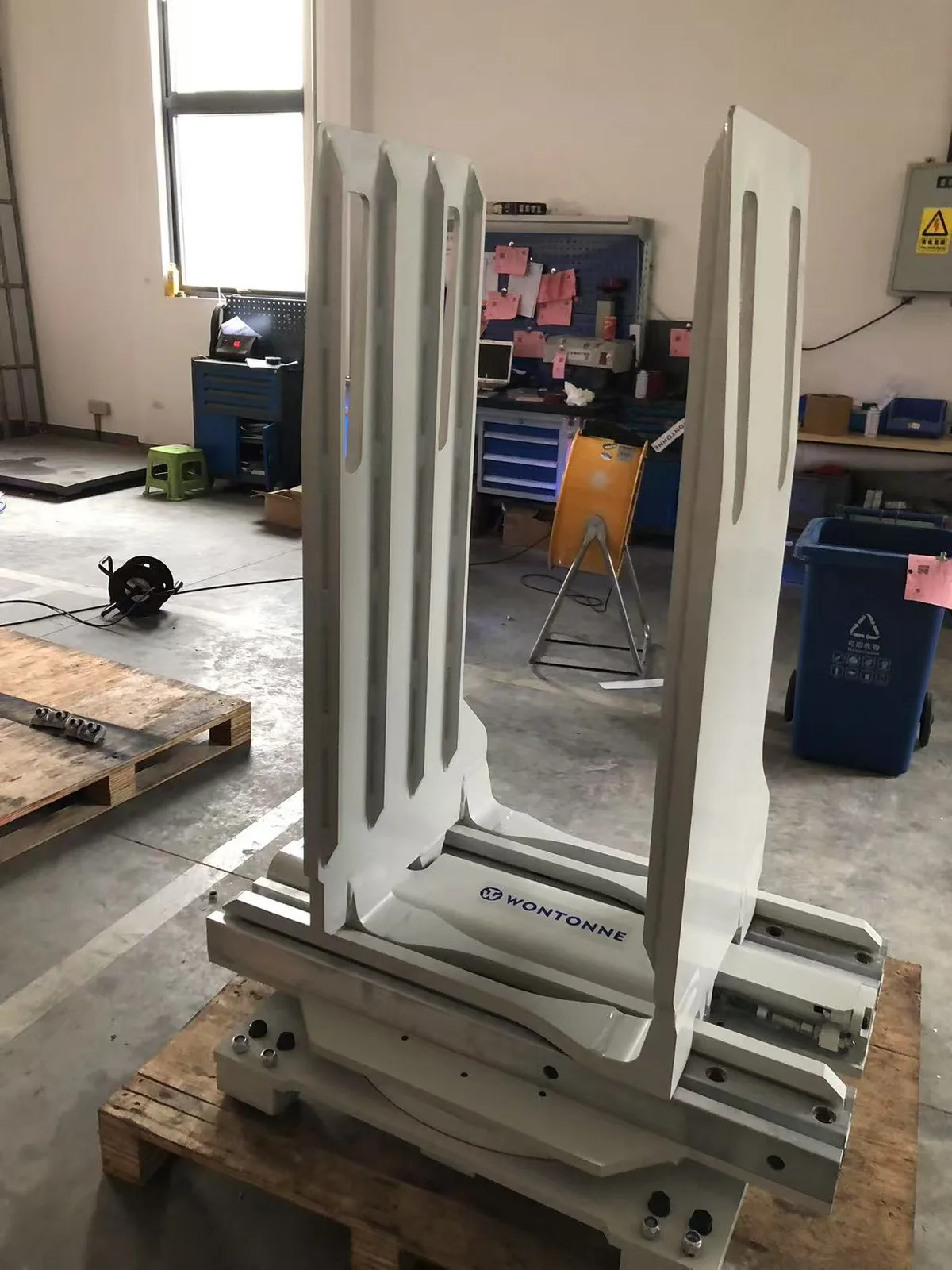

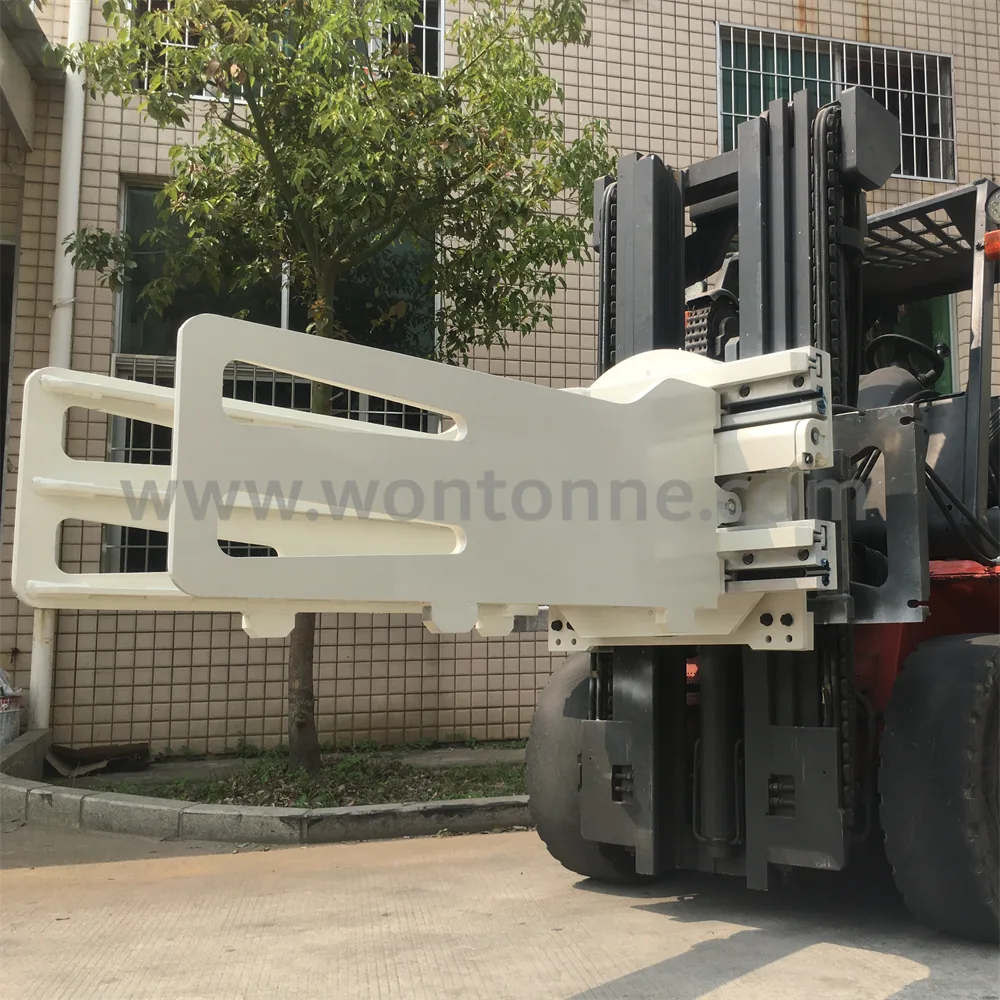

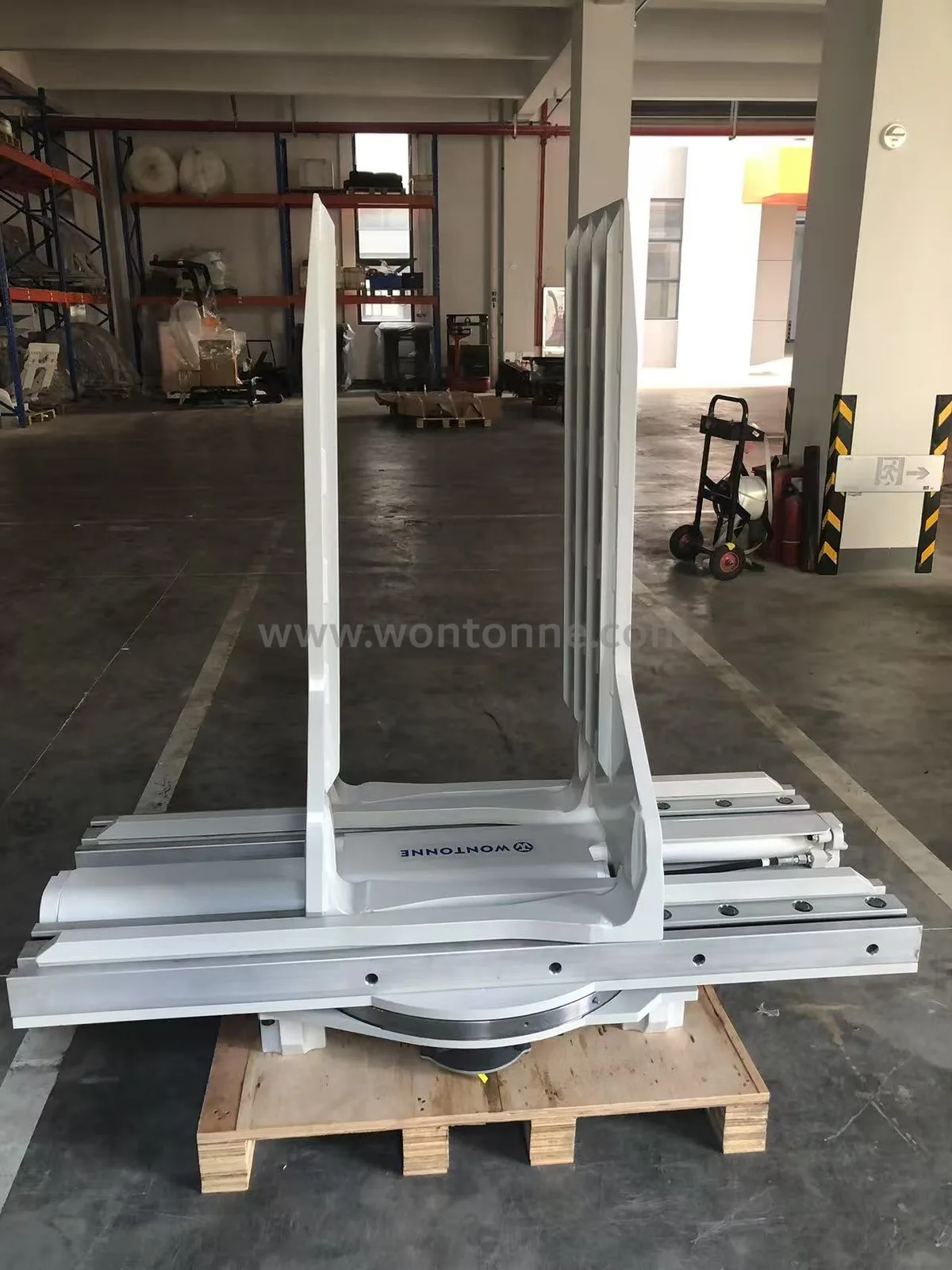

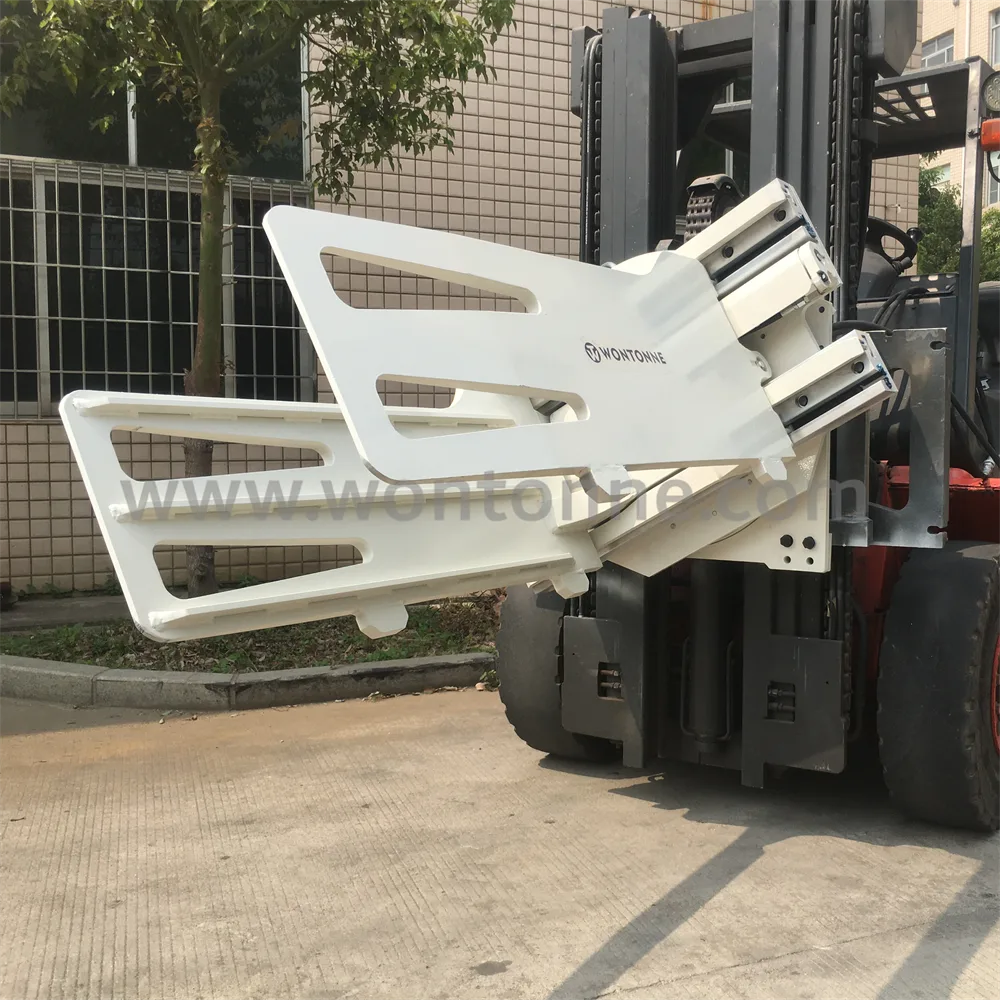

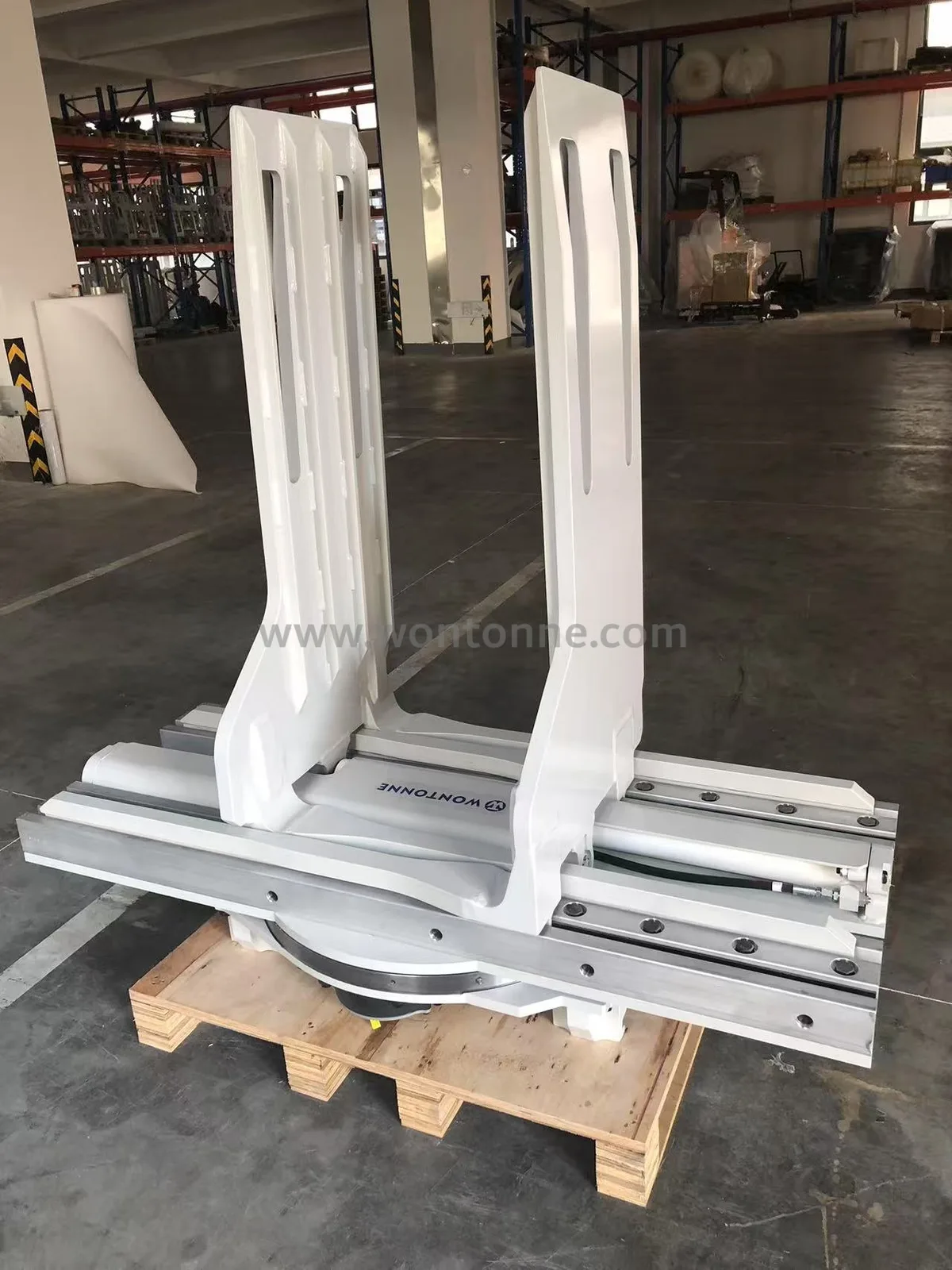

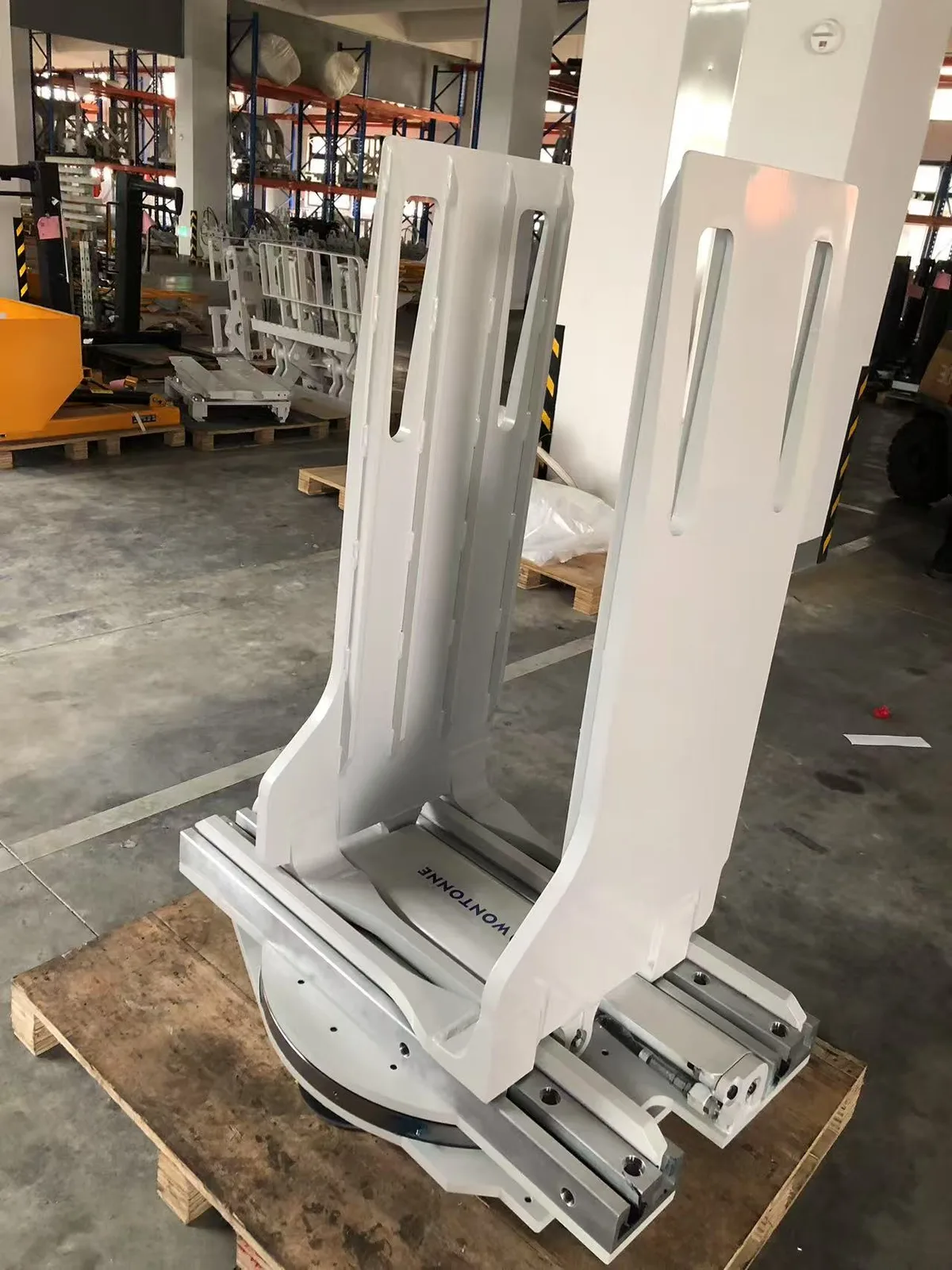

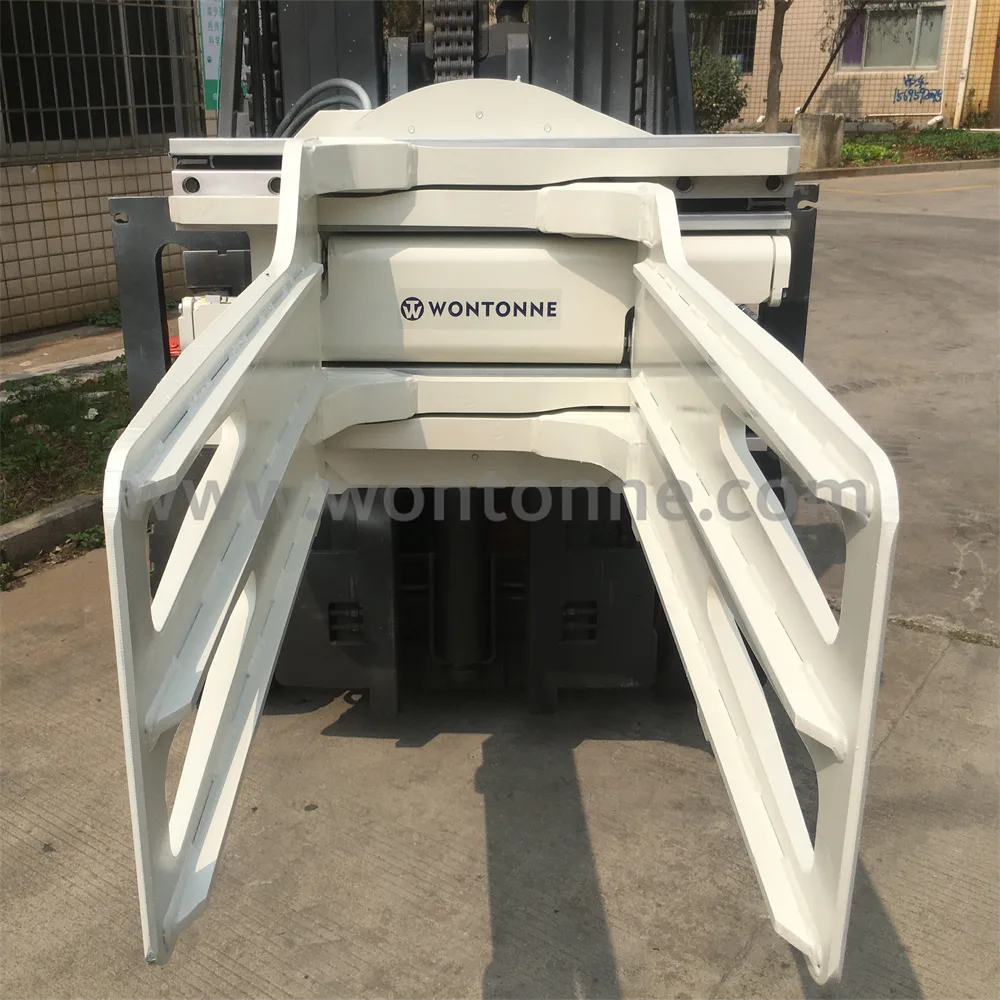

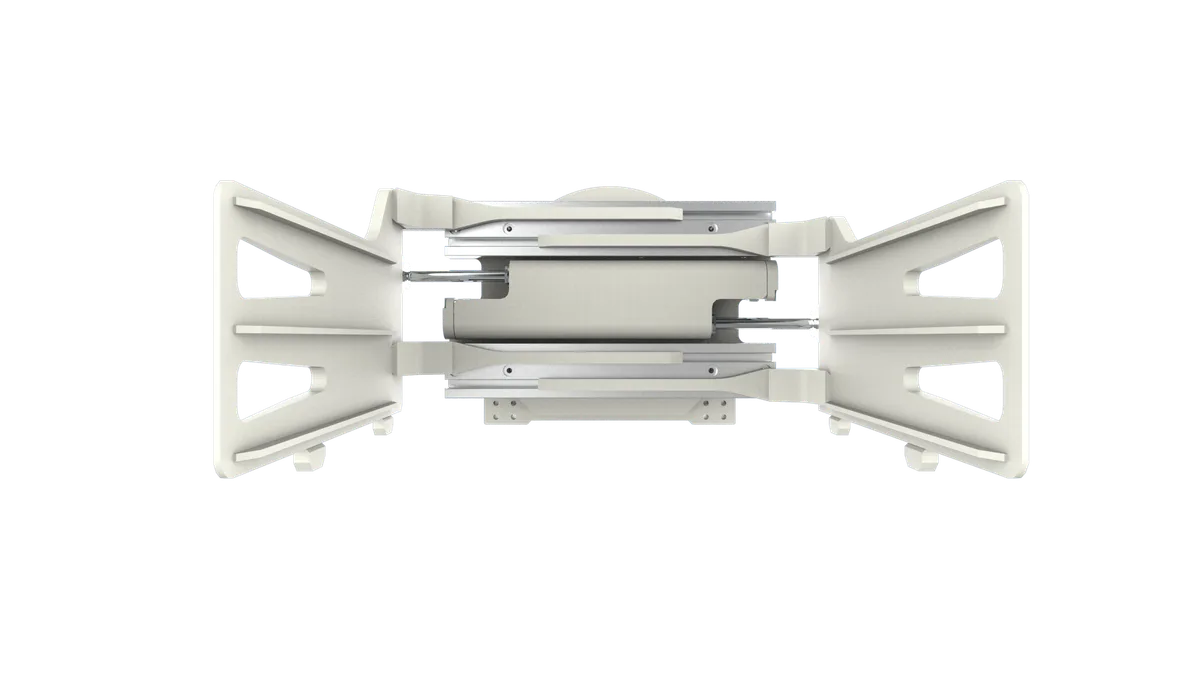

The Wontonne Bale Clamp E Series (Revolving) rotates goods for easier stacking, safely carrying all kinds of soft bag goods with open clamping and side movement.

The bale clamp facilitates safe, pallet-free handling and stacking of soft bag goods through clamping and lateral movement. It is commonly used for damage-free handling of materials like pulp bales, waste paper, recycled plastics, textile rags, and natural or synthetic textile fibers.

Key features & specifications:

Rotary motor rotates the goods

Easier stacking operation

Simple structure, low weight

Integral welded cast arm base

Open clamping function

Left and right side movement

For bags, paper, waste paper and textiles

Capacity up to 2700kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

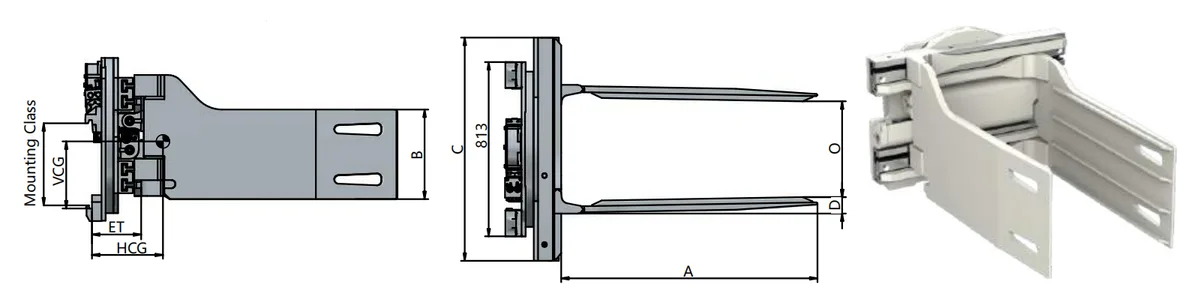

Model No	Capacity (kg)	Load Center (mm)	Opening Range (mm)	Mounting	Weight (kg)	Effective Thickness ET (mm)	Arm Length (mm)	Arm Height (mm)	Frame Width (mm)	Vertical CG VCG (mm)	Horizontal CG HCG (mm)	Arm Thickness (mm)
BCR20E-106A	1900	500	450-1730	ISO 2A	587	229	991	418	1040	318	264	71
BCR20E-107A	1900	500	450-1730	ISO 2A	628	229	1195	418	1040	314	322	74
BCR30E-108B	2700	500	565-1910	ISO 3A	688	277	991	464	1016	319	308	78
BCR30E-109B	2700	500	565-1910	ISO 3A	740	277	1195	464	1016	313	366	80
BCR30E-112B	2500	500	490-2300	ISO 3A	840	277	1195	464	1600	316	343	80
