What is the capacity of the Block Clamp?

The Block Clamp handles 1900-2700 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the Block Clamp use?

The Block Clamp is available for ISO 3A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the Block Clamp are available?

Wontonne offers 8 models of the Block Clamp — including CKS30D-001B, CKS30D-002B, CKS30D-003B, CKS30D-004B, CKS30D-006B and more — with different capacities and load centers for various applications.

What materials can a brick clamp handle?

Mud bricks, concrete blocks, aerated (AAC) blocks, carbon blocks and other standard-temperature rigid block commodities.

What is a 2D-articulation block clamp?

The 2D-articulation block clamp allows two-axis articulation to align the clamp with uneven stack surfaces, improving grip on irregular block stacks.

Products / Brick Clamps / Block Clamp

Brick Clamps

Block Clamp

Engineered for durability and precision, block clamp delivers reliable performance in demanding material handling environments.

All Brick Clamps

Product Overview

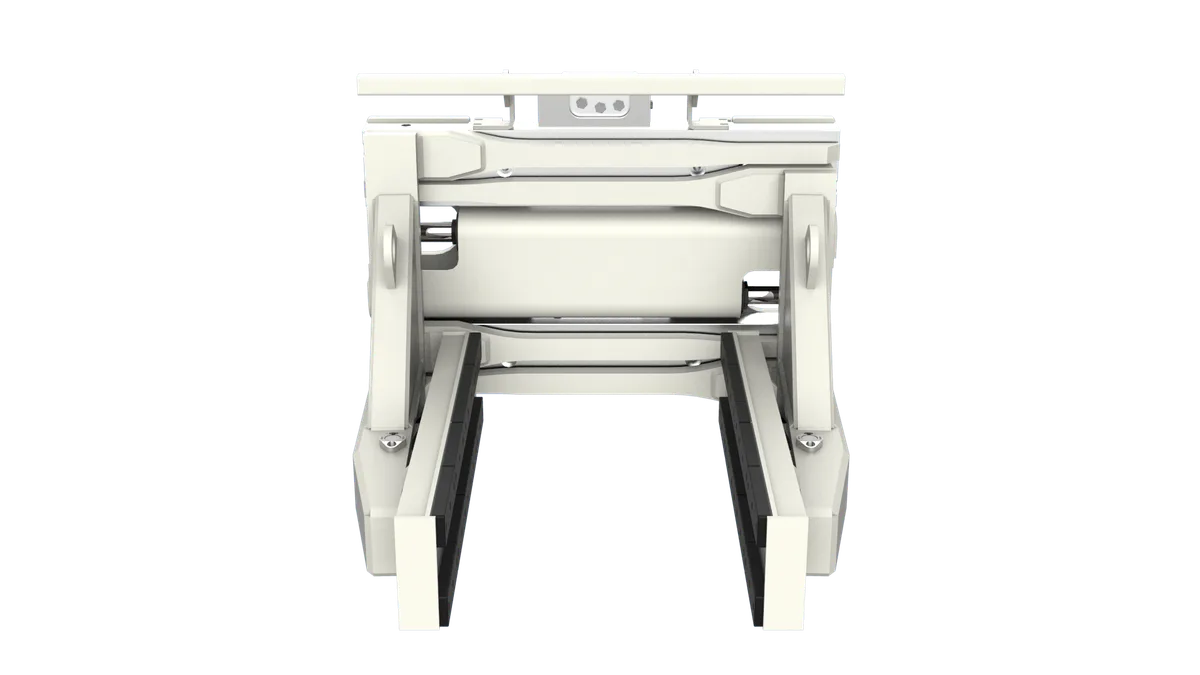

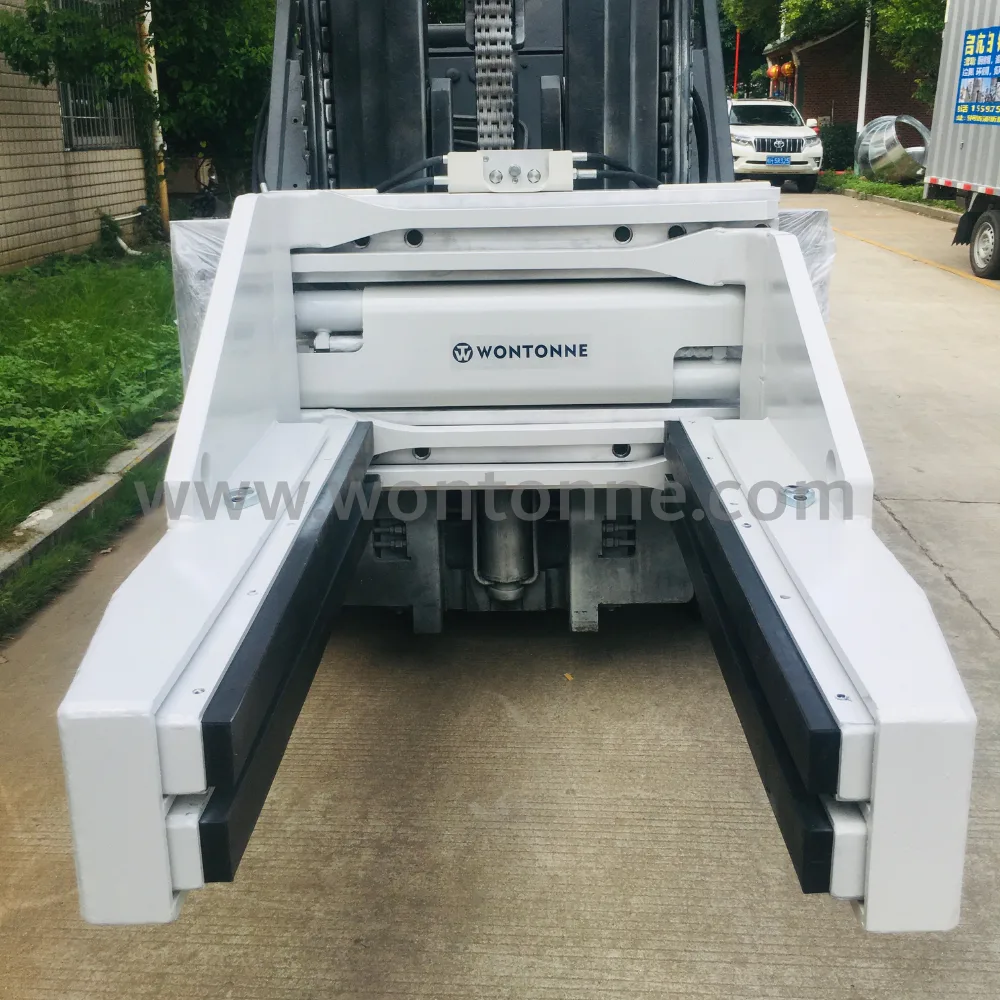

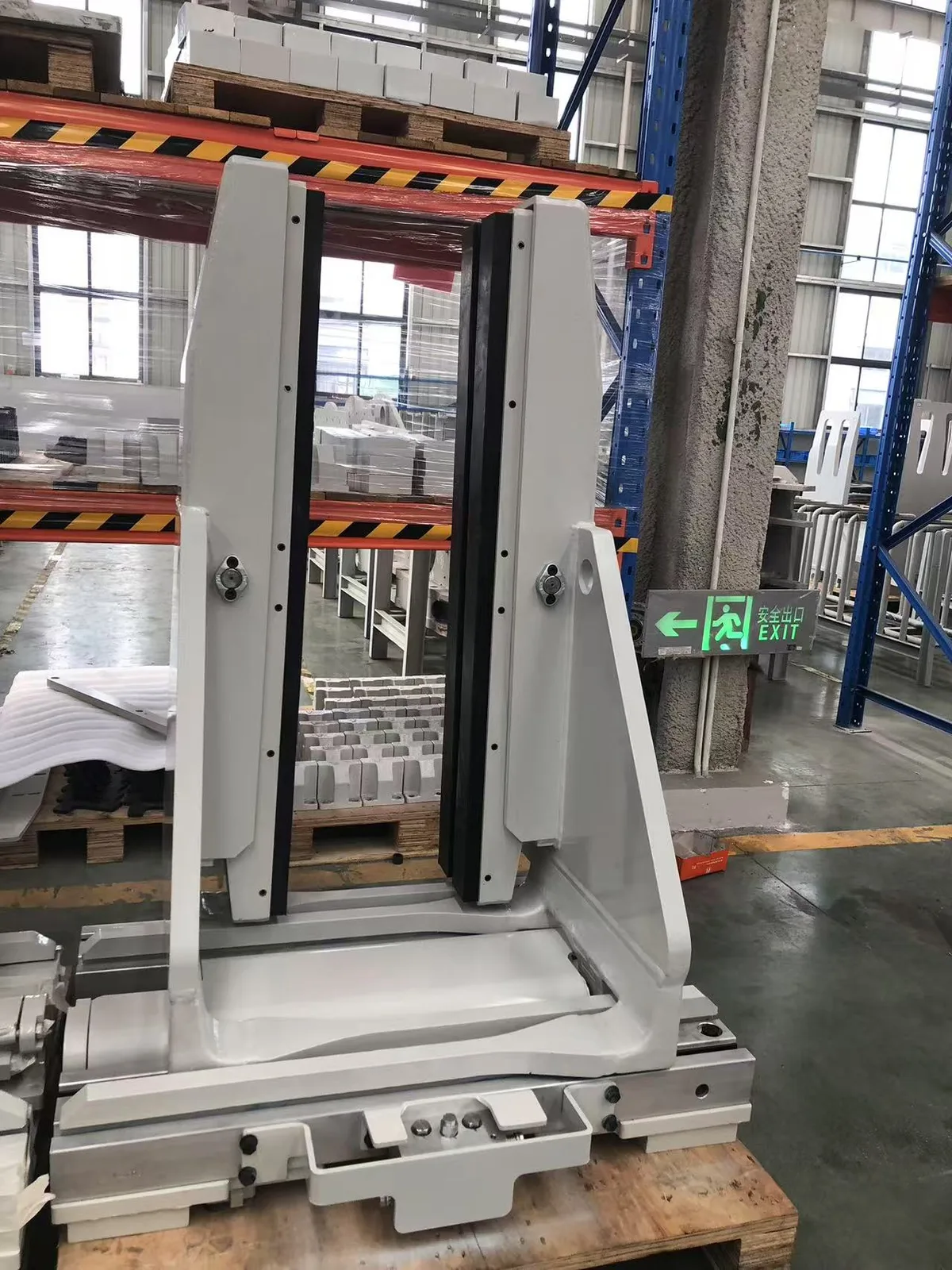

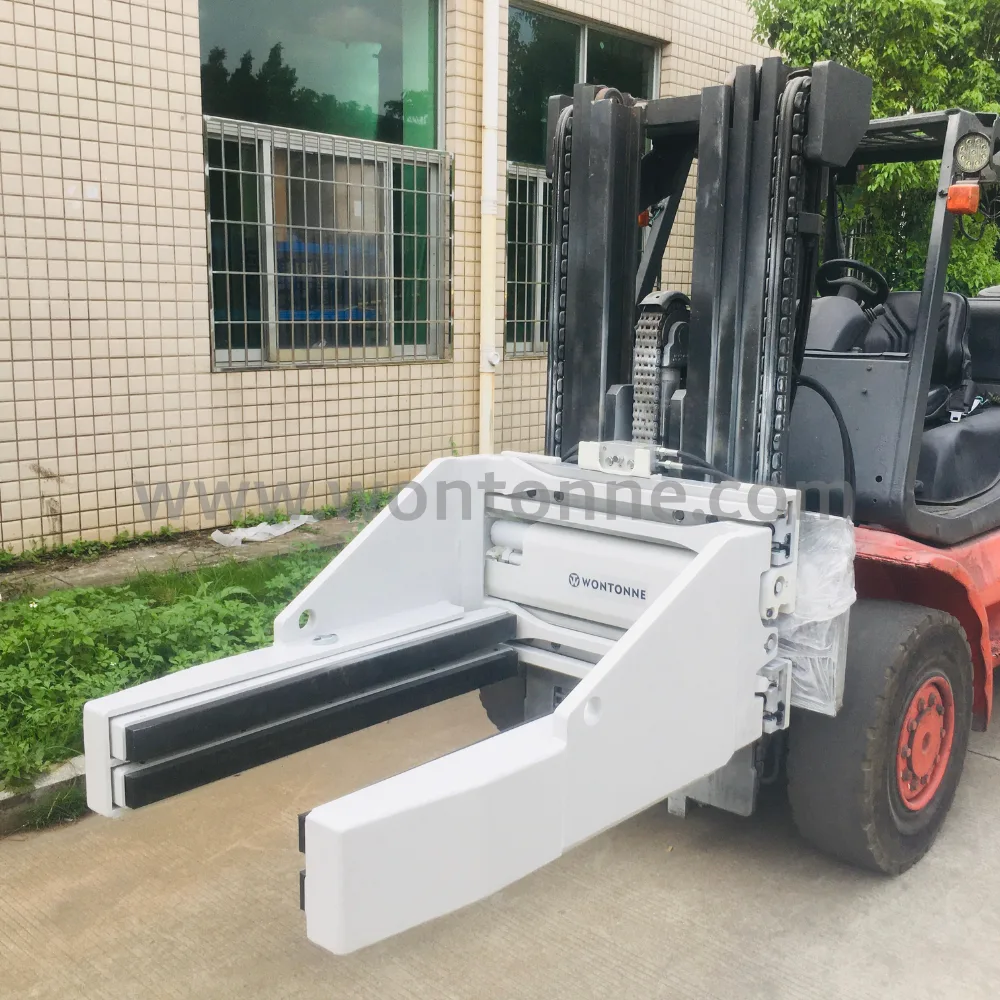

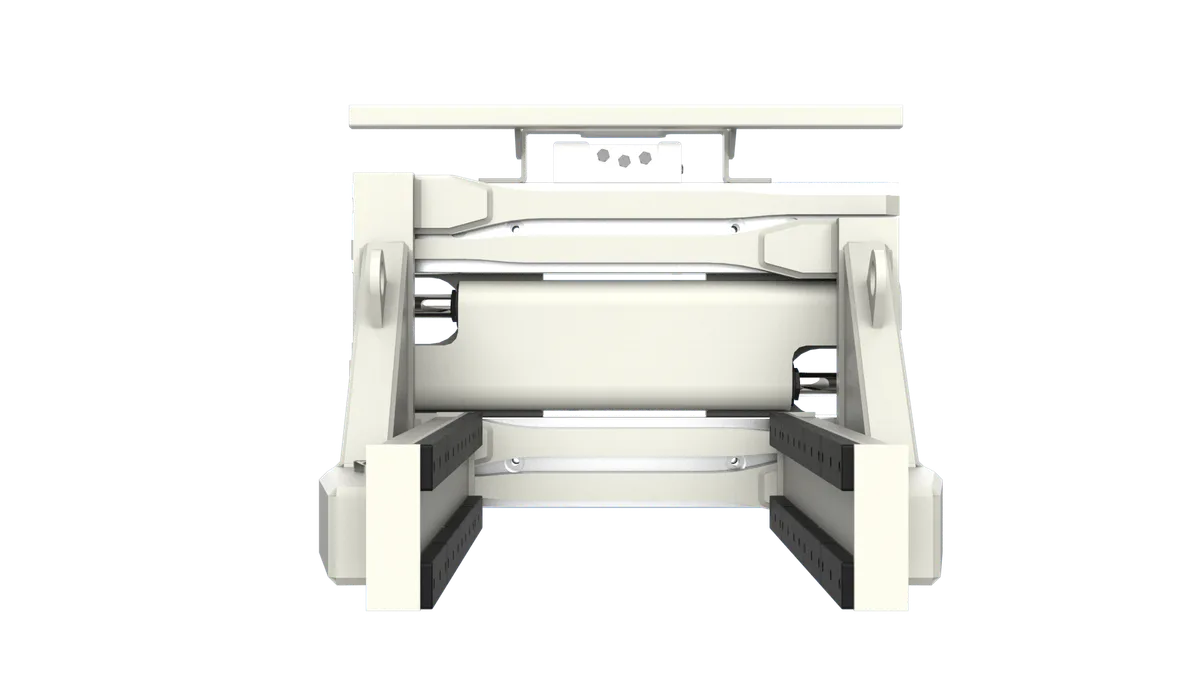

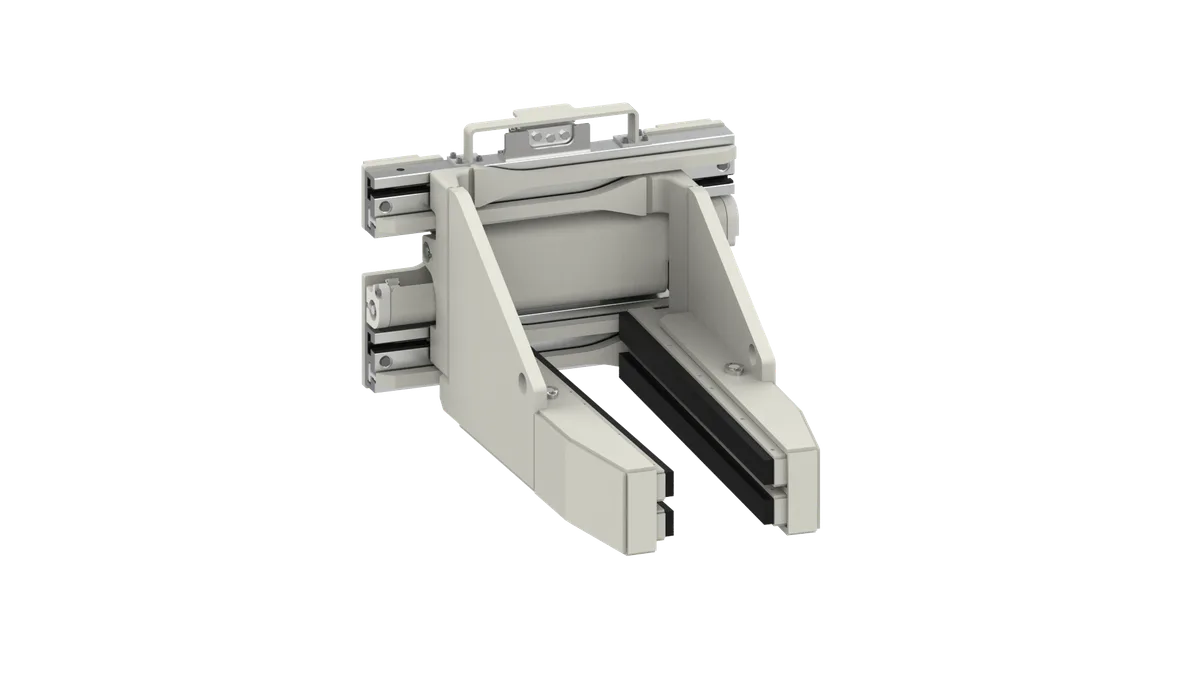

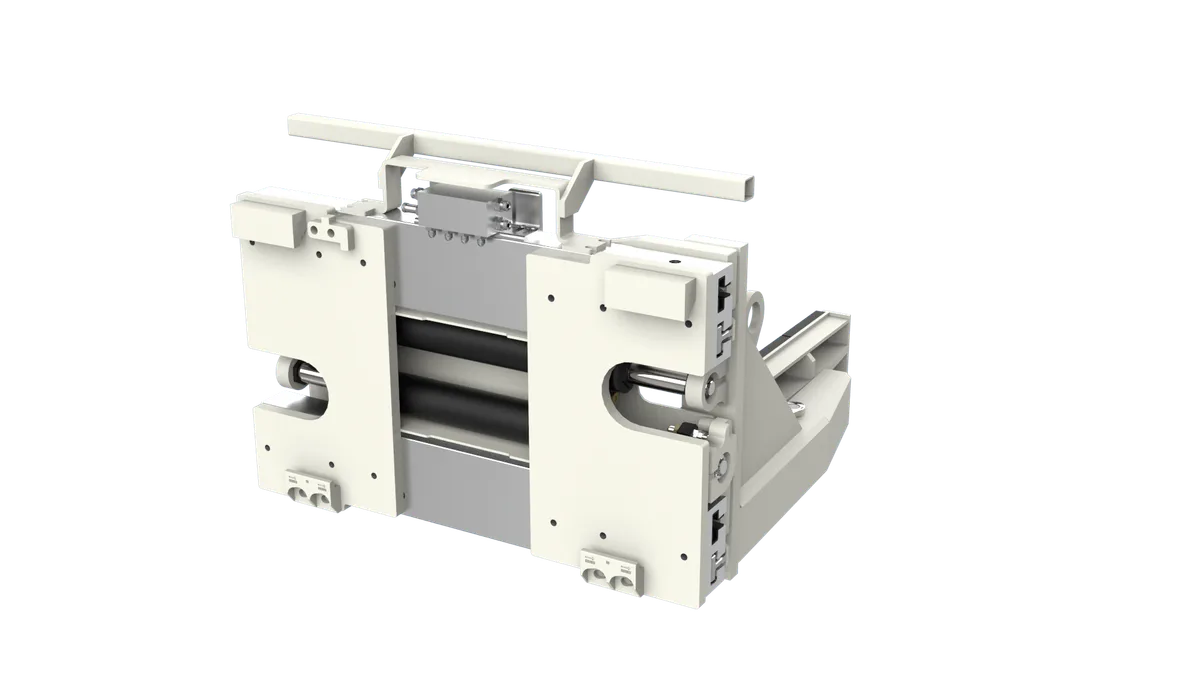

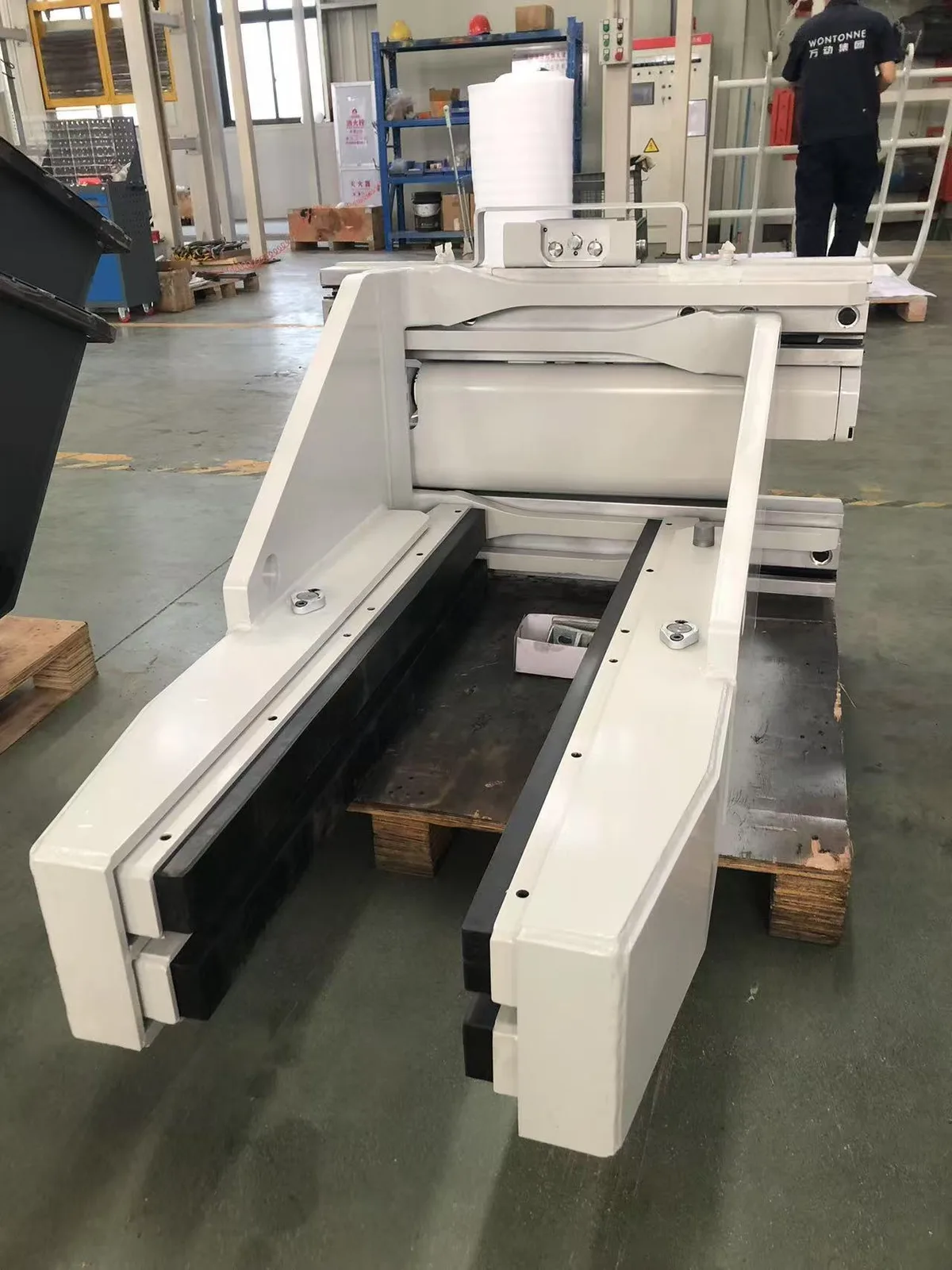

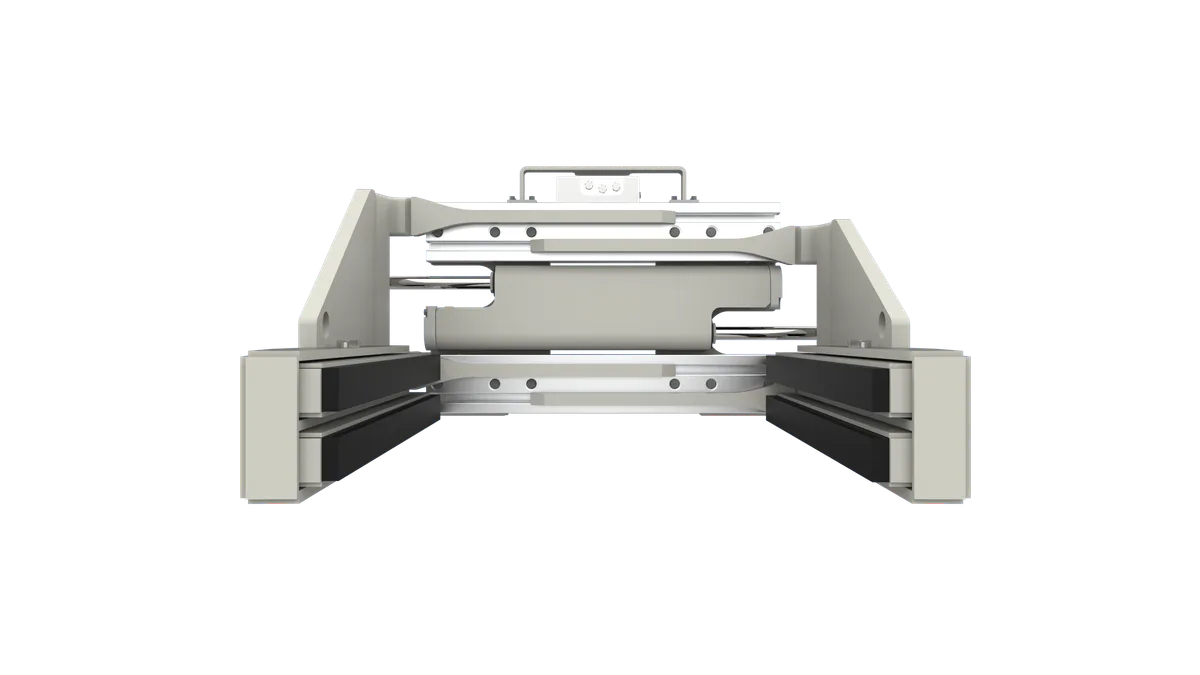

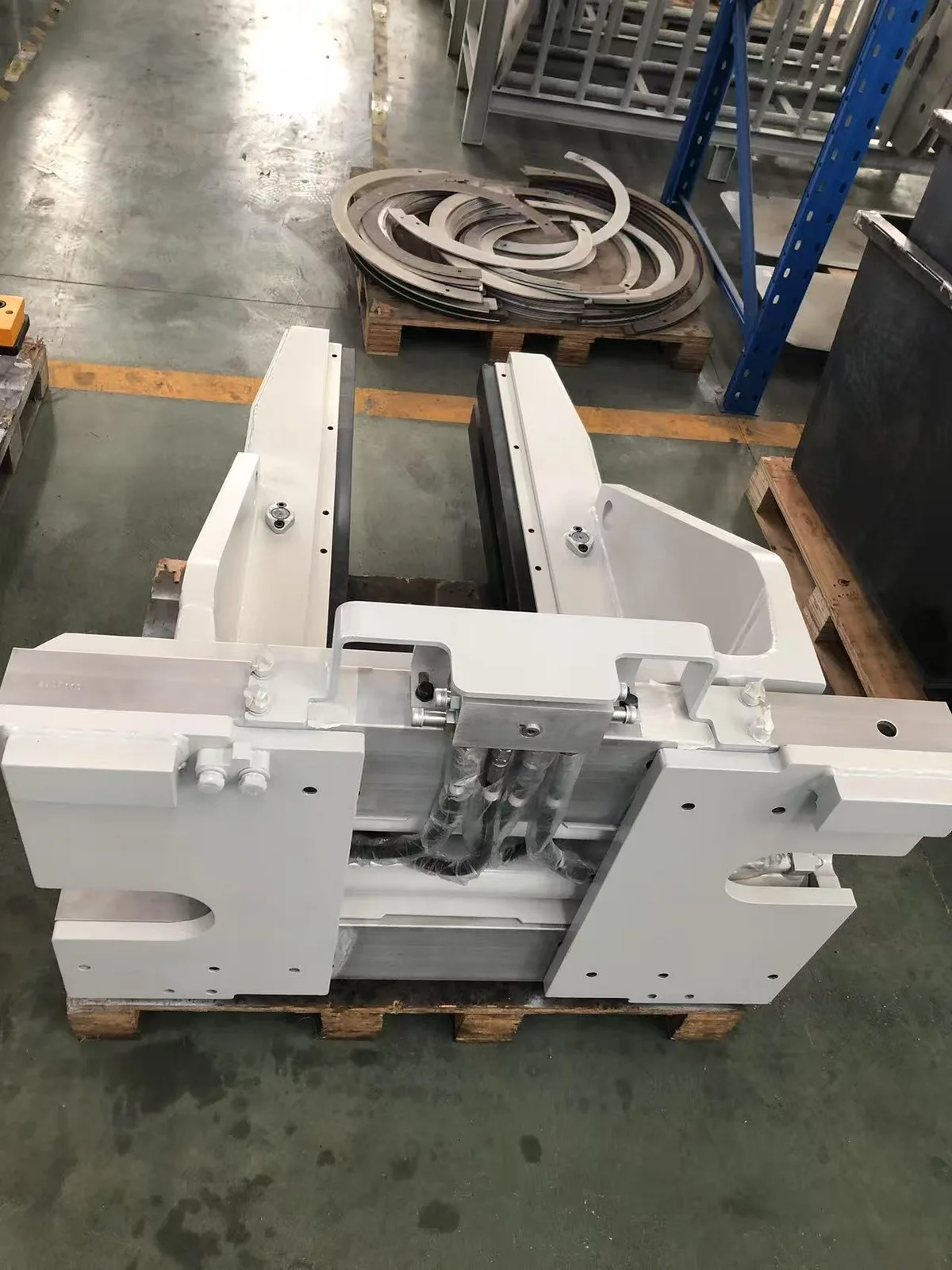

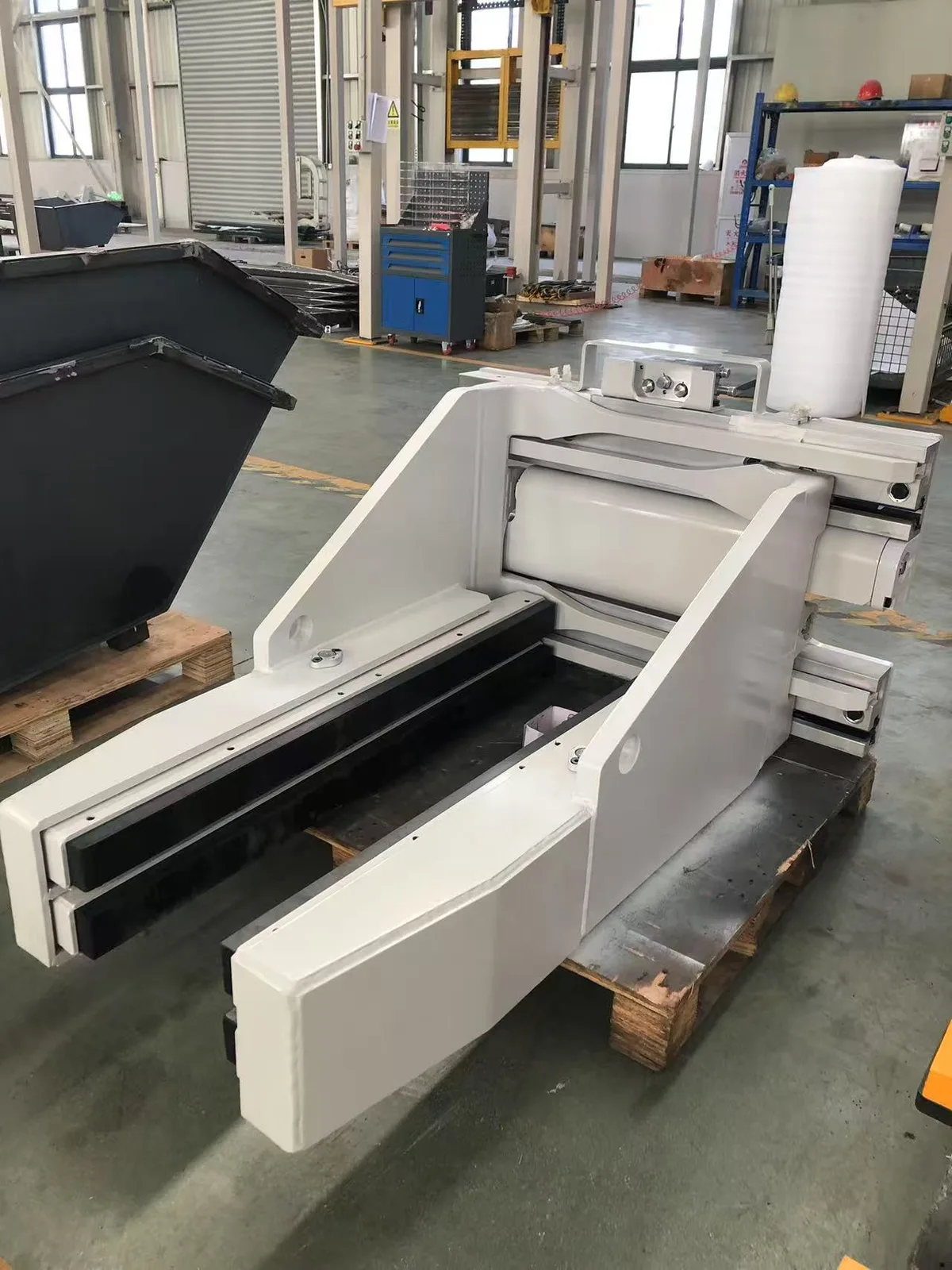

The Wontonne Block Clamp is suitable for handling and stacking normal-temperature hard block goods such as mud bricks and concrete blocks.

The brick clamp is designed for the manipulation and stacking of standard-temperature rigid block commodities, including mud bricks, concrete blocks, carbon blocks, and similar items.

Key features & specifications:

For hard block goods handling

Handles mud bricks and concrete blocks

Picking, lifting and rotating operation

Secure non-palletized transport

Strong and reliable construction

Capacity up to 2700kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

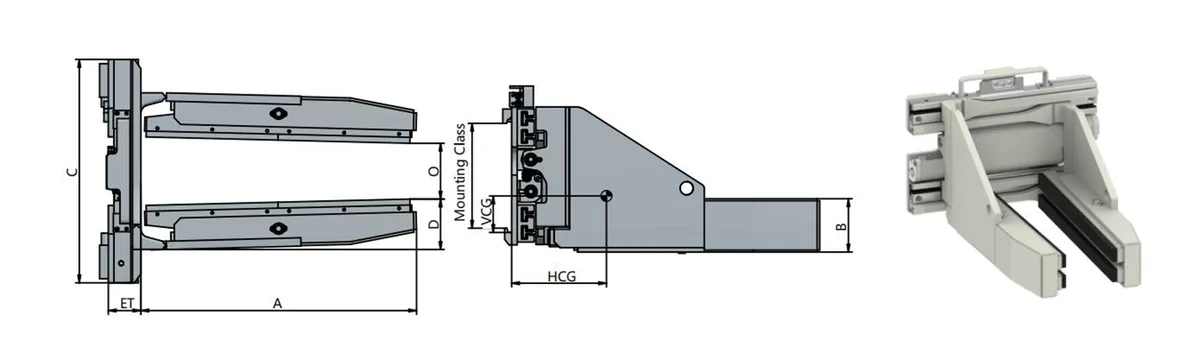

Model No	Capacity (kg)	Load Center (mm)	Opening Range (mm)	Mounting	Weight (kg)	Effective Thickness ET (mm)	Arm Length (mm)	Arm Height (mm)	Frame Width (mm)	Vertical CG VCG (mm)	Horizontal CG HCG (mm)	Arm Thickness (mm)
CKS30D-001B	2450	550	290-1610	ISO 3A	580	150	1100	128	1016	180	308	202
CKS30D-002B	2450	550	290-1610	ISO 3A	688	150	1100	242	1016	174	377	202
CKS30D-003B	2700	500	290-1610	ISO 3A	549	150	1000	128	1016	186	276	202
CKS30D-004B	1900	700	290-1610	ISO 3A	870	150	1400	242	1016	157	509	202
CKS30D-006B	2250	600	290-1610	ISO 3A	747	150	1200	242	1016	169	416	202
CKS30D-007B	2250	600	290-1610	ISO 3A	612	150	1200	128	1016	175	342	202
CKS30D-013B	2700	500	290-1610	ISO 3A	642	150	1000	242	1016	178	338	202
CKS30D-206B	2250	600	560-1880	ISO 3A	777	150	1200	242	1016	168	425	202
