Products / Multiple Load Handlers / Single – Double Pallet Handler
Multiple Load Handlers

Single – Double Pallet Handler

Engineered for durability and precision, single – double pallet handler delivers reliable performance in demanding material handling environments.

All Multiple Load Handlers
Single – Double Pallet Handler
Single – Double Pallet Handler - 1Single – Double Pallet Handler - 2Single – Double Pallet Handler - 3Single – Double Pallet Handler - 4Single – Double Pallet Handler - 5Single – Double Pallet Handler - 6Single – Double Pallet Handler - 7Single – Double Pallet Handler - 8Single – Double Pallet Handler - 9Single – Double Pallet Handler - 10Single – Double Pallet Handler - 11Single – Double Pallet Handler - 12Single – Double Pallet Handler - 13Single – Double Pallet Handler - 14Single – Double Pallet Handler - 15Single – Double Pallet Handler - 16Single – Double Pallet Handler - 17

Product Overview

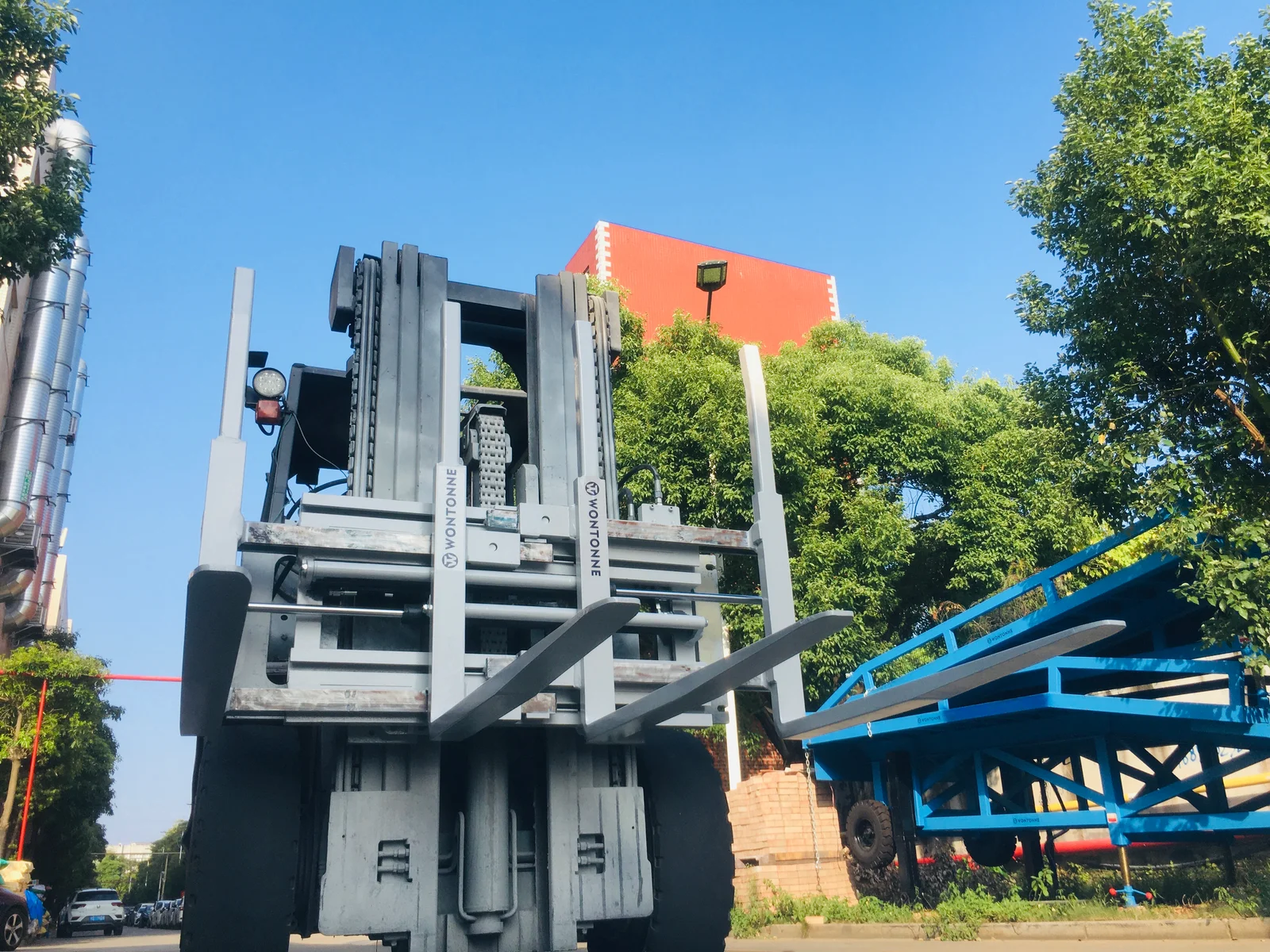

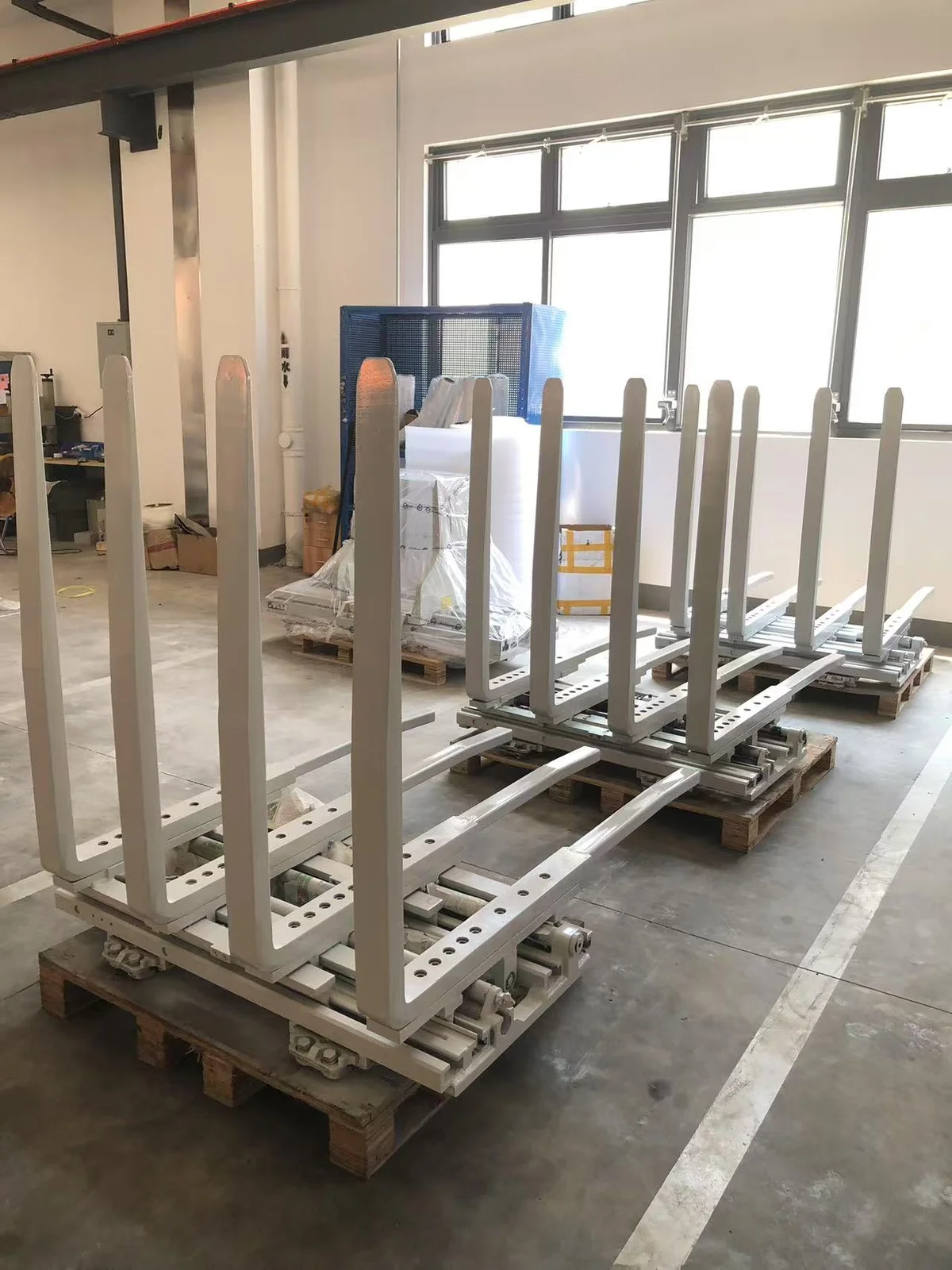

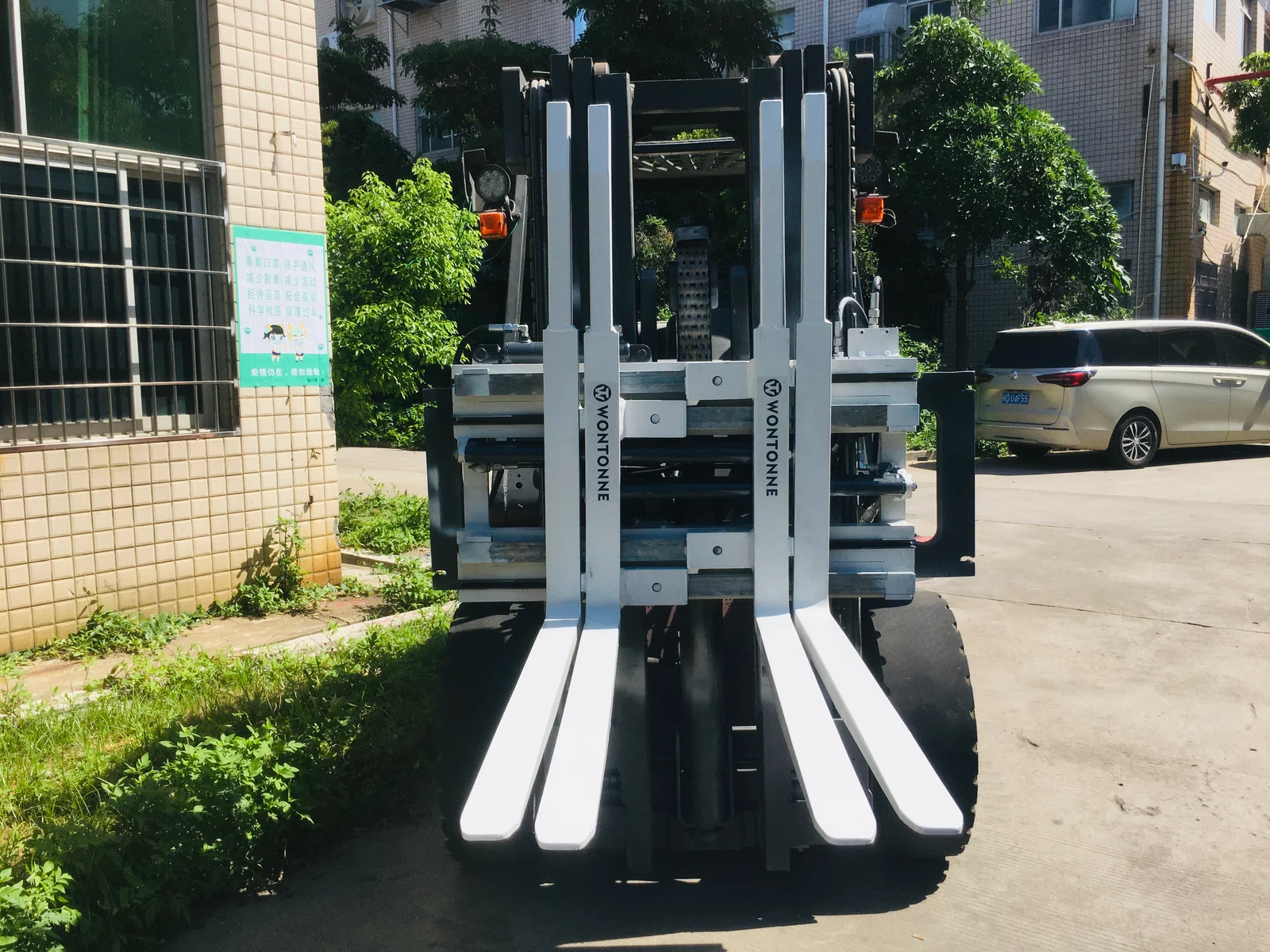

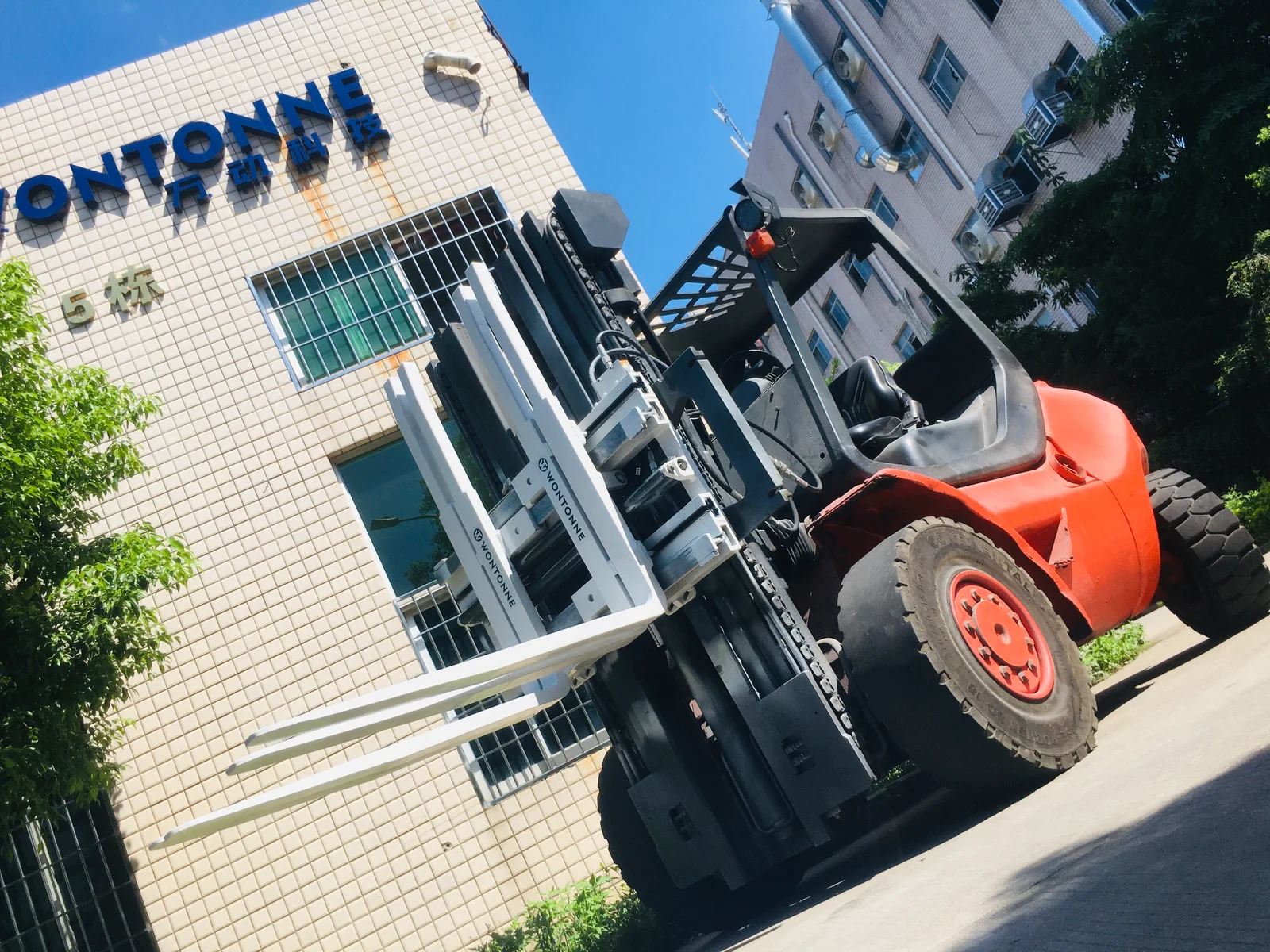

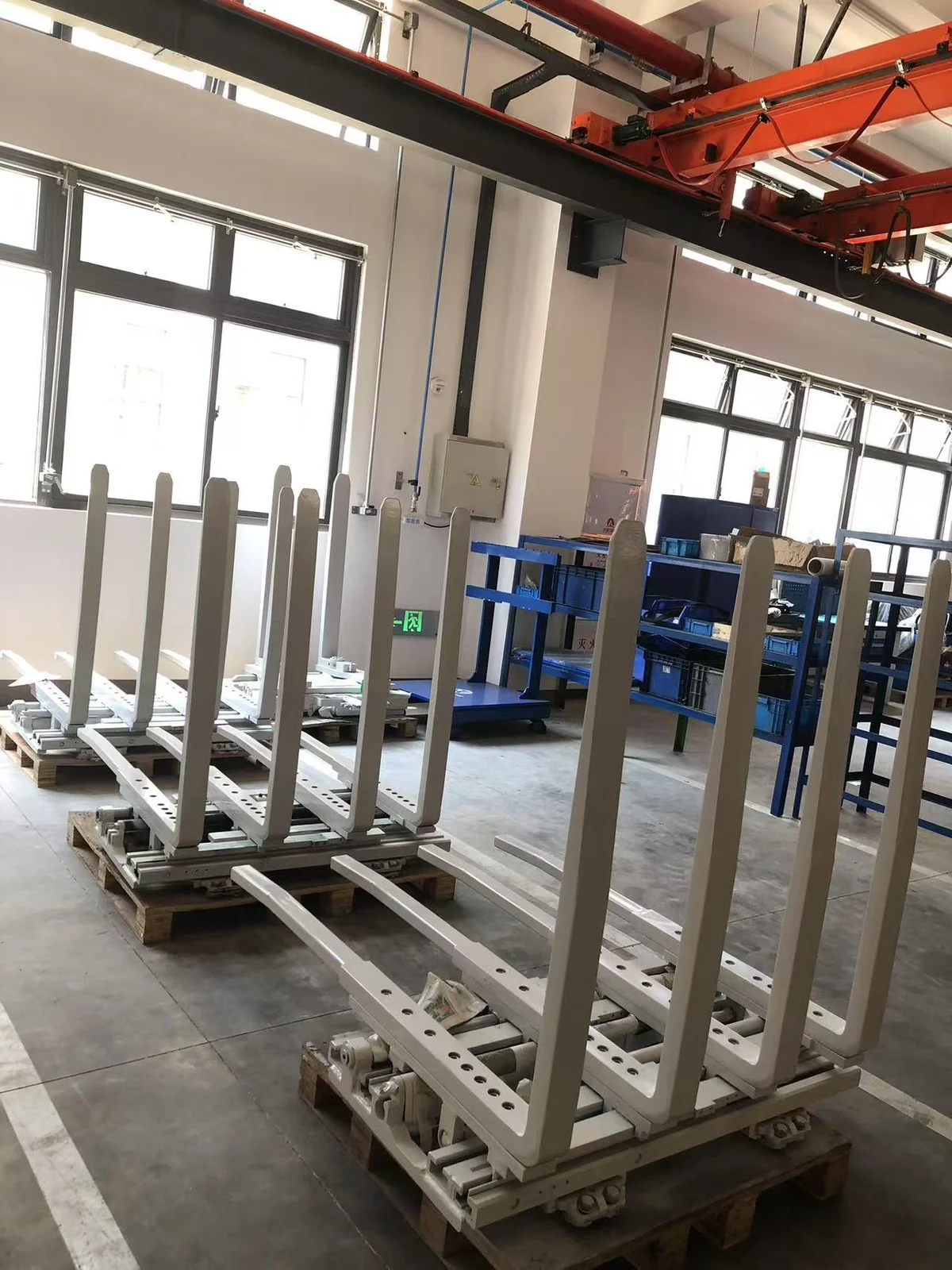

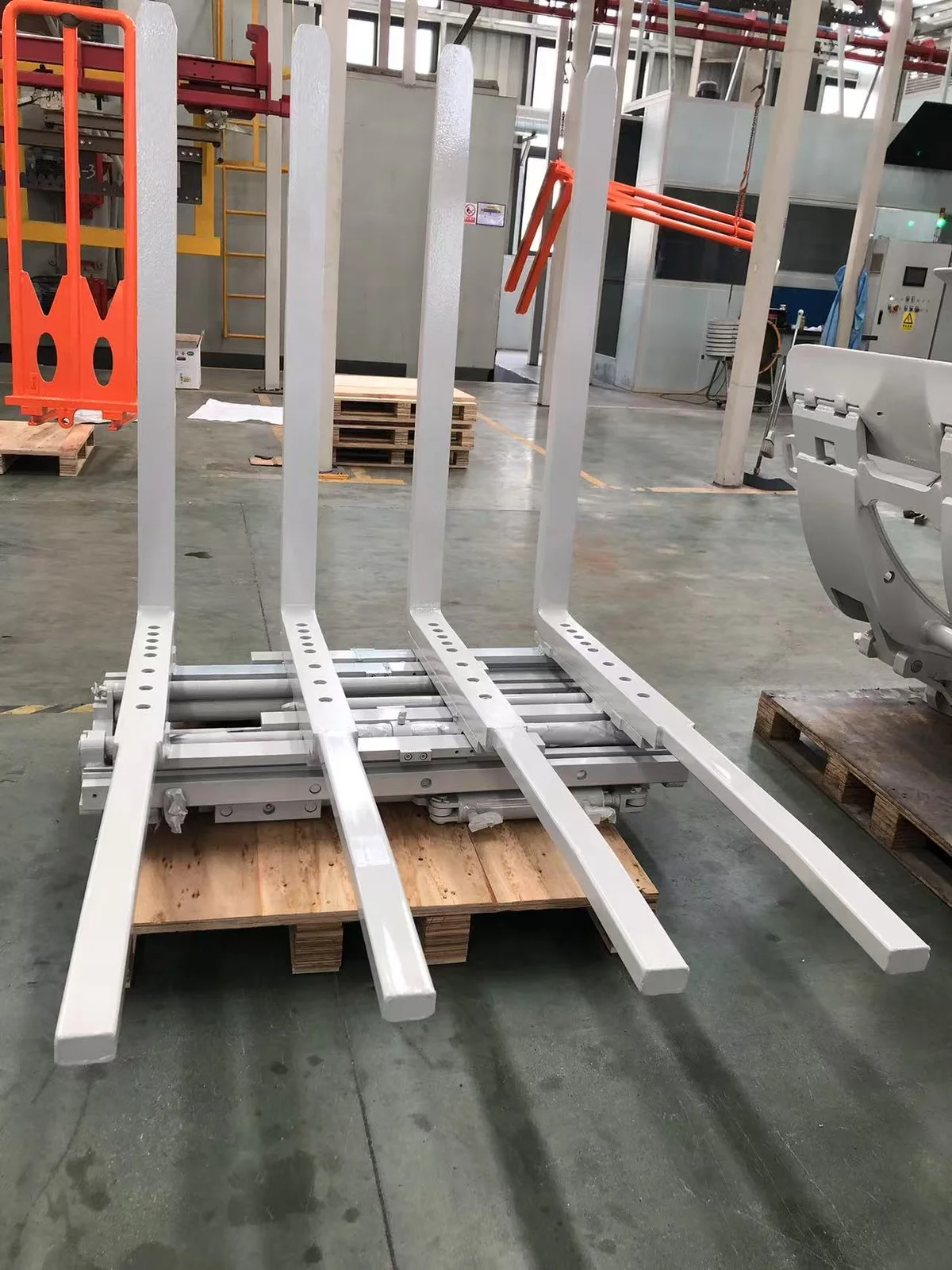

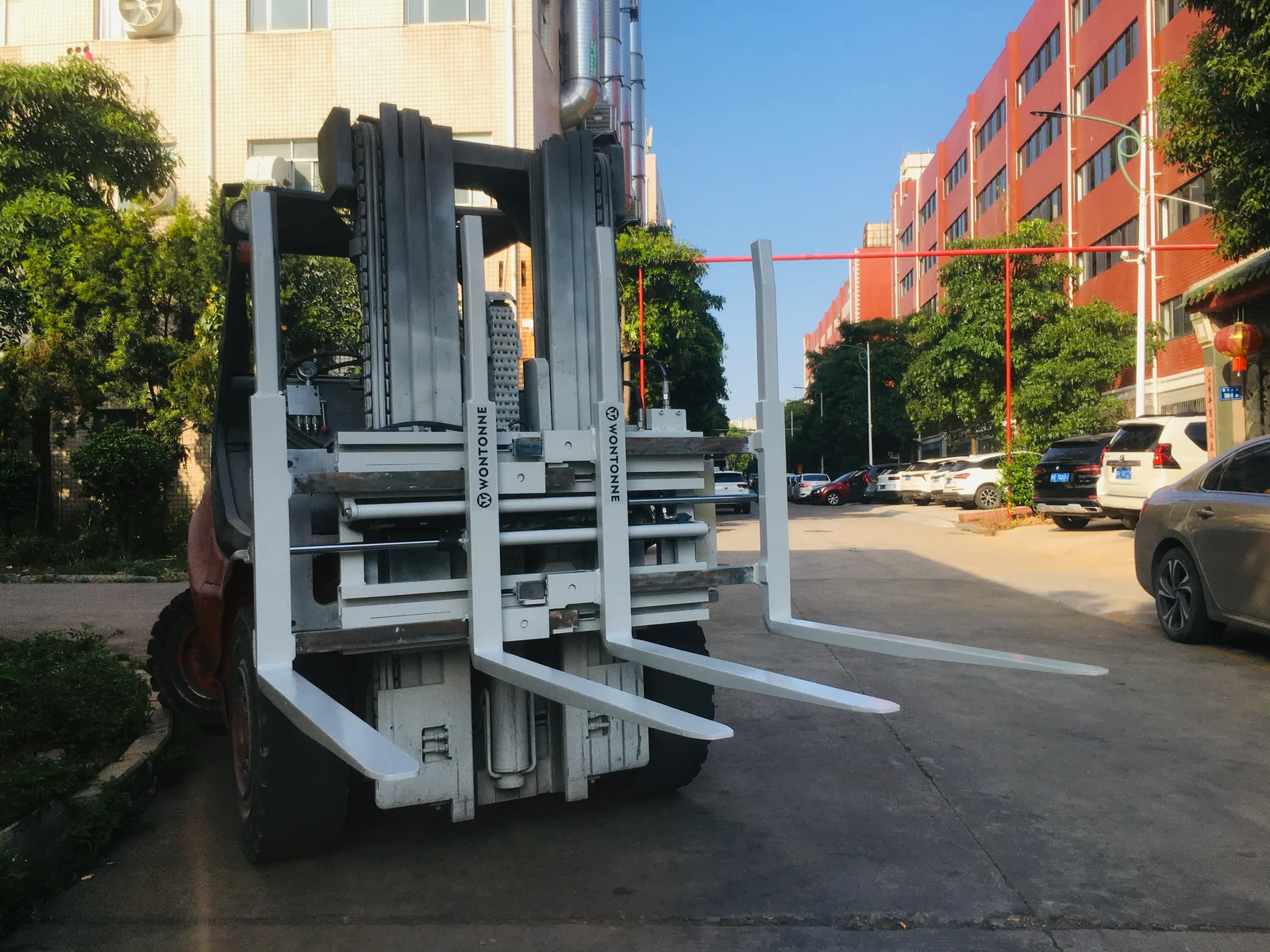

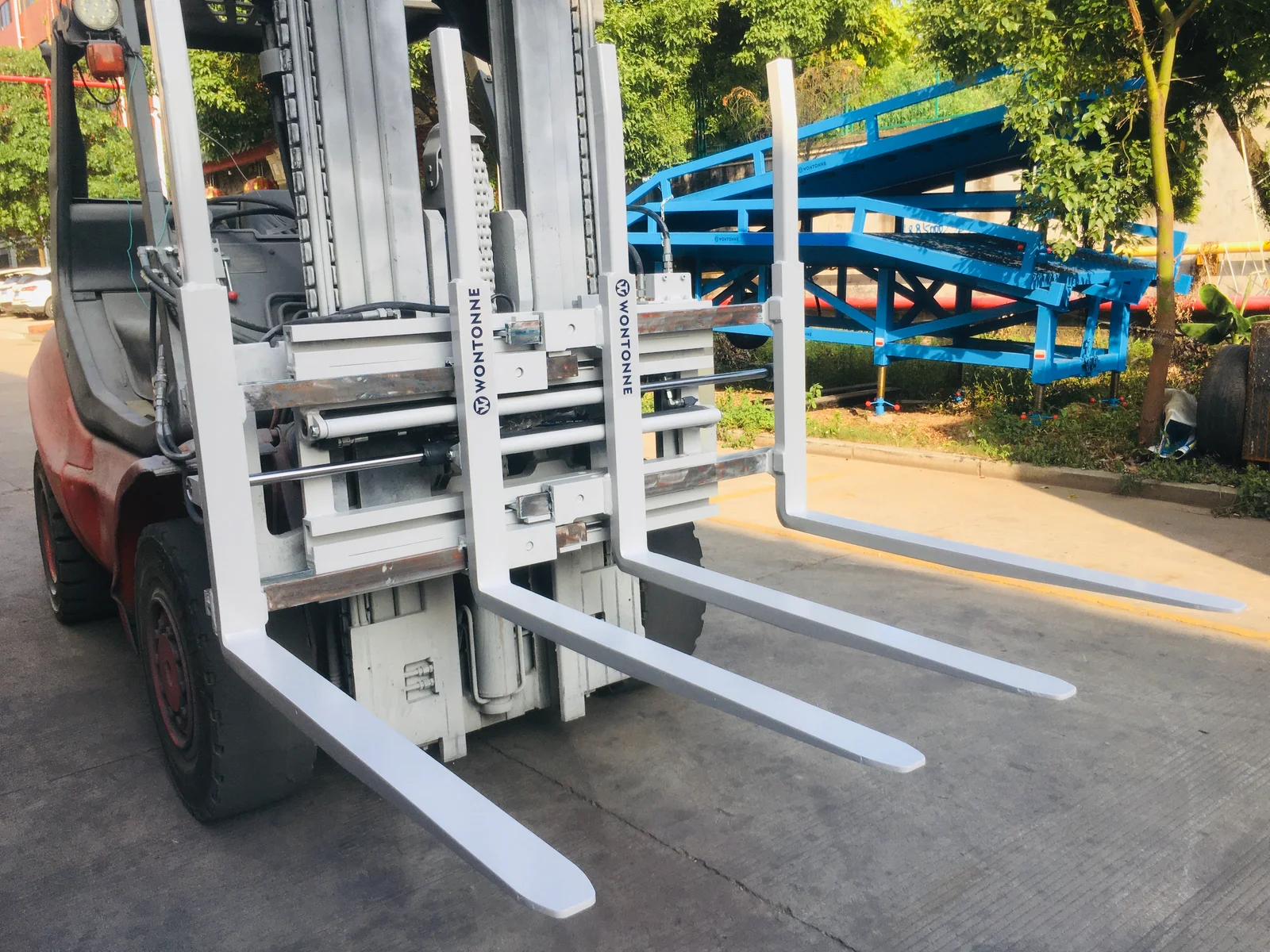

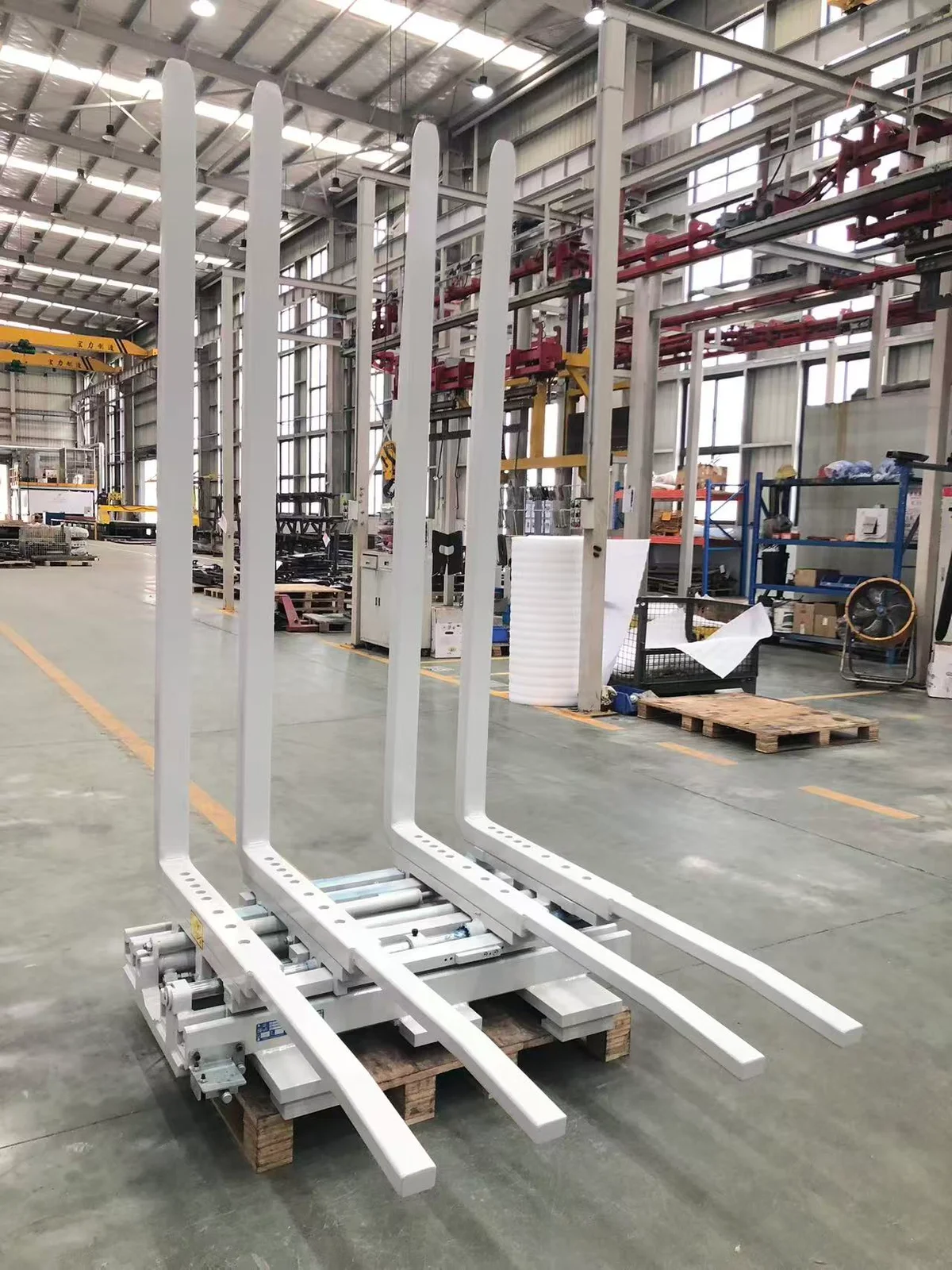

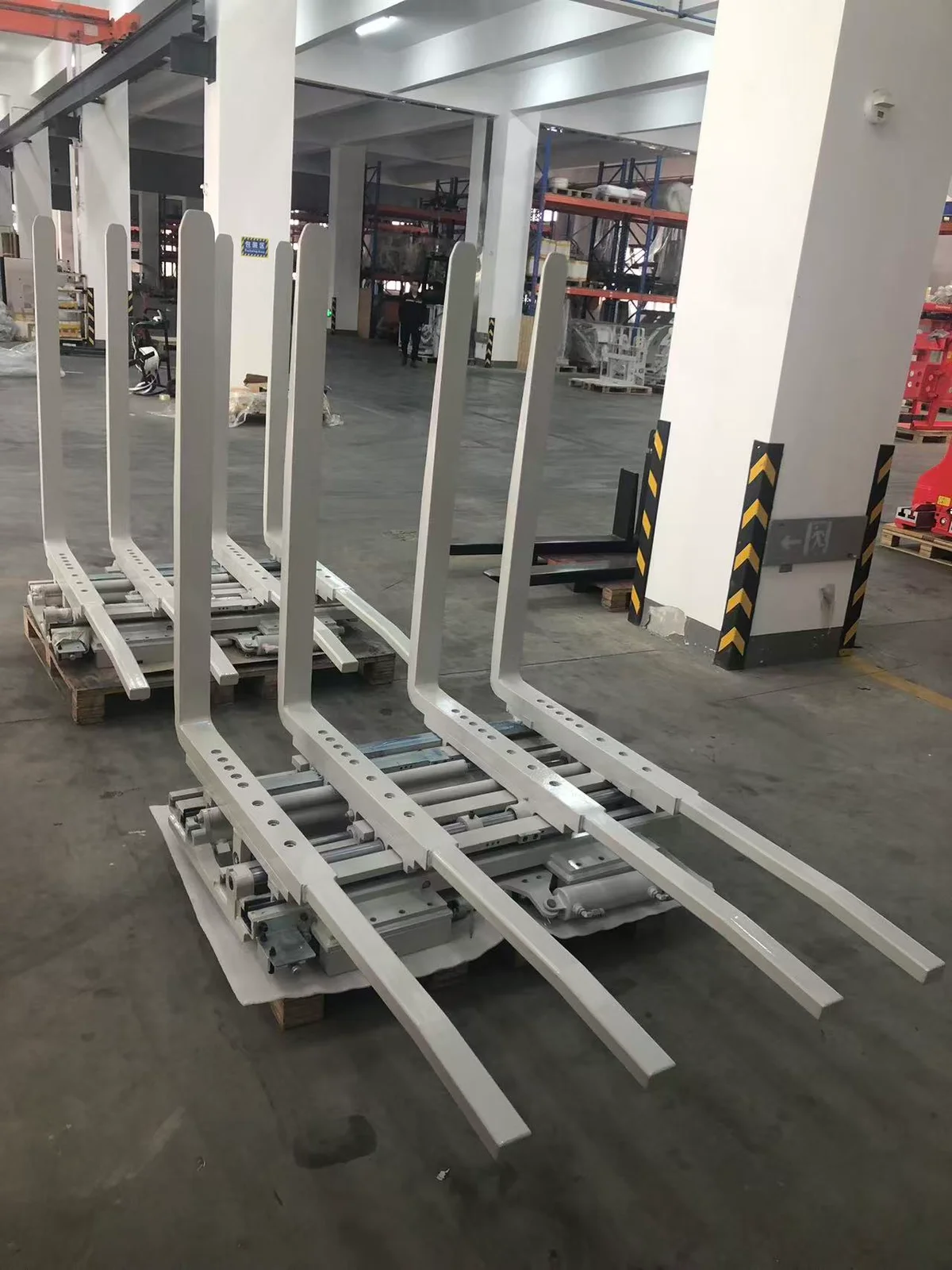

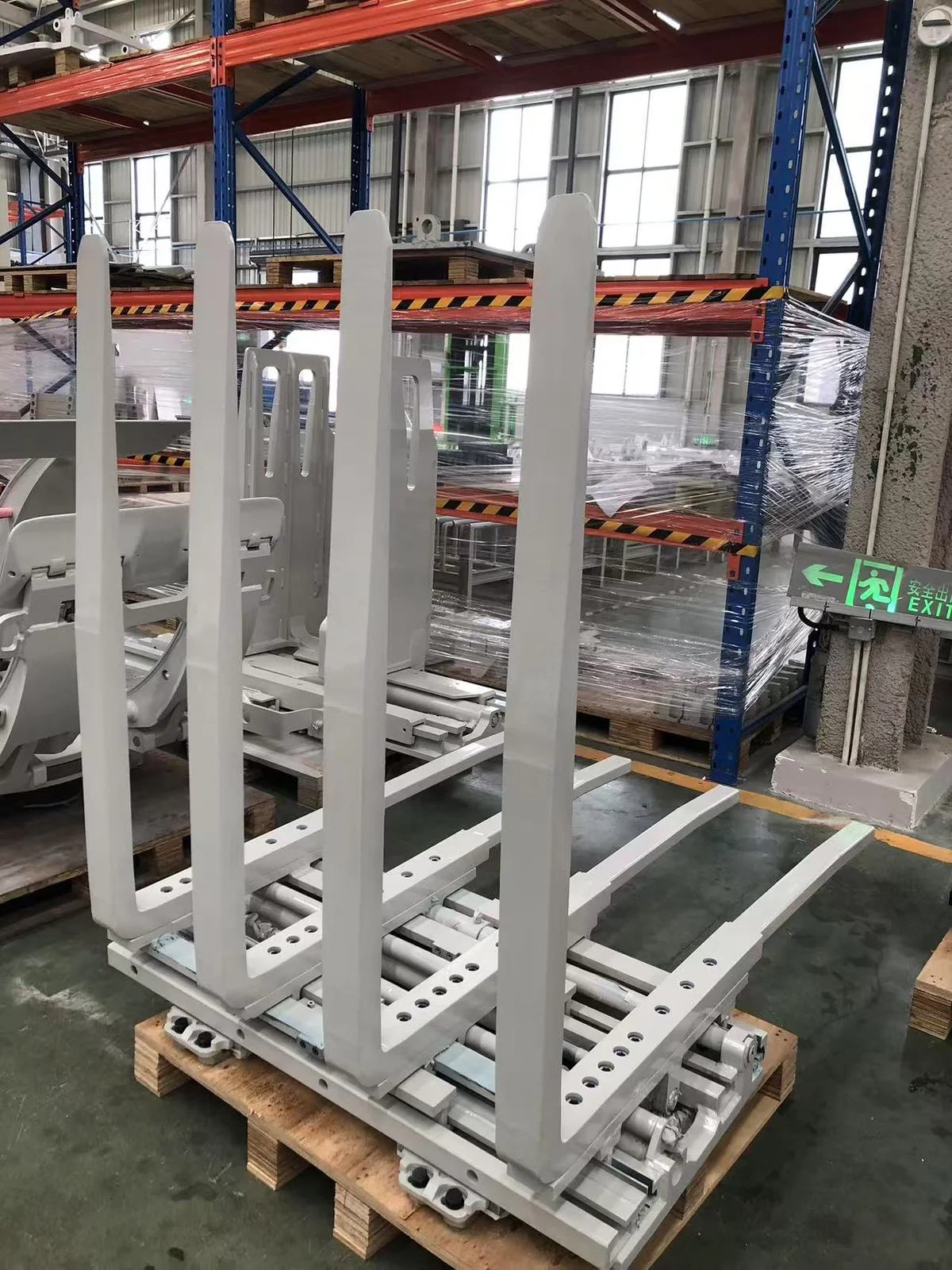

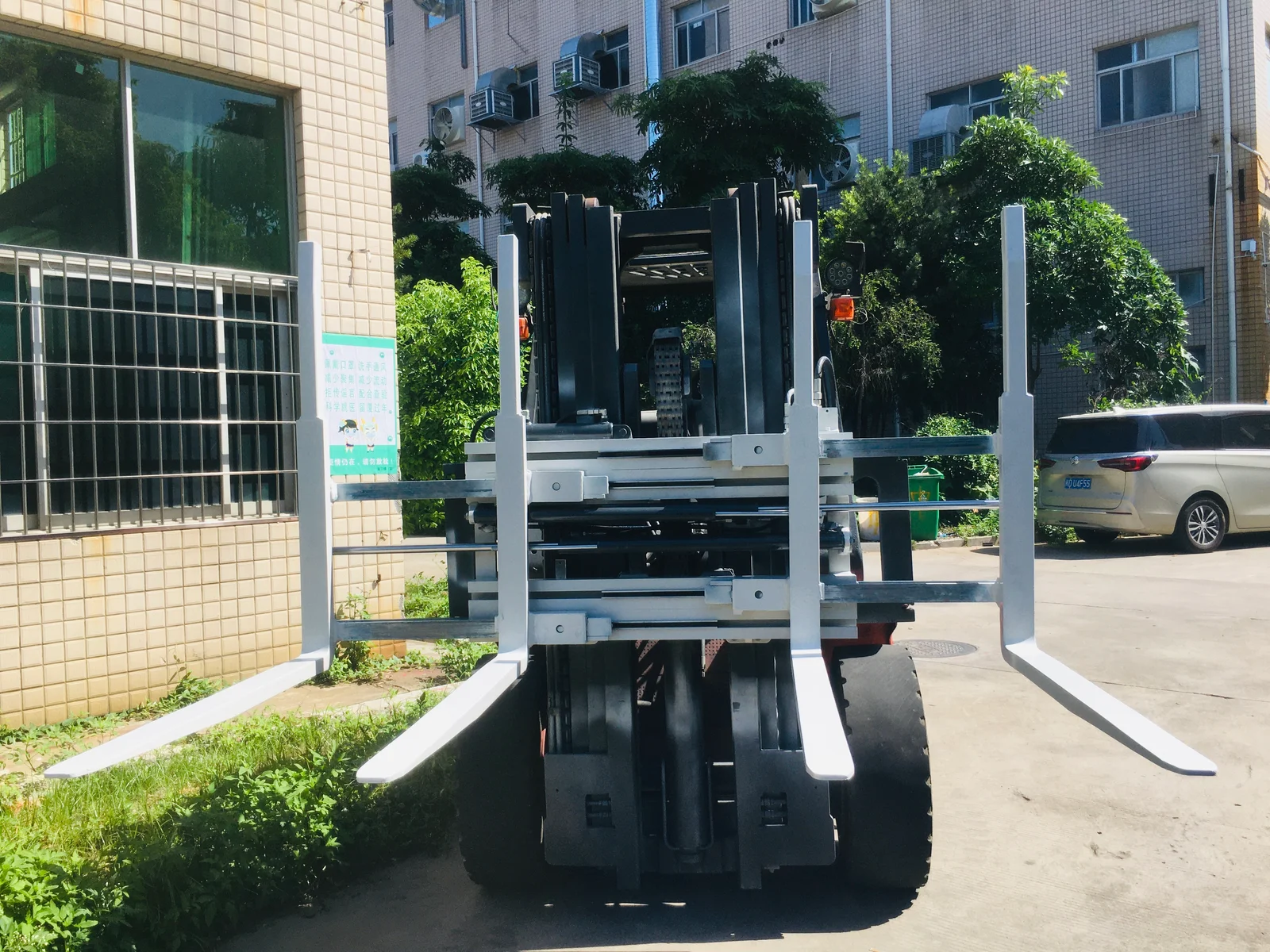

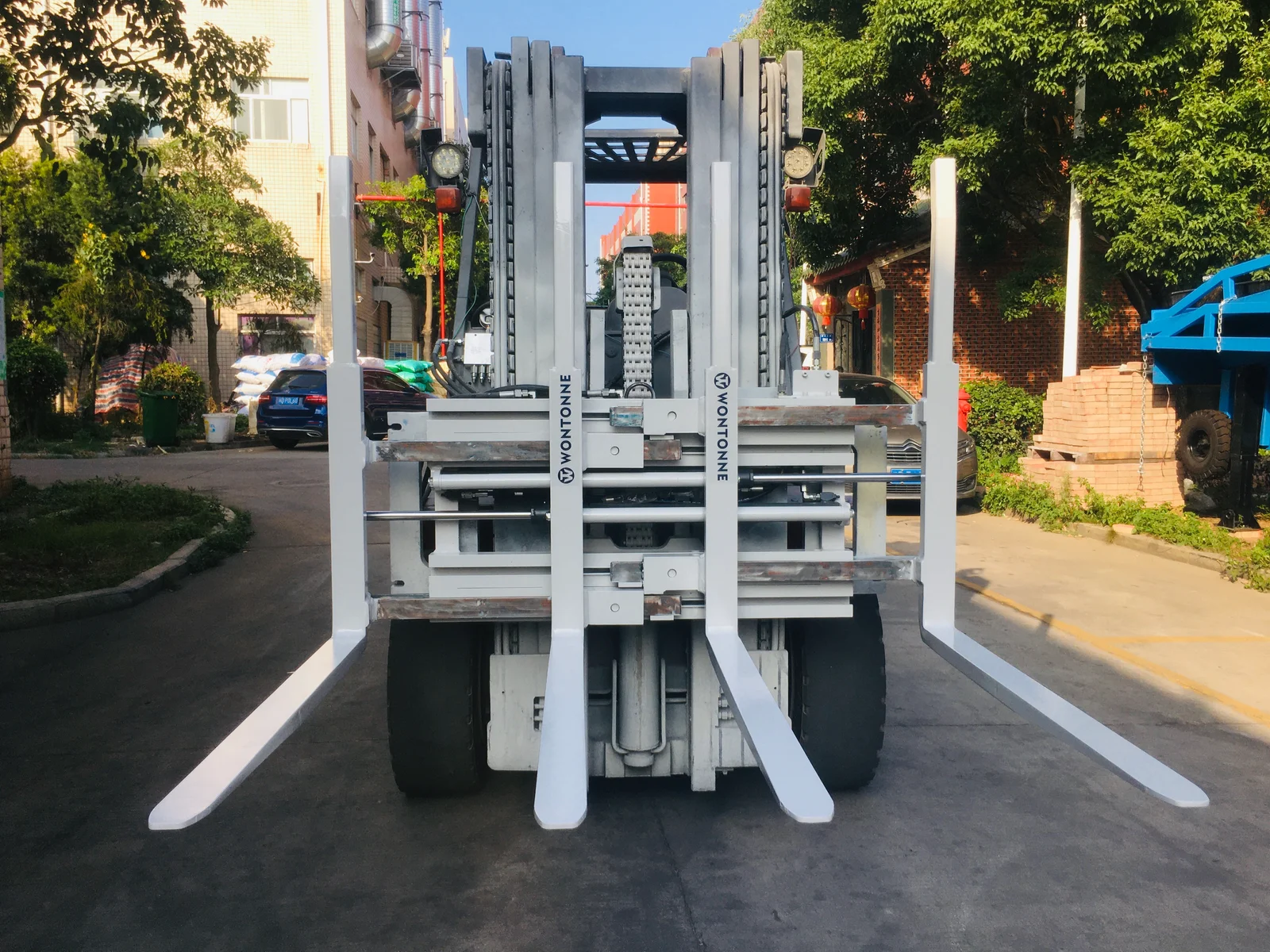

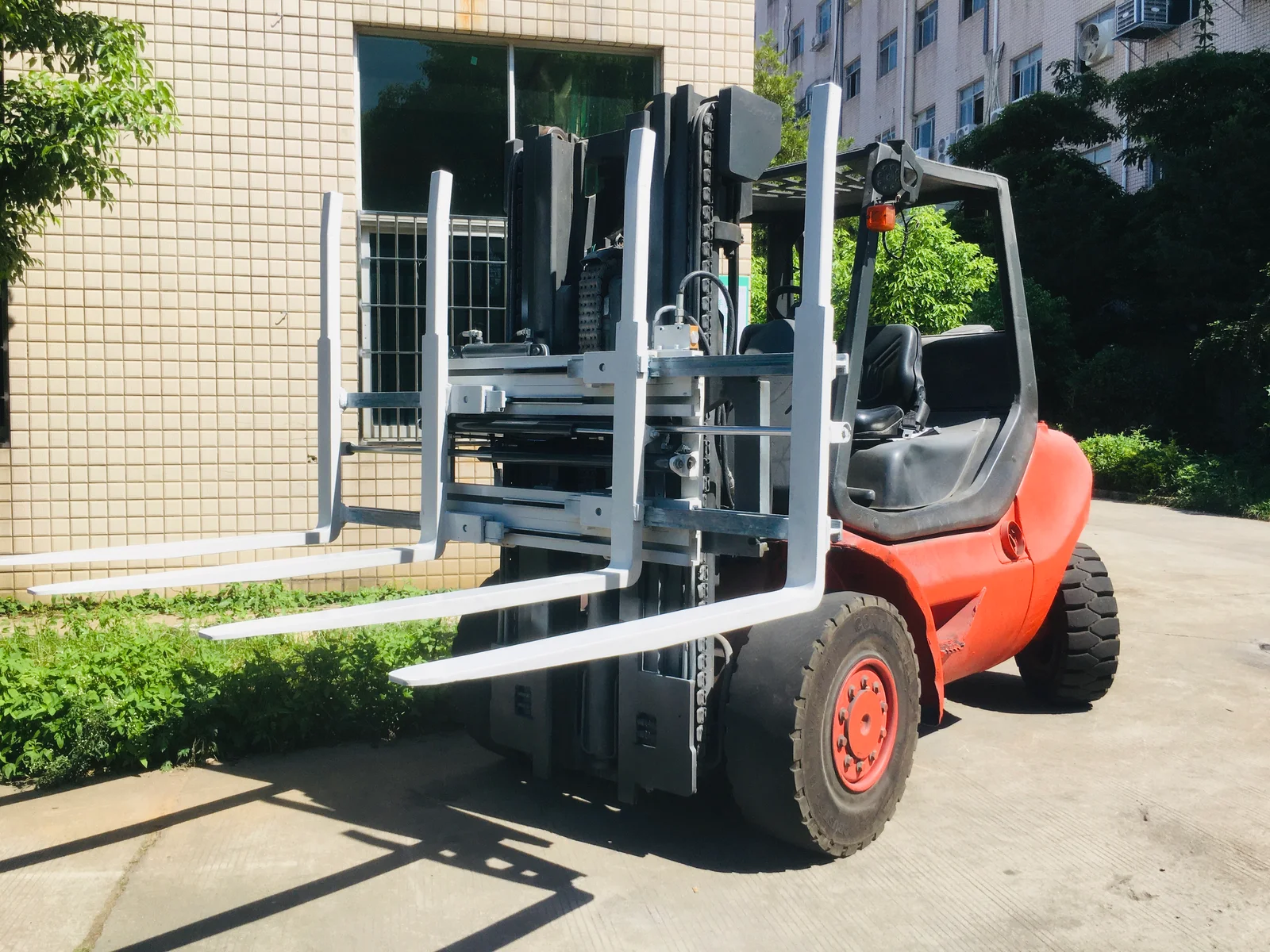

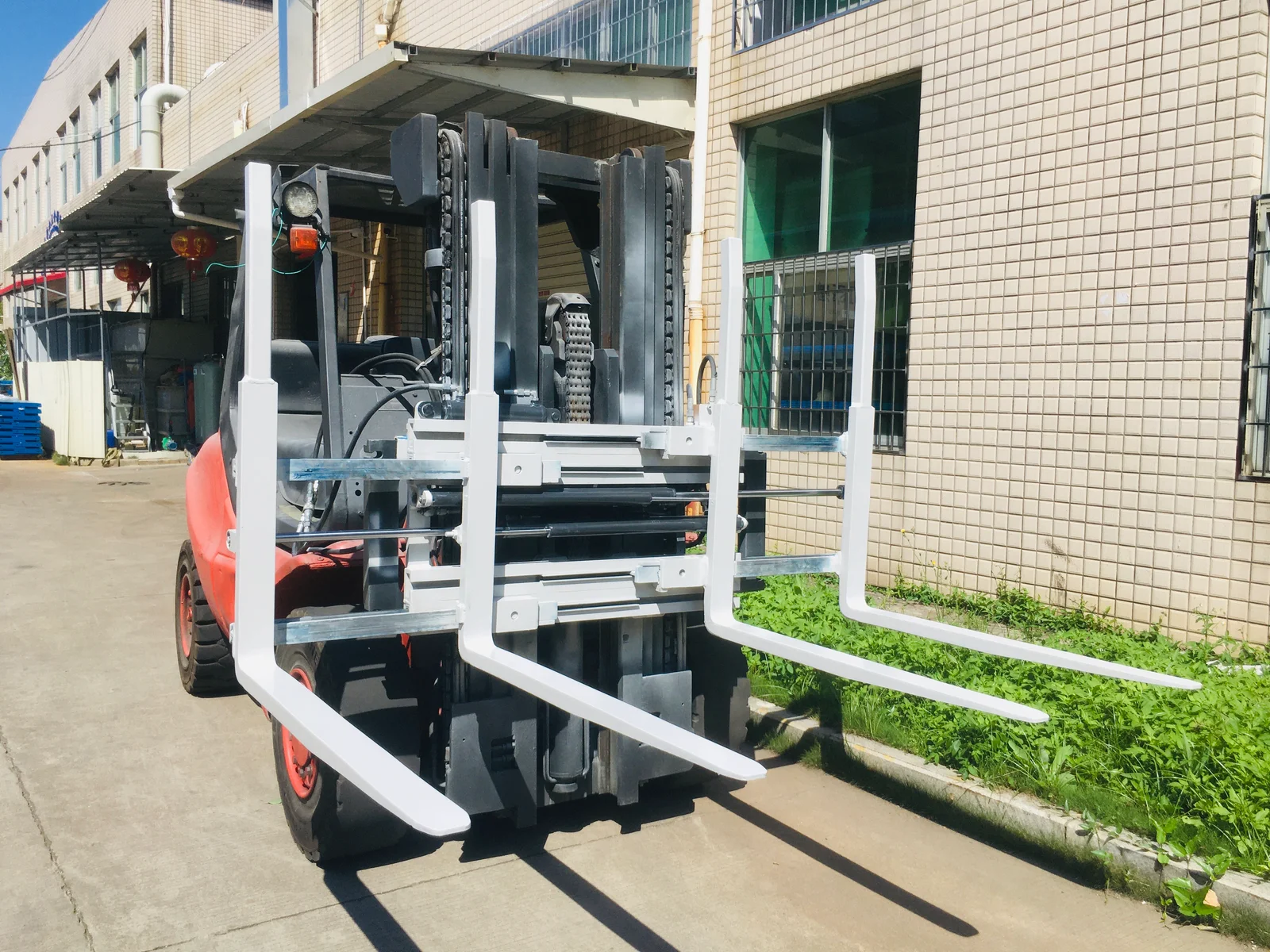

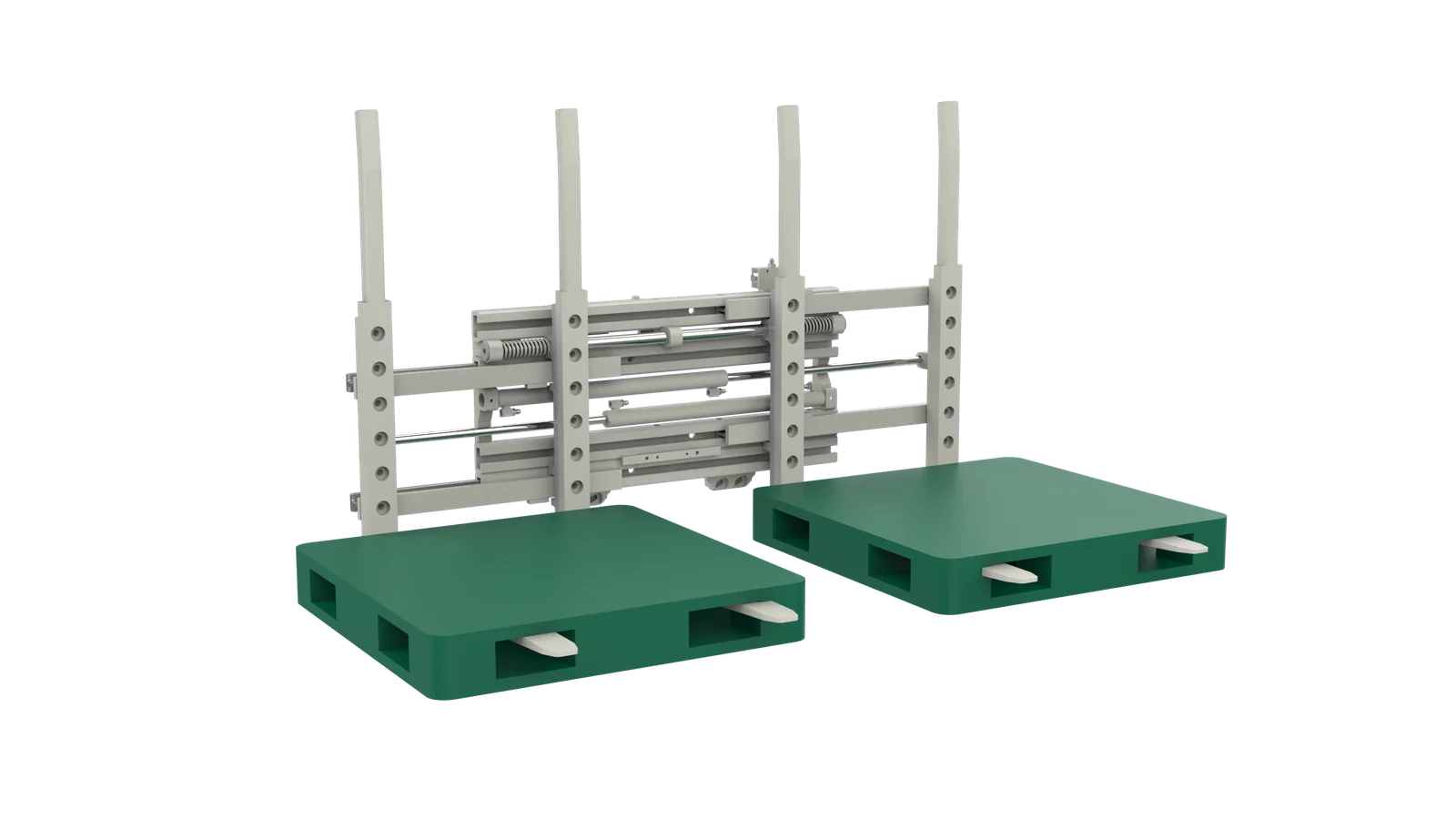

The Wontonne Single-Double Pallet Handler handles a single pallet or spreads forks hydraulically to lift and sideshift multiple pallets side by side.

Single-double pallet handlers excel at loading, pallet management, warehouse stacking and subloading. They increase pallet-handling capacity by allowing simultaneous handling of multiple pallets — suitable for industries like bottling, brewing, warehousing and shipping.

Key features & specifications:

Single or double pallet handling

Hydraulic fork spreading

Sideshift multiple pallets

Superior visibility for damage-free handling

All steel frame for durability

Easy access cylinders for servicing

Bolt-on interchangeable forks

For bottling, brewing and warehousing

Capacity up to 2500kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

Model No Capacity (kg)Load Center (mm)MountingWeight (kg)Effective Thickness ET (mm) Fork Outer Spacing (mm)Fork Inner Spacing (mm)Fork Size (mm)Fork Height (mm)Frame Width (mm)Vertical CG VCG (mm)Horizontal CG HCG (mm)
FDS22G-056A 2200600ISO 2A476202 560-19605601150×80×4014001200269221
FDS25G-056A 2500600ISO 2A497207 560-19605601150×80×4514001200262232
FDS25G-056B 2500600ISO 3A498207 560-19605601150×80×4514001200263232
FDS28G-056B 2800600ISO 3A520212 560-19605601150×80×5014001200257242
TP50D-011C 5300600ISO 4A1286250 1850-4150300-15501220×125×5010001950—181
