Load Stabilizer
Engineered for durability and precision, load stabilizer delivers reliable performance in demanding material handling environments.
Product Overview
The Wontonne Load Stabilizer is designed for transporting unstable loads such as soft drinks, bottled water and empty containers.
With the assistance of a load stabilizer, managing unstable loads becomes secure and efficient.
Key features & specifications:
For unstable palletized loads
Excellent driver visibility
Narrow frame fits between forks
Thin arm pad profile
Allows faster operating speeds
For outdoor and rough floor operations
Secures palletized loads
Capacity up to 2000kg
Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.
Need More Info?
Get detailed specifications, pricing, and delivery estimates from our team.

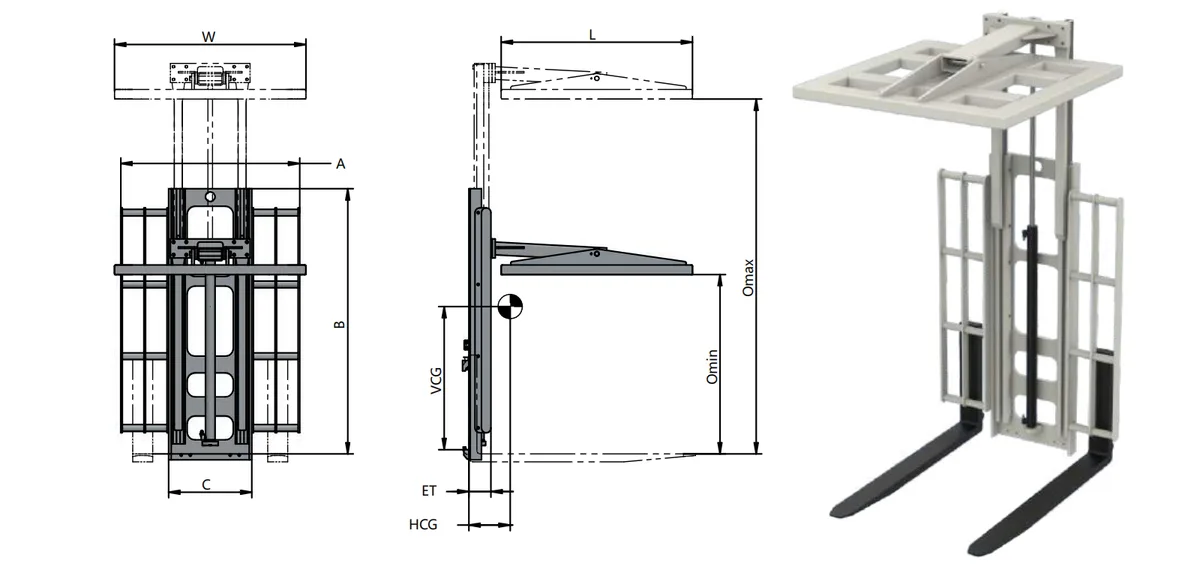

| Model No | Capacity (kg) | Load Center (mm) | Opening Range (mm) | Mounting | Weight (kg) | Effective Thickness ET (mm) | Pad Size (mm) | Backrest Size (mm) | Frame Width (mm) | Horizontal CG HCG (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| LSB20D-022B | 2000 | 500 | 1100-2200 | ISO 3A | 390 | 150 | 1200×1200 | 1122×1700 | 522 | 228 |
