What is the capacity of the Bale clamp – Pulp bale?

The Bale clamp – Pulp bale handles 3000-5000 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the Bale clamp – Pulp bale use?

The Bale clamp – Pulp bale is available for ISO 4A / ISO 3A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the Bale clamp – Pulp bale are available?

Wontonne offers 8 models of the Bale clamp – Pulp bale — including BCS40F-200C, PBS50G-001C, PBS50G-002C, BCS35F-112B, BCS35F-113B and more — with different capacities and load centers for various applications.

What is the capacity range of Wontonne bale clamps?

The E-series bale clamps cover 1900-5000 kg capacity depending on model and opening configuration. Pulp bale clamps and revolving variants are available for different load densities.

Products / Bale Clamps / Bale clamp – Pulp bale

Bale Clamps

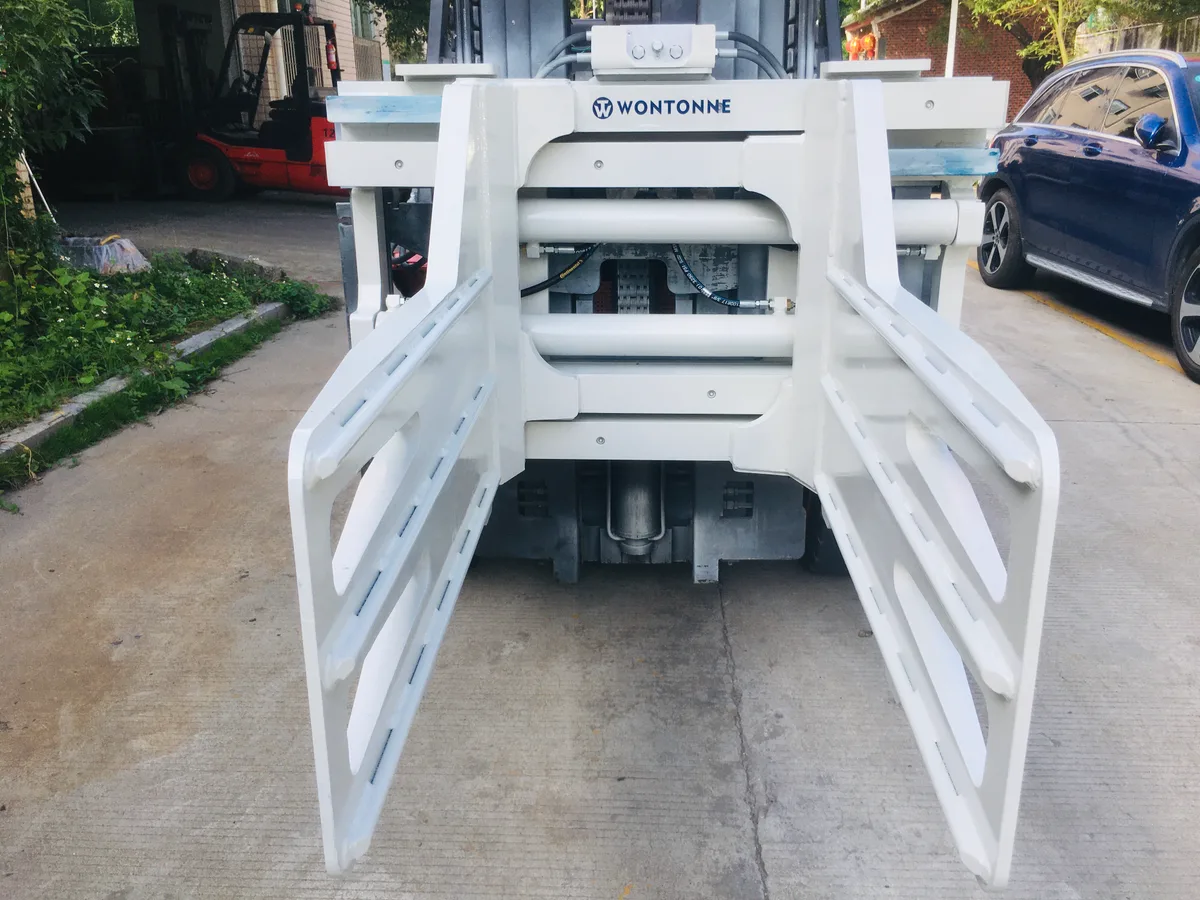

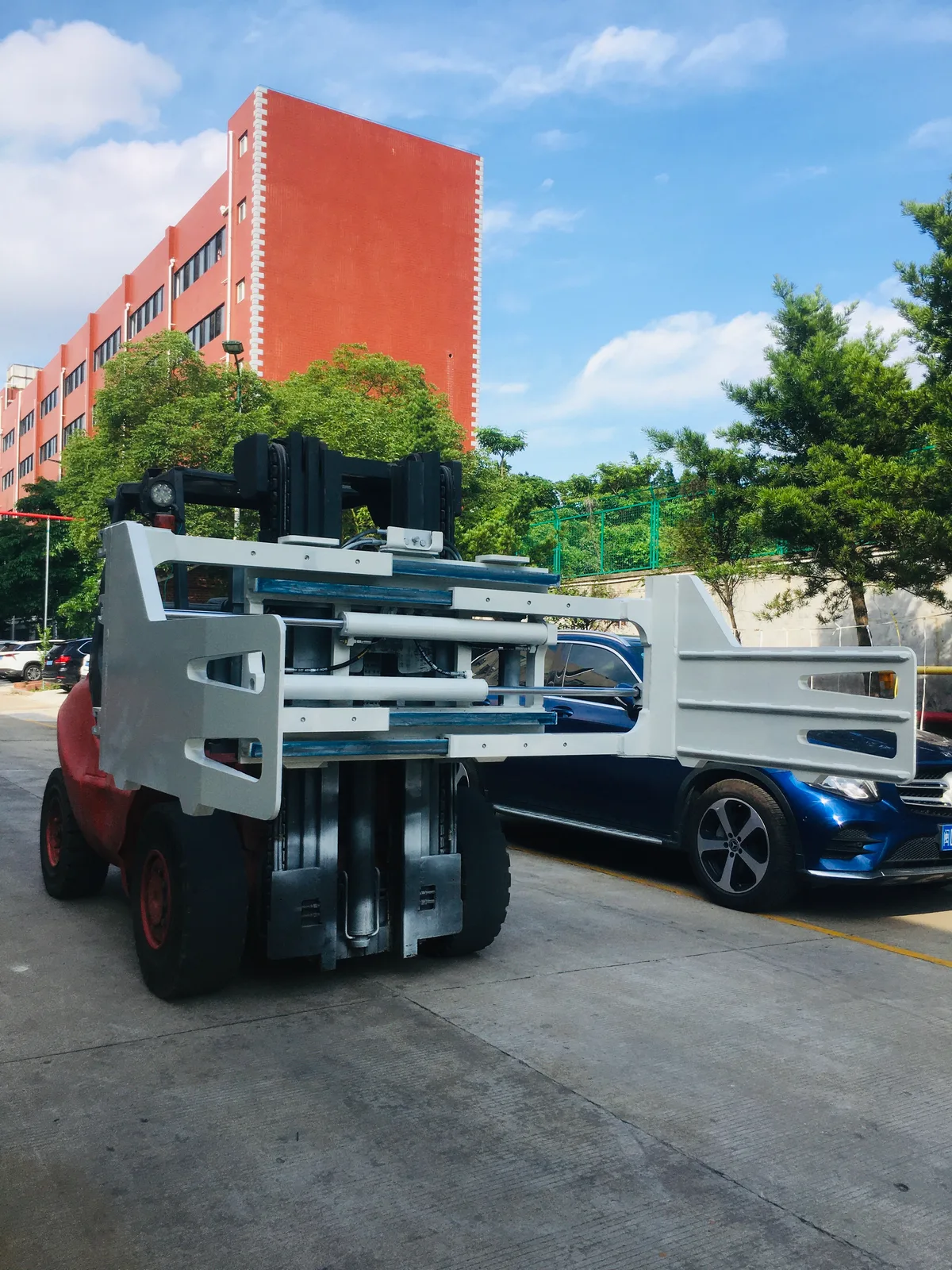

Bale clamp – Pulp bale

Q: Which materials can a bale clamp handle?

Bale clamps handle pulp bales, waste paper, recycled plastics, textile rags and natural or synthetic textile fibers — anything in soft, compressible bale form.

Engineered for durability and precision, bale clamp – pulp bale delivers reliable performance in demanding material handling environments.

All Bale Clamps

Product Overview

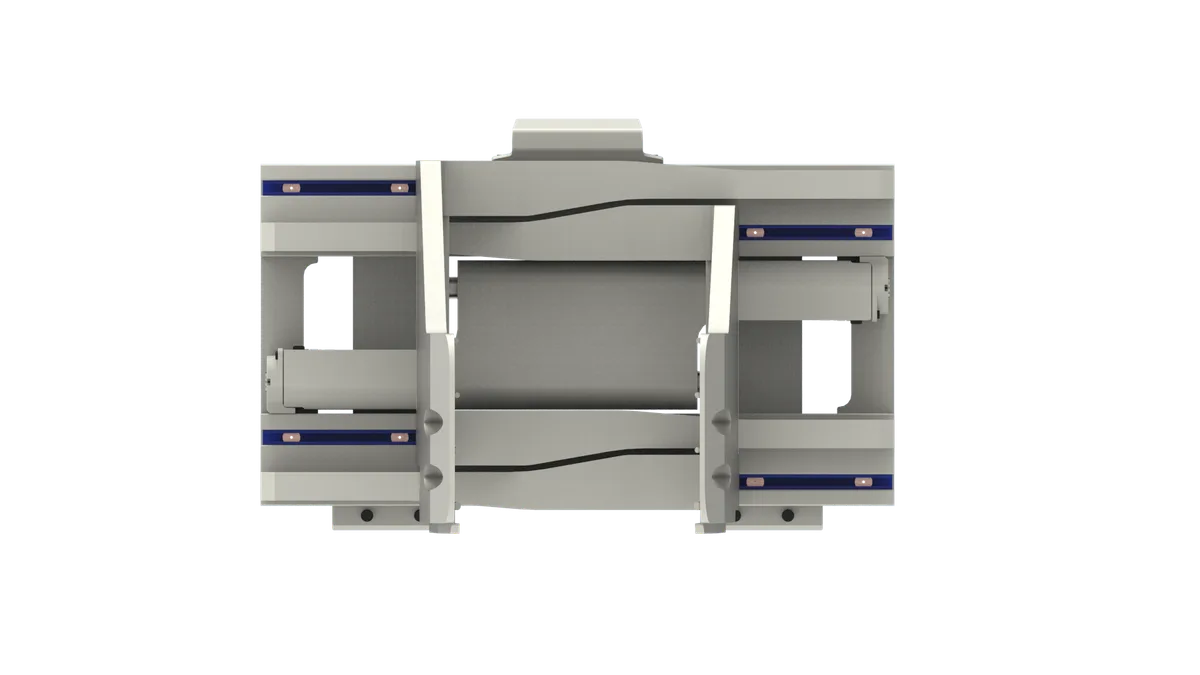

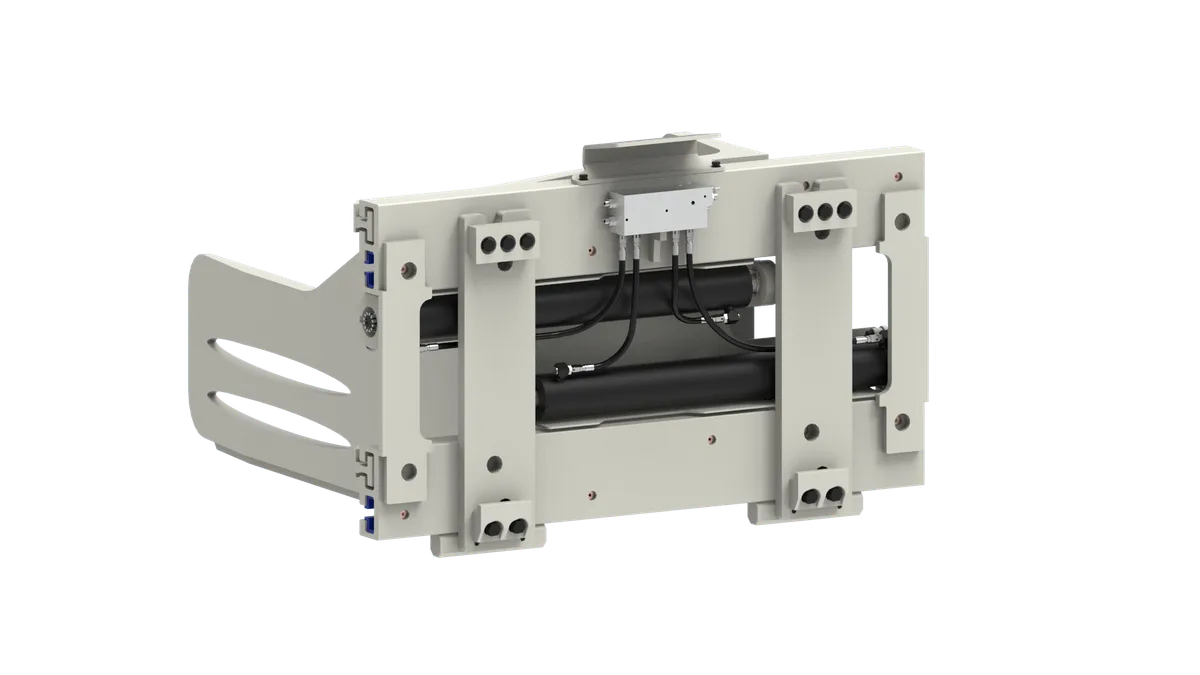

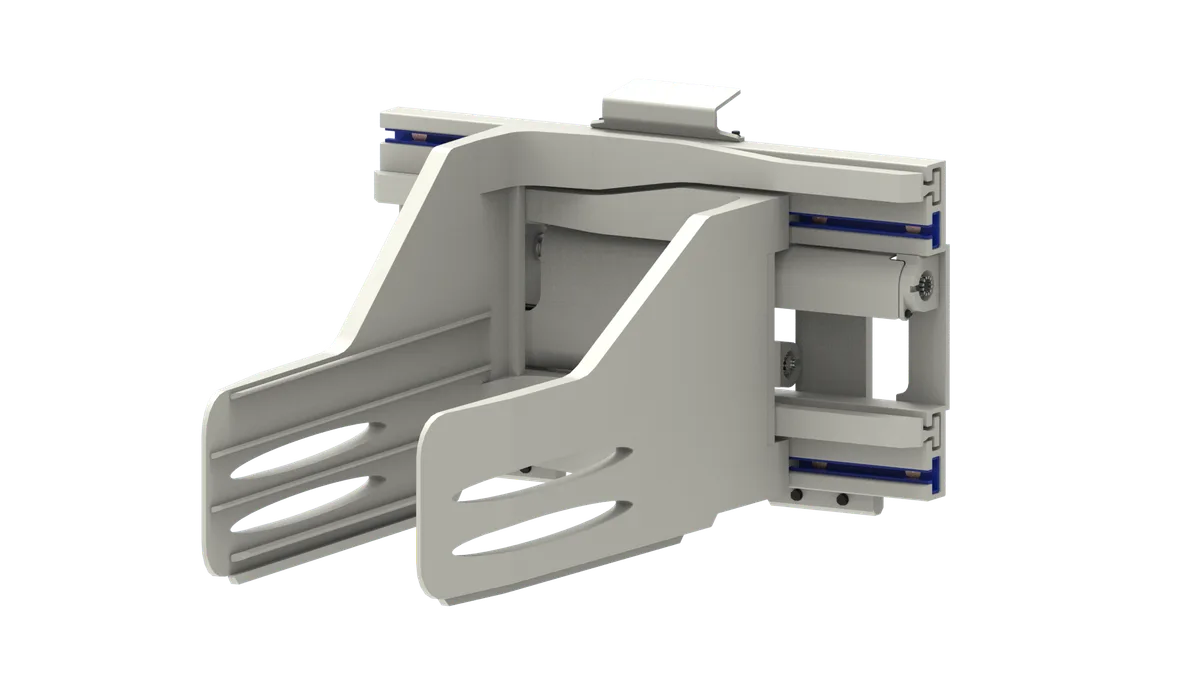

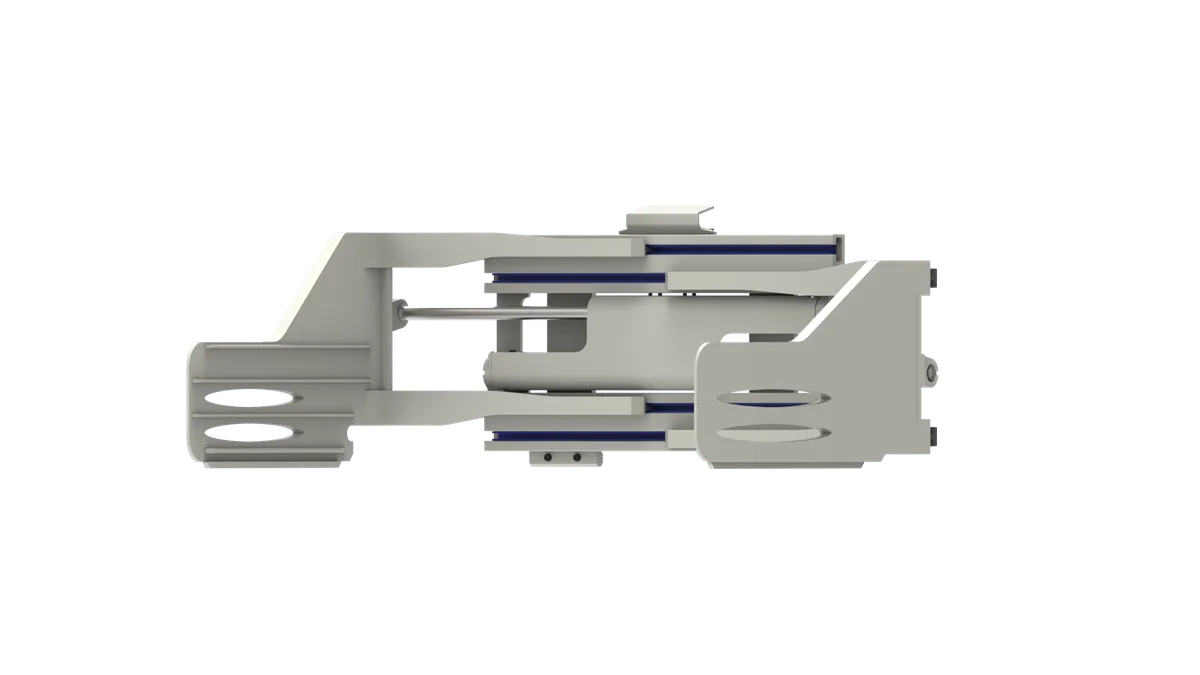

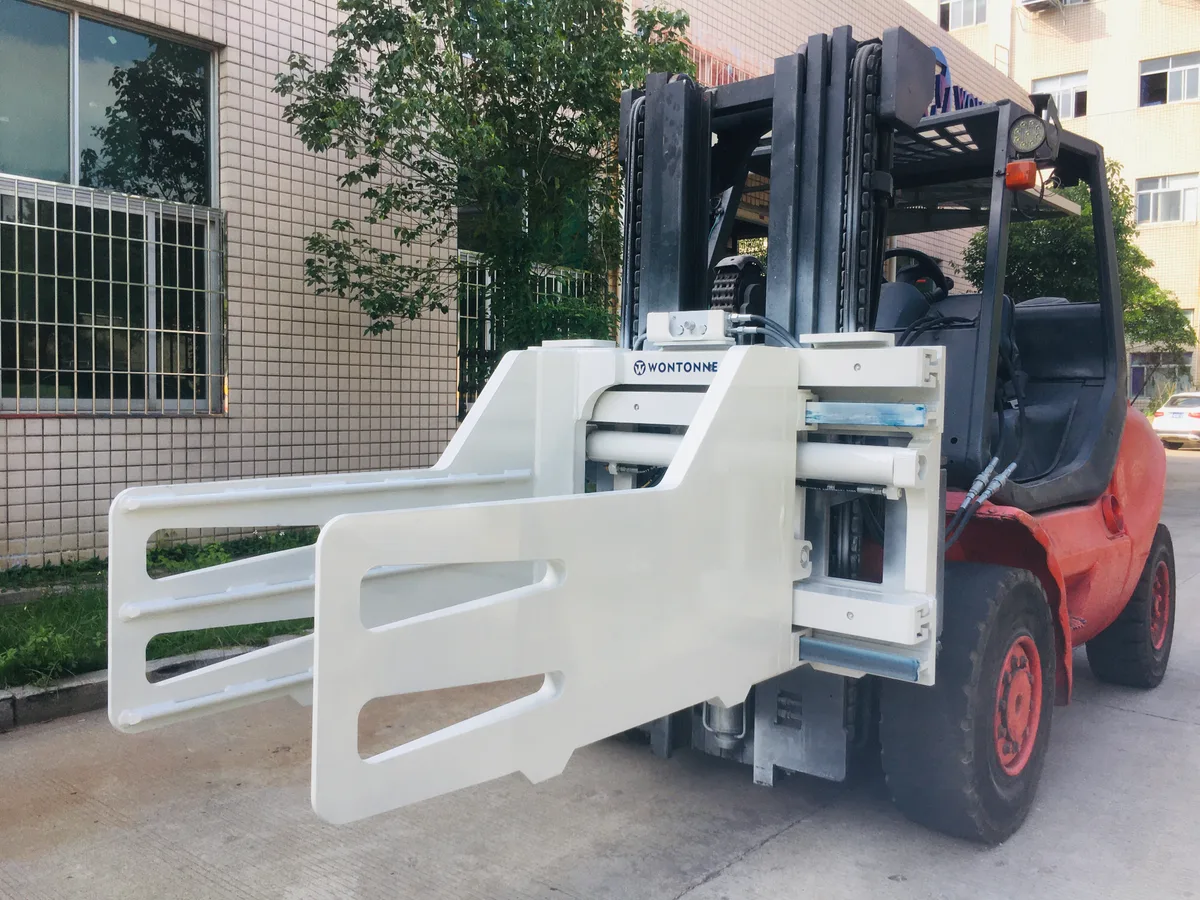

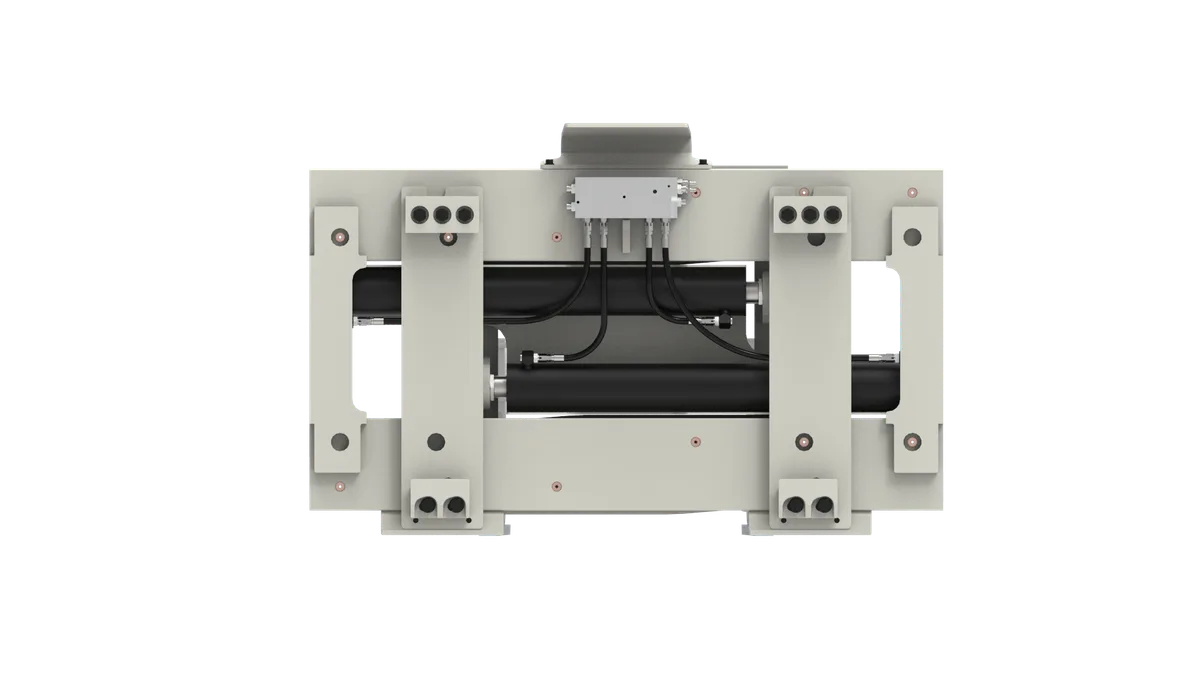

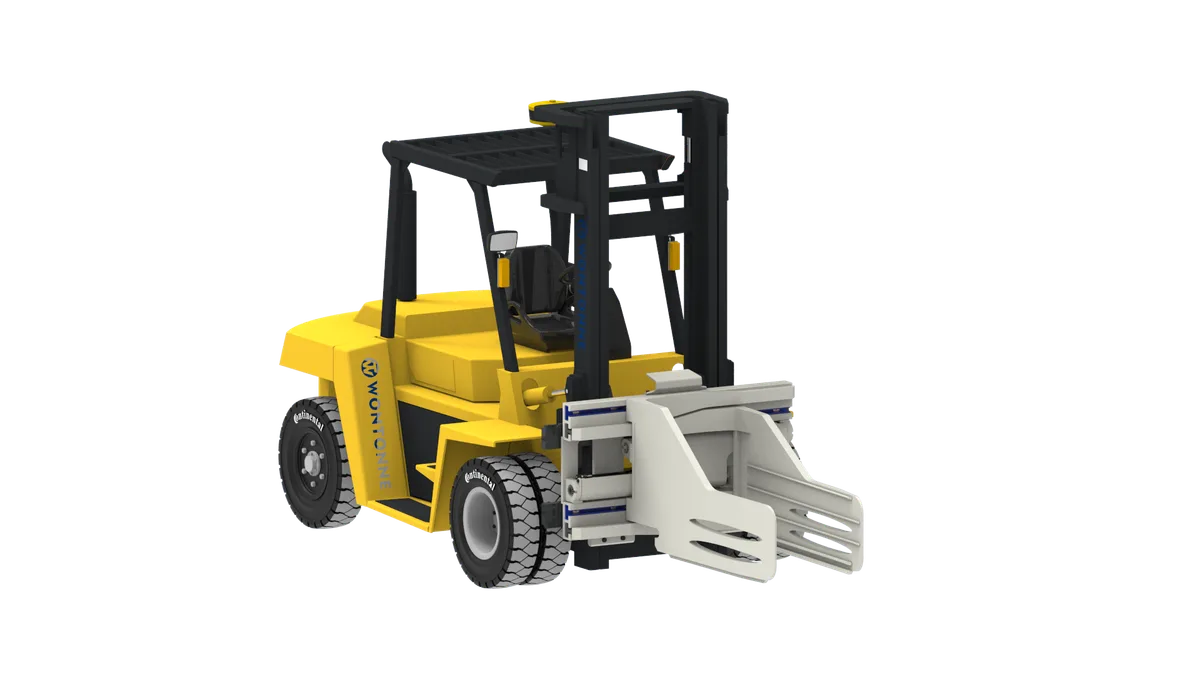

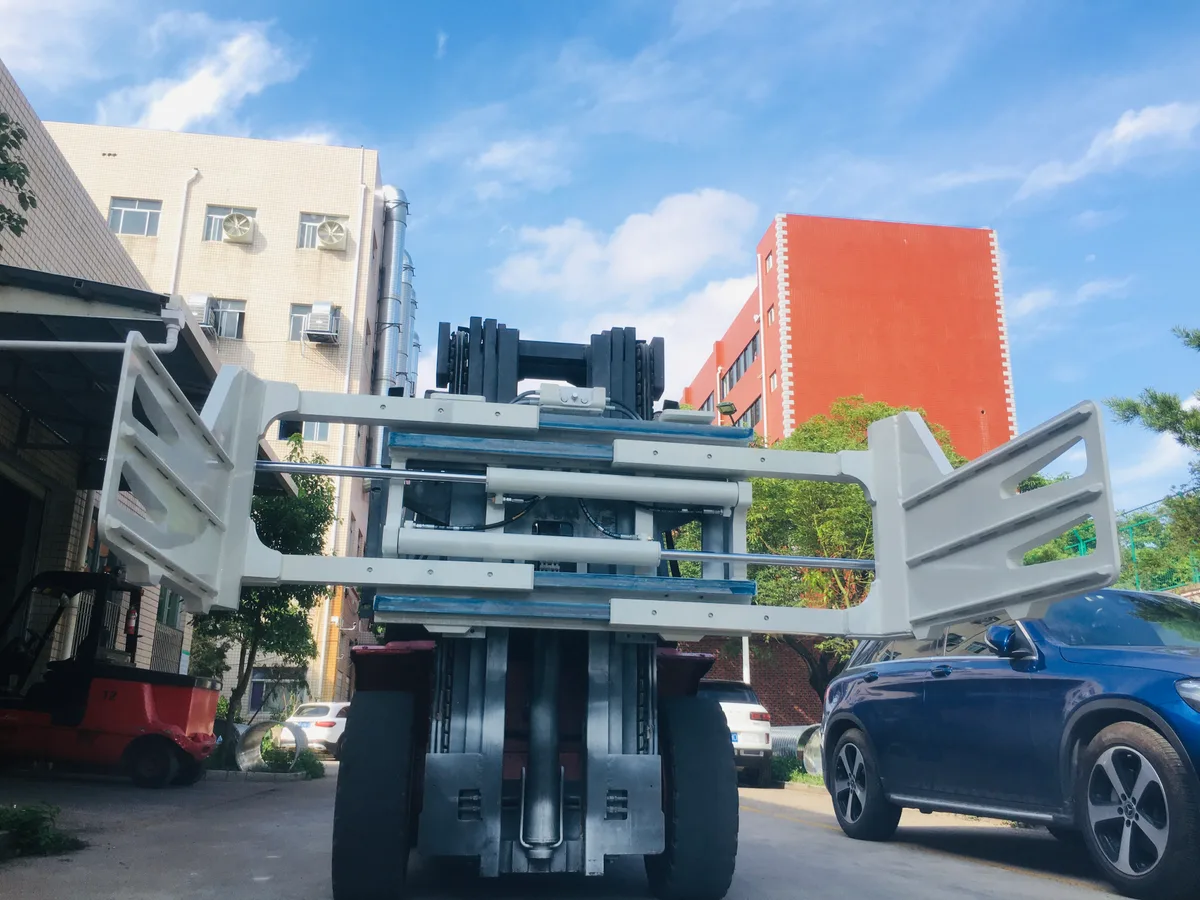

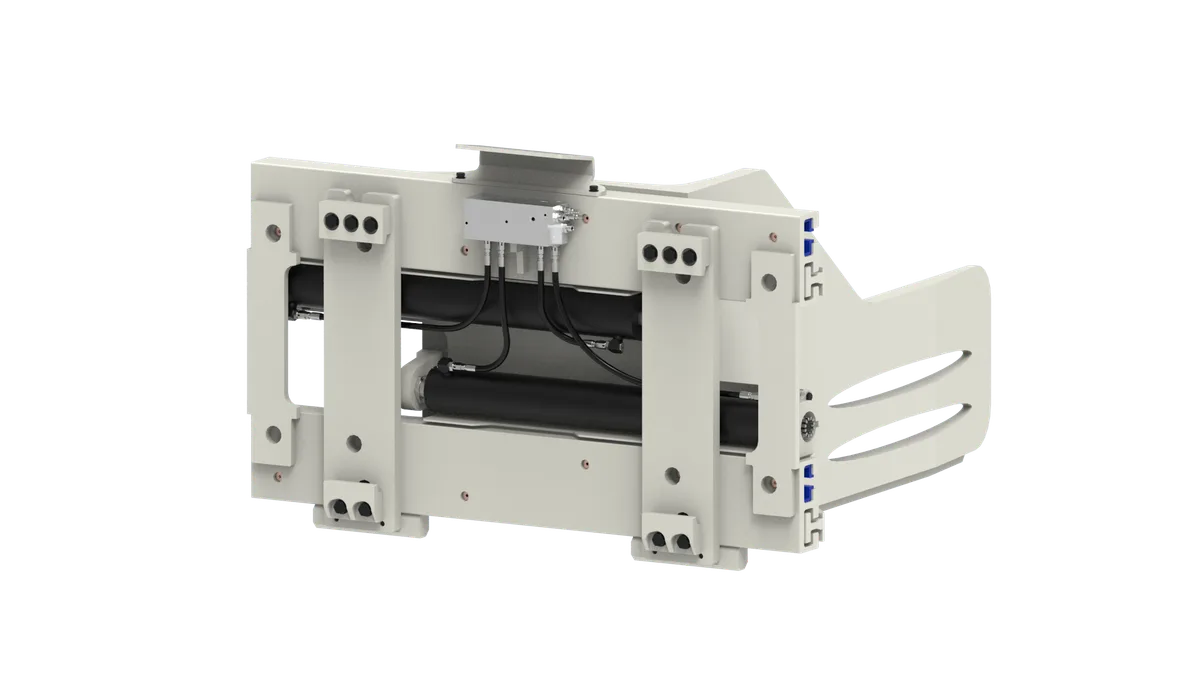

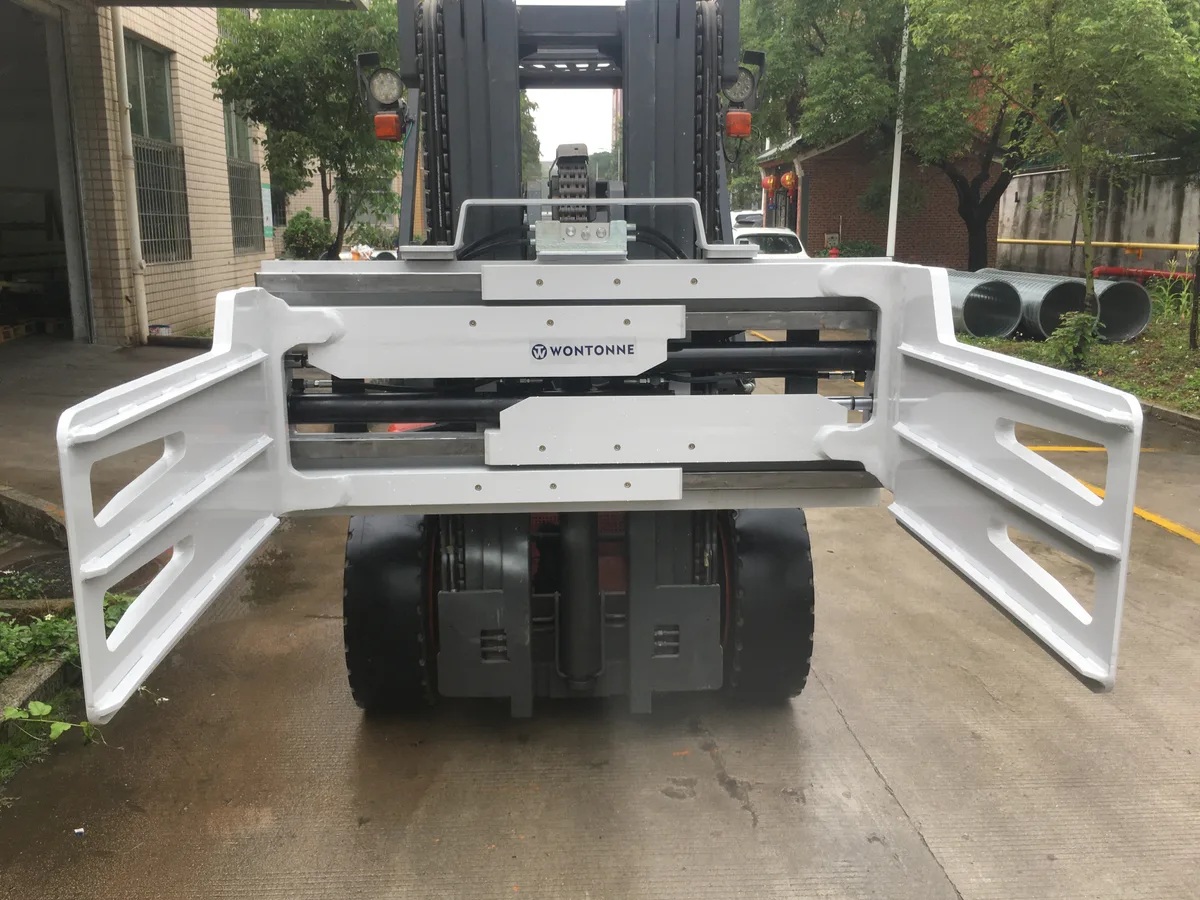

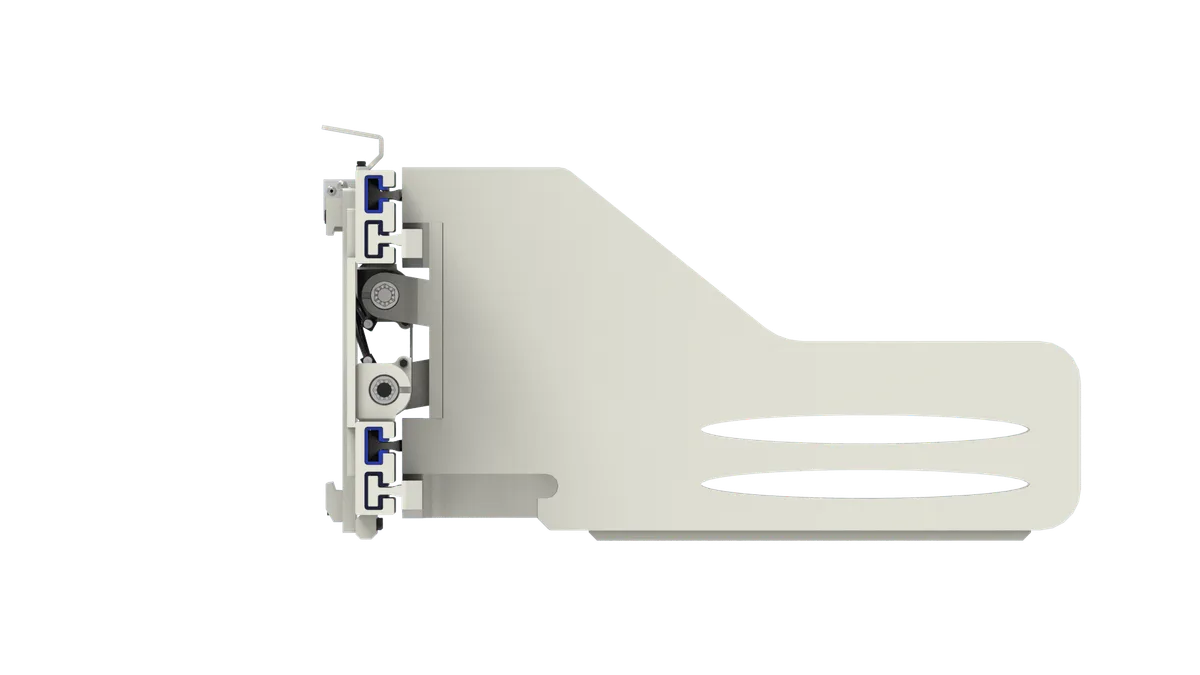

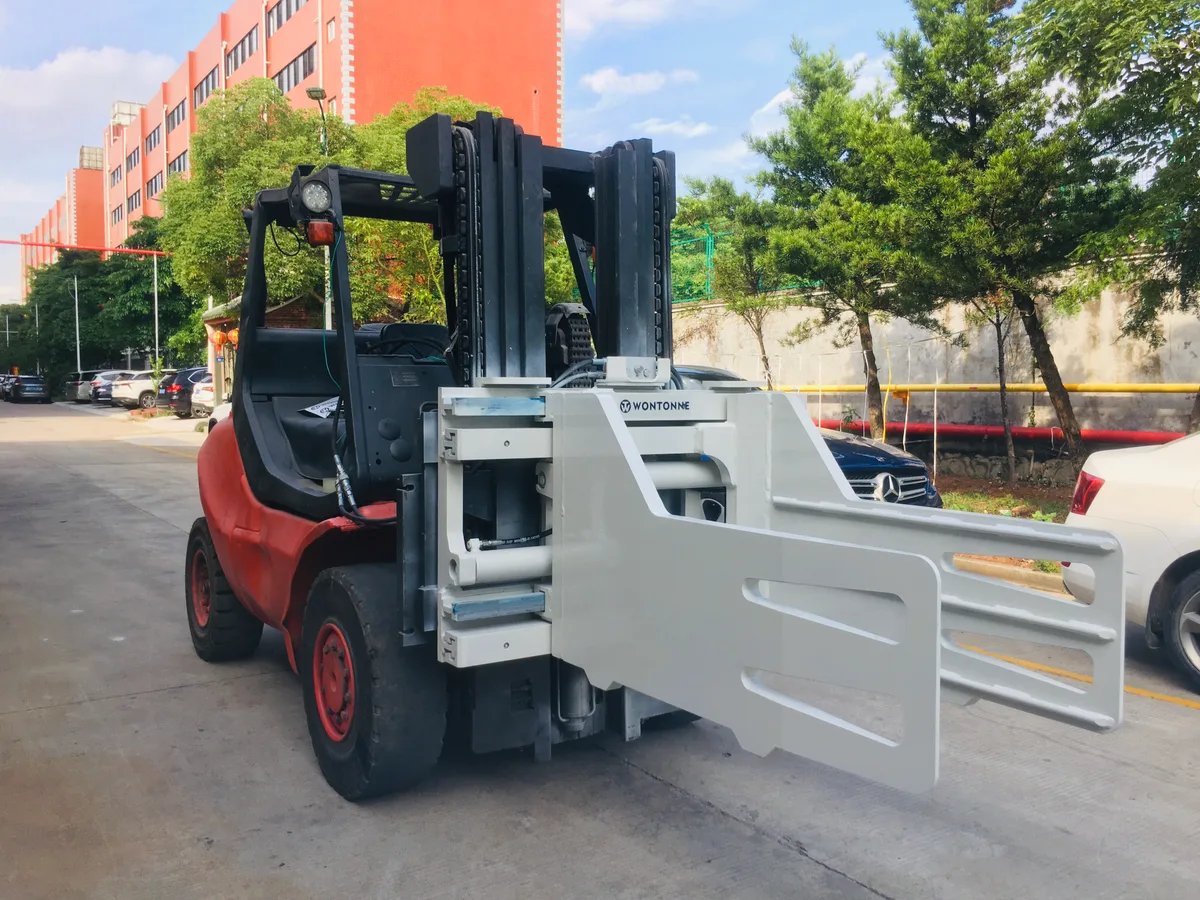

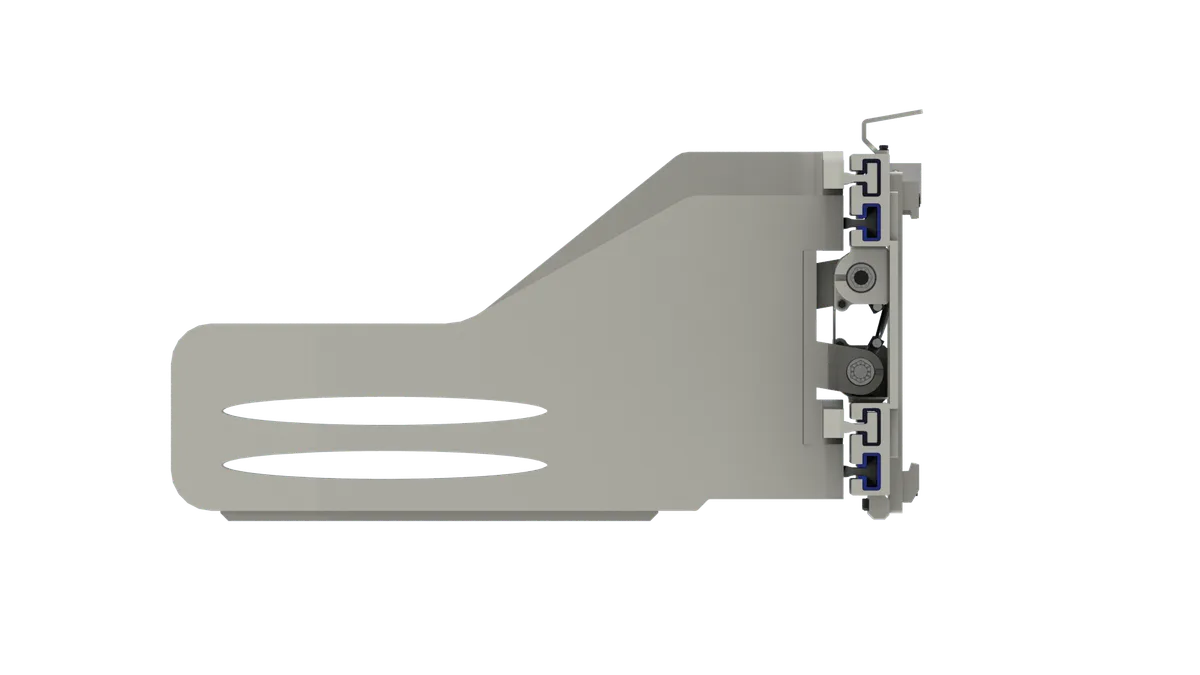

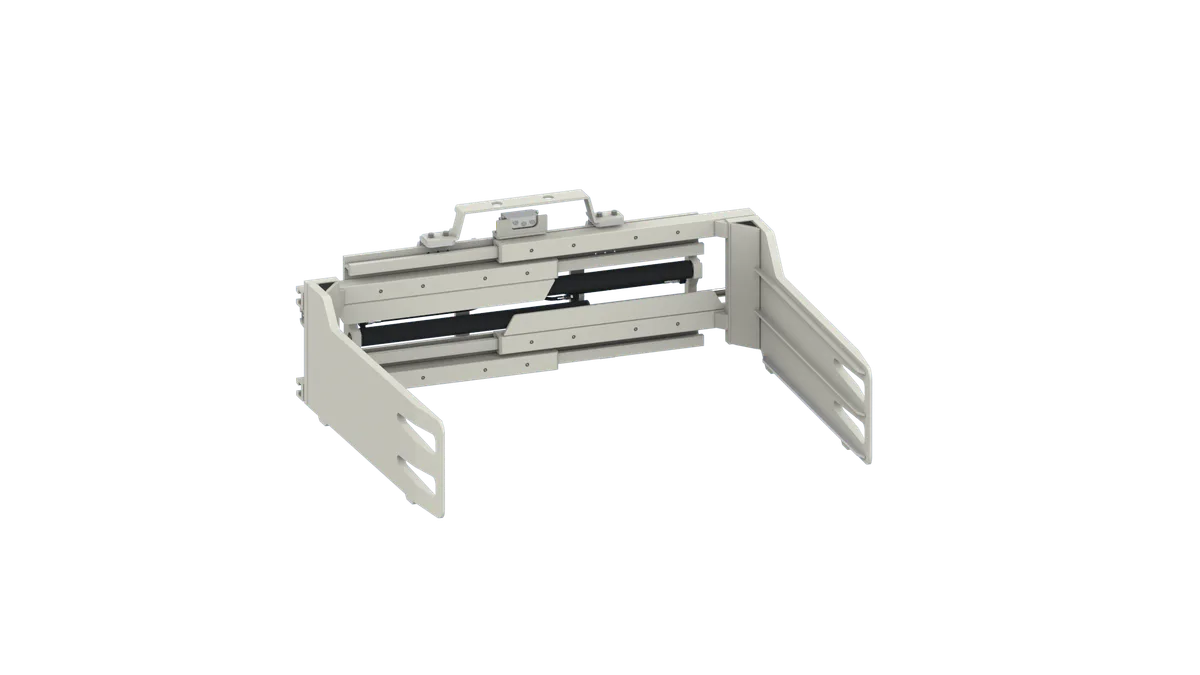

The Wontonne Pulp Bale Clamp is designed to carry 1, 2, 3, 4, 6 or 8 pulp bale units at a time for high-volume, damage-free and secure handling.

The bale clamp facilitates safe, pallet-free handling and stacking of soft bag goods through clamping and lateral movement. It is commonly used for damage-free handling of materials like pulp bales, waste paper, recycled plastics, textile rags, and natural or synthetic textile fibers.

Key features & specifications:

Carries 1 to 8 pulp bales at once

Robust arm profile

Excellent visibility

Gripping rods inside the arms

Damage-free pulp bale handling

For stevedoring, mill and warehousing

Capacity up to 5000kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

Model No	Capacity (kg)	Load Center (mm)	Opening Range (mm)	Mounting	Weight (kg)	Effective Thickness ET (mm)	Arm Length (mm)	Arm Height (mm)	Frame Width (mm)	Vertical CG VCG (mm)	Horizontal CG HCG (mm)	Arm Thickness (mm)
BCS40F-200C	4000	600	590-2160	ISO 4A	1066	228	1250	460	1330	352	360	95

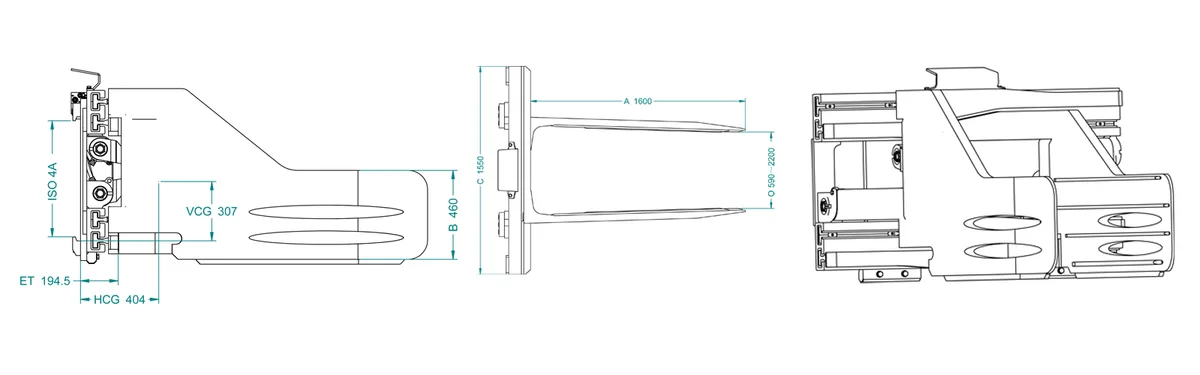

PBS50G-001C	5000	800	590-2200	ISO 4A	1496	194	1600	460	1550	307	404	95
PBS50G-002C	5000	800	620-2700	ISO 4A	1585	194	1600	460	1800	309	387	95
BCS35F-112B	3000	500	800-2700	ISO 3A	825	148	1195	460	1680	245	302	90
BCS35F-113B	3000	500	460-2300	ISO 3A	818	148	1195	460	1680	246	302	90
BCS35F-121B	3200	500	550-2100	ISO 3A	772	148	1195	460	1330	244	313	90
BCS35F-200B	3200	500	640-2380	ISO 3A	860	148	1195	530	1450	251	355	90
BCS40F-001C	4000	600	530-2400	ISO 4A	1182	228	1400	460	1680	279	390	95
