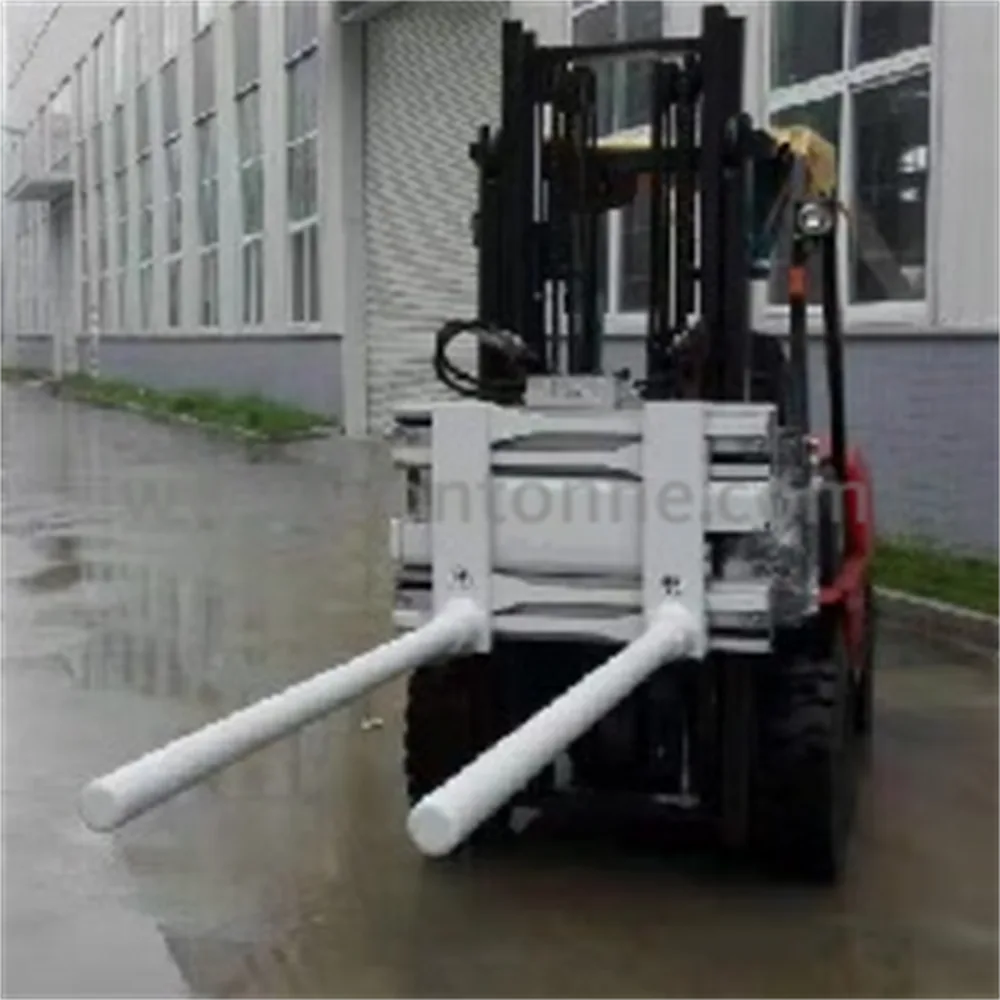

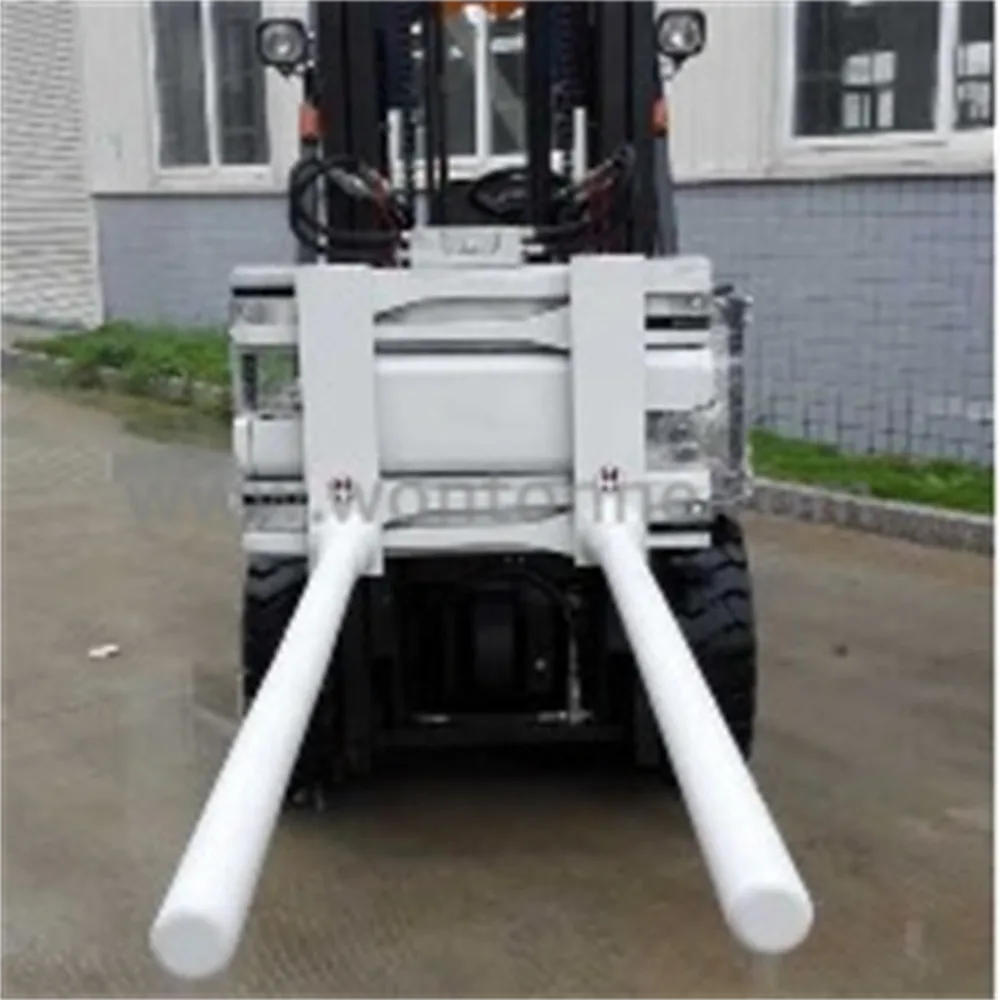

Bar-Arm Clamps
Engineered for durability and precision, bar-arm clamps delivers reliable performance in demanding material handling environments.
Product Overview

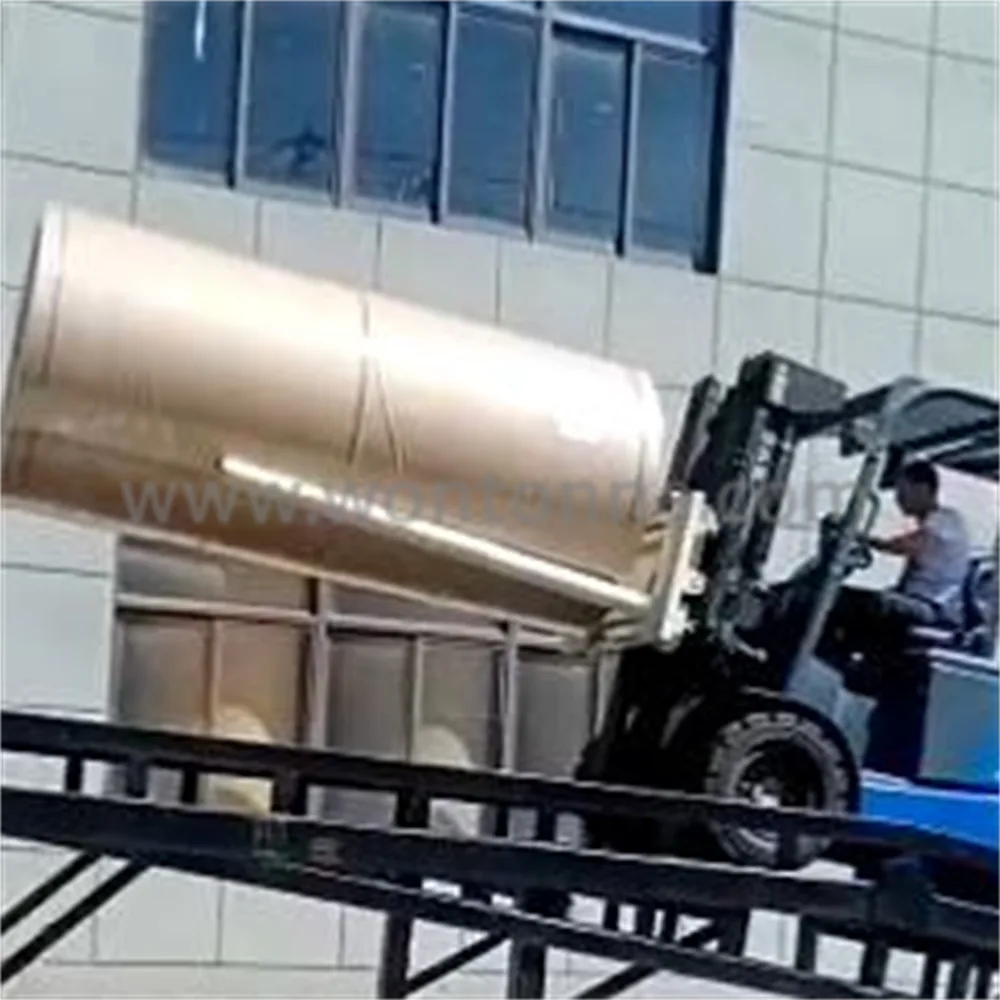

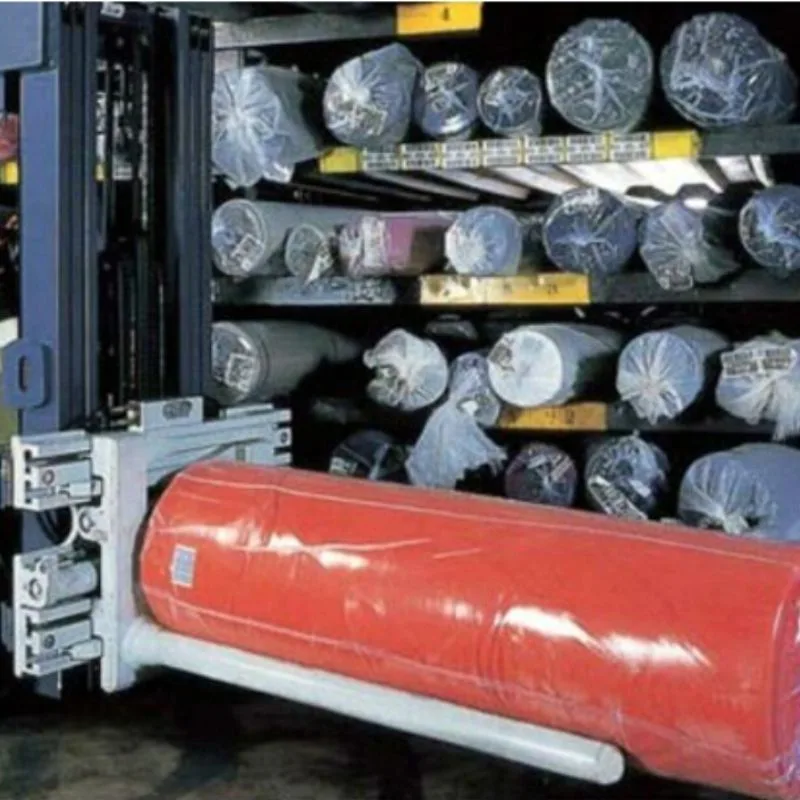

The Wontonne Bar-Arm Clamps are designed primarily for the textile industry, handling rolls of cloth such as towels, linens and denim.
Key features & specifications:
For textile industry applications
Handles rolls of cloth material
High strength steel frame
Efficient hydraulic system
Maximum clamp force for secure handling
Sideshift circuit relief
Capacity up to 3500kg
Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.
Need More Info?
Get detailed specifications, pricing, and delivery estimates from our team.
| Model No | Capacity (kg) | Load Center (mm) | Opening Range (mm) | Mounting | Weight (kg) | Contact Pads |
|---|---|---|---|---|---|---|
| BAS30D-001B | 2300 | 500 | 480~1830 | ISO 3A | 523 | 216 |
| BAS30D-005B | 2300 | 500 | 320~1470 | ISO 3A | 488 | 216 |
| BAS35F-001B | 3500 | 500 | 330~1990 | ISO 3A | 870 | 214 |
