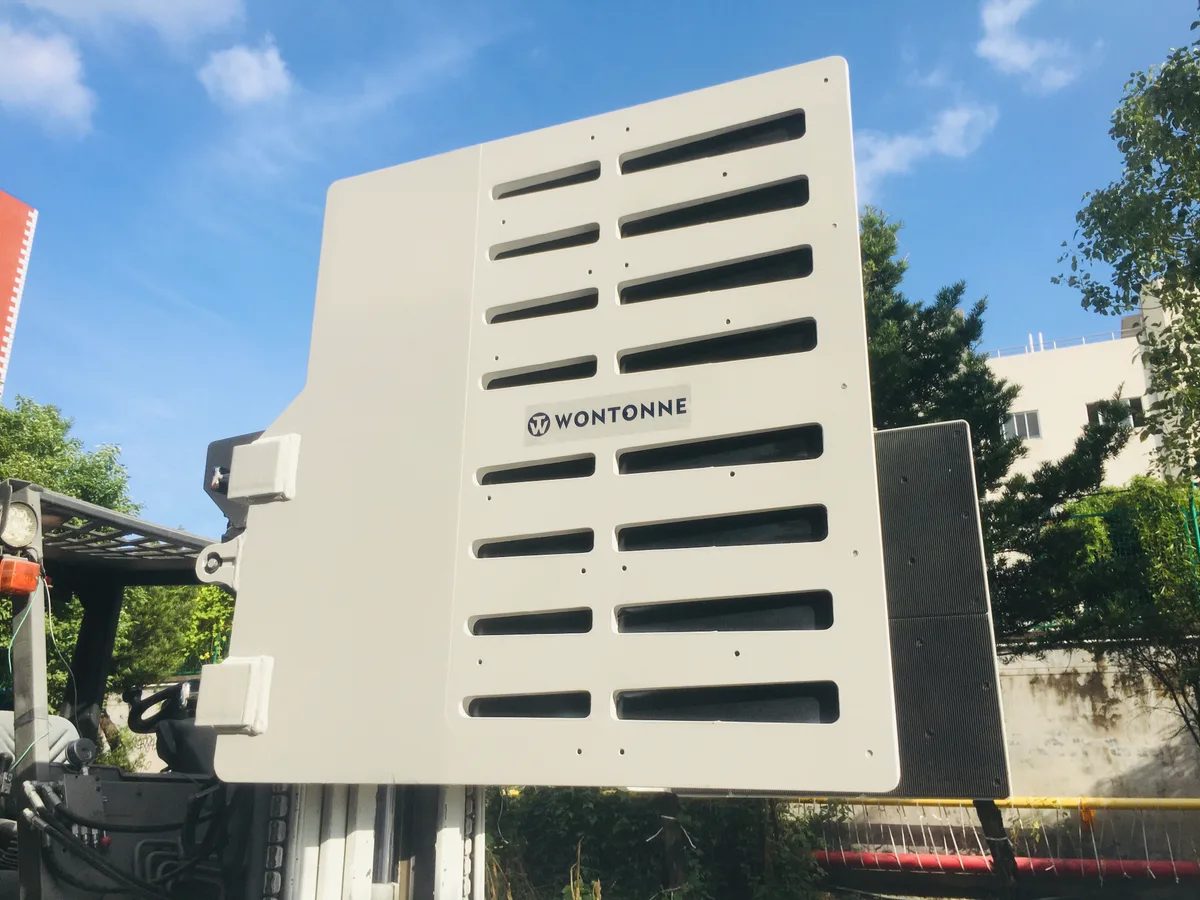

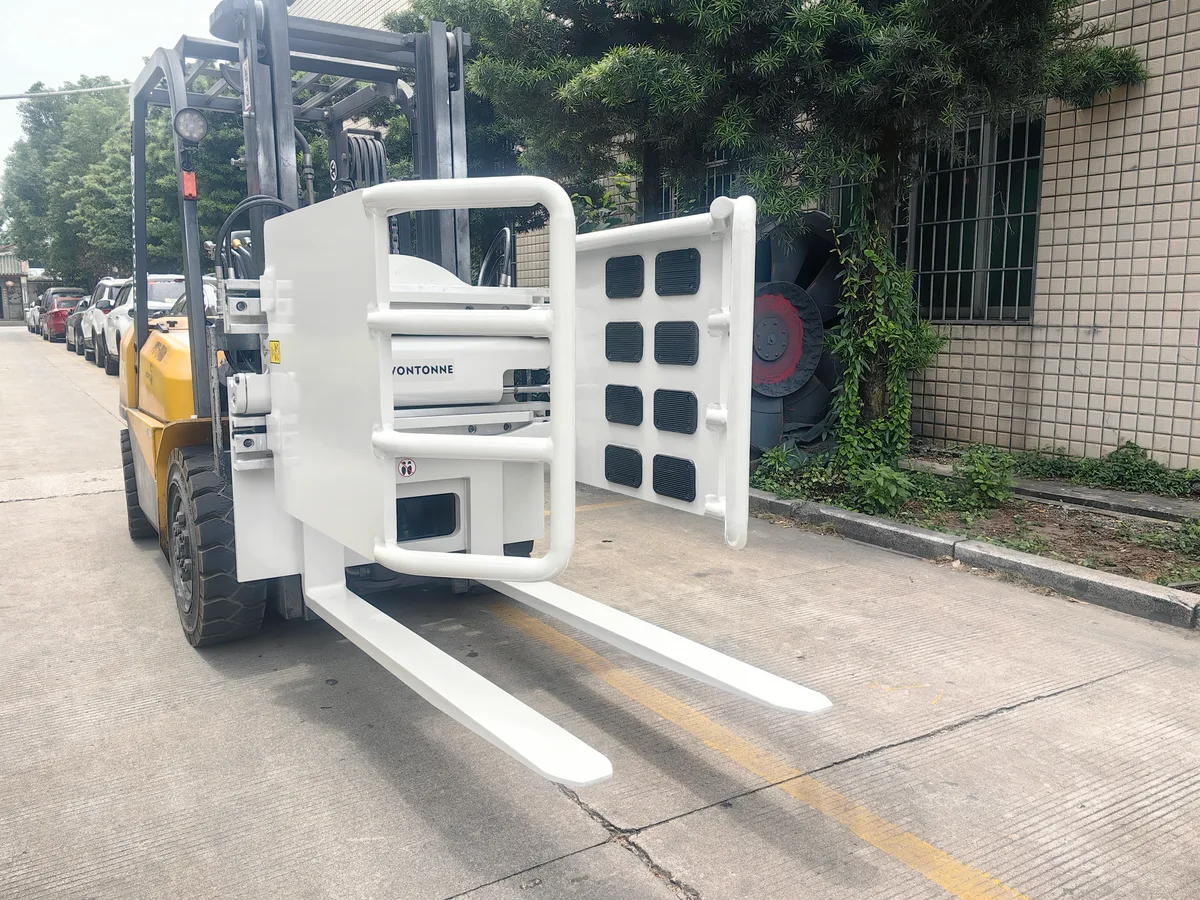

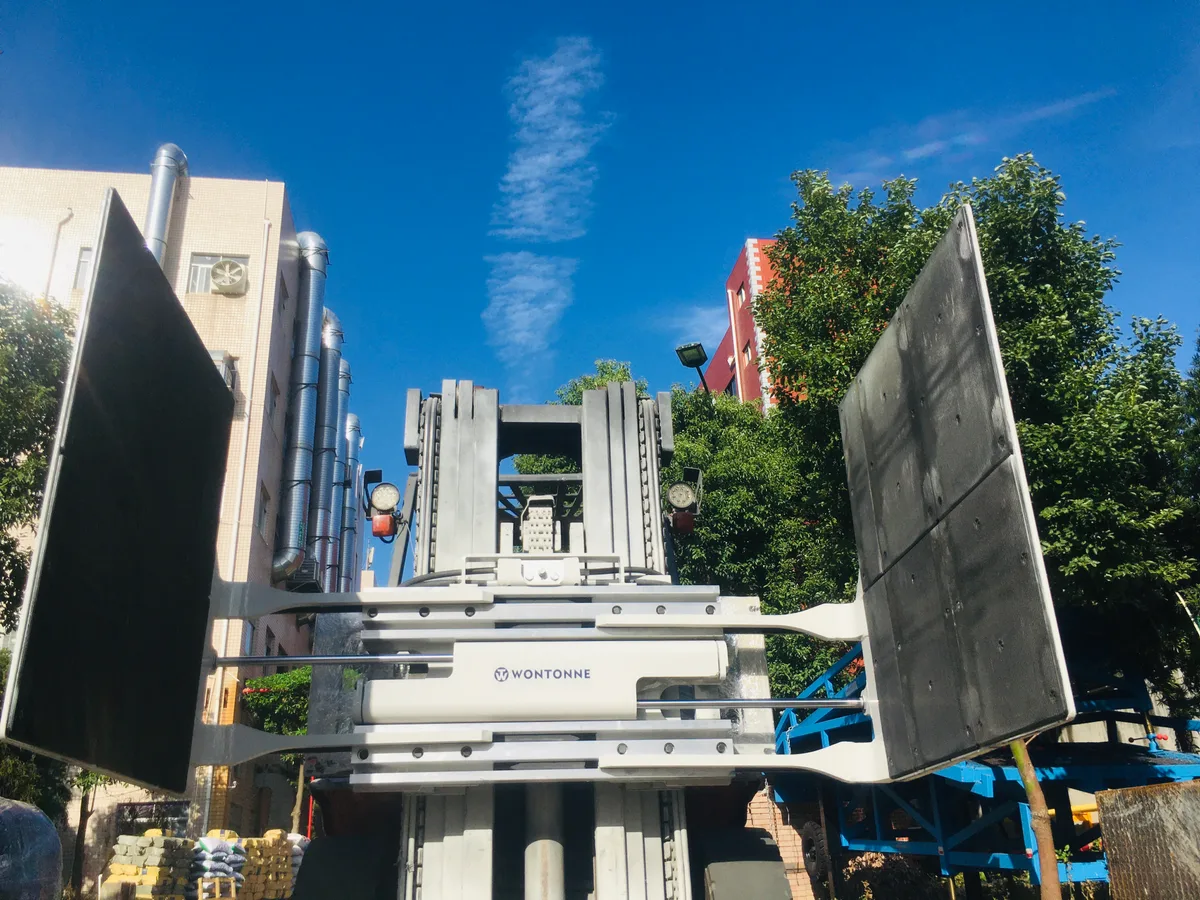

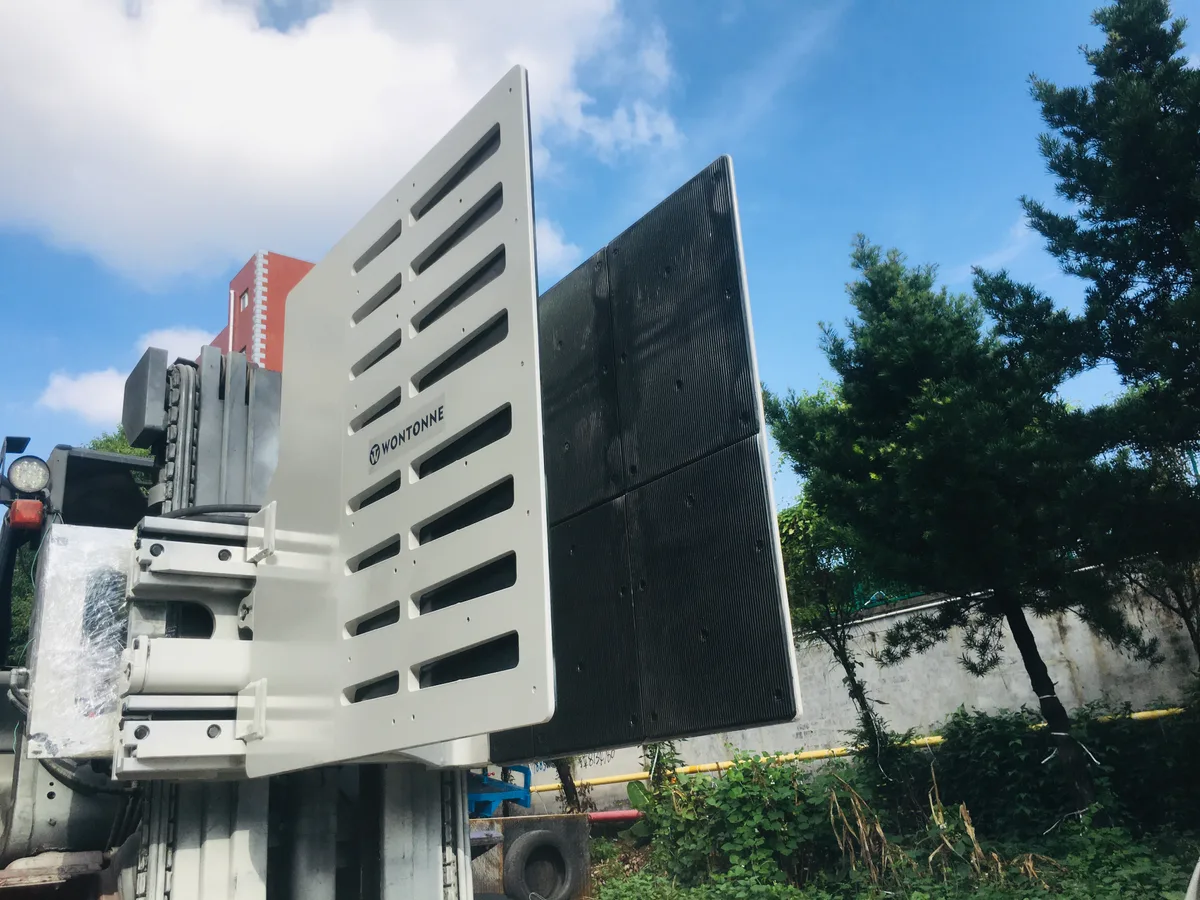

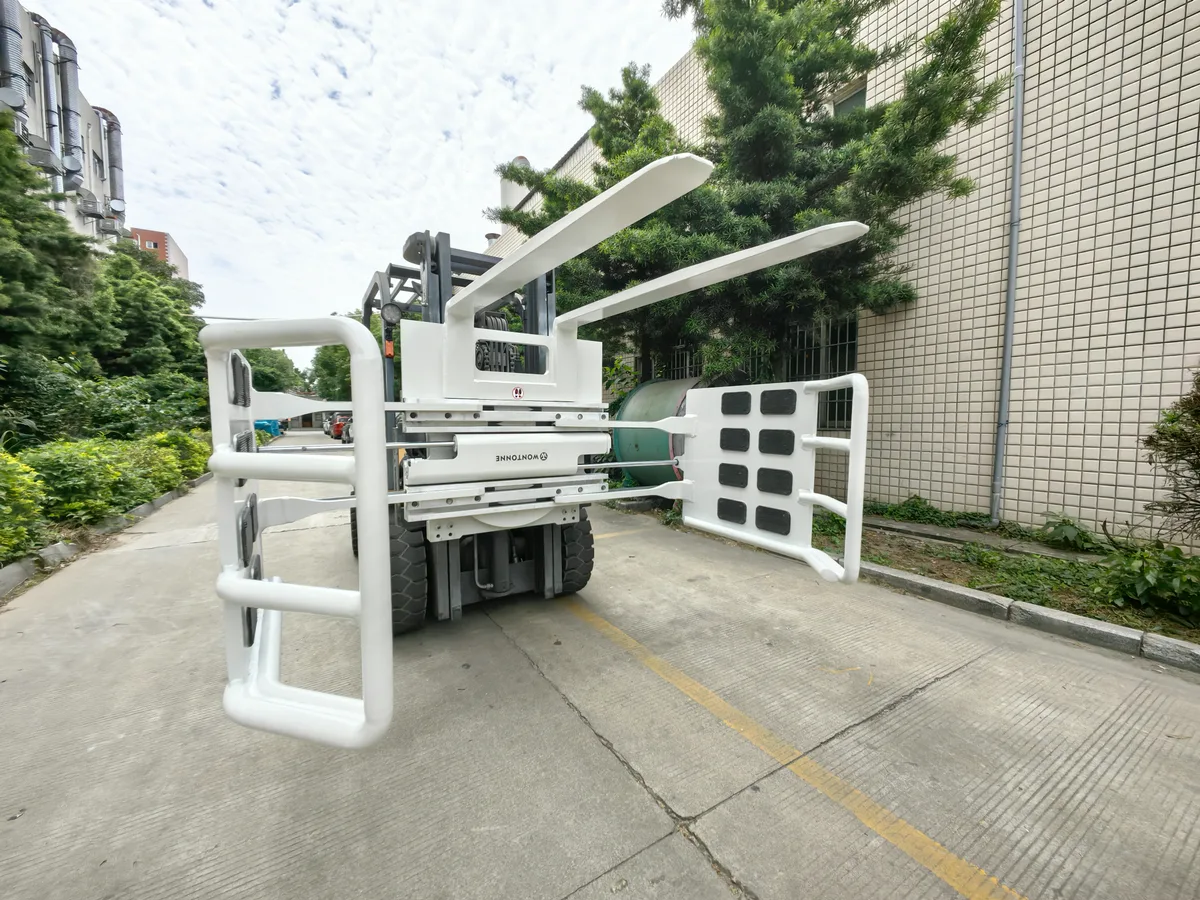

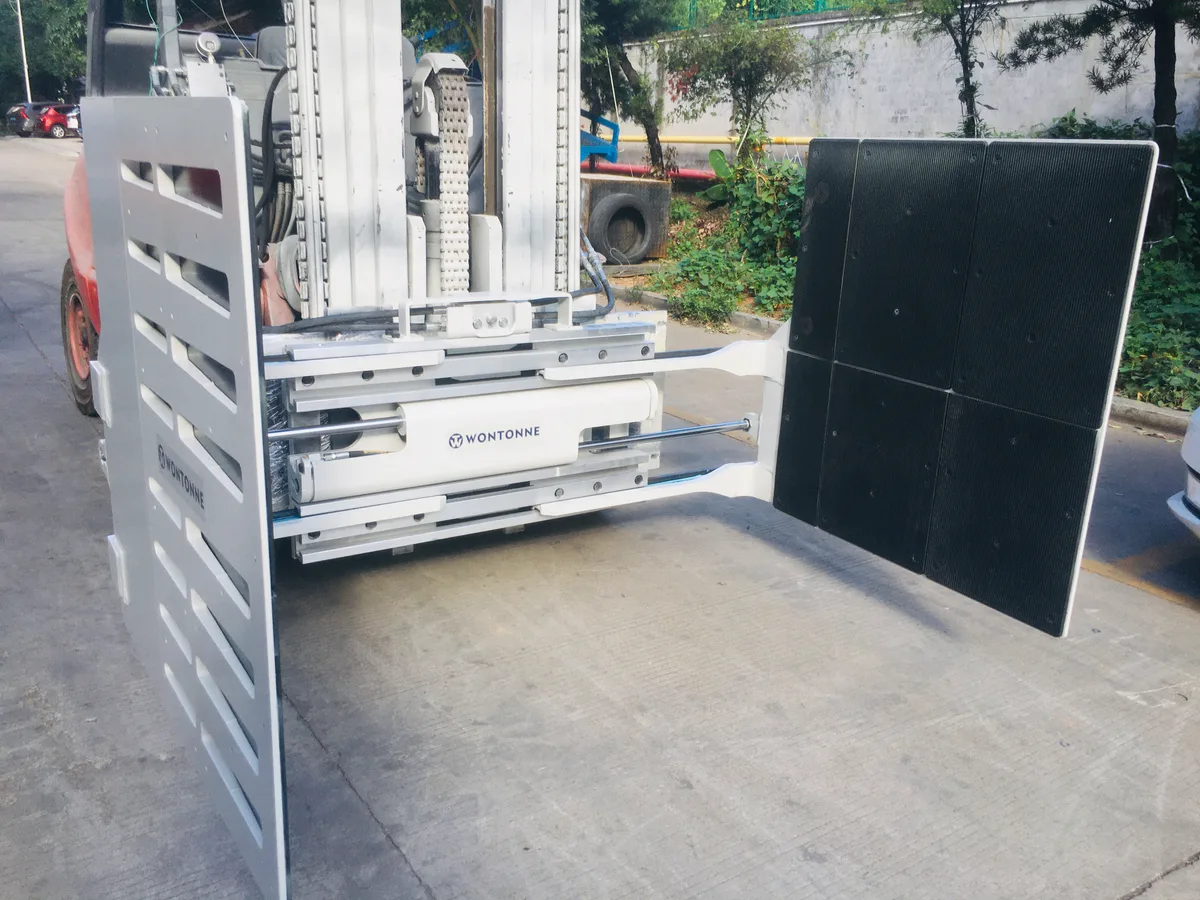

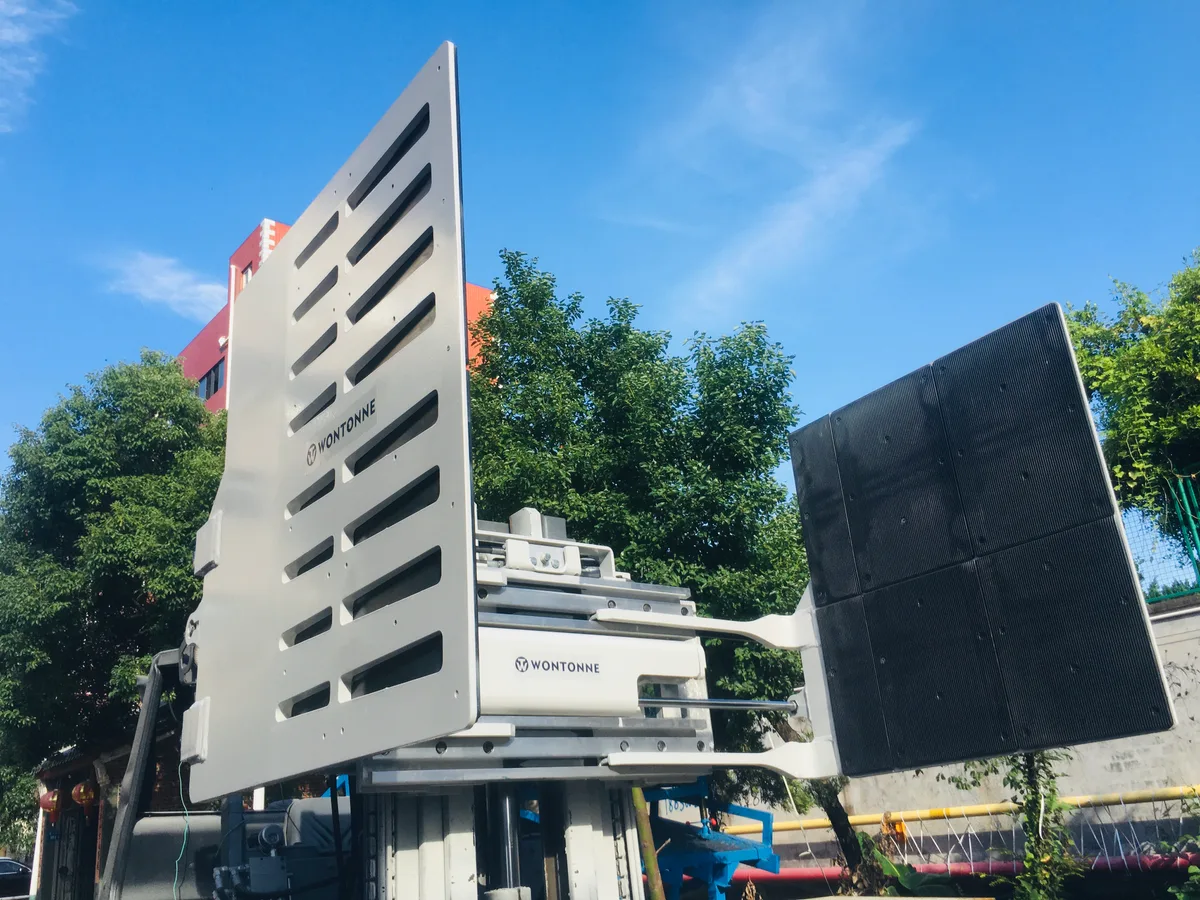

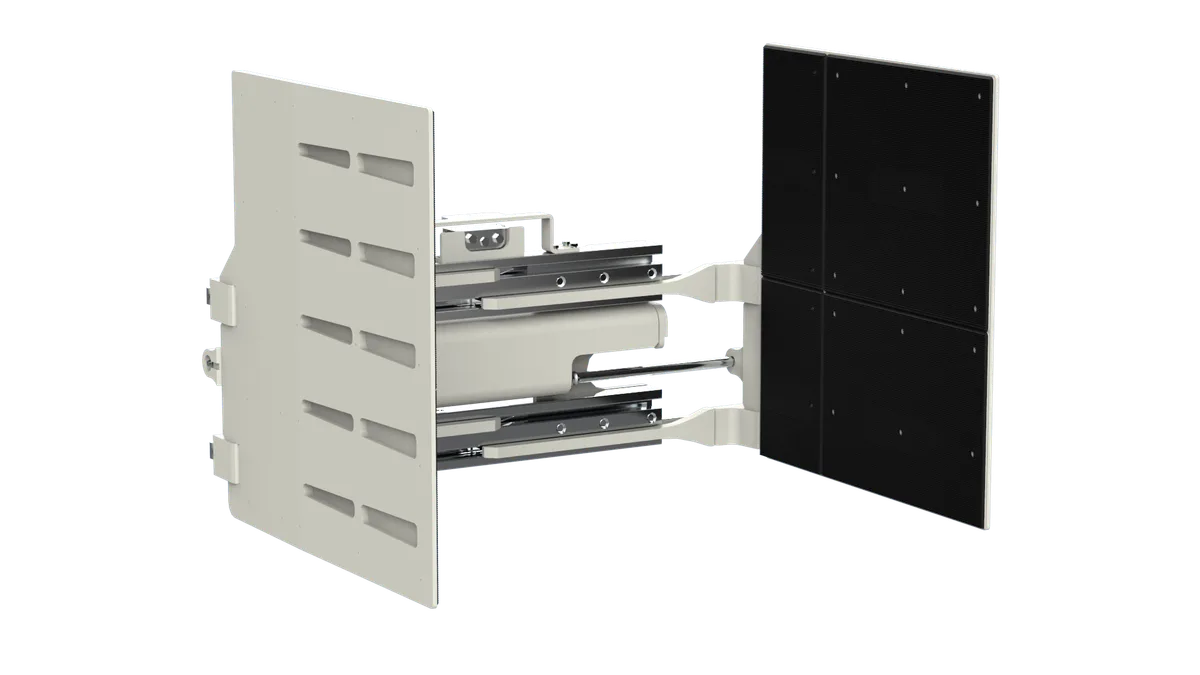

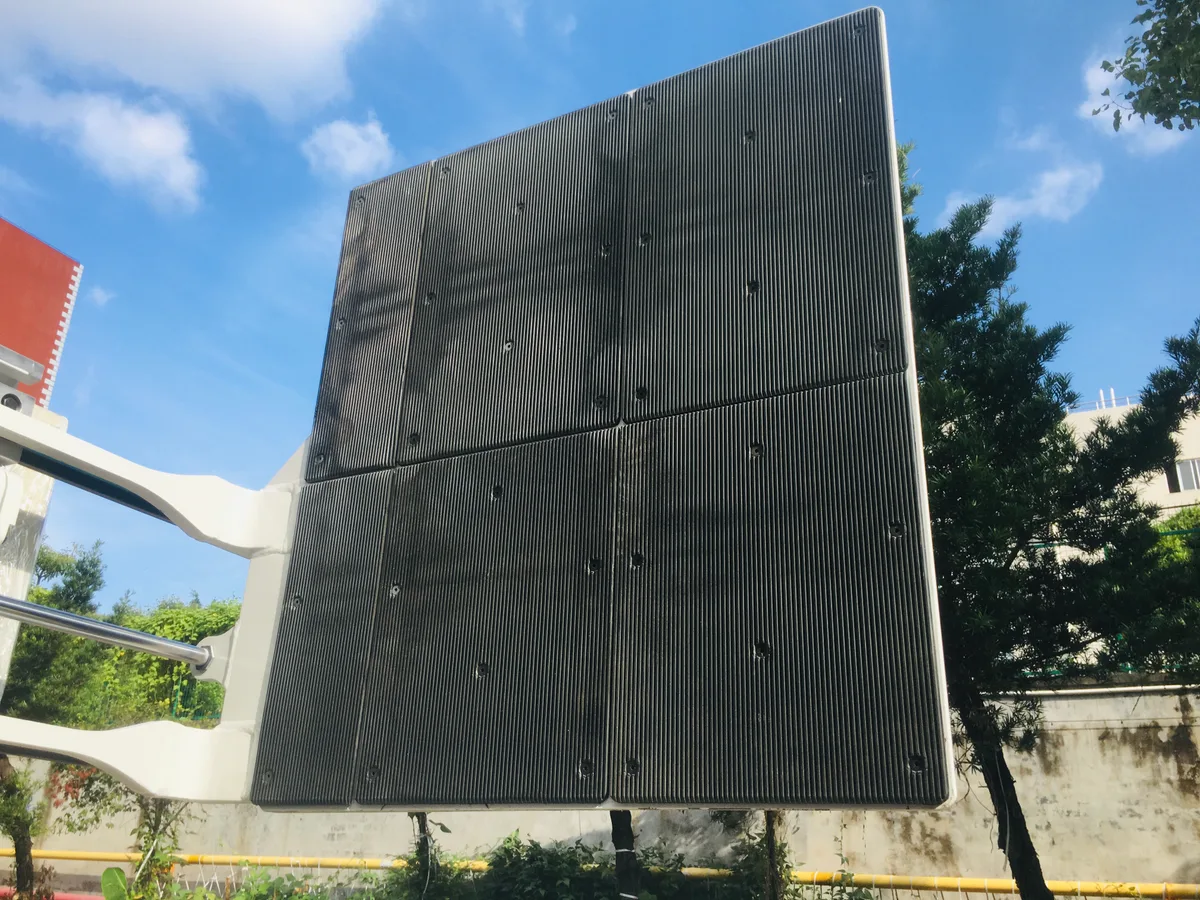

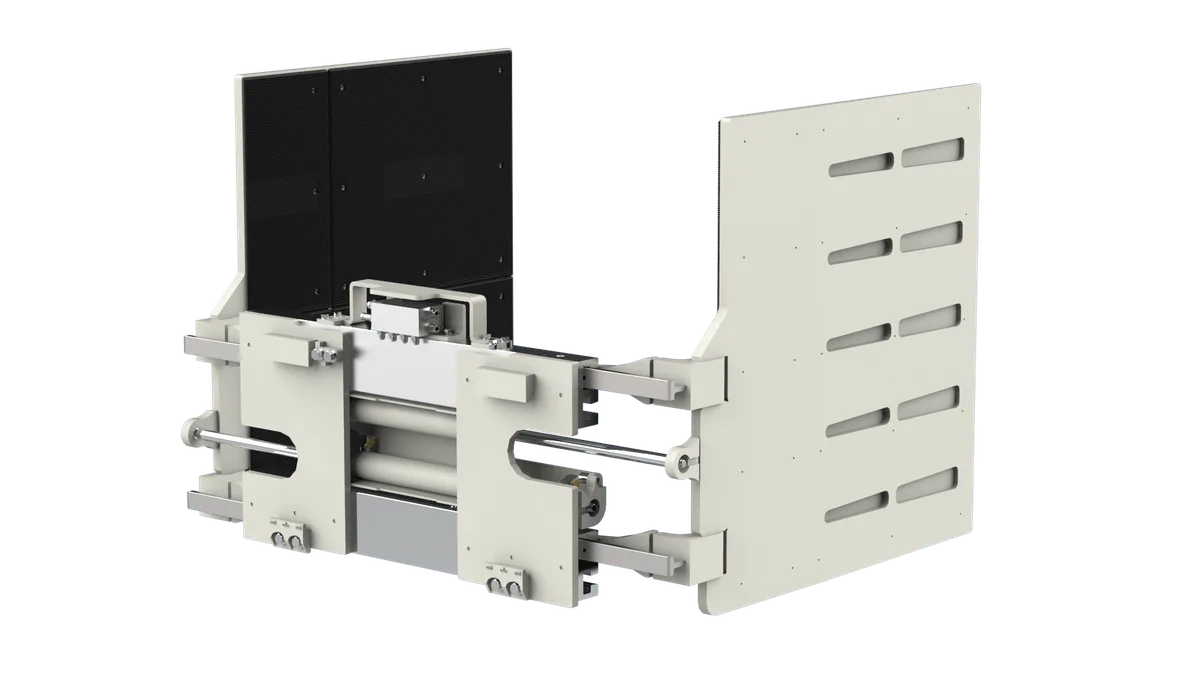

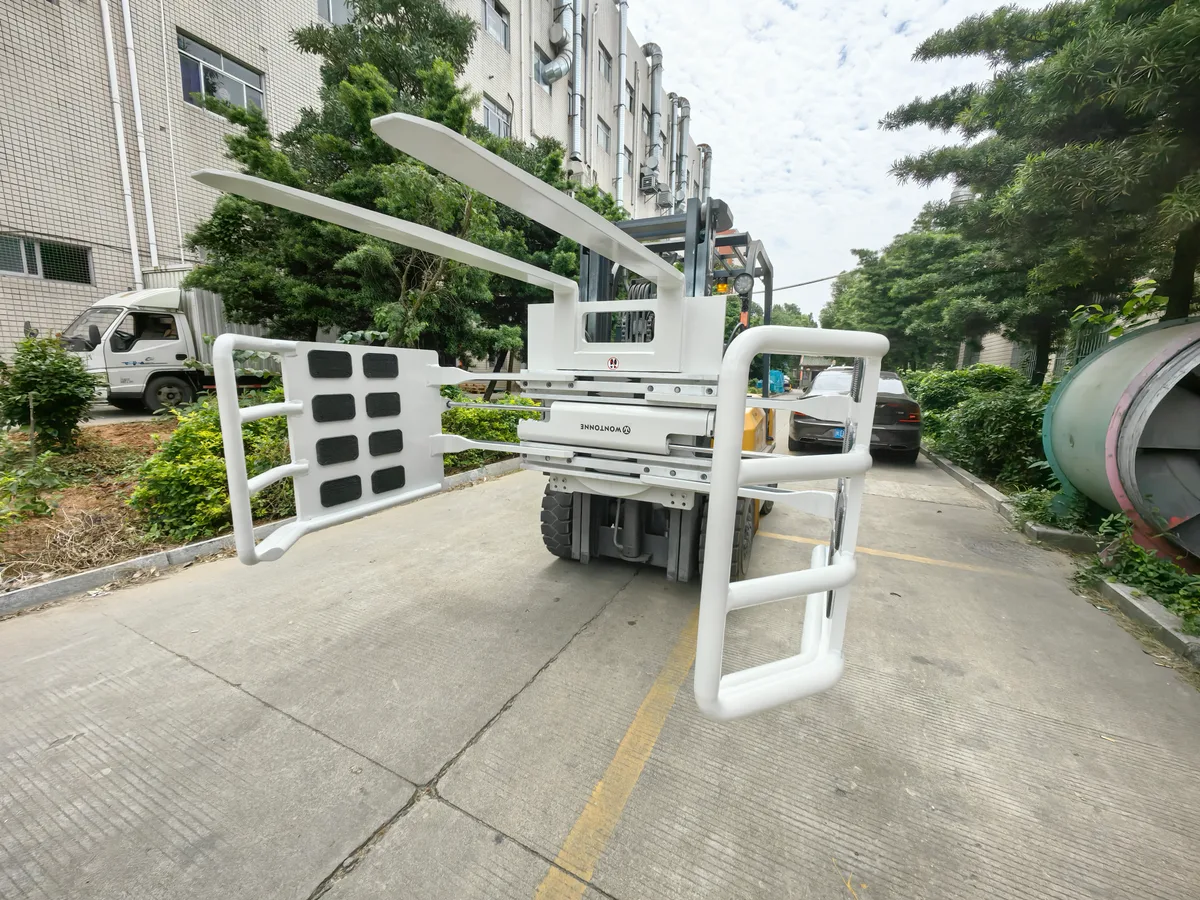

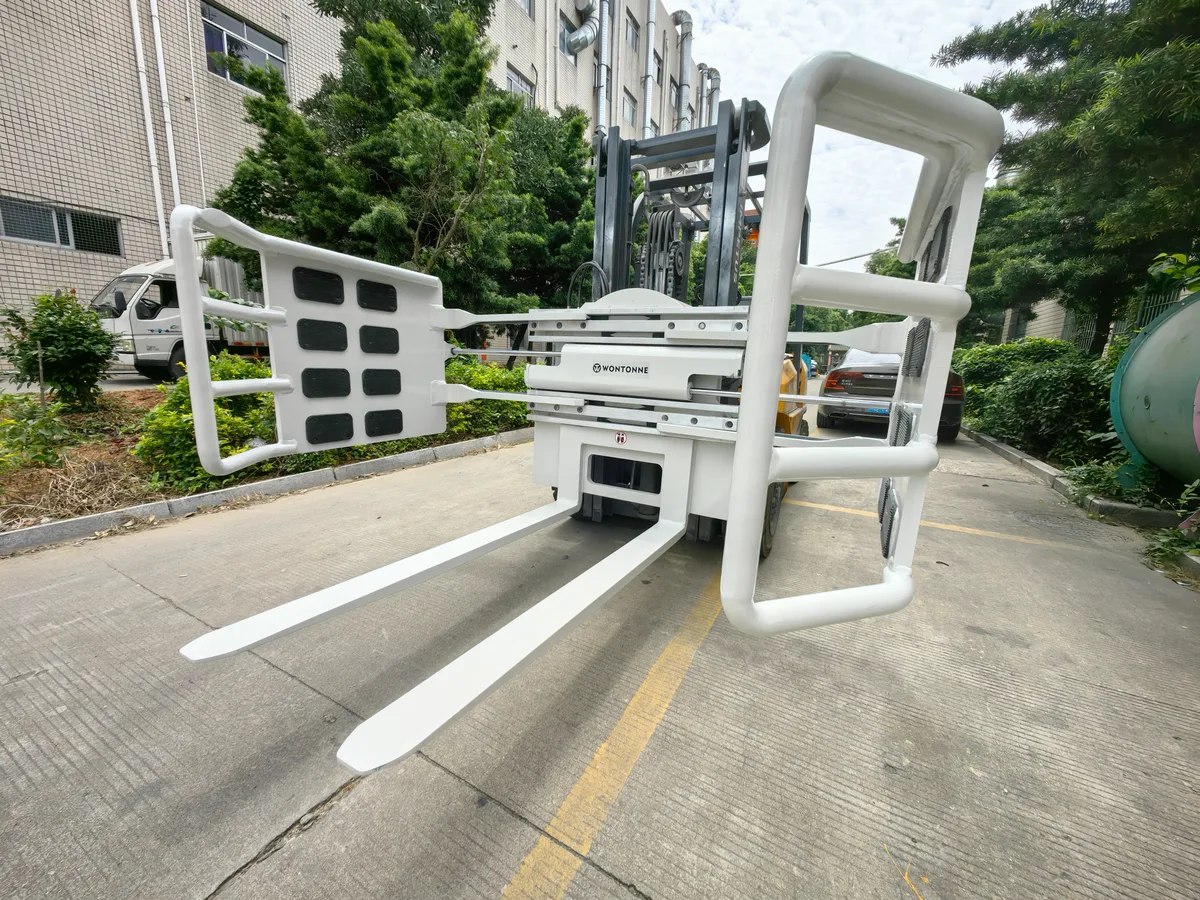

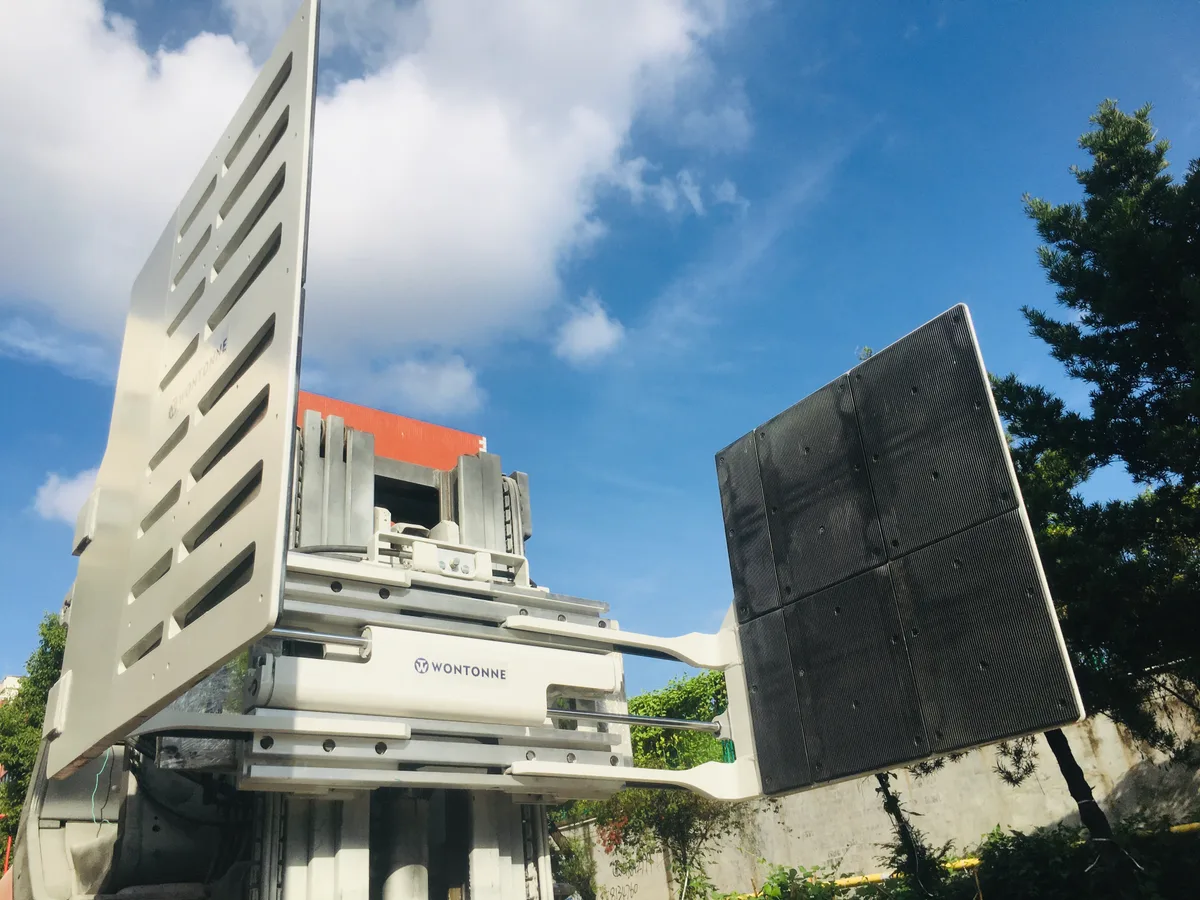

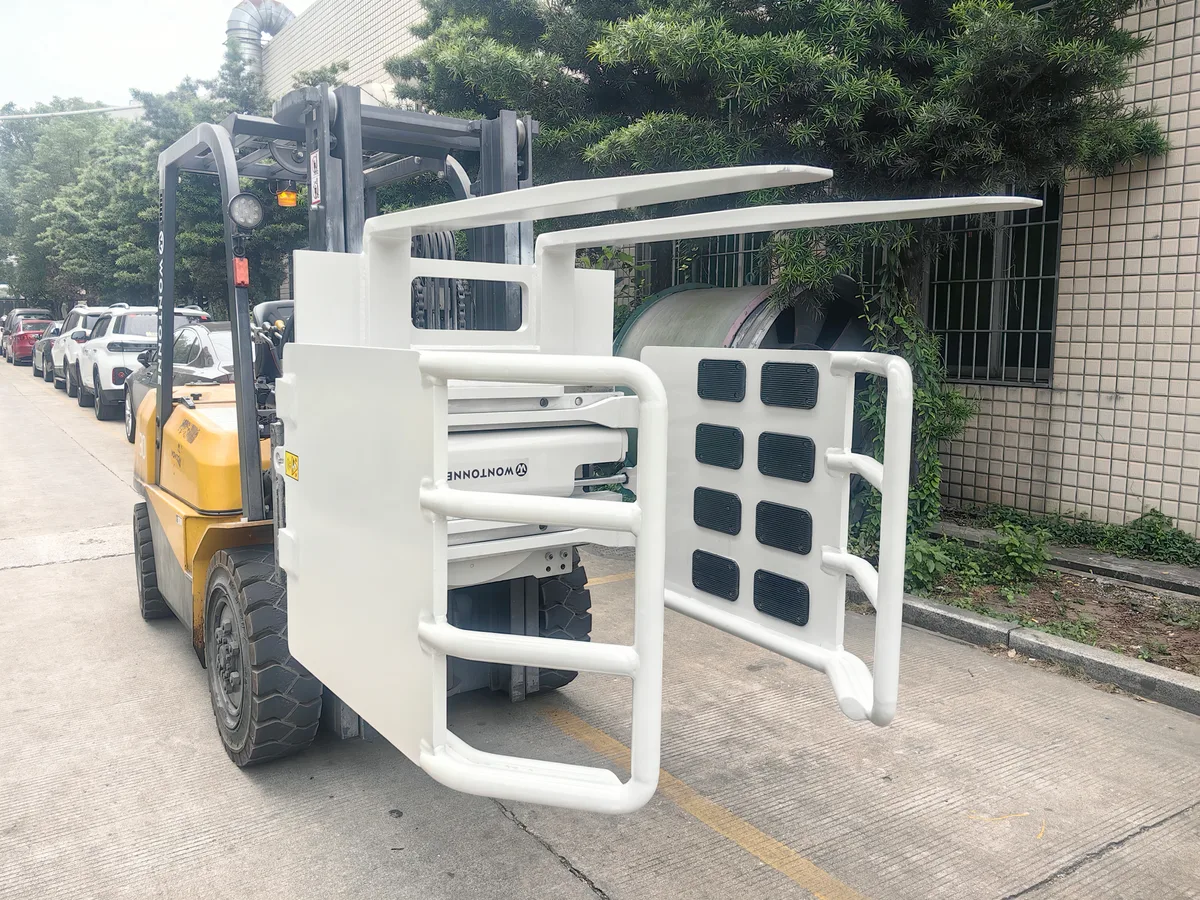

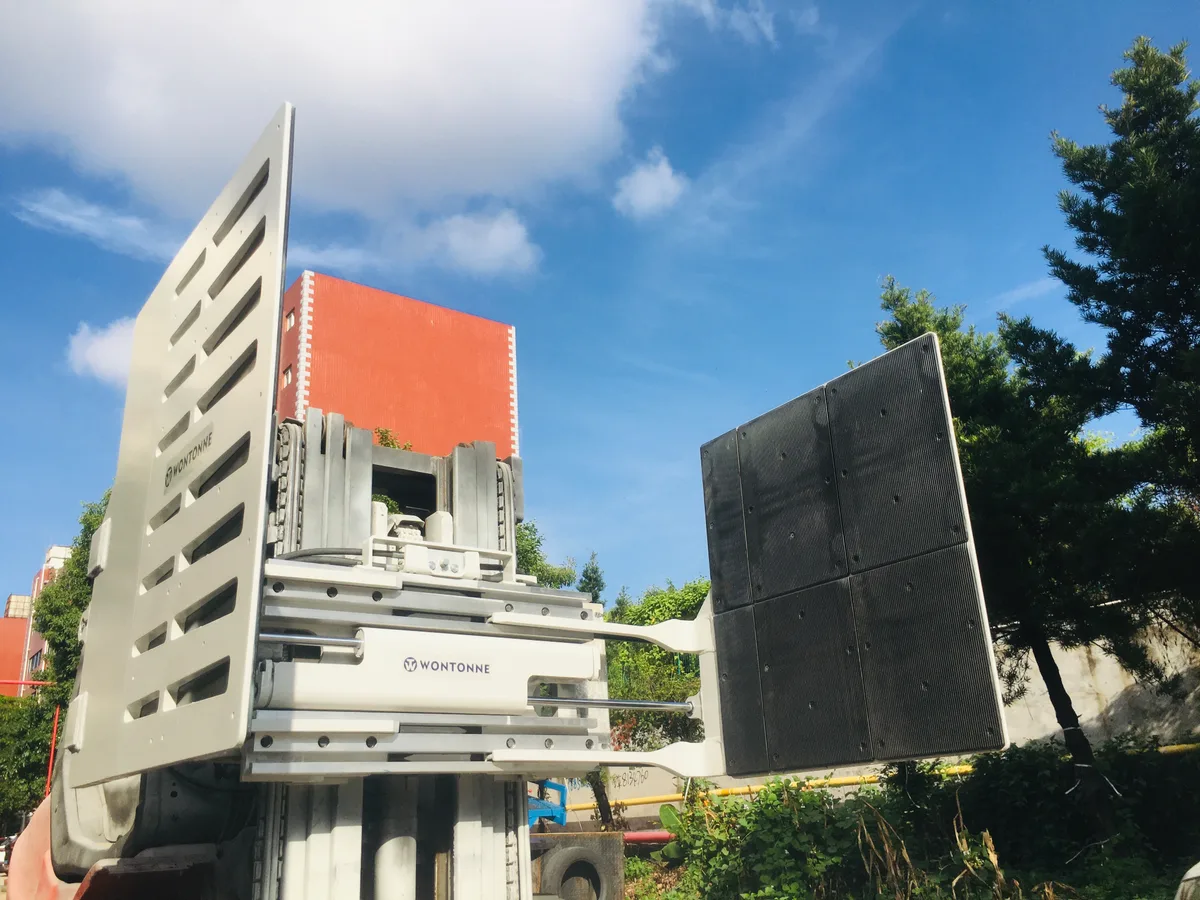

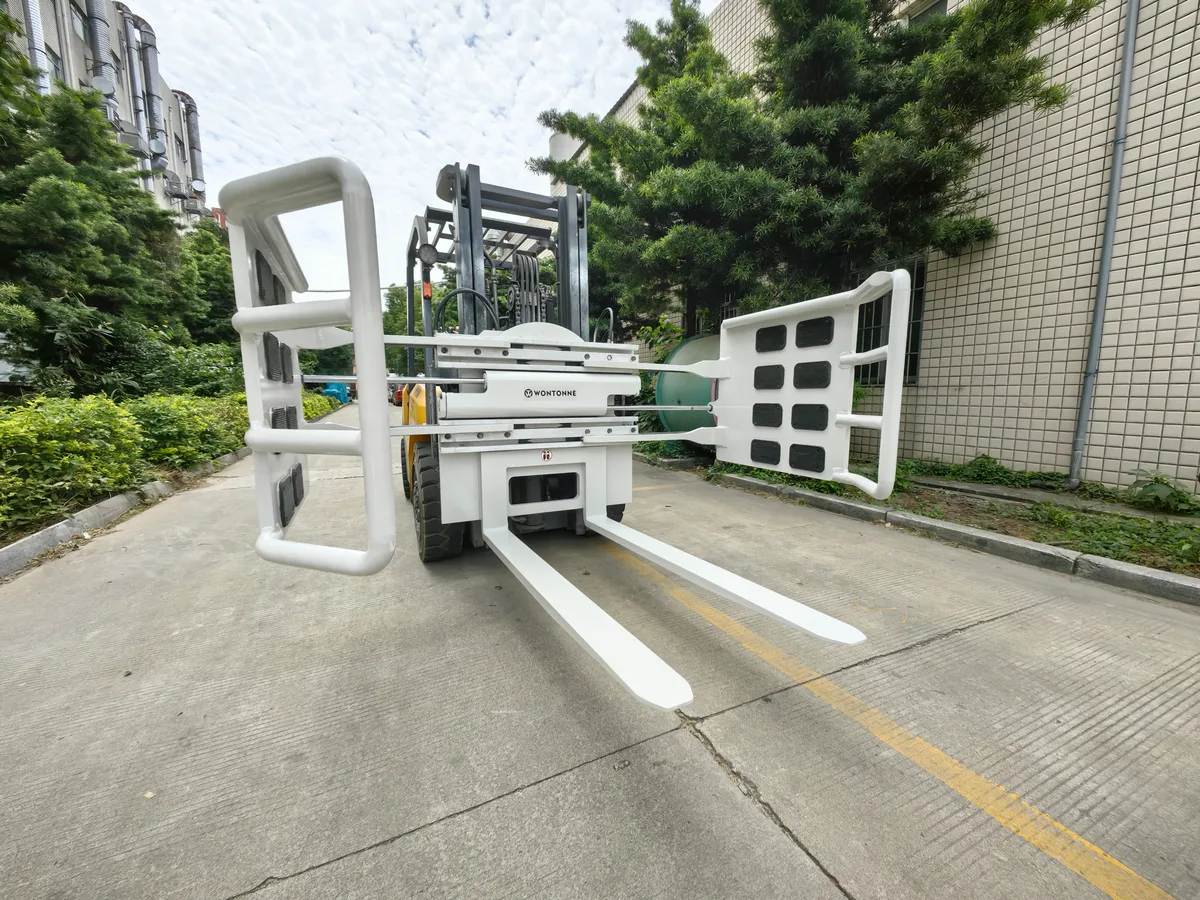

Multi-purpose Clamps (Side Shifting)
Engineered for durability and precision, multi-purpose clamps (side shifting) delivers reliable performance in demanding material handling environments.
Product Overview
The Wontonne Multi-Purpose Clamps (Side Shifting) handle corrugated, metal and wooden containers as well as baled products efficiently.
Key features & specifications:
Handles corrugated and metal containers
Handles wooden containers and bales
Side shifting function
High strength steel frame
Clamp and backhand protection
Reduces or eliminates pallet costs
Efficient hydraulic system
Capacity up to 2500kg
Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.
Need More Info?
Get detailed specifications, pricing, and delivery estimates from our team.
| Model No | Capacity (kg) | Load Center (mm) | Opening Range (mm) | Mounting | Weight (kg) | Contact Pads |
|---|---|---|---|---|---|---|
| MCS20E-011A | 1900 | 500 | 480~1740 | ISO 2A | 465 | 127 |
| MCS20E-023A | 1900 | 500 | 560~1760 | ISO 2A | 536 | 127 |
| MCS30E-021B | 2500 | 620 | 600~1920 | ISO 3A | 714 | 150 |
Manufacturing Excellence
30,000 m² intelligent facility — ISO 9001 & ISO 3834 certified production lines.
