What is the capacity of the 12G Paper Roll Clamp?

The 12G Paper Roll Clamp handles 1000-1200 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the 12G Paper Roll Clamp use?

The 12G Paper Roll Clamp is available for ISO 2A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the 12G Paper Roll Clamp are available?

Wontonne offers 10 models of the 12G Paper Roll Clamp — including RCF12G-001A, RCF12G-003A, RCF12G-005A, RCF12G-007A, RCF12G-008A and more — with different capacities and load centers for various applications.

What capacity of paper roll clamp do I need?

Wontonne offers paper roll clamps from 1000 kg to 4100 kg capacity. The 12G series suits tissue and small rolls (1000-1200 kg), while the 33G and 35F series handle large board rolls up to 4100 kg. Choose by your heaviest roll weight plus a safety margin.

What is the difference between positioned and fixed short-arm paper roll clamps?

Positioned short-arm clamps (20G-P, 24G-P, 30G-P, 33G-P, 35F-P) let the short arm reposition hydraulically to match roll diameter, ideal for multi-diameter roll handling. Fixed short-arm clamps (12G, 15F, 20G, 24G, 30G, 33G, 35F) offer a simpler, more economical design for consistent roll sizes.

Products / Paper Roll Clamps / 12G Paper Roll Clamp

Paper Roll Clamps

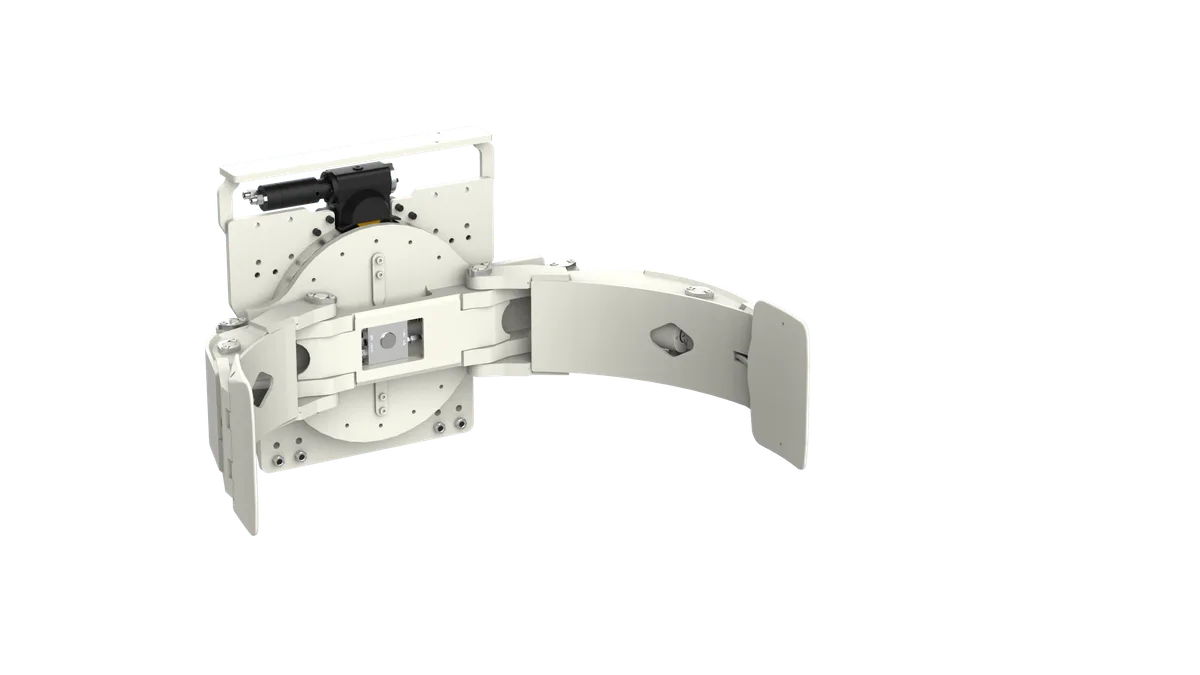

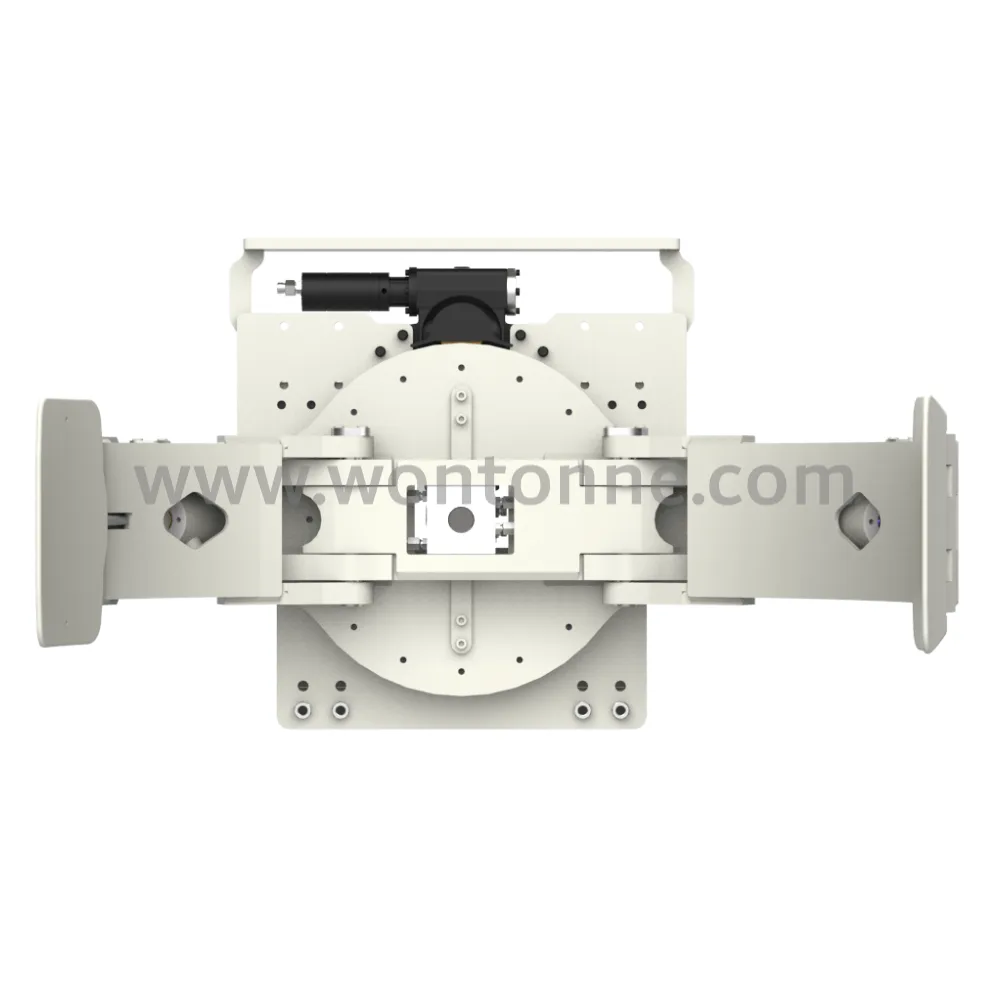

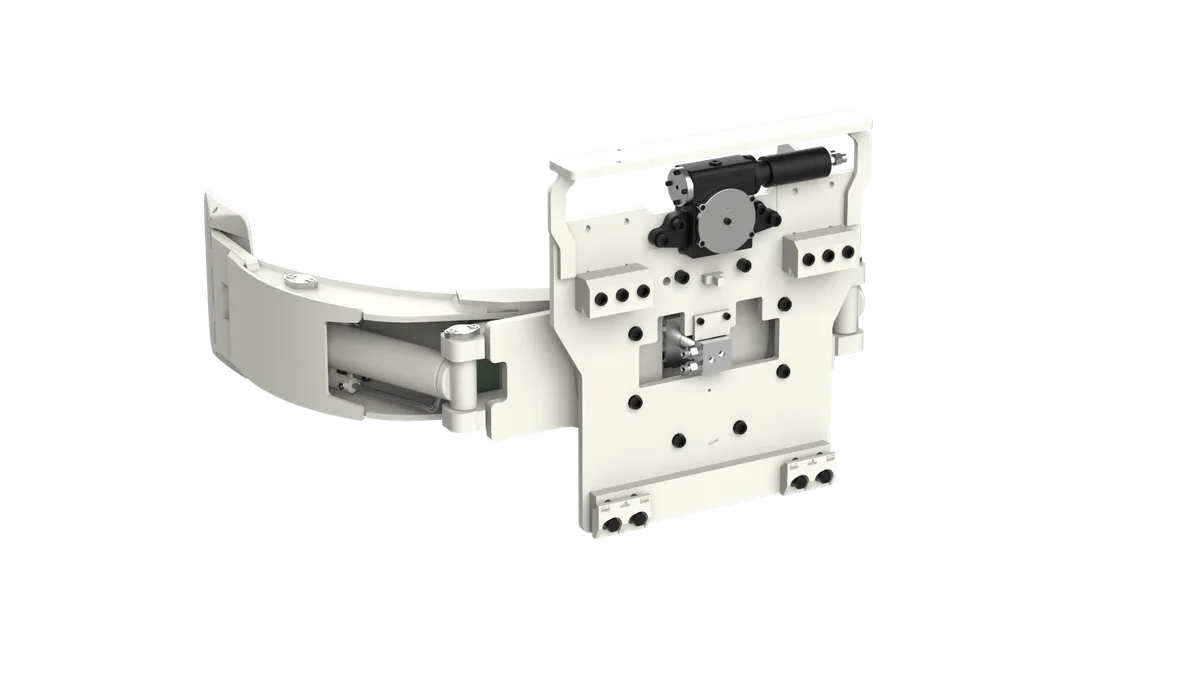

12G Paper Roll Clamp

Engineered for durability and precision, 12g paper roll clamp delivers reliable performance in demanding material handling environments.

All Paper Roll Clamps

Product Overview

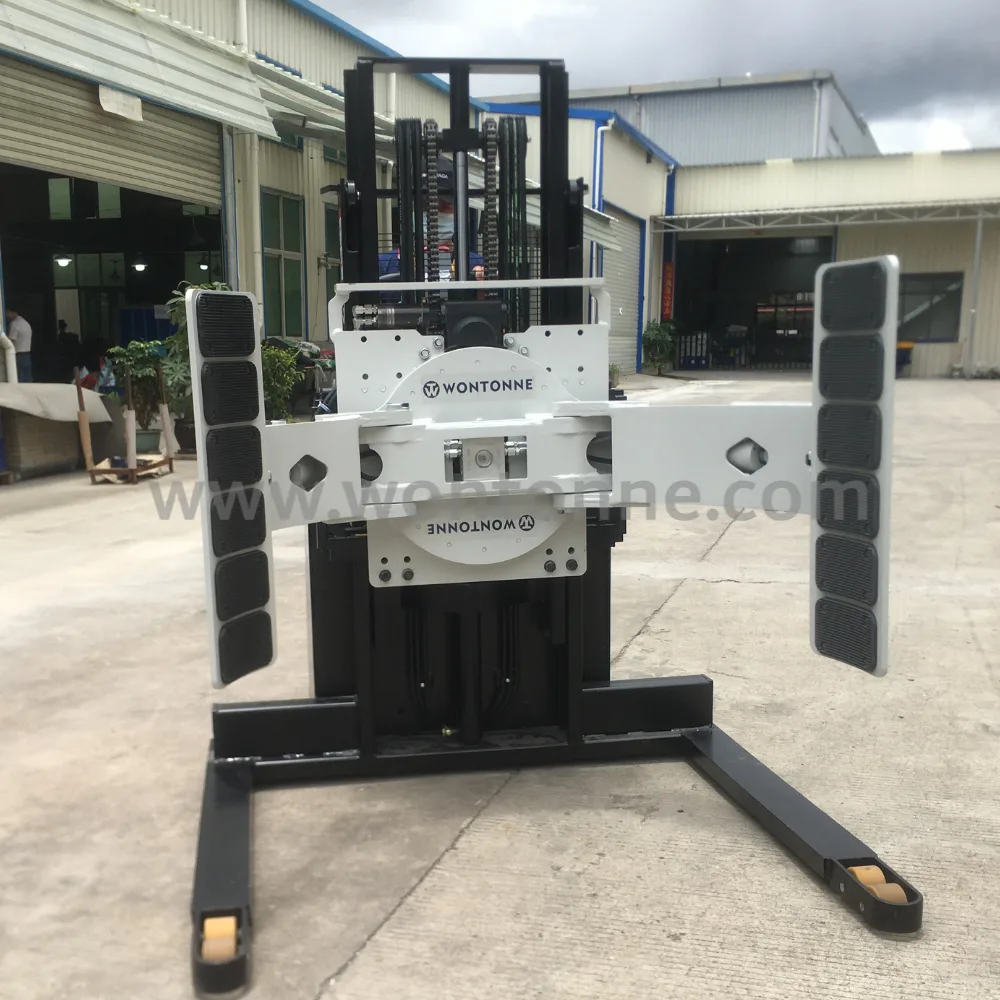

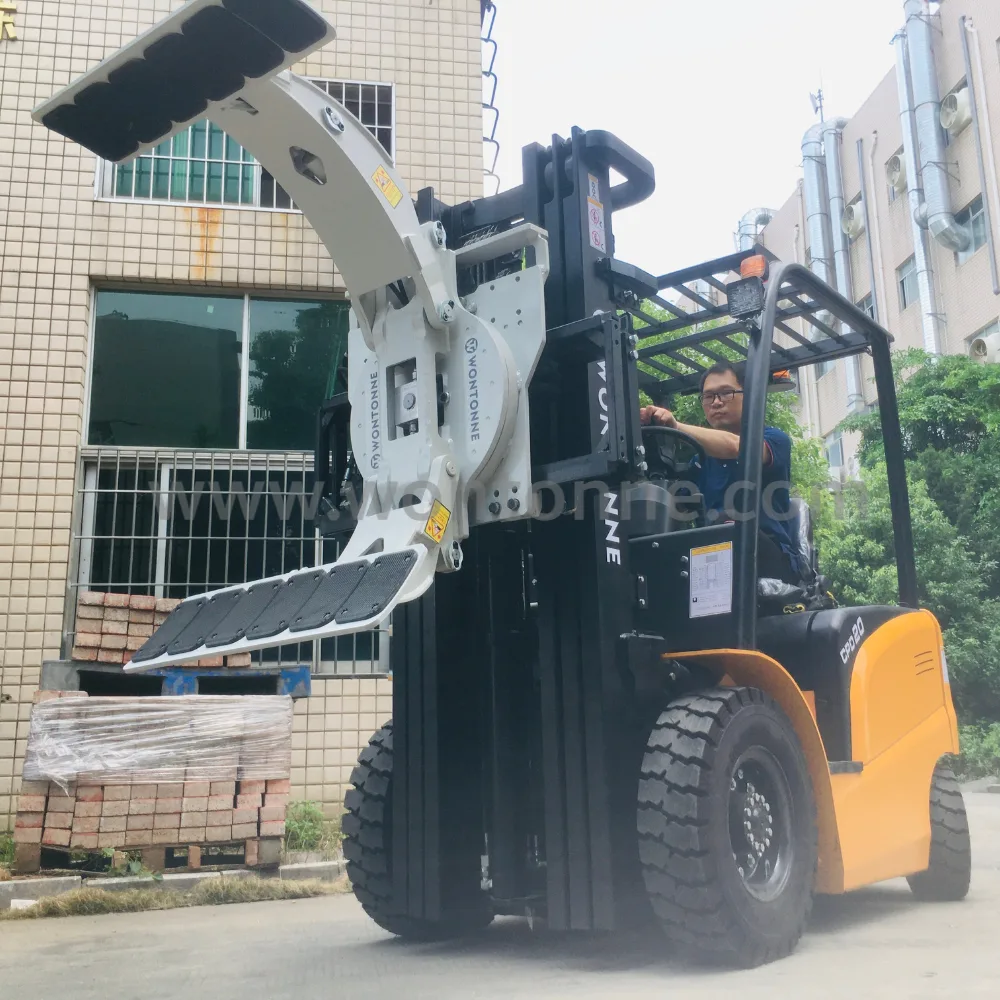

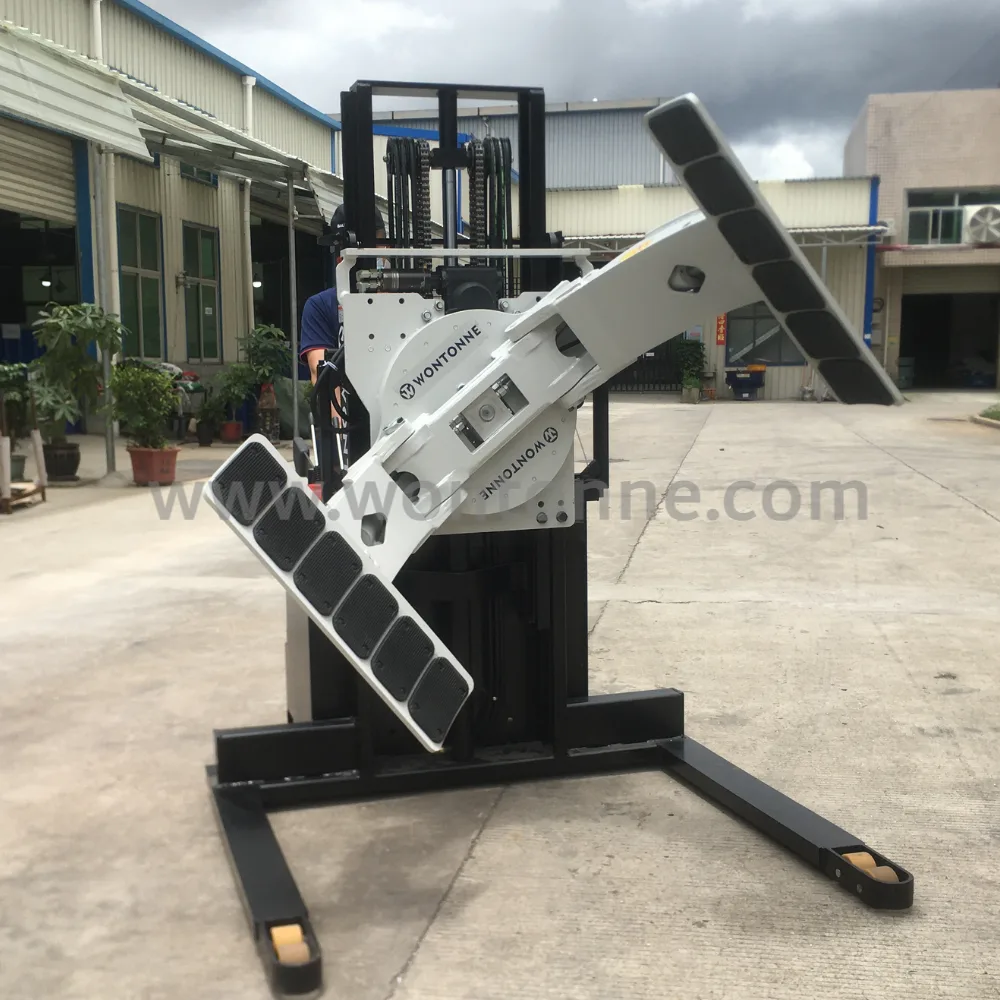

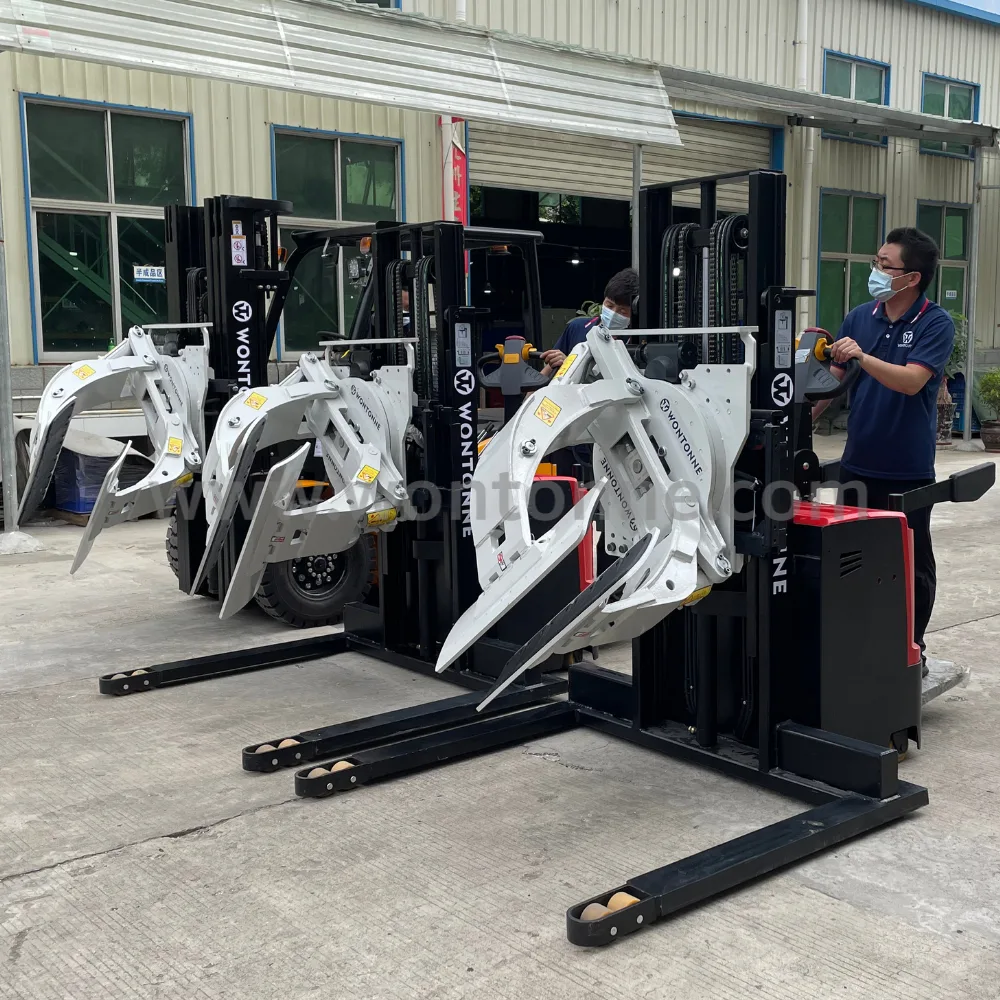

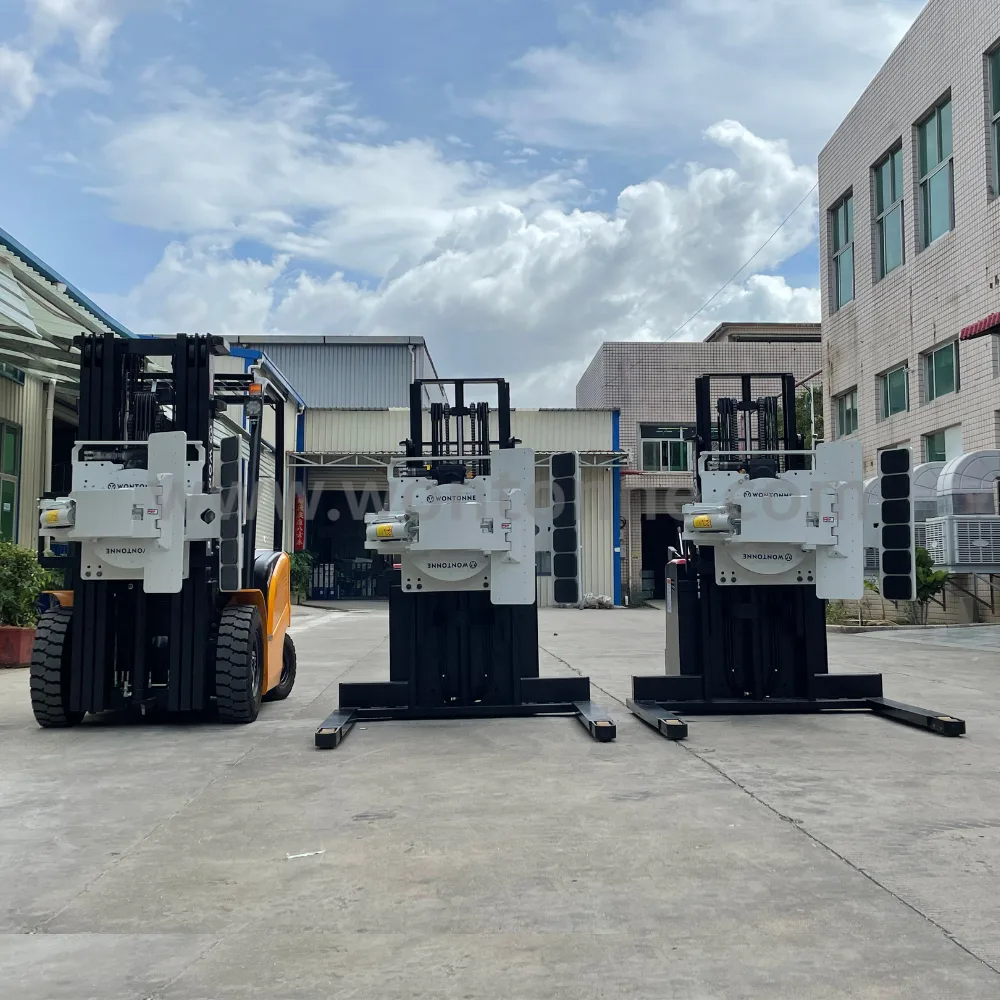

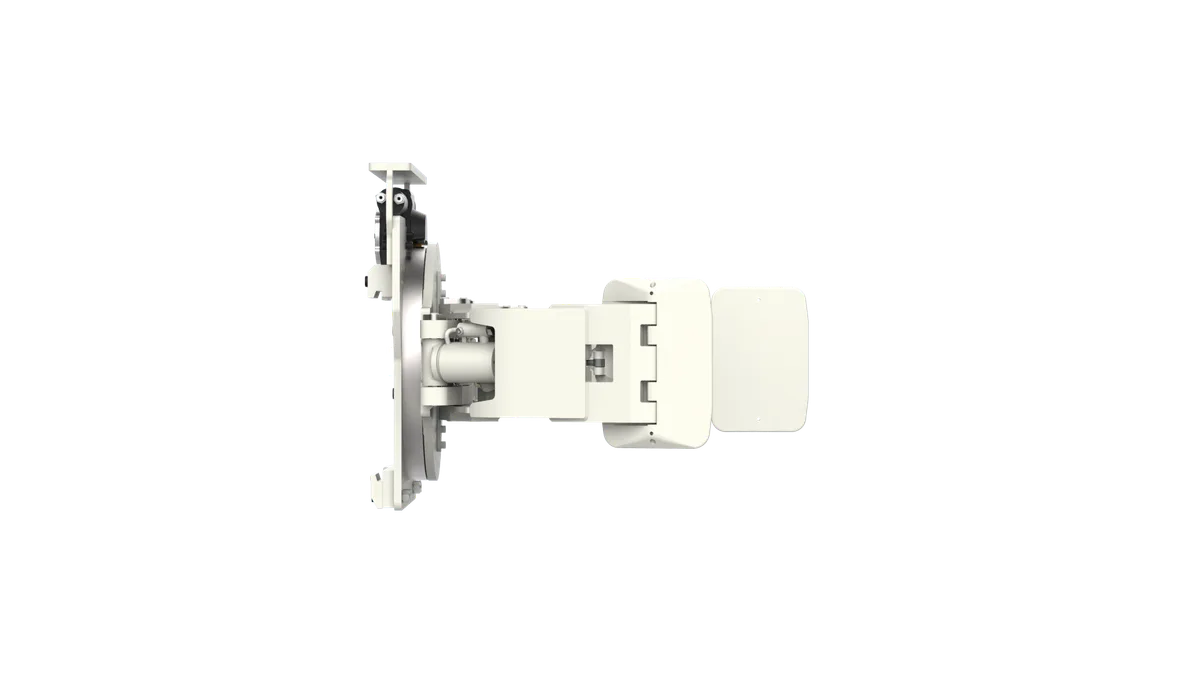

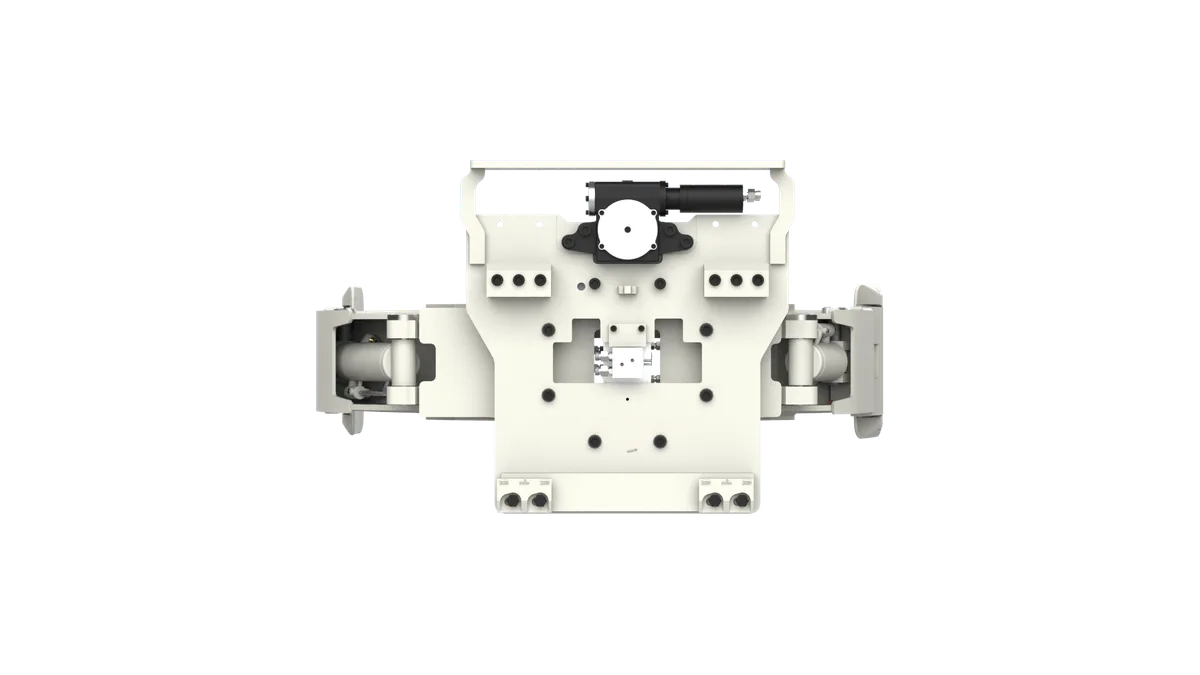

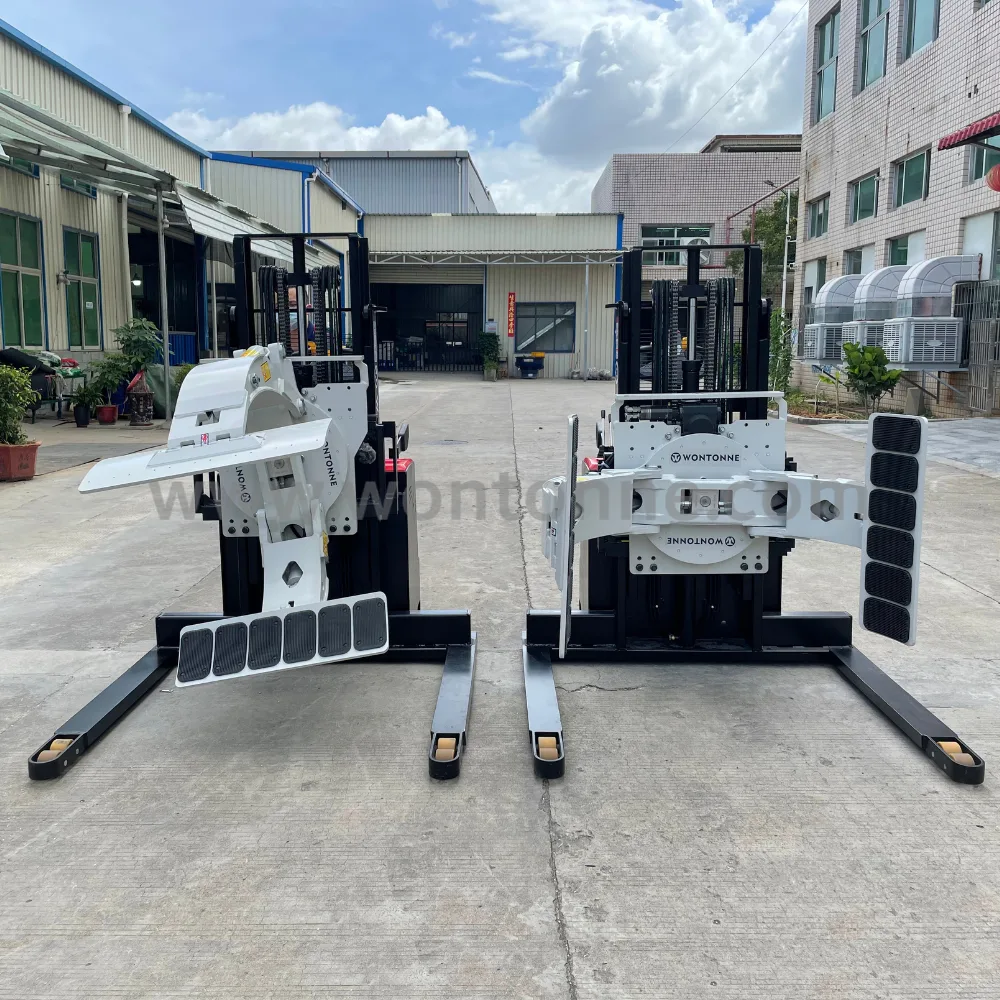

The Wontonne 12G Paper Roll Clamp turns a standard forklift into a versatile paper handling machine, holding and transporting roll goods efficiently.

Paper roll clamps are designed to handle rolls of any size, weight, or paper type. With options ranging from compact to rugged, they effectively reduce roll damage during handling.

Key features & specifications:

Makes forklifts suitable for paper roll tasks

Replaces fork and telescopic operations

Holds and transports roll-shaped goods

Improves handling and stacking efficiency

Reduces operating costs for paper mills

Capacity up to 1200kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

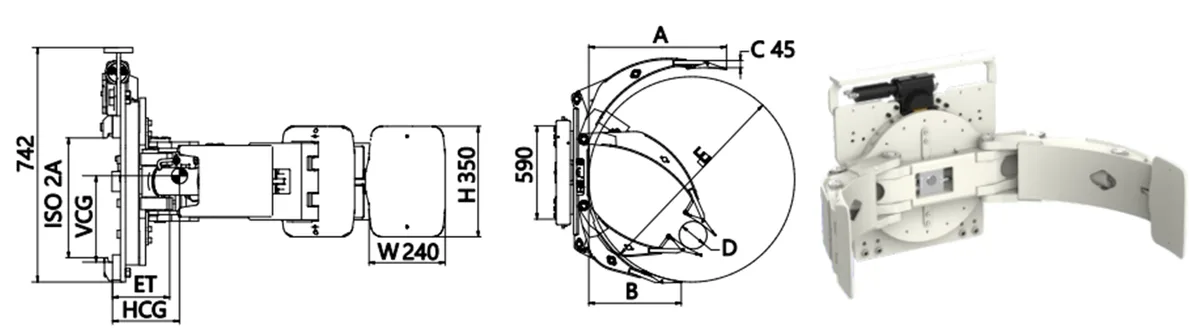

Model No	Capacity (kg)	Load Center (mm)	Opening Range (mm)	Mounting	Weight (kg)	Effective Thickness ET (mm)	Mounting Angle (°)	Long Arm Length (mm)	Short Arm Length (mm)	Arm Thickness (mm)	Contact Pad Size (mm)	Vertical CG VCG (mm)	Horizontal CG HCG (mm)
RCF12G-001A	1200	575	350-1150	ISO 2A	311	180	0°	762	465	46	350×240	274	198
RCF12G-003A	1200	650	440-1300	ISO 2A	320	180	0°	870	584	46	350×240	274	211
RCF12G-005A	1200	700	440-1400	ISO 2A	331	180	0°	924	624	46	350×240	273	224
RCF12G-007A	1100	760	490-1525	ISO 2A	338	180	0°	980	686	46	350×240	273	236
RCF12G-008A	1000	800	500-1600	ISO 2A	343	180	0°	1014	721	46	350×240	272	244
RCP12G-001A	1200	575	200-1150	ISO 2A	314	180	0°	762	465	46	350×240	274	198
RCP12G-003A	1200	650	200-1300	ISO 2A	323	180	0°	870	584	46	350×240	274	211
RCP12G-005A	1200	700	200-1400	ISO 2A	334	180	0°	924	624	46	350×240	273	224
RCP12G-007A	1100	760	200-1525	ISO 2A	340	180	0°	980	686	46	350×240	273	236
RCP12G-008A	1000	800	200-1600	ISO 2A	346	180	0°	1014	721	46	350×240	272	244
