What is the capacity of the 20G Paper Roll Clamp(Positioned Short Arm)?

The 20G Paper Roll Clamp(Positioned Short Arm) handles 1700-2000 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the 20G Paper Roll Clamp(Positioned Short Arm) use?

The 20G Paper Roll Clamp(Positioned Short Arm) is available for ISO 2A / ISO 3A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the 20G Paper Roll Clamp(Positioned Short Arm) are available?

Wontonne offers 10 models of the 20G Paper Roll Clamp(Positioned Short Arm) — including RCP20G-001A, RCP20G-001B, RCP20G-003A, RCP20G-003B, RCP20G-006A and more — with different capacities and load centers for various applications.

What capacity of paper roll clamp do I need?

Wontonne offers paper roll clamps from 1000 kg to 4100 kg capacity. The 12G series suits tissue and small rolls (1000-1200 kg), while the 33G and 35F series handle large board rolls up to 4100 kg. Choose by your heaviest roll weight plus a safety margin.

What is the difference between positioned and fixed short-arm paper roll clamps?

Positioned short-arm clamps (20G-P, 24G-P, 30G-P, 33G-P, 35F-P) let the short arm reposition hydraulically to match roll diameter, ideal for multi-diameter roll handling. Fixed short-arm clamps (12G, 15F, 20G, 24G, 30G, 33G, 35F) offer a simpler, more economical design for consistent roll sizes.

Products / Paper Roll Clamps / 20G Paper Roll Clamp(Positioned Short Arm)

Paper Roll Clamps

20G Paper Roll Clamp(Positioned Short Arm)

Engineered for durability and precision, 20g paper roll clamp(positioned short arm) delivers reliable performance in demanding material handling environments.

All Paper Roll Clamps

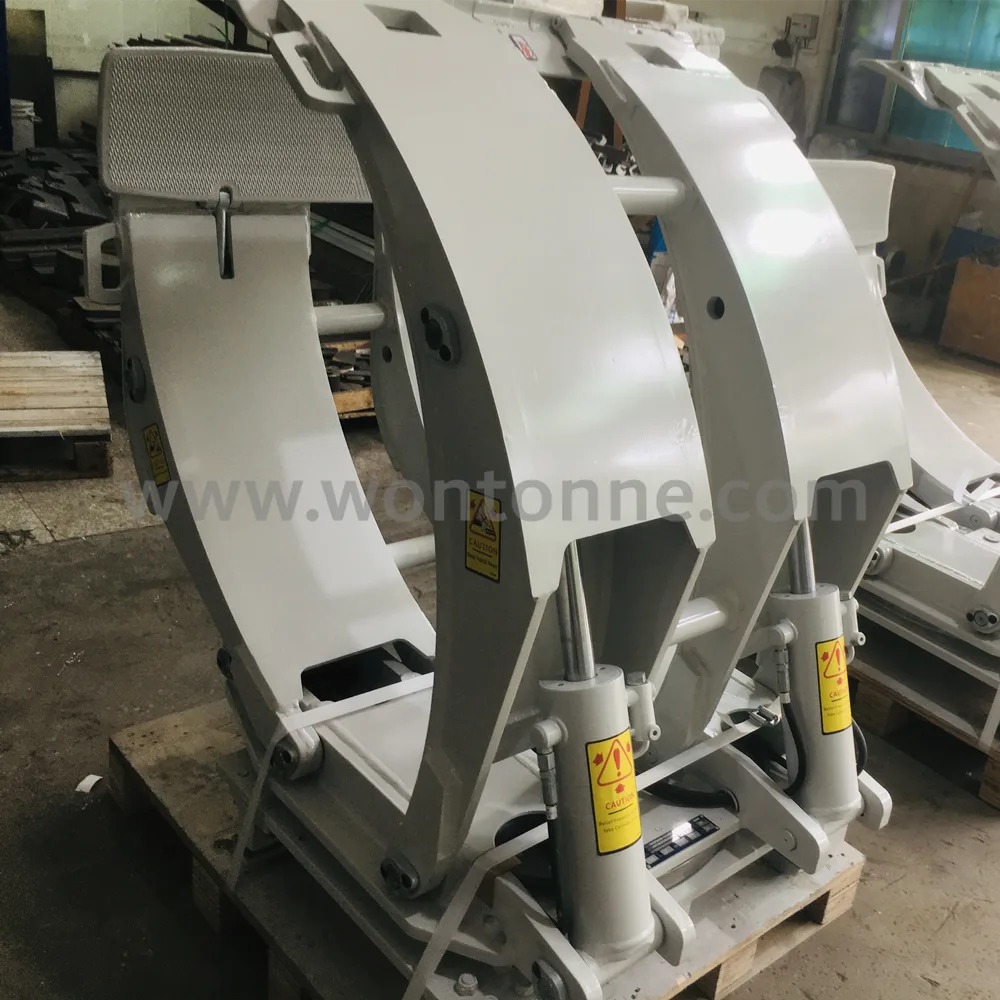

20G Paper Roll Clamp(Positioned Short Arm) - 1

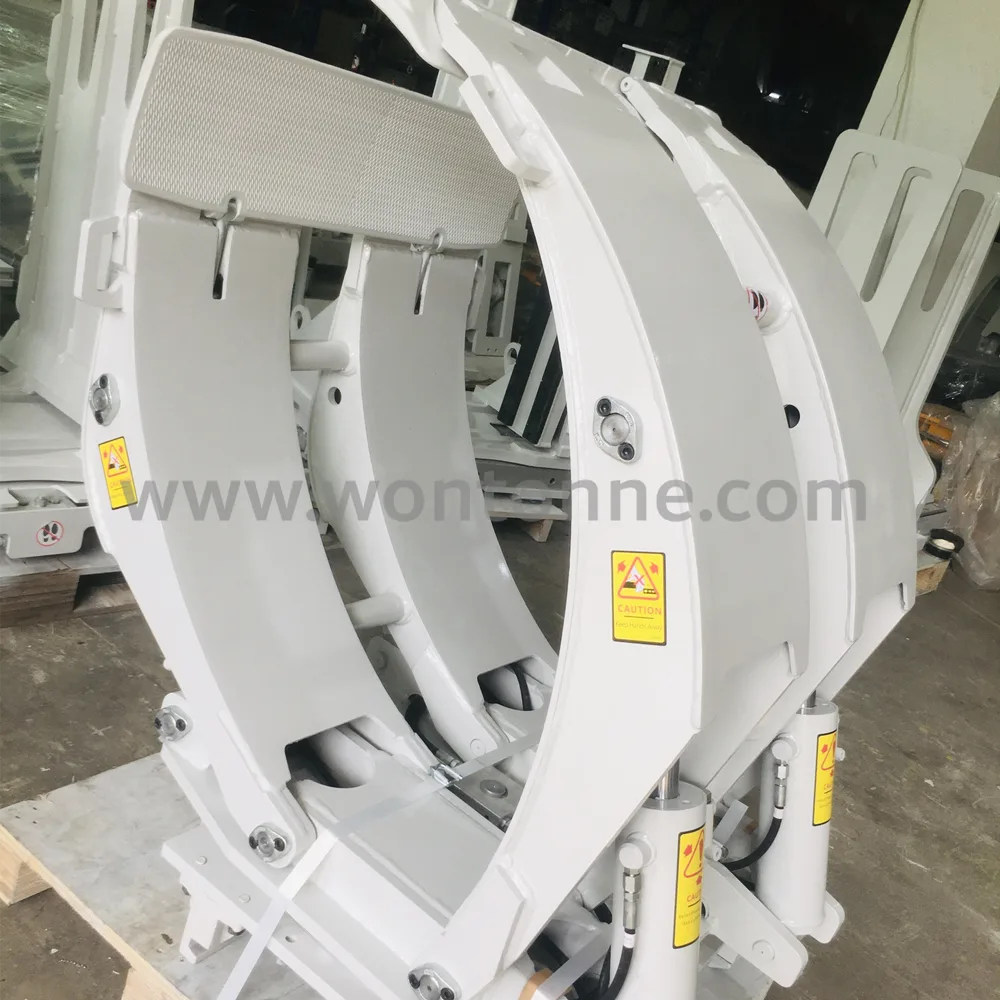

20G Paper Roll Clamp(Positioned Short Arm) - 2

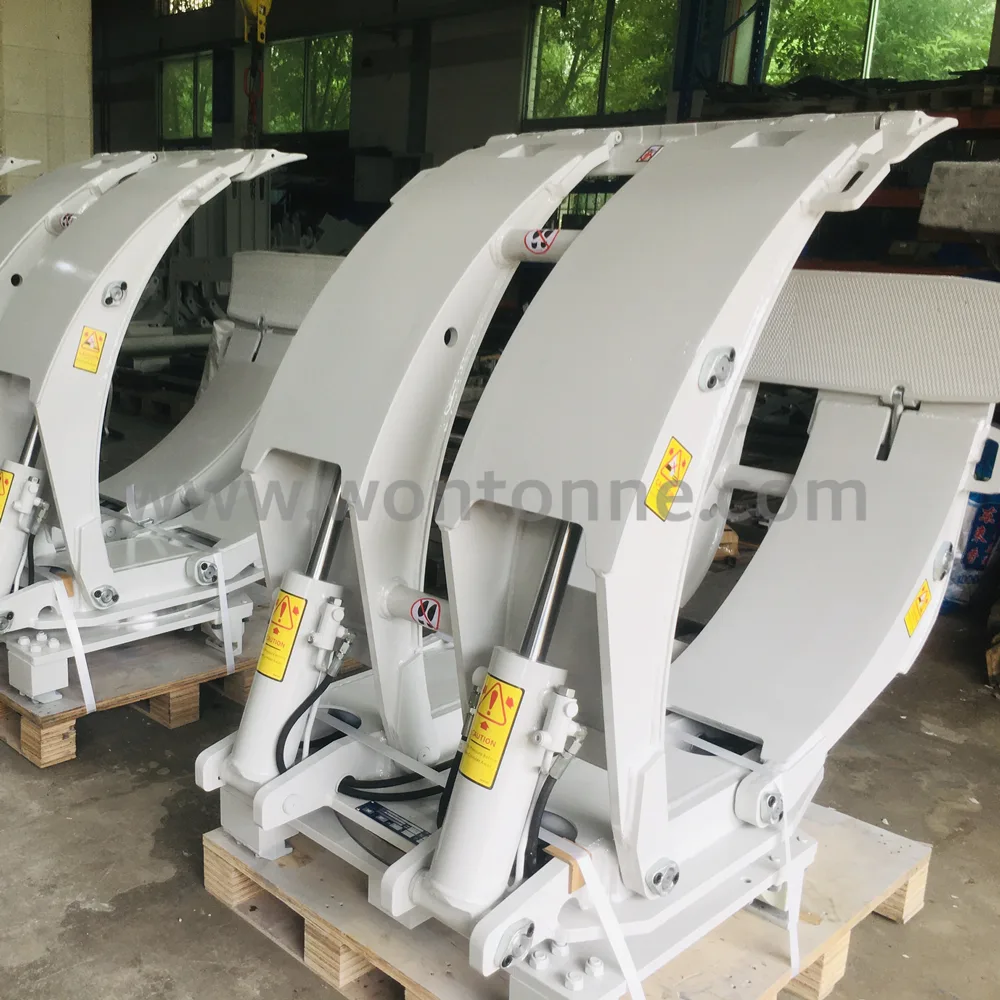

20G Paper Roll Clamp(Positioned Short Arm) - 3

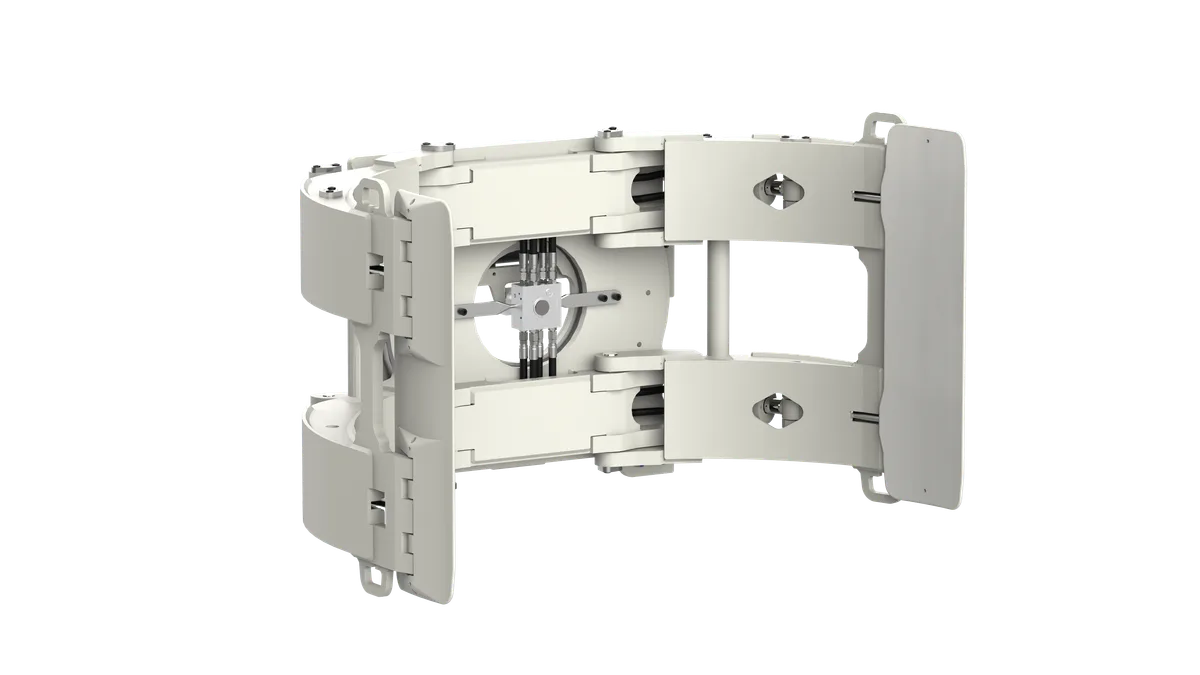

20G Paper Roll Clamp(Positioned Short Arm) - 4

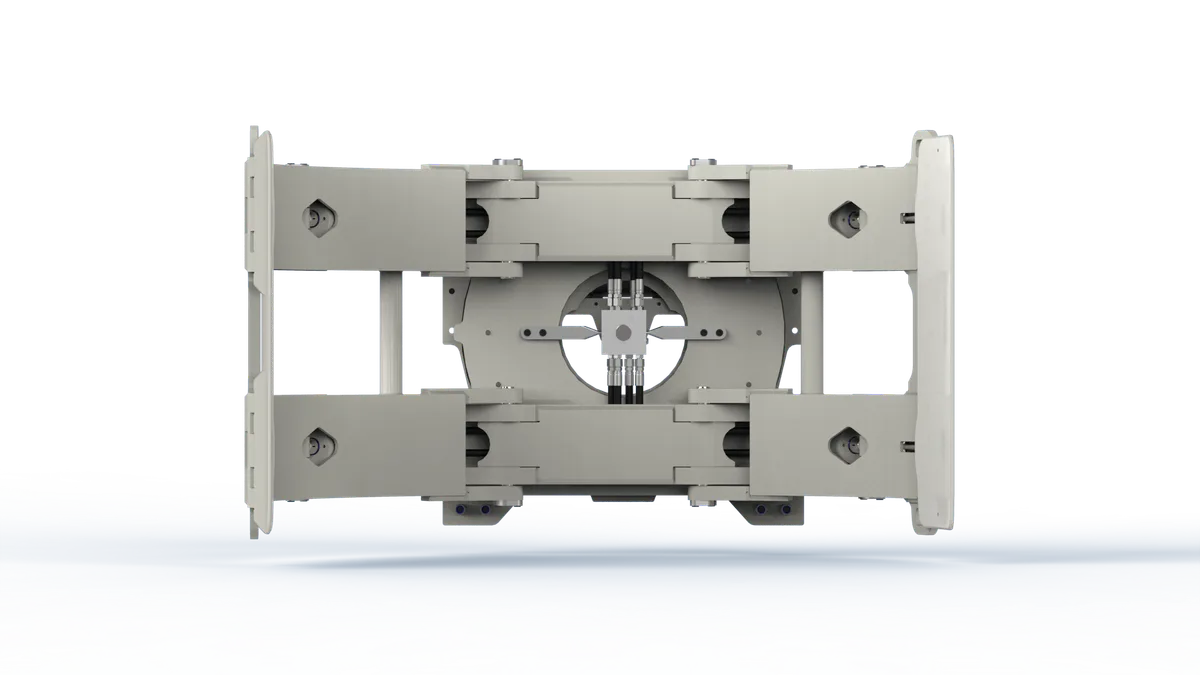

20G Paper Roll Clamp(Positioned Short Arm) - 5

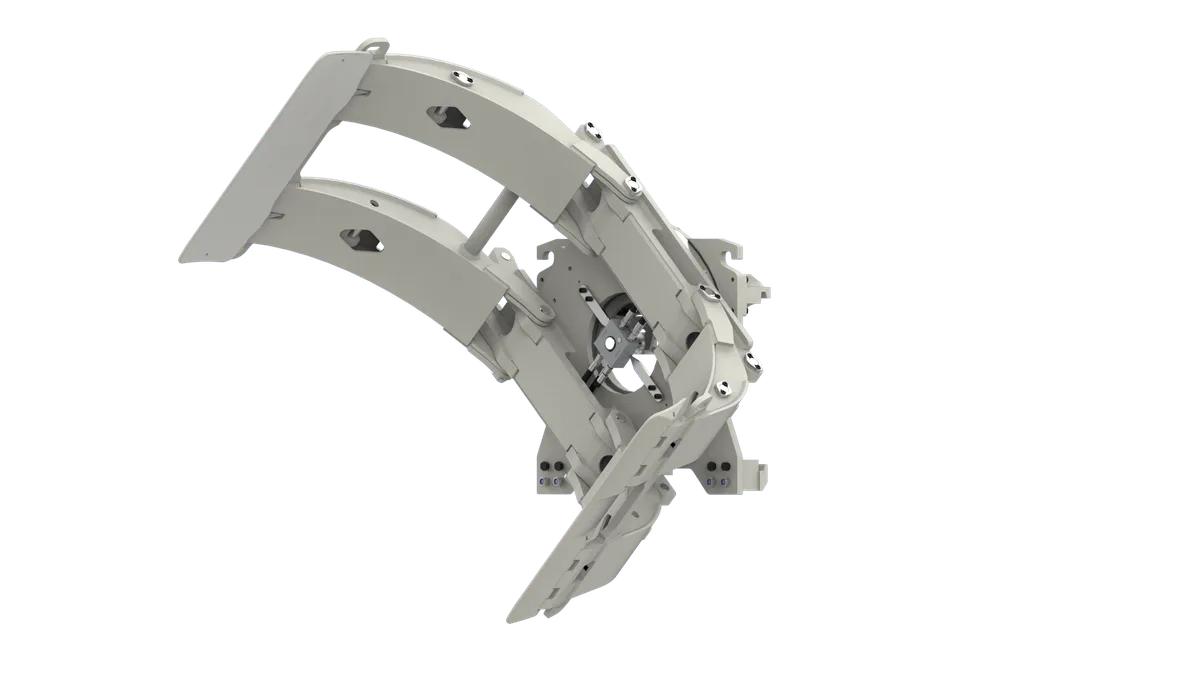

20G Paper Roll Clamp(Positioned Short Arm) - 6

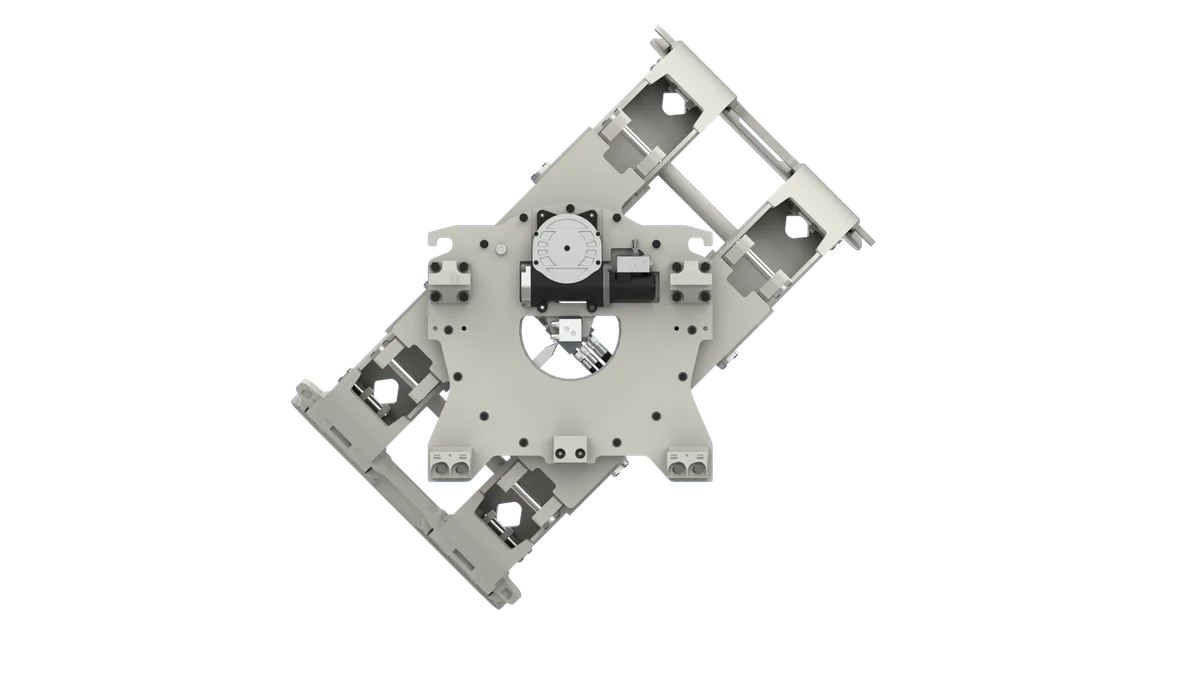

20G Paper Roll Clamp(Positioned Short Arm) - 7

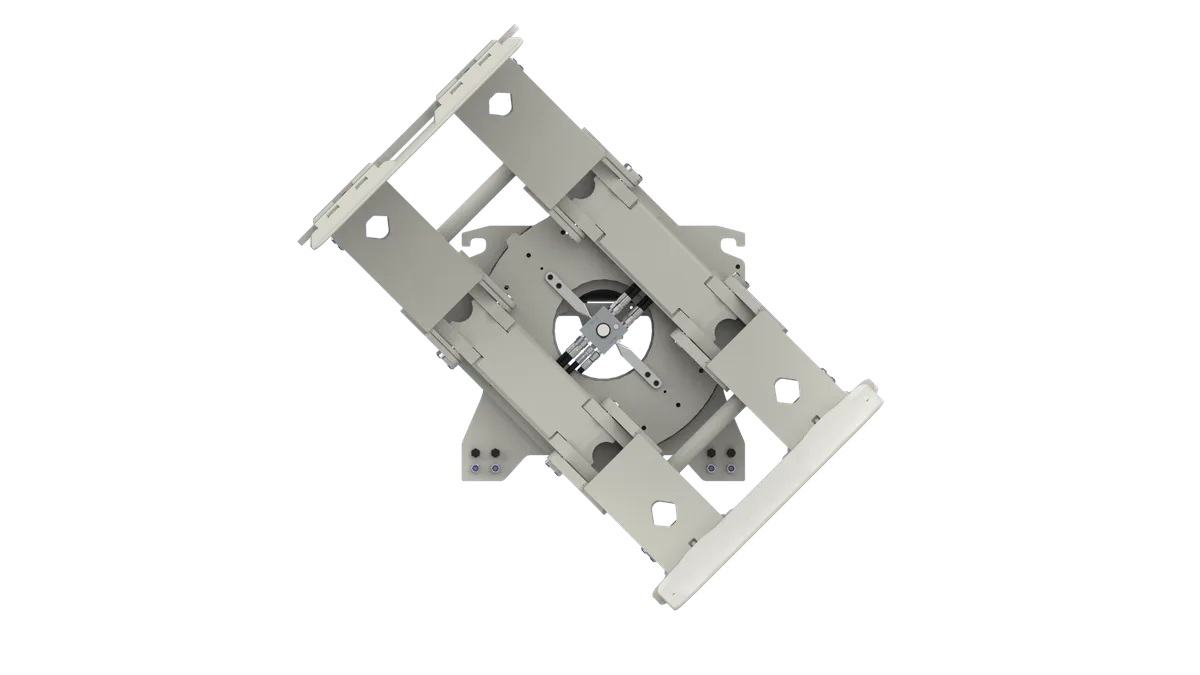

20G Paper Roll Clamp(Positioned Short Arm) - 8

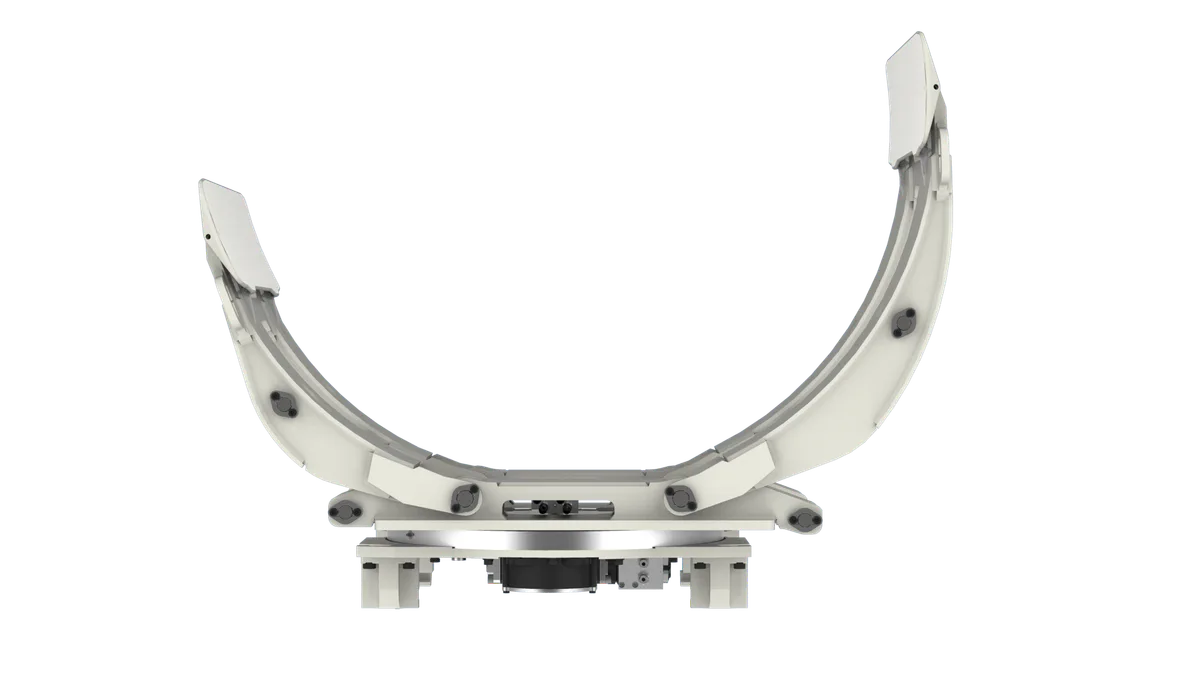

20G Paper Roll Clamp(Positioned Short Arm) - 9

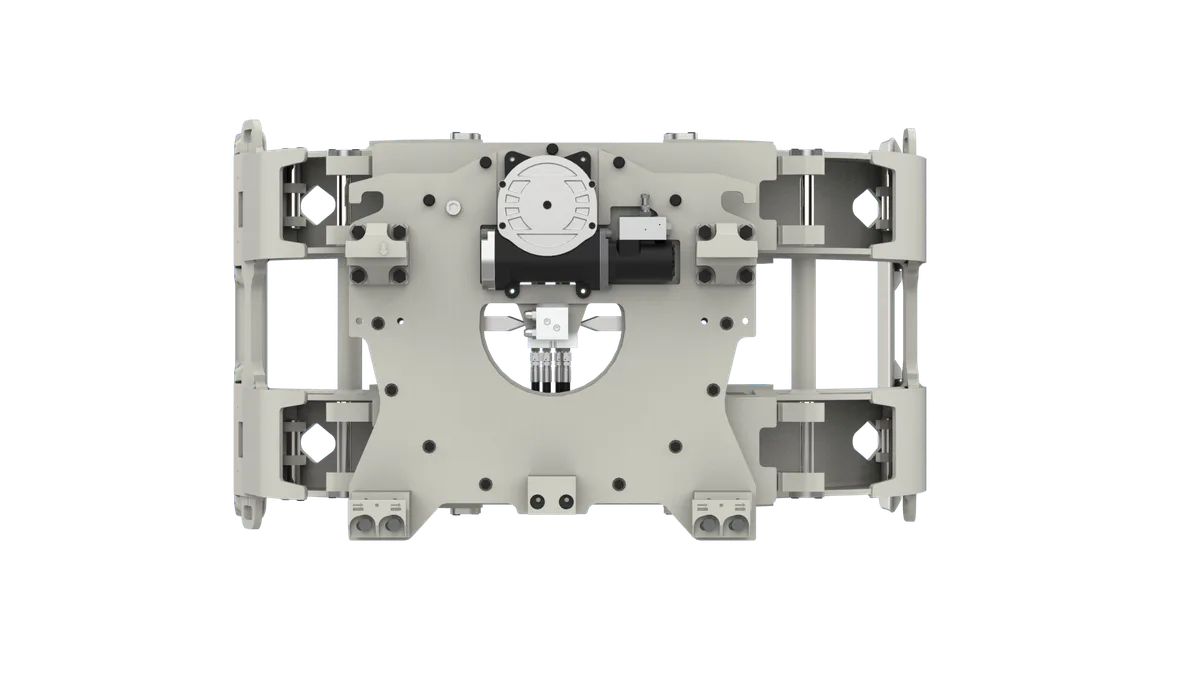

20G Paper Roll Clamp(Positioned Short Arm) - 10

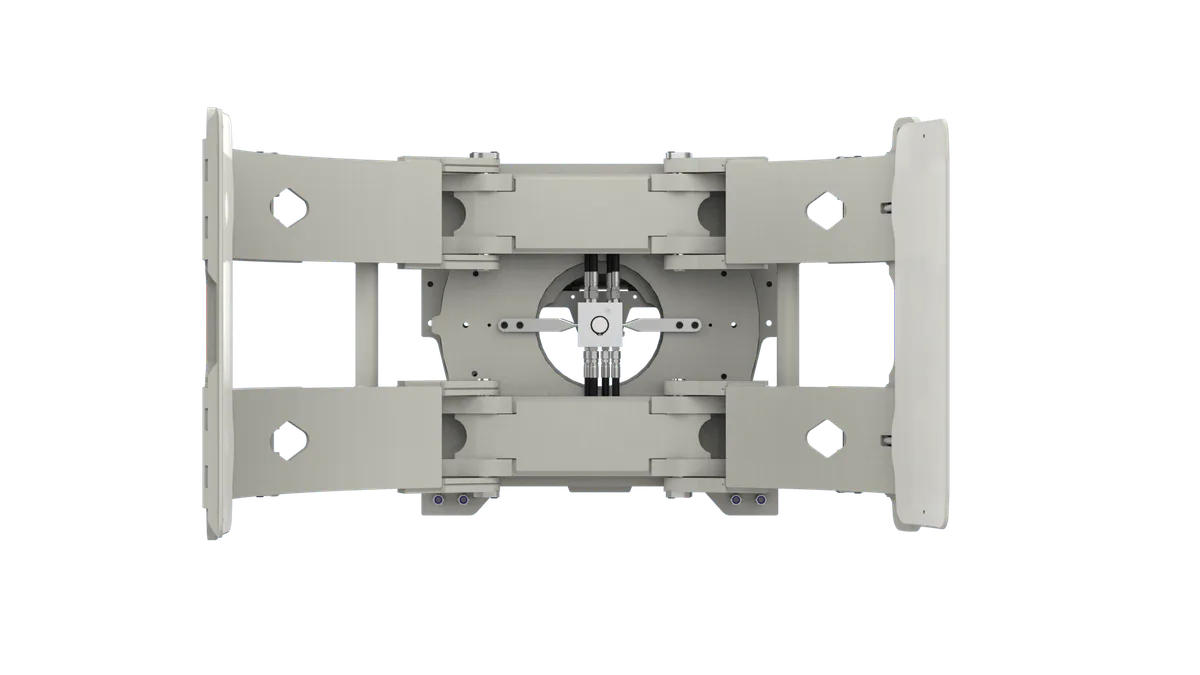

20G Paper Roll Clamp(Positioned Short Arm) - 11

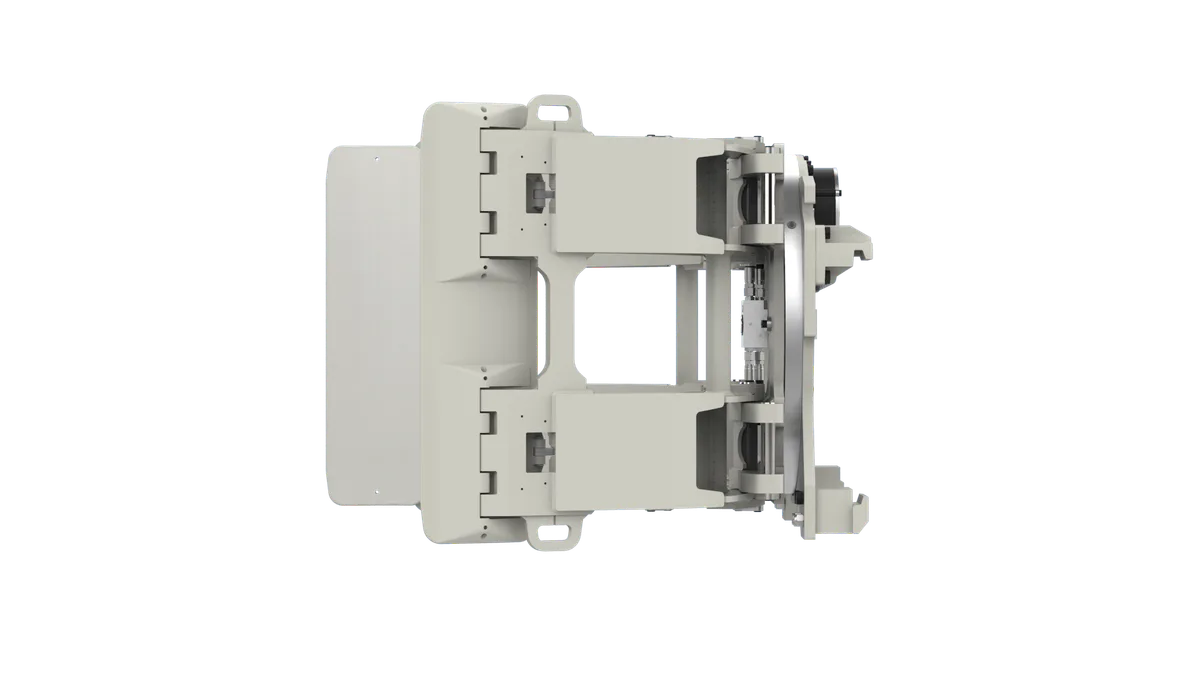

20G Paper Roll Clamp(Positioned Short Arm) - 12

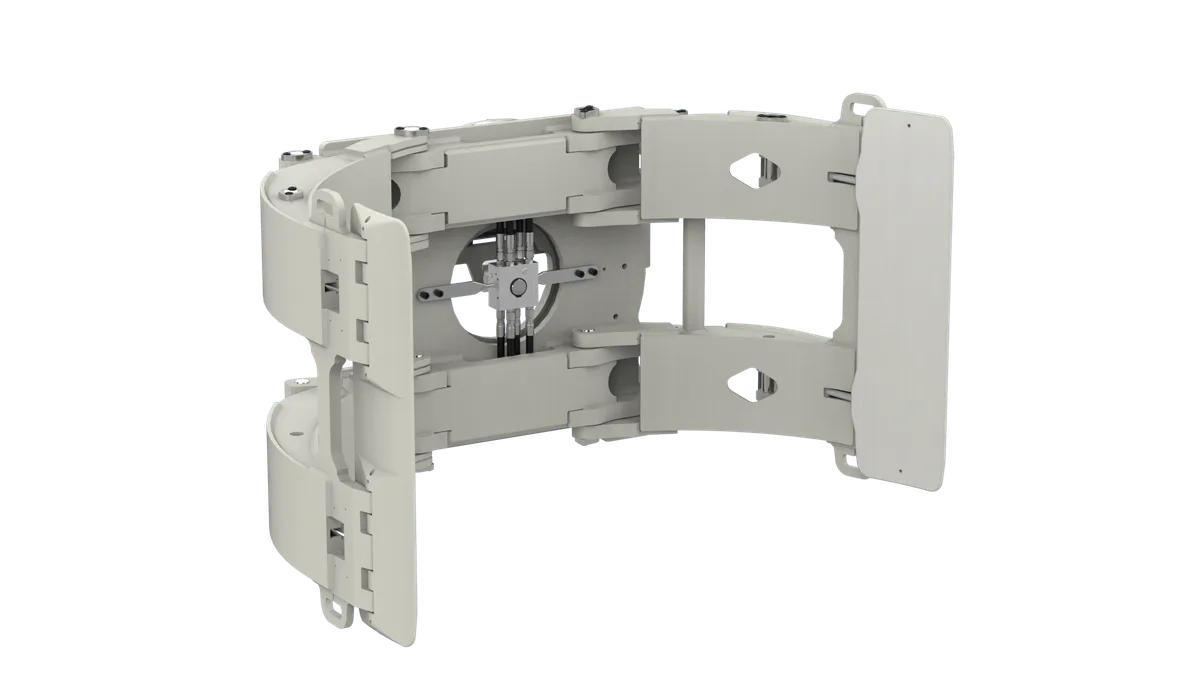

20G Paper Roll Clamp(Positioned Short Arm) - 13

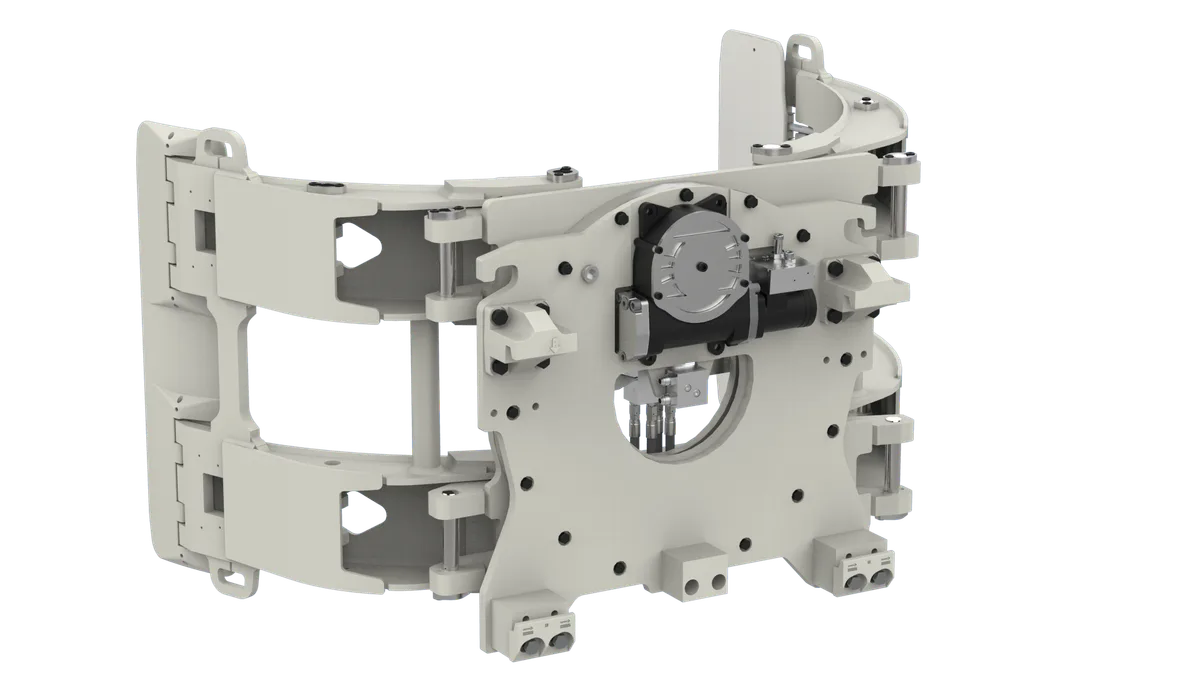

20G Paper Roll Clamp(Positioned Short Arm) - 14

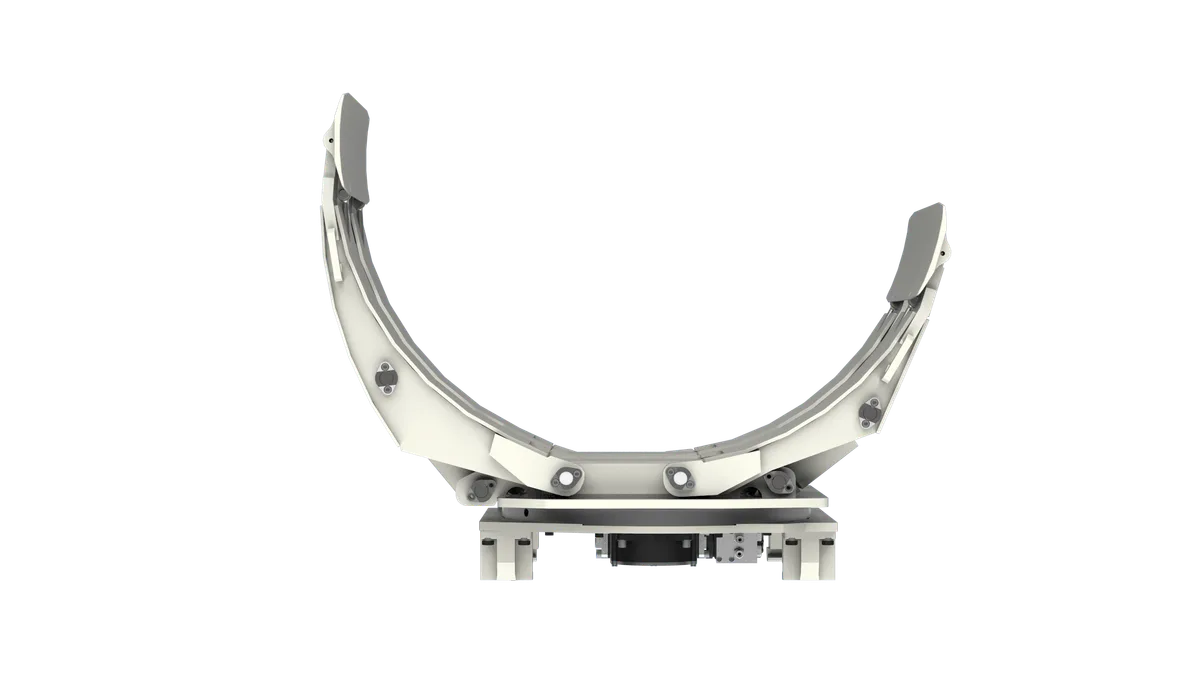

20G Paper Roll Clamp(Positioned Short Arm) - 15

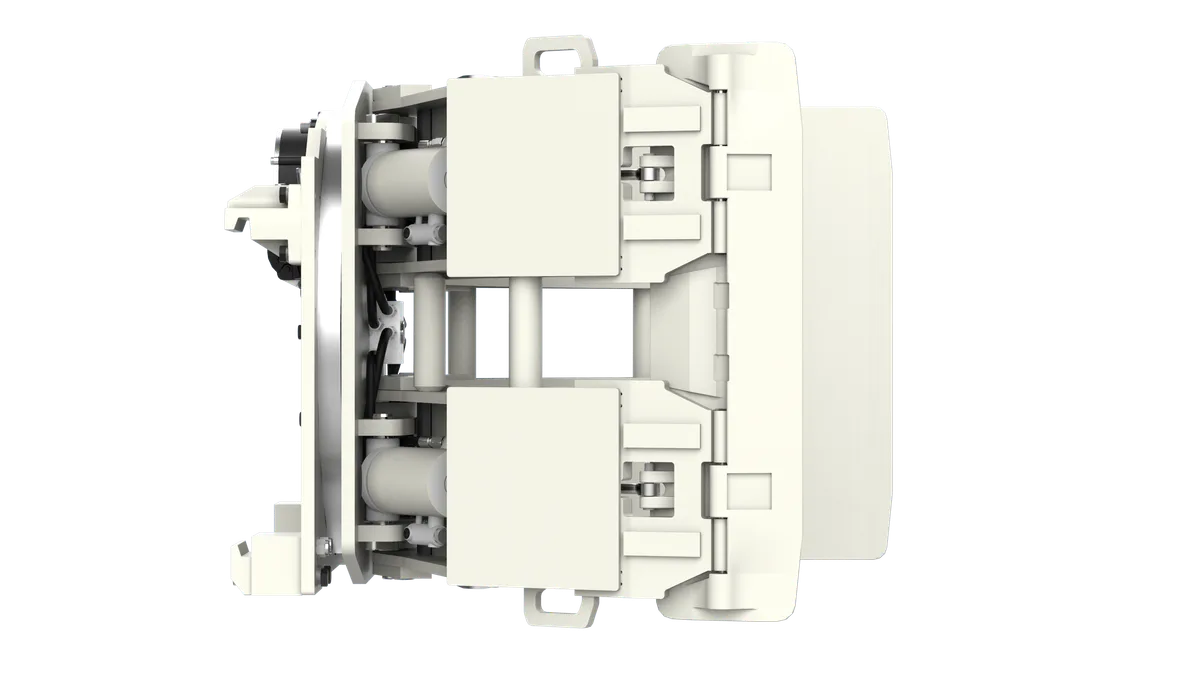

20G Paper Roll Clamp(Positioned Short Arm) - 16

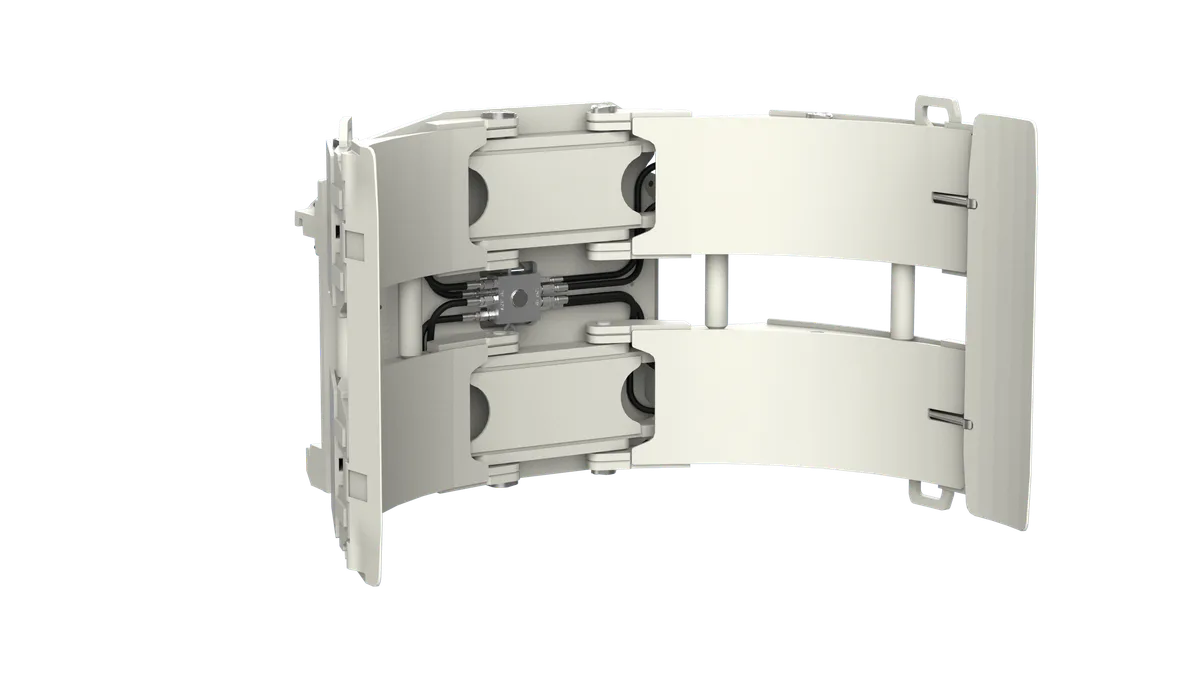

20G Paper Roll Clamp(Positioned Short Arm) - 17

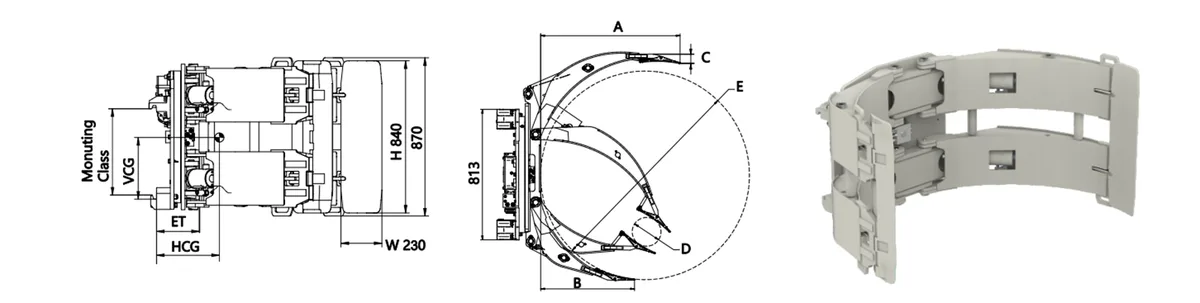

20G Paper Roll Clamp(Positioned Short Arm) - 18

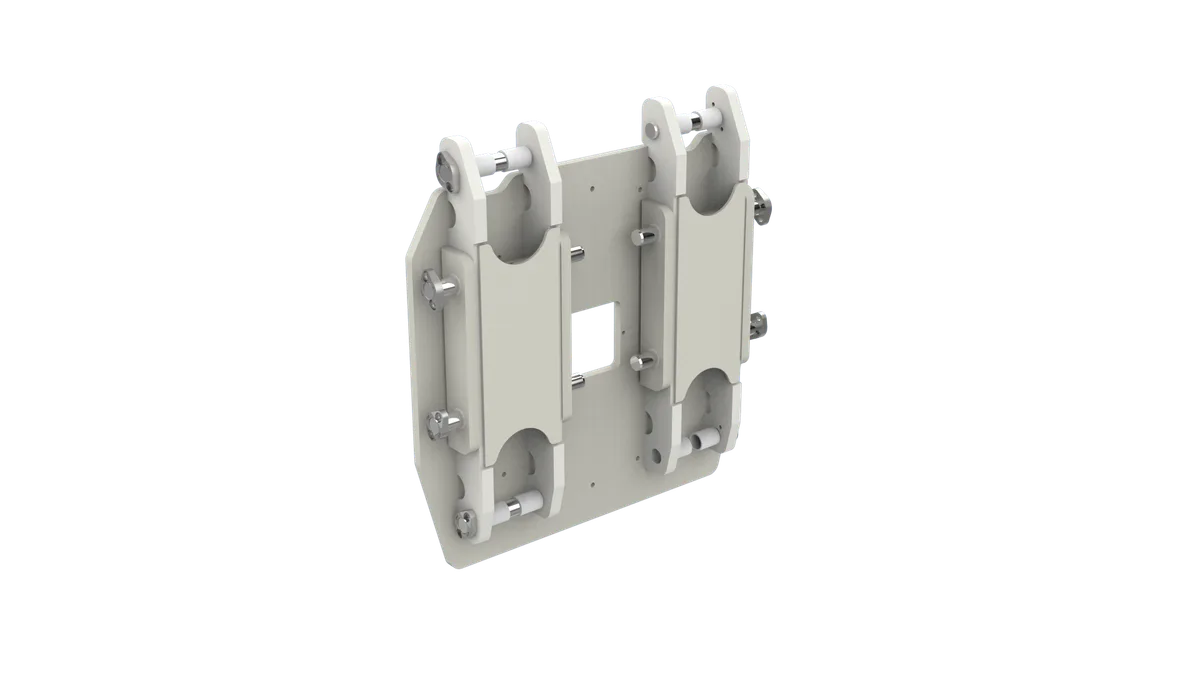

20G Paper Roll Clamp(Positioned Short Arm) - 19

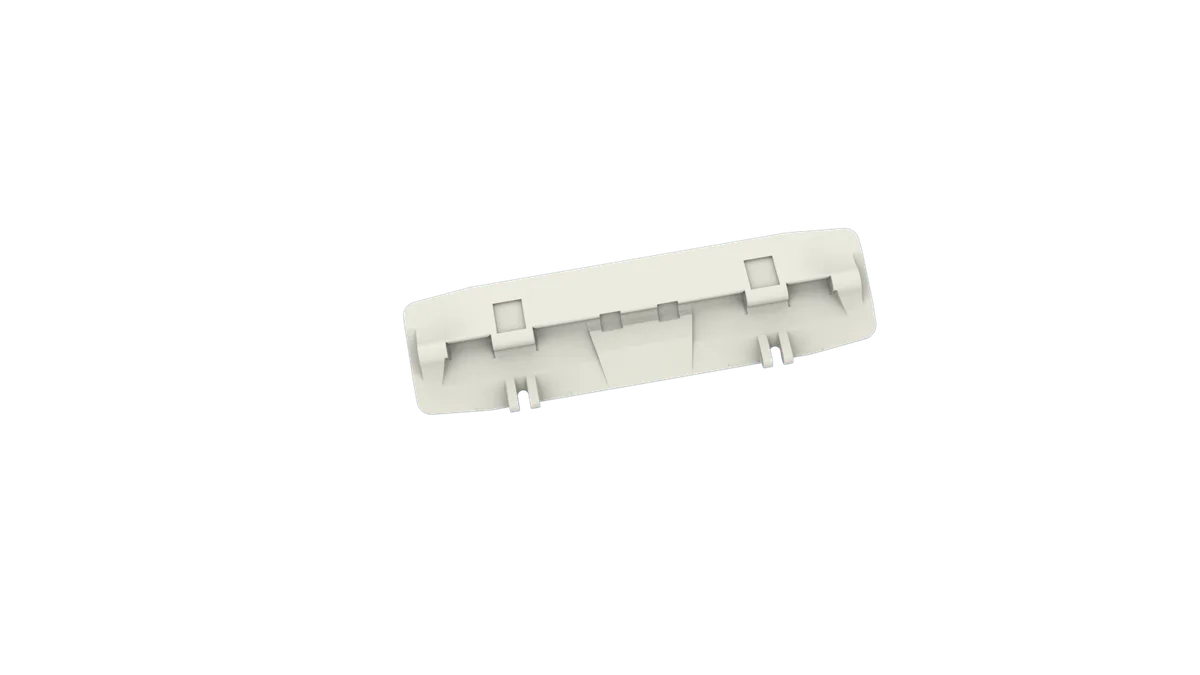

20G Paper Roll Clamp(Positioned Short Arm) - 20

20G Paper Roll Clamp(Positioned Short Arm) - 21

20G Paper Roll Clamp(Positioned Short Arm) - 22

20G Paper Roll Clamp(Positioned Short Arm) - 23

20G Paper Roll Clamp(Positioned Short Arm) - 24

20G Paper Roll Clamp(Positioned Short Arm) - 25

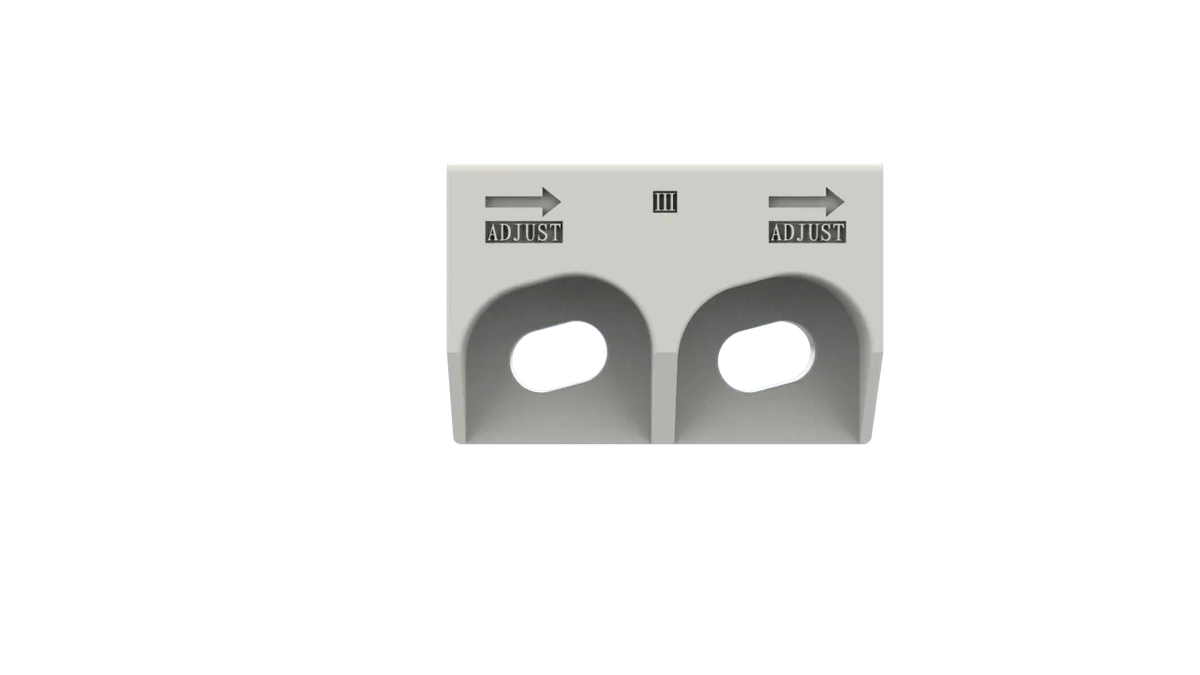

20G Paper Roll Clamp(Positioned Short Arm) - 26

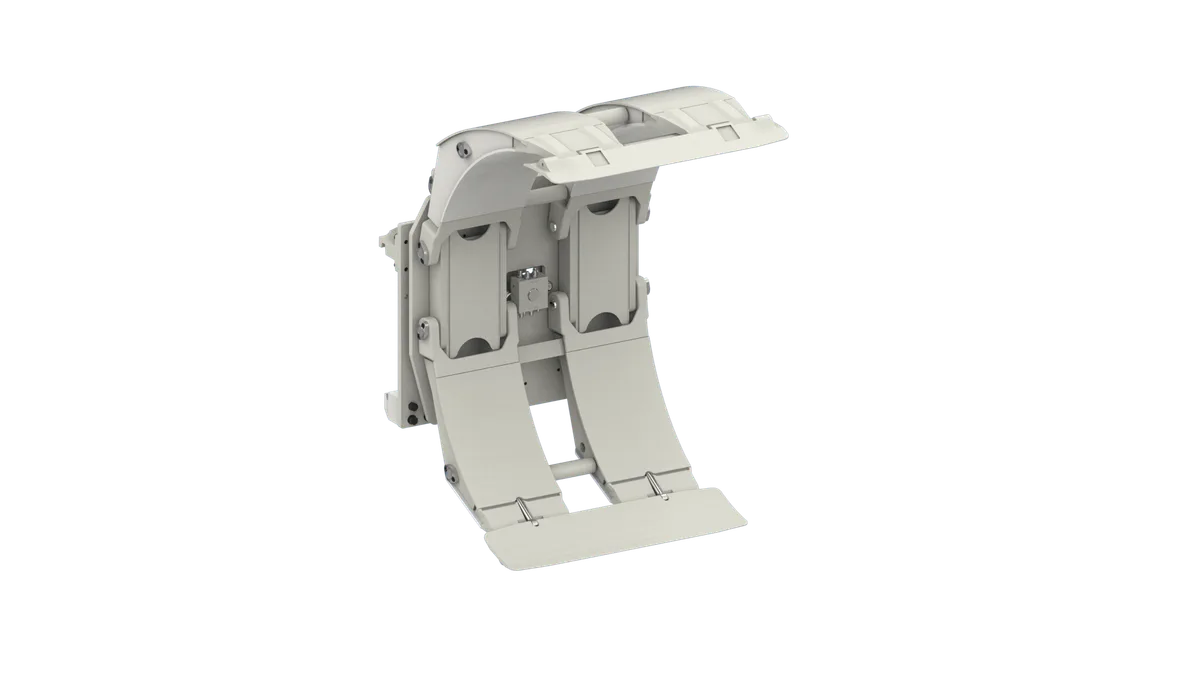

20G Paper Roll Clamp(Positioned Short Arm) - 27

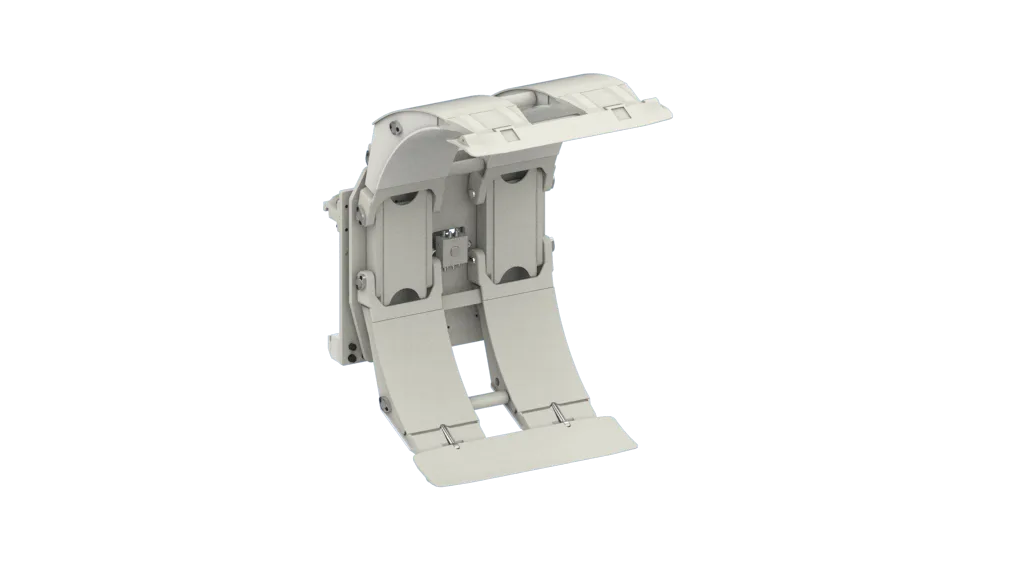

20G Paper Roll Clamp(Positioned Short Arm) - 28

20G Paper Roll Clamp(Positioned Short Arm) - 29

Product Overview

The Wontonne 20G Paper Roll Clamp (Positioned Short Arm) is specially developed for papermaking, printing and packaging industries.

Paper roll clamps are designed to handle rolls of any size, weight, or paper type. With options ranging from compact to rugged, they effectively reduce roll damage during handling.

Key features & specifications:

Positioned short arm adjusts to roll width

For papermaking and printing industries

Loads and unloads circular large-tonnage goods

Supports storage and stacking operations

Stable rotating operation

Capacity up to 2000kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

Model No	Capacity (kg)	Load Center (mm)	Opening Range (mm)	Mounting	Weight (kg)	Contact Pads
RCP20G-001A	2000	650	250-1300	ISO 2A	701	207
RCP20G-001B	2000	650	250-1300	ISO 3A	715	237
RCP20G-003A	2000	750	250-1500	ISO 2A	764	207
RCP20G-003B	2000	750	250-1500	ISO 3A	778	237
RCP20G-006A	2000	800	350-1600	ISO 2A	770	207
RCP20G-006B	2000	800	350-1600	ISO 3A	784	237
RCP20G-008A	1700	915	380-1830	ISO 3A	856	207
RCP20G-008B	1700	915	380-1830	ISO 3A	870	237
RCP20G-009A	2000	675	310-1350	ISO 2A	706	207
RCP20G-009B	2000	675	310-1350	ISO 3A	720	237
