Inverta Push
Engineered for durability and precision, inverta push delivers reliable performance in demanding material handling environments.
Product Overview
The Wontonne Inverta Push Attachment is widely used for bale cargo and case package cargo, with open/close, push/withdraw, side shift and rotate actions.
The Inverta push is suitable for various bale and case goods. It excels in clamping, rotating, and pushing your products, enabling you to retain pallets in-house and effectively reduce overall pallet inventory.
Key features & specifications:
4 actions: open, push, side shift, rotate
For bale and case package cargo
Side plate protects load when rotating
Recycles pallets rapidly
Saves stacking space
Standard 12V solenoid valve
Safe and efficient cargo handling
Capacity up to 2000kg
Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.
Need More Info?
Get detailed specifications, pricing, and delivery estimates from our team.

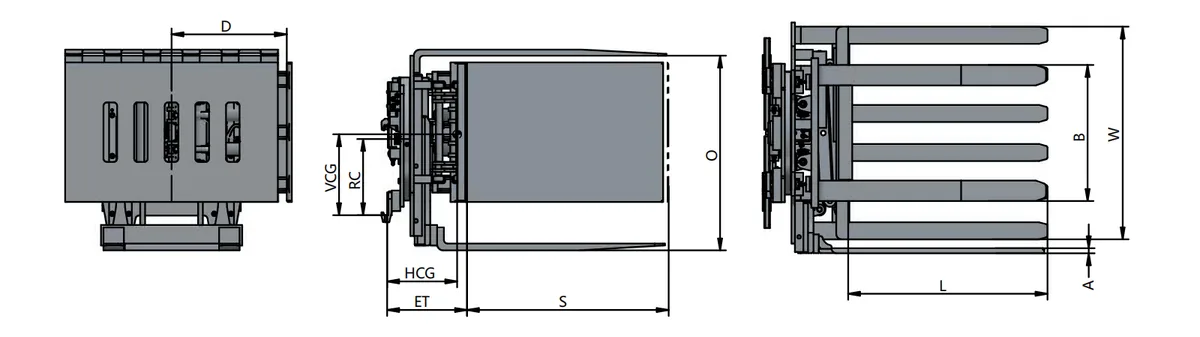

| Model No | Capacity (kg) | Load Center (mm) | Opening Range (mm) | Mounting | Weight (kg) | Contact Pads |
|---|---|---|---|---|---|---|
| RPS15D-022B | 1500 | 600 | 1000-1700 | ISO 3A | 1189 | 475 |
| RPS15D-042B | 1500 | 600 | 900-1500 | ISO 3A | 1316 | 470 |
| RPS15D-053B | 1500 | 600 | 930-1580 | ISO 3A | 1380 | 480 |
| RPS20D-003B | 2000 | 600 | 930-1580 | ISO 3A | 1380 | 480 |
| RPS20D-012B | 2000 | 600 | 900-1480 | ISO 3A | 1219 | 485 |
| RPS20D-053B | 2000 | 600 | 900-1580 | ISO 3A | 1229 | 485 |
Manufacturing Excellence
30,000 m² intelligent facility — ISO 9001 & ISO 3834 certified production lines.
