What is the capacity of the Quick fork mount push pull – Without Sheet save types?

The Quick fork mount push pull – Without Sheet save types handles 1600-2000 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the Quick fork mount push pull – Without Sheet save types use?

The Quick fork mount push pull – Without Sheet save types is available for ISO 2A / ISO 3A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the Quick fork mount push pull – Without Sheet save types are available?

Wontonne offers 8 models of the Quick fork mount push pull – Without Sheet save types — including QPB16E-001A, QPB16E-001B, QPB16E-002A, QPB16E-002B, QPB20E-001A and more — with different capacities and load centers for various applications.

What is a push-pull attachment?

A push-pull attachment slides a platen under slip-sheeted loads and pulls them onto the fork platform, then pushes them off at the destination — replacing pallets with thin slip sheets.

What is the sheet-save function?

Sheet-save systems gently handle the slip-sheet lip during push-off, preventing sheet tearing and allowing sheet reuse — saving cost in high-volume operations.

Products / Push and Pull / Quick fork mount push pull – Without Sheet save types

Push and Pull

Quick fork mount push pull – Without Sheet save types

Engineered for durability and precision, quick fork mount push pull – without sheet save types delivers reliable performance in demanding material handling environments.

All Push and Pull

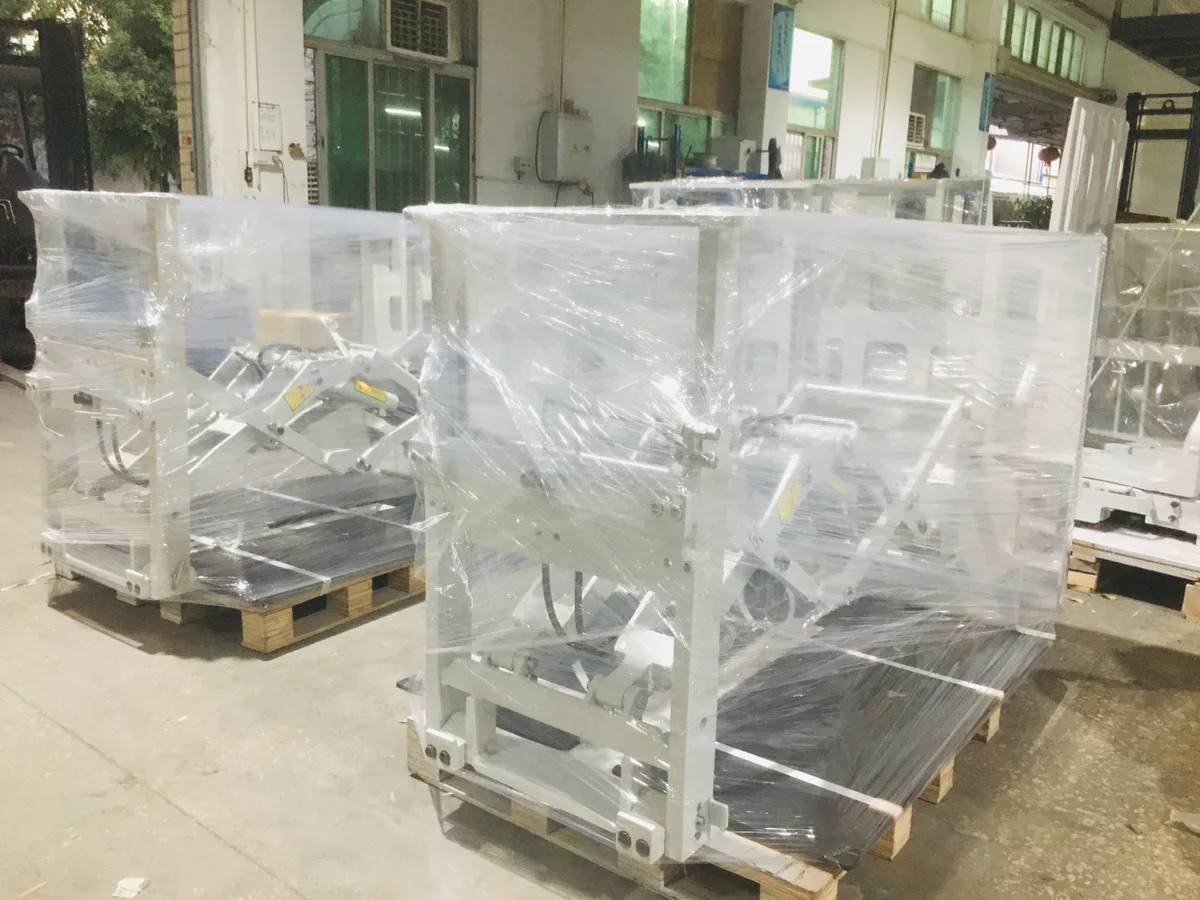

Quick fork mount push pull – Without Sheet save types - 1

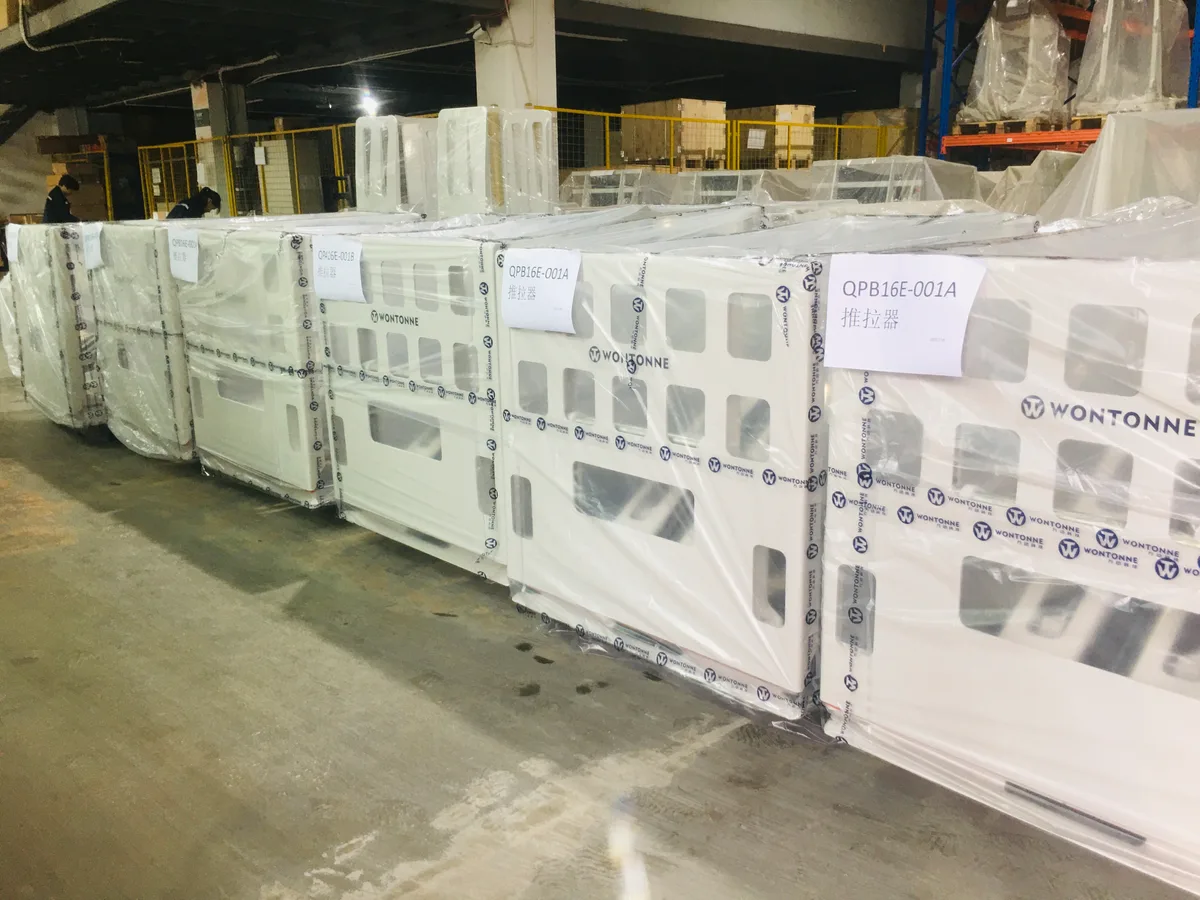

Quick fork mount push pull – Without Sheet save types - 2

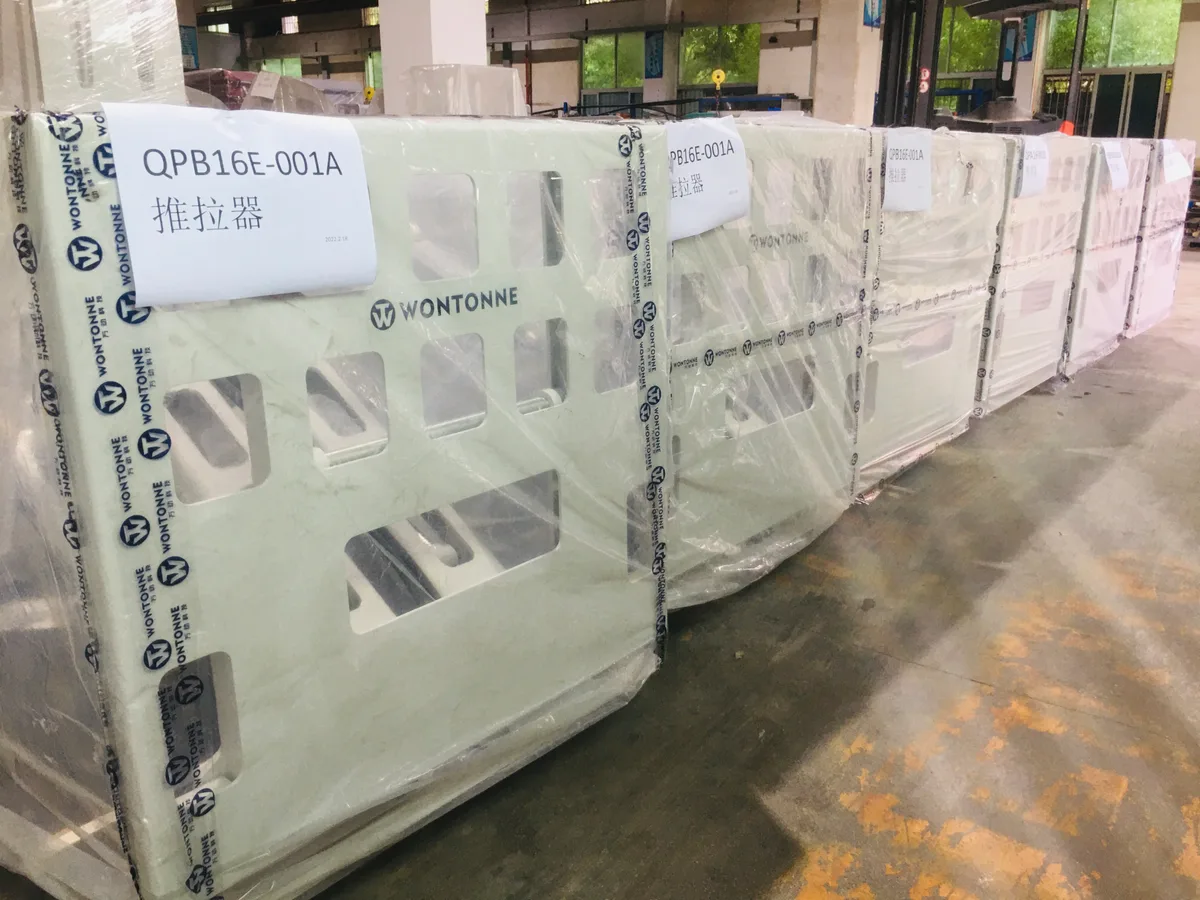

Quick fork mount push pull – Without Sheet save types - 3

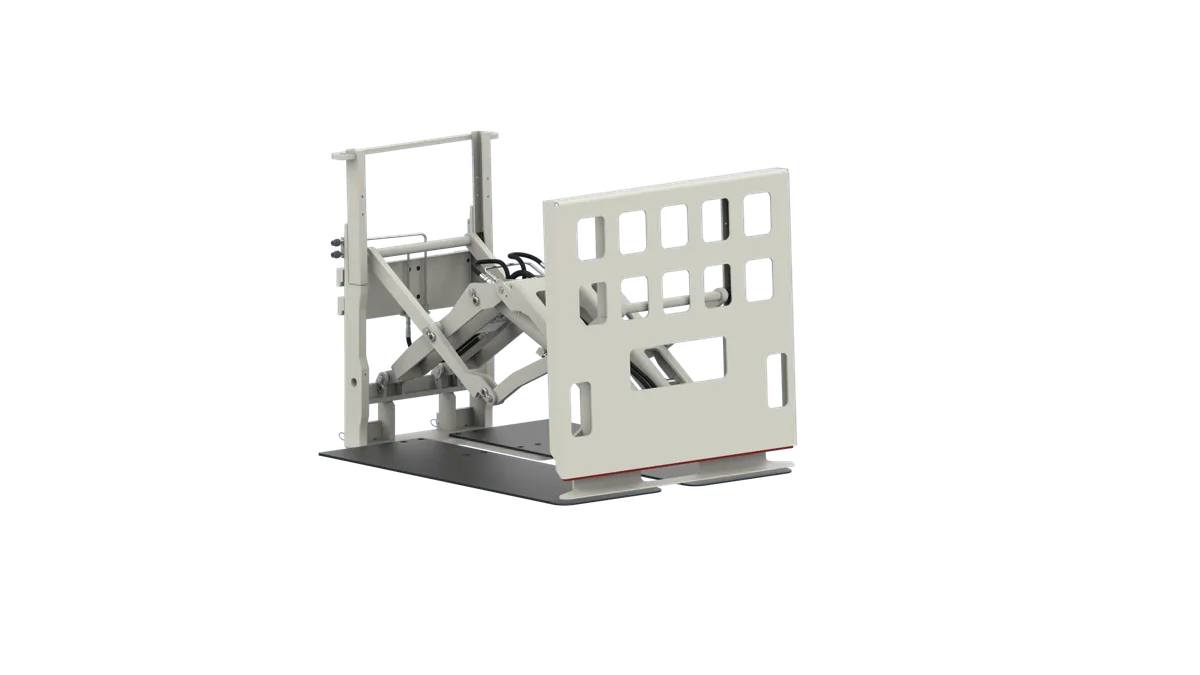

Quick fork mount push pull – Without Sheet save types - 4

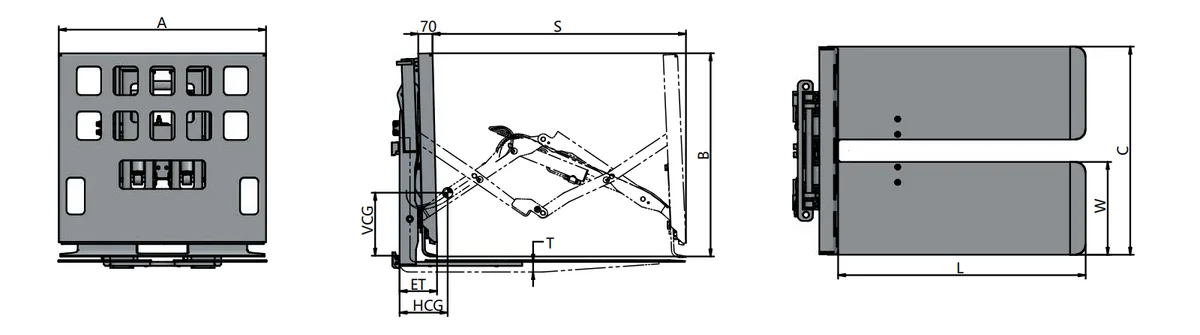

Quick fork mount push pull – Without Sheet save types - 5

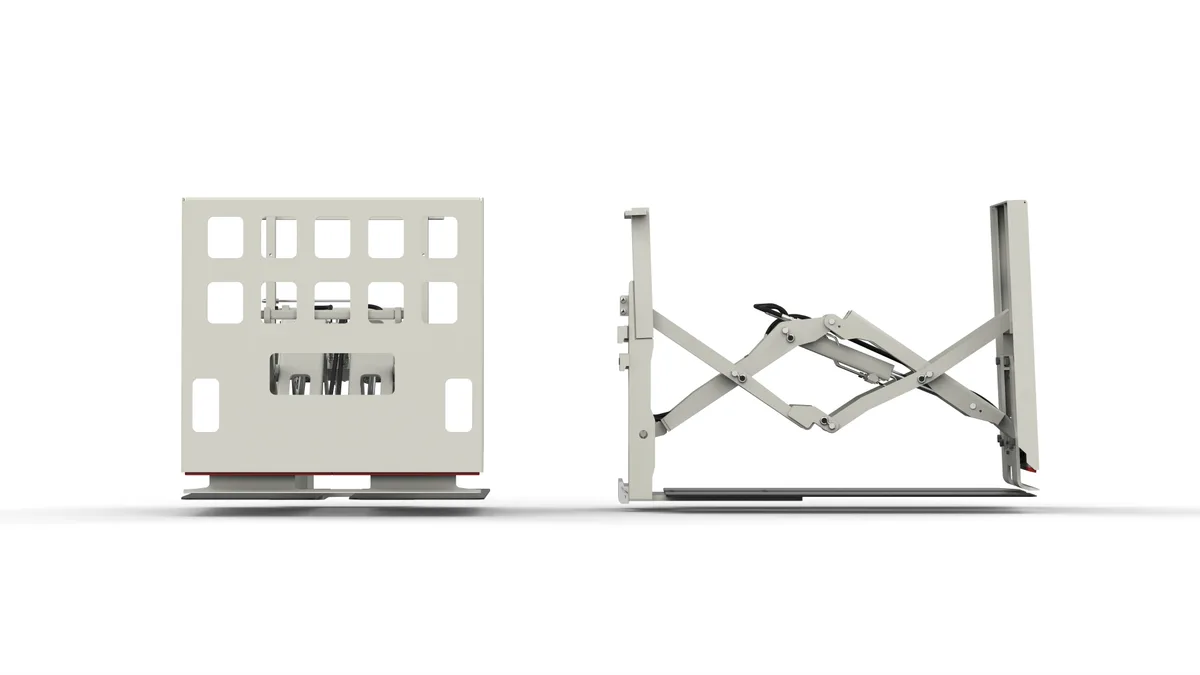

Quick fork mount push pull – Without Sheet save types - 6

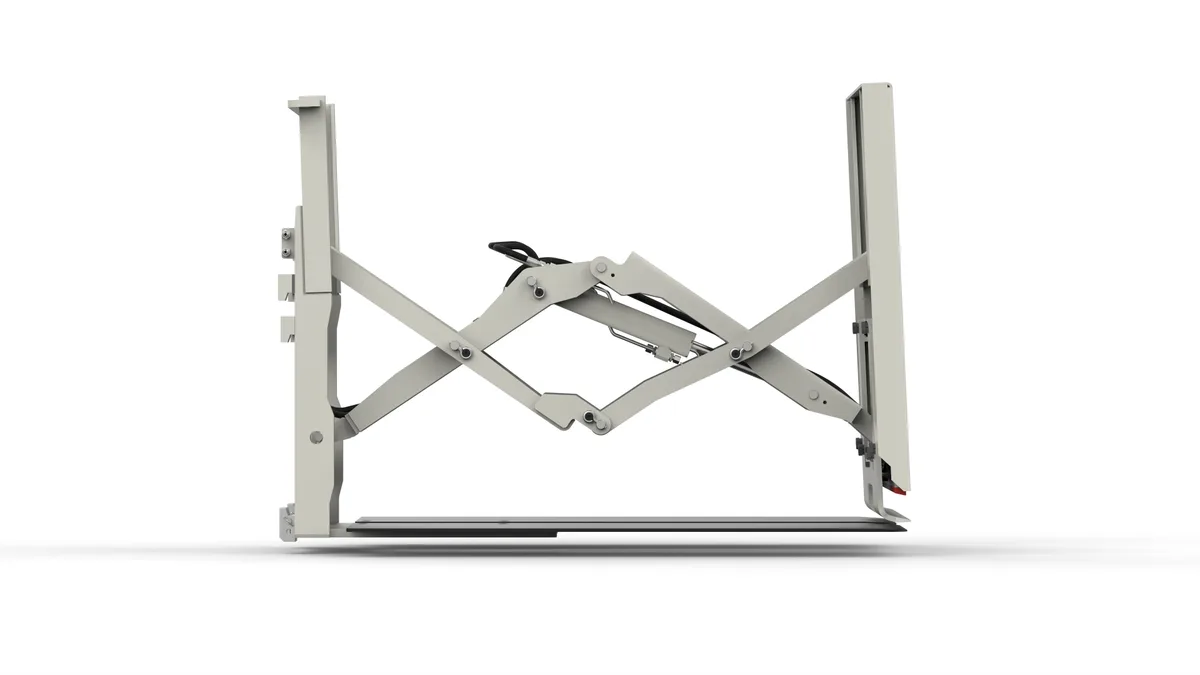

Quick fork mount push pull – Without Sheet save types - 7

Quick fork mount push pull – Without Sheet save types - 8

Quick fork mount push pull – Without Sheet save types - 9

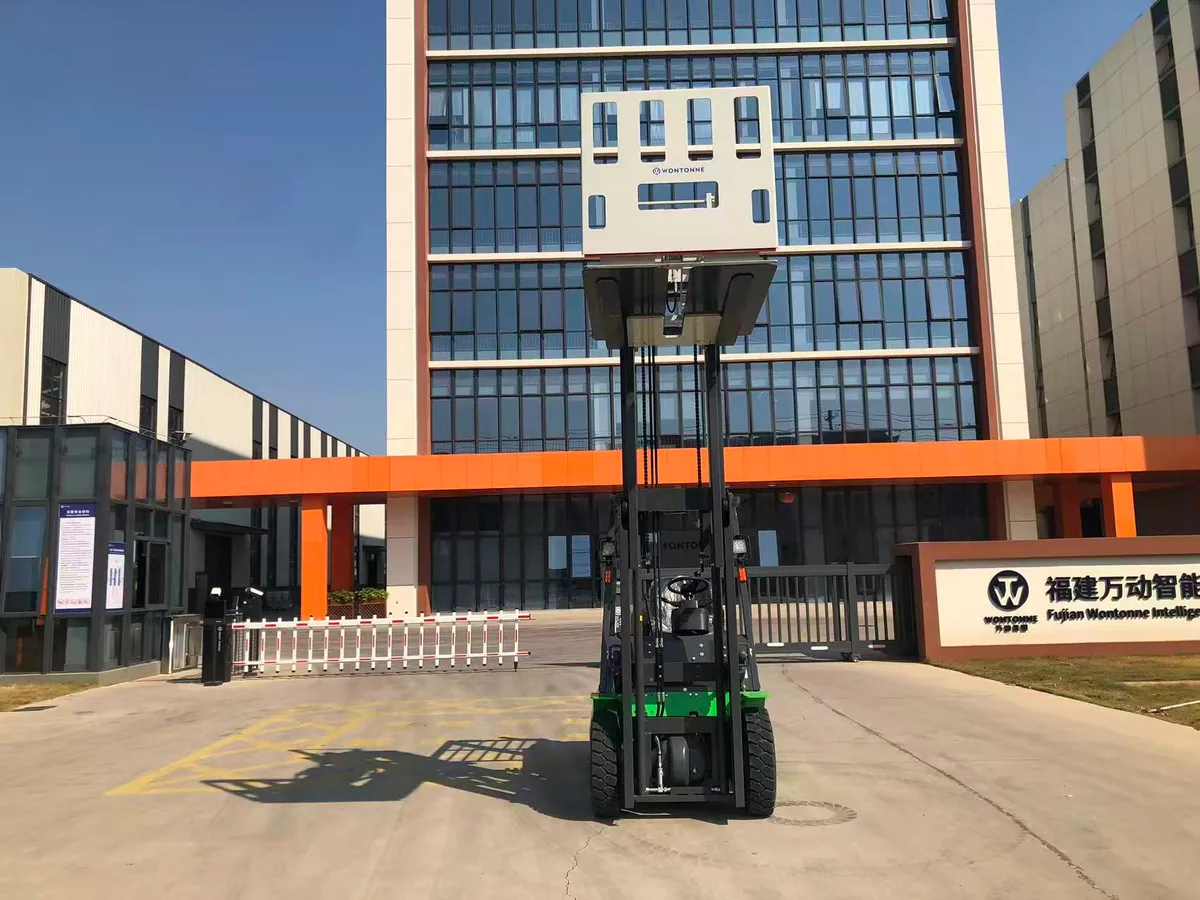

Quick fork mount push pull – Without Sheet save types - 10

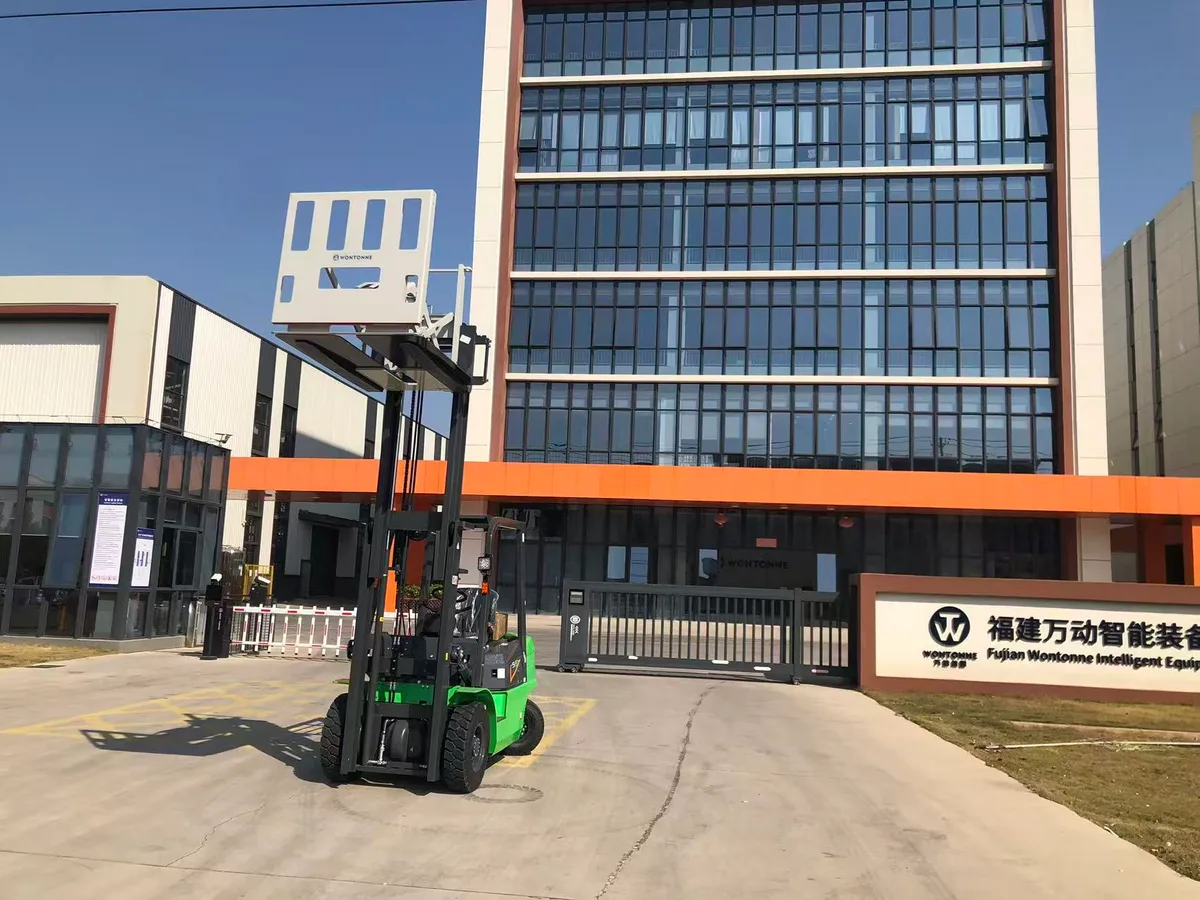

Quick fork mount push pull – Without Sheet save types - 11

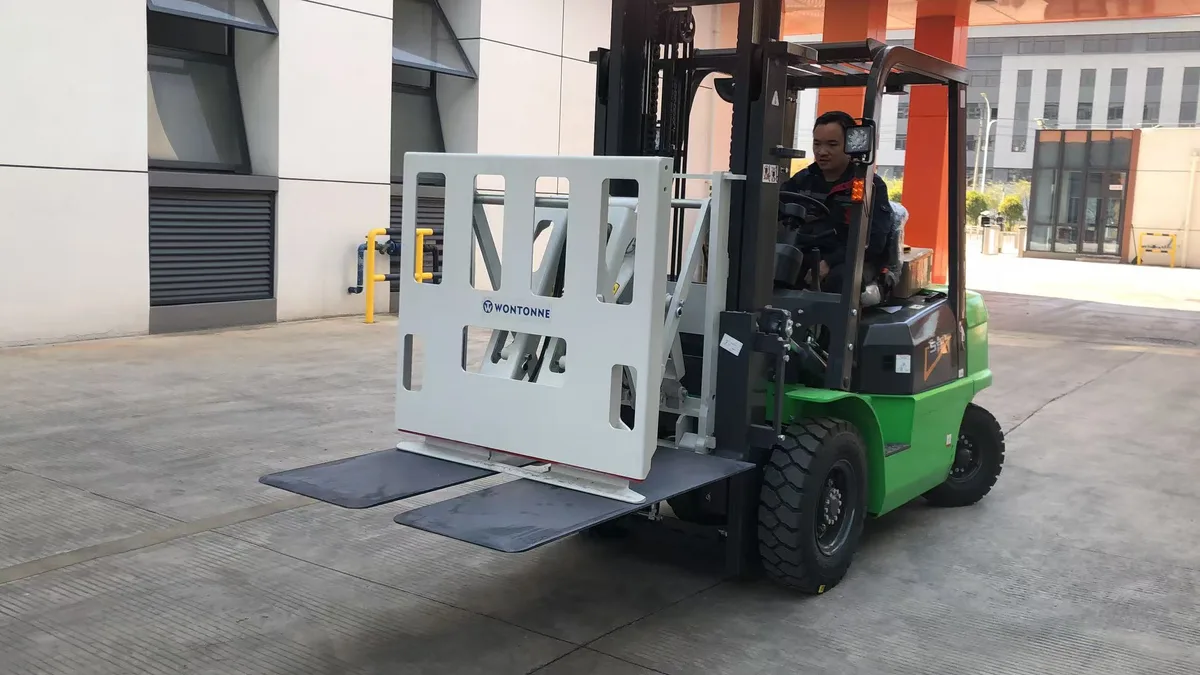

Quick fork mount push pull – Without Sheet save types - 12

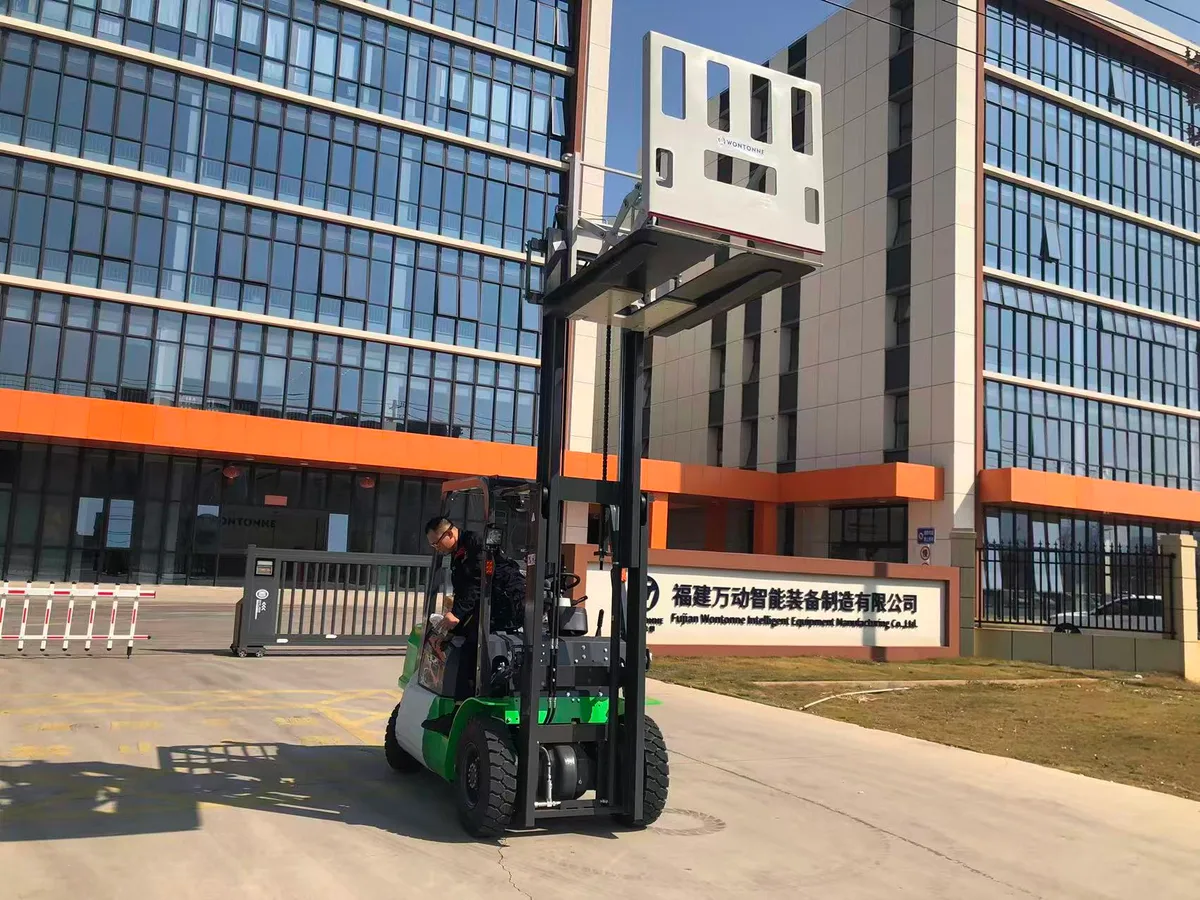

Quick fork mount push pull – Without Sheet save types - 13

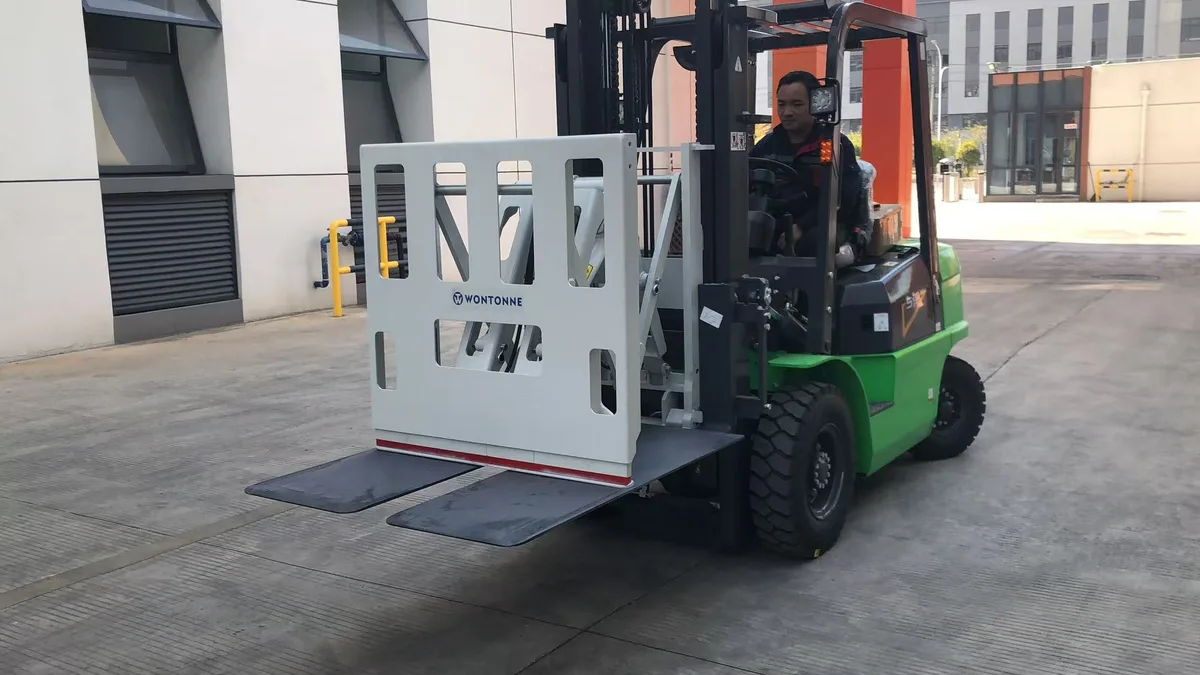

Quick fork mount push pull – Without Sheet save types - 14

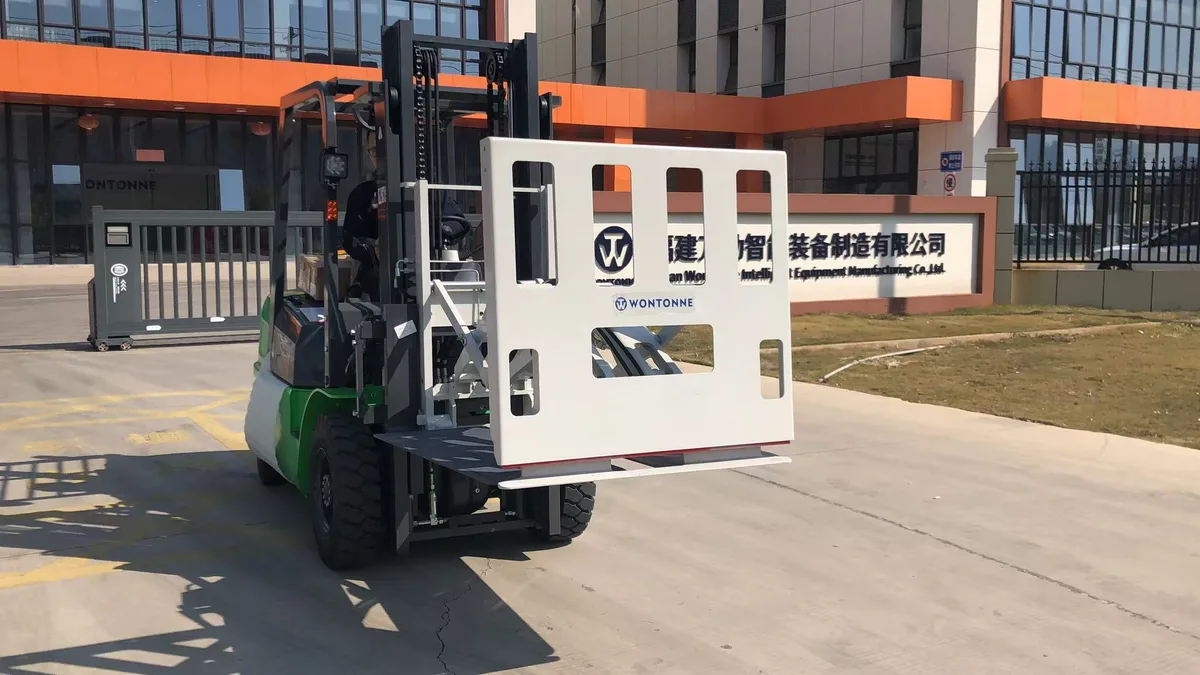

Quick fork mount push pull – Without Sheet save types - 15

Quick fork mount push pull – Without Sheet save types - 16

Product Overview

The Wontonne Quick Fork Mount Push Pull (Without Sheet Save) handles goods with sheets as a whole, installed without disassembling the forklift forks.

Push-pulls efficiently handle light cargo using slip sheets instead of pallets while ensuring safety. This approach enhances production efficiency and cost savings, finding applications in electronics, food, and light industries.

Key features & specifications:

Installs without disassembling forks

Goods and sheet handled as a whole

Chamfered platen prevents tearing

Two platen spacing options

Strong structure with good vision

Quick release lower hook

Various push off distances

Capacity up to 2000kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

Model No	Capacity (kg)	Load Center (mm)	Mounting	Weight (kg)	Contact Pads
QPB16E-001A	1600	600	ISO 2A	381	185
QPB16E-001B	1600	600	ISO 3A	381	185
QPB16E-002A	1600	600	ISO 2A	370	185
QPB16E-002B	1600	600	ISO 3A	370	185
QPB20E-001A	2000	600	ISO 2A	386	185
QPB20E-001B	2000	600	ISO 3A	386	185
QPB20E-002A	2000	600	ISO 2A	375	185
QPB20E-002B	2000	600	ISO 3A	375	185
