Multi-Purpose Pushes
Engineered for durability and precision, multi-purpose pushes delivers reliable performance in demanding material handling environments.
Product Overview

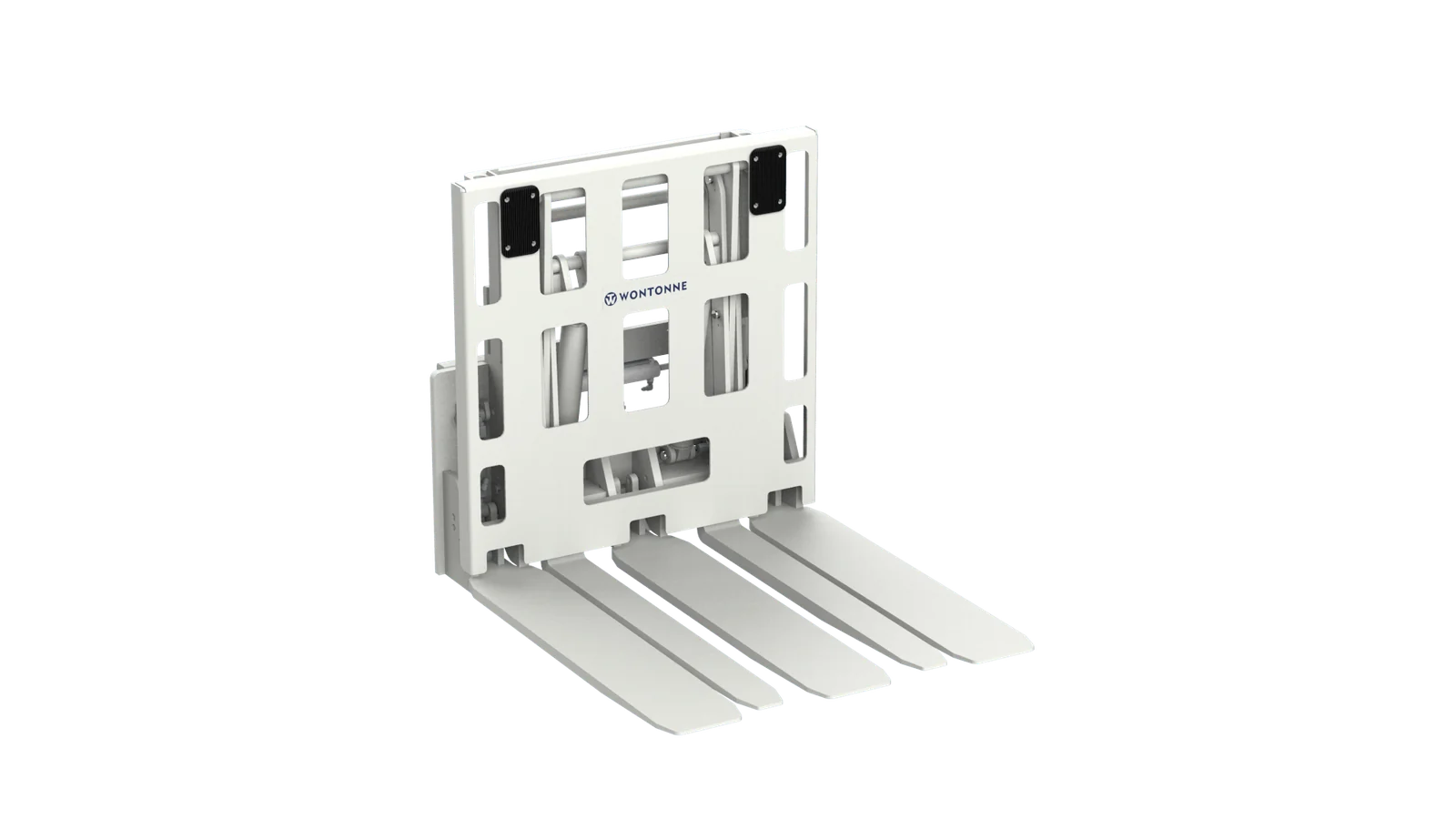

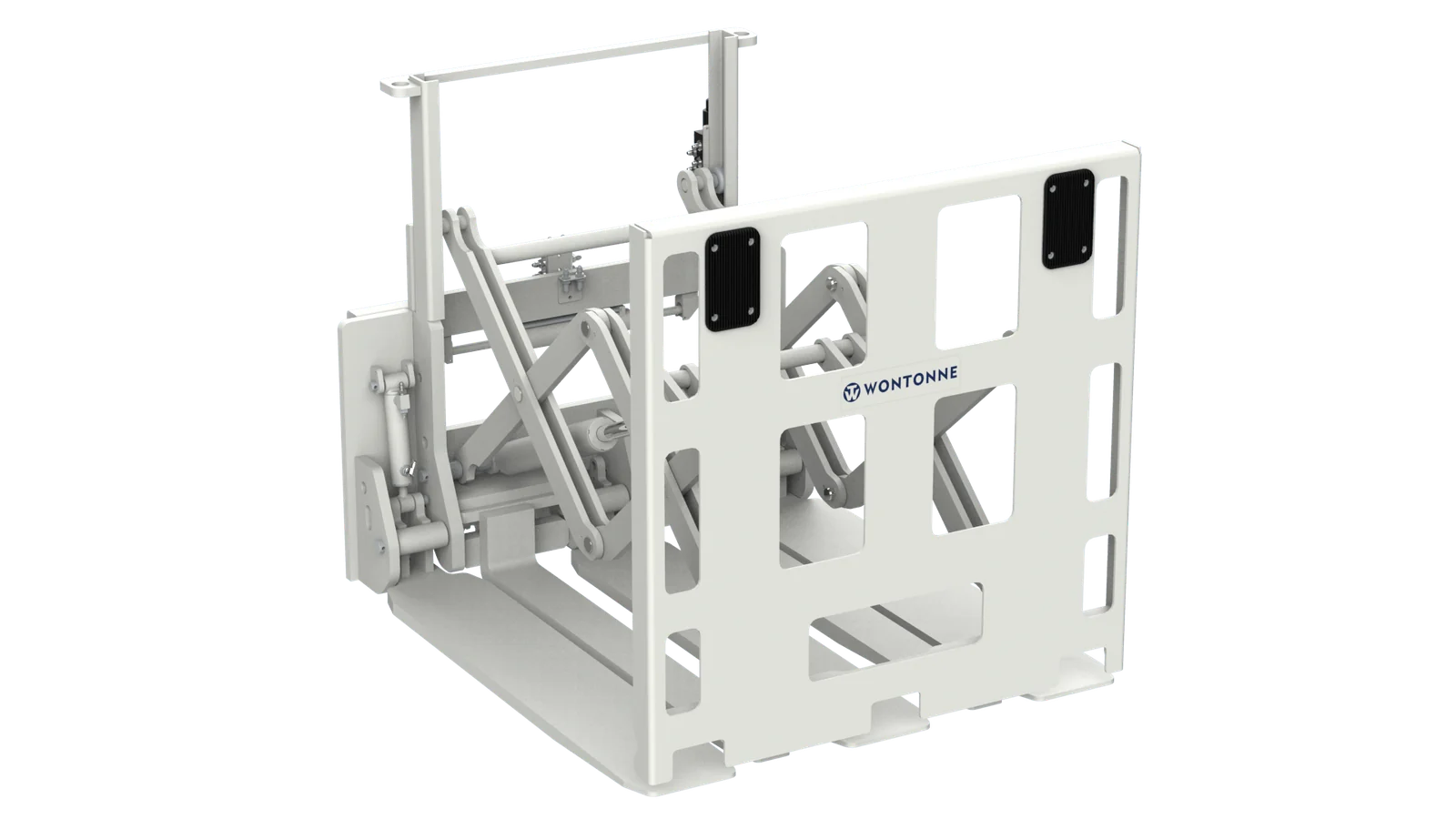

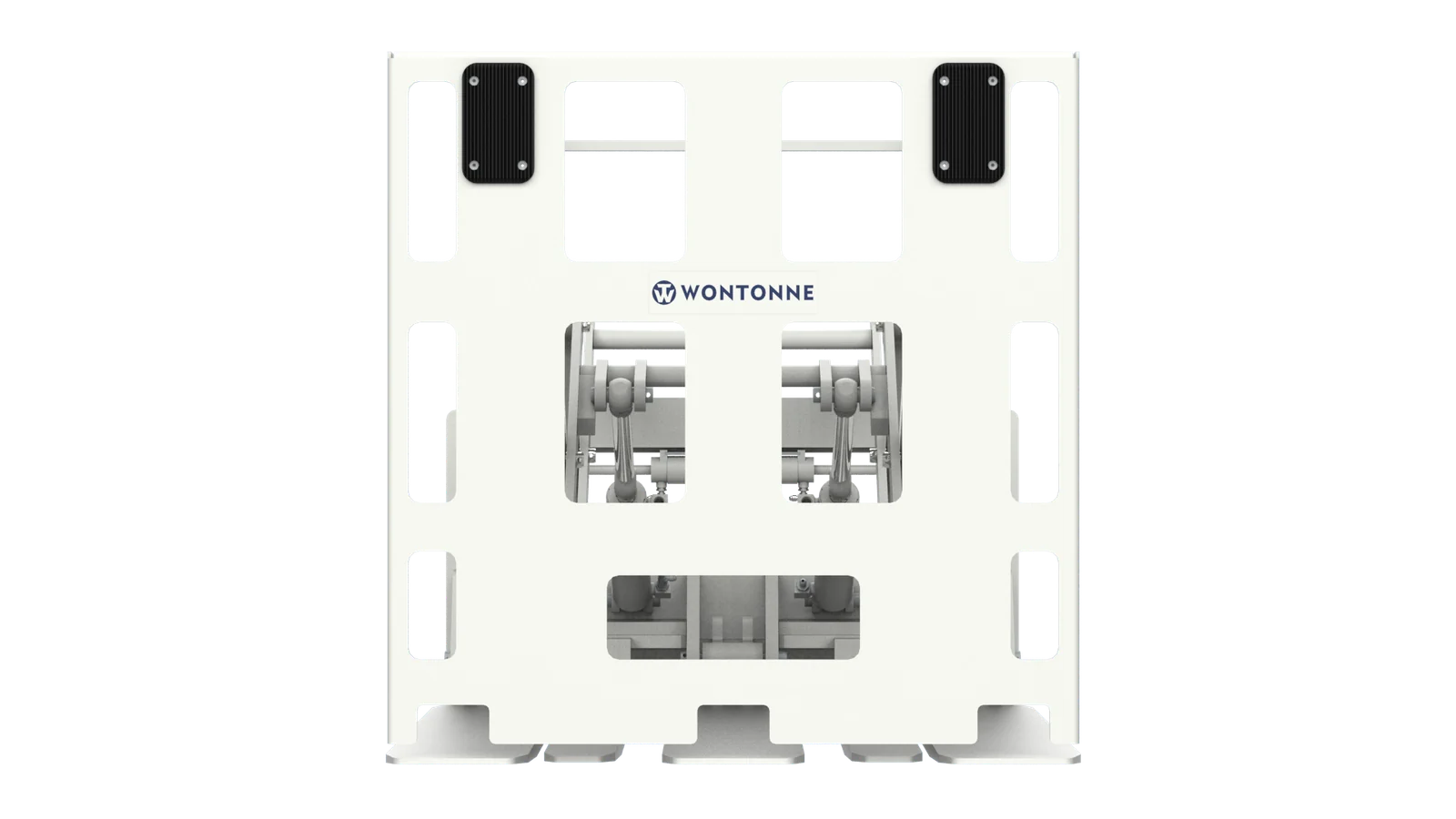

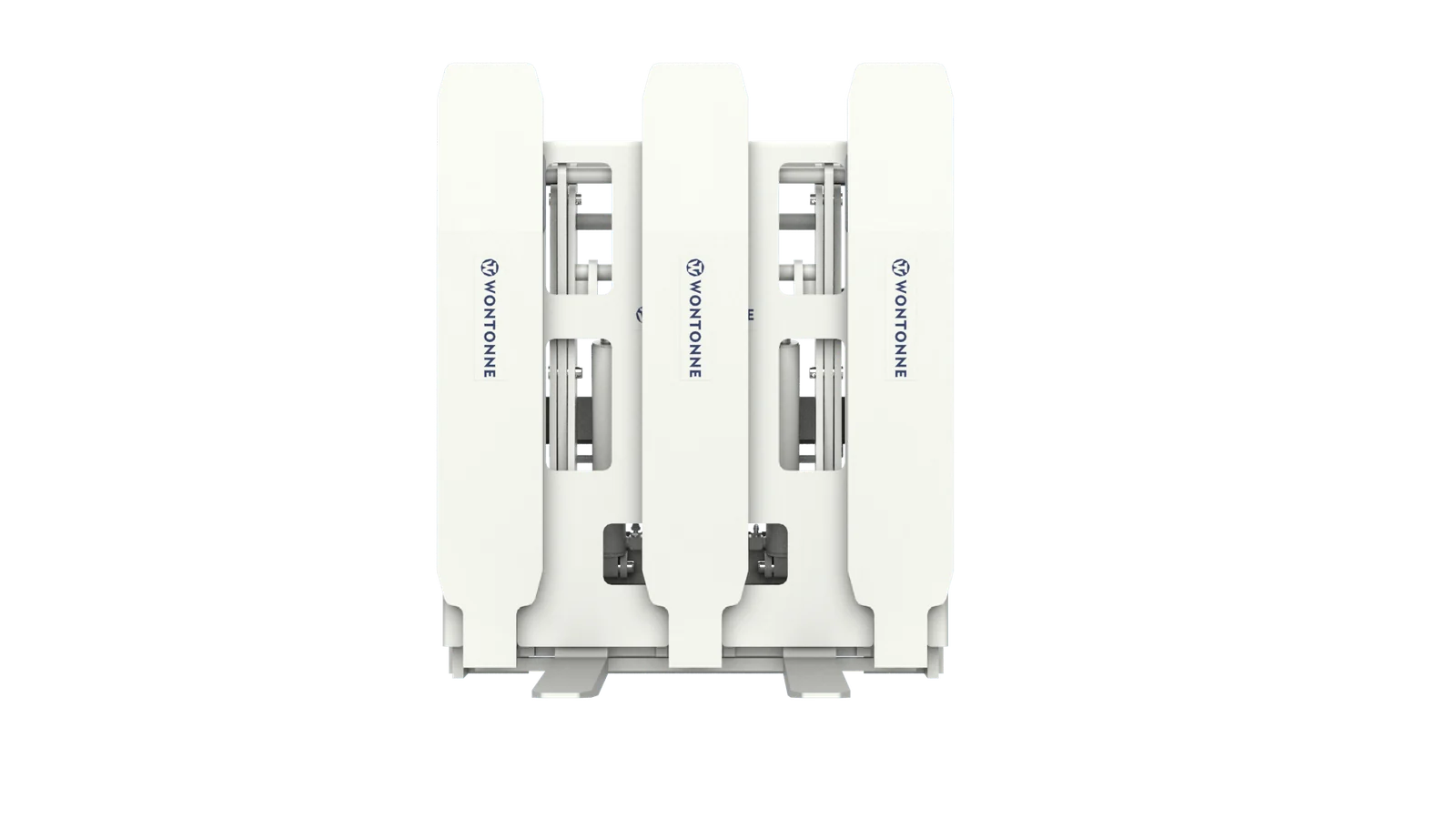

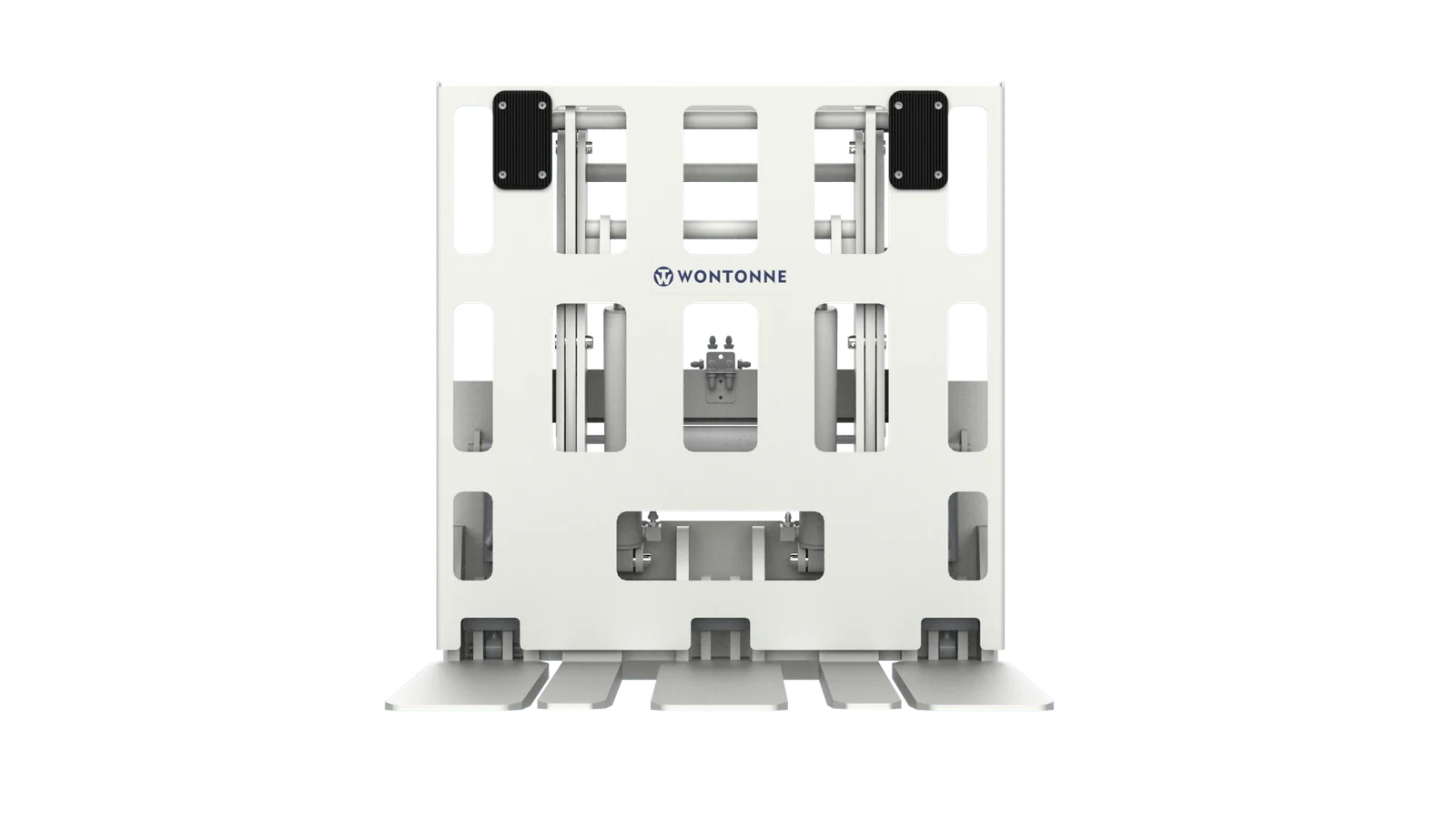

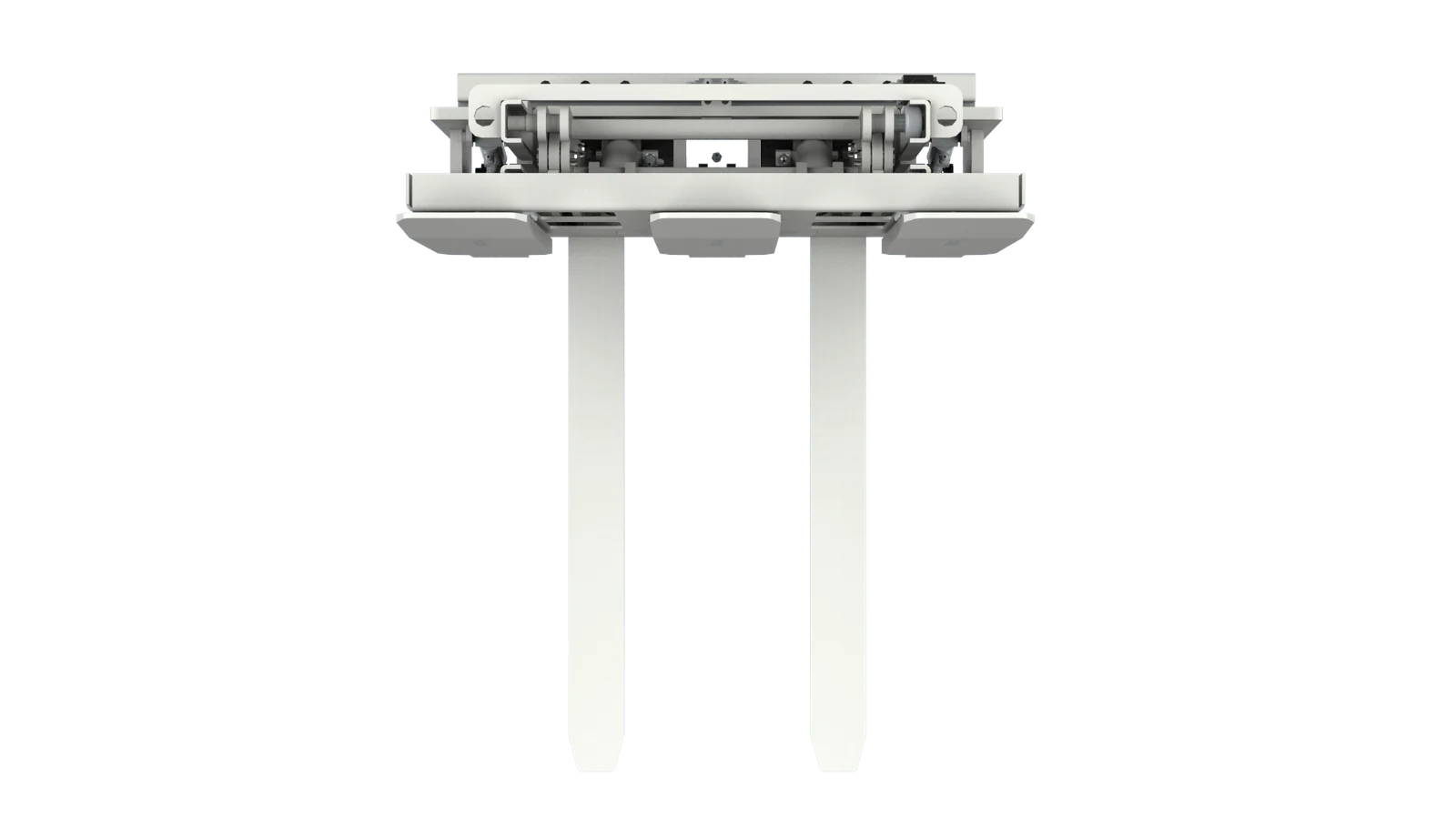

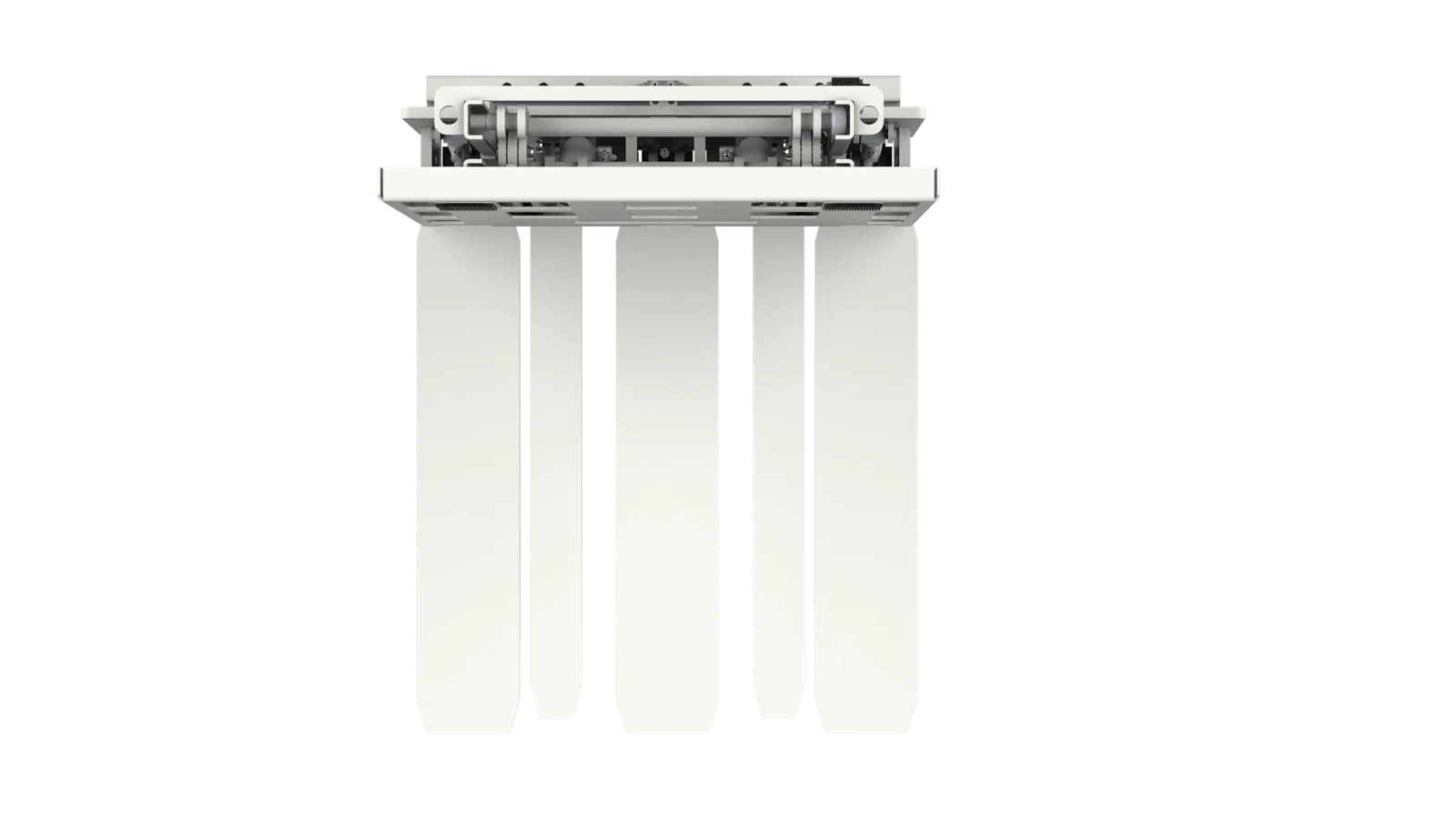

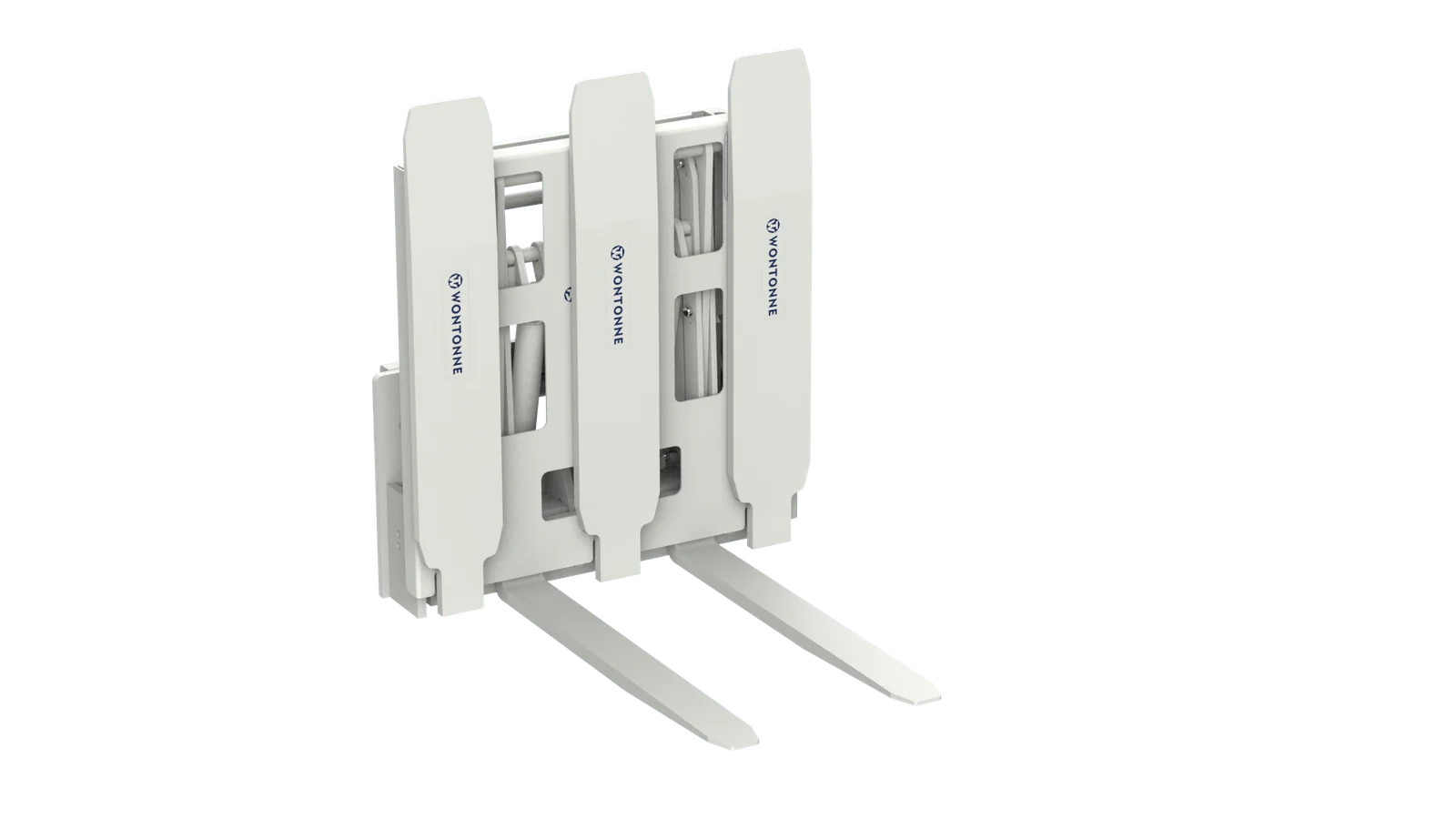

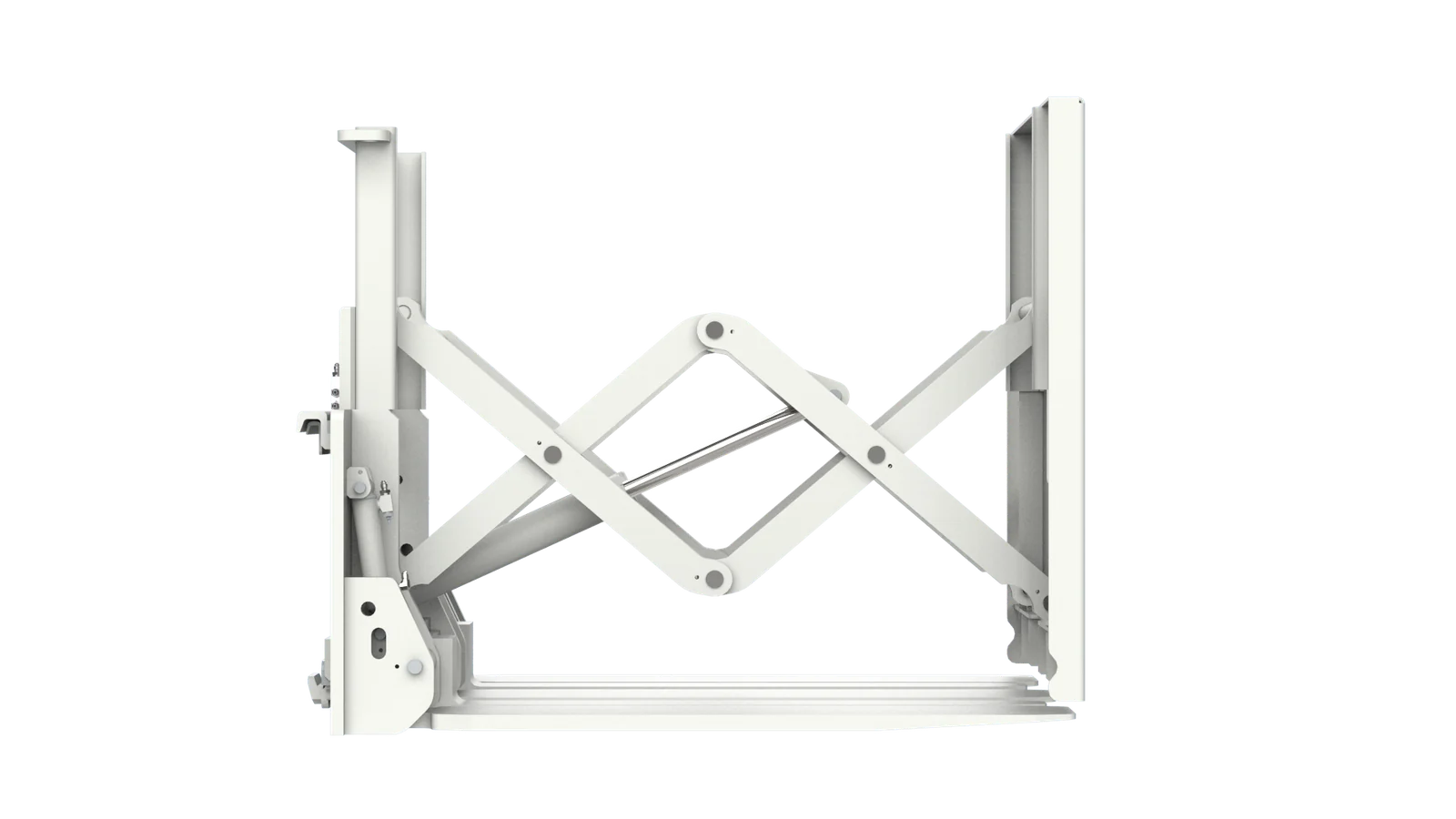

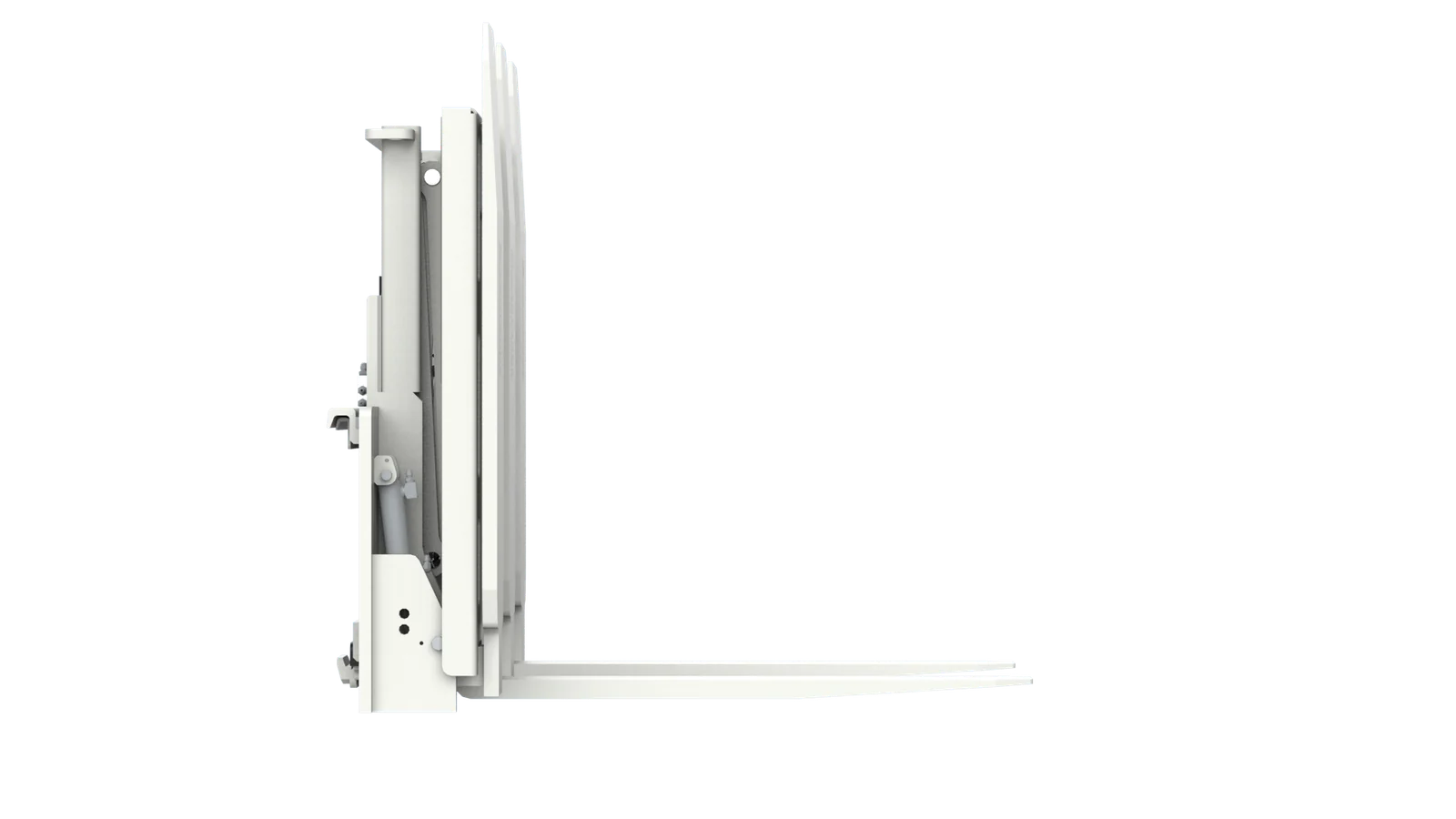

The Wontonne Multi-Purpose Push attachment handles lightweight and low-profile loads such as cardboard, packaging and pallets, pushing and placing them accurately across loading, stacking and truck operations.
The Multi-Purpose Push attachment is designed to handle lightweight and low-profile loads including cardboard, packaging and low pallets, allowing precise pushing and placement during loading, stacking and transport.
Key features & specifications:
Handles lightweight and low-profile loads efficiently
Precise pushing and placement of cardboard and packaging
Ideal for loading, stacking and truck operations
Reduces manual handling and improves throughput
Fixed arms with 2000 kg capacity
ISO 2A/3A mounting for wide forklift compatibility
Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.
Need More Info?
Get detailed specifications, pricing, and delivery estimates from our team.
| Model No | Capacity (kg) | Load Center (mm) | Mounting | Weight (kg) | Effective Thickness ET (mm) | Faceplate Size (mm) | Platen Size (mm) | Platen Outer Spacing (mm) | Fork Outer Spacing (mm) | Push Stroke (mm) | Horizontal CG HCG (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PLS30E-5225A | 2000 | 500 | ISO 2A | 827 | 270 | 1150×1150 | 240×1180 | 1170 | 640 | 1200 | 335 |
| PLS30E-5225B | 2000 | 500 | ISO 3A | 835 | 270 | 1150×1150 | 240×1180 | 1170 | 640 | 1200 | 331 |
Manufacturing Excellence
30,000 m² intelligent facility — ISO 9001 & ISO 3834 certified production lines.
