What is the capacity of the D Series Sideshifters?

The D Series Sideshifters handles 4500-9500 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the D Series Sideshifters use?

The D Series Sideshifters is available for ISO 4A / ISO 3A / ISO 5A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the D Series Sideshifters are available?

Wontonne offers 13 models of the D Series Sideshifters — including SSS70D-1190C, SSS70D-1330C, SSS70D-1532C, SSS70D-1670C, SSS70D-1700C and more — with different capacities and load centers for various applications.

What does a side shifter do?

A side shifter moves the entire fork assembly 100-150 mm left or right hydraulically, so the operator aligns forks with pallets without repositioning the truck.

What is the difference between the D, E and F series?

D series offers standard heavy-duty shifting; E series is a compact, cost-effective build for lighter fleets; F series delivers higher capacity shifting for larger trucks.

Products / Side Shifters / D Series Sideshifters

Side Shifters

D Series Sideshifters

Engineered for durability and precision, d series sideshifters delivers reliable performance in demanding material handling environments.

All Side Shifters

Product Overview

The Wontonne D Series Sideshifter is the most common forklift attachment, suitable for various occasions and work situations.

The sideshifter allows lateral movement of cargo on the pallet by 100 or 150 mm to the left and right, facilitating convenient forking and stacking. This greatly improves flexibility and handling efficiency, making it suitable for all kinds of work situations.

Key features & specifications:

Most common forklift attachment

Suitable for various work situations

Precise lateral positioning

Quick and easy goods alignment

Reduces truck maneuvering

High-strength construction

Capacity up to 6800kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

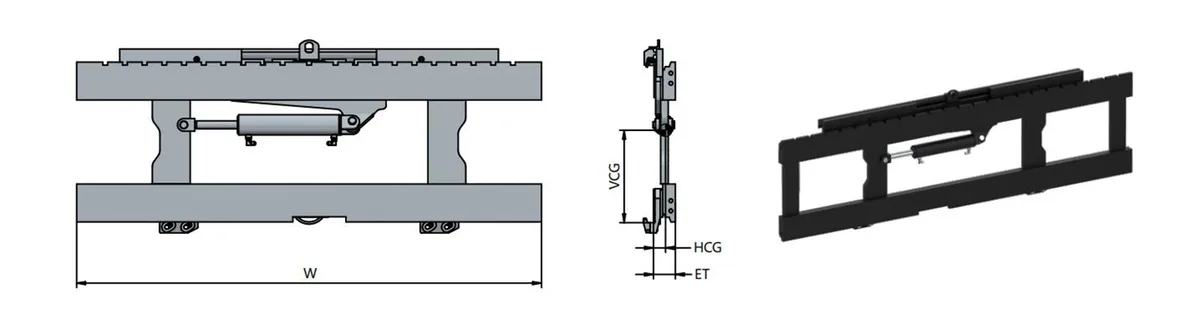

Model No	Capacity (kg)	Load Center (mm)	Mounting	Weight (kg)	Effective Thickness ET (mm)	Min Carriage Width (mm)	Carriage Width (mm)	Sideshifting Range (mm)	Vertical CG VCG (mm)	Horizontal CG HCG (mm)
SSS70D-1190C	6800	600	ISO 4A	207	87	1040	1190	±150	440	43
SSS70D-1330C	6800	600	ISO 4A	235	87	1222	1330	±150	440	43
SSS70D-1532C	6800	600	ISO 4A	275	87	1222	1532	±150	440	43
SSS70D-1670C	6800	600	ISO 4A	302	87	1372	1670	±150	440	43
SSS70D-1700C	6800	600	ISO 4A	301	87	1526	1700	±150	440	43
SSS70D-1840C	6800	600	ISO 4A	317	87	1526	1840	±150	440	43
SSS70D-2400C	6800	600	ISO 4A	380	87	2082	2400	±150	440	43
SSS45D-1200B	4500	500	ISO 3A	130	82	1040	1200	±100	300	33
SSS45D-1380B	4500	500	ISO 3A	150	82	1100	1380	±100	300	33
SSS45D-1430B	4500	500	ISO 3A	152	82	1100	1430	±100	300	33
SSS45D-1800B	4500	500	ISO 3A	220	82	1530	1800	±100	300	33
SSS80D-2400C	8000	600	ISO 4A	570	112	2082	2400	±150	376	60
SSS100D-2200C	9500	600	ISO 5A	630	114	1800	2200	±150	420	64
