What is the capacity of the E Series Sideshifters?

The E Series Sideshifters handles 4500-5000 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the E Series Sideshifters use?

The E Series Sideshifters is available for ISO 3A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the E Series Sideshifters are available?

Wontonne offers 5 models of the E Series Sideshifters — including SSS45E-1260B, SSS45E-1600B, SSS45E-1800B, SSS50E-1200B, SSS50E-1350B — with different capacities and load centers for various applications.

What does a side shifter do?

A side shifter moves the entire fork assembly 100-150 mm left or right hydraulically, so the operator aligns forks with pallets without repositioning the truck.

What is the difference between the D, E and F series?

D series offers standard heavy-duty shifting; E series is a compact, cost-effective build for lighter fleets; F series delivers higher capacity shifting for larger trucks.

Products / Side Shifters / E Series Sideshifters

Side Shifters

E Series Sideshifters

Engineered for durability and precision, e series sideshifters delivers reliable performance in demanding material handling environments.

All Side Shifters

Product Overview

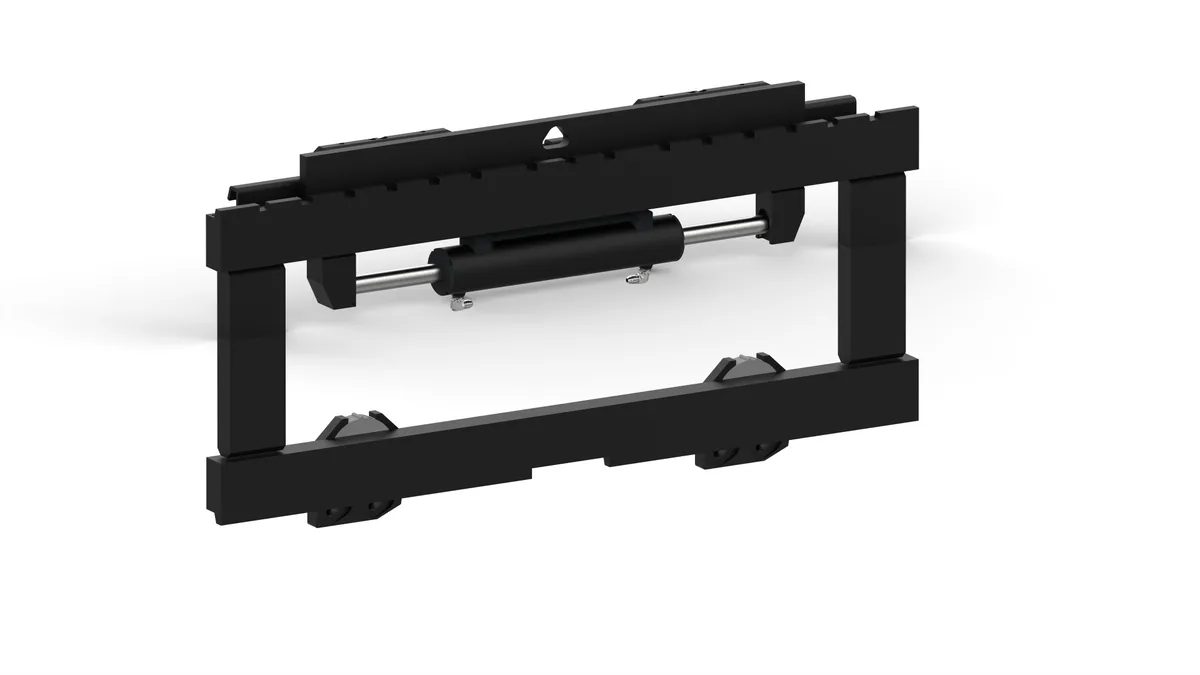

The Wontonne E Series Sideshifter facilitates the insertion and stacking of goods, greatly improving forklift flexibility and handling efficiency.

The sideshifter allows lateral movement of cargo on the pallet by 100 or 150 mm to the left and right, facilitating convenient forking and stacking. This greatly improves flexibility and handling efficiency, making it suitable for all kinds of work situations.

Key features & specifications:

Facilitates goods insertion

Improves stacking efficiency

Enhances forklift flexibility

Reduces operating time

For various pallet operations

High-quality construction

Capacity up to 5000kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

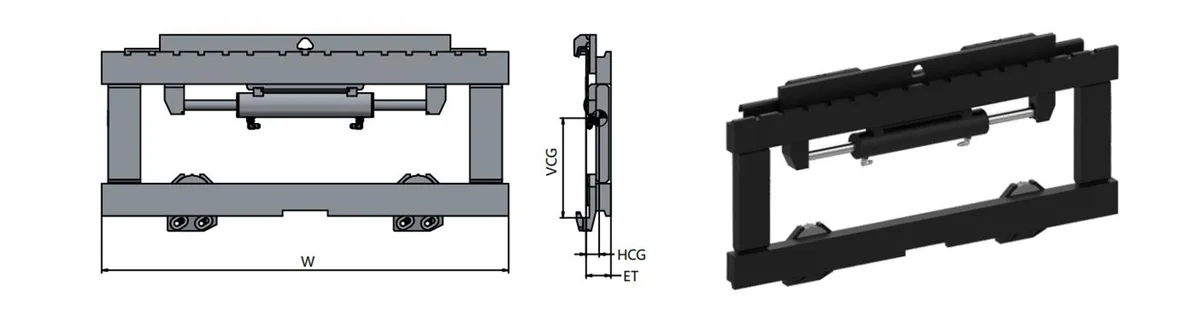

Model No	Capacity (kg)	Load Center (mm)	Mounting	Weight (kg)	Contact Pads
SSS45E-1260B	4500	600	ISO 3A	157	75
SSS45E-1600B	4500	600	ISO 3A	179	75
SSS45E-1800B	4500	600	ISO 3A	207	75
SSS50E-1200B	5000	600	ISO 3A	150	75
SSS50E-1350B	5000	600	ISO 3A	159	75
