What is the capacity of the 33G Paper Roll Clamp (Positioned Short Arm)?

The 33G Paper Roll Clamp (Positioned Short Arm) handles 2500-3500 kg depending on model configuration. Contact our engineering team to confirm capacity at your specific load center.

Which mounting class does the 33G Paper Roll Clamp (Positioned Short Arm) use?

The 33G Paper Roll Clamp (Positioned Short Arm) is available for ISO 3A / ISO 4A mounting classes, fitting standard forklift hook-type carriage bars.

How many models of the 33G Paper Roll Clamp (Positioned Short Arm) are available?

Wontonne offers 10 models of the 33G Paper Roll Clamp (Positioned Short Arm) — including RCP33G-001B, RCP33G-001C, RCP33G-003B, RCP33G-003C, RCP33G-005B and more — with different capacities and load centers for various applications.

What capacity of paper roll clamp do I need?

Wontonne offers paper roll clamps from 1000 kg to 4100 kg capacity. The 12G series suits tissue and small rolls (1000-1200 kg), while the 33G and 35F series handle large board rolls up to 4100 kg. Choose by your heaviest roll weight plus a safety margin.

What is the difference between positioned and fixed short-arm paper roll clamps?

Positioned short-arm clamps (20G-P, 24G-P, 30G-P, 33G-P, 35F-P) let the short arm reposition hydraulically to match roll diameter, ideal for multi-diameter roll handling. Fixed short-arm clamps (12G, 15F, 20G, 24G, 30G, 33G, 35F) offer a simpler, more economical design for consistent roll sizes.

Products / Paper Roll Clamps / 33G Paper Roll Clamp (Positioned Short Arm)

Paper Roll Clamps

33G Paper Roll Clamp (Positioned Short Arm)

Engineered for durability and precision, 33g paper roll clamp (positioned short arm) delivers reliable performance in demanding material handling environments.

All Paper Roll Clamps

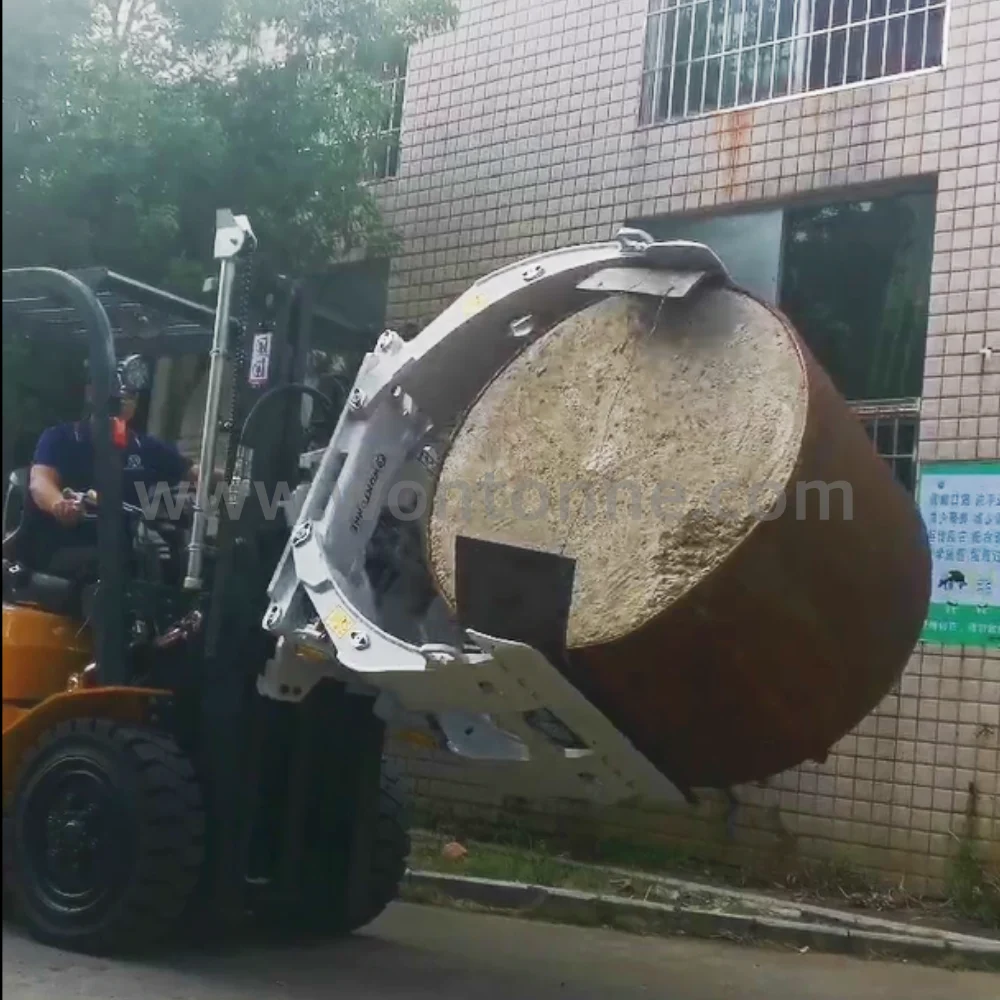

33G Paper Roll Clamp (Positioned Short Arm) - 1

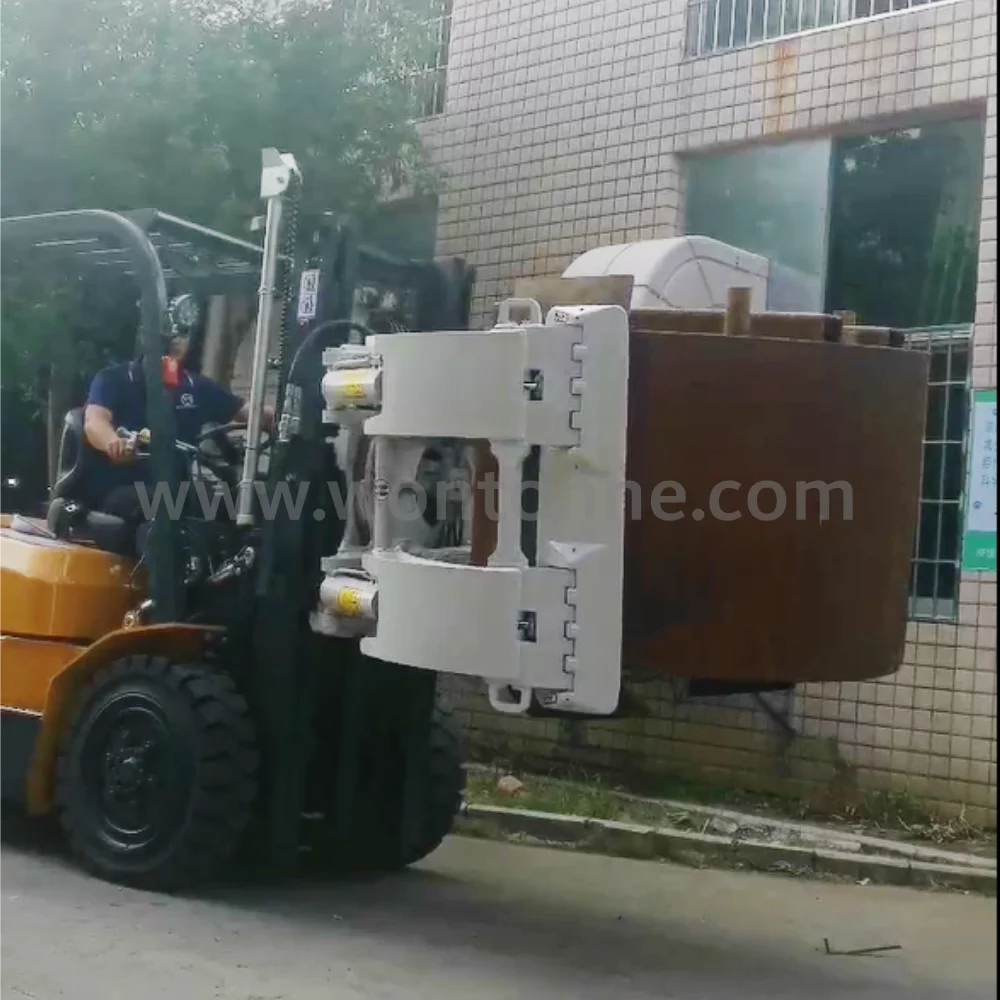

33G Paper Roll Clamp (Positioned Short Arm) - 2

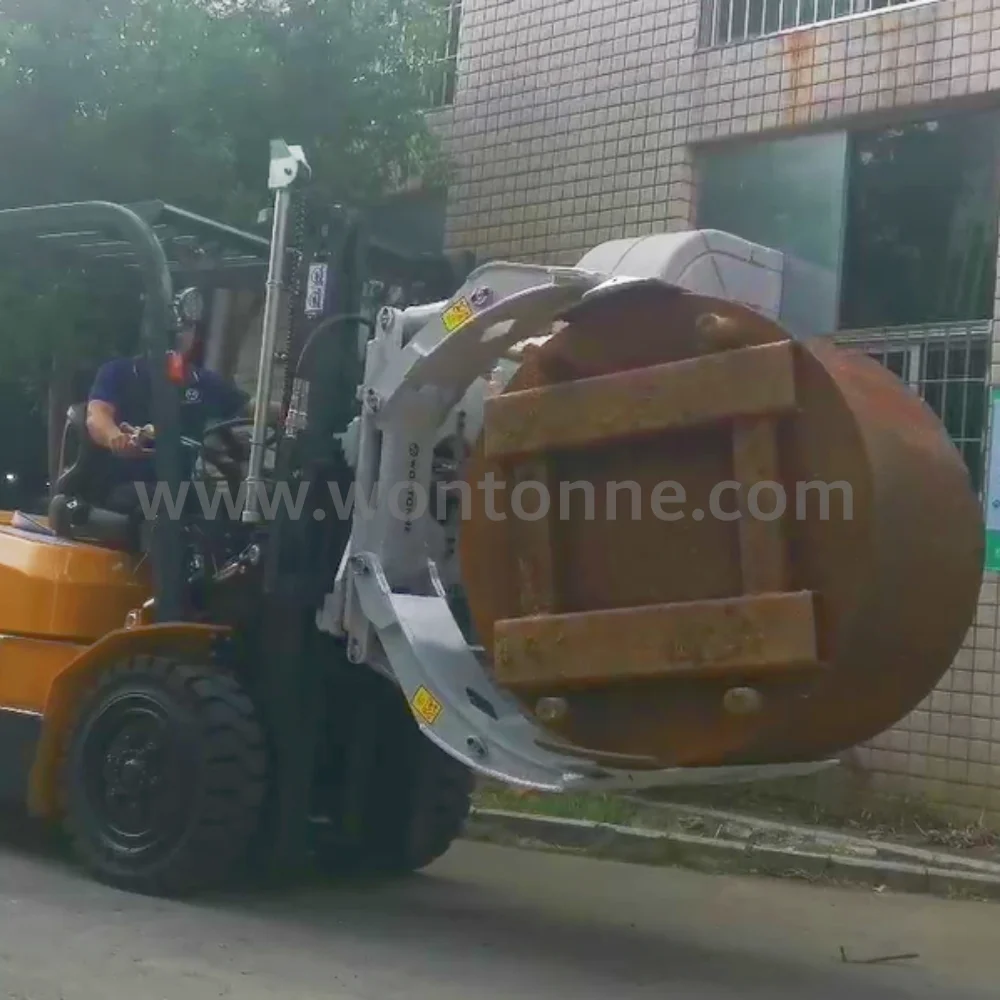

33G Paper Roll Clamp (Positioned Short Arm) - 3

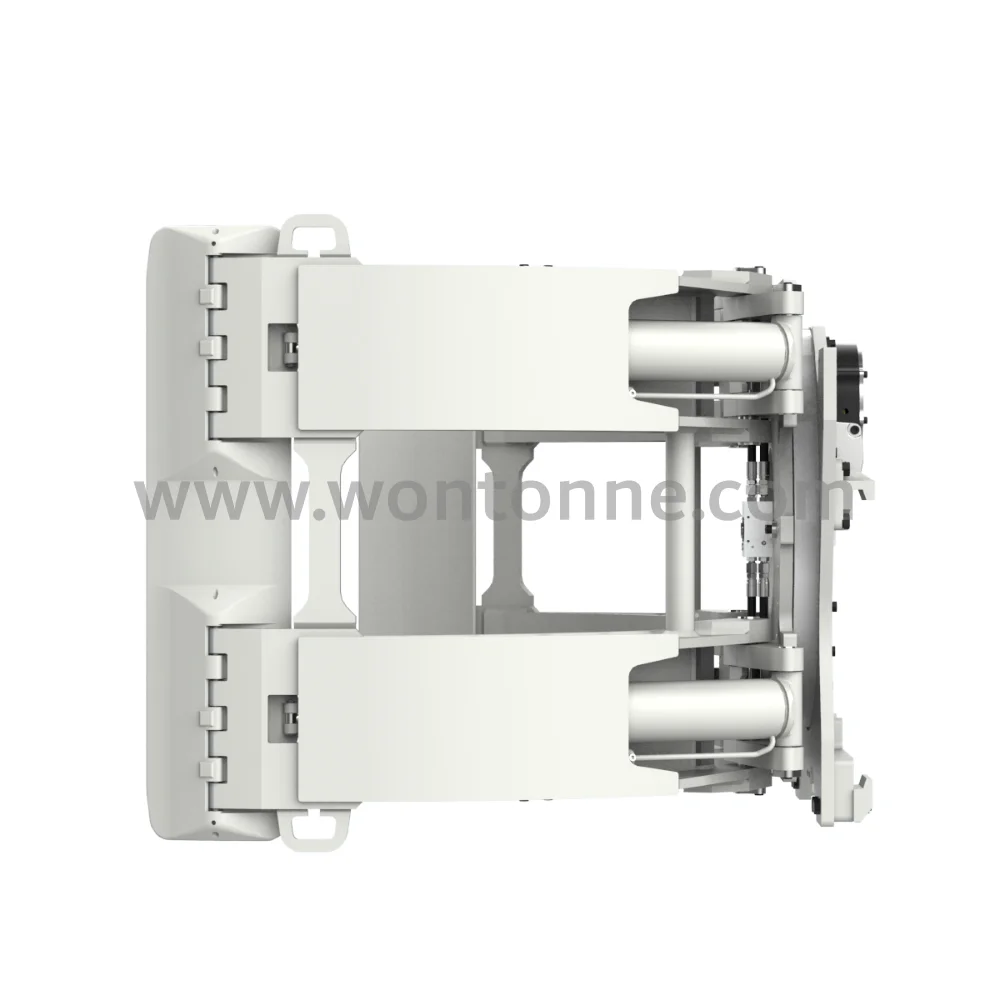

33G Paper Roll Clamp (Positioned Short Arm) - 4

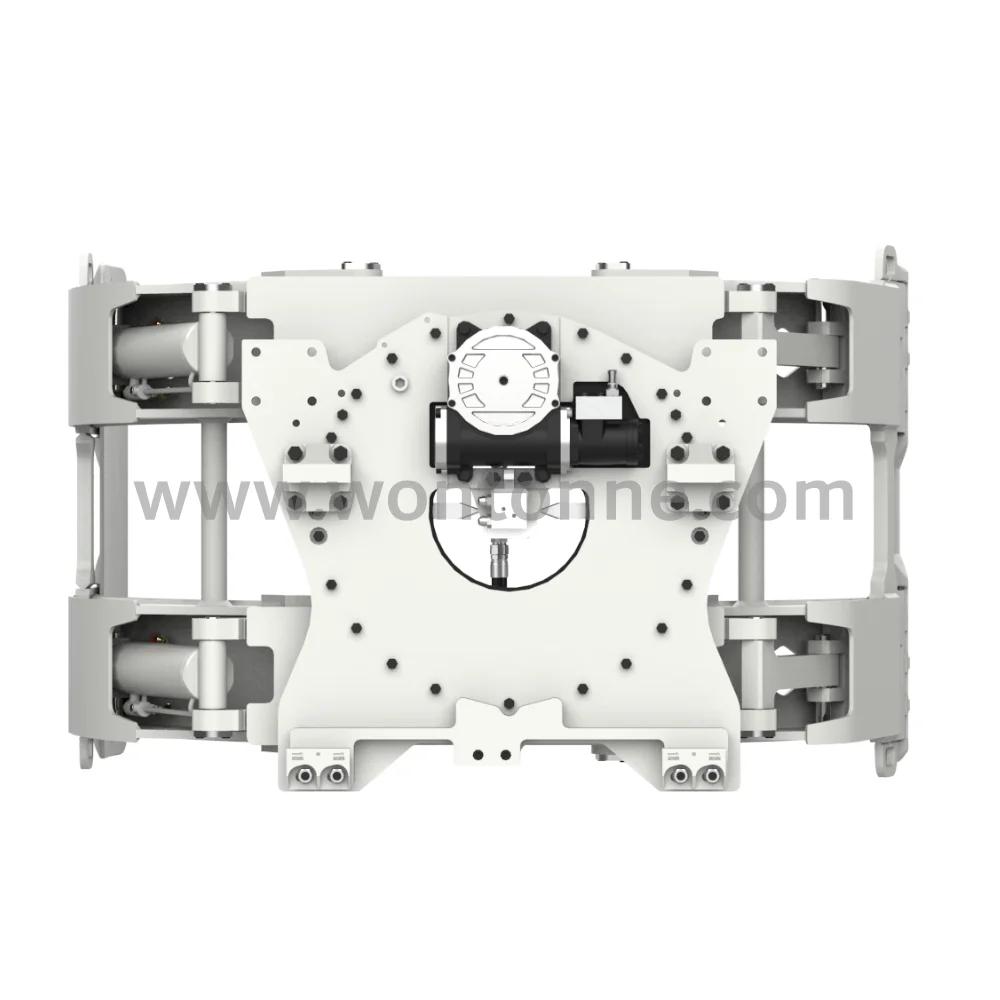

33G Paper Roll Clamp (Positioned Short Arm) - 5

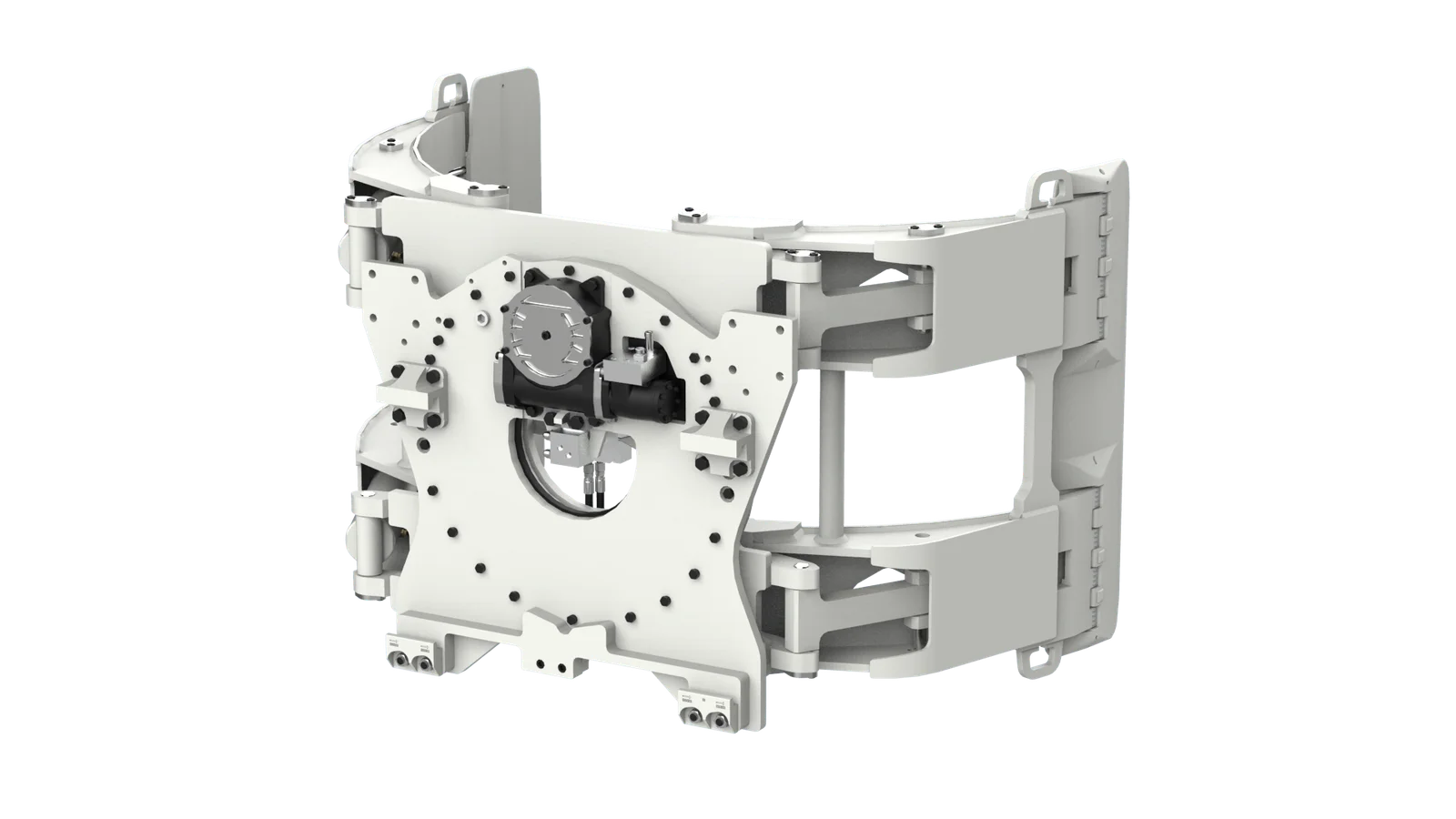

33G Paper Roll Clamp (Positioned Short Arm) - 6

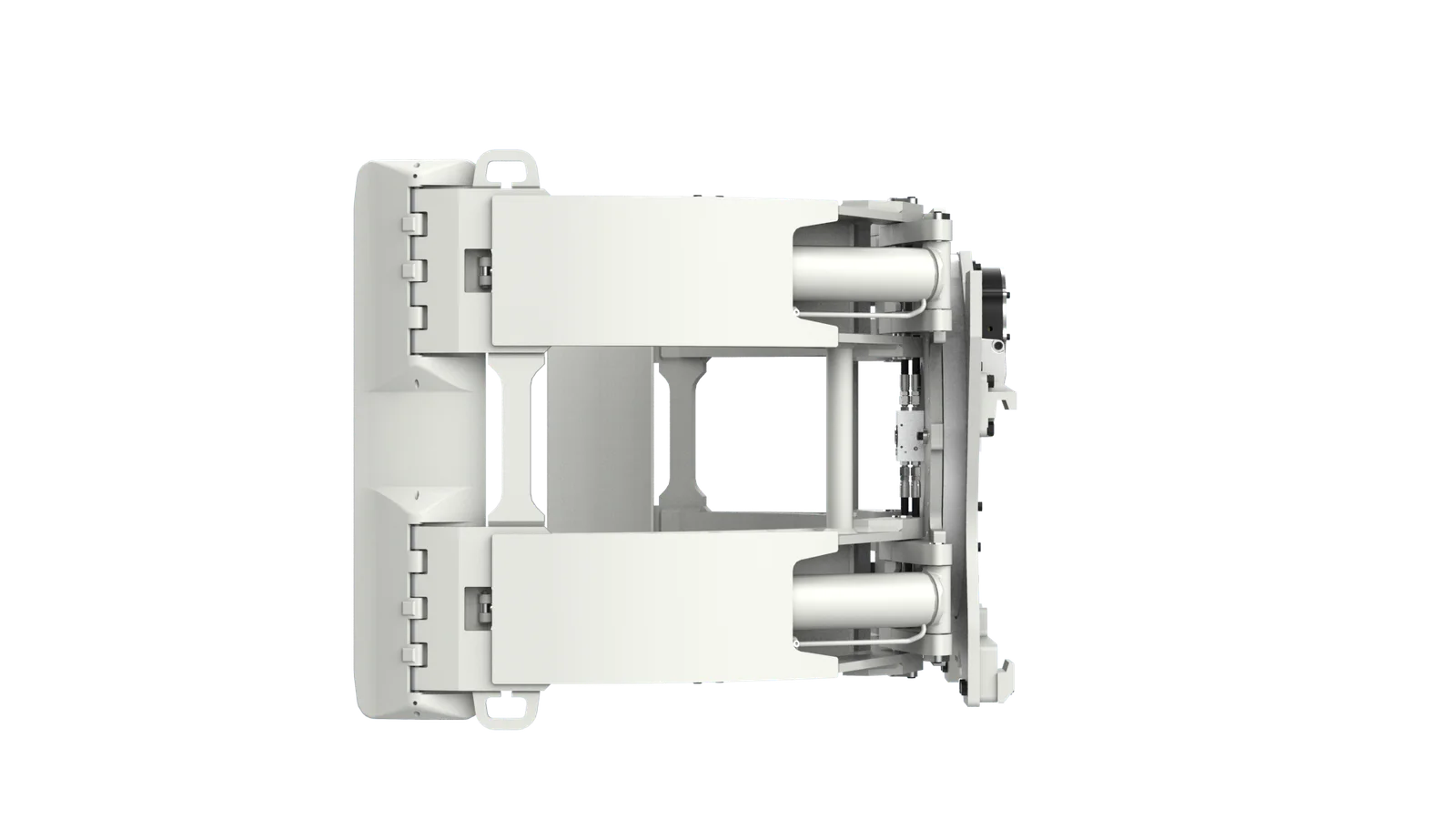

33G Paper Roll Clamp (Positioned Short Arm) - 7

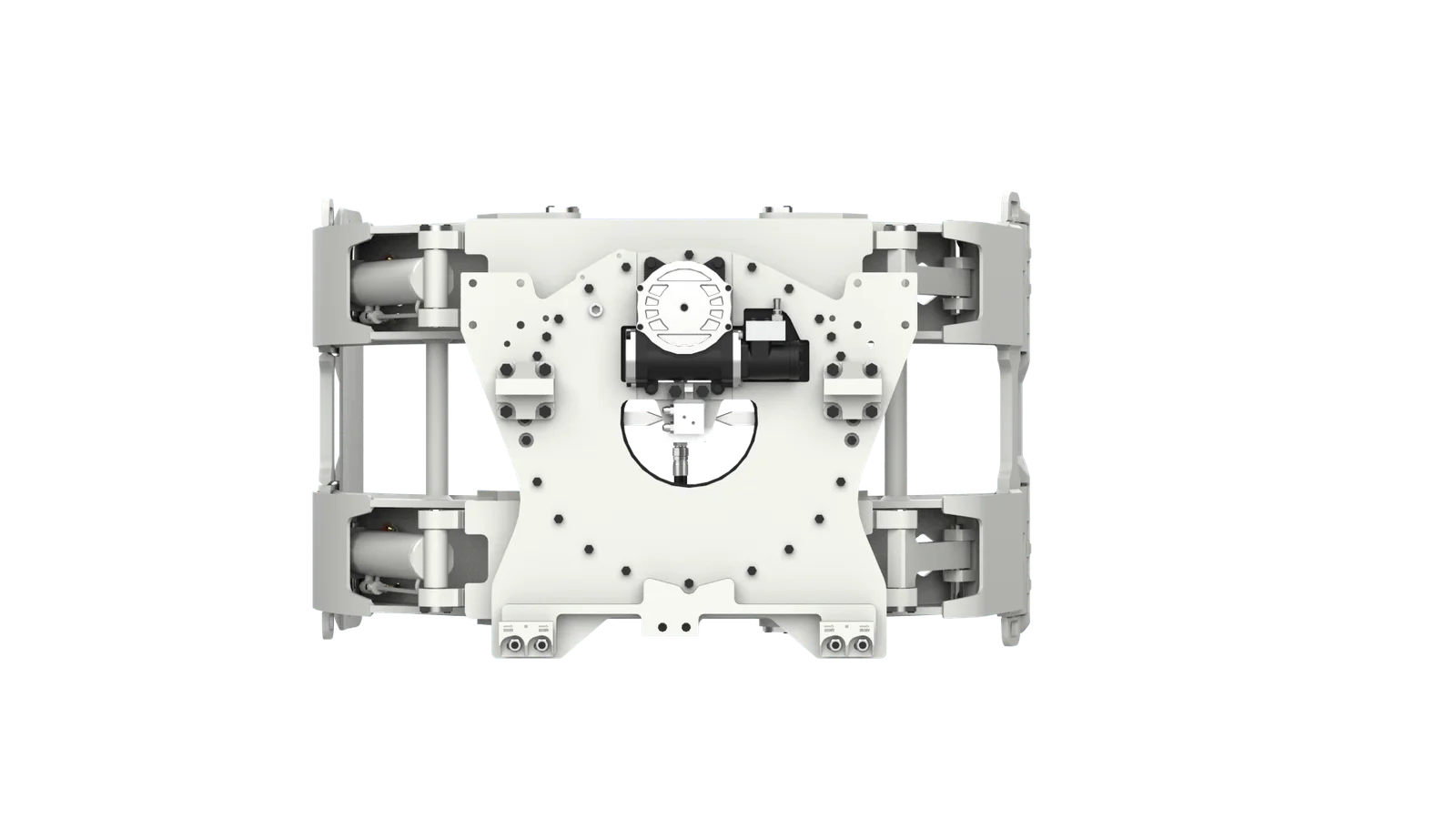

33G Paper Roll Clamp (Positioned Short Arm) - 8

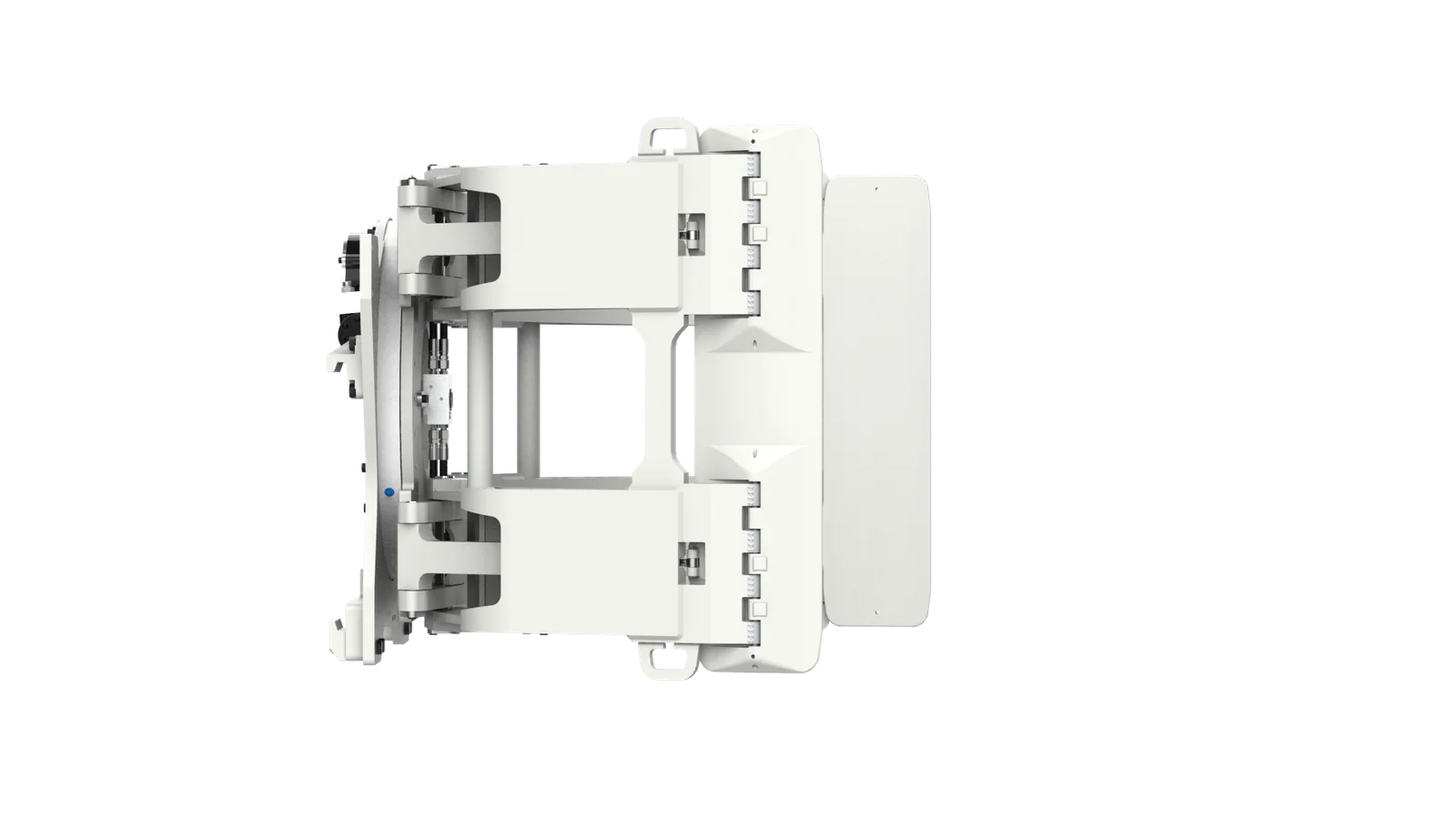

33G Paper Roll Clamp (Positioned Short Arm) - 9

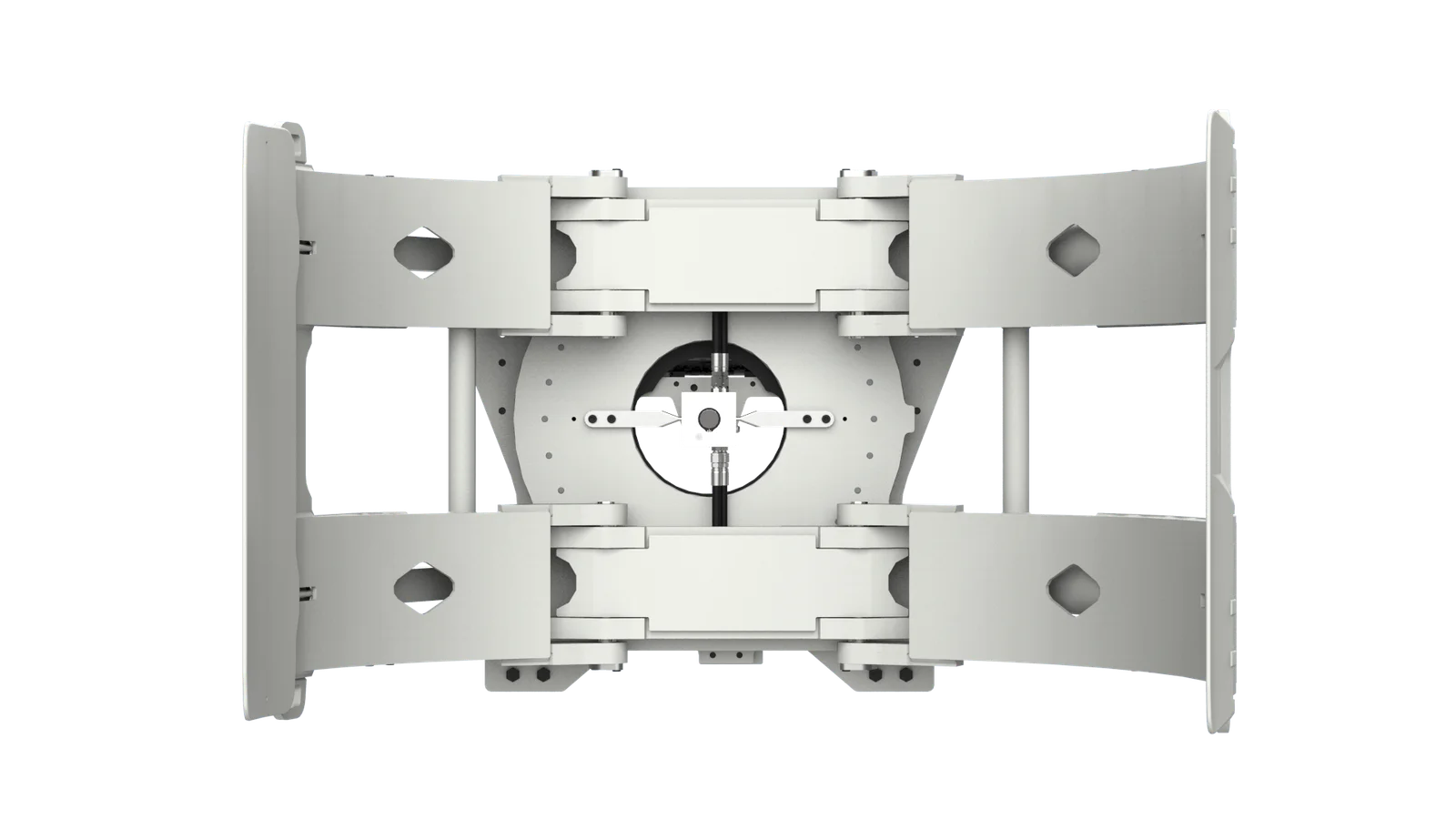

33G Paper Roll Clamp (Positioned Short Arm) - 10

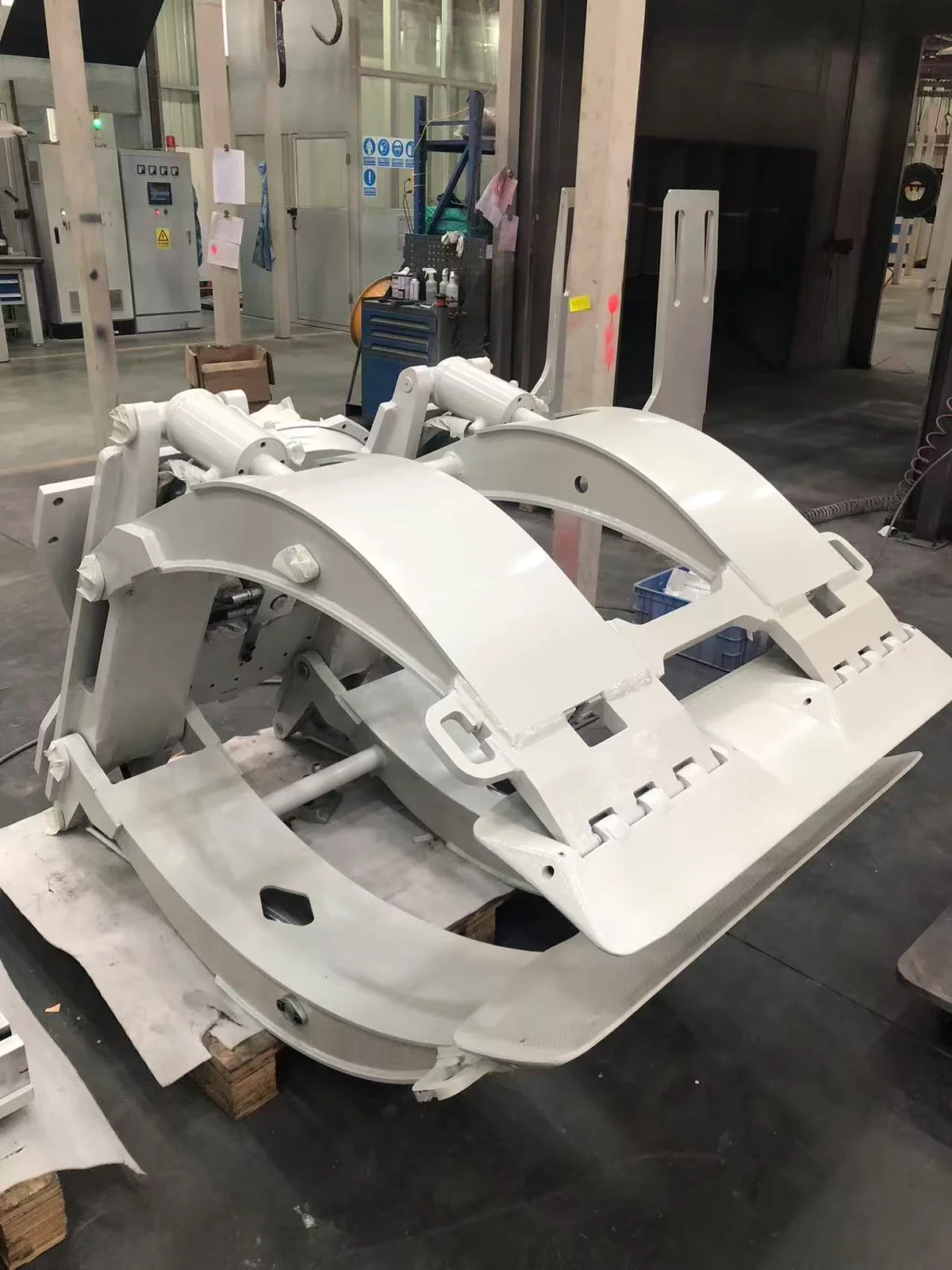

33G Paper Roll Clamp (Positioned Short Arm) - 11

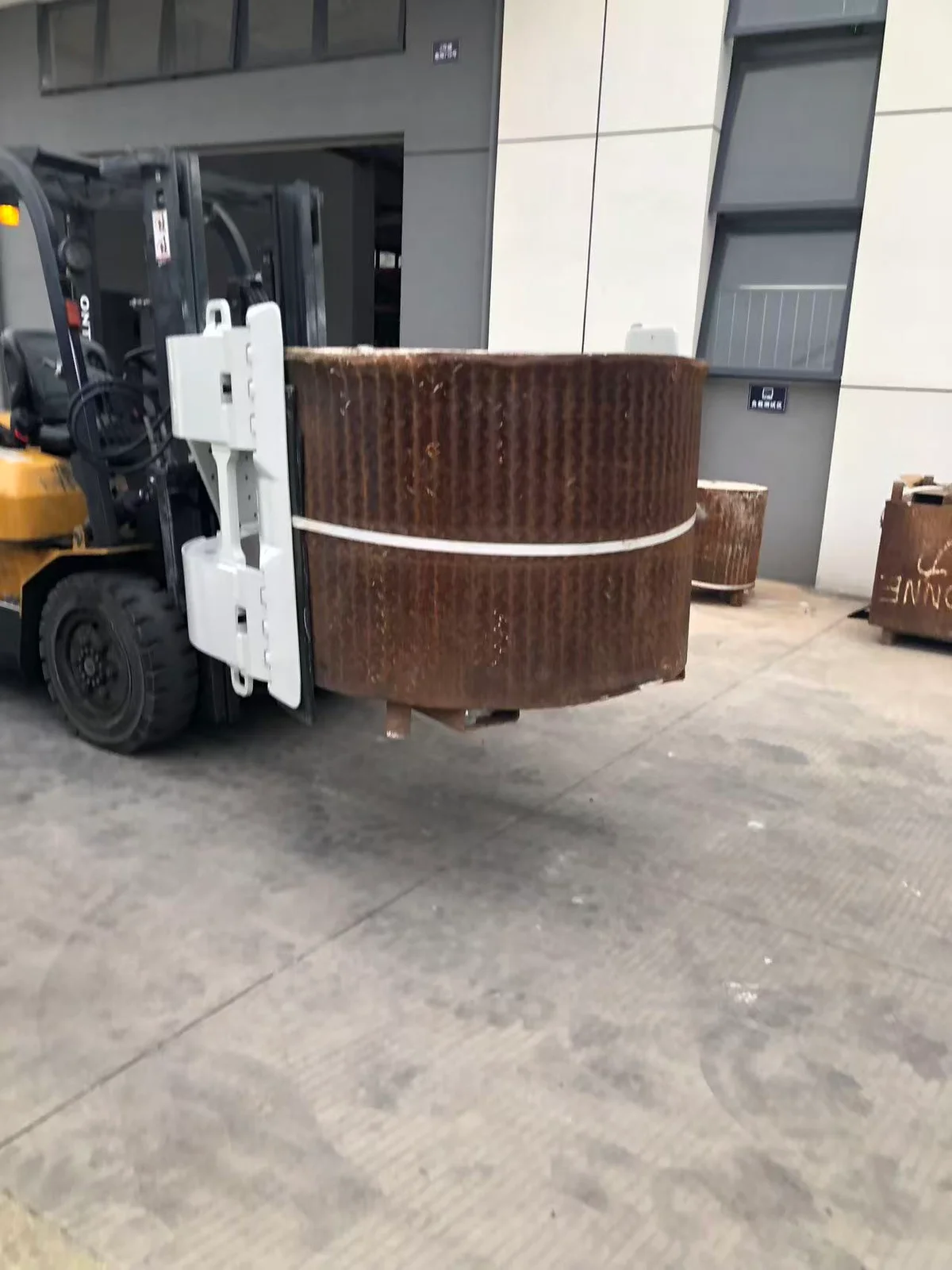

33G Paper Roll Clamp (Positioned Short Arm) - 12

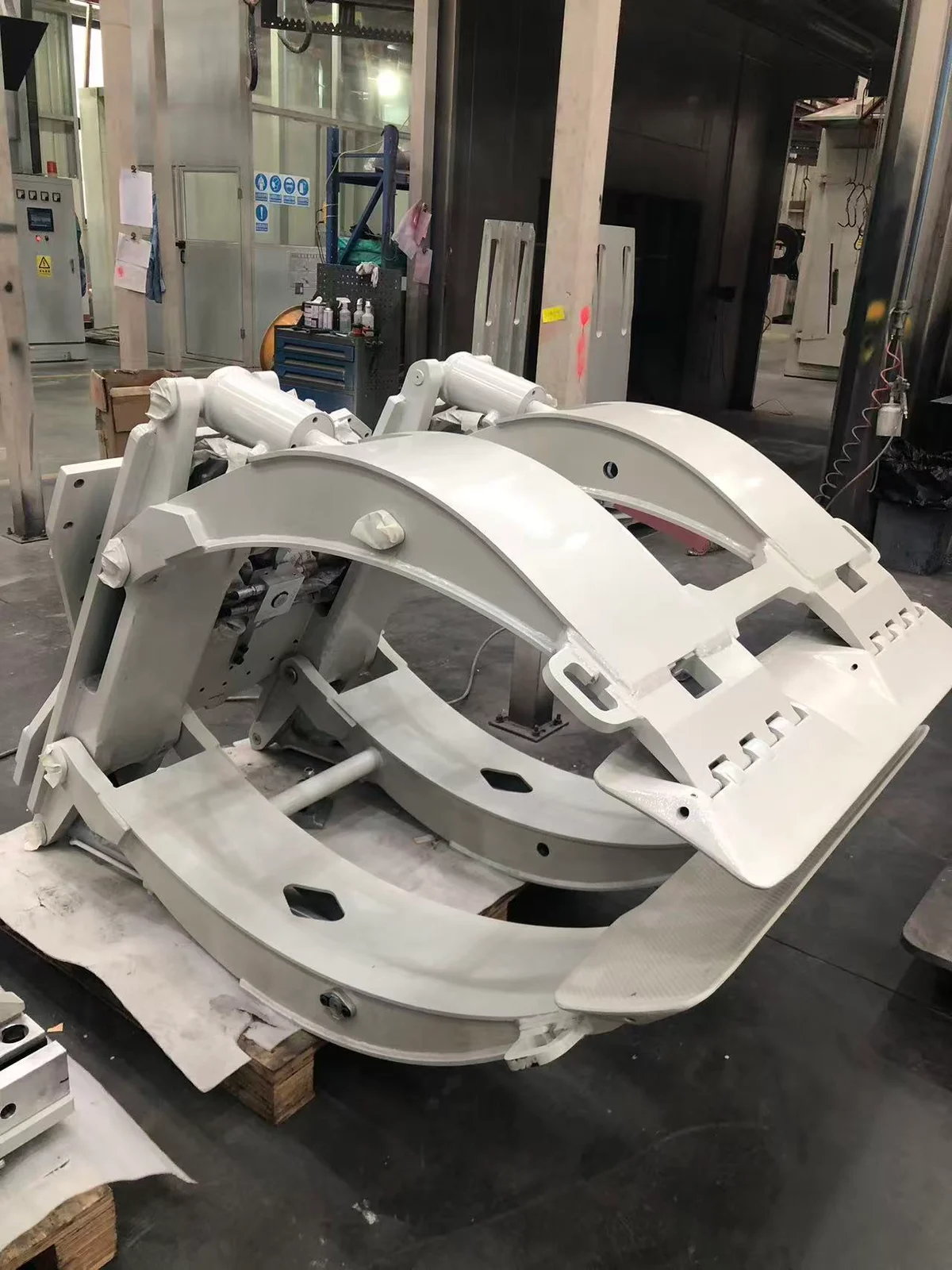

33G Paper Roll Clamp (Positioned Short Arm) - 13

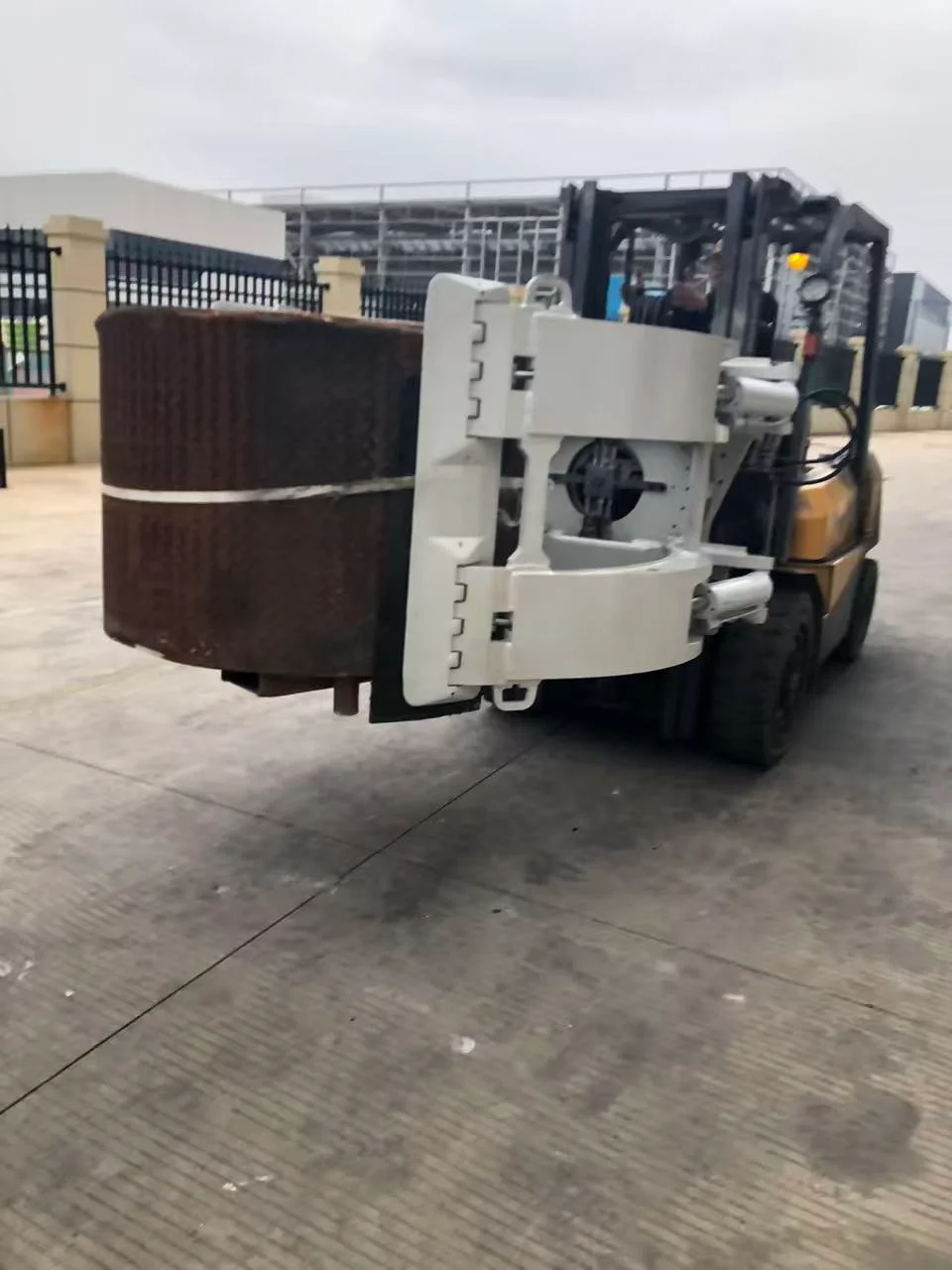

33G Paper Roll Clamp (Positioned Short Arm) - 14

33G Paper Roll Clamp (Positioned Short Arm) - 15

Product Overview

The Wontonne 33G Paper Roll Clamp (Positioned Short Arm) handles paper rolls of every size, from lightweight options to rugged clamps for demanding operations.

Paper roll clamps are designed to handle rolls of any size, weight, or paper type. With options ranging from compact to rugged, they effectively reduce roll damage during handling.

Key features & specifications:

Handles rolls regardless of size

Lightweight to rugged configurations

Positioned short arm for roll widths

Delivers perfect rolls every time

For demanding paper operations

Capacity up to 3500kg

Compatible with major forklift brands. Wontonne provides comprehensive after-sales service including technical support and spare parts.

Need More Info?

Get detailed specifications, pricing, and delivery estimates from our team.

Model No	Capacity (kg)	Load Center (mm)	Opening Range (mm)	Mounting	Weight (kg)	Contact Pads
RCP33G-001B	3500	650	200-1300	ISO 3A	774	210
RCP33G-001C	3500	650	200-1300	ISO 4A	850	210
RCP33G-003B	3300	700	200-1400	ISO 3A	789	210
RCP33G-003C	3300	700	200-1400	ISO 4A	866	256
RCP33G-005B	3000	760	200-1525	ISO 3A	817	210
RCP33G-005C	3000	760	200-1525	ISO 4A	894	256
RCP33G-007B	2850	800	200-1600	ISO 3A	822	210
RCP33G-007C	2850	800	200-1600	ISO 4A	899	256
RCP33G-008B	2500	915	200-1830	ISO 3A	886	210
RCP33G-008C	2500	915	200-1830	ISO 4A	963	256
